*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112938 |

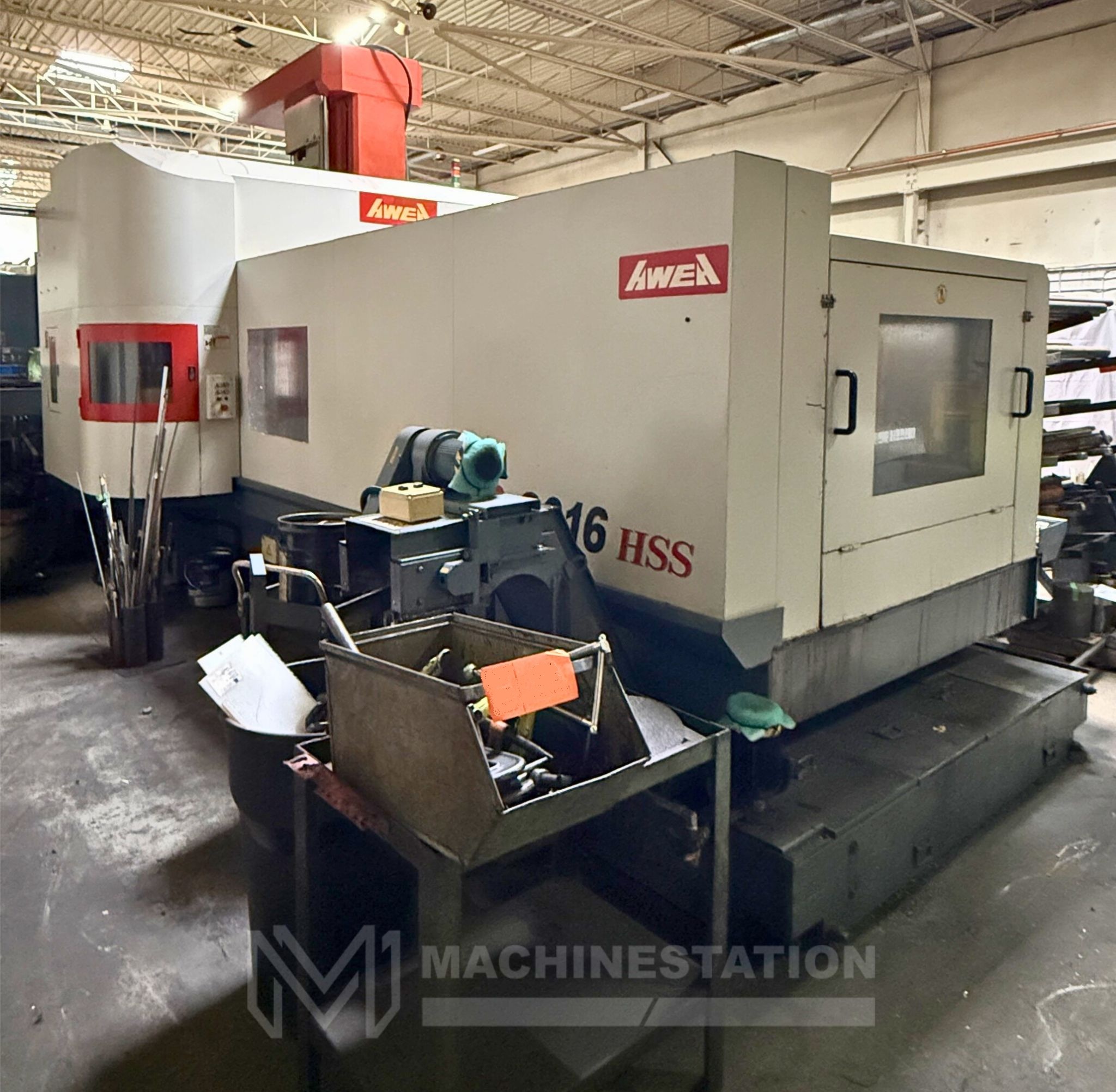

| Make: | Awea |
| Model: | SP-3016HSS |
| Condition: | Used – Good |
| Equipped With: |
|---|

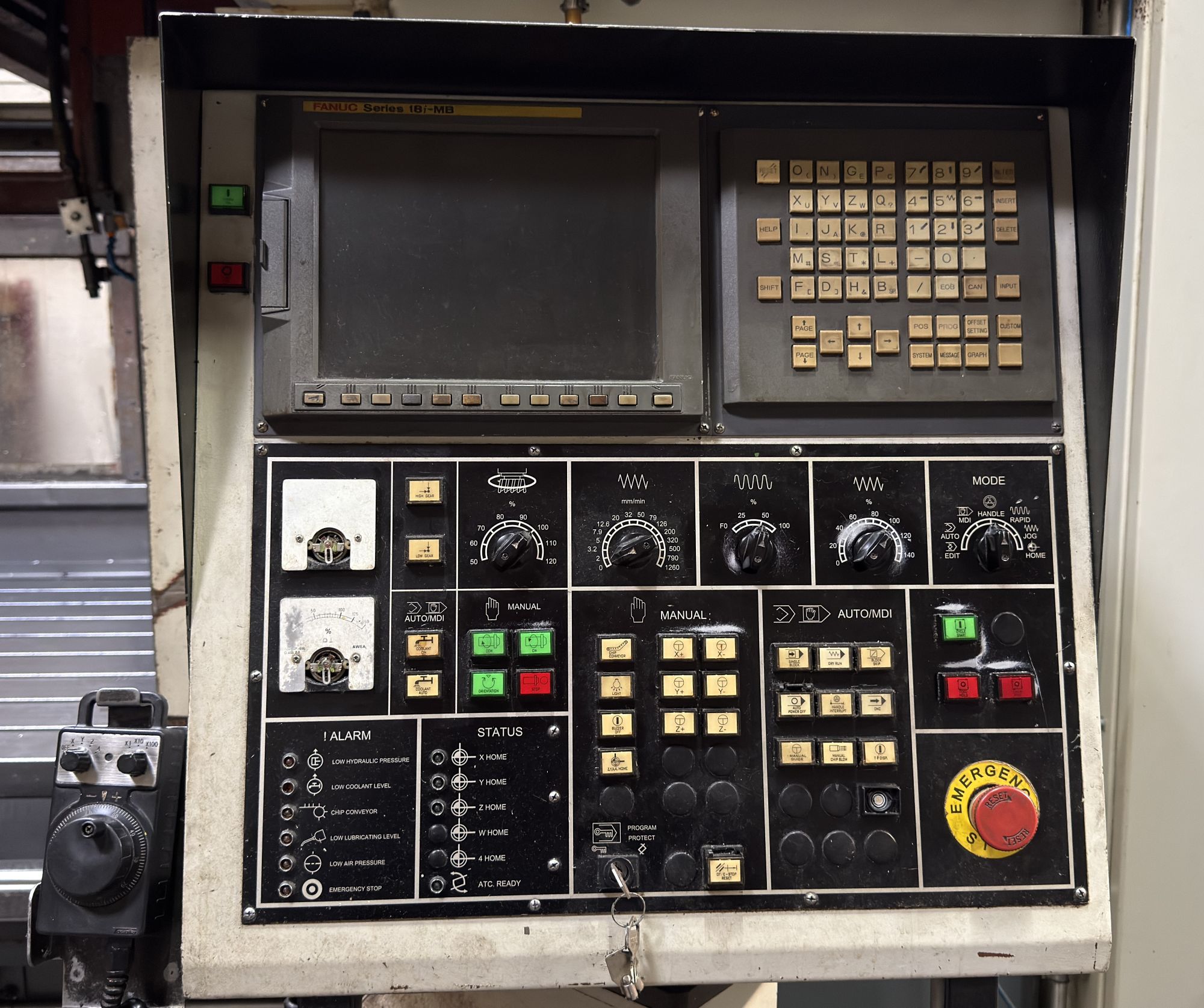

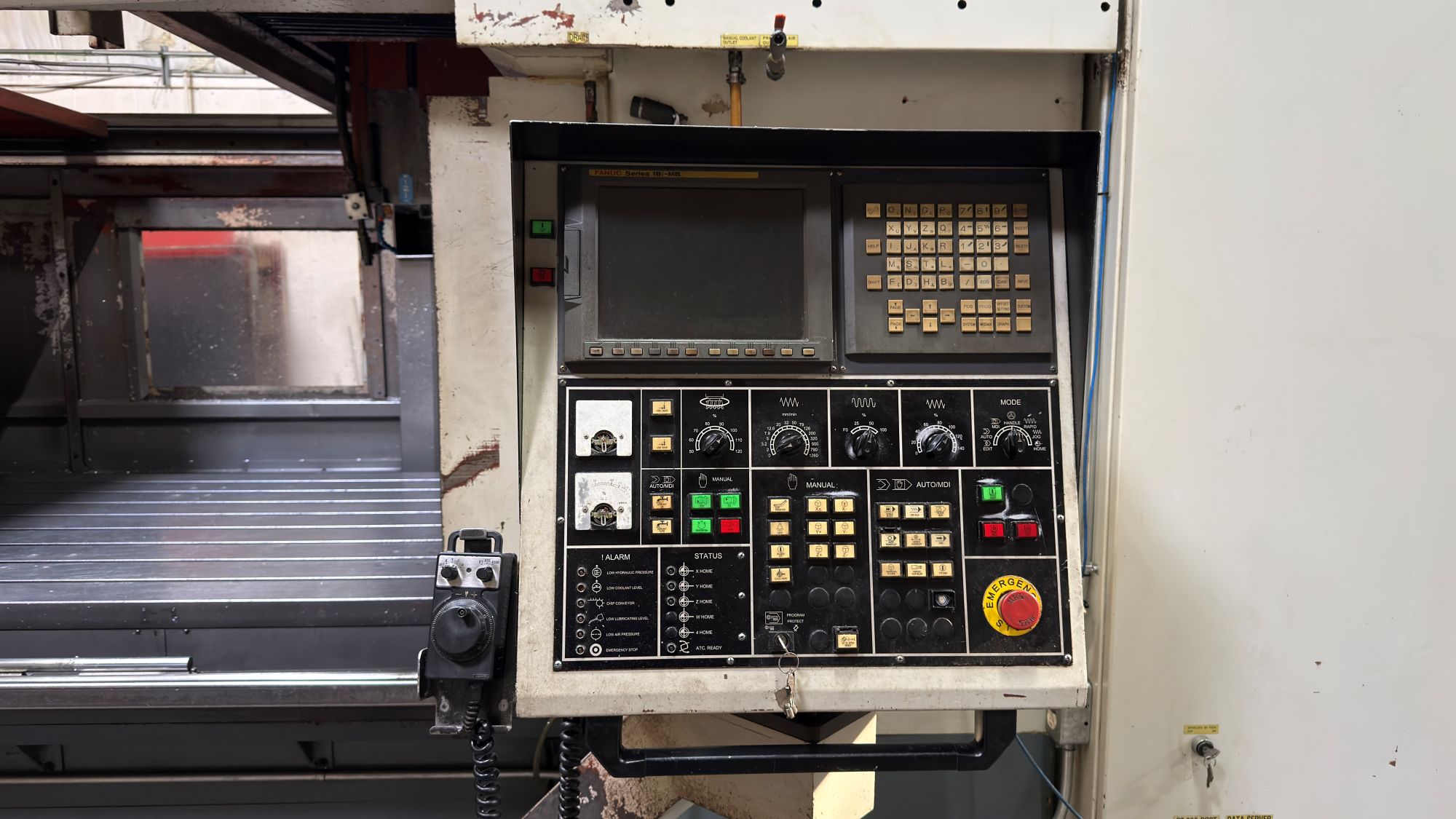

| Fanuc 18iMB CNC Control |

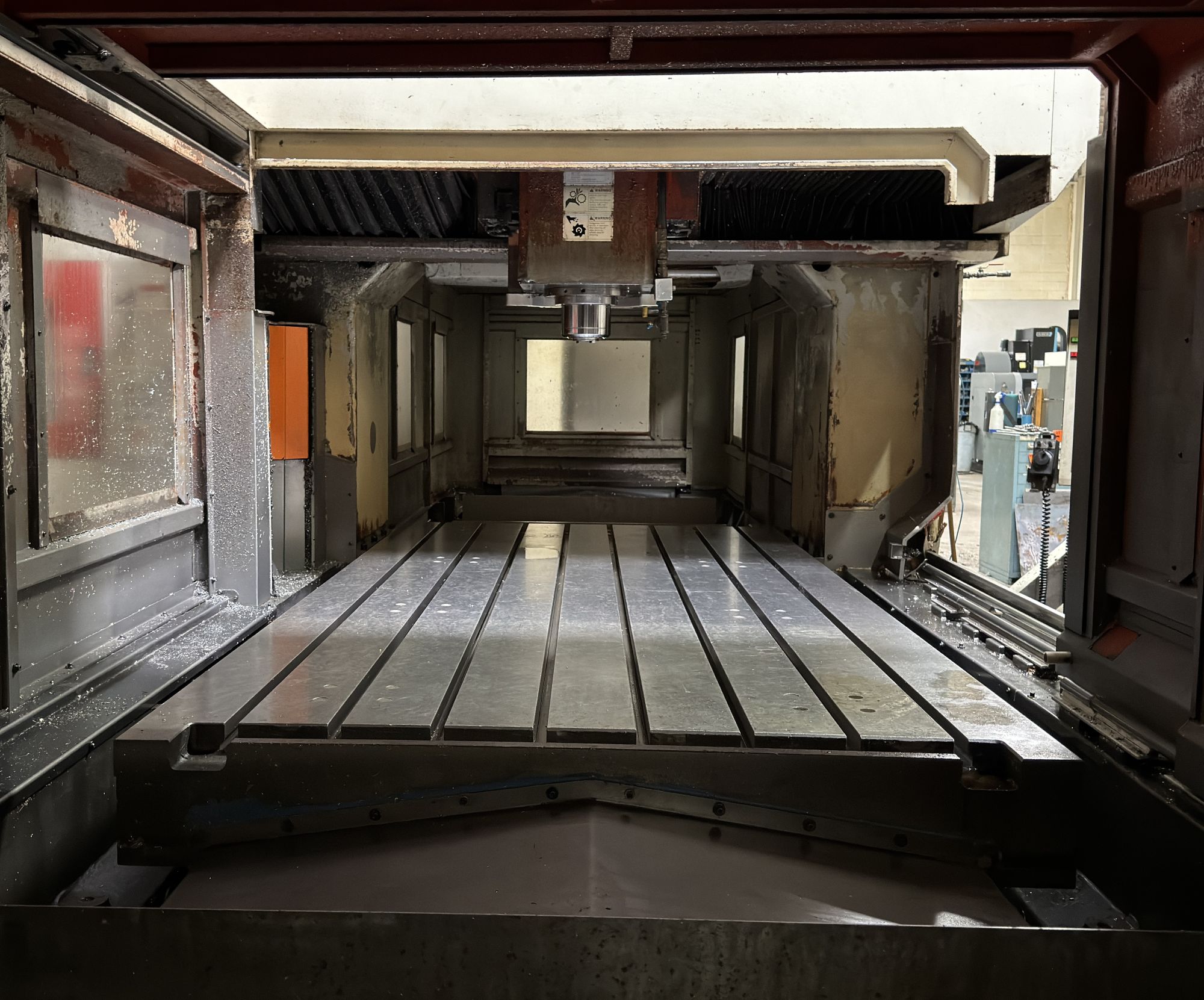

| 128.3″ X 59.0″ Table |
| 19 Station Side Mount Tool Changer |
| CAT-40 Spindle Taper |
| 15,000 RPM High Speed Spindle |
| Powerful 30 HP high torque spindle motor |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Chiller Unit |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 120.5″ |
| Y-Axis: 63.0″ |
| Z-Axis: 30.0″ |
| Distance Between Columns: 66.9″ |
| Spindle Nose to Table (Min.- Max.): 6.3″- 36.2″ |
| Rapid Travers Rates X,Y-Axis: 787 inch per minute |
| Rapid Travers Rates Z-Axis: 591 inch per minute |
| Cutting Feedrate: .04″ – 591″ inch per minute |

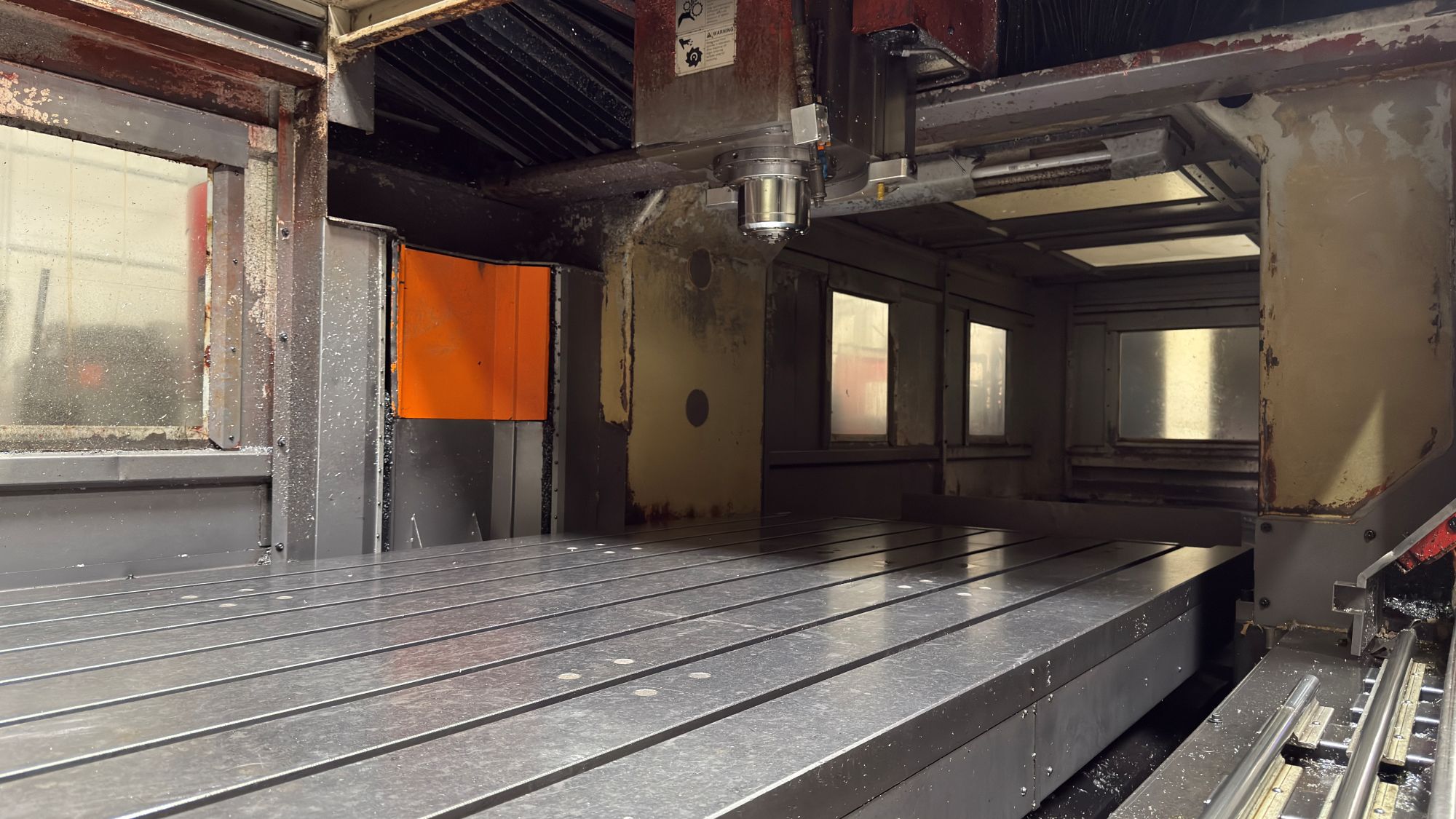

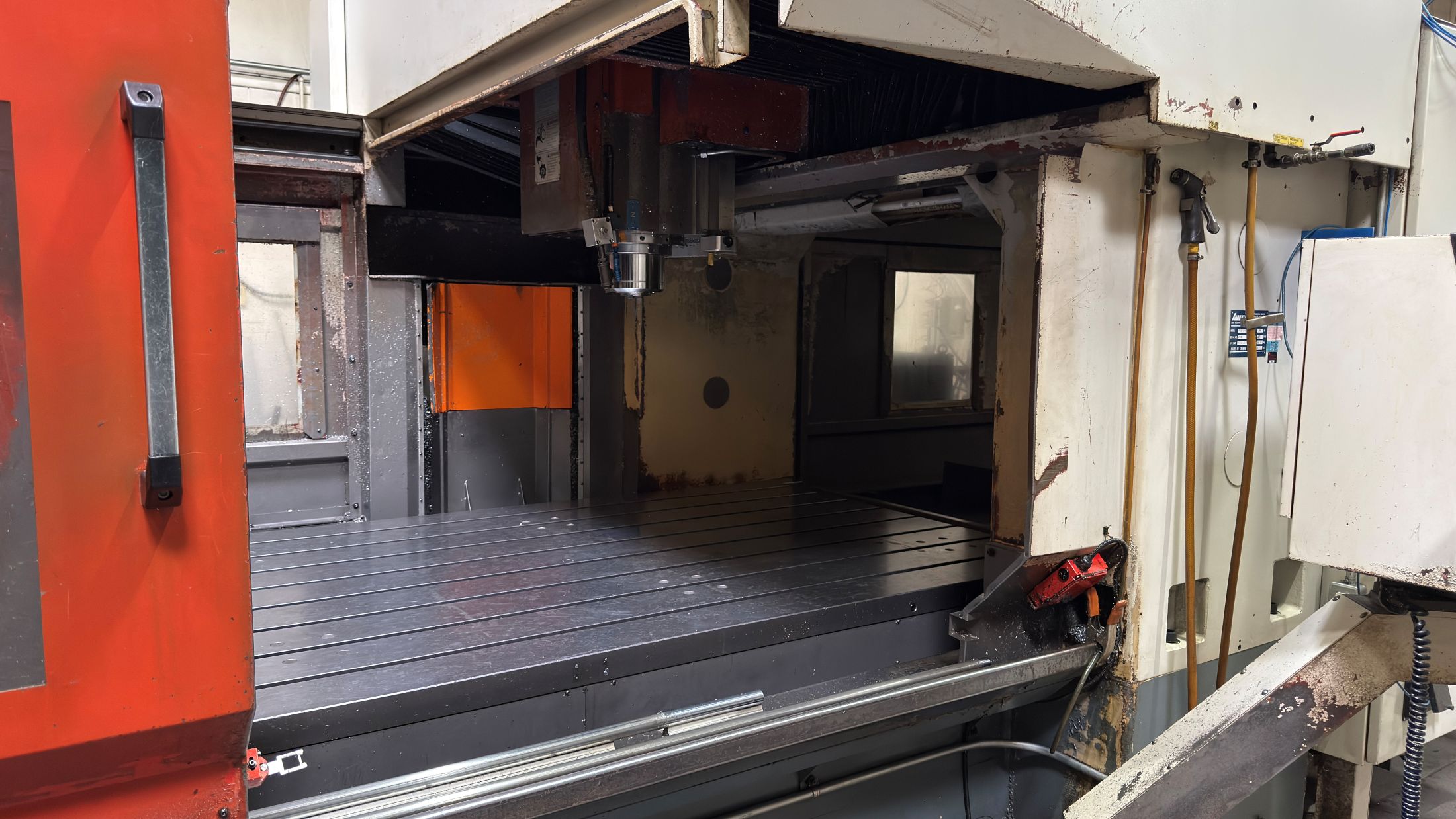

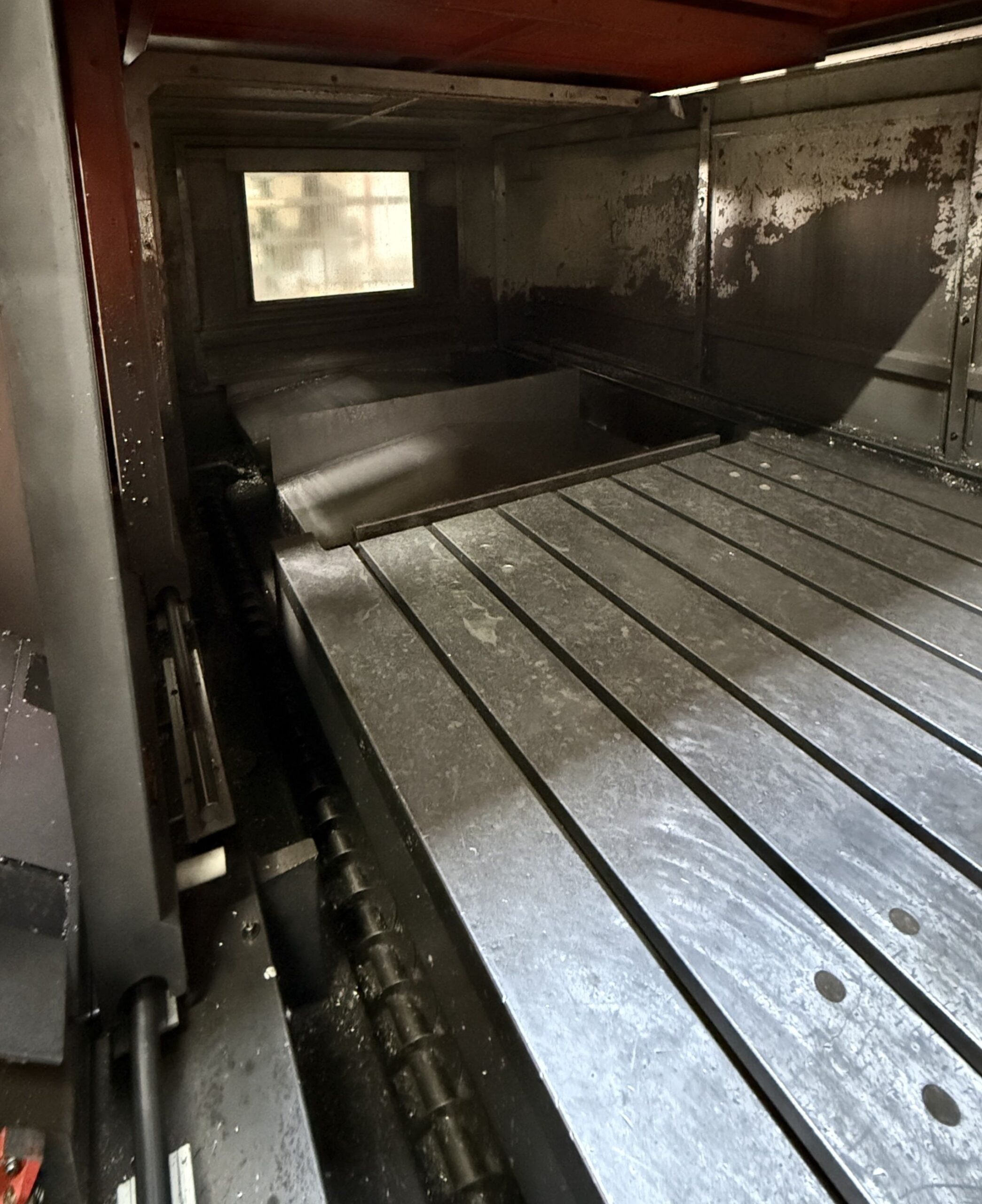

| Table: |
|---|
| Length: 128.3″ |
| Width: 59.0″ |
| Max Weight on Table: 22,000 lbs |

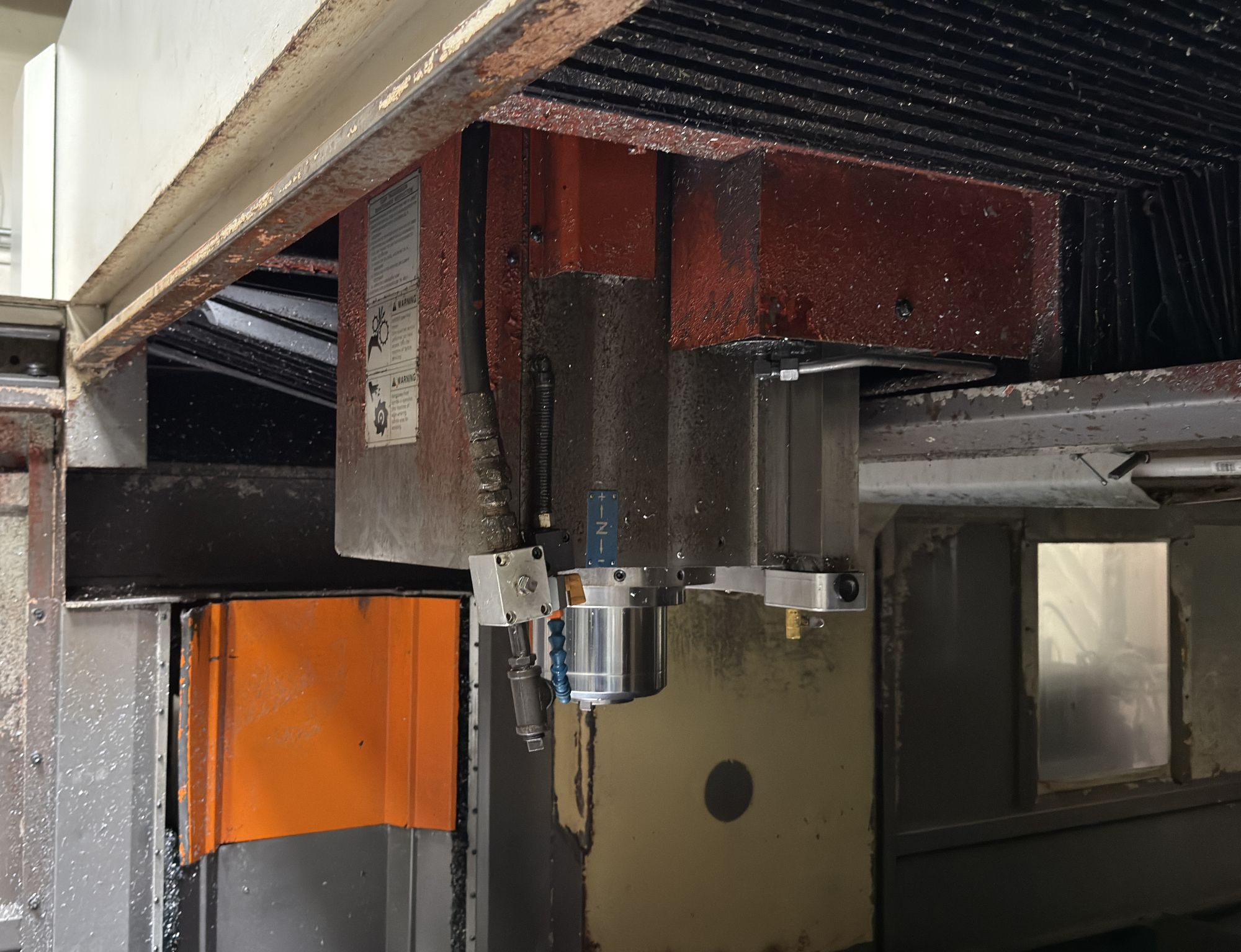

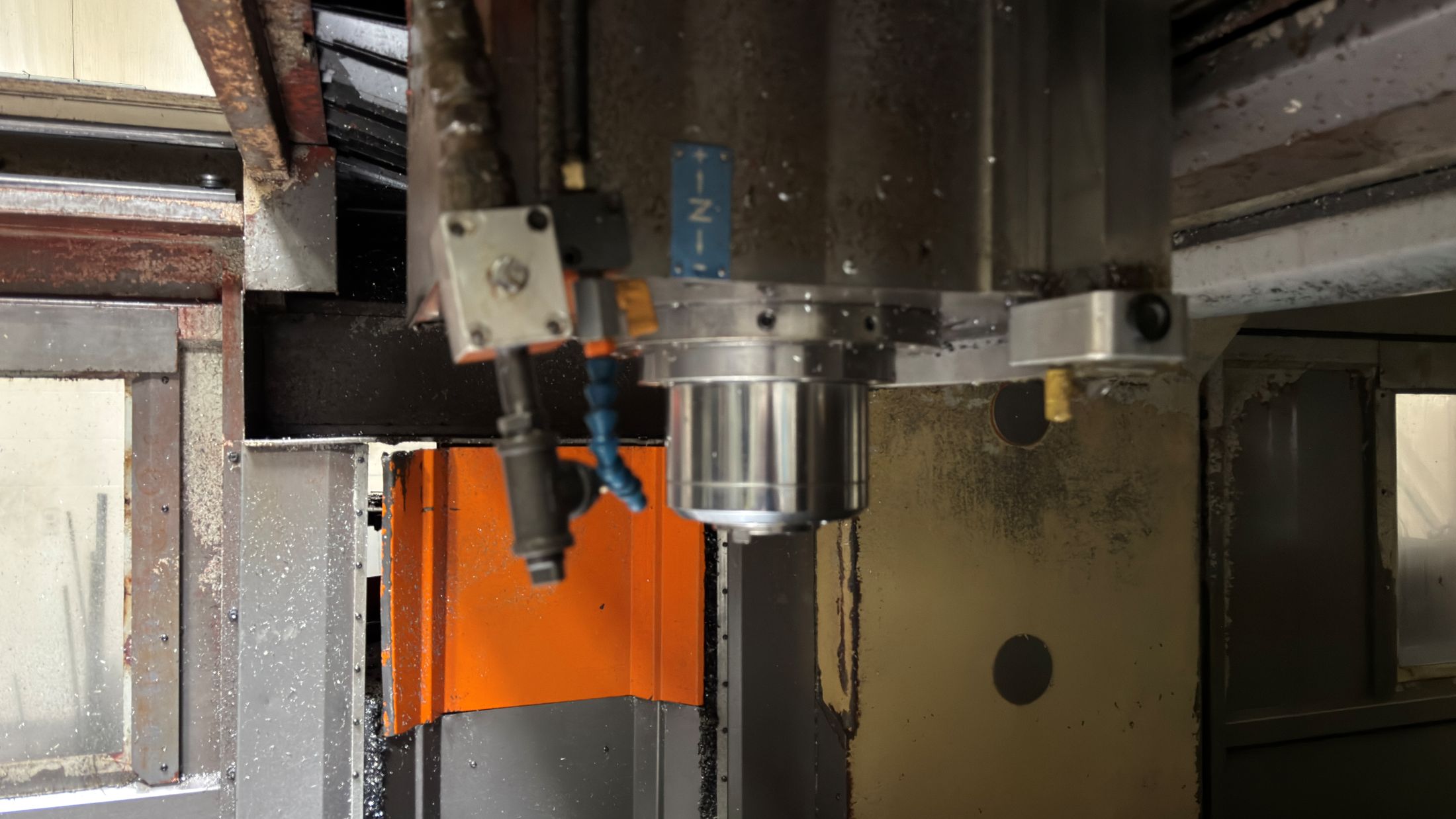

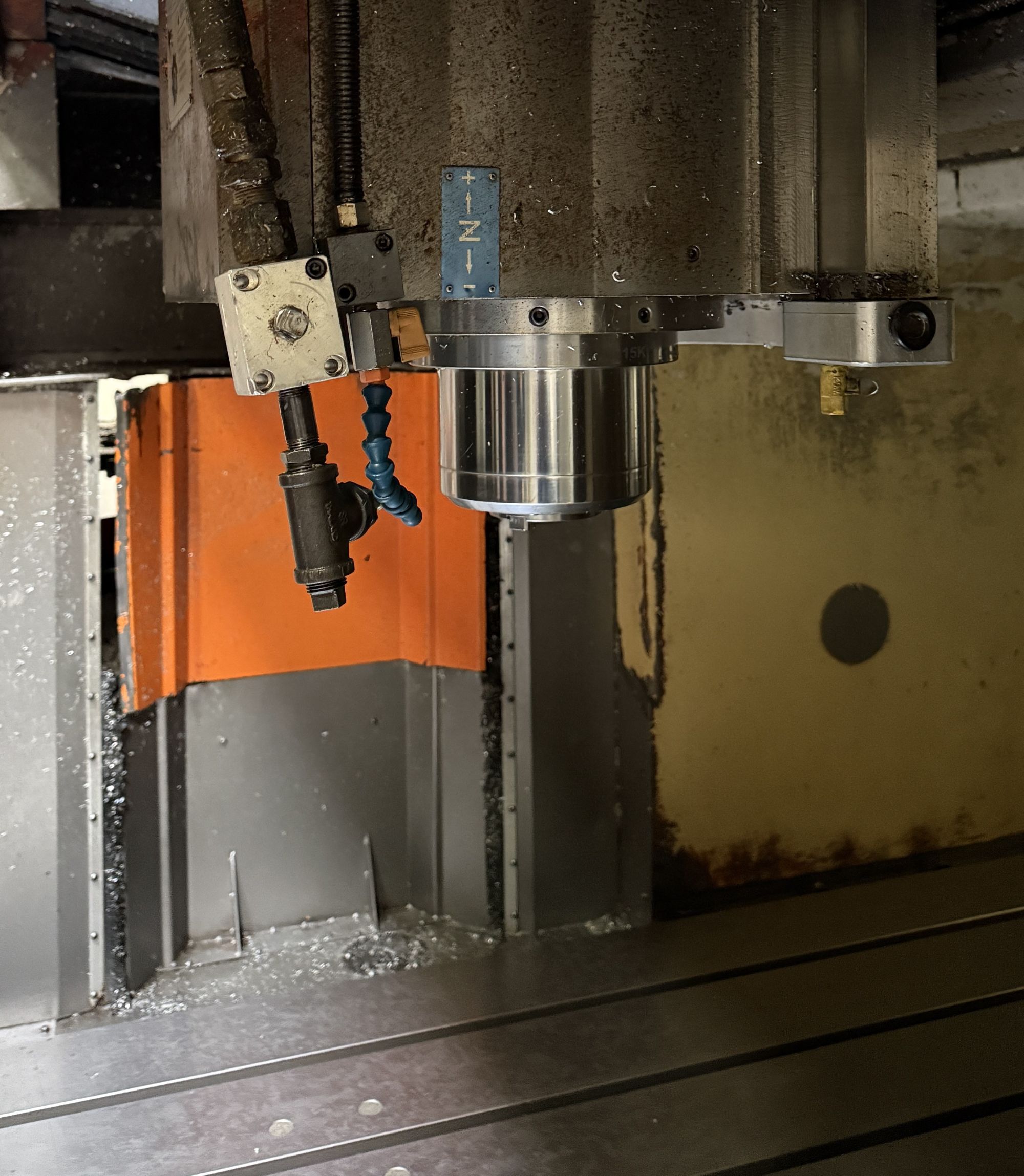

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 35 HP |

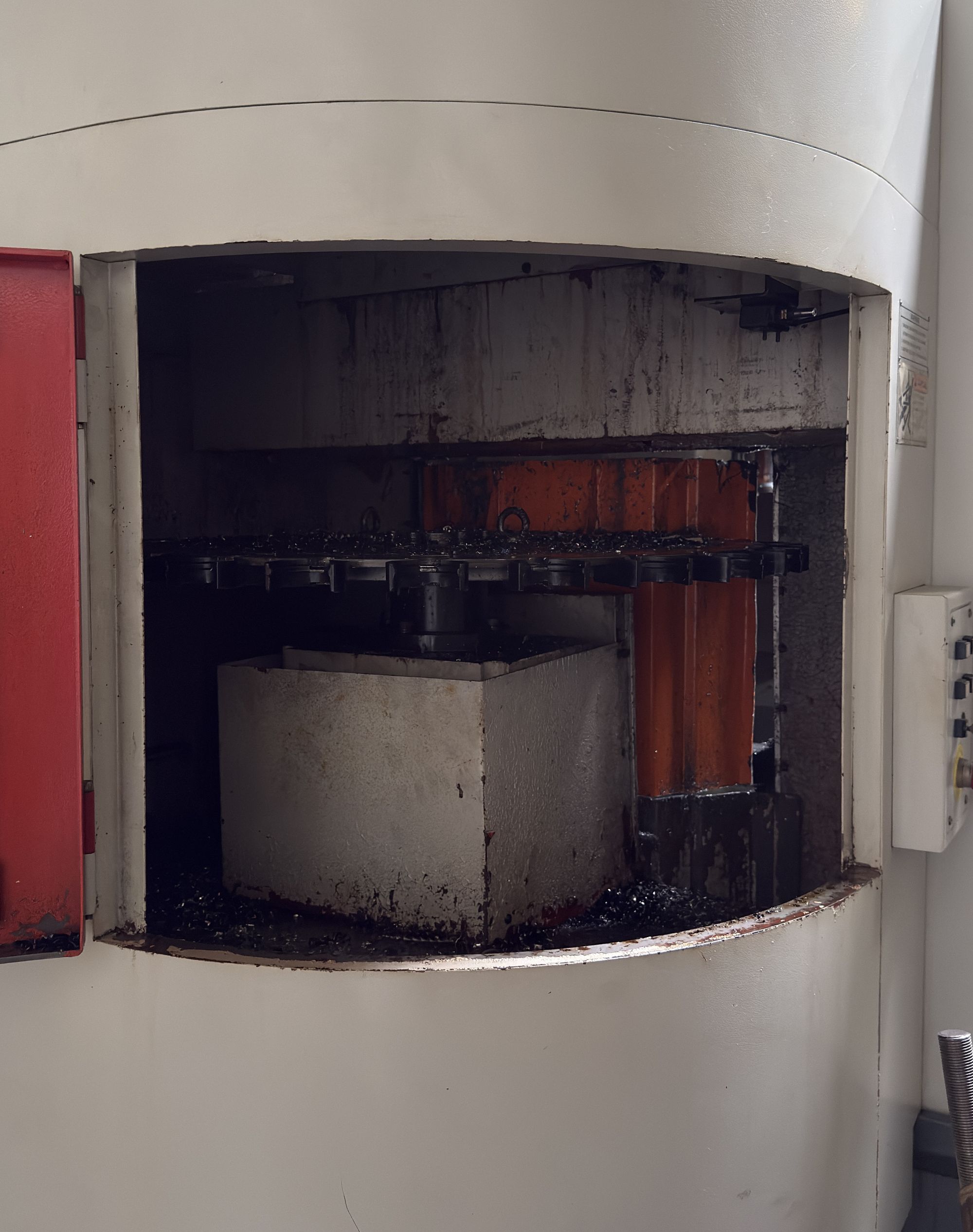

| Automatic Tool Changer: |
|---|
| Capacity: 19 Tools |
| Max Tool Weight: 15 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia.: 4.0″ – 5.0″ |
| Tool Change Time (Tool to Tool): 12 sec. |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

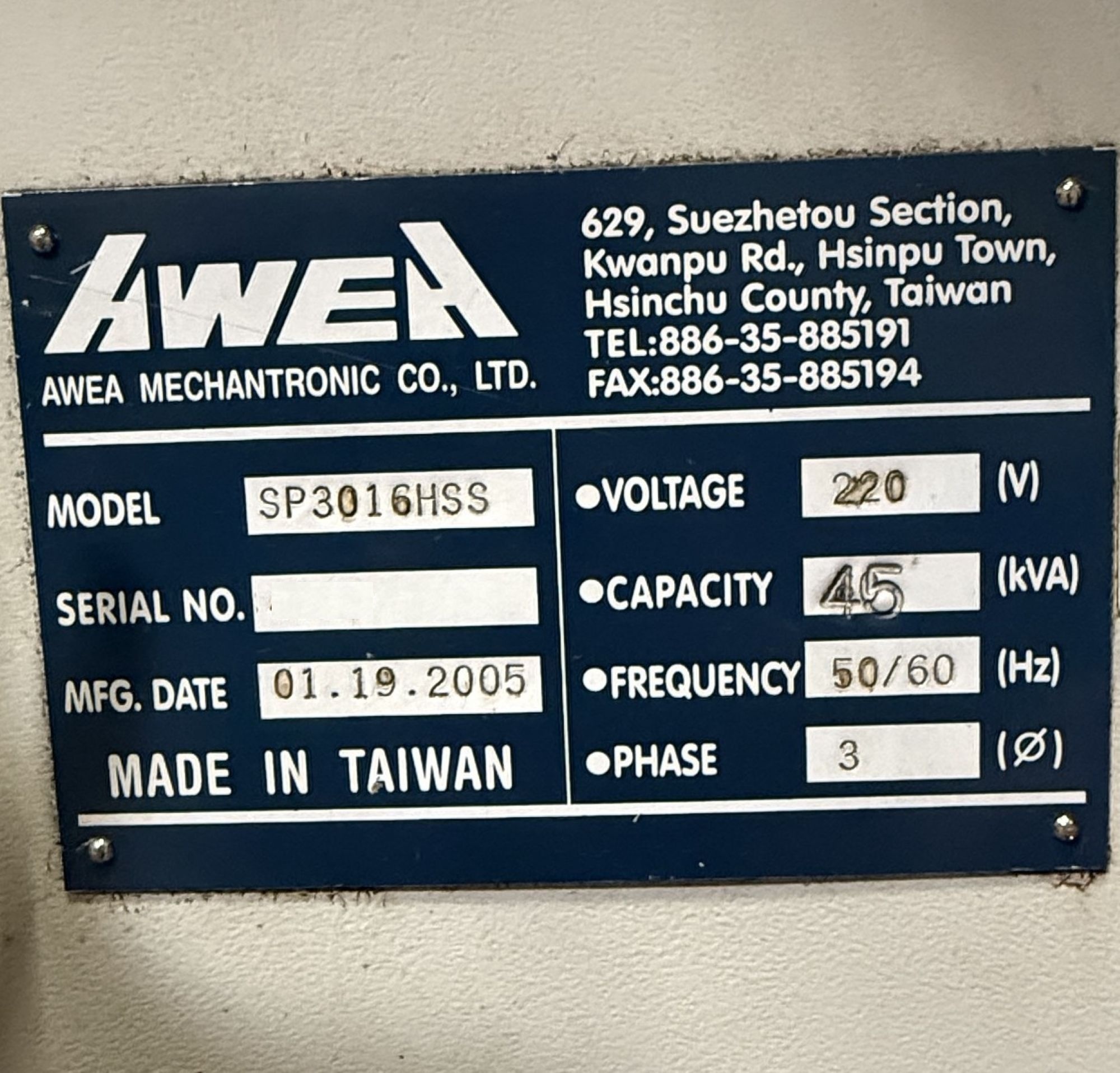

| Power: 220v / 3-Phase |
| Dimensions: 342″ X 184″ x 153″ High Approx. |
| Weight: 52,000 lbs. Approx. |
