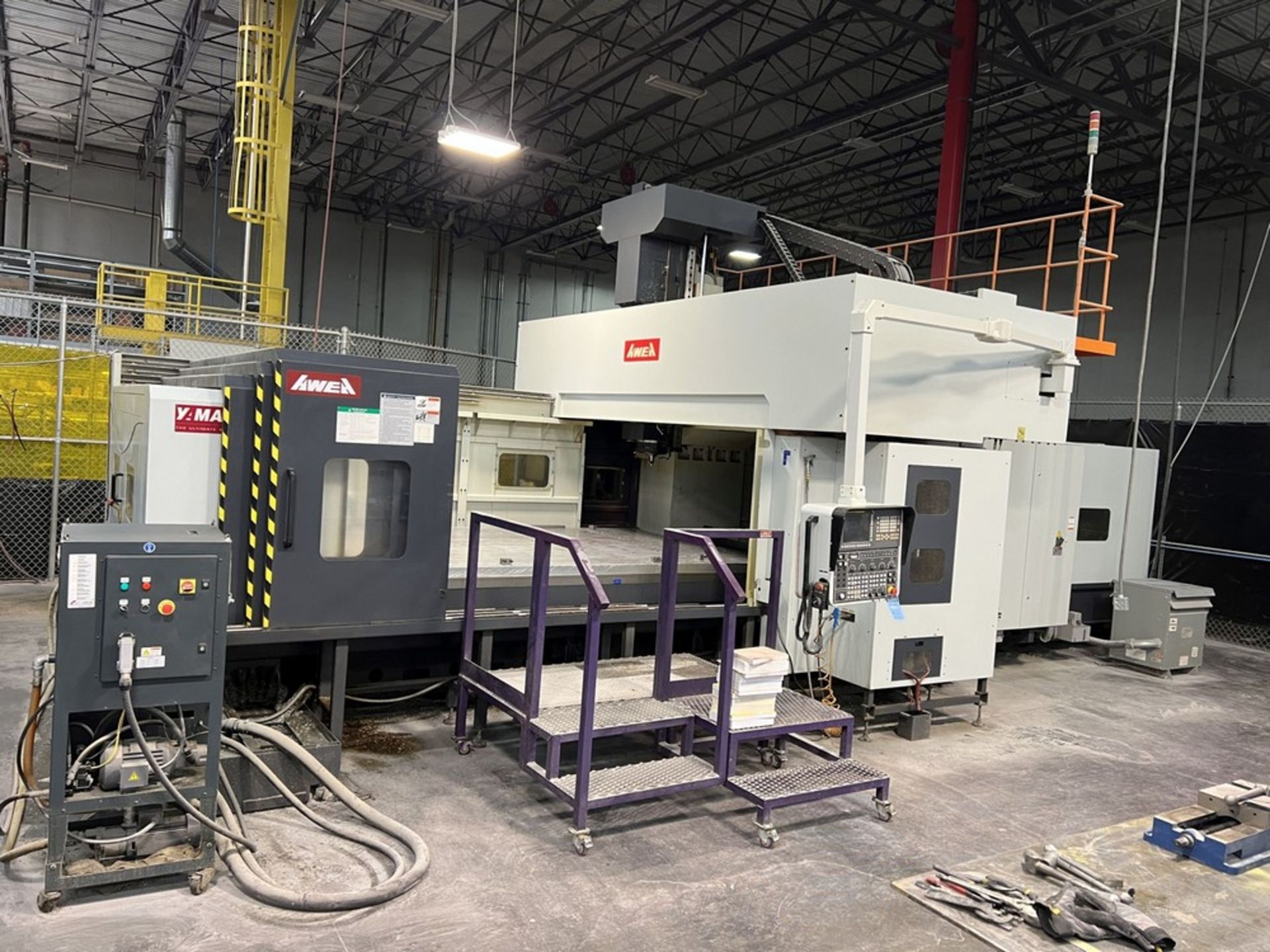

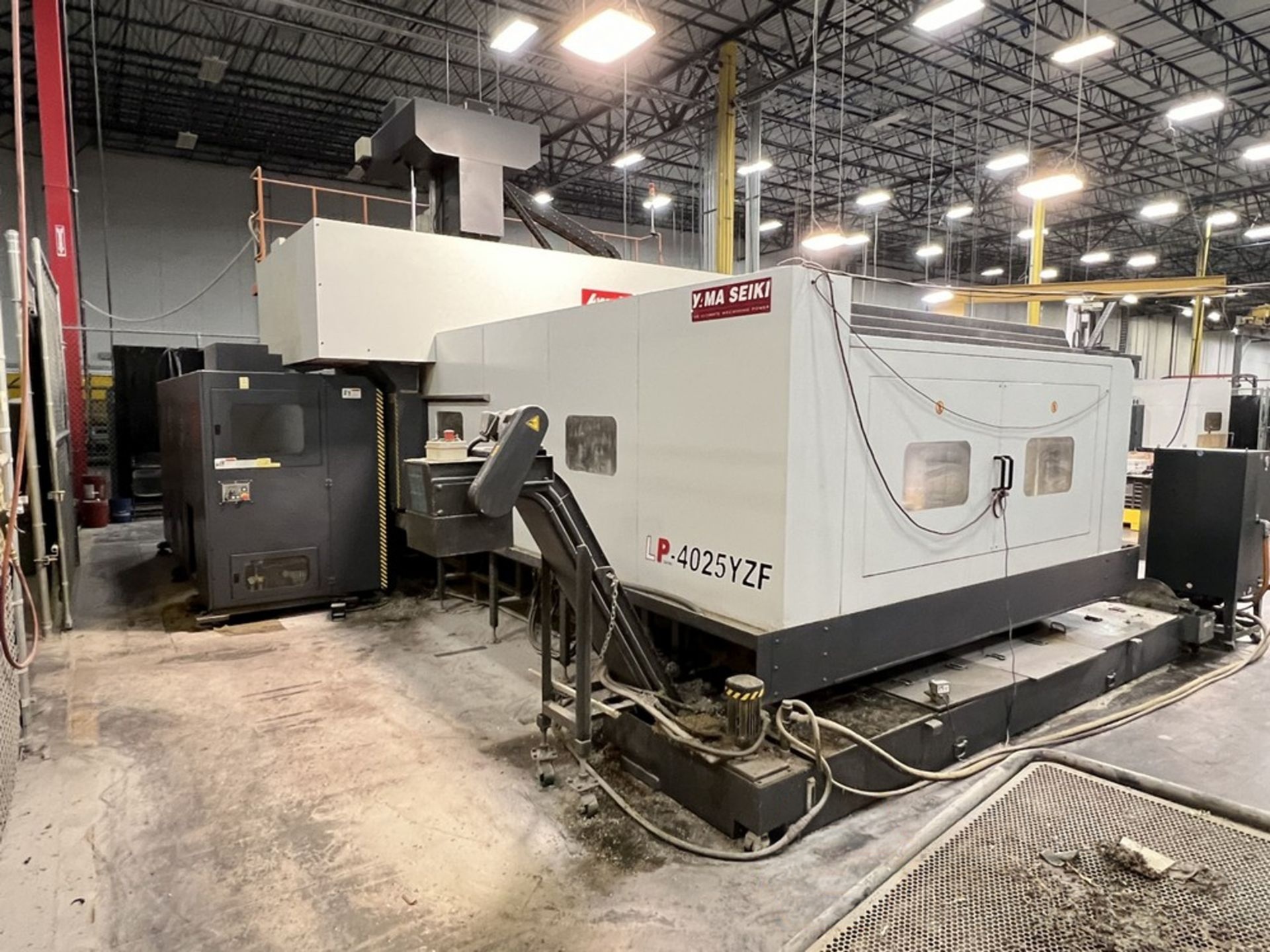

AWEA LP-4025YZF BRIDGE TYPE 5-FACE CNC MACHINING CENTER – 2015

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

• Equipped With:

• Fanuc CNC Control
• Y-Axis Milling Capability
• Sub-Spindle (W-Axis)
• Live Tooling
• C-Axis Main & Sub Spindles
• Automatic Tool Changer
• Hydraulic Chuck
• Programmable Tailstock
• Coolant System
• Chip Conveyor
• Full Enclosure

• Capacity:

• Max Turning Diameter: 15.75″
• Max Turning Length: 39.37″
• Swing Over Bed: 27.56″
• Swing Over Saddle: 21.65″
• Bar Capacity: 3.15″

• Travels:

• X-Axis Travel: 11.81″
• Y-Axis Travel: ±2.36″
• Z-Axis Travel: 41.34″
• W-Axis Travel (Sub-Spindle): 33.46″

• Feedrates:

• Rapid Traverse X/Y/Z: 945 / 590 / 1,181 IPM
• Cutting Feedrate: 0 – 472 IPM

• Main Spindle:

• Spindle Nose: A2-8
• Spindle Speed: 4,000 RPM
• Spindle Motor: 30 HP
• Spindle Bore: 3.15″

• Sub-Spindle:

• Spindle Speed: 5,000 RPM
• Spindle Motor: 15 HP
• Spindle Bore: 2.44″
• Programmable W-Axis

• Turret & Milling:

• 12-Station Turret
• Live Tooling Capability
• Milling Spindle Speed: 6,000 RPM
• Milling Motor Power: 10 HP
• ER32 Tool Interface

• General:

• Power Requirement: 220V / 3-Phase
• Machine Weight (Approx.): 18,500 lbs
• Overall Dimensions (Approx.): 165″ × 83″ × 87″
