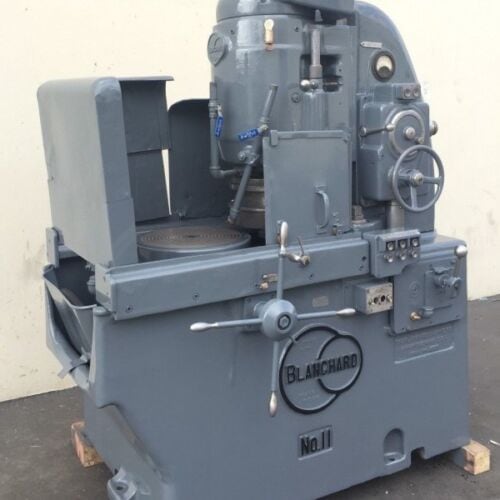

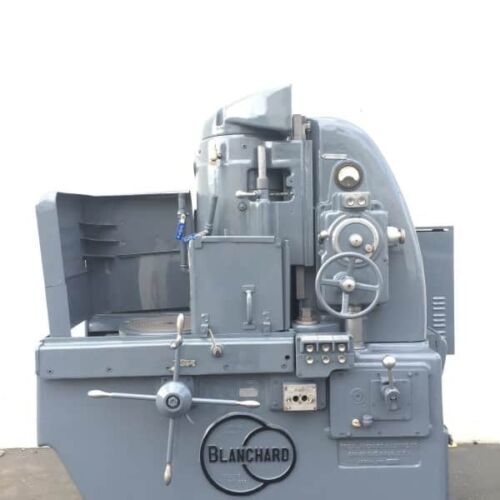

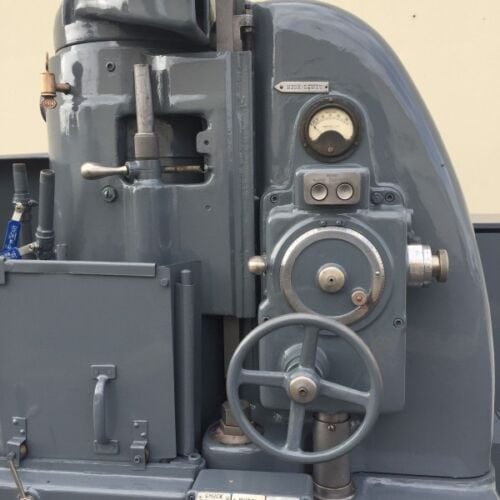

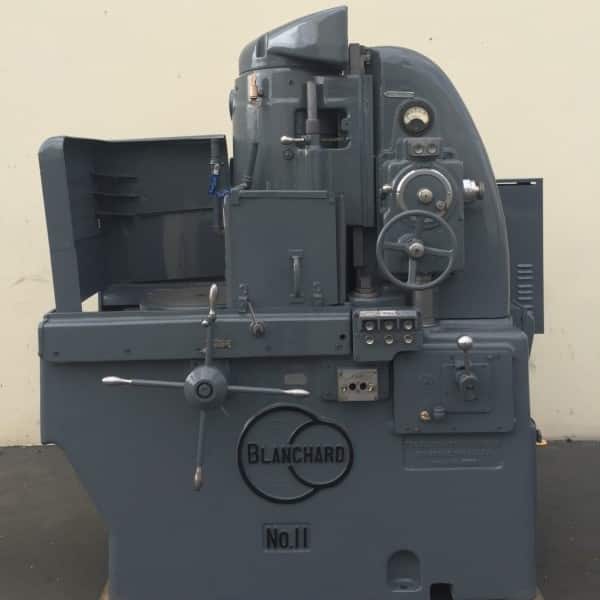

| BLANCHARD 11-16 ROTARY SURFACE GRINDER 16″ CHUCK DIAMETER | |
|---|---|
| Make | Blanchard |
| Model No. | No. 11 |
| Condition | Very Good |
BLANCHARD 11 Features:

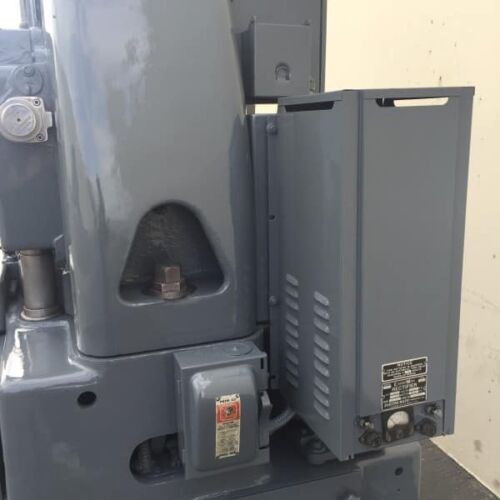

- Magnetic Chuck Control Station
- Three-point column support ensures correct alignment throughout life of the machine
- Magnetic chucking is quick and reduces idle machine time when changing jobs
BLANCHARD 11 Specifications:

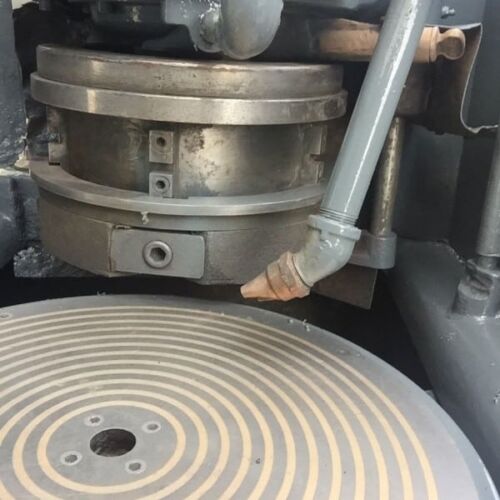

- Work Table:
- Max Swing: 24″
- Chuck Diameter: 216
- Pole Spacing: 1/2″
- Center Hole: 3/4″
- Thickness: 0.78″
Wheel:
- Diameter: 11″
- Depth: 5″
- Thickness: 1″
Speeds:
- Wheel: 1200 RPM on 60 cycle and 1500 RPM on 50 cycle
- Chuck: (4 geared speeds) 15, 24, 41, 64 RPM on 60 cycle
- 12, 20, 35, 53 on 50 cycle
Feed:
- Graduations: .0005″
- Power Feed: (Variable) .003″ – .070″ on 60 cycle
- .003″ – .058″ on 50 cycle
- Maximum Down Feed: .048″
Water Supply:
- Tank Capacity: 75 gallons
- Discharge Rate: 16 gallons / minute
- Pipe Diameter: 3/4″
General:
- Overall Dimensions: 63″ x 42″ x 80″
- Weight: 6,000 lbs
