*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

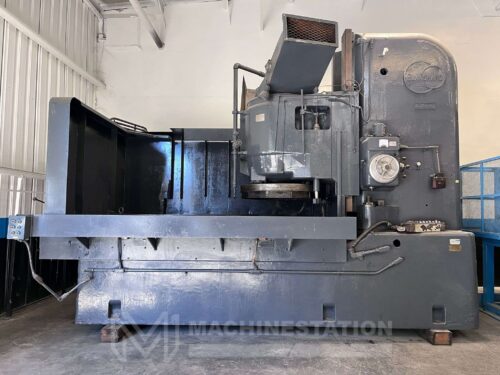

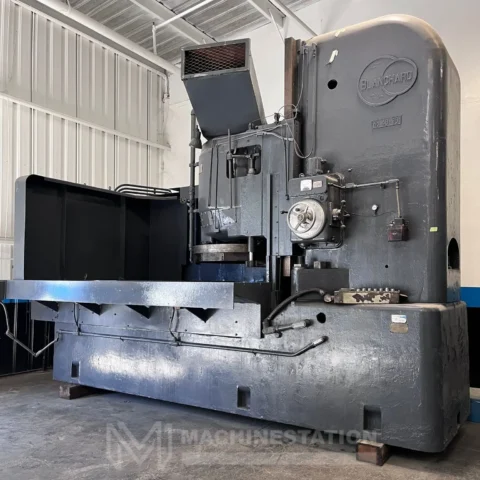

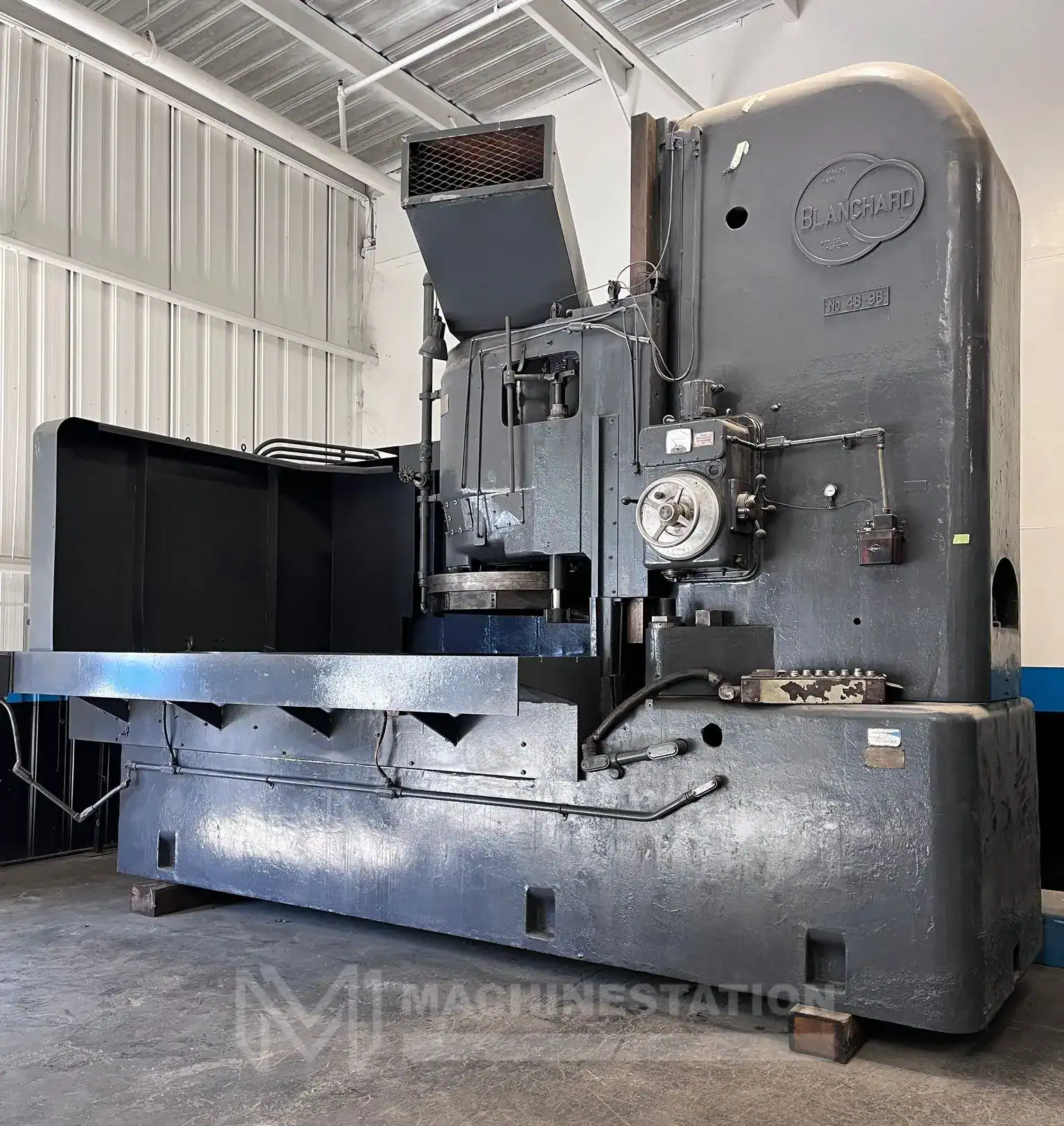

| Make: | Blanchard |
| Model: | 48-96 |
| Year: |
| Equipped With: |
|---|

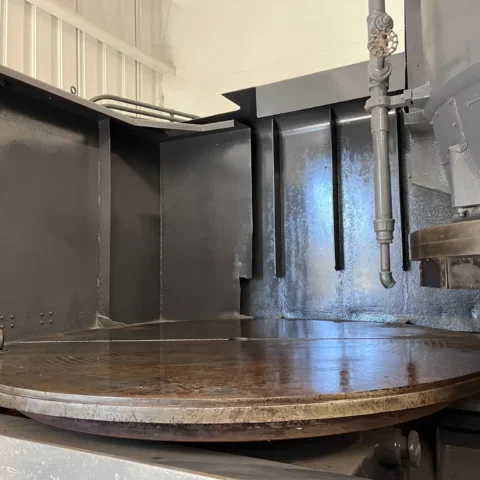

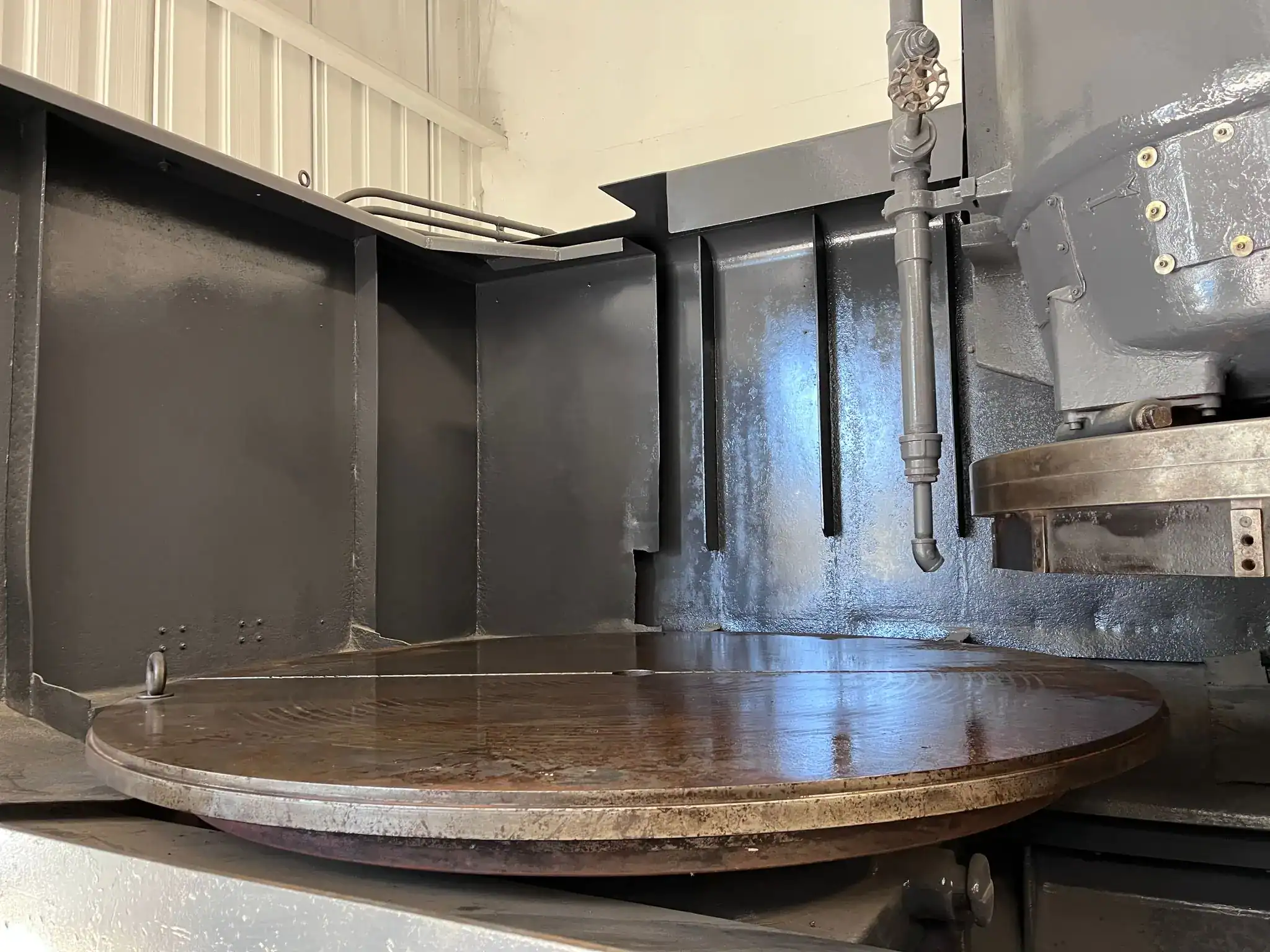

| Segmented Magnetic Chuck |
| Water Guards |
| Coolant System |
| Automatic Lubrication System |
| Hardened Bed Ways |
| Magnetic Chuck Control |
| Capacity: |
|---|
| Segmented Magnetic Chuck Diameter: 96″ |
| Grinding Wheel Diameter: 48″ |
| Maximum Swing Inside Water Guards: 108″ |
| Maximum Height Under Wheel: 36″ |
| Maximum Table Load: 14,000 lbs |
| Work Table: |
|---|
| Table Diameter: 96″ |
| Chuck Type: Electromagnetic, segmented |
| Chuck Rotation Speeds: 2.6, 4.1, 6.6, 10.2 RPM |
| Table Drive: Geared Drive System |
| Griding Head: |
|---|
| Spindle Type: Vertical |
| Spindle Motor Power: 150 HP |
| Grinding Wheel Speed: 297 RPM |
| Vertical Incremental Downfeeds: 0 – 80 IPM |
| Grinding Wheel Diameter: 48″ |
| Grinding Wheel Depth: ″ |
| Grinding Wheel Thickness: ″ |
| General: |
|---|
| Power: 190 kva / 440 v / 3 Phase / 60 Hz |
| Overall Dimensions: 246″ x 110″ x 205″ High Approx. |
| Weight: 87,000 lbs. Approx. |
