*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Bystronic |
| Model: |
Xpert 80/1530 |
| Year: |
2018 |
| Condition: |
Used – Good |
| Machine Type: |
Hydraulic CNC Press Brake |
| Country of Origin: |
Germany |
| Equipped With: |
- Bystronic 2D & 3D CNC Graphical Control
- Touchscreen Operator Console (Color Monitor)
- CNC Hydraulic Ram Control (Y1 / Y2 Axes)
- CNC Backgauge System
- Multi-Axis Backgauge (X, R, Z Axes – Configuration Dependent)
- High-Precision Linear Positioning
- Safety Light Curtain / Guarding
- Foot Pedal Operation
- Emergency Stop & Safety Interlocks
|
| Bending Capacity: |
- Pressing Force: 80 Tons (800 kN)
- Working / Bend Length: 1,530 mm (60.2″)
- Maximum Stroke: 200 mm
- Daylight (Open Height): 515 mm
- Distance Between Side Frames: 1,570 mm
- Maximum Tool Surface Pressure: 100 N/mm²
|
| Ram (Y-Axis) Performance: |
- Rapid Traverse Speed: 250 mm/s
- Working Speed: 25 mm/s
- Return Speed: 250 mm/s
- Positioning Accuracy: ±0.004 mm
- Run-On Speed (Max): 85 ms
- Run-On Distance (Max): 8 mm
|
| Backgauge System: |
- X-Axis (XB1 / XB2)
- Max Travel: 300 mm
- Max Speed: 1,500 mm/s
- Accuracy: ±0.02 mm
- R-Axis (RB1 / RB2)
- Max Travel: 100 mm
- Max Speed: 500 mm/s
- Accuracy: ±0.10 mm
- Z-Axis (ZB1 / ZB2)
- Max Travel: 1,455 mm
- Max Speed: 2,000 mm/s
- Accuracy: ±0.10 mm
|

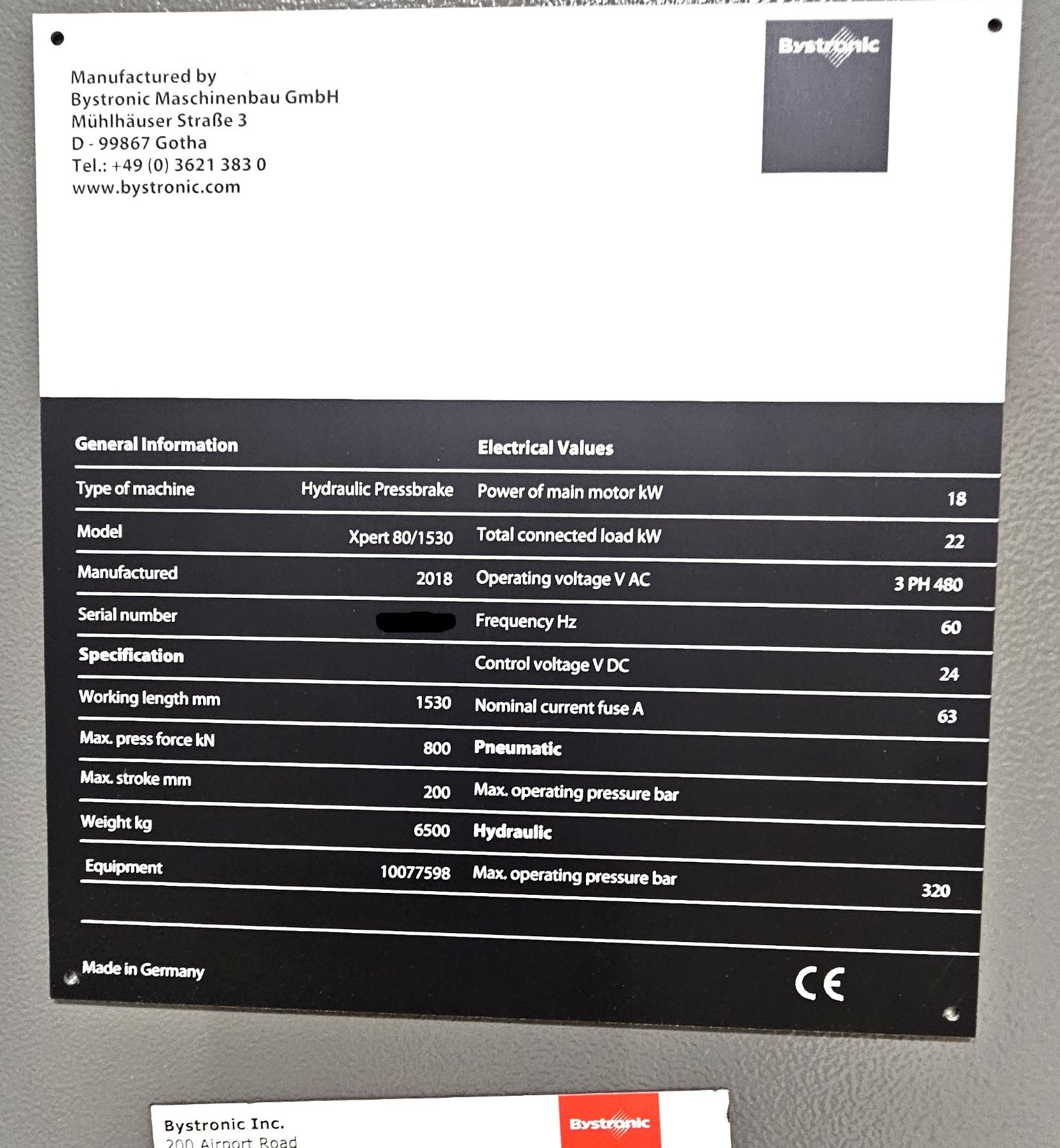

| Electrical Specifications: |
- Main Motor Power: 18 kW
- Total Connected Load: 22 kW
- Operating Voltage: 3-Phase / 400 – 480 V AC
- Frequency: 50 / 60 Hz
- Control Voltage: 24 V DC
- Nominal Current Fuse: 63 A
|
| Hydraulic System: |
- Maximum Operating Pressure: 320 bar
- Hydraulic Oil Capacity: 200 Liters
|
| Dimensions & Weight: |
- Machine Width: 2,030 mm
- Machine Depth: 1,700 mm
- Machine Height: 2,660 mm
- Approx. Machine Weight: 6,500 kg (14,330 lbs)
|
| Accuracy & Noise: |
- Positioning Repeatability: 0.05 mm
- Noise Emission Level: Approx. 77.5 dB(A)
- Measurement Tolerance: ≤ 3 dB(A)
|
| Operating Conditions: |
- Ambient Temperature: 5 – 40 °C
- Relative Humidity: Max. 90% at 20 °C
- Installation Altitude: Up to 1,000 m Above Sea Level
- Indoor Installation – Protected Environment
|
| Axis Configuration: |
- Y1 / Y2: Upper Beam (Ram) Up / Down
- X: Backgauge Depth Positioning
- R: Backgauge Vertical Positioning
- Z1 / Z2: Backgauge Finger Lateral Positioning
- AK / HSF: Safety & Support Axes (Machine Dependent)
|
| Key Advantages: |
- Extremely High Bending Accuracy
- Fast Cycle Times with Precision Ram Control
- Advanced 2D / 3D CNC Programming
- Ideal for Precision Sheet Metal Fabrication
- Industry-Proven Bystronic Reliability
|
