*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

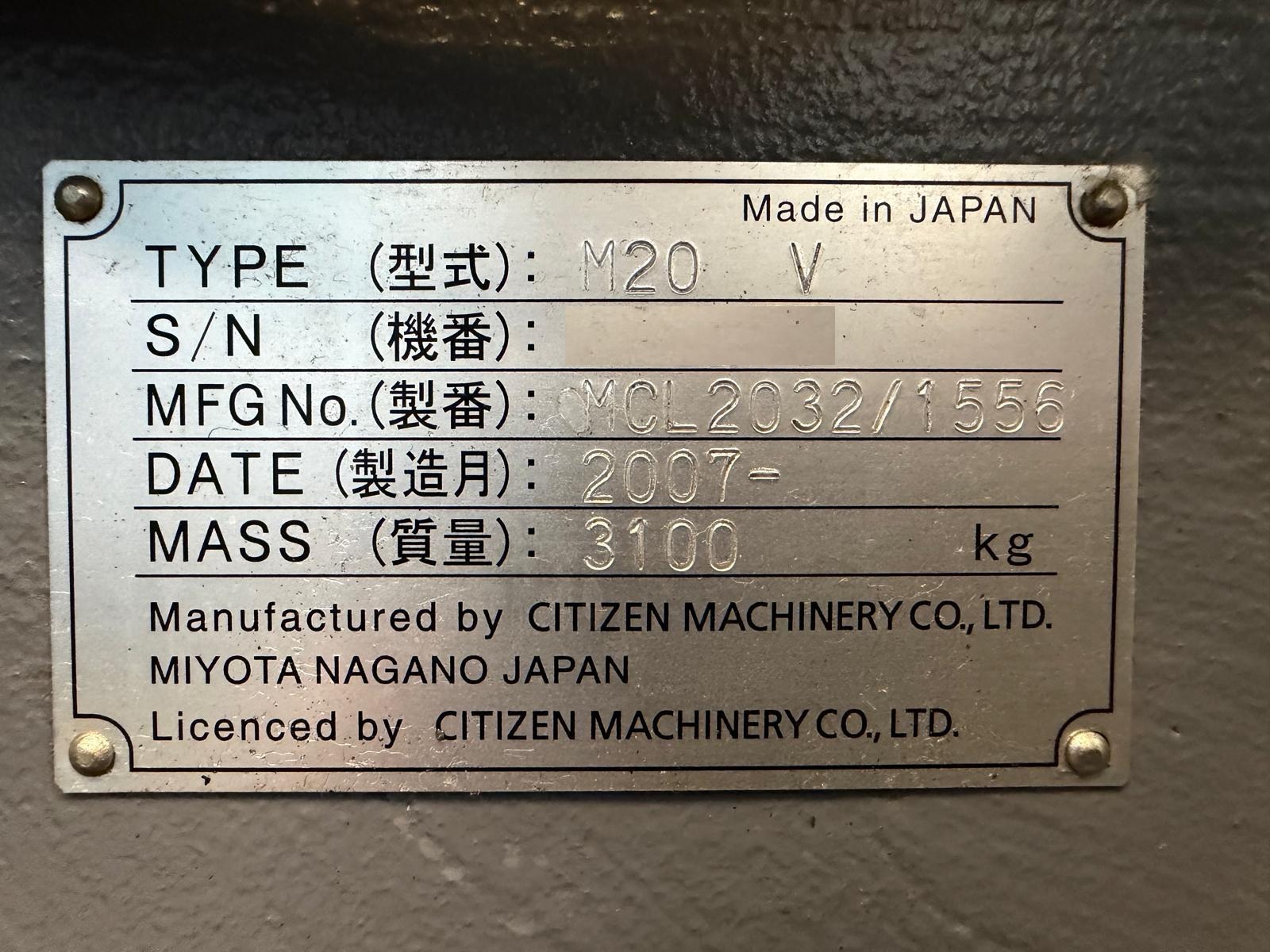

| Make: | Citizen Cincom |
| Model: | M20V |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

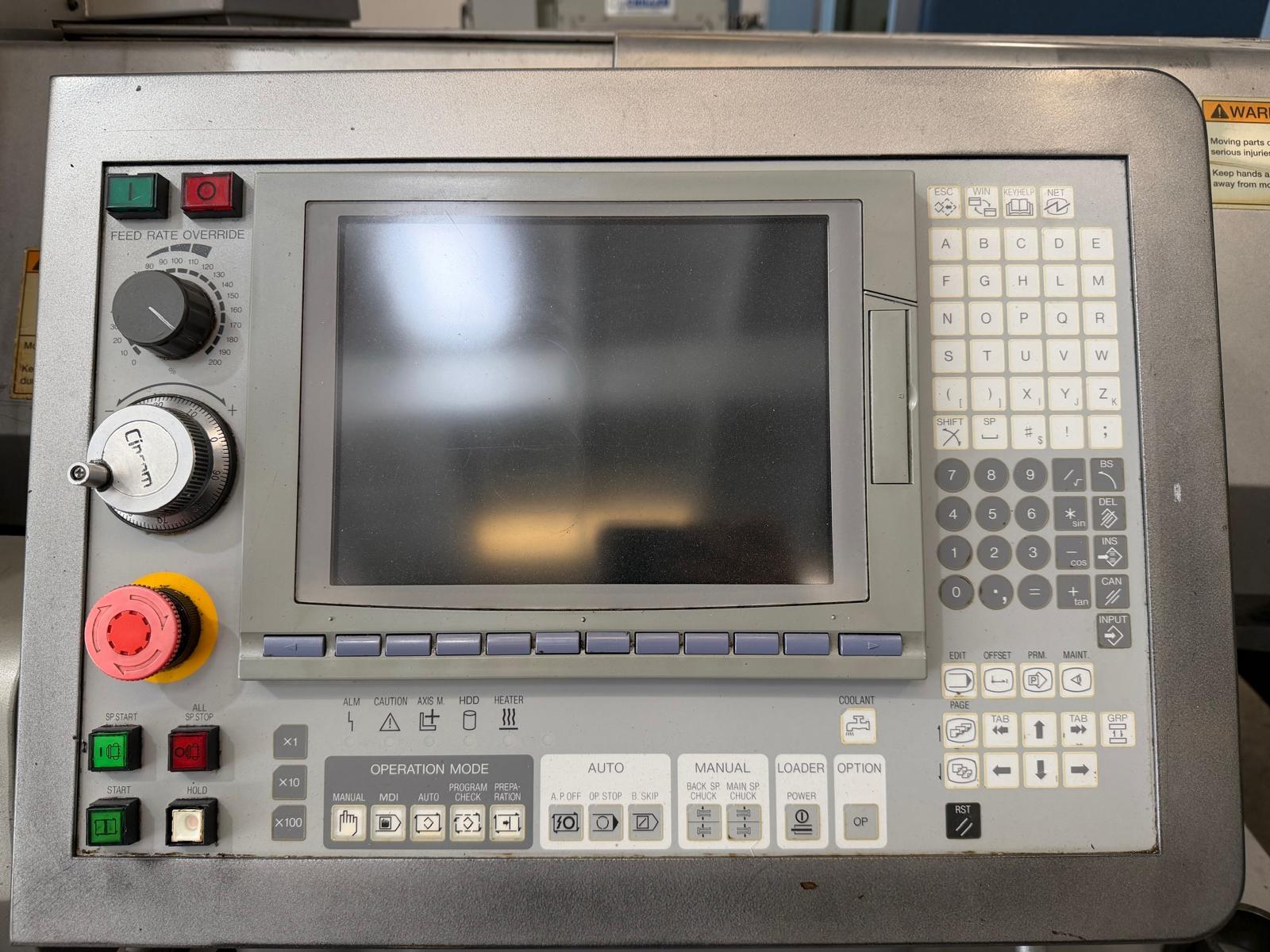

| Citizen Cincom CNC Control |
| Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3 |

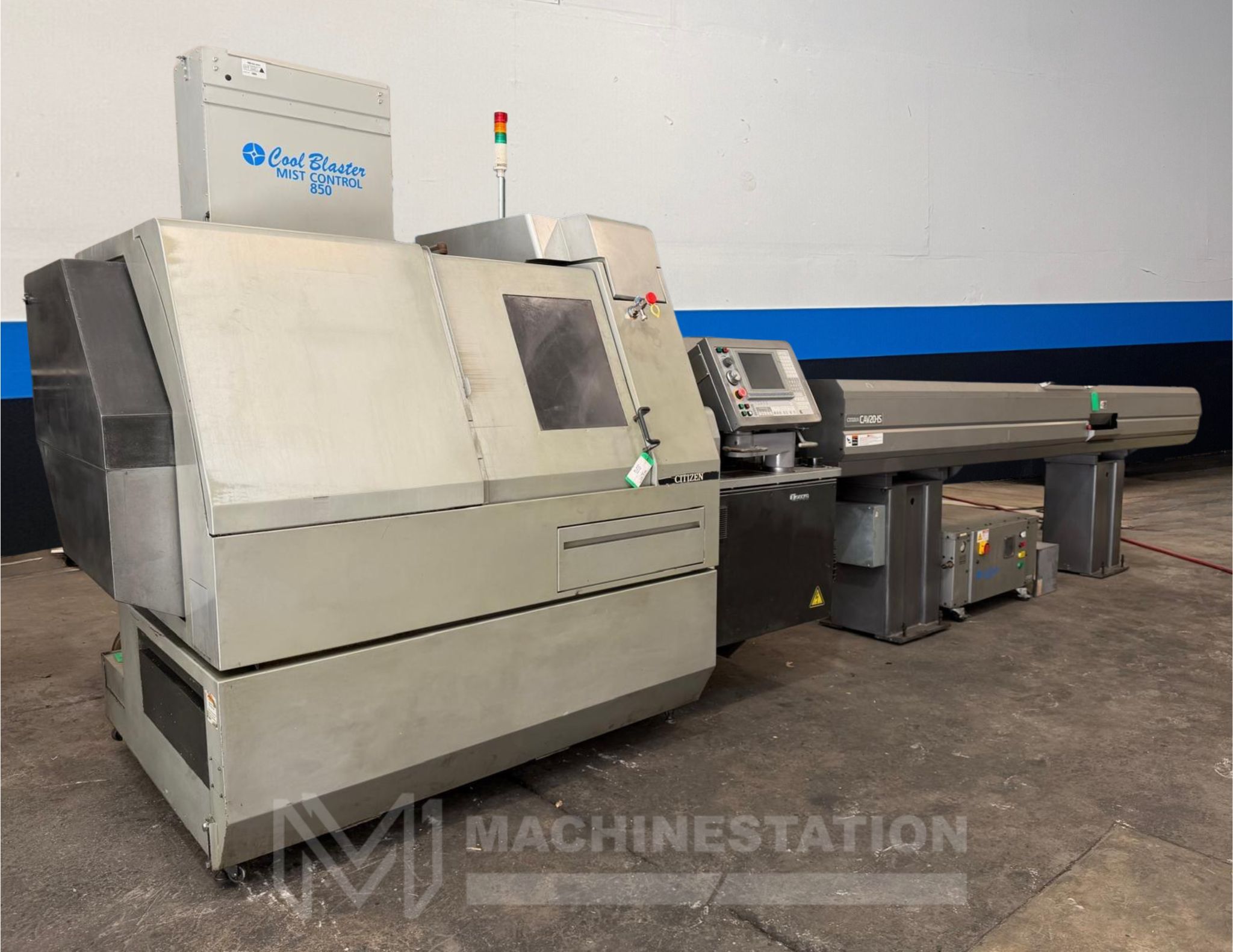

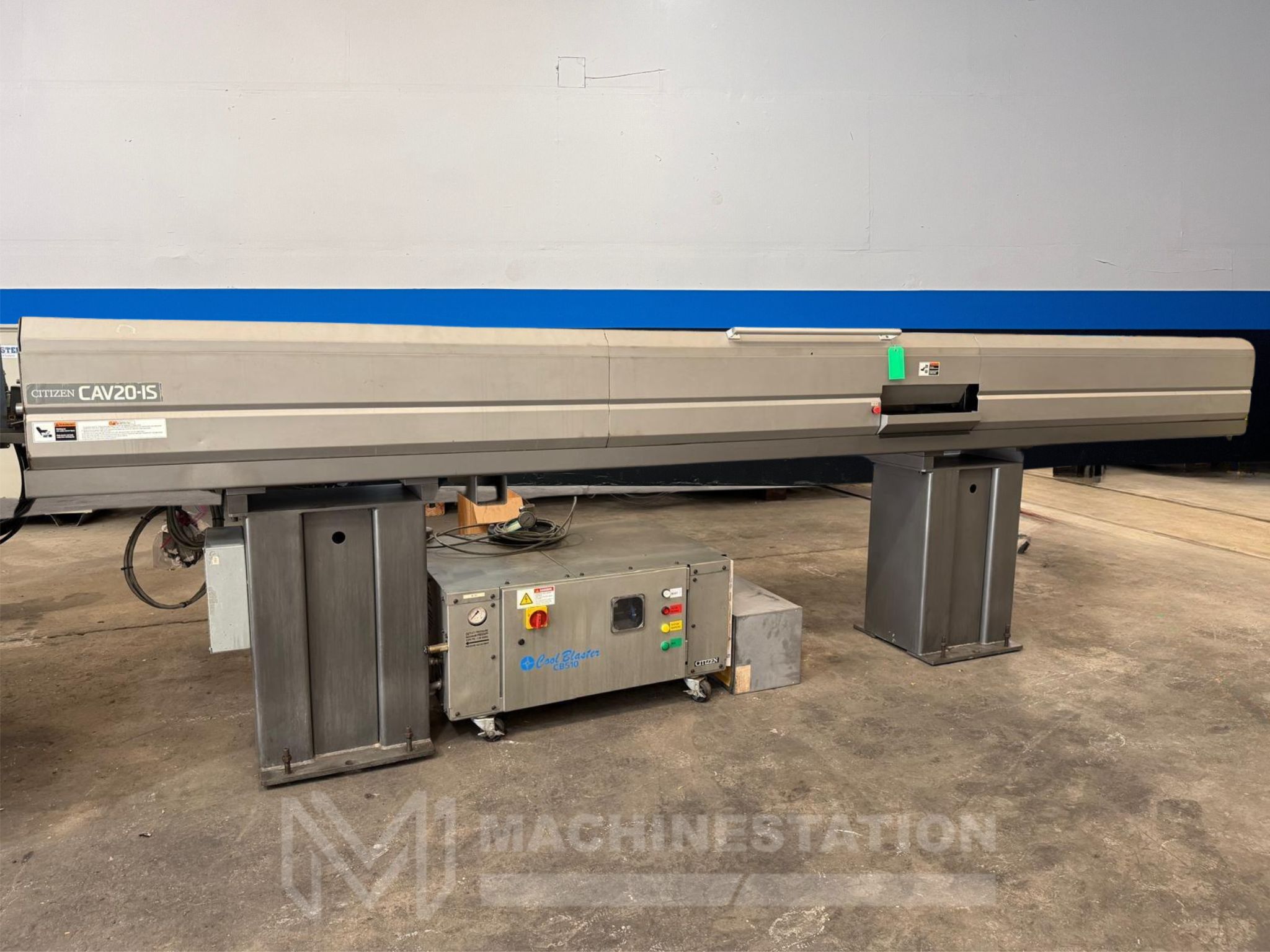

| Comes with Citizen CAV20-IS Bar Feeder |

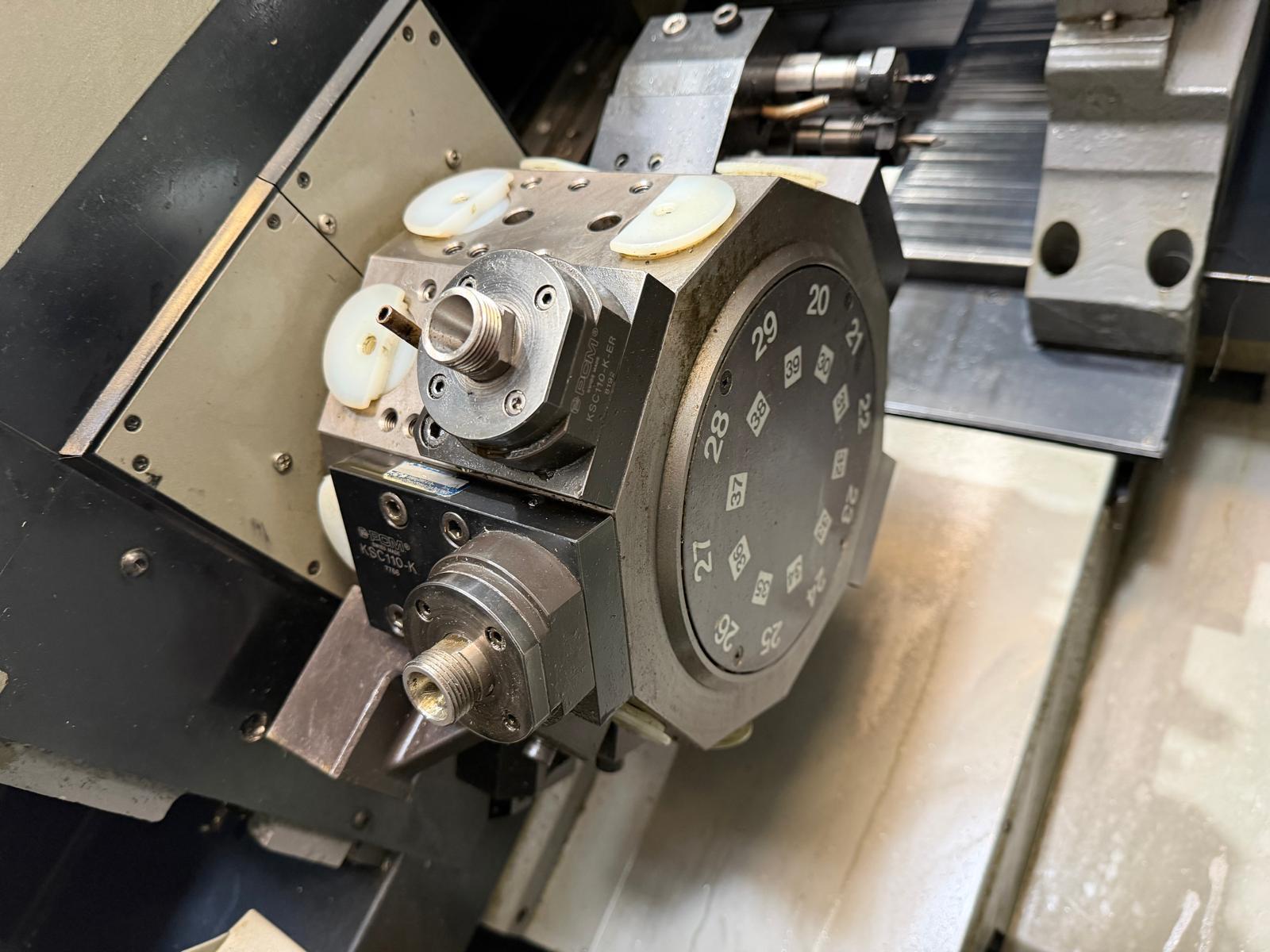

| 10 Station (20 Positions) Live Tool Automatic Turret |

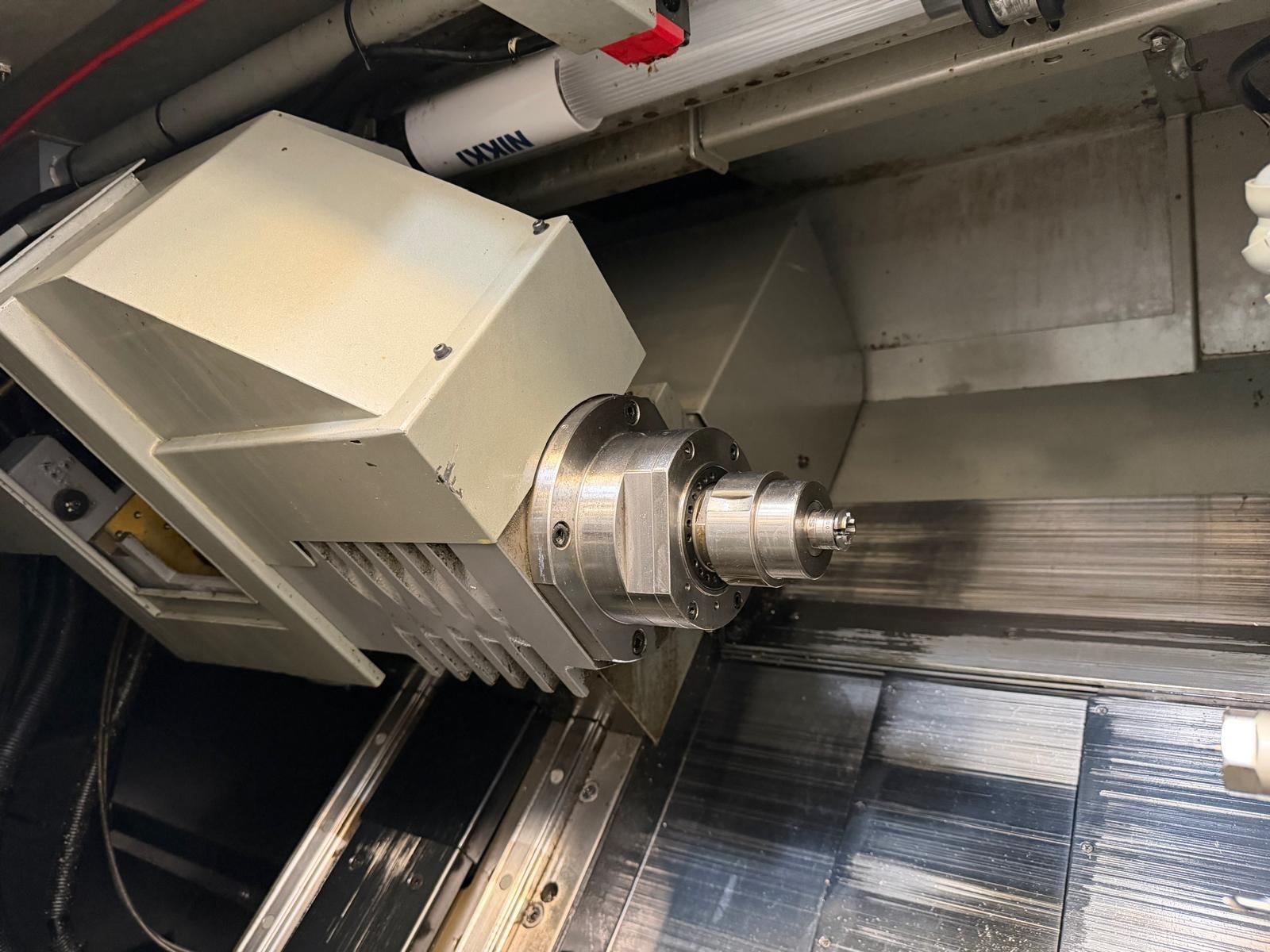

| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Control |
| Main & Back Spindle Synchronization |
| Automatic Lubrication System |

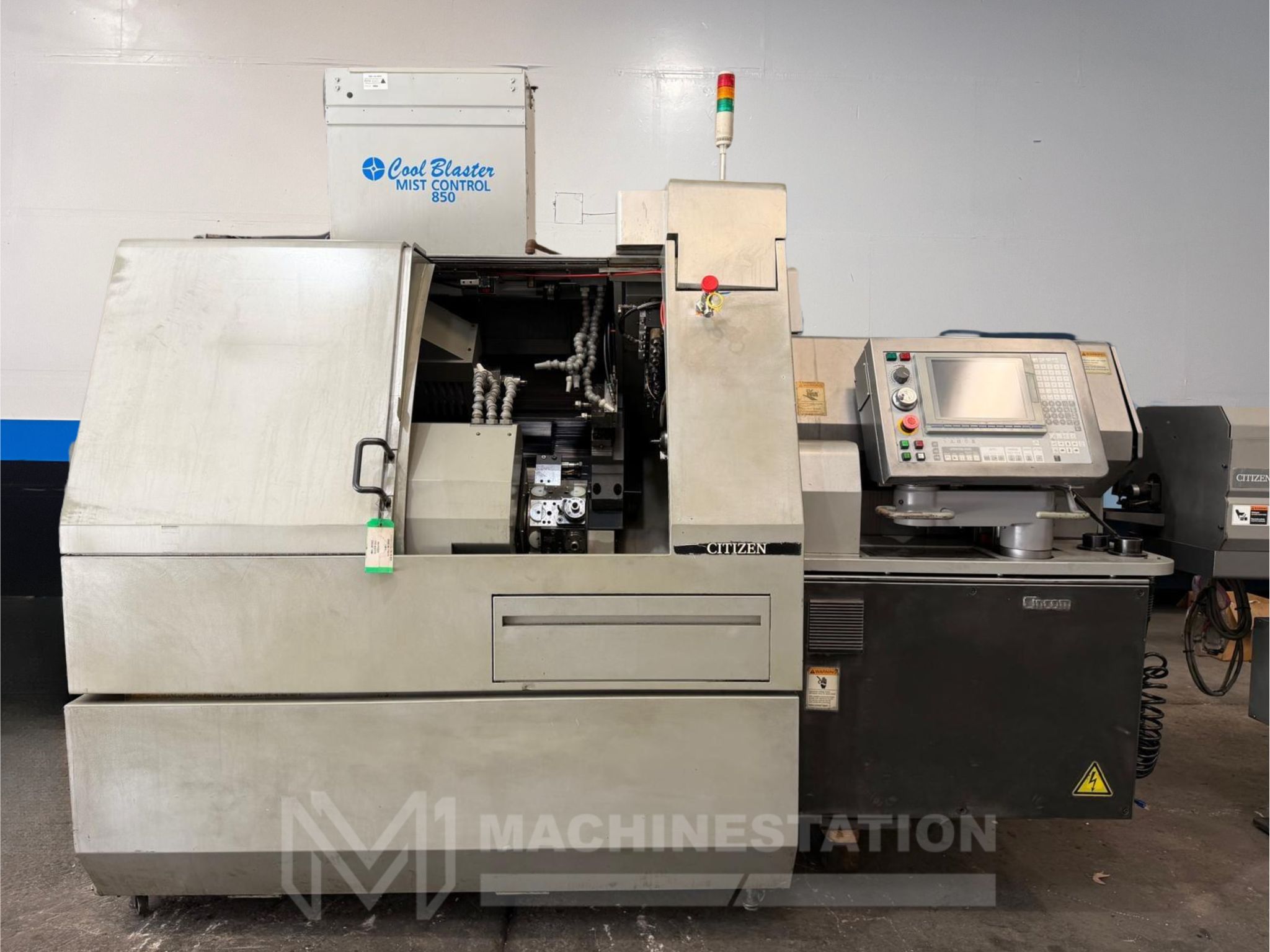

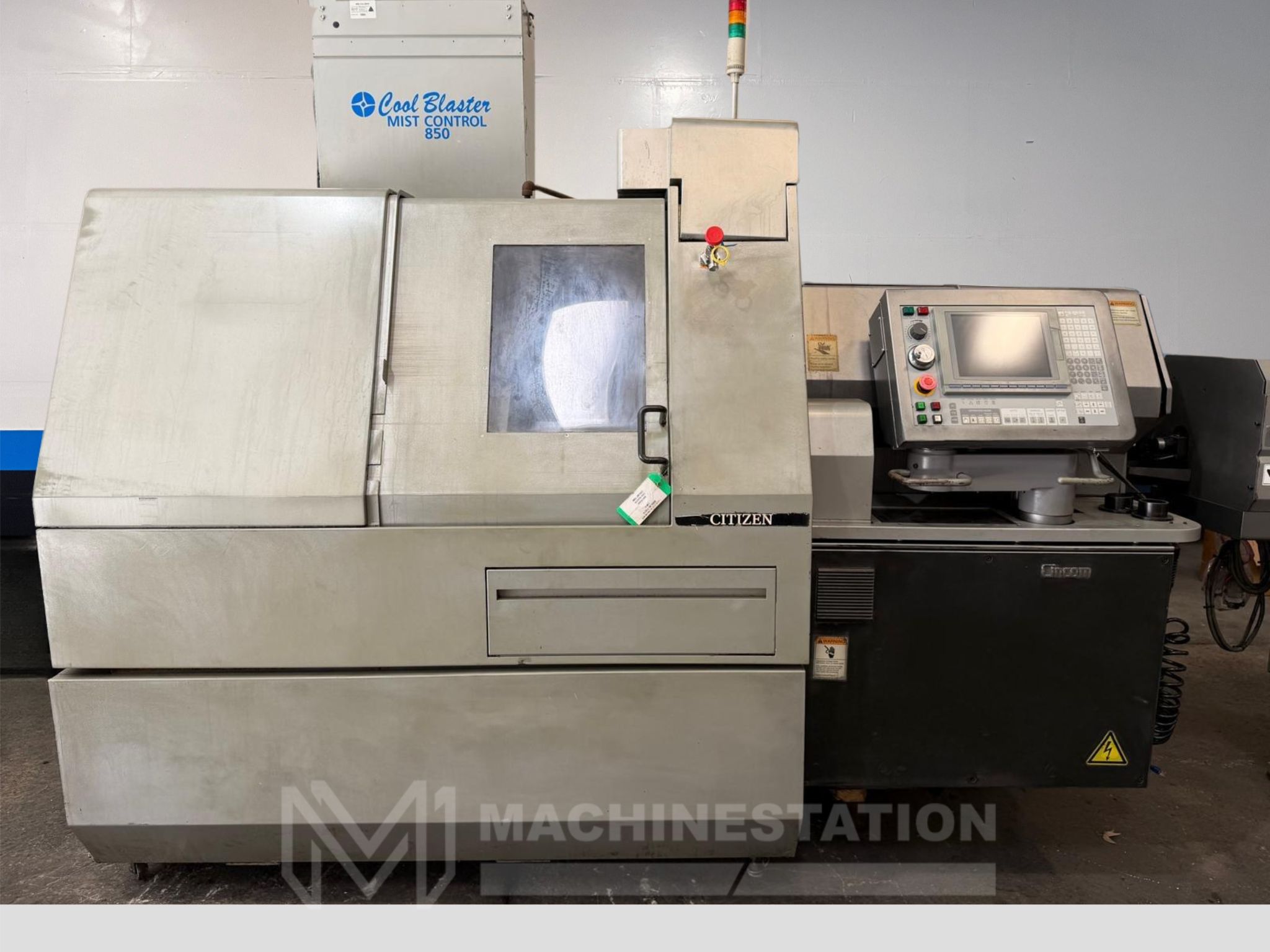

| Cool Blaster Mist Control 850 Unit |

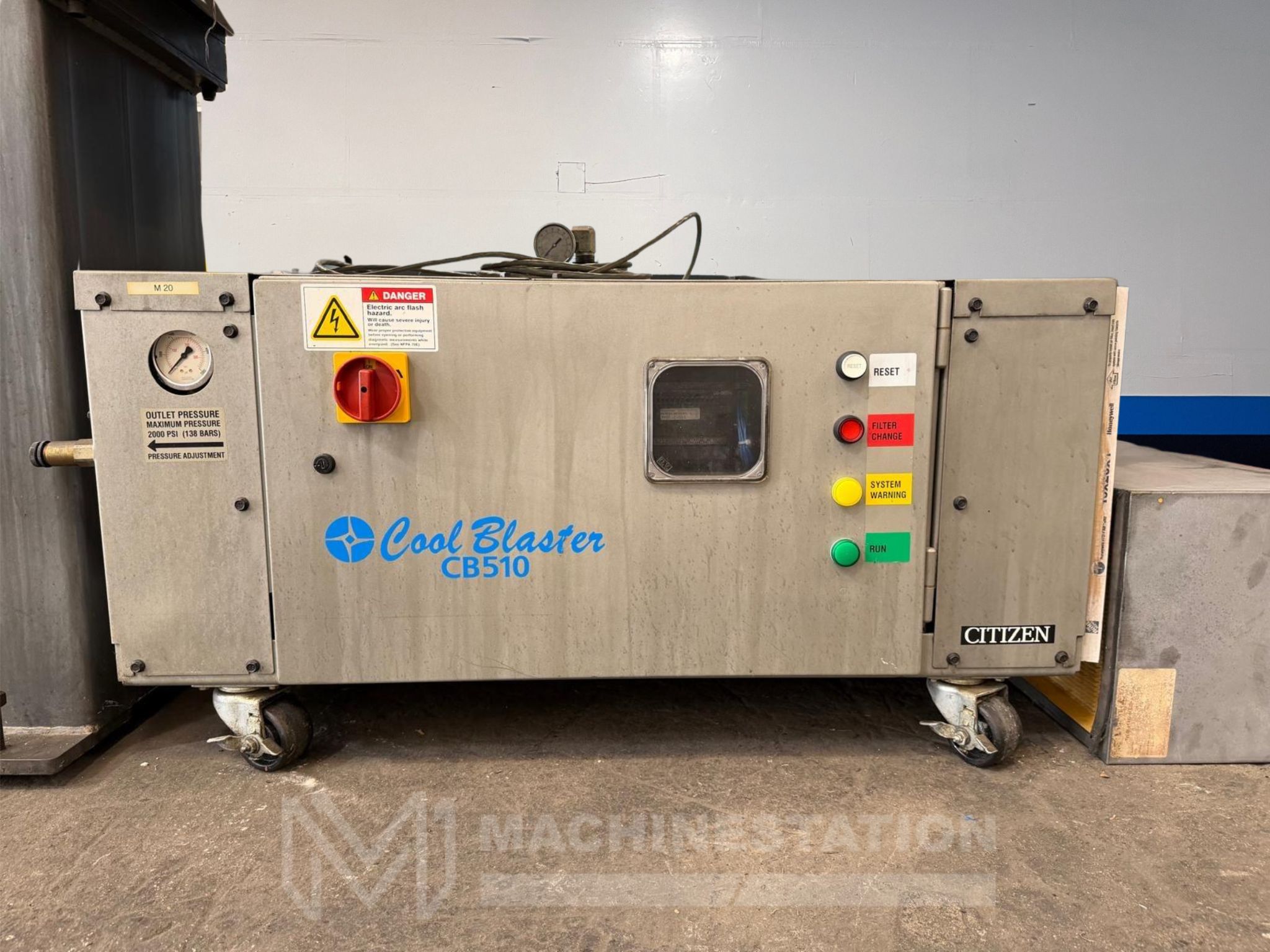

| Cool Blast CB510 Unit |
| Coolant System |
| Capacity: |
|---|
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 12.59″ (320 mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Spindle: |
|---|
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 200 – 10,000 RPM |
| Main Spindle Motor: 5 HP |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 200 – 8,000 RPM |
| Back Spindle Motor: 3 HP |
| Turret & Gang Tooling: |
|---|
| Turret Tools: 10 Station (20 Positions) |
| Gang Tools: 5 Turning + 4 Rotary |
| Back Working Tool Post: 3 (+ Rear Facing Tools On Turret) |
| Rotary Tool Speed: 200 – 5000 RPM |
| Rotary Tool Motor: 2 HP |
| General: |
|---|
| Power Source: AC 220v / 3-Phase /60 Hz |
| Overall Dimensions: 110″ X 50″ X 72″ High without Bar Feeder |
| Weight: 6,830 lbs. Approx. |
