*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

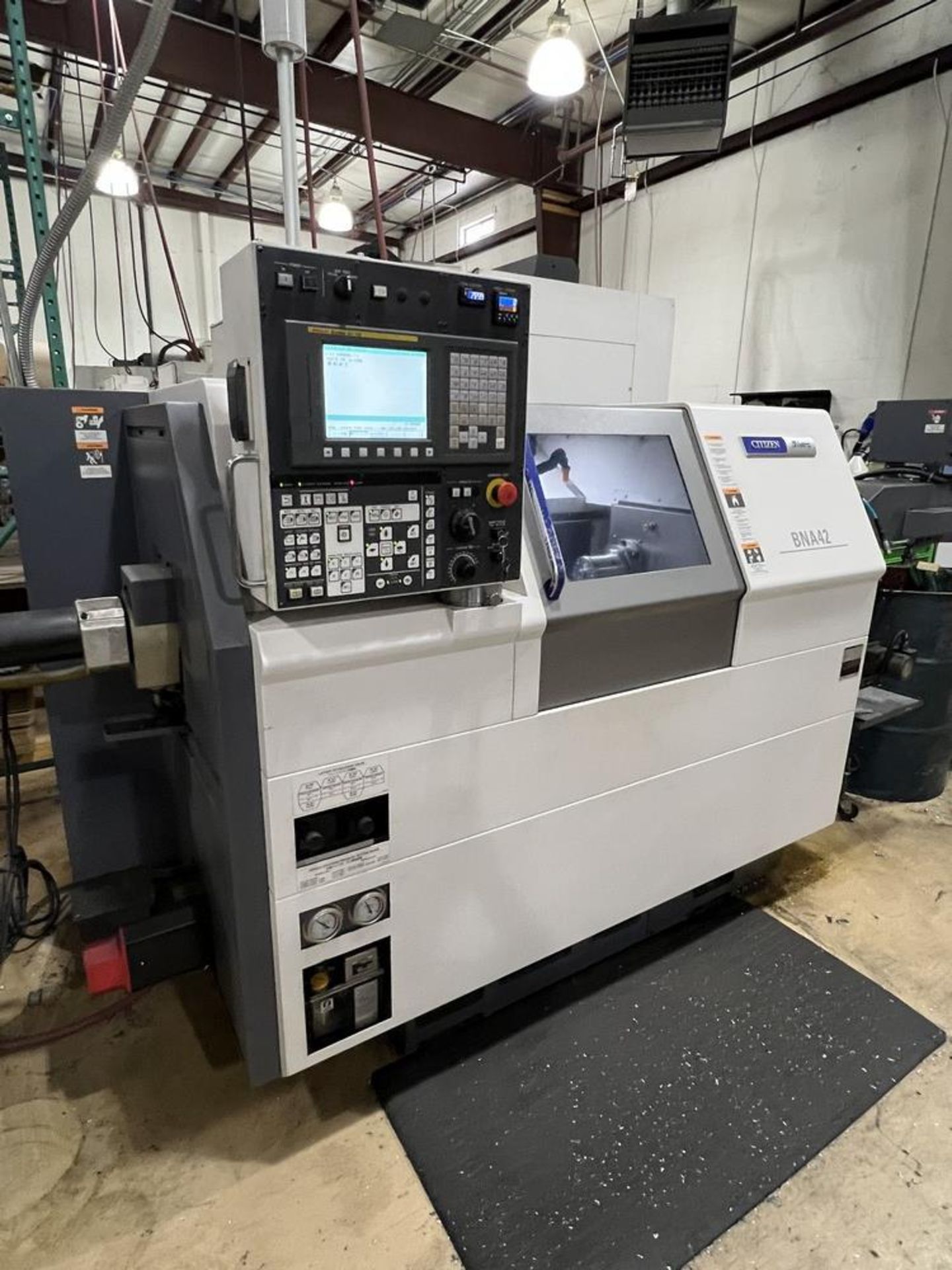

| Make: | Citizen Miyano |
| Model: | BNA-42S2 |
| Condition: | Used |
| Equipped With: |
|---|

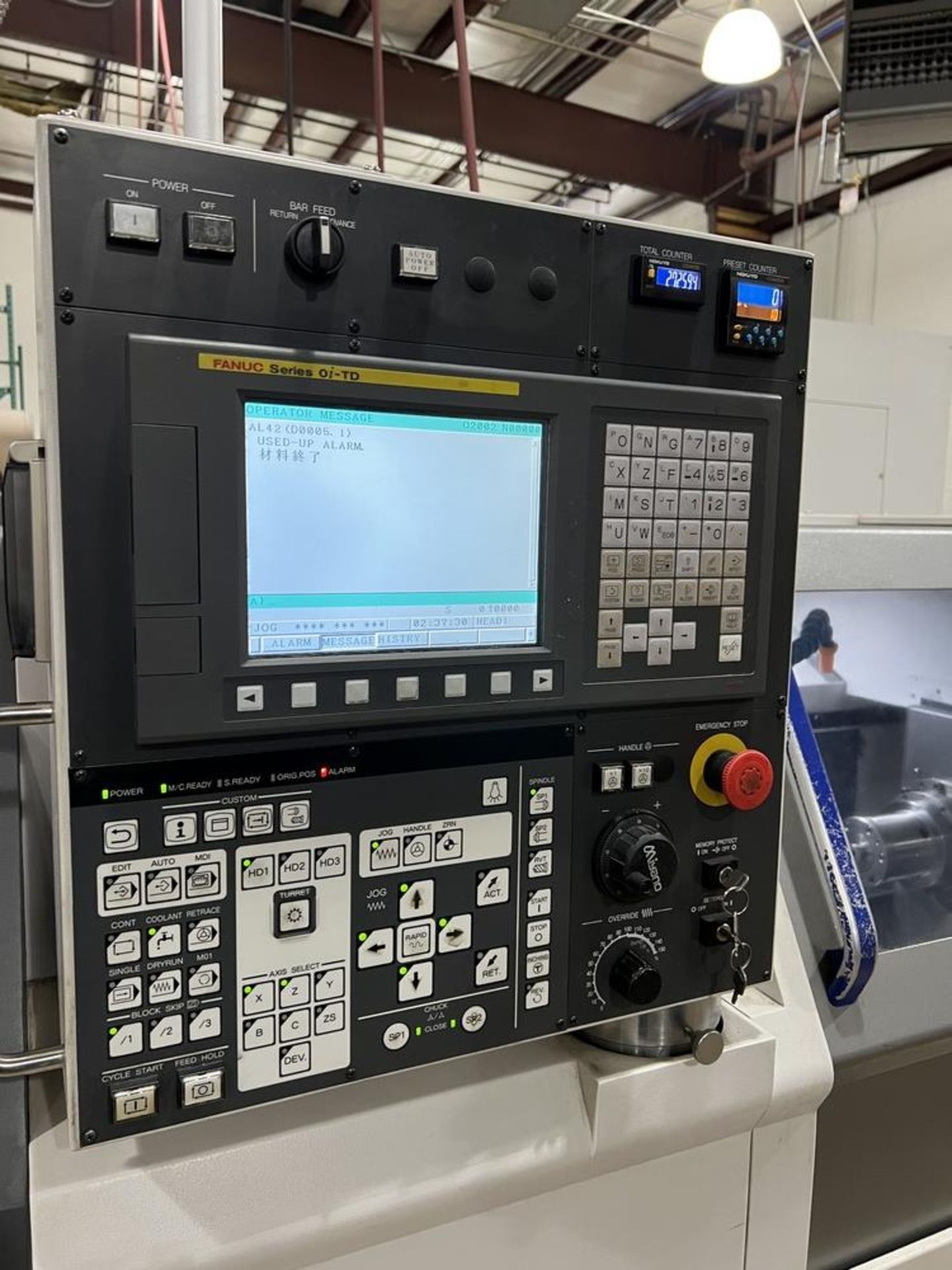

| Fanuc CNC Control |
| Main & Sub Spindles |
| Dual Turret Configuration |
| C-Axis Control (Main & Sub) |
| Programmable Tailstock |
| Automatic Tool Changer |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 6.3″ |
| Max Turning Length: 17.7″ |
| Bar Capacity: 1.65″ |
| Travels: |
|---|
| X-Axis Travel (Upper Turret): 6.7″ |
| X-Axis Travel (Lower Turret): 5.9″ |
| Z-Axis Travel: 18.5″ |
| W-Axis Travel (Sub-Spindle): 17.7″ |
| Main Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Spindle Bore: 1.77″ |
| Sub-Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 10 HP |
| Spindle Bore: 1.65″ |
| Turrets: |
|---|
| Upper Turret Capacity: 8 Stations |
| Lower Turret Capacity: 8 Stations |
| Tool Size (OD): 0.79″ × 0.79″ |
| Boring Bar Capacity: 1.0″ |
| Feedrates: |
|---|
| Rapid Traverse X/Z: 1,181 IPM |
| Cutting Feedrate: 0 – 472 IPM |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 102″ × 63″ × 70″ |
| Machine Weight (Approx.): 11,000 lbs |
