*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

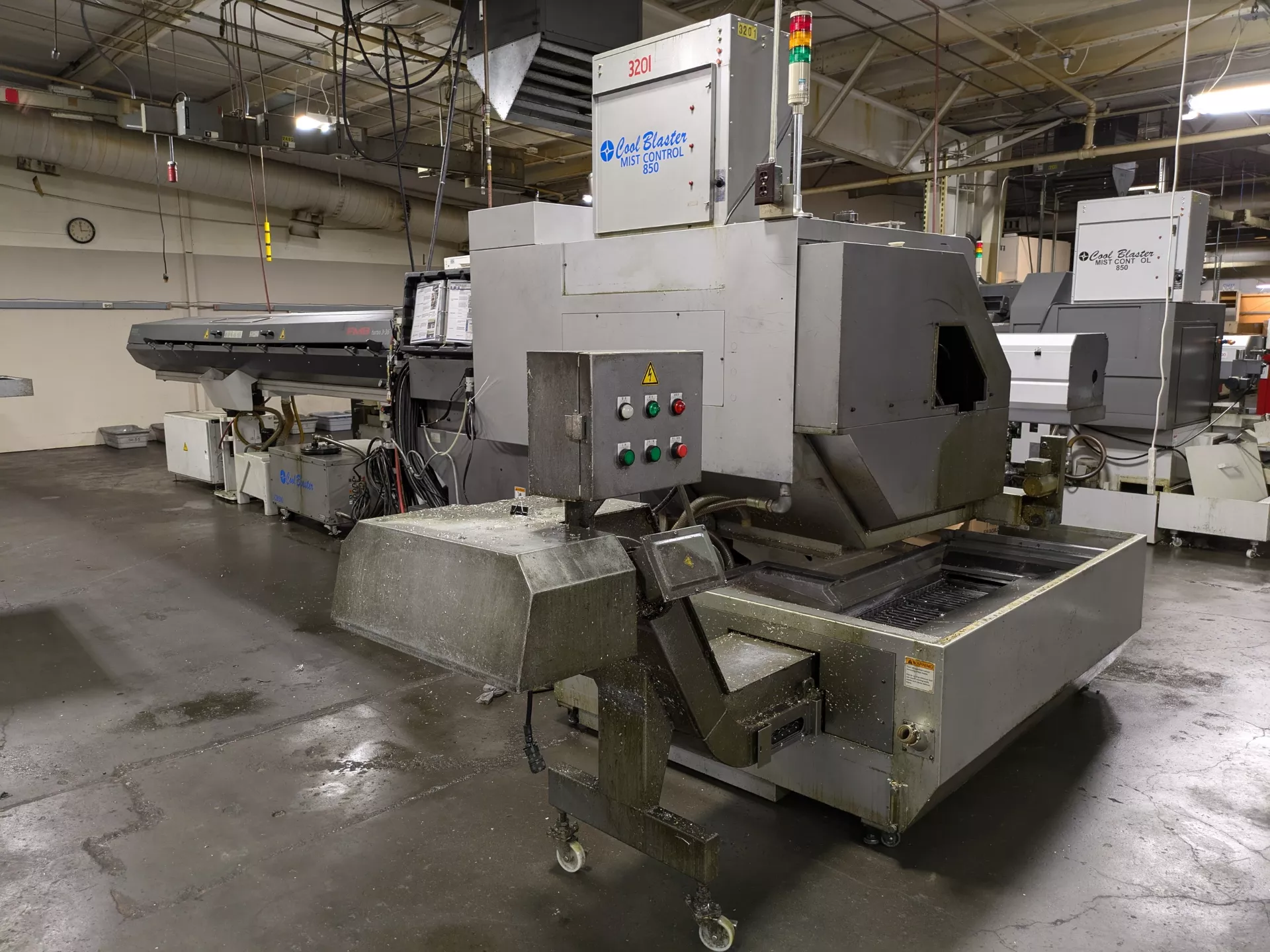

| Make: | Citizen |
| Model.: | M32V |

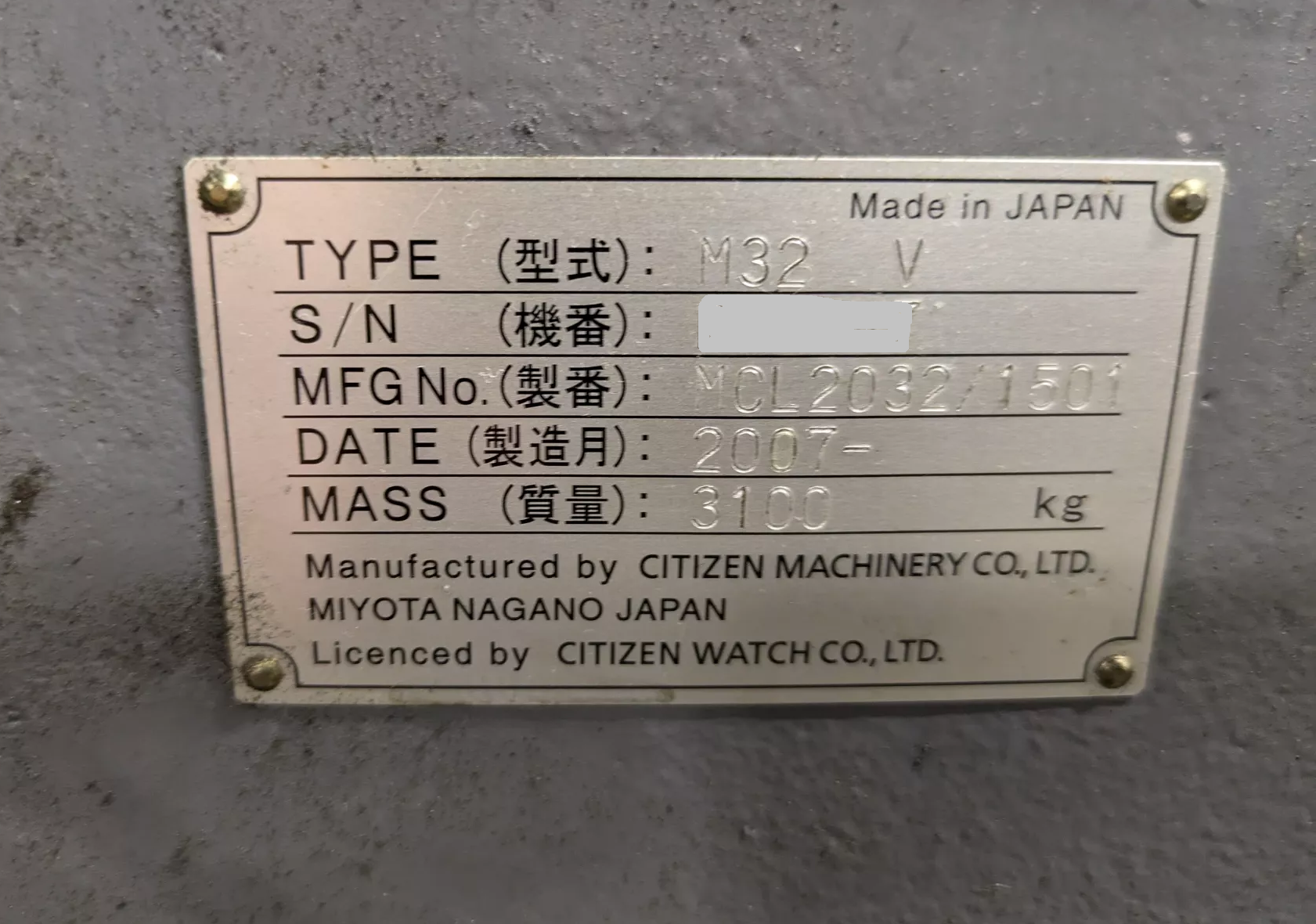

| Year of Manufacture: | 2007 |
| Machine Type: | CNC Swiss-Type Sliding Headstock Lathe |

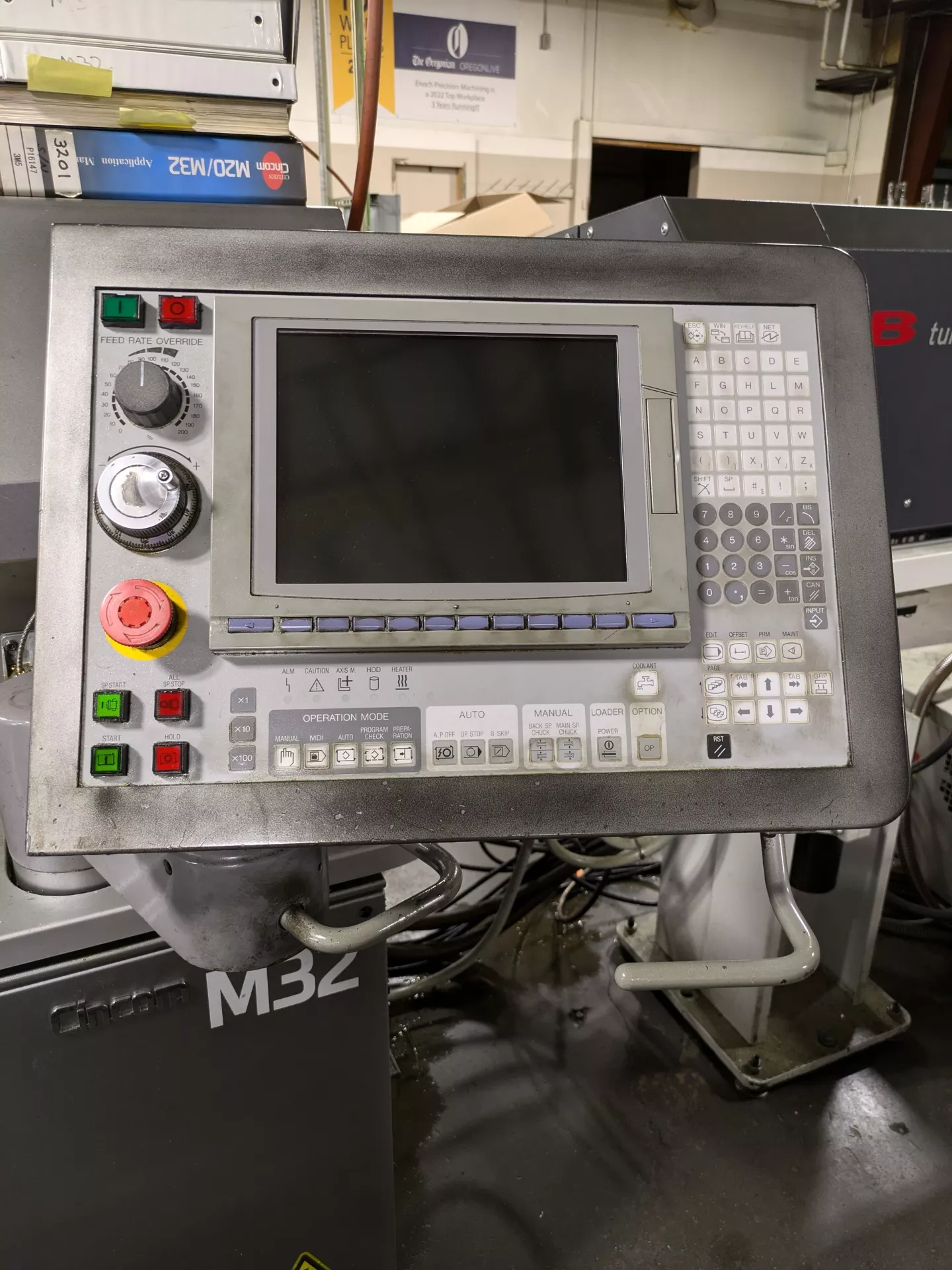

| CNC Control: | Mitsubishi Meldas / Citizen Cincom CNC Control |
| Equipped With: |
|---|
| Main Spindle and Sub-Spindle with C-Axis Control |
| Sliding Headstock Swiss-Type Design |
| Guide Bushing System |
| Gang Tooling System |
| Live Tooling Capability |
| Bar Feeder Interface |
| Parts Catcher |
| Coolant System |
| Automatic Lubrication System |
| Capacity: |
|---|
| Maximum Turning Diameter: 32 mm (1.25″) |
| Optional Maximum Diameter: 38 mm (1.5″) |
| Maximum Turning Length: 320 mm (12.6″) |
| Bar Capacity: 32 mm (1.25″) |
| Main Spindle: |
|---|
| Spindle Speed: 200 – 8,000 RPM |
| Spindle Motor Power: 5.5 kW (7.4 HP) |
| Spindle Bore: Approx. 36 mm |
| C-Axis Indexing Resolution: 0.001° |
| Sub Spindle: |
|---|
| Maximum Spindle Speed: Up to 7,000 RPM |
| Maximum Chuck Diameter: 32 mm |
| Back-Side Machining Capability with C-Axis Control |
| Axis Configuration: |
|---|
| Typical 9-Axis Swiss-Type Configuration |
| X1 Axis |
| Z1 Axis |
| X2 Axis |
| Z2 Axis |
| Y Axis |
| C-Axis (Main Spindle) |
| C-Axis (Sub Spindle) |
| B-Axis (Tooling) |
| Back-Working Axis |
| Simultaneous Front & Back Machining Capability |

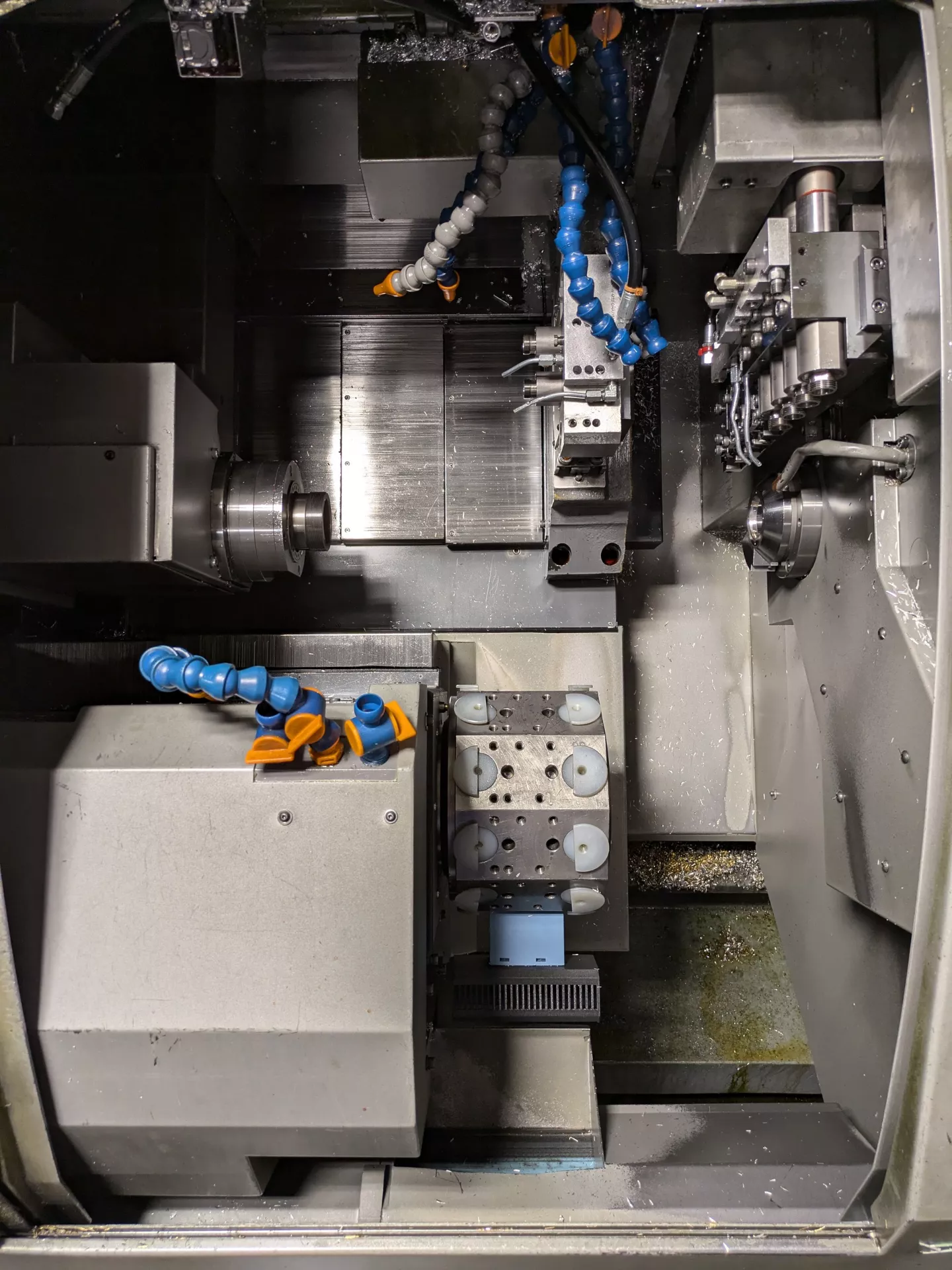

| Tooling System: |
|---|
| Total Tool Positions: Approx. 20 – 22 Tools |
| Live (Rotary) Tools: Up to 4 |
| Gang Tool Post and Turret Tooling Configuration |
| Rotary Tool Speed: Up to 5,000 RPM |
| Machining Capability: |
|---|
| Maximum Front Drilling Diameter: 12 mm |
| Maximum Back Drilling Diameter: 10 mm |
| Tapping Capacity: M8 – M10 (Approx.) |
| Machine Construction: |
|---|
| Sliding Headstock Design for Long Slender Parts |
| Guide Bushing System for Precision Machining |
| Simultaneous Machining with Main and Sub-Spindle |
| Designed for High-Volume Production with Bar Feeders |
| General: |
|---|
| Machine Dimensions: Approx. 2800 × 1300 × 1800 mm |
| Machine Weight: Approx. 2,900 – 3,200 kg |
| Optional Features: |
|---|
| Iemca / LNS Bar Feeder |
| High-Pressure Coolant System |
| Chip Conveyor |
| Long-Part Ejector System |
| Tool Monitoring System |
| Automation / Robotic Loading |
