Cuttermaster FCG30 Tool & Cutter Grinder - MachineStation
Sold Out!

Cuttermaster FCG30 Tool & Cutter Grinder

SKU:
1132
Categories: , ,

Out of stock

Product Description


CUTTERMASTER FCG30 T&C Grinder

Make: Cuttermaser
Model #: FCG-30
Serial #: 1464B
Condition: Very Good

All specifications are approximations, and are subject to verification.

CUTTERMASTER FCG30 Features:

Air bearing spindle that accepts 5C collets
360° swivel base for taper grinding
Tilting wheel motor assembly for positive and negative angles
Forward/Reverse directional spindle controls
2″ Cast iron and precision ground t-slotted tables
Workhead mounted end mill holding fixture
1/3 H.P. 1/60/110-220 volt 3,450 R.P.M. motor
Machine is wired for single phase operation.
Comes with Rolling Storage Cart, Instruction Sheets.

Free Shipping Within USA


CUTTERMASTER FCG30 Specifications:

Minimum/Maximum end mill capacity
Cutting tool capacity
Air bearing stroke over table
Swing over table
Longitudinal travel of table (X-axis)
Cross travel of wheel table (Y-axis)
Vertical travel of wheel motor assembly (Z-axis)
X-axis table working space
Y-axis table working space
T-Slot dimensions
Table feed graduations
Flute length
Tilt adjustment of wheel
Swivel adjustment of head stock
Maximum wheel size
Wheel speed
Air pressure
.0625″/3″
2″ Shank, 9.8″ O.D.
9.8″
9.75″
6″
3″ (and motor slides back/forth 6″)
8″
16.5″ x 5.5″
13″ x 5.5″
0.8″ x 0.5″ x 0.67″
.001″
10.5″
+35°/-10°
360°
5″ x 2″ x 1-1/4″
3,450 R.P.M.
90 P.S.I.
General:
Approximate Dimensions: 36″ x 28″ x 50″ H
Weight: 250 lbs

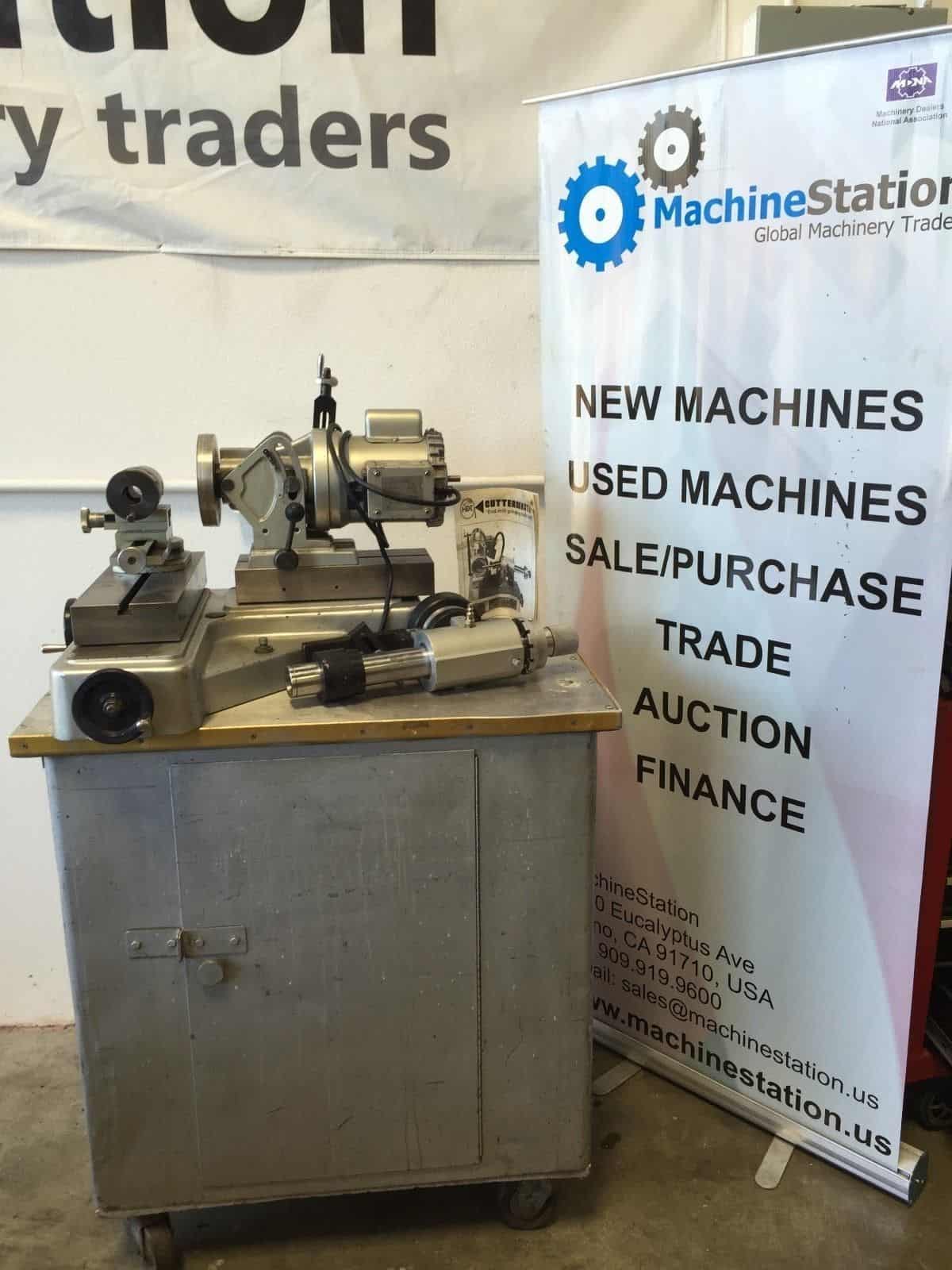

CUTTERMASTER FCG30 Comes as shown in pictures.
