All specifications are approximations and are subject to verification.
-

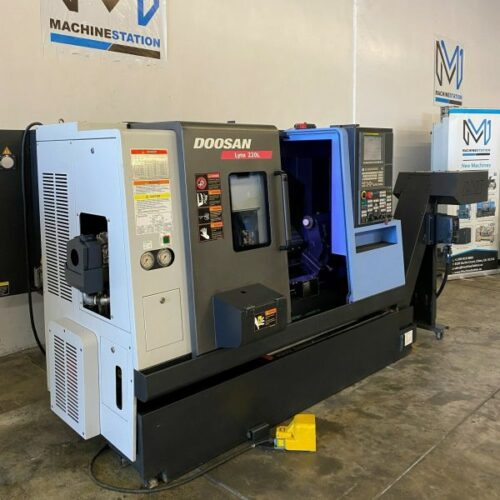

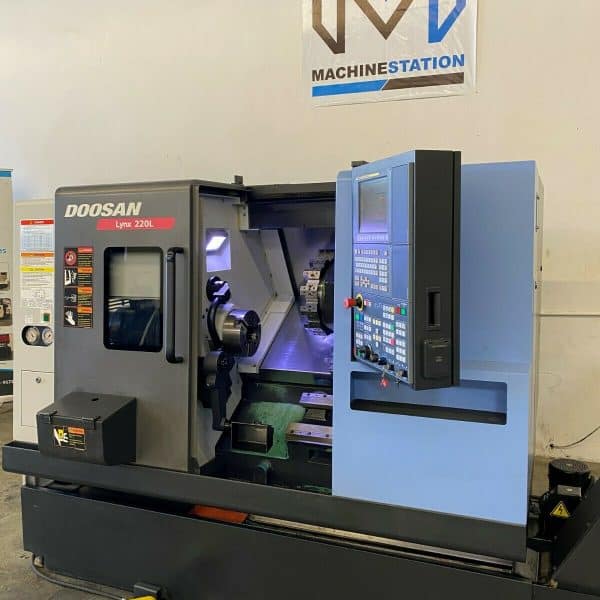

Daewoo Doosan LYNX 220LC Equipped With:

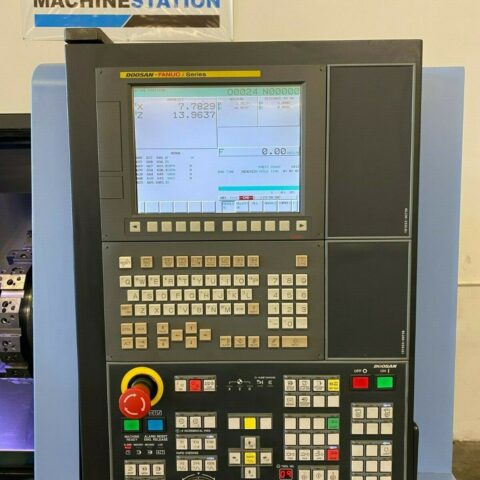

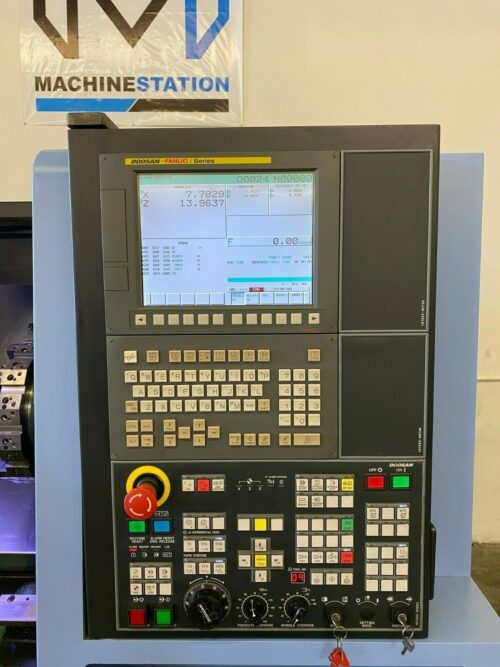

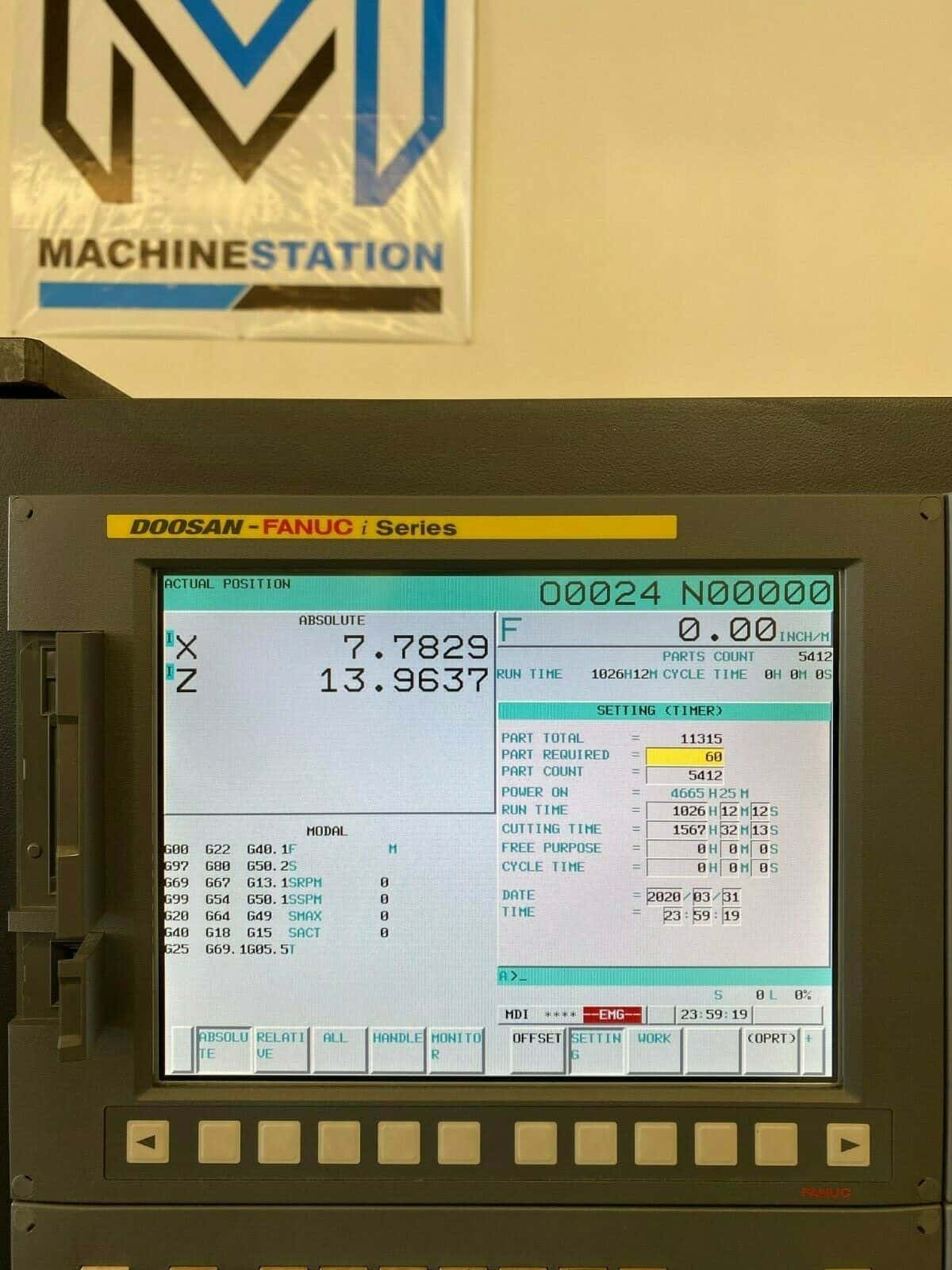

- Doosan Fanuc i series CNC Control

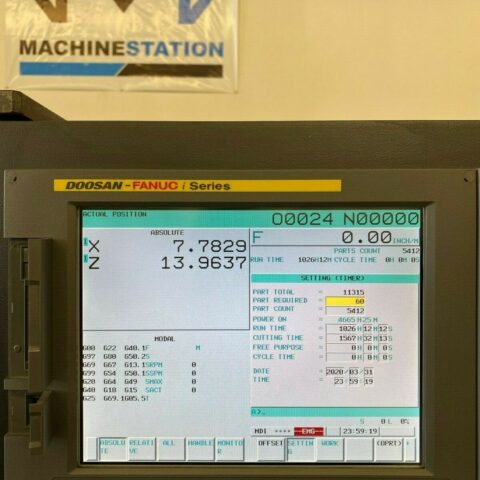

- 10.4 Color LCD Display
- 3.0″ Big Bore, Long Bed Lathe

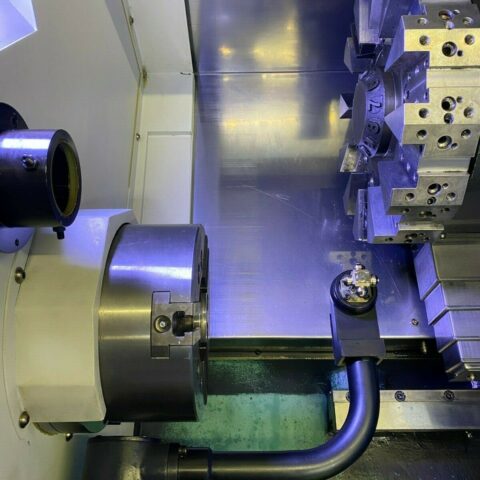

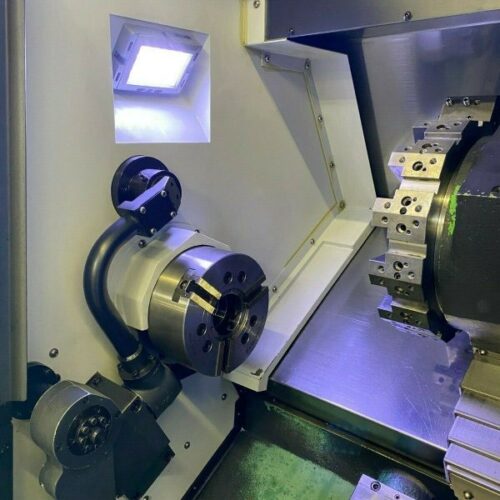

- 8.25″ 3 Jaw Big Bore Hydraulic Chuck
- USB Drive
- A2-6 Spindle Nose

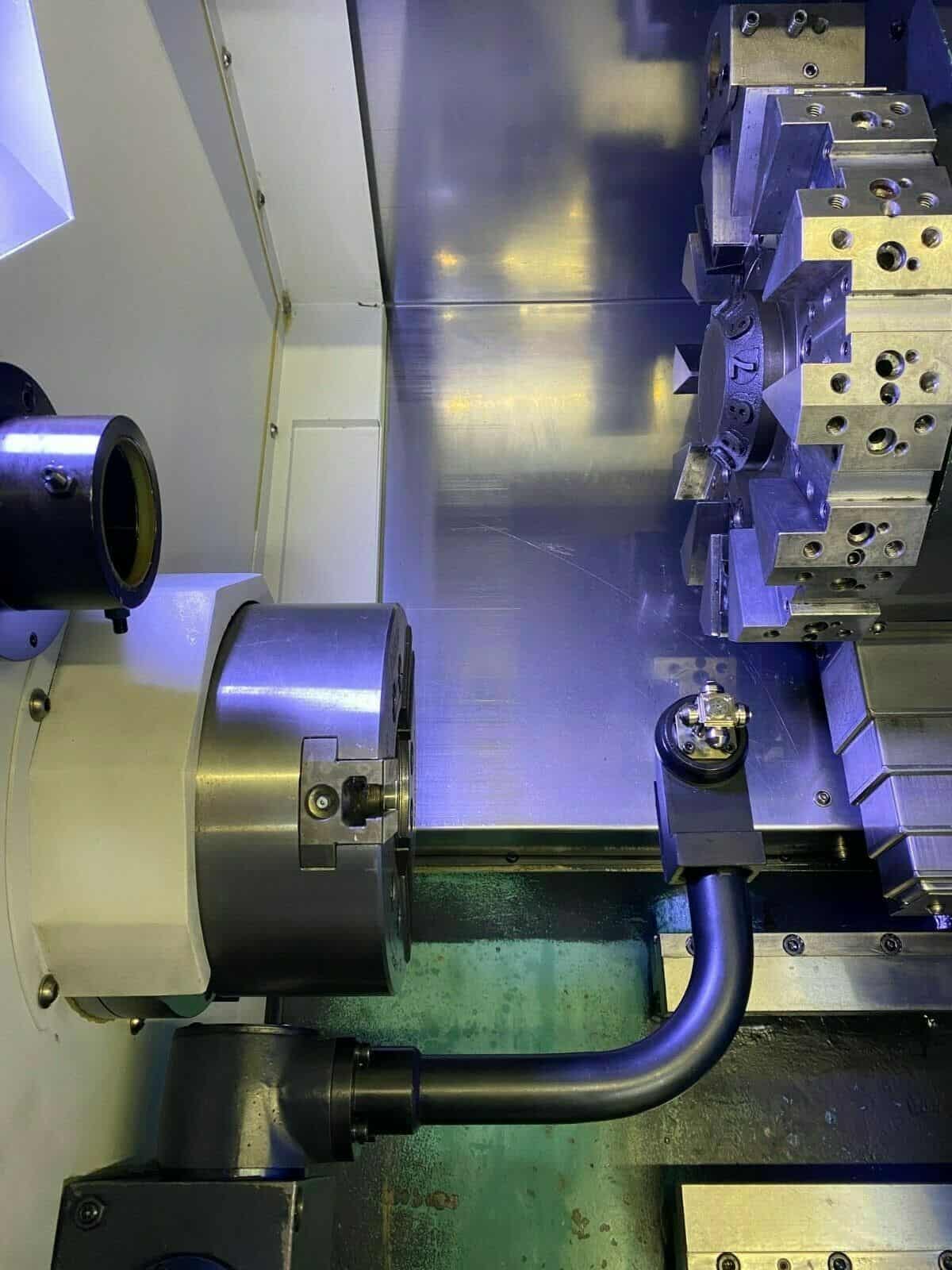

- Tool Presetter
- Parts Catcher

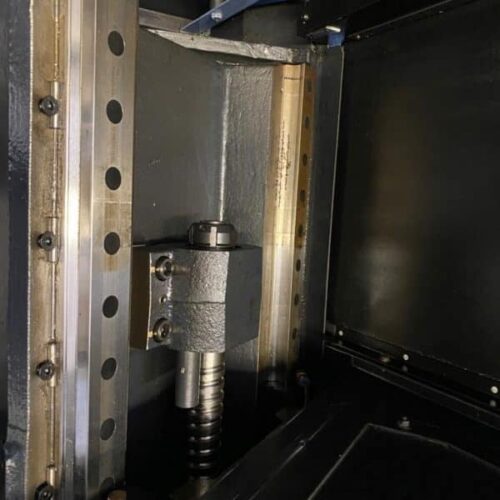

- Hydraulic Tailstock Quill
- PCMCIA Card Slot
- RS-232 & LAN connectivity
- Coolant System
- Barfeed Interface

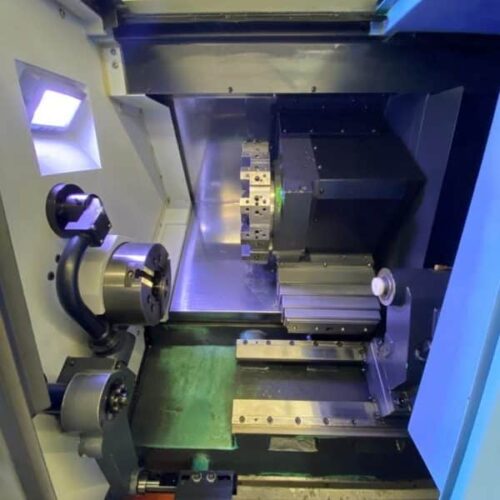

- 12 Station Automatic Turret
- Foot Switch
- Turbo Chip Conveyor
-
Daewoo Doosan LYNX 220LCSpecifications:
- Capacity:
- Max Turning Diameter: 12.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 2.75″
- Swing Over Bed: 20.1″
- Distance Between Centers: 24.0”
-
Travel:
- X Axis Travel: 6.9″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1417 IPM
-
Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 3.0″
- Spindle Speed: 40 – 4000 RPM
- Spindle Motor: 20hp
-
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.11 Second
-
Tailstock:
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.97″
- Tailstock Quill Travel: 3.15″
-
General:

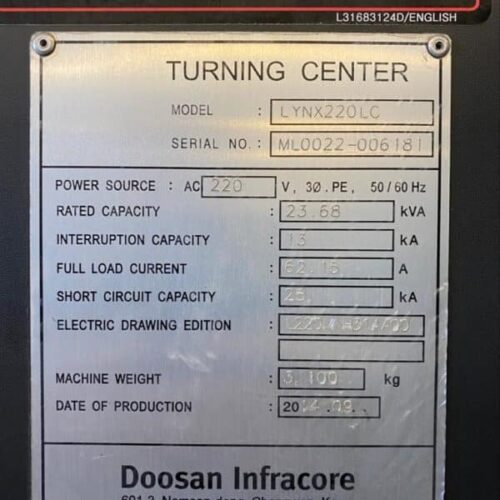

- Power: 23 kva, 220v / 3-Phase
- Overall Dimensions: 160″ x 77″ x 80″ High with Chip Conveyor
- Weight: 7000 lbs
