*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Daewoo |
| Model: | Puma 10S-B |
| Year: | 1996 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Mitsubishi Meldas 500 CNC Control |
| Equipped With: |
|---|
| Mitsubishi Meldas 500 CNC Control |

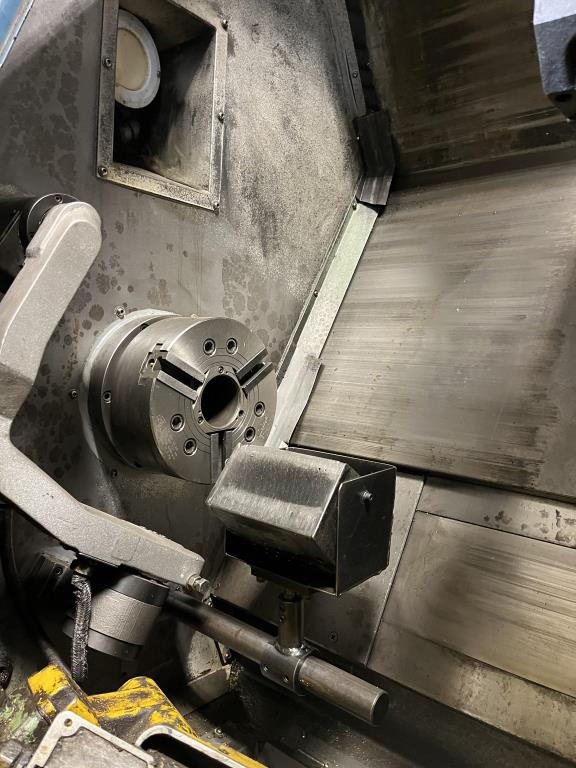

| 10″ Kitagawa Chuck |

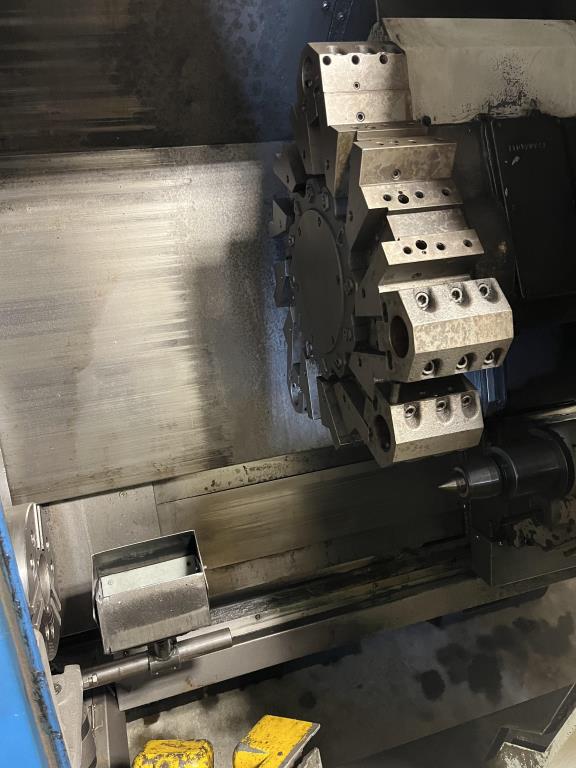

| 12-Station Turret |
| Hydraulic Tailstock |
| Tailstock with MT #5 Center Taper |
| Tool Probe |
| Parts Catcher |
| Chip Conveyor |
| Foot Switches |
| Fully Enclosed Machining Area |
| Capacity: |
|---|
| Maximum Swing Over Bed: 22.44″ |
| Maximum Turning Length: 30.31″ |
| Bar Capacity Without Chuck: 3.58″ |
| Bar Capacity With Chuck: 3.05″ |
| Chuck Bore: 3.05″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 10.24″ |
| Z-Axis Travel: Approx. 31.50″ |
| X-Axis Rapid Traverse: 480 IPM |
| Z-Axis Rapid Traverse: 630 IPM |
| Spindle: |
|---|
| Spindle Speed Range: 15–3,150 RPM |
| Spindle Motor Power: 30 HP |
| Spindle Nose: A2-8 |
| Chuck Size: 10″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tailstock: |
|---|
| Type: Hydraulic Tailstock |
| Center Taper: MT-5 |
| General: |
|---|
| Machine Weight (Approx.): 14,000 lbs |
| Machine Dimensions (Approx.): 112″ L × 73″ W × 73″ H |
