Comes with 10″ Chuck, Tool Holders, Manuals and Leveling Pads.
All specifications are approximations and are subject to verification.

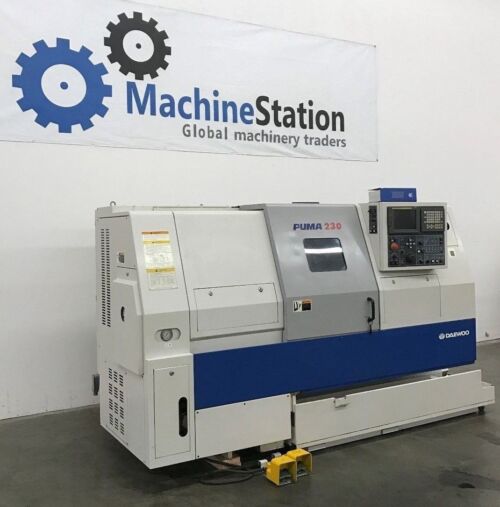

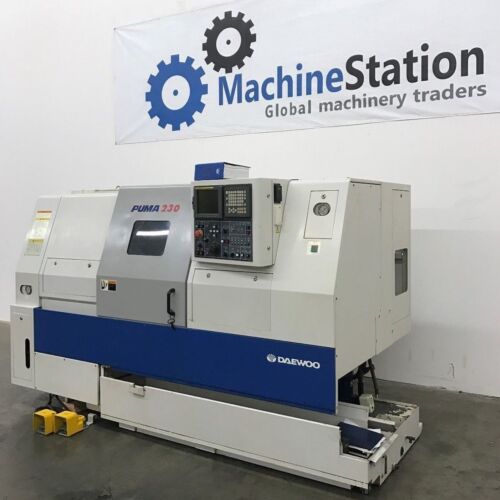

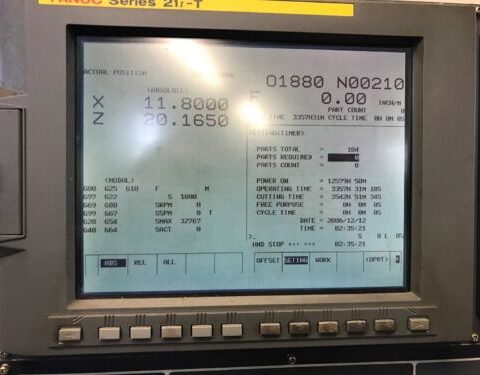

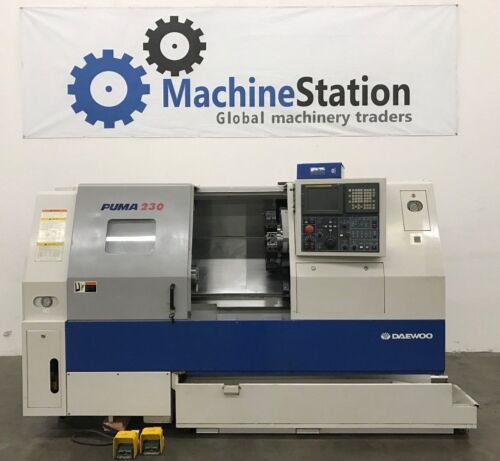

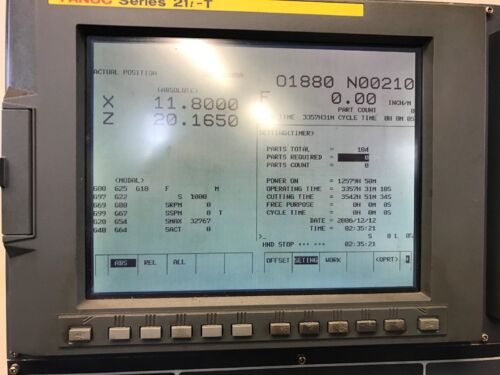

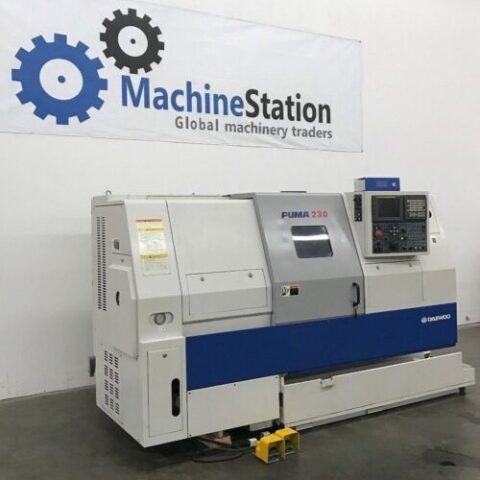

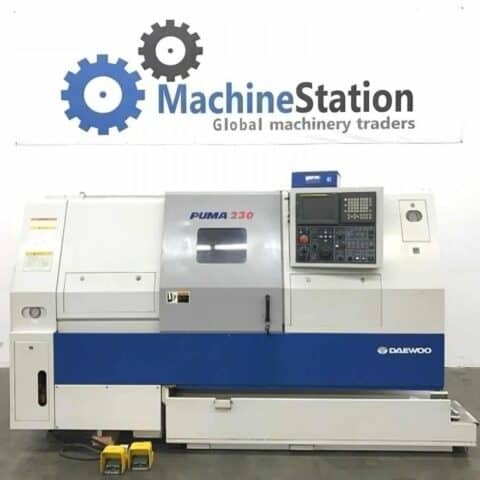

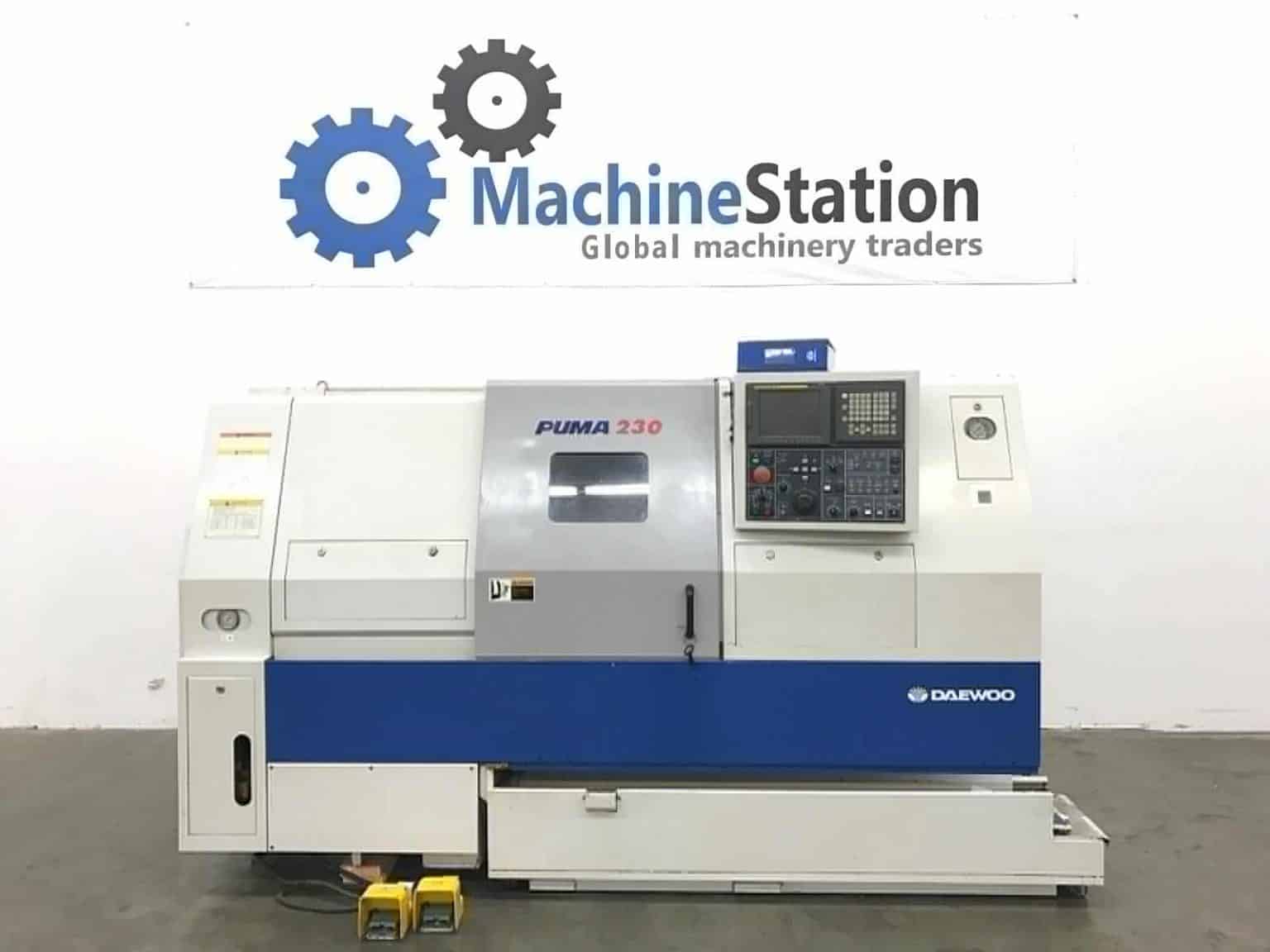

This One Owner Machine has only 3542 cutting hours. Its a Heavy Duty machine equipped with 10″ Chuck, 2.99″ Spindle Bore, Hydraulic Tailstock & Fanuc 21iT control. On Our Floor now, Fully powered / tested & is in Great working condition. Alignment on all axis within factory Tolerances.
-
DAEWOO PUMA 230C Equipped With:

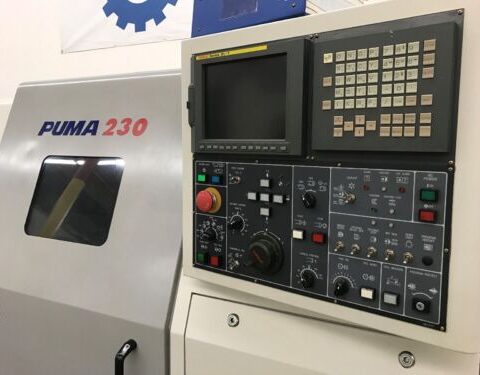

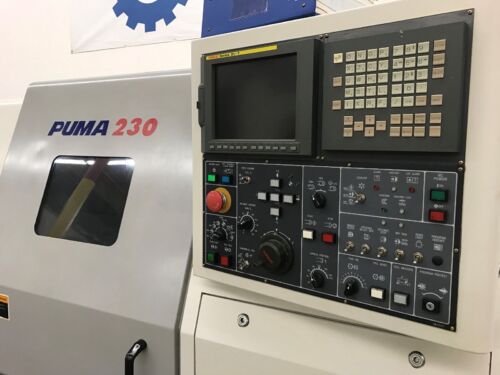

- Fanuc 21iT CNC Control
- 10″ 3 Jaw Kitagawa Hydraulic Chuck
- Tool Presetter
- Programmable Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

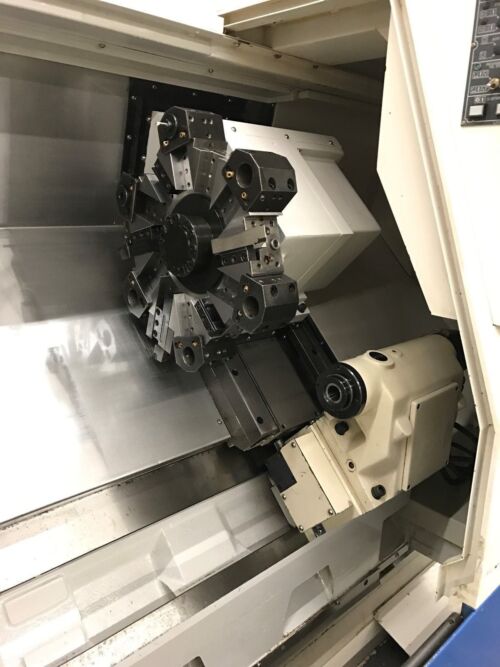

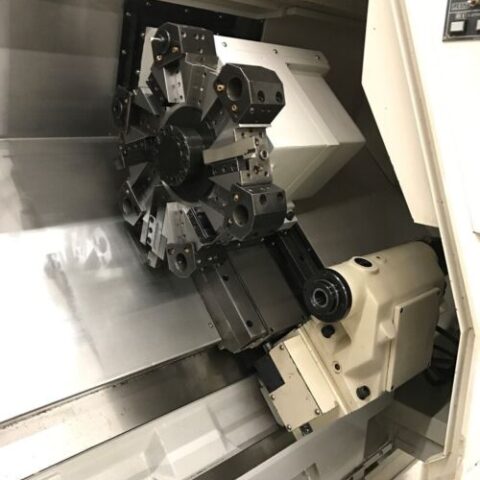

- 12 Station Automatic Turret
-
General:

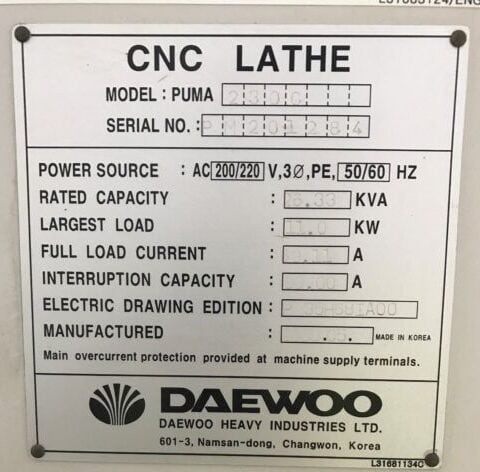

- Power: 220v / 3-Phase
- Overall Dimensions: 117” x 64″ x 69″ High
- Weight: 9400 lbs
-
DAEWOO PUMA 230C Specifications:
- Capacity:
- Max Turning Diameter: 13.78″
- Max Turning Length: 21.57″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 20.1″
- X Axis Travel: 9.53″
- Z Axis Travel: 22.83″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 1000 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 15/18.5 kw
- Turret Capacity: 10 Stations
- Turret Index Time: 0.1 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.95″
- Tailstock Quill Travel: 3.15″
