*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

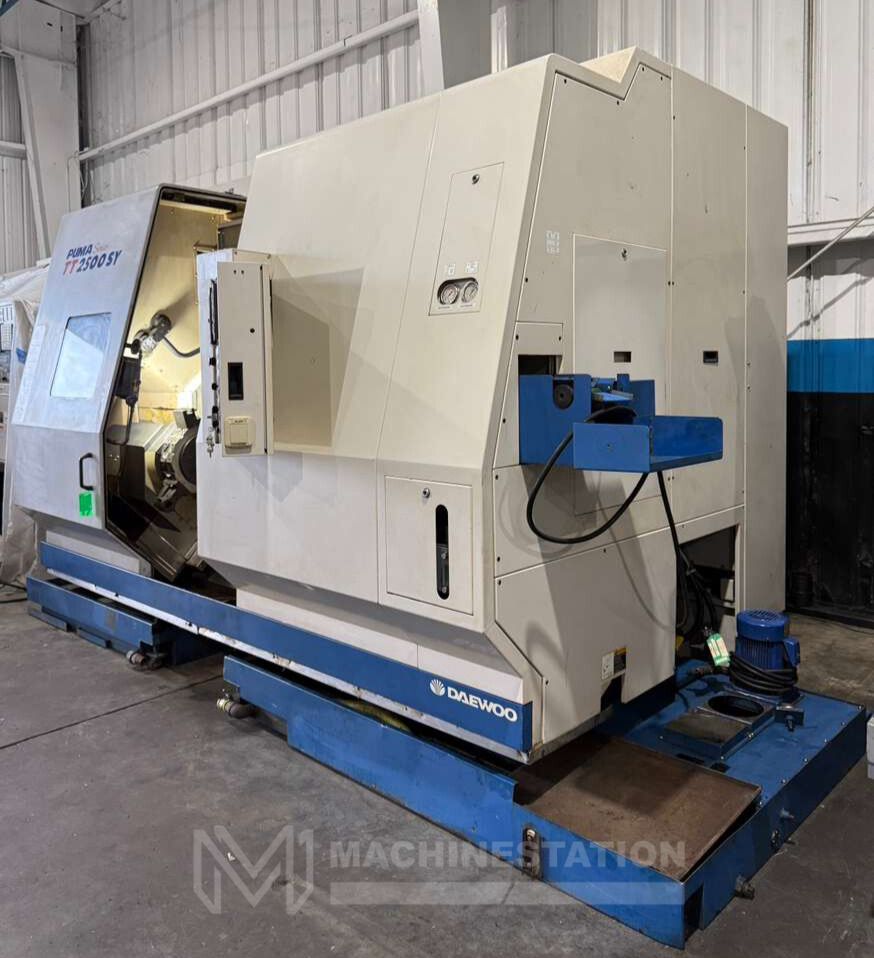

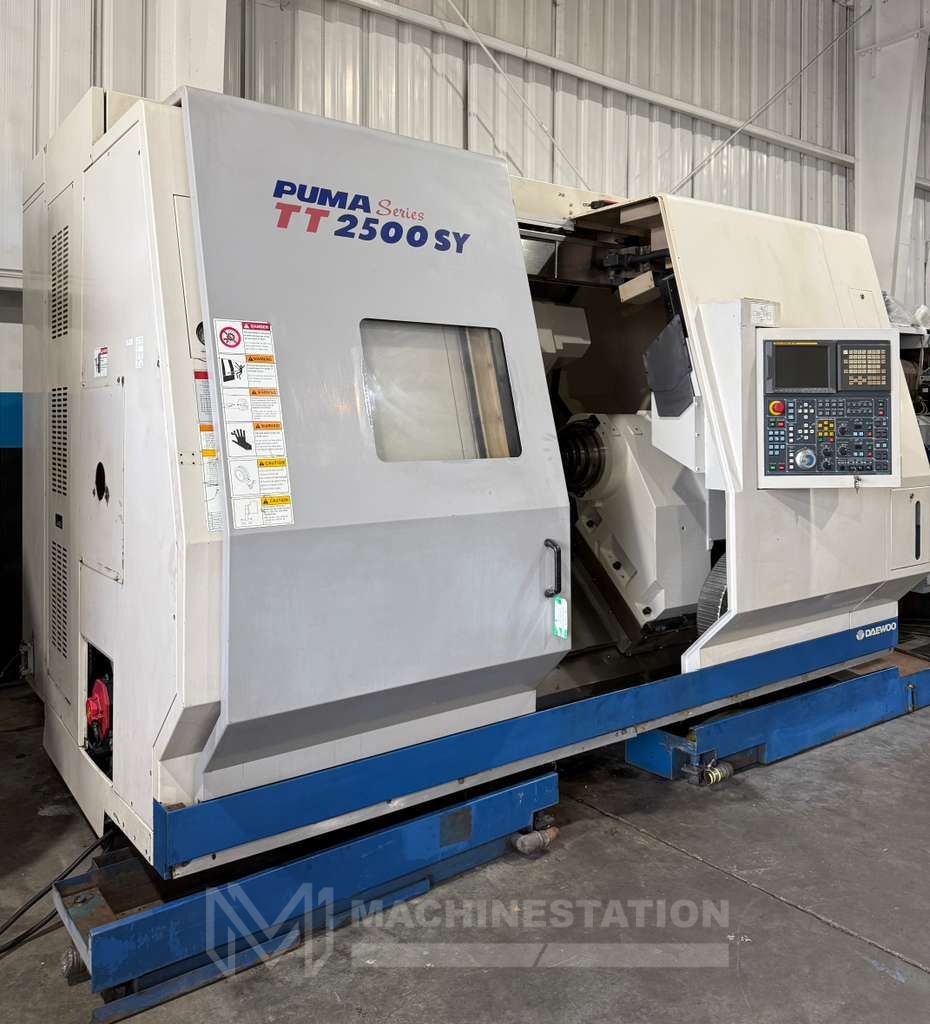

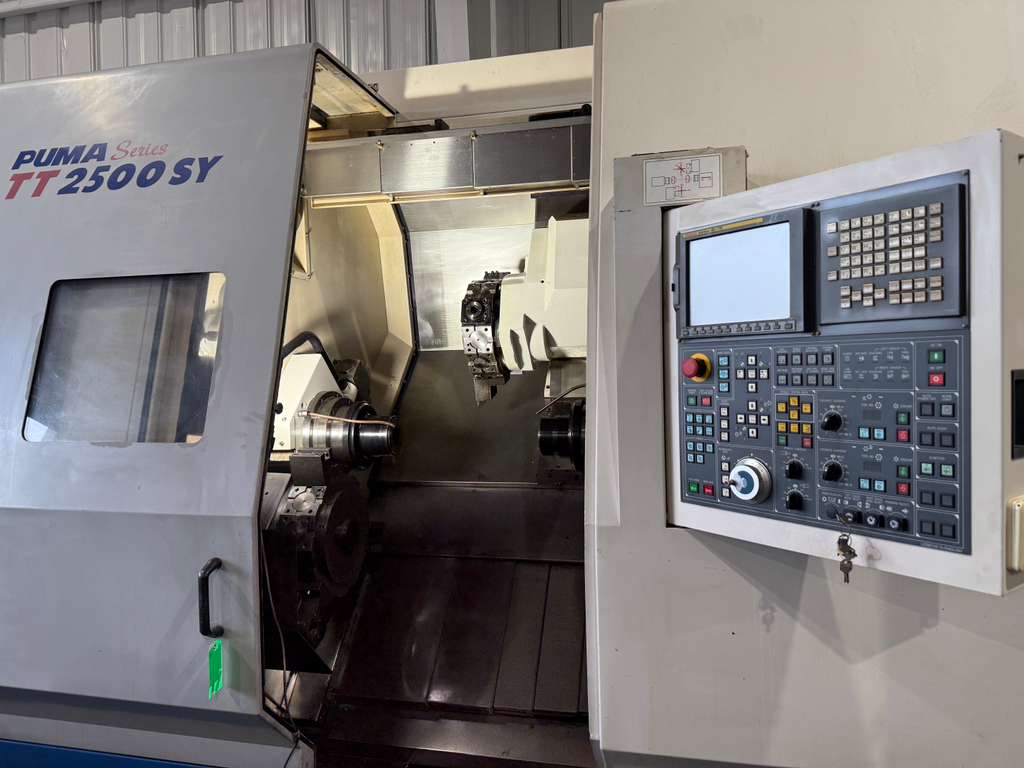

| Make: | Daewoo |
| Model: | Puma TT2500SY |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|

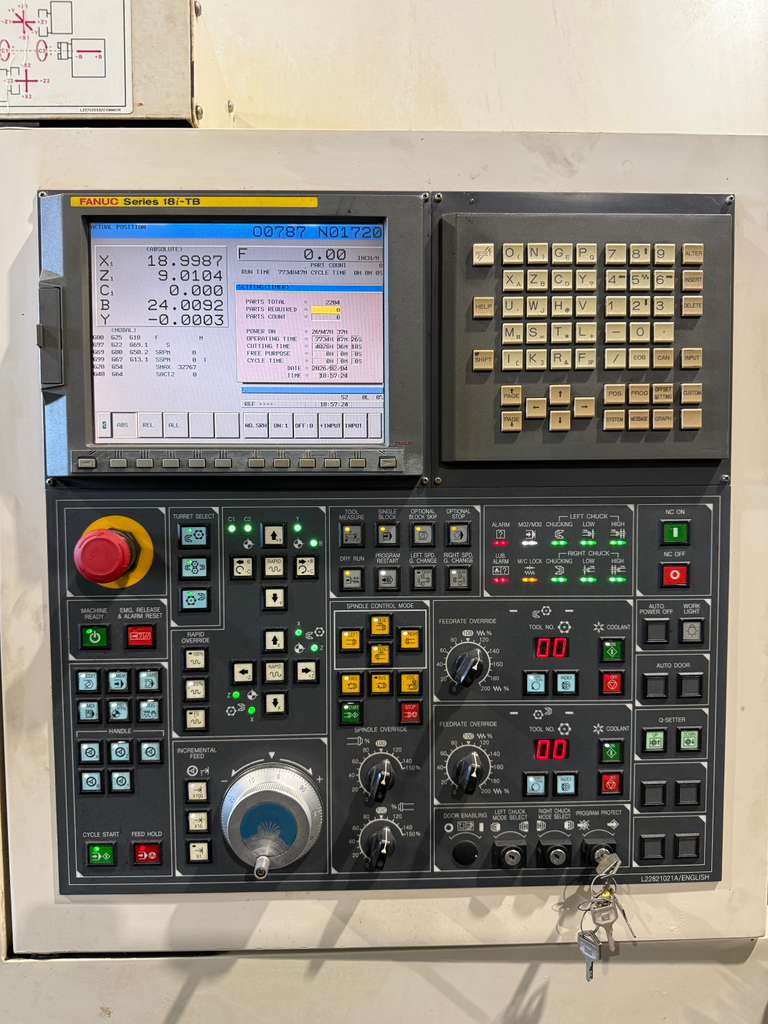

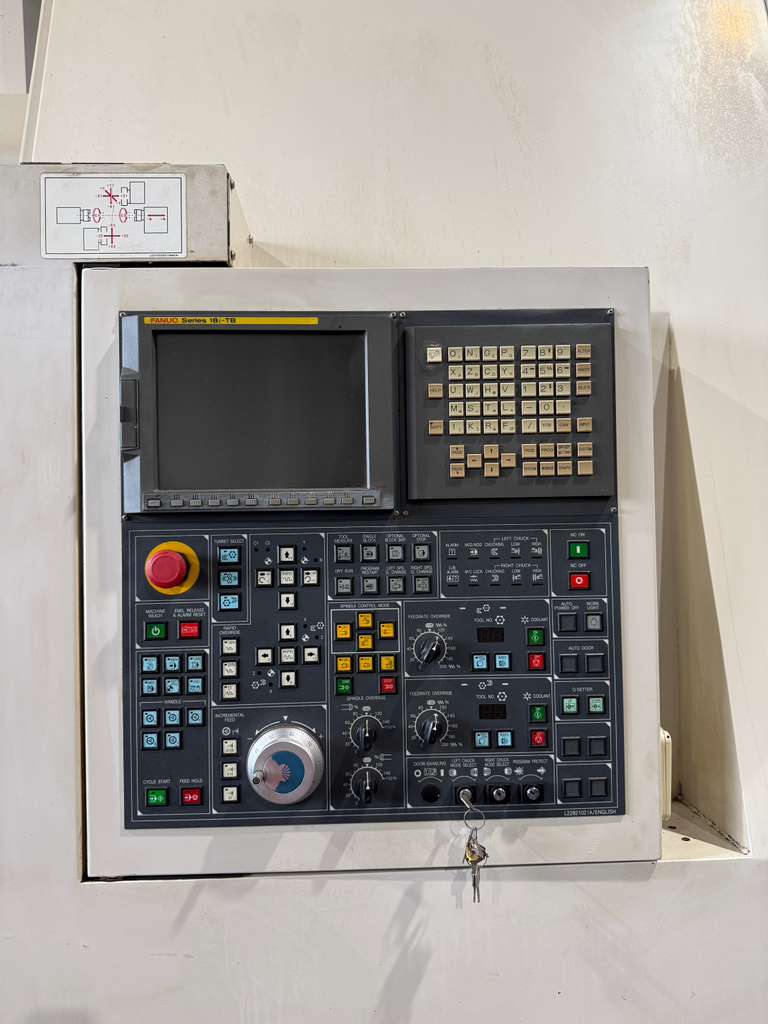

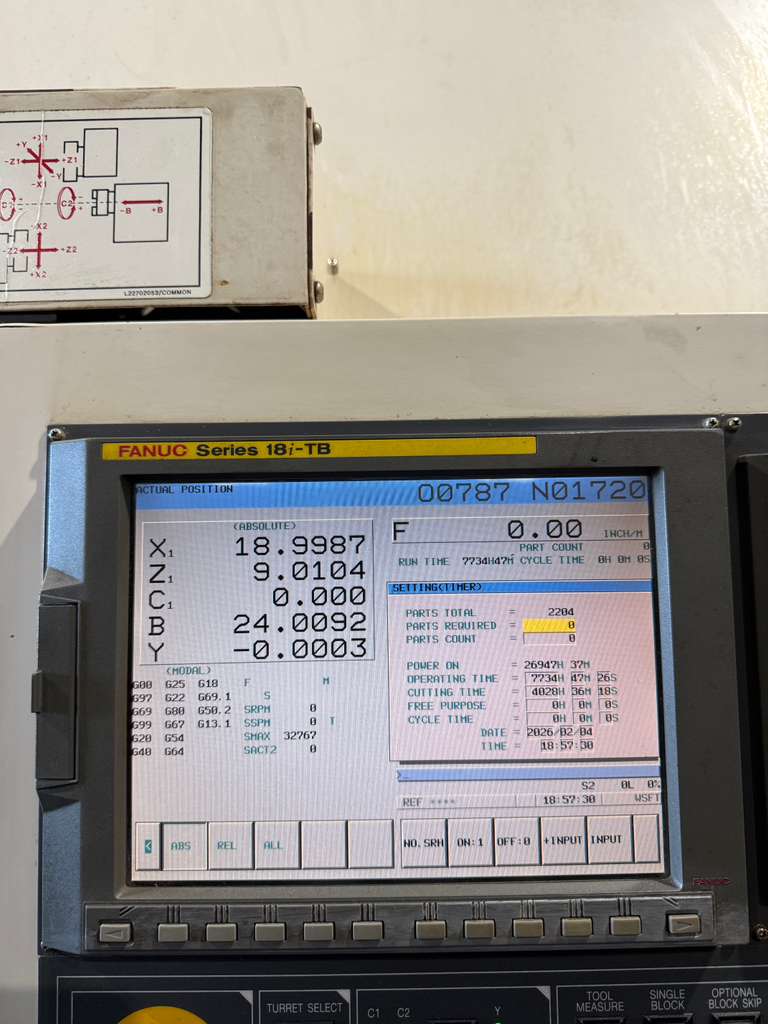

- Fanuc 18i-TB CNC Control
- Heavy Duty Box Way Construction
- Collet Chuck on Main Spindle (Capable 10″ Chuck)
- Collet Chuck on Sub Spindle (Capable 10″ Chuck)

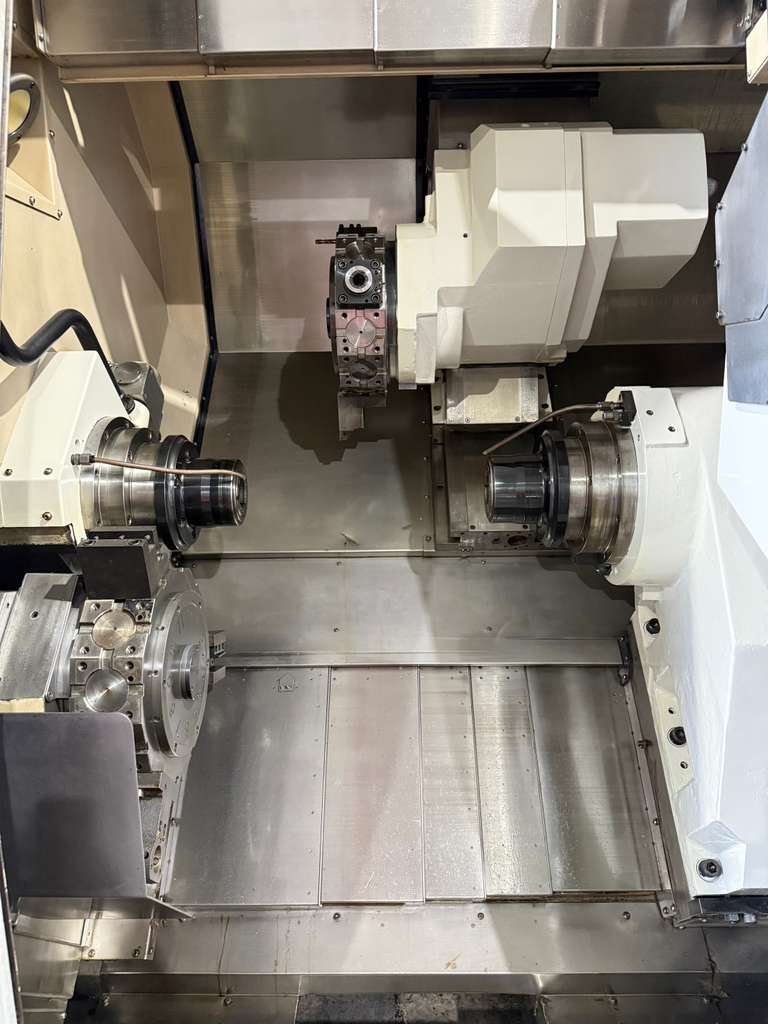

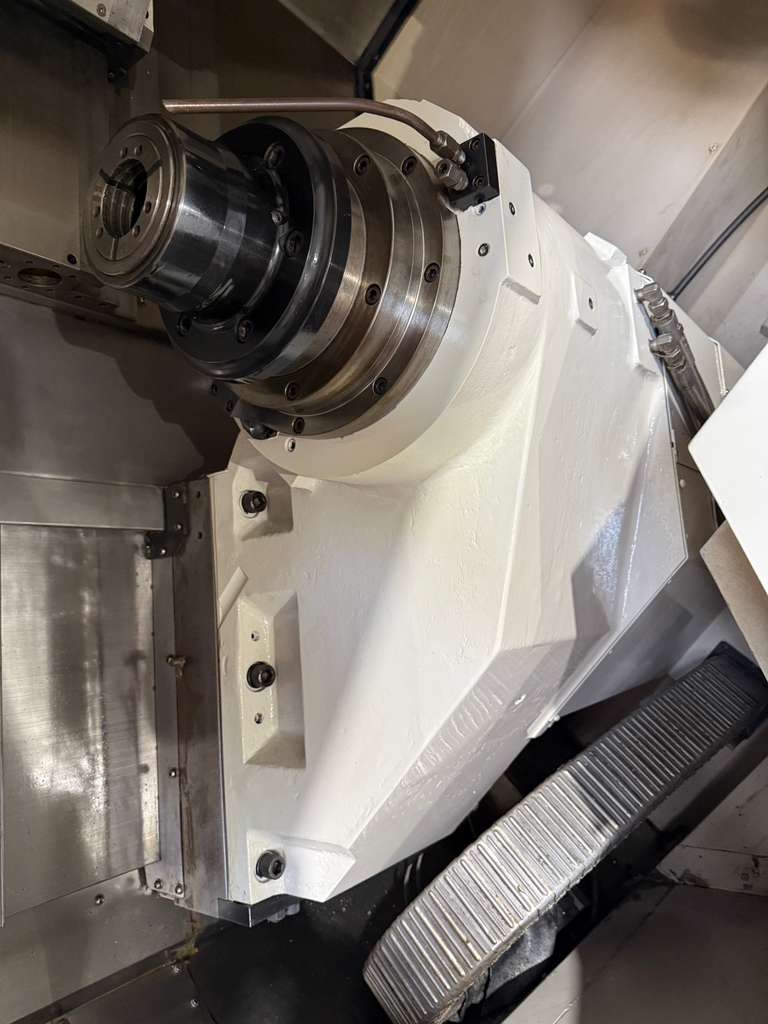

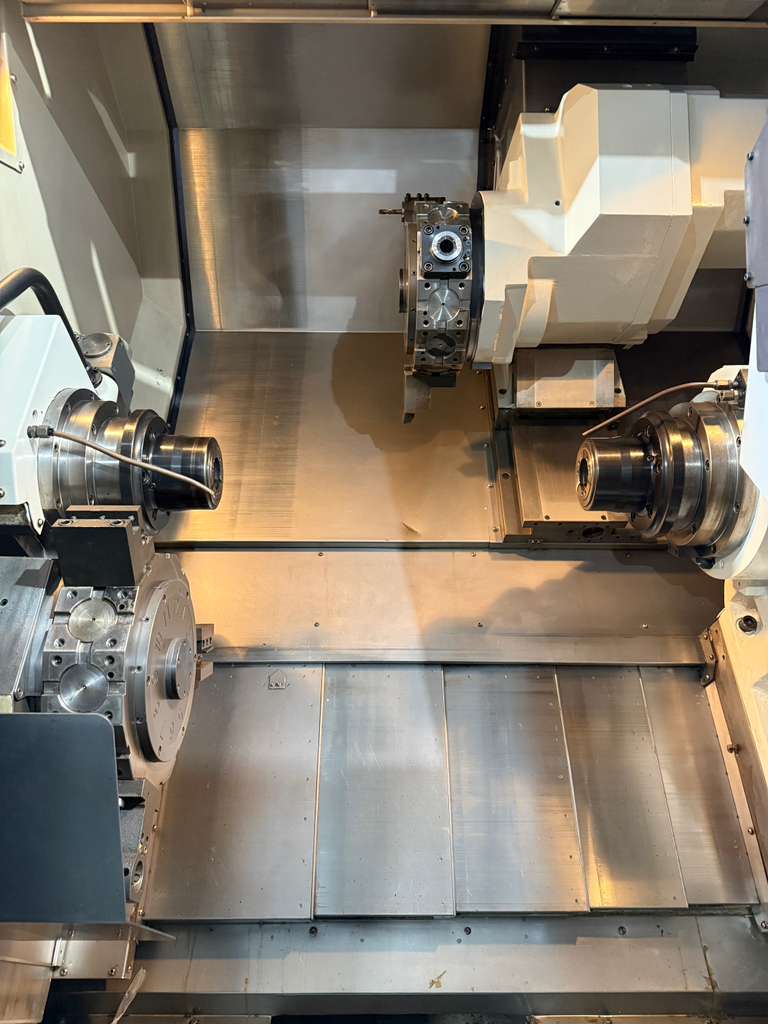

- Sub Spindle
- Servo Controlled Full C-Axis on Both Spindles
- Both Spindle Synchronization

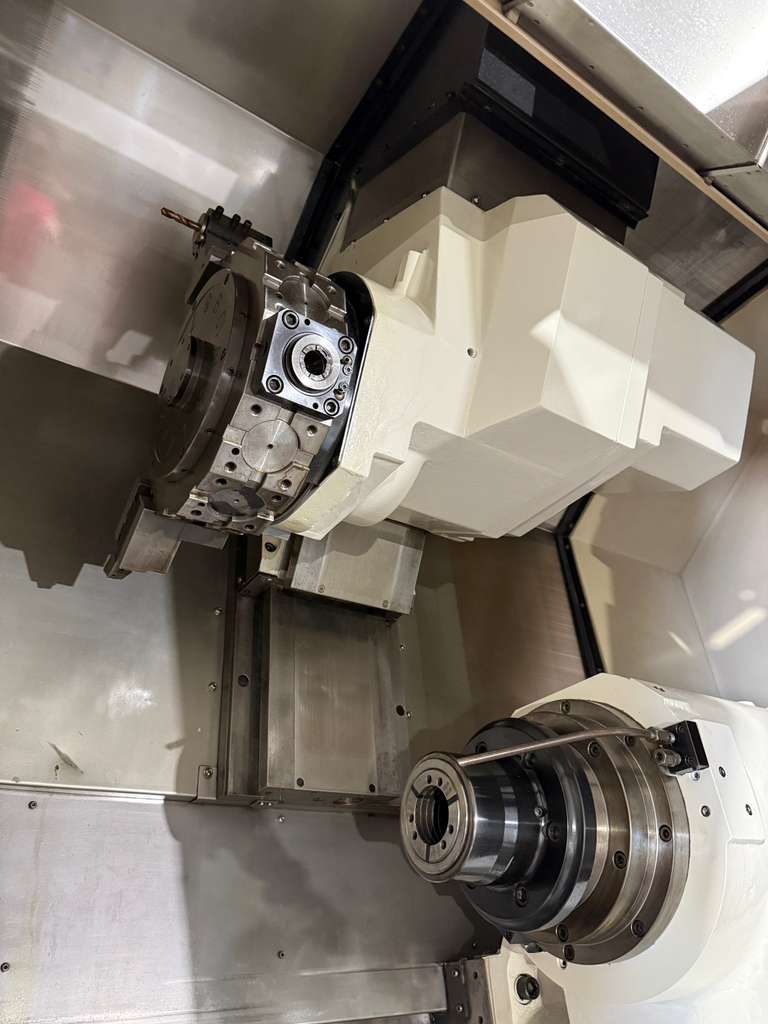

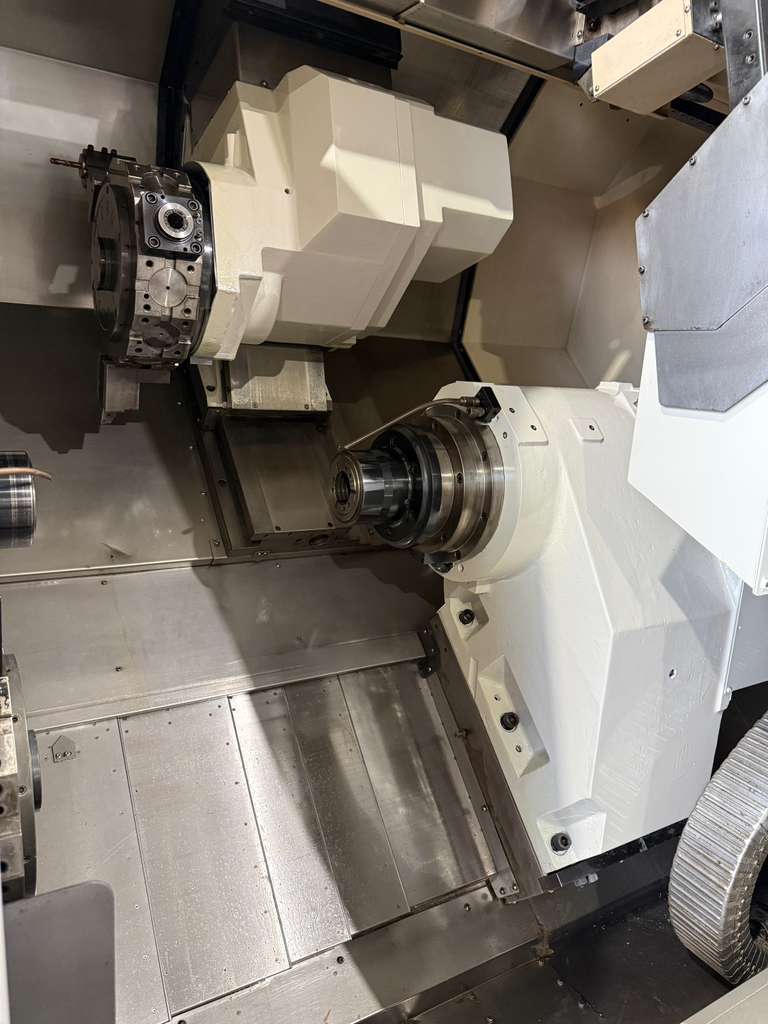

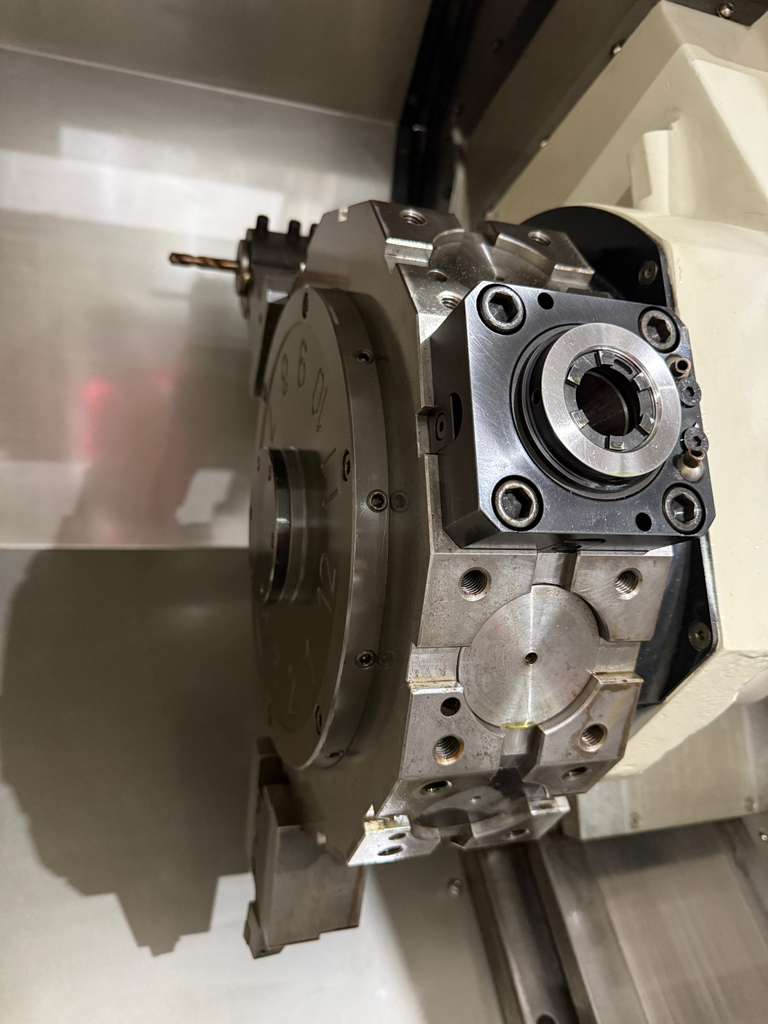

- 12 Station Live Tool Upper Turret

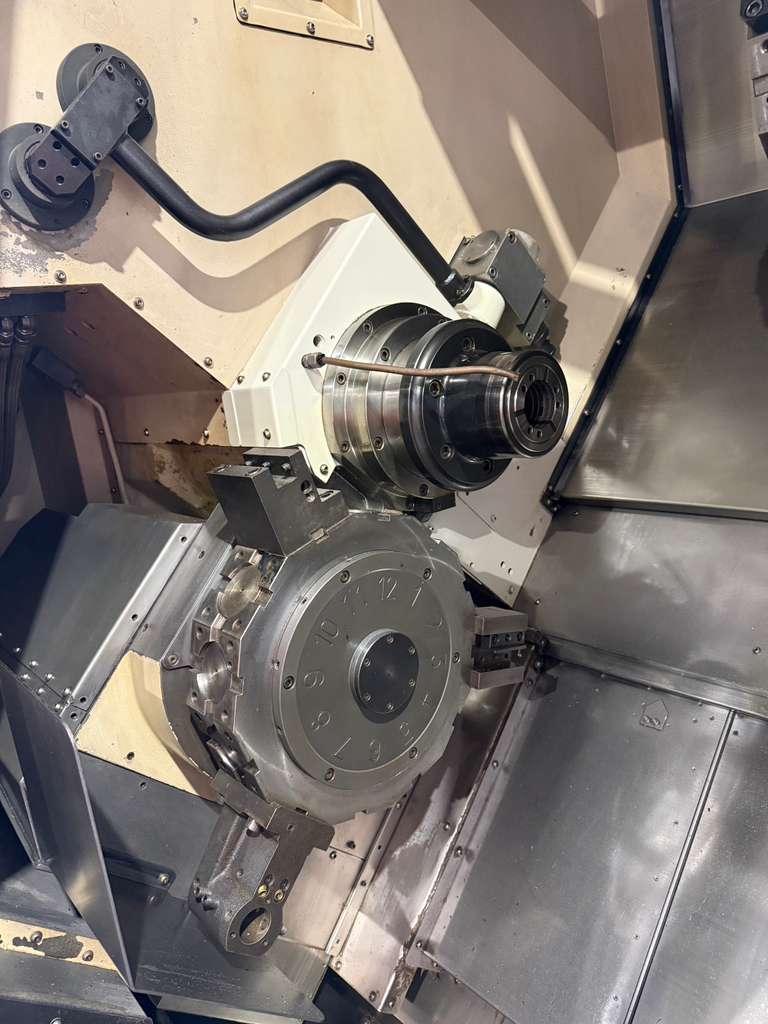

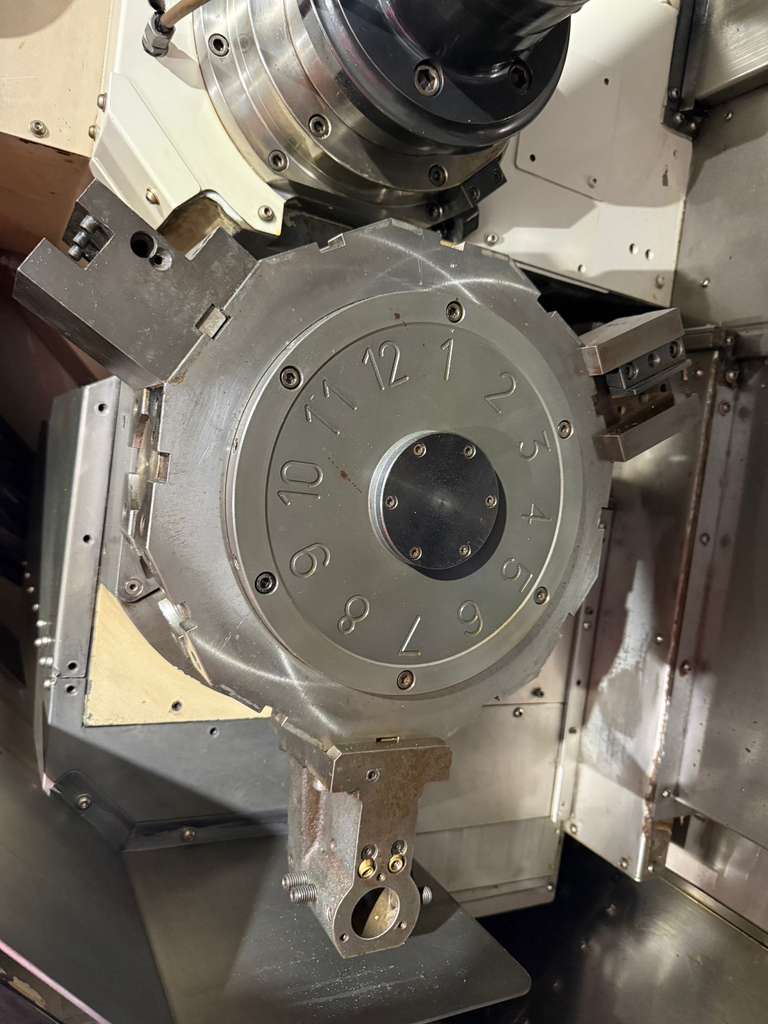

- 12 Station Live Tool Lower Turret
- Y Axis Capability on Upper Turret
- Tool Presetter
- Coolant System
- Chip Conveyor
- Automatic Lubrication System
- Live & Statics Tool Holders are Mounted on Turrets (As shown in the images)
|
| Capacity: |
|---|
- Max Turning Diameter Upper Turret : 15.4″
- Max Turning Diameter Lower Turret : 11.8″
- Max Swing Over Bed : 31.5″
- Max Swing Over Saddle: 24.4″
- Max Turning Length: 13.8″
- Max Bar Capacity Main Spindle : 3.0″
- Max Bar Capacity Sub Spindle : 3.0″
- Distance Between Spindle Centers: ″ ?
|
| Travels: |
|---|
- X1 Axis Travel Upper Turret: 10.0″
- X2 Axis Travel Lower Turret : 8.26″
- Y Axis Travel Upper Turret: -2.4″/+2.4″
- Z1 Axis Travel Upper Turret: 31.5″
- Z2 Axis Travel Lower Turret : 35.4″
- A Axis Travel: 31.9″ ( Sub Spindle )
- C Axis: 360° (0.001°) Both Spindle
|
| Feedrate: |
|---|
- X1/X2 Axis: 787 IPM Rapid Traverse
- Y Axis: 1181 IPM Rapid Traverse ?
- Z1/Z2 Axis: 945 IPM Rapid Traverse
- A Axis: 945 IPM Rapid Traverse
|
| Main Spindle: |
|---|
- Main Spindle Nose: A2-8
- Main Spindle Bore: 3.38″
- Main Spindle Speed: 3,500 RPM
- Main Spindle Power: 30 HP
|
| Sub Spindle: |
|---|
- Main Spindle Nose: A2-8
- Main Spindle Bore: 3.38″
- Main Spindle Speed: 3,500 RPM
- Main Spindle Power: 30 HP
|
| Turret: |
|---|
- Upper Turret Capacity: 12 Stations
- Lower Turret Capacity: 12 Stations
- Live Milling Speed: 4000 RPM
- Live Milling Motor: 7.5 HP
- Turret Index Time (Tool to Tool): 0.2 sec
- Turret Type: BMT
|
| General: |
|---|

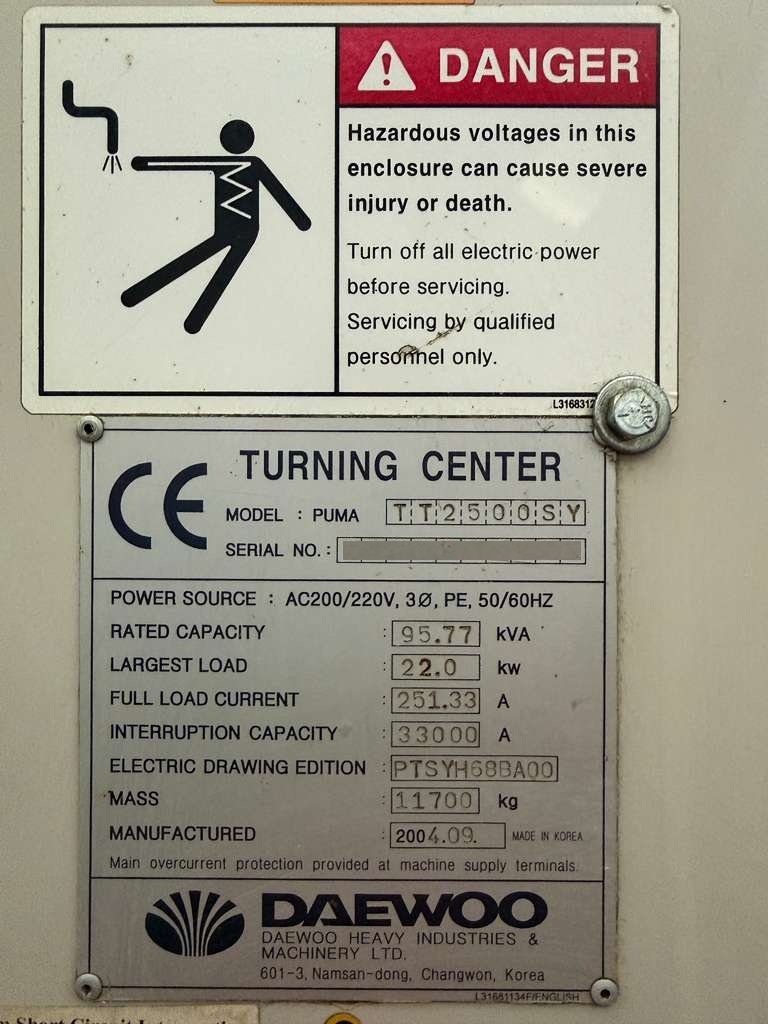

- Power Source: AC 220v / 3-Phase / 50/60 Hz
- Power Requirement: 95.77 kva
- Machine Dimensions: 160″ x 87″ x 97″ High Approx.
- Machine Weight: 25,794 lbs Approx.
|
