*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113522 |

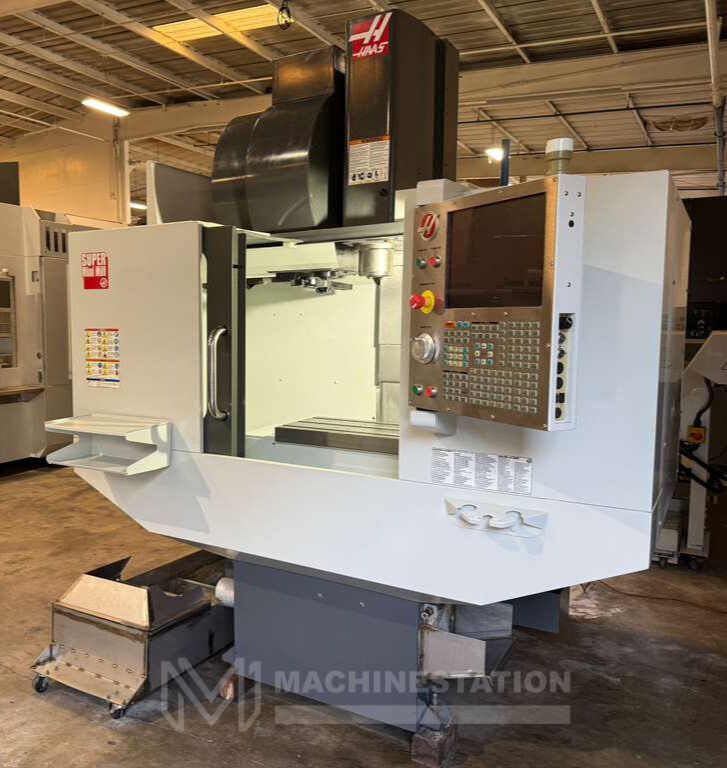

| Make: | Haas |
| Model: | Super Mini Mill 2 |
| Year: | 2015 |
| Features: |
|---|

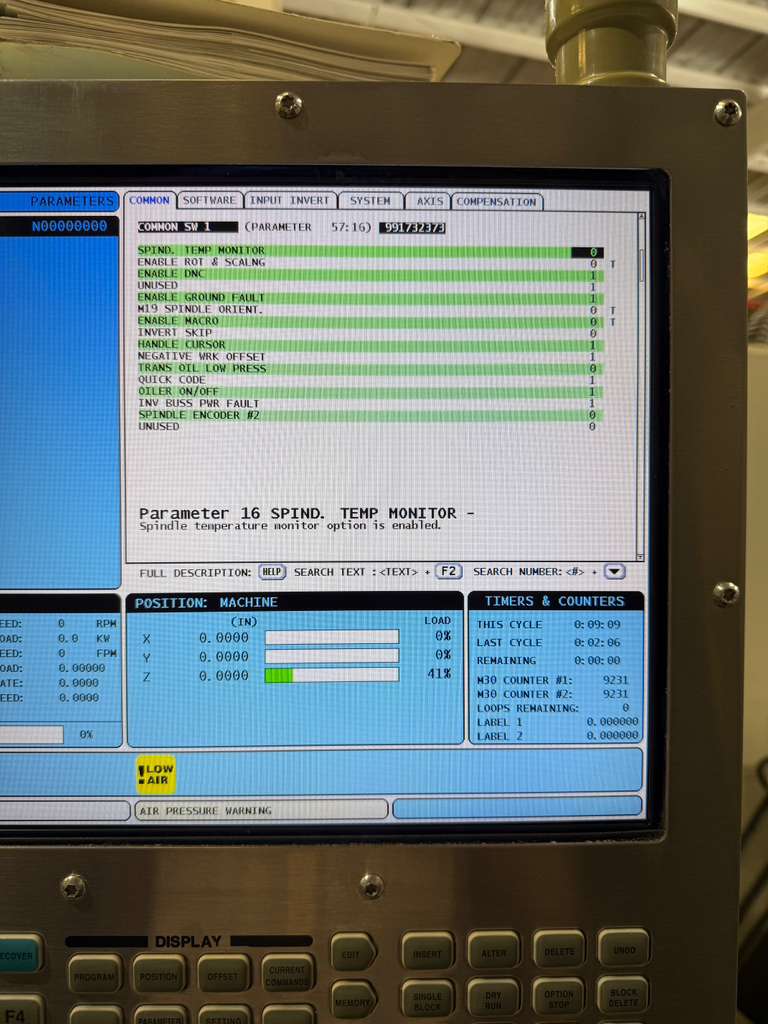

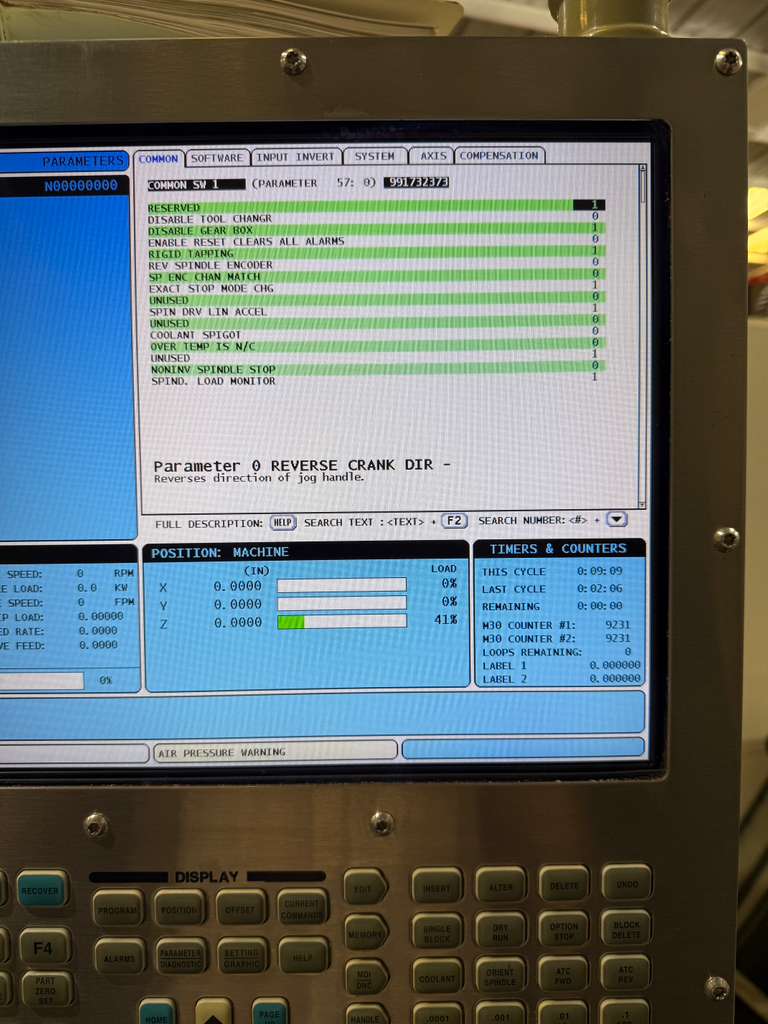

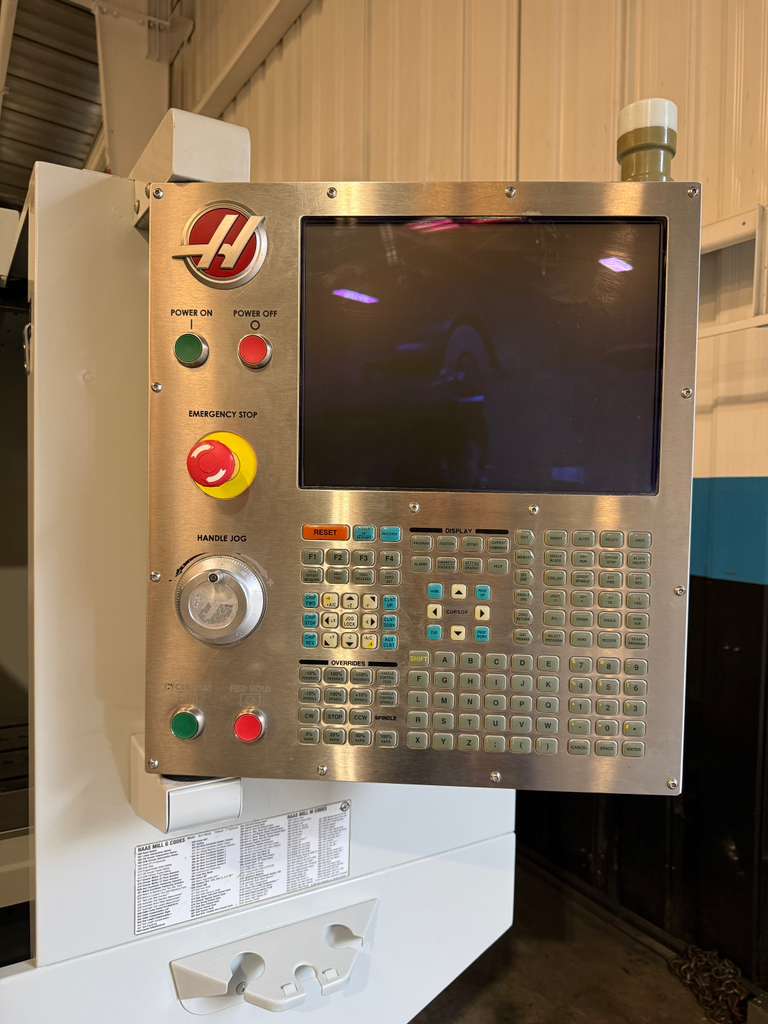

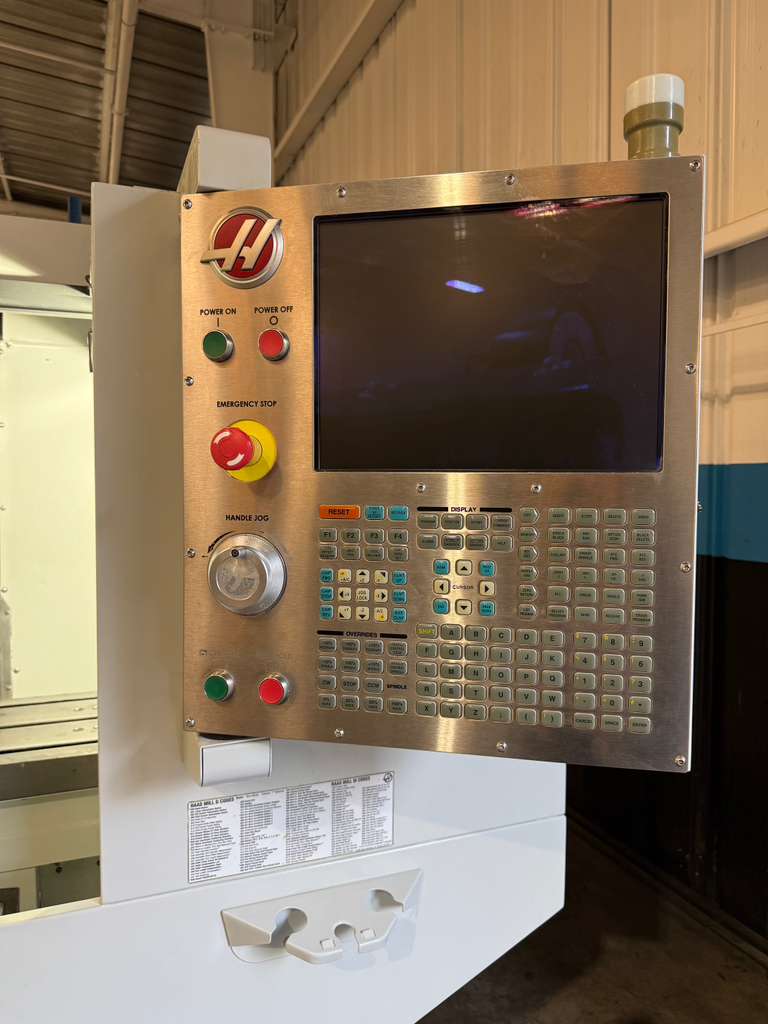

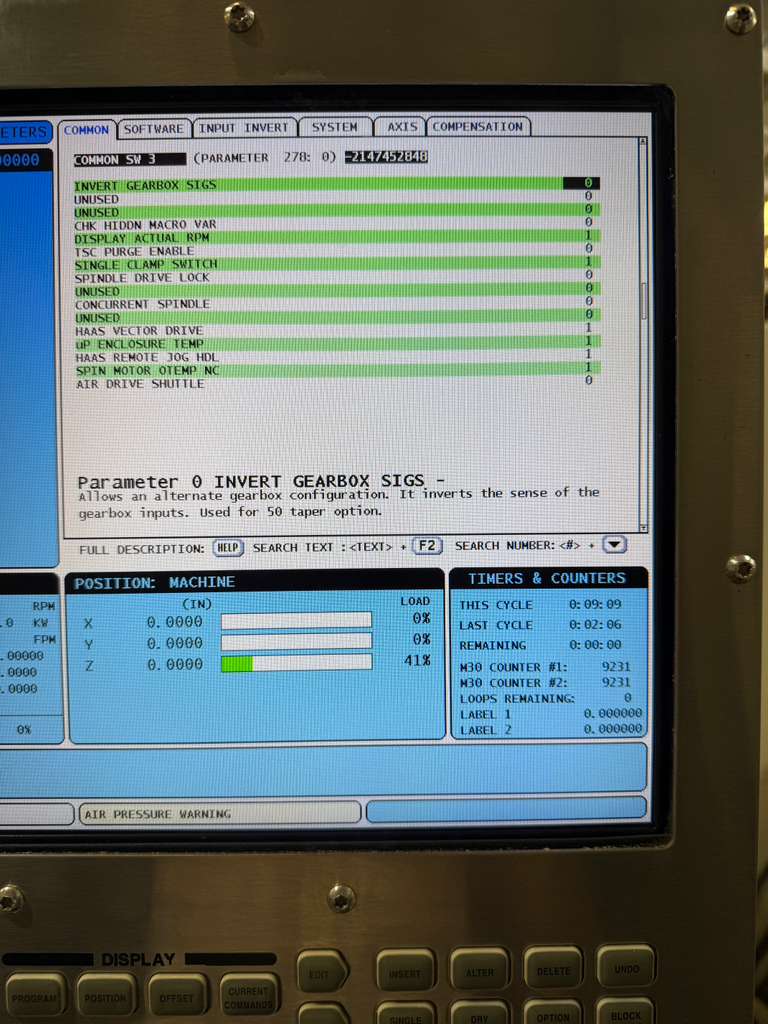

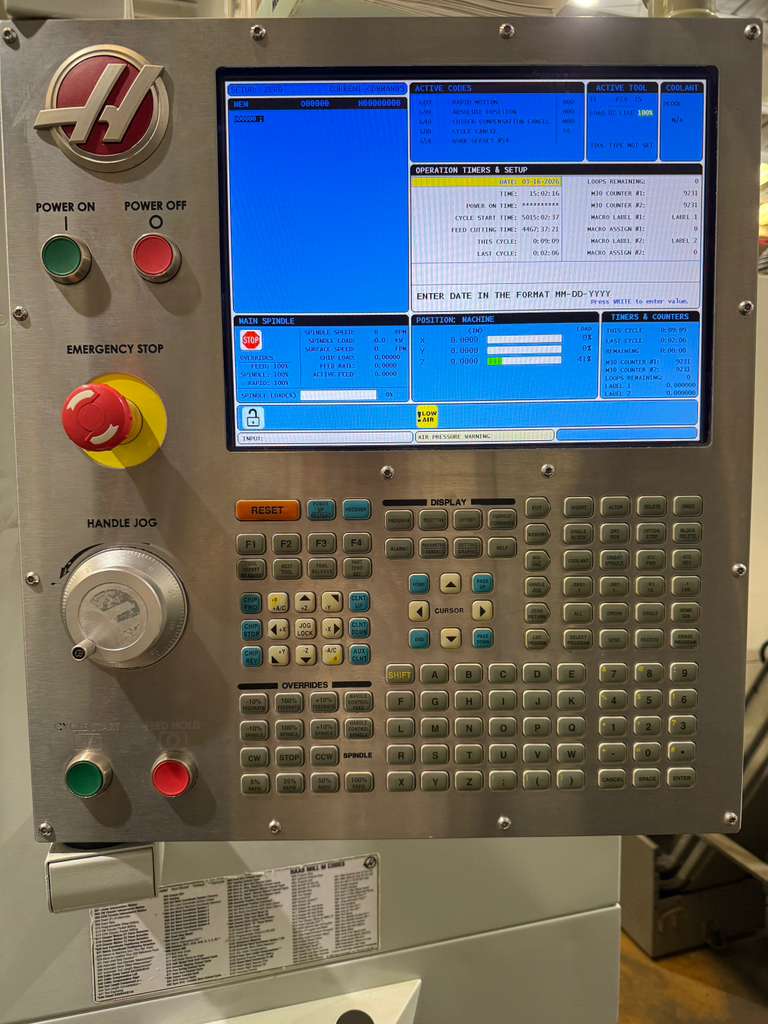

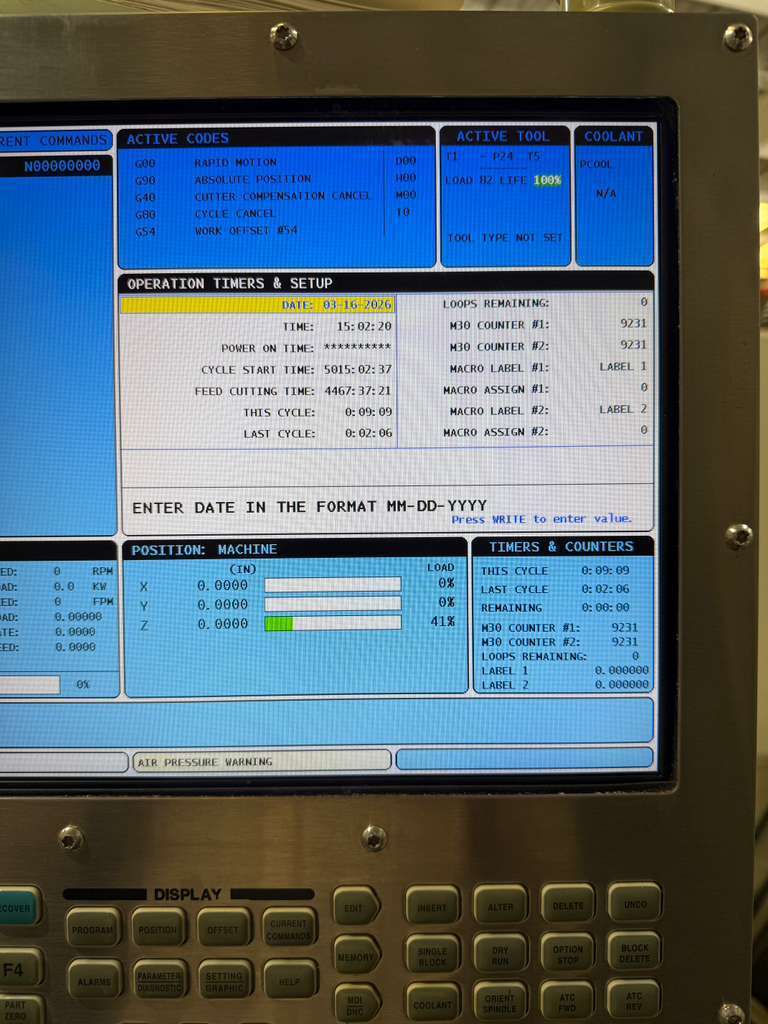

| Haas CNC Control |
| 10,000 RPM Spindle |

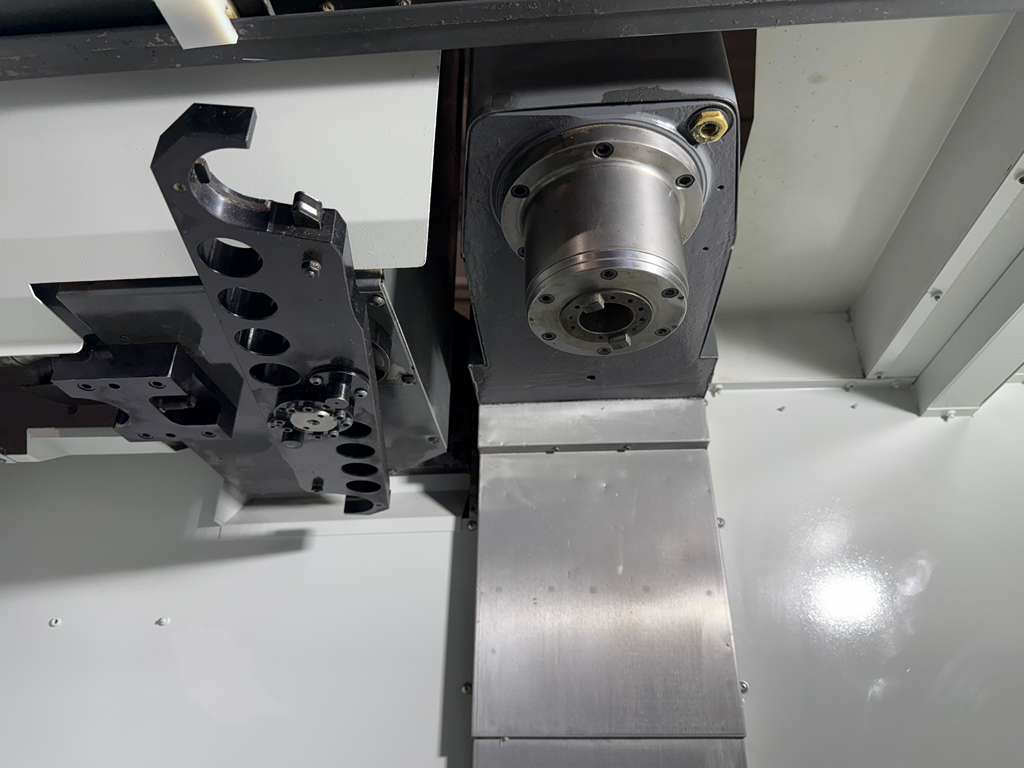

| 24 Station Side Mounted Tool Changer |
| CAT-40 Taper Spindle |
| Rigid Tapping |

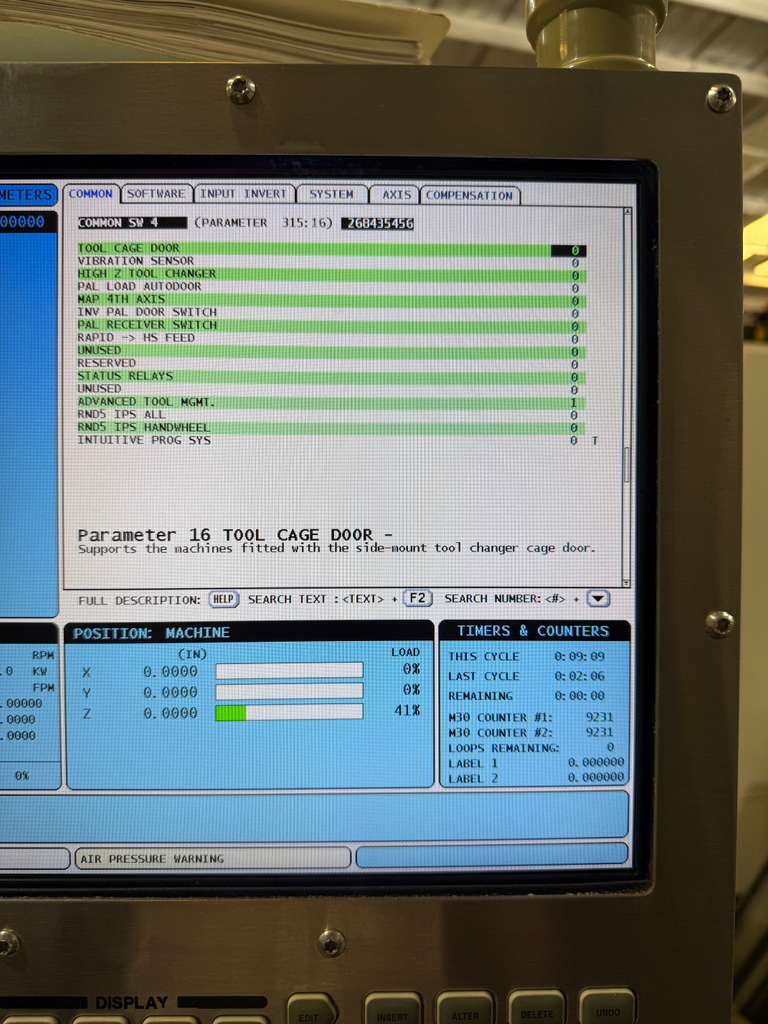

| Advance Tool Management |
| Quick Code |

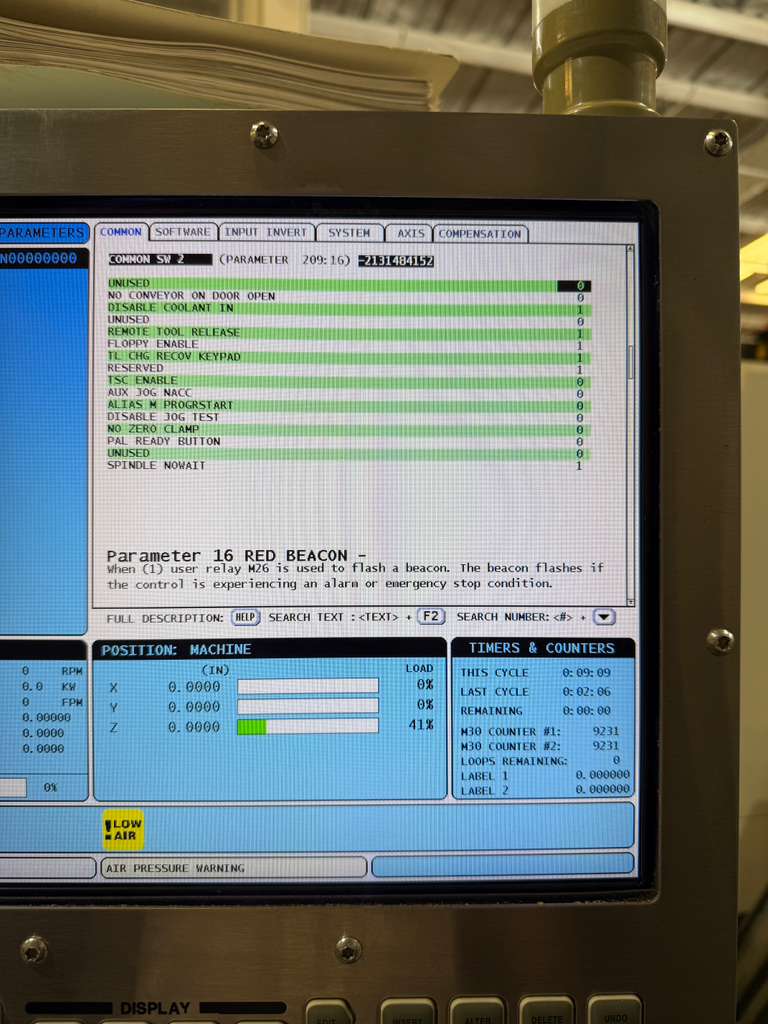

| Floppy Enabled |
| DNC Enabled |

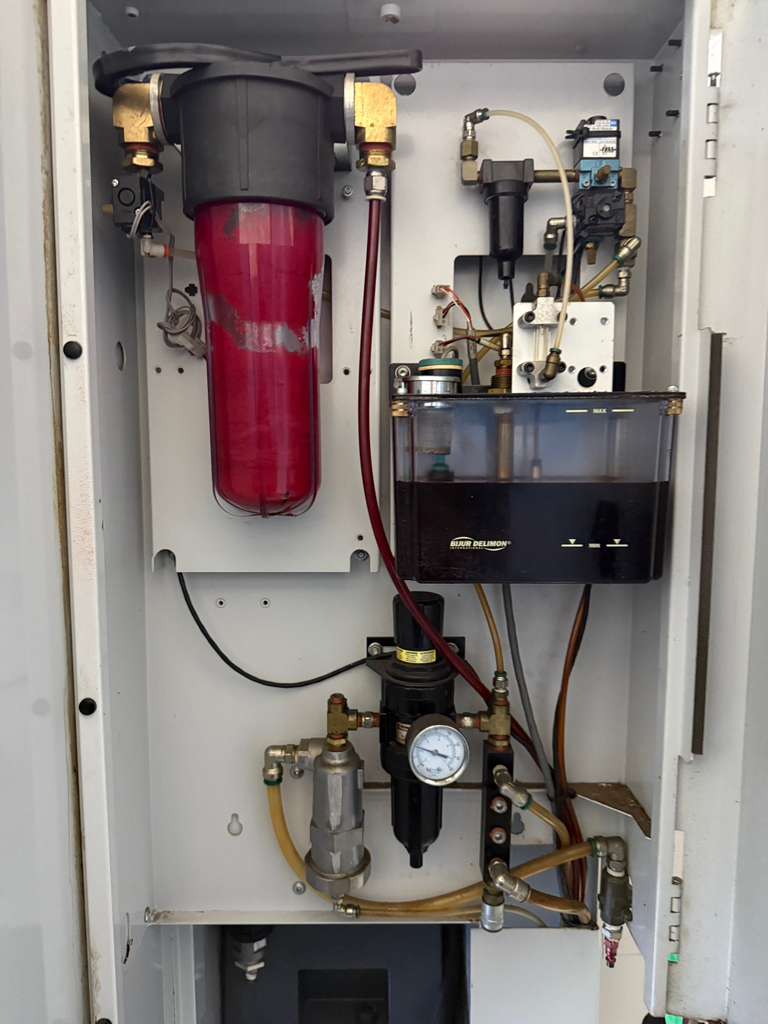

| Automatic Lubrication System |
| Coolant System |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 14″ |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 18″ |

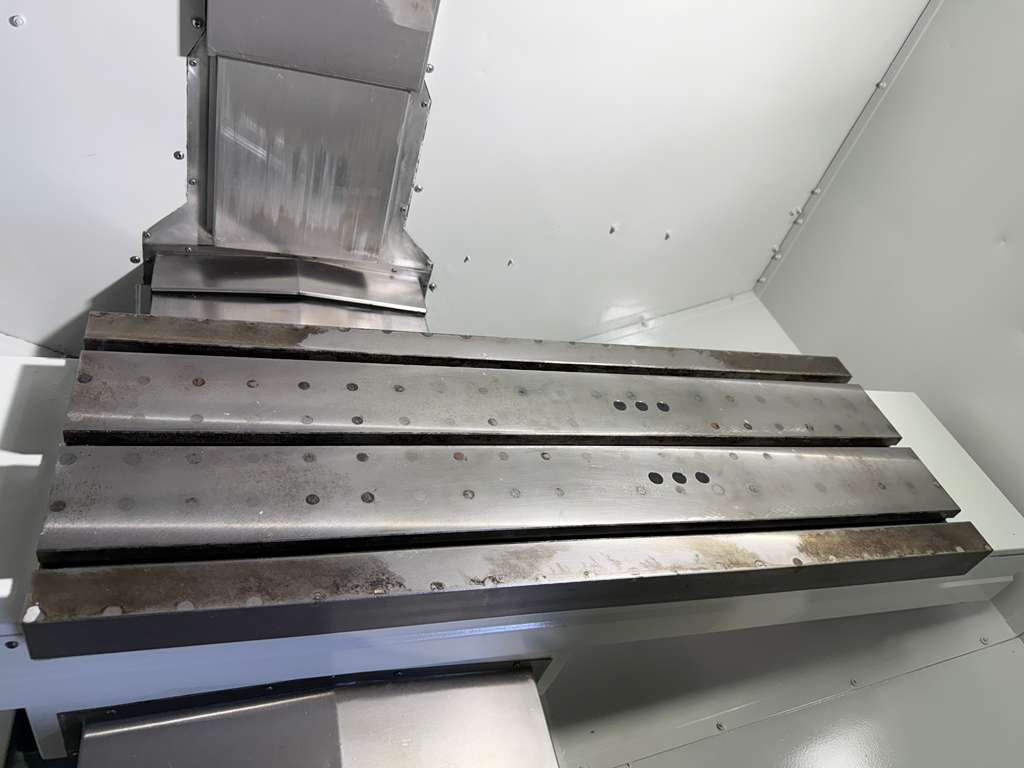

| Table: |
|---|
| Length: 40.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |

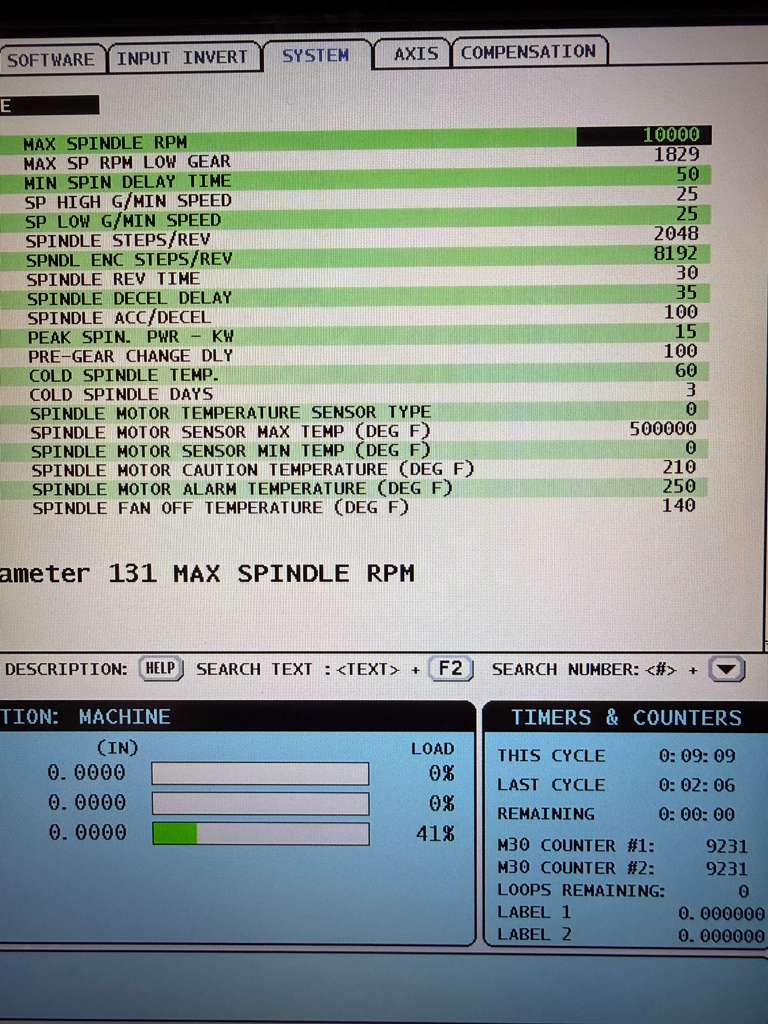

| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Tool Changing Time: 3 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

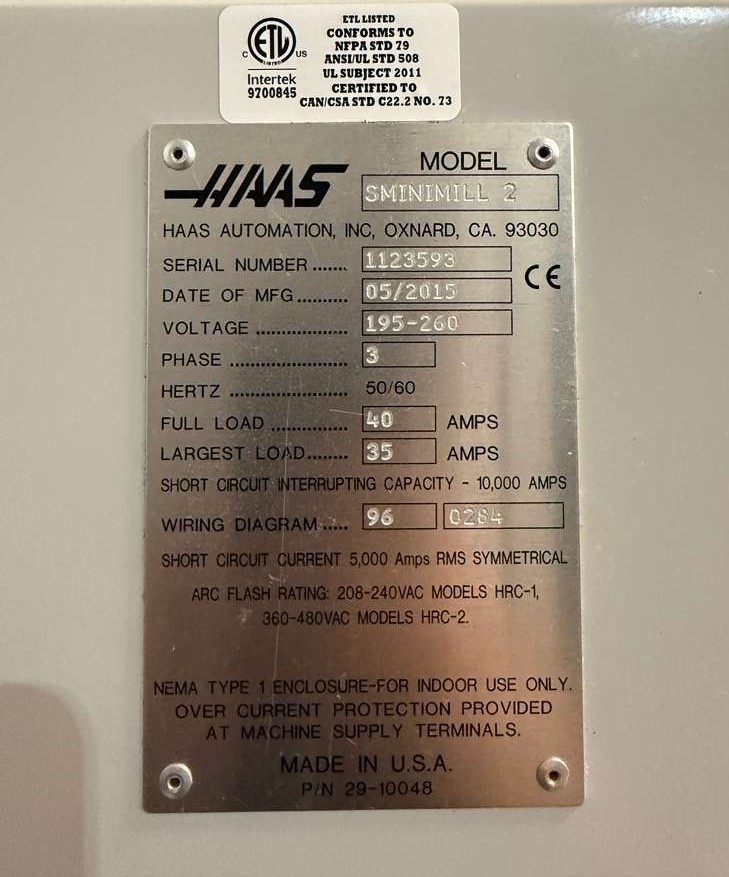

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 85″ x 93″ x 103″ High Approx. |
| Weight: 4000 lbs. Approx. |
