DMG DMU 50 CNC Vertical Machining Center (2013) – 5-Axis, Siemens 840D, 18K RPM
Out of stock
| SKU: | 11291 |
| Make/Model: | DMG (Deckel Maho) DMU 50 |
| Year: | 2013 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG (Deckel Maho) |
| Model No.: | DMU 50 |
| Year of Manufacture: | 2013 |
| Condition: | Used |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Siemens 840D ERGOline |
| Country of Origin: | Germany |
| Equipped With: |
|---|

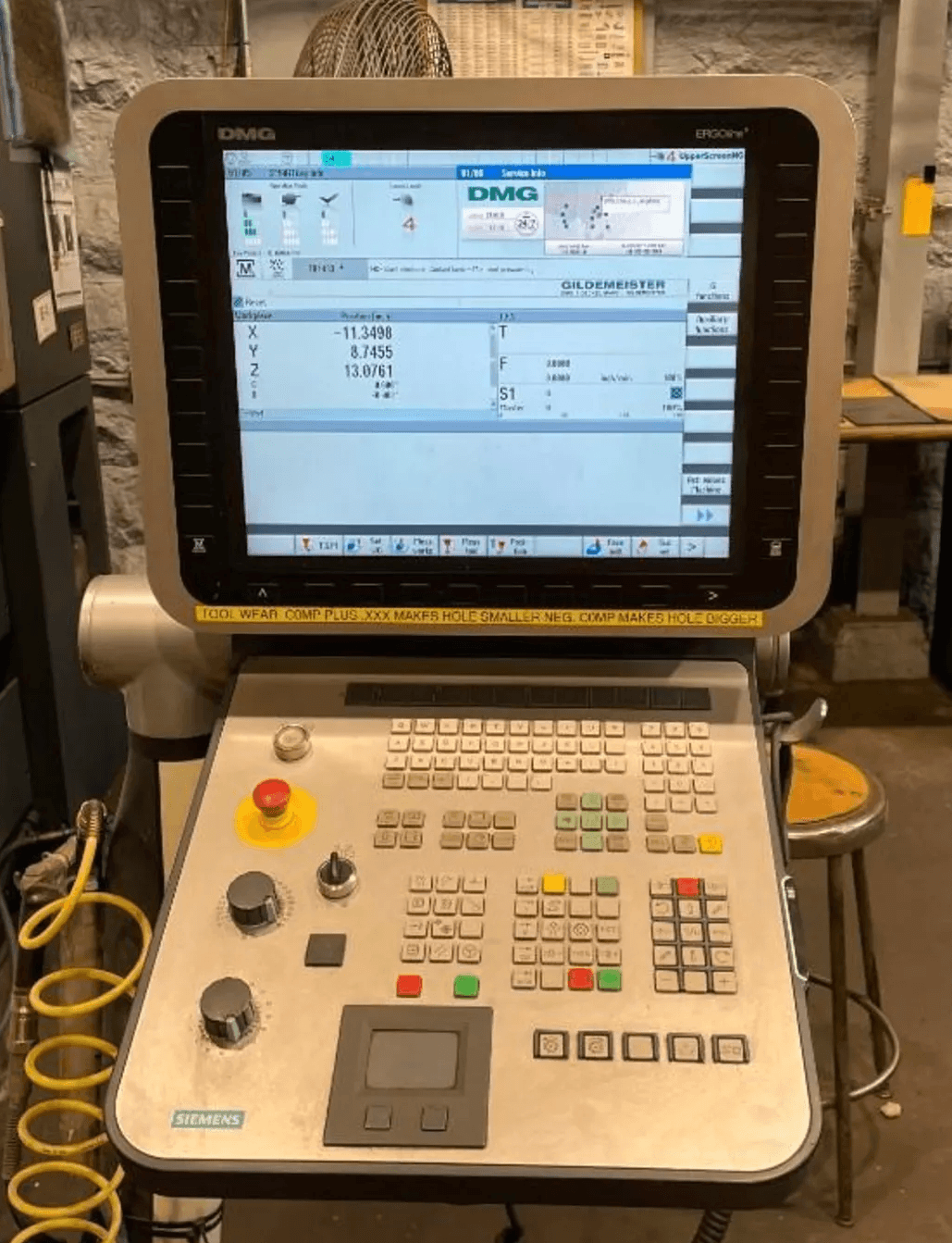

| Siemens 840D ERGOline CNC Control |
| Full 5-Axis Capability (Simultaneous / 3+2) |
| Swivel Rotary Table (B & C Axis) |
| 30 Station Automatic Tool Changer |
| Through-Spindle Coolant |
| Coolant System & Tank |
| Electronic Handwheel |
| Work Light |
| Full Enclosure |
| High Precision German Construction |
| Capacity: |
|---|
| Table Size: Ø630 mm |
| Max Table Load: 300 kg |

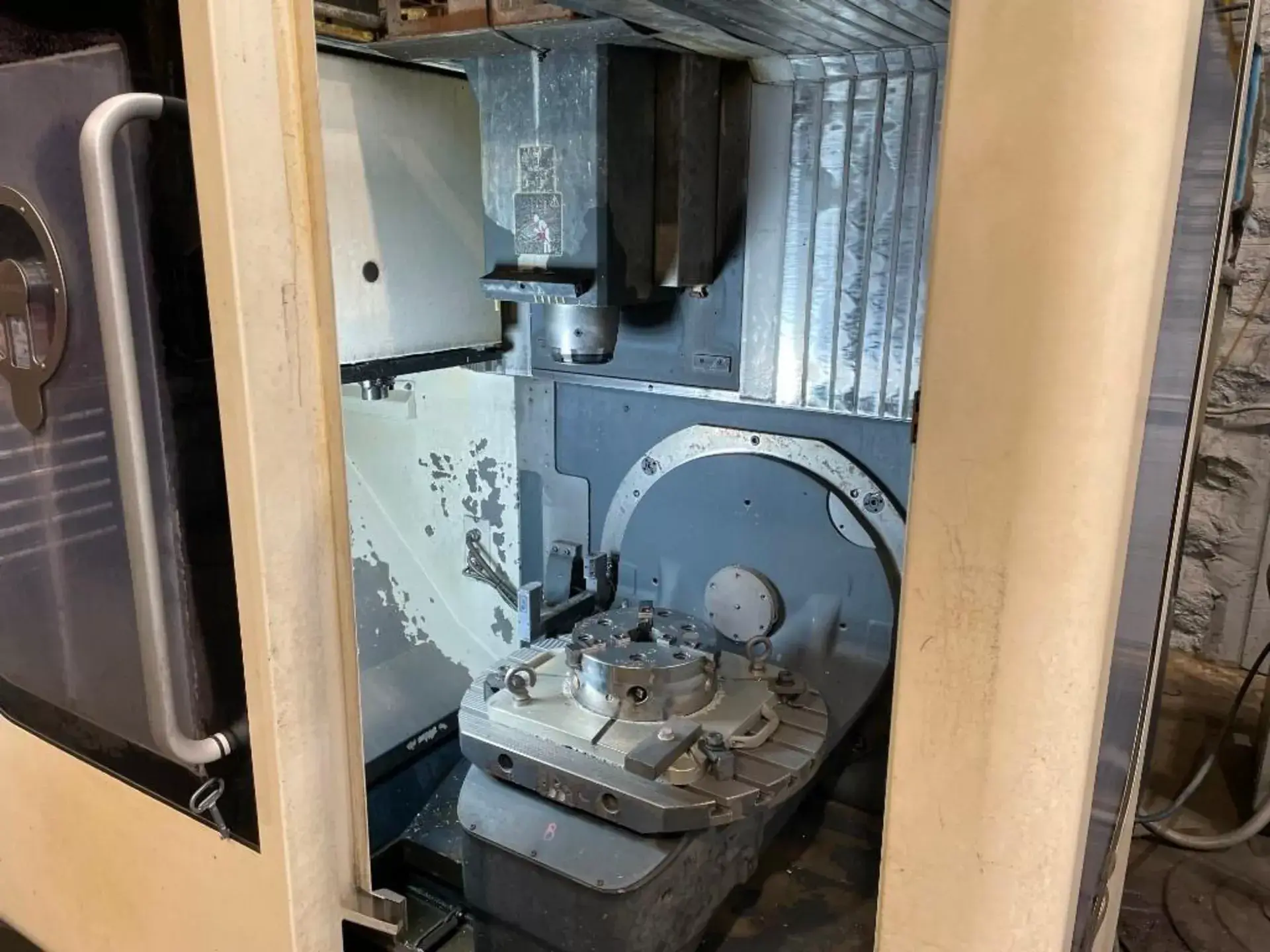

| Table Type: Swivel Rotary Table (B & C Axis) |
| B-Axis Travel: -5° to +110° |
| C-Axis Travel: 360° Continuous |
| Table Indexing: 0.001° |
| Travels: |
|---|
| X-Axis Travel: 500 mm |
| Y-Axis Travel: 450 mm |
| Z-Axis Travel: 400 mm |
| Rapid Traverse (X/Y/Z): 30 m/min |
| Spindle: |
|---|
| Spindle Speed: Up to 18,000 RPM |
| Spindle Motor: ~25 kW |
| Spindle Taper: HSK-A63 |
| Spindle Torque: ~120–130 Nm |
| Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Type: Automatic Tool Changer (ATC) |
| Tool Holder Type: HSK-A63 |
| Feed Rates: |
|---|
| Feed Rate: Programmable (CNC Controlled) |

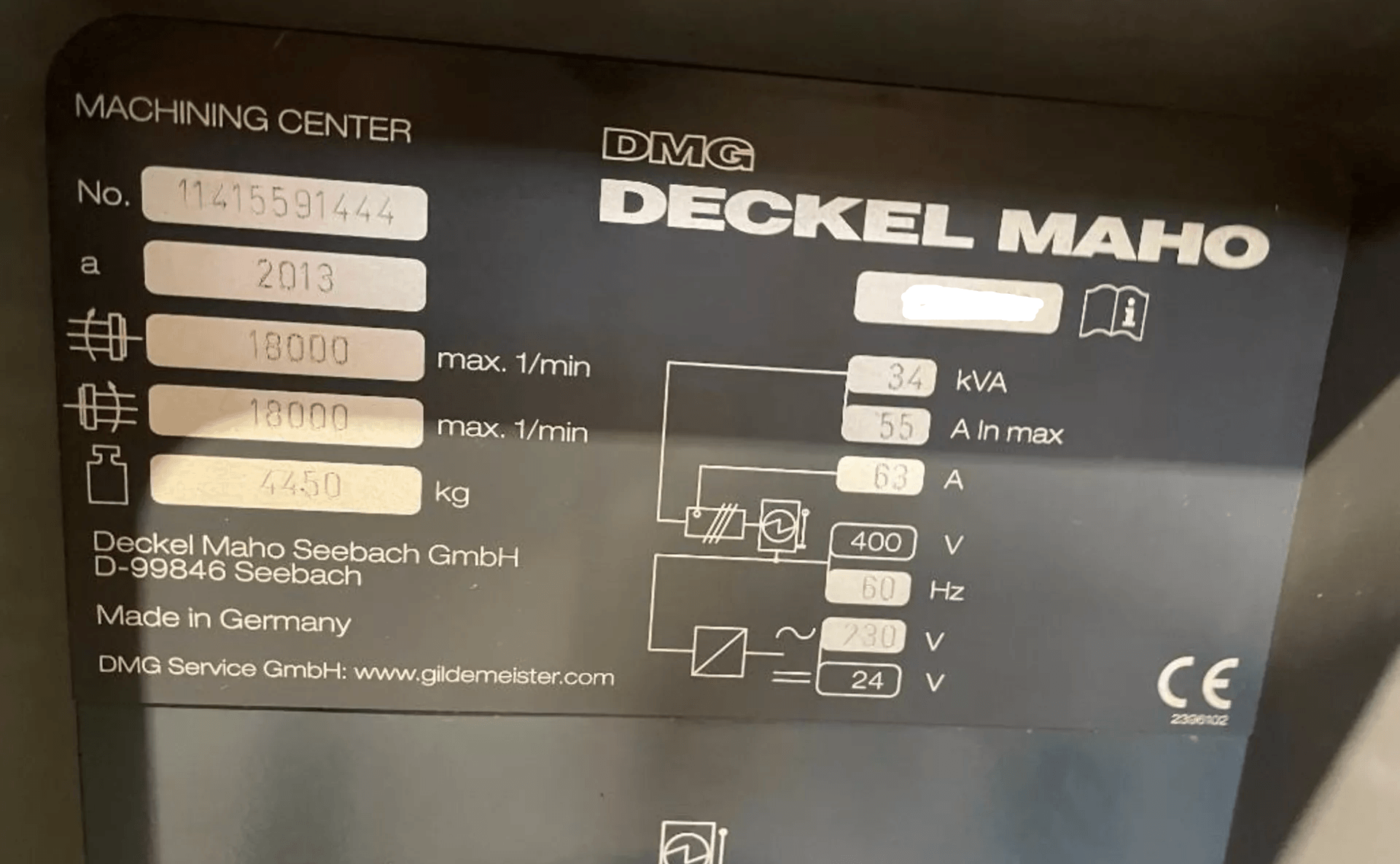

| Electrical: |
|---|
| Voltage: 400V |
| Frequency: 60 Hz |
| Power Requirement: 34 kVA |
| Max Current: 55 A |
| Connected Load: 63 A |
| Control Voltage: 24V |
| General: |
|---|
| Machine Dimensions: 3,000 × 2,500 × 2,700 mm |
| Machine Weight: ~4,450 kg |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | DMU 50 |
