*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

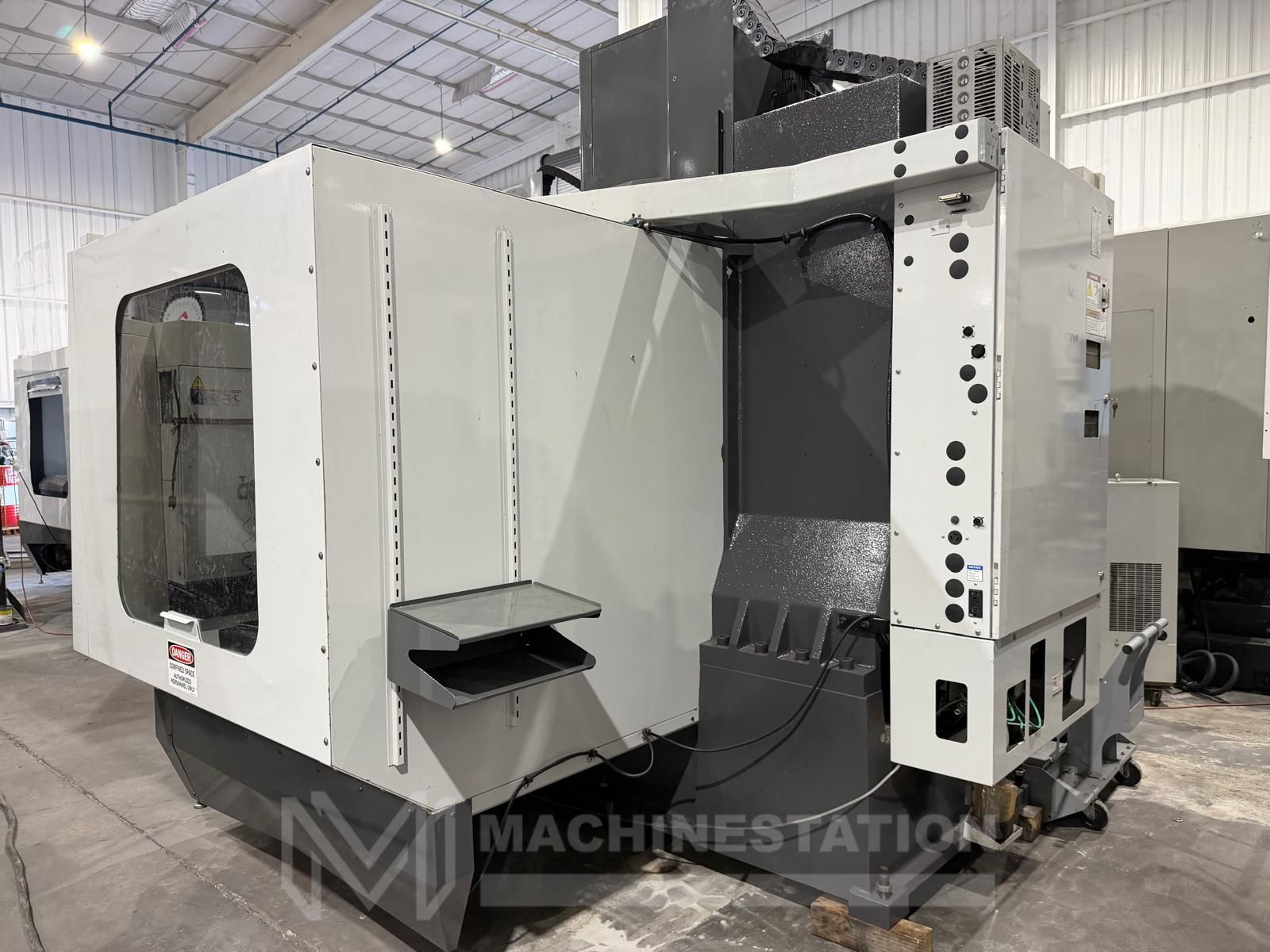

| Make: | Haas |
| Model: | VF-5/40 |
| Year: | 2007 |
| Equipped With: |
|---|

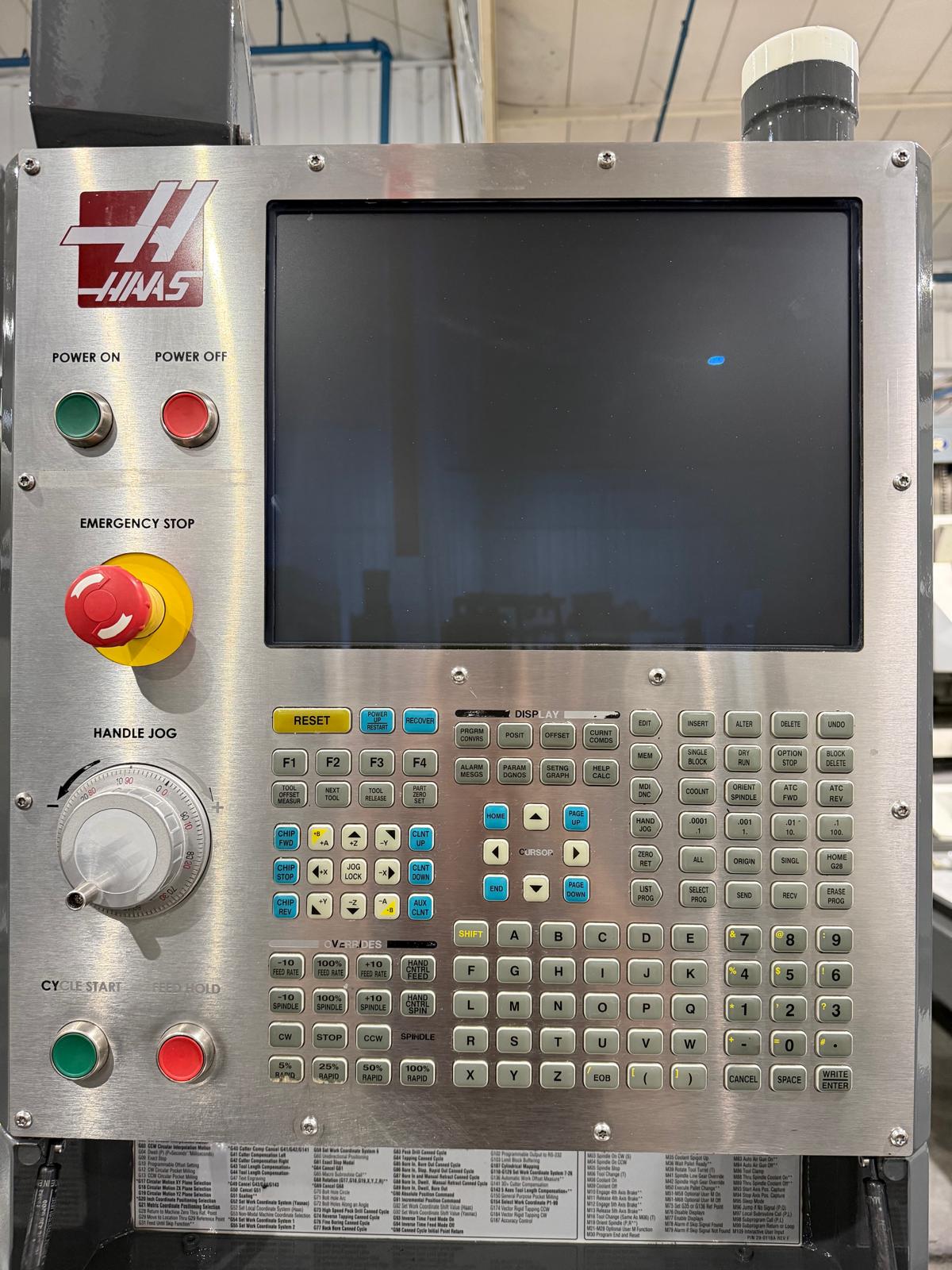

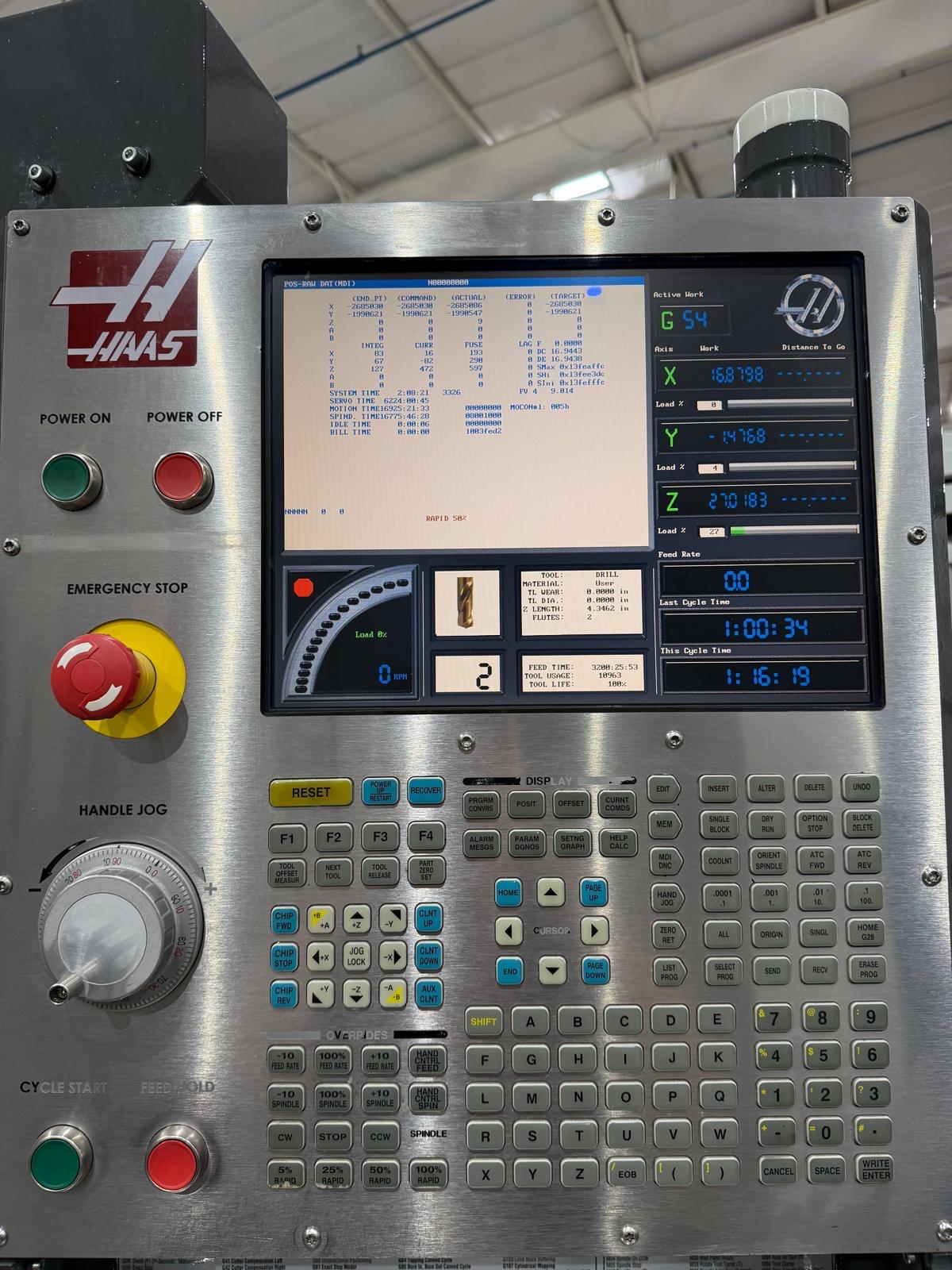

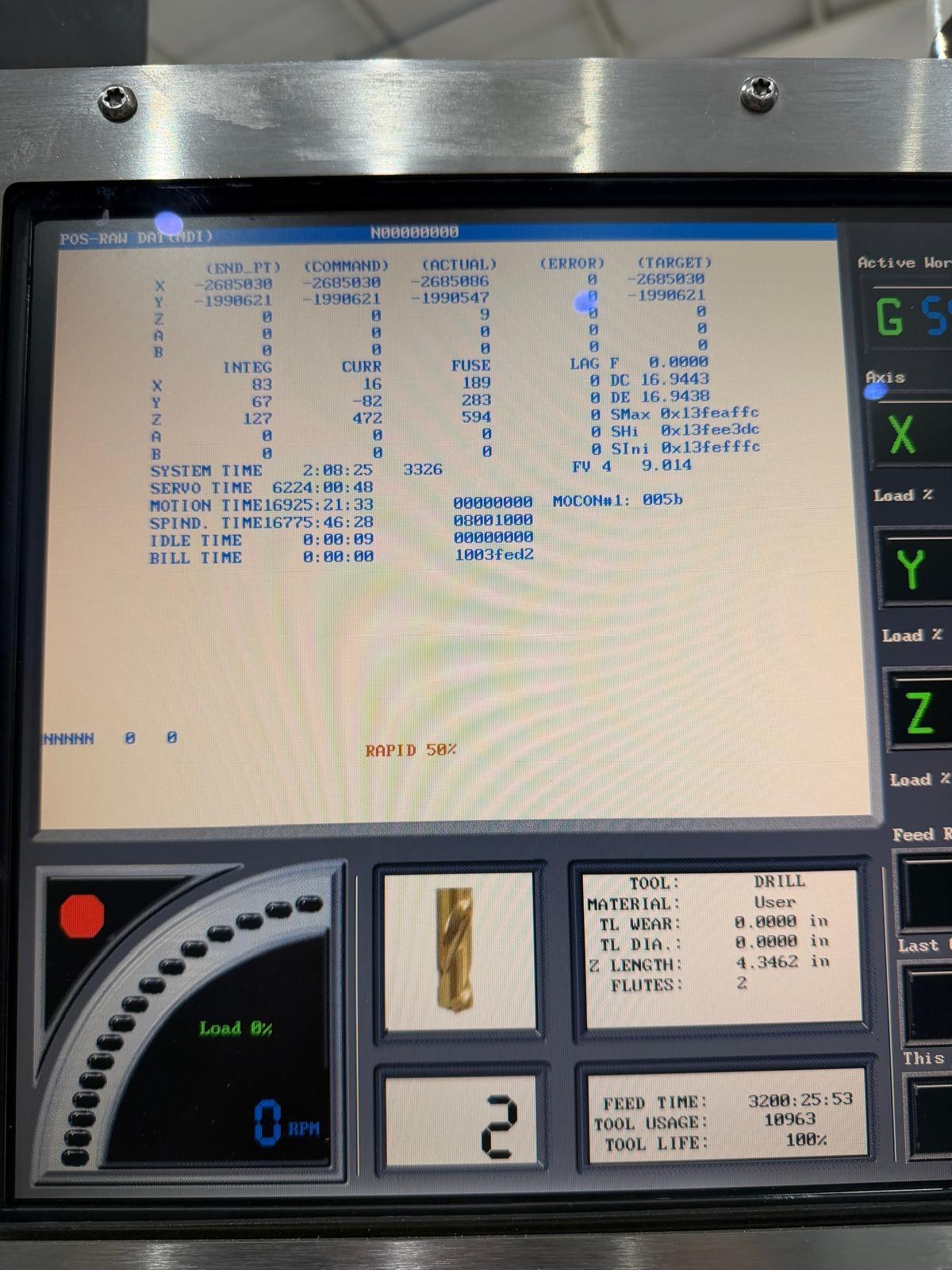

| Haas CNC Control |
| 4th Axis Wiring and Drive (Upgraded $3,605 value Included) |
| Haas VOP-D Package |
| 10,000 RPM Spindle (Upgraded $16,195 value Included) |
| CAT-40 Taper Spindle |
| 30 HP 2-Speed Gear Drive |
| 40 Station Side Mount Automatic Tool Changer (Upgraded $14,795 Approx. value Included) |
| Renishaw Probing System – (Probe Needed) (Upgraded $6,795 value Included) |
| Programmable Coolant Nozzle |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant System |

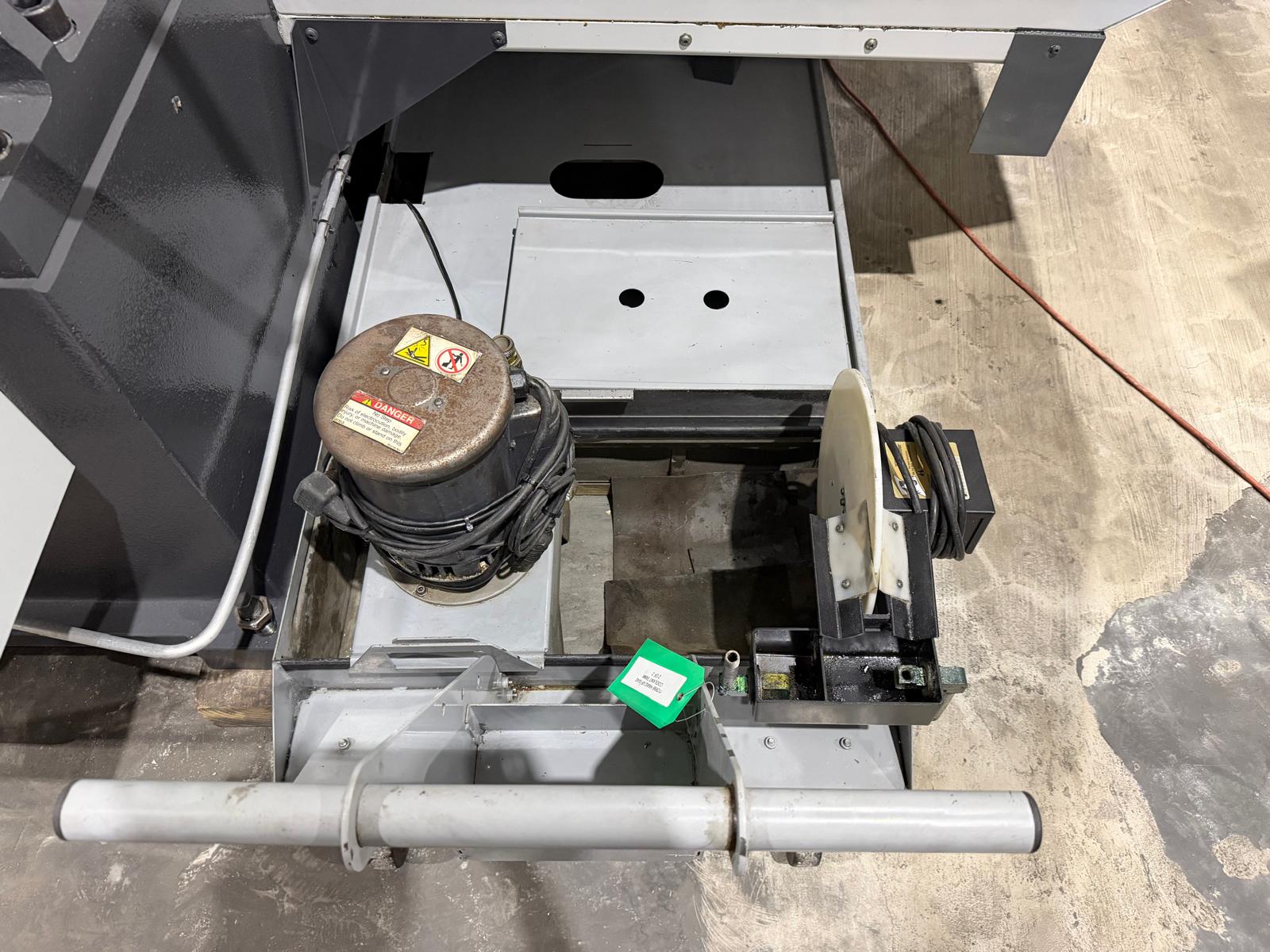

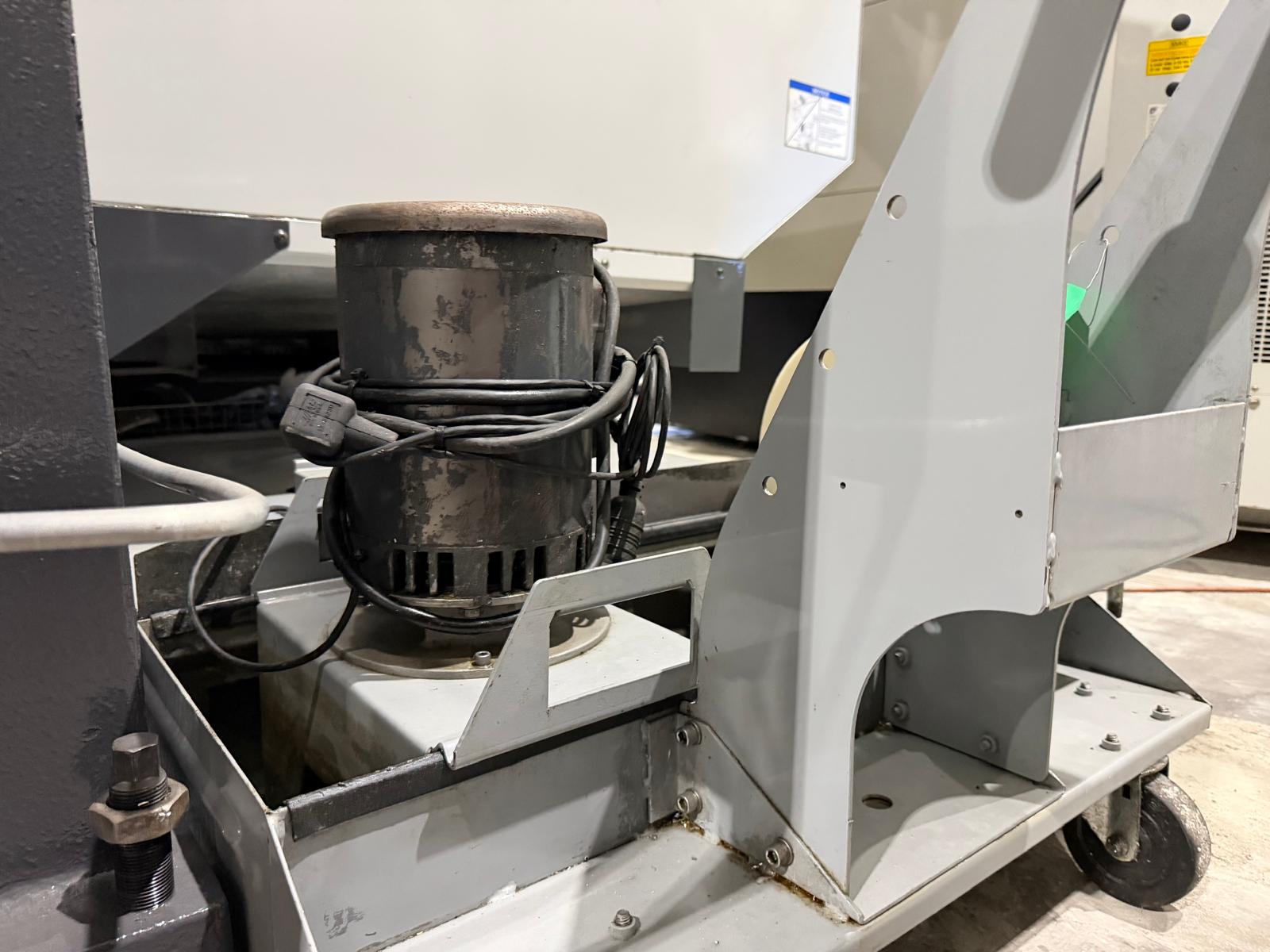

| Chip Auger (Upgraded $4,295 value Included) |

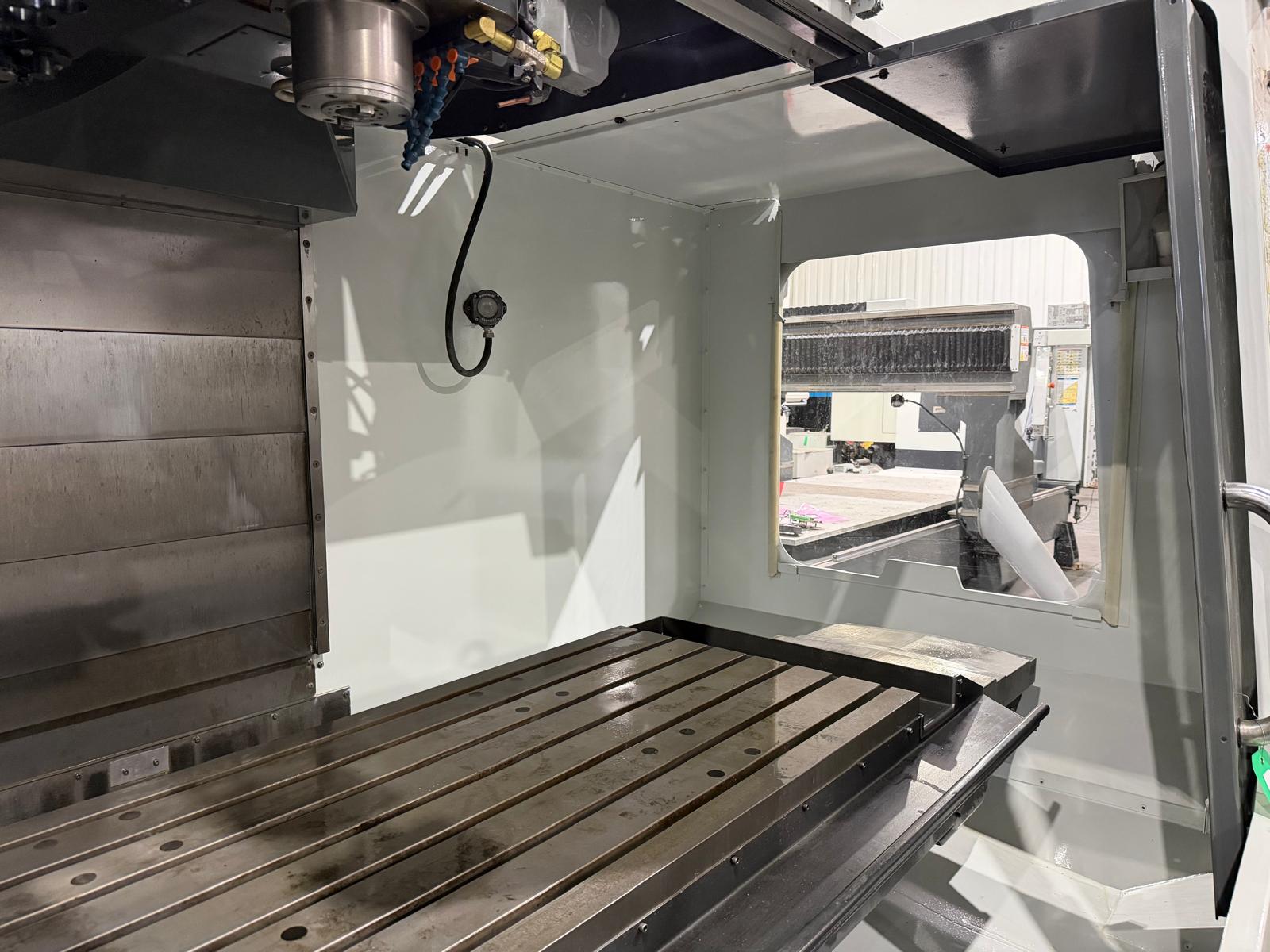

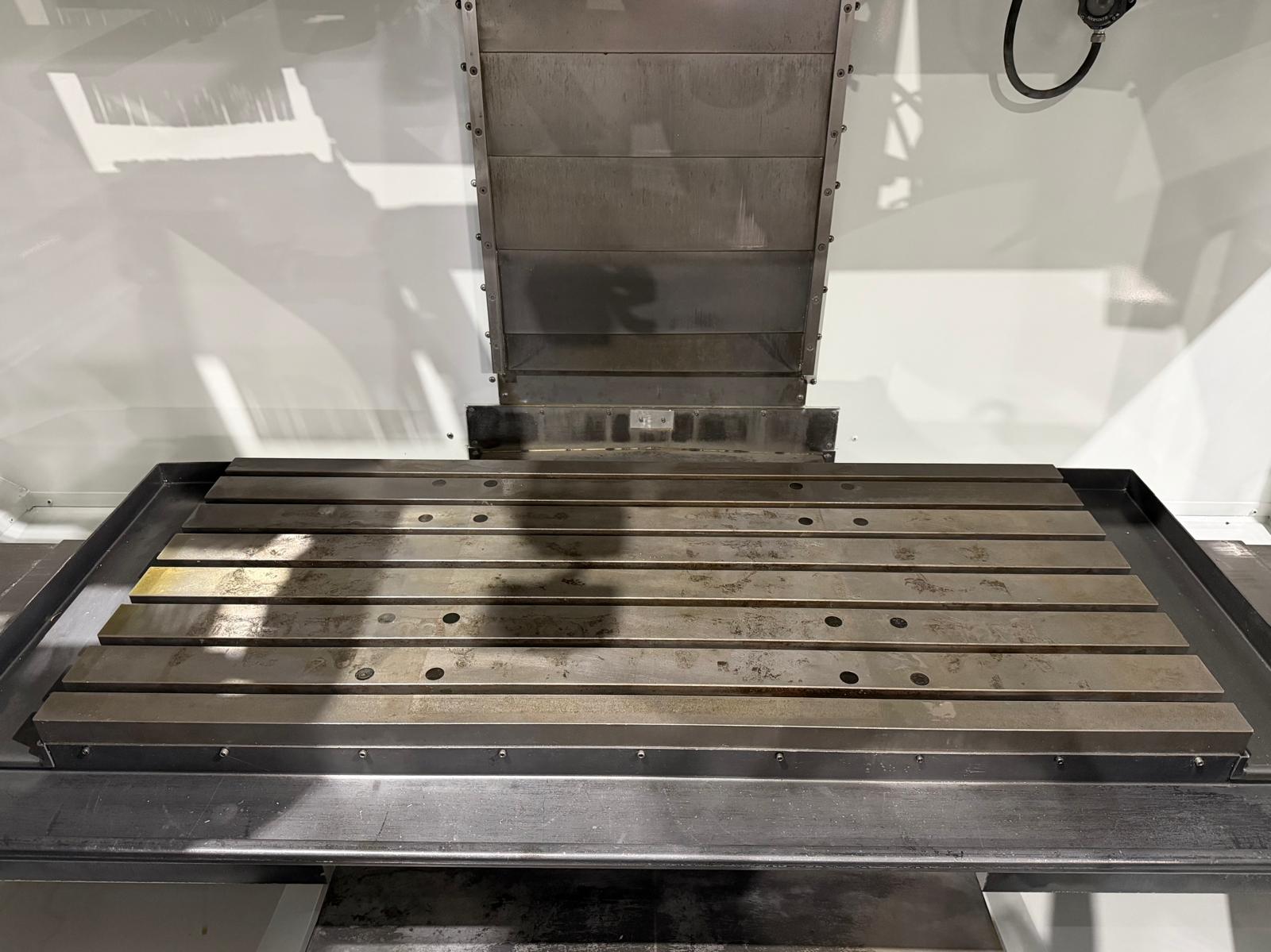

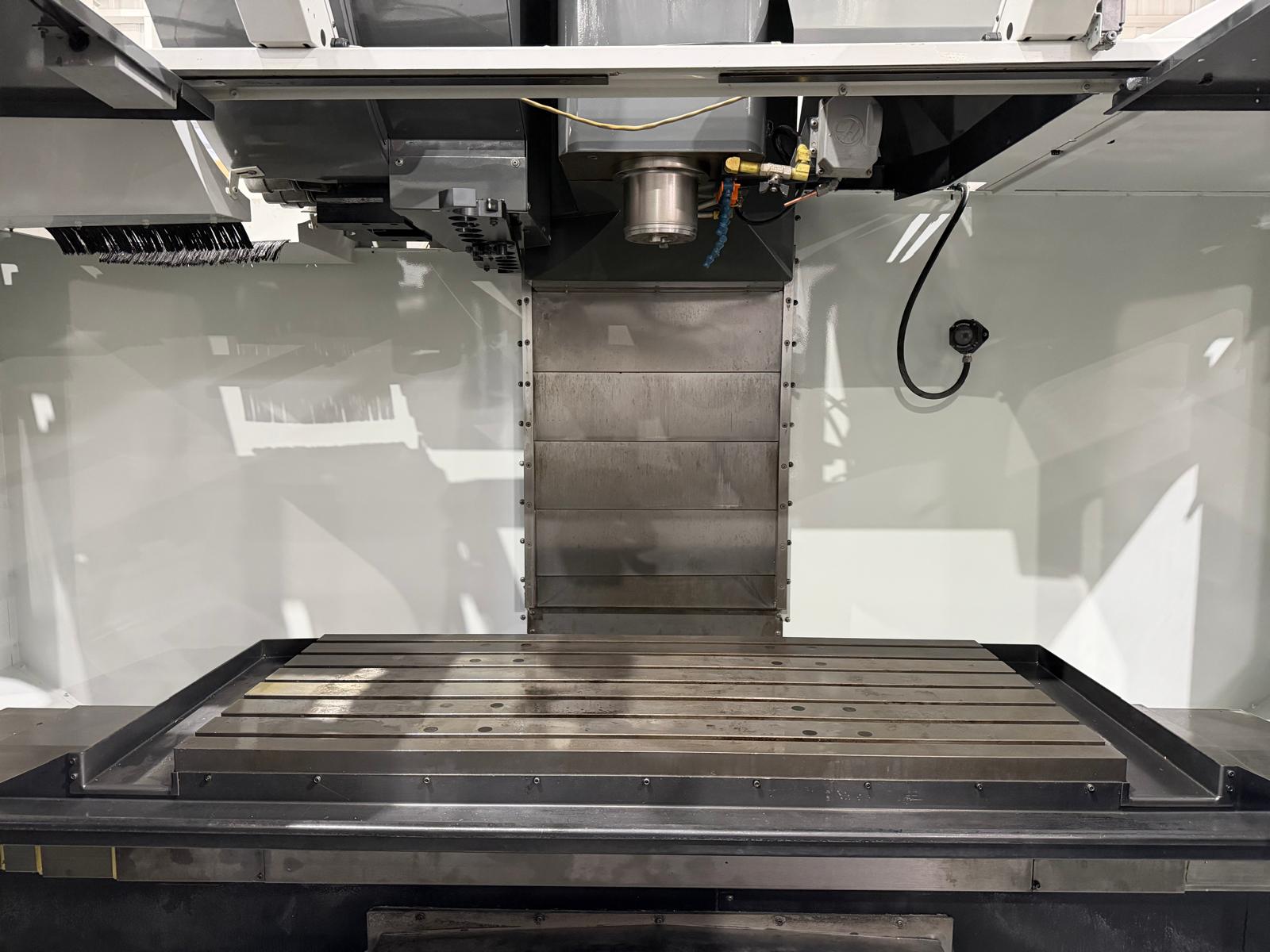

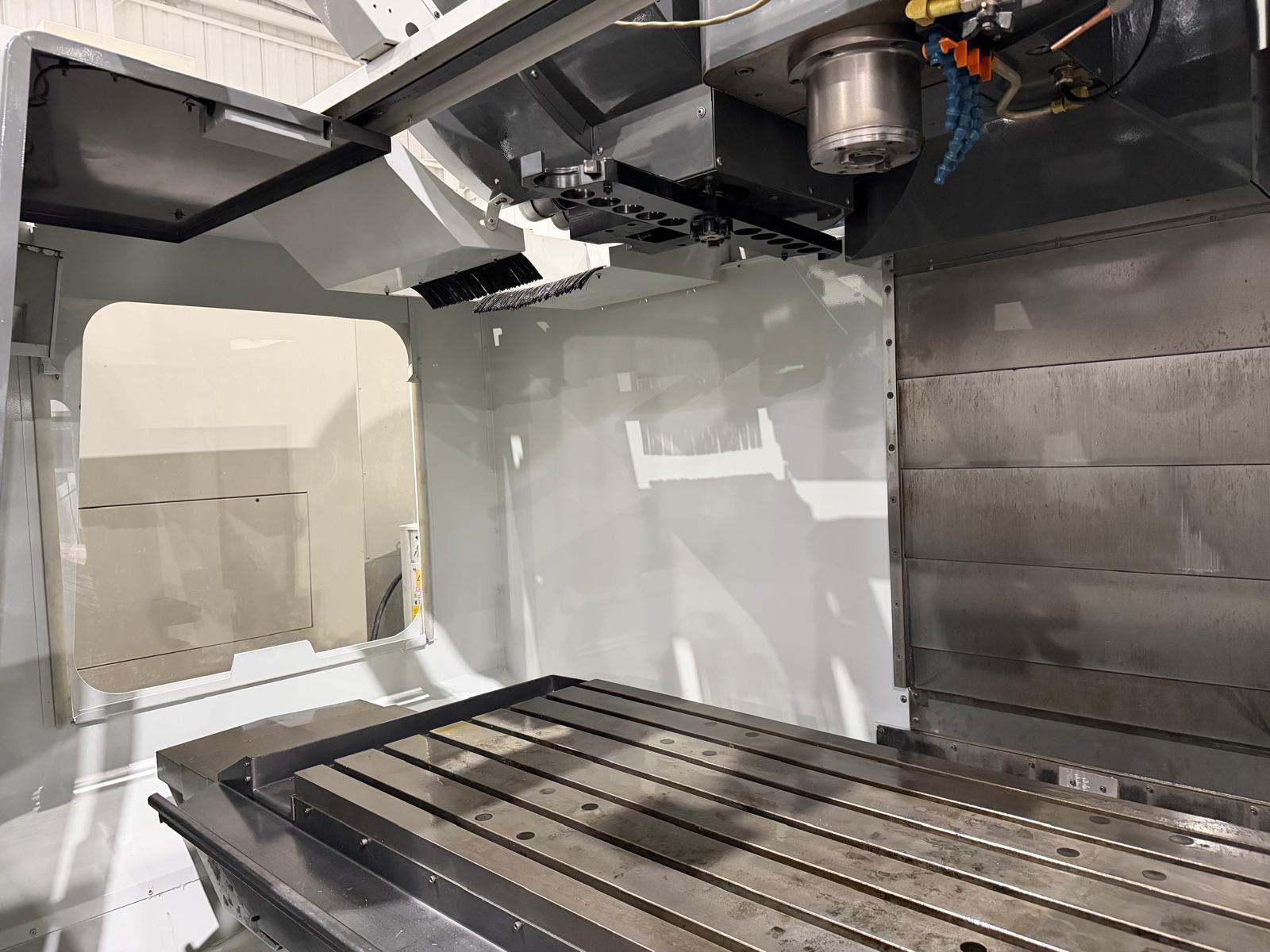

| Table: |
|---|
| Length: 54.0″ |
| Width: 24.0″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Travels: |
|---|
| X-Axis: 50″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

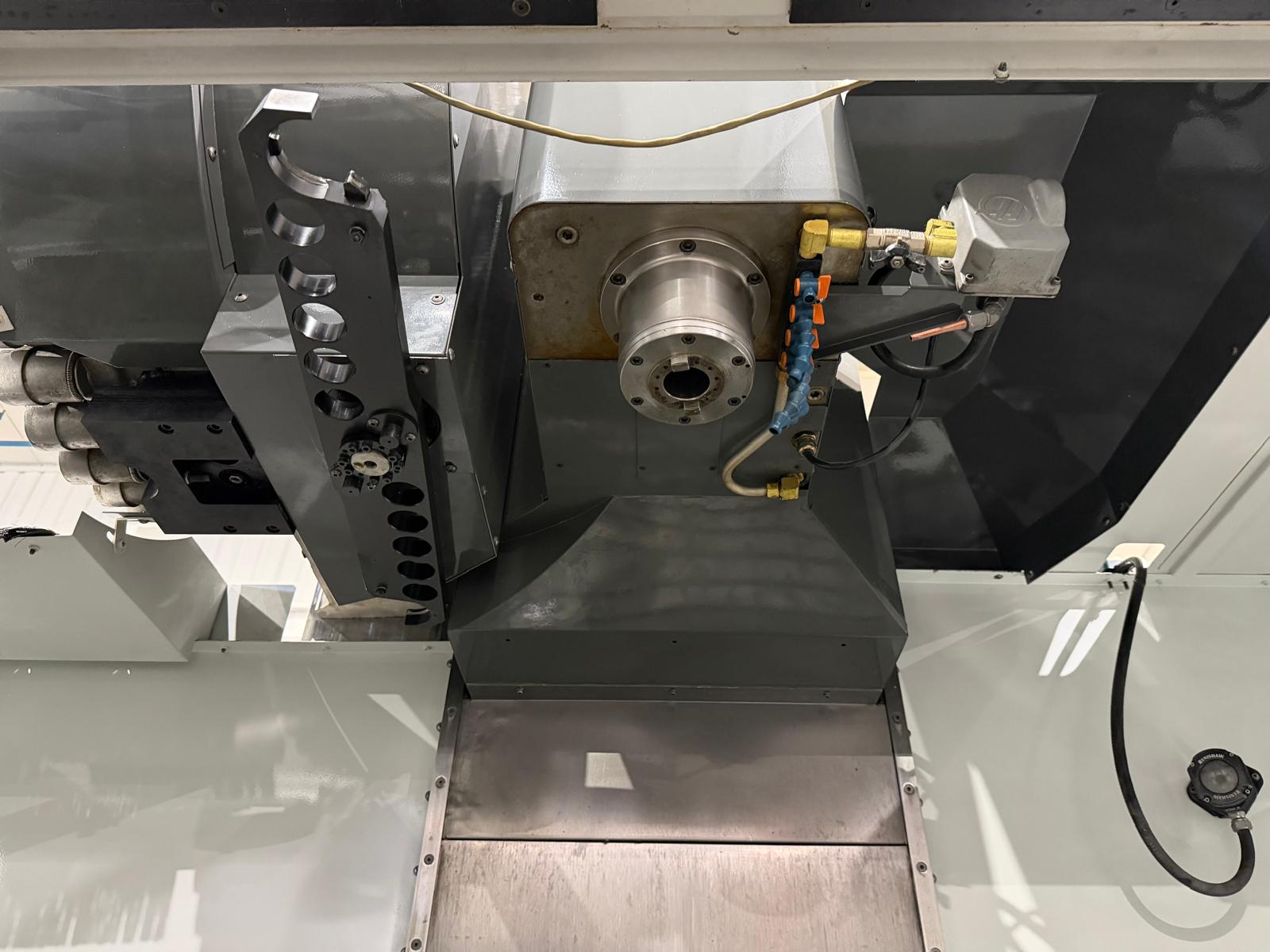

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter: 3.5″ |
| Tool Changing Time: 4.20 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

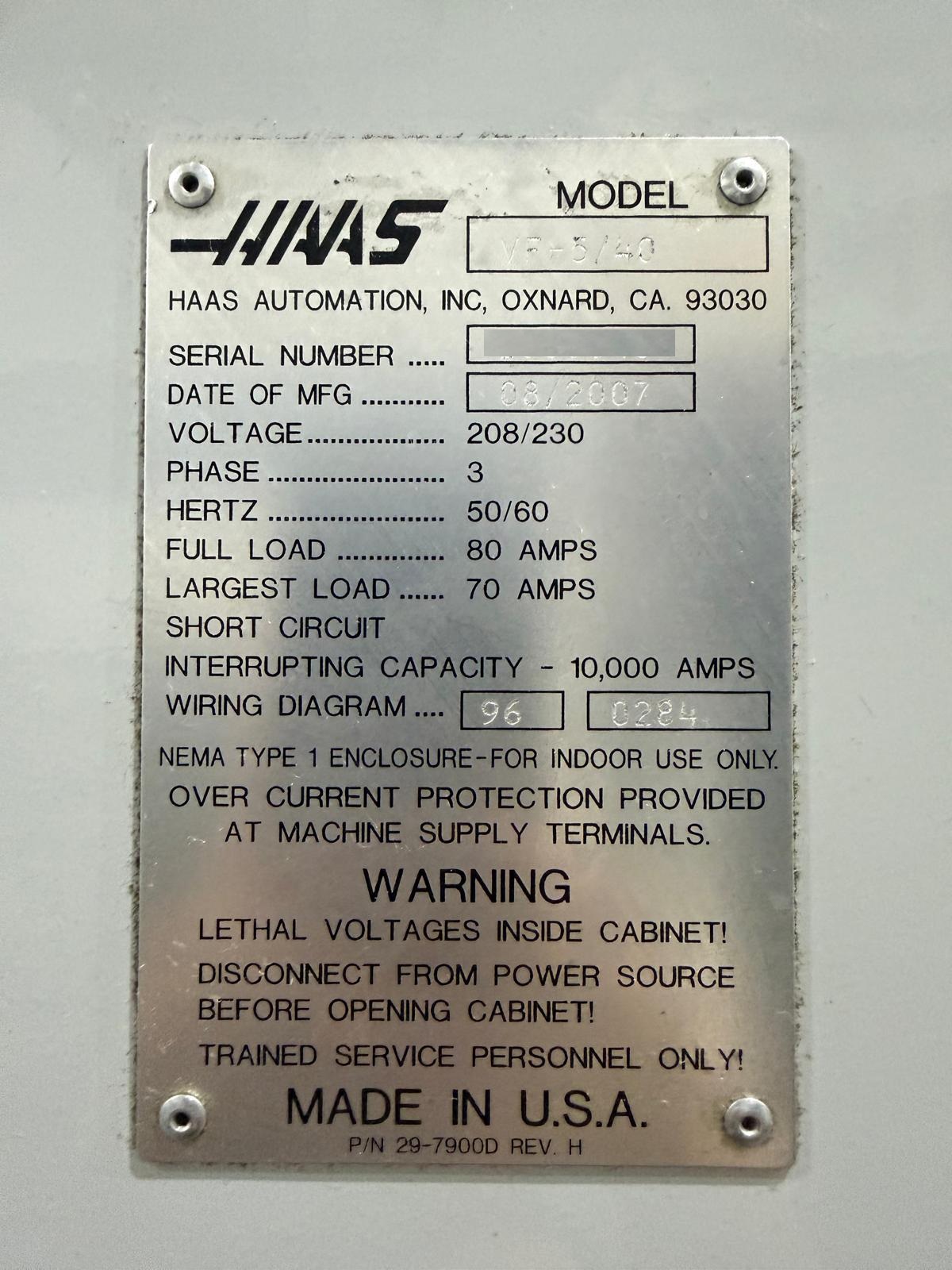

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 168″ x 101″ x 109″ High |
| Weight: 12700 lbs |
