*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

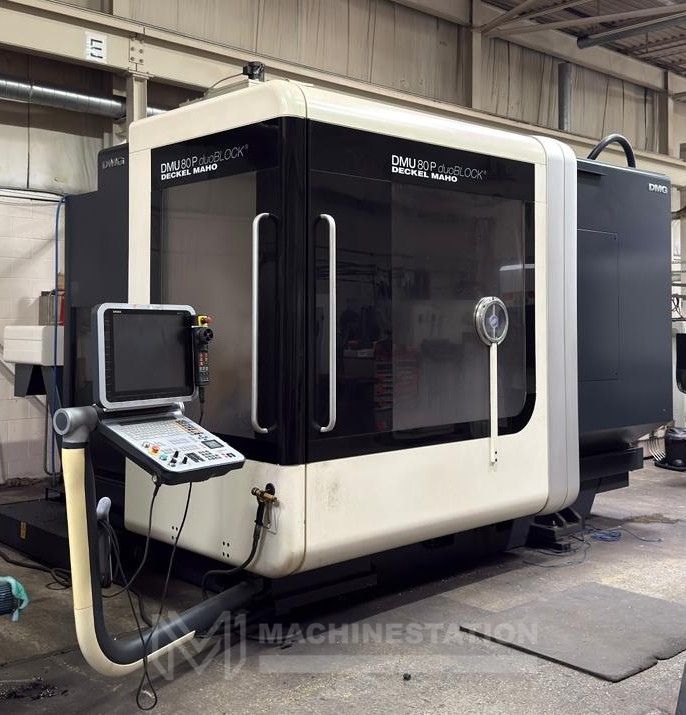

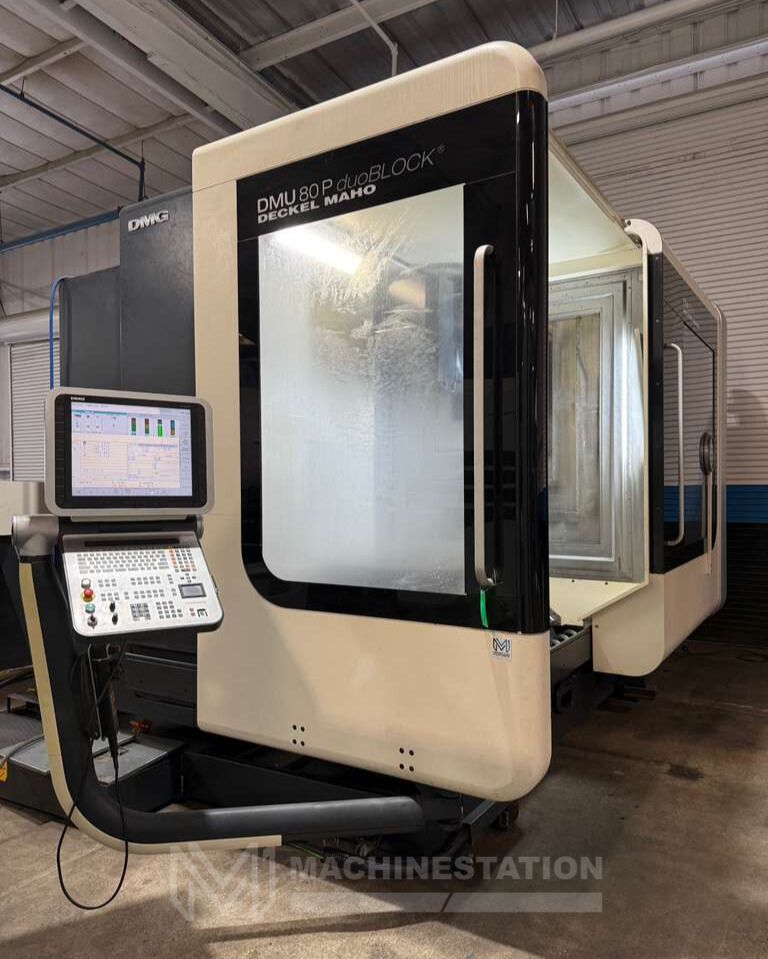

| Make: | DMG |

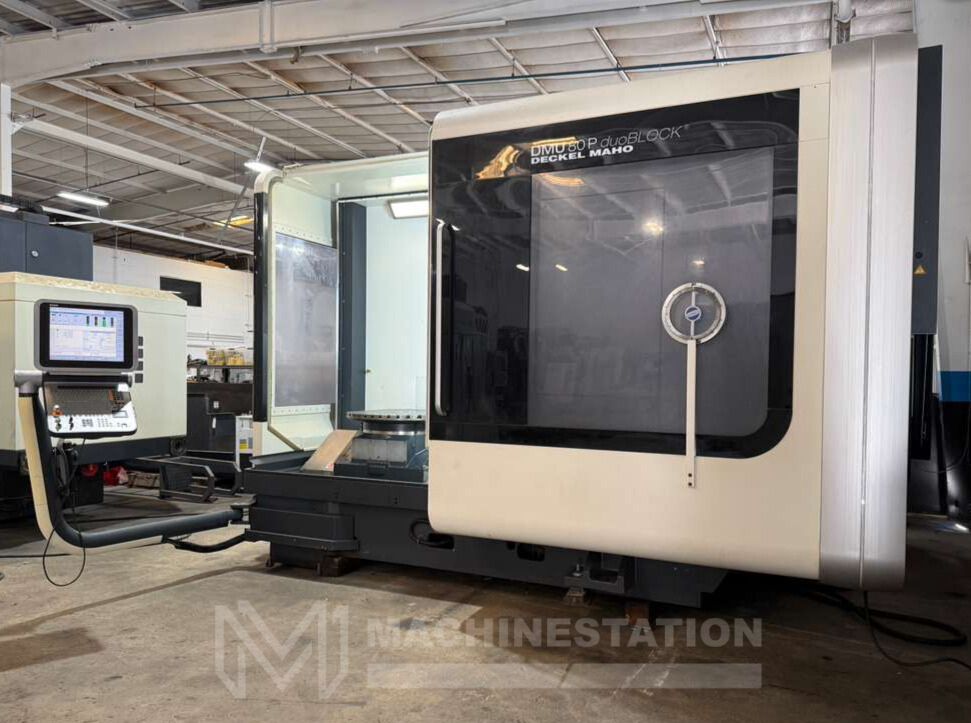

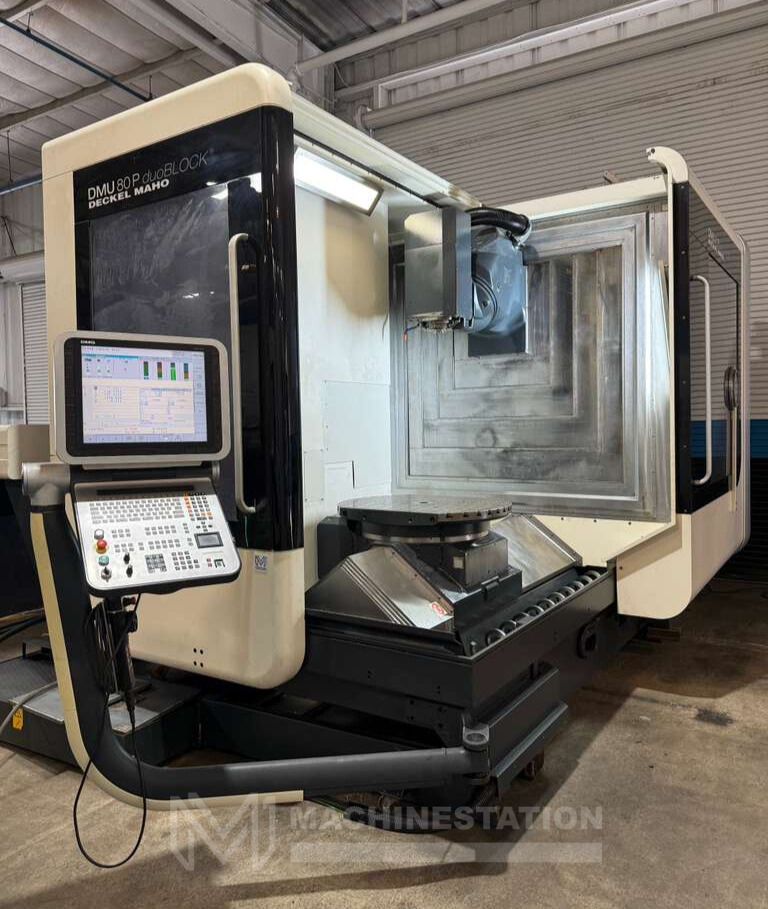

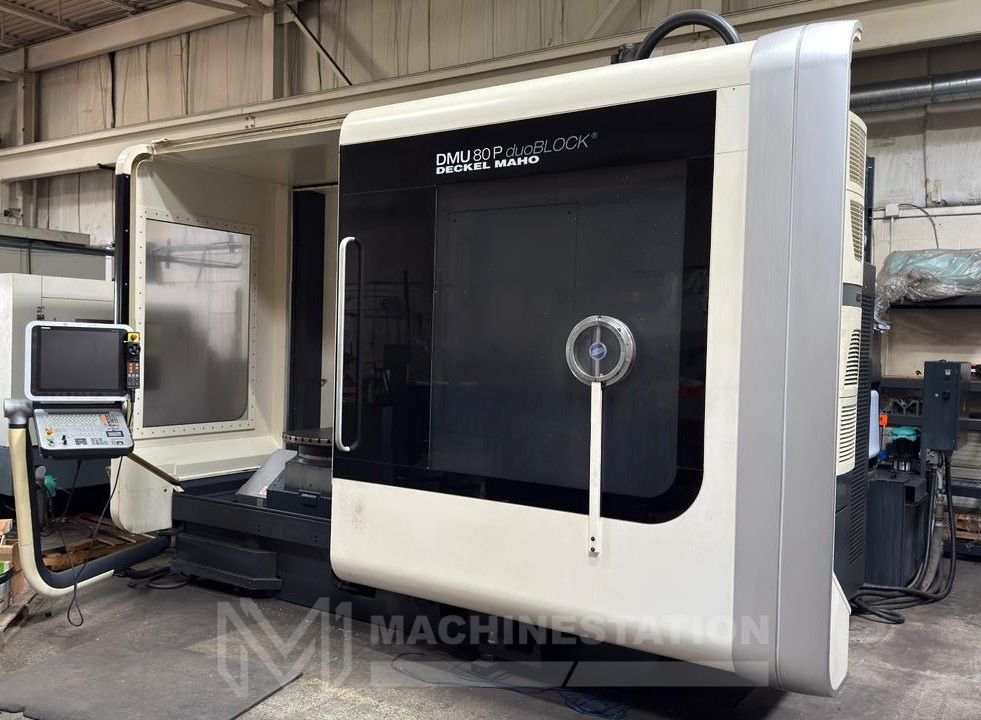

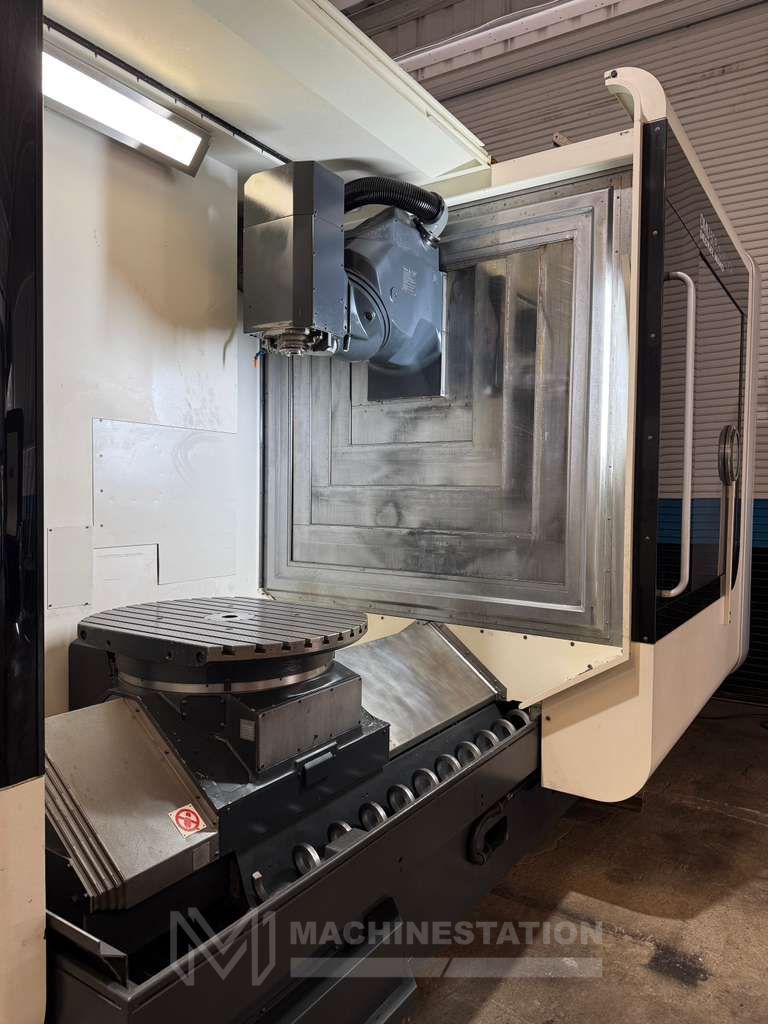

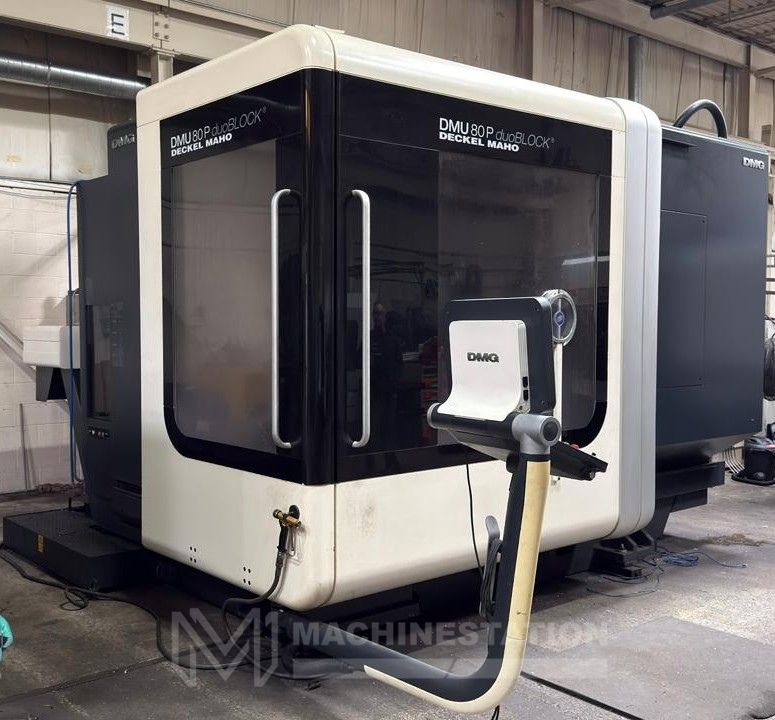

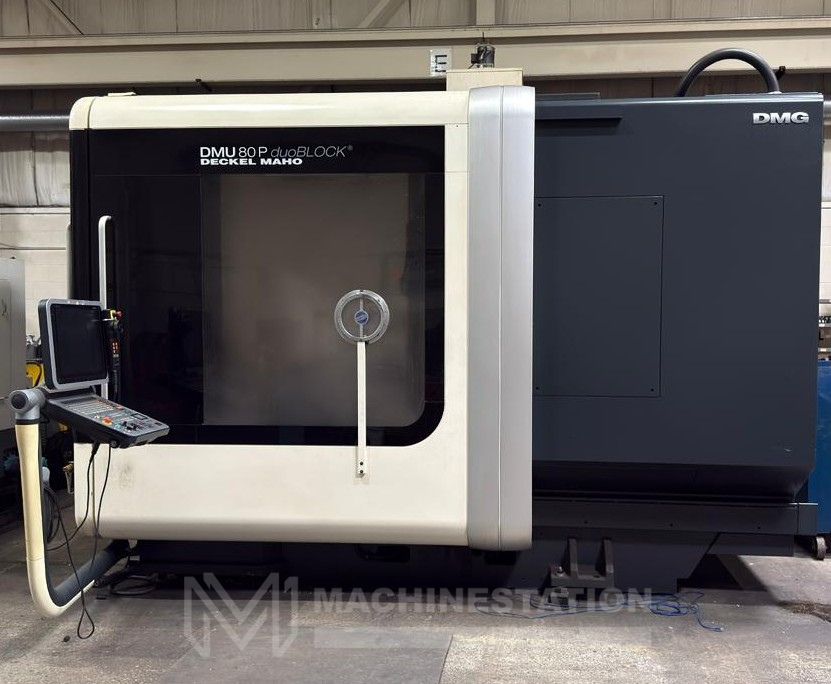

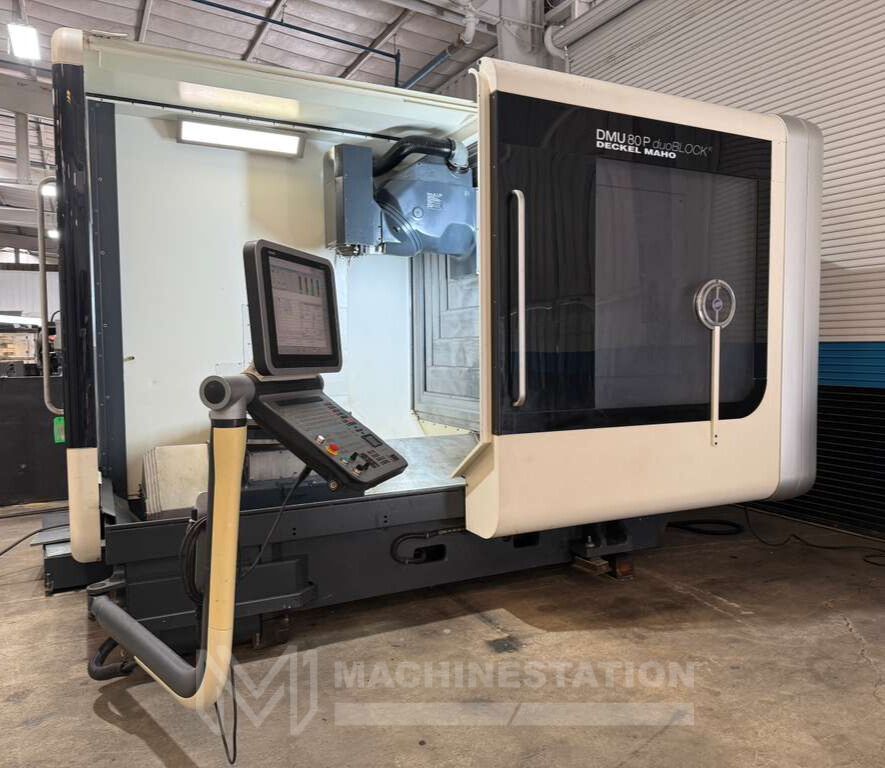

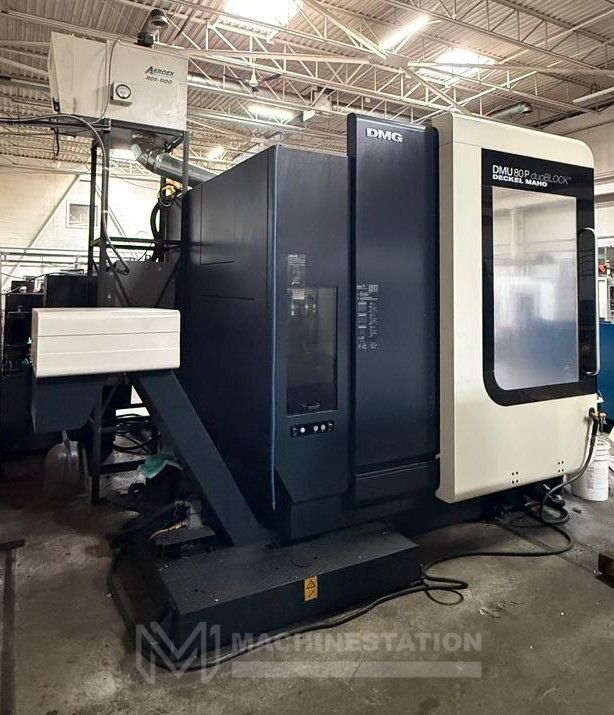

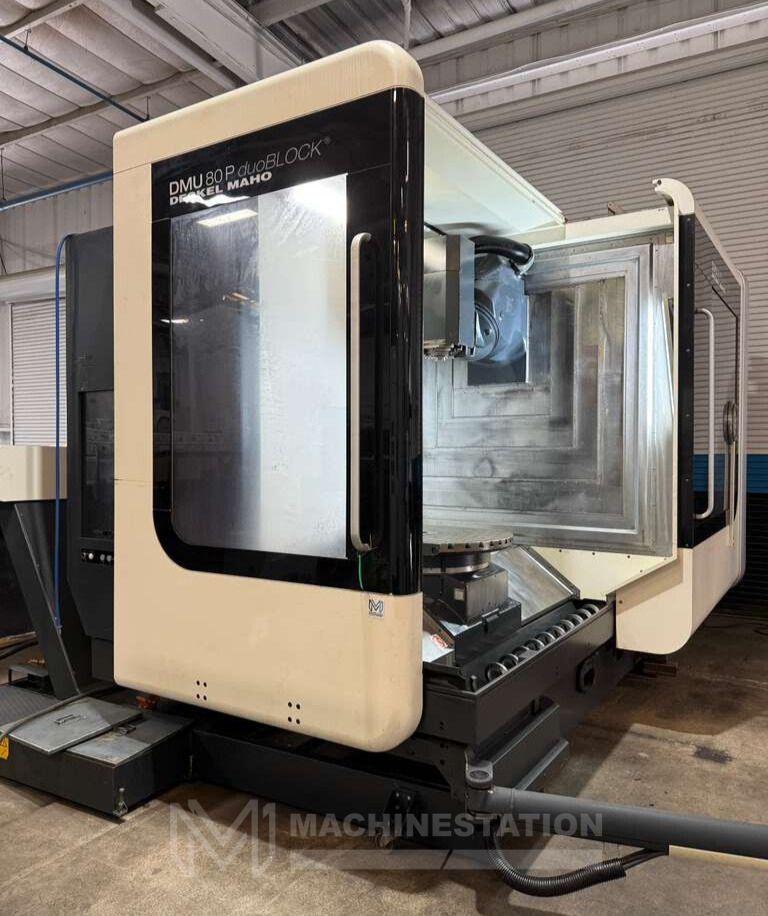

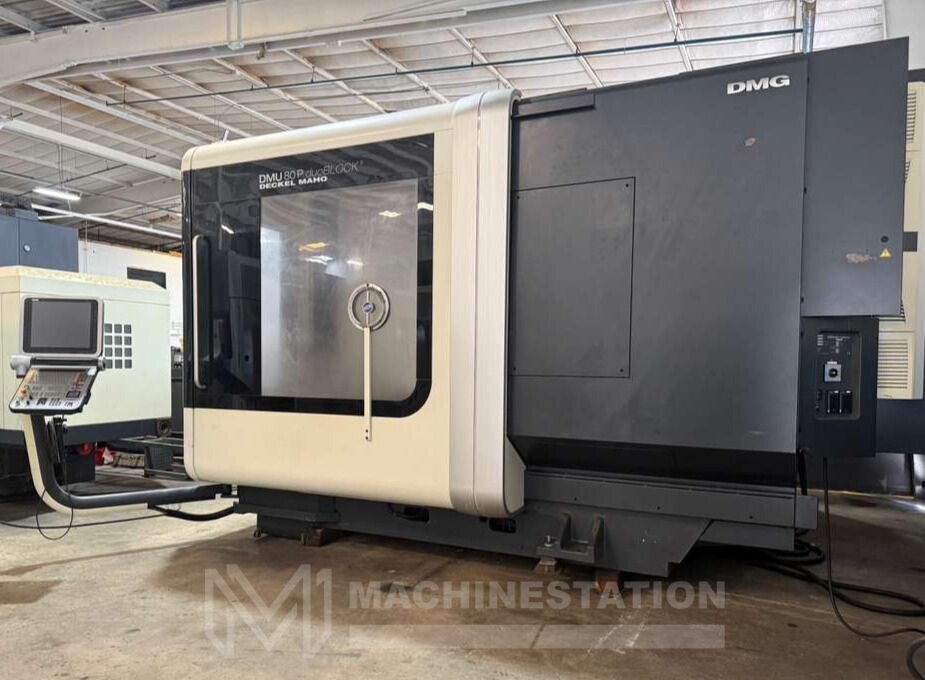

| Model: | DMU 80P duoBLOCK |
| Year: | 2009 |
| Condition: | Used – Good |
| Features: |
|---|

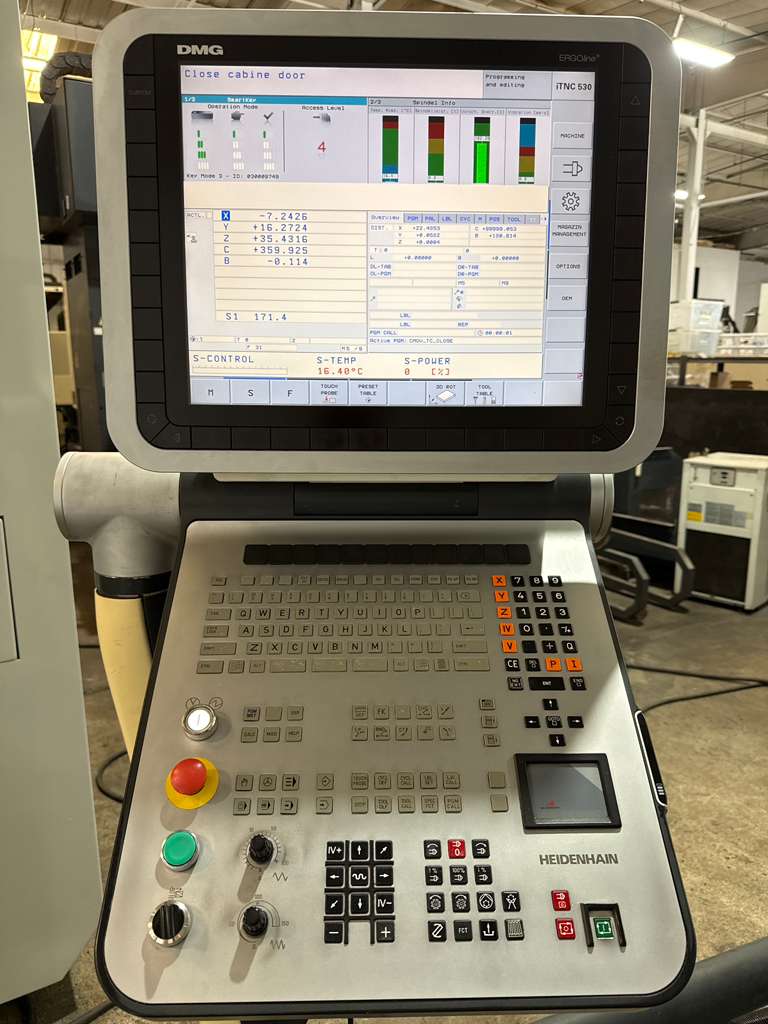

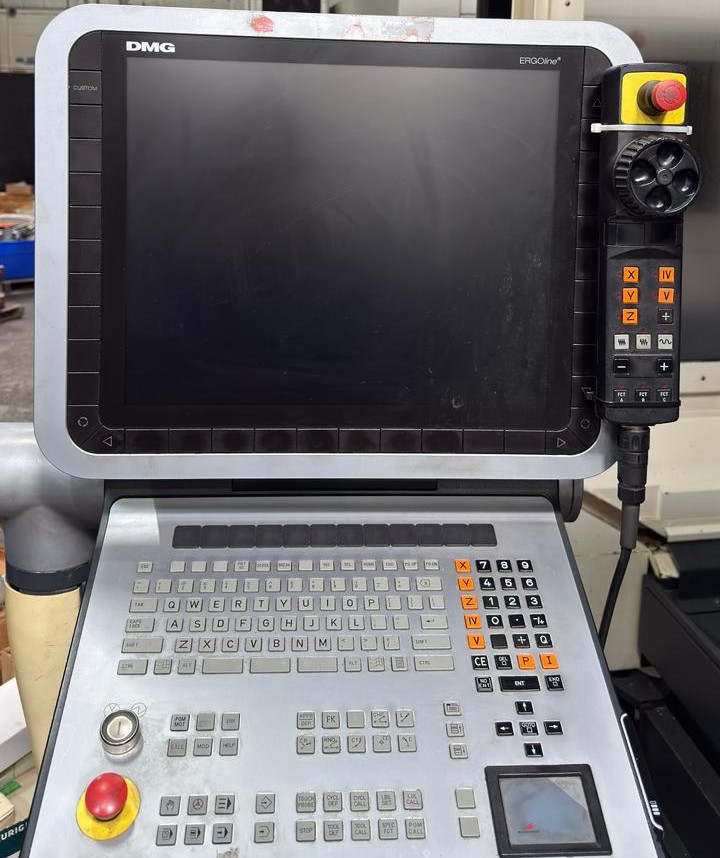

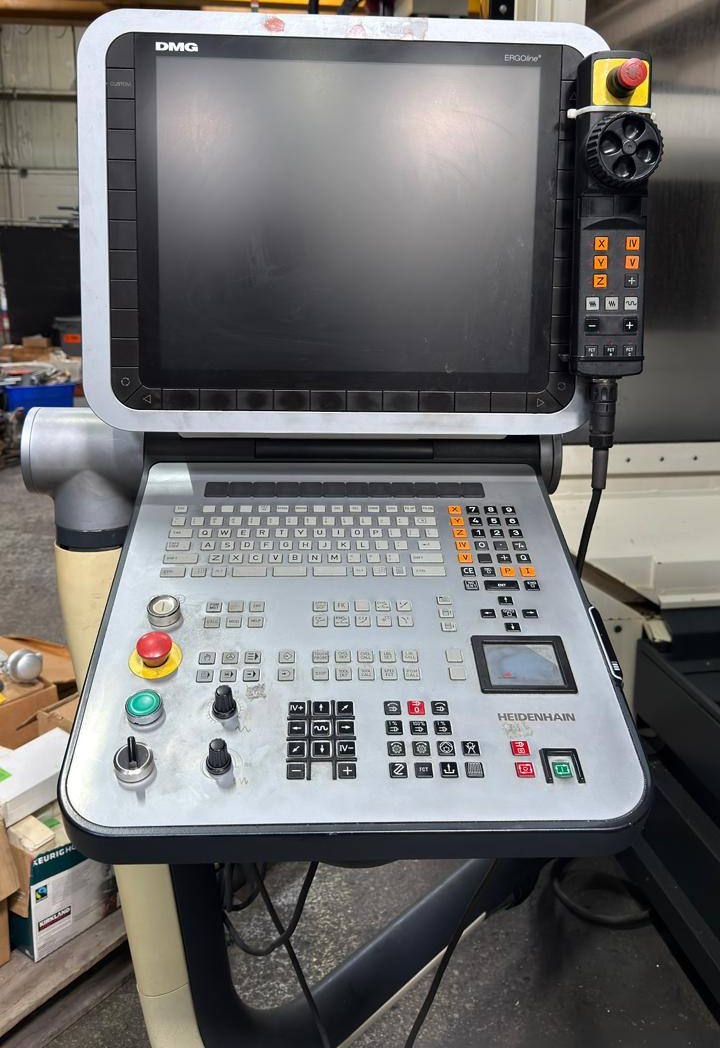

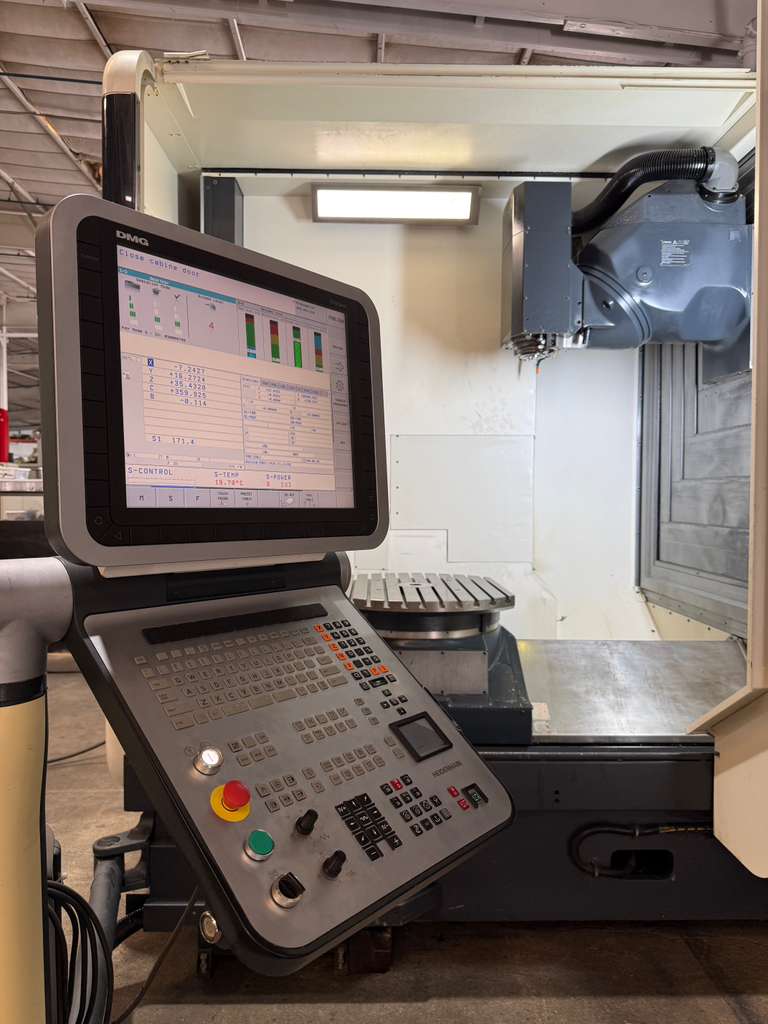

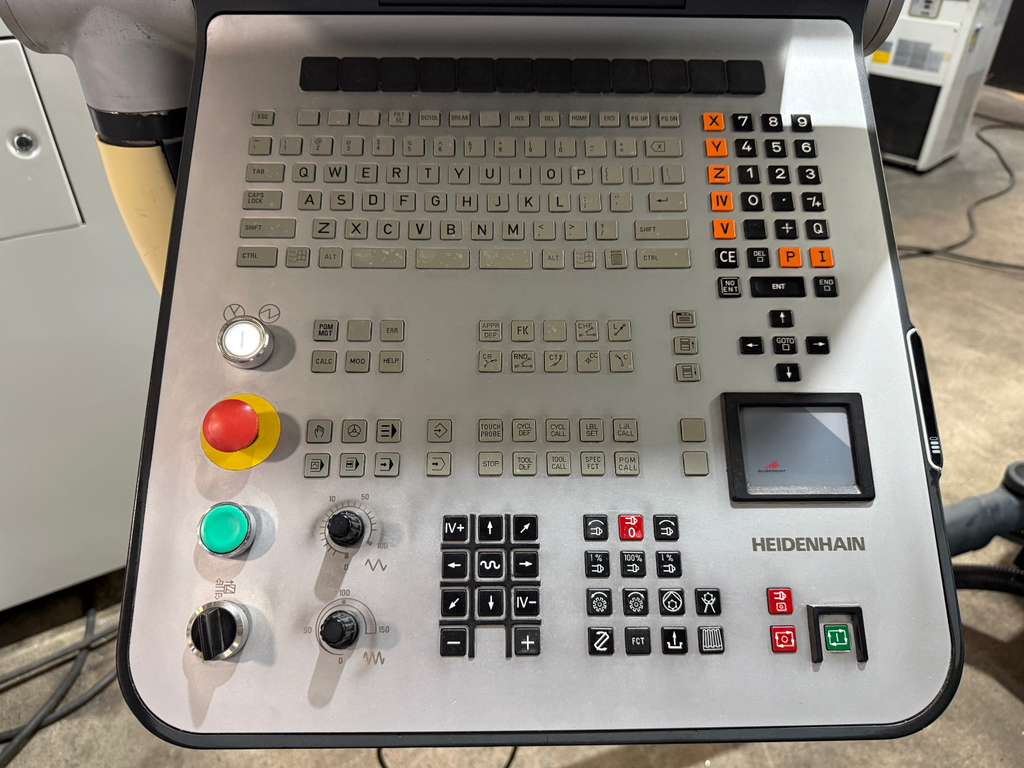

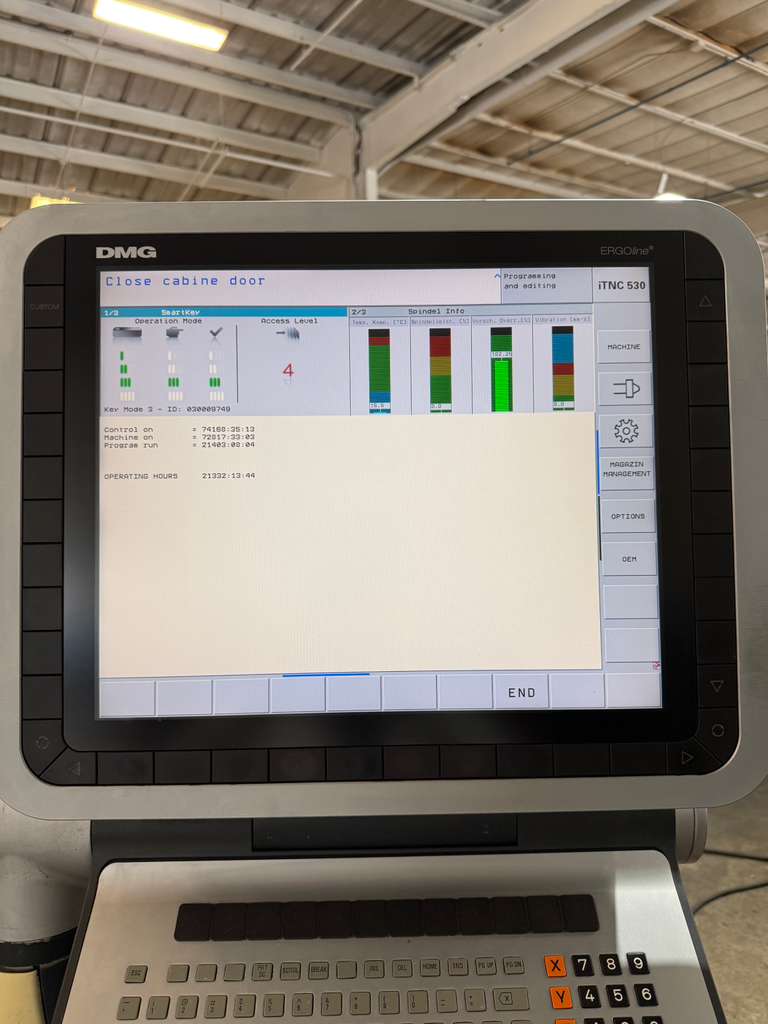

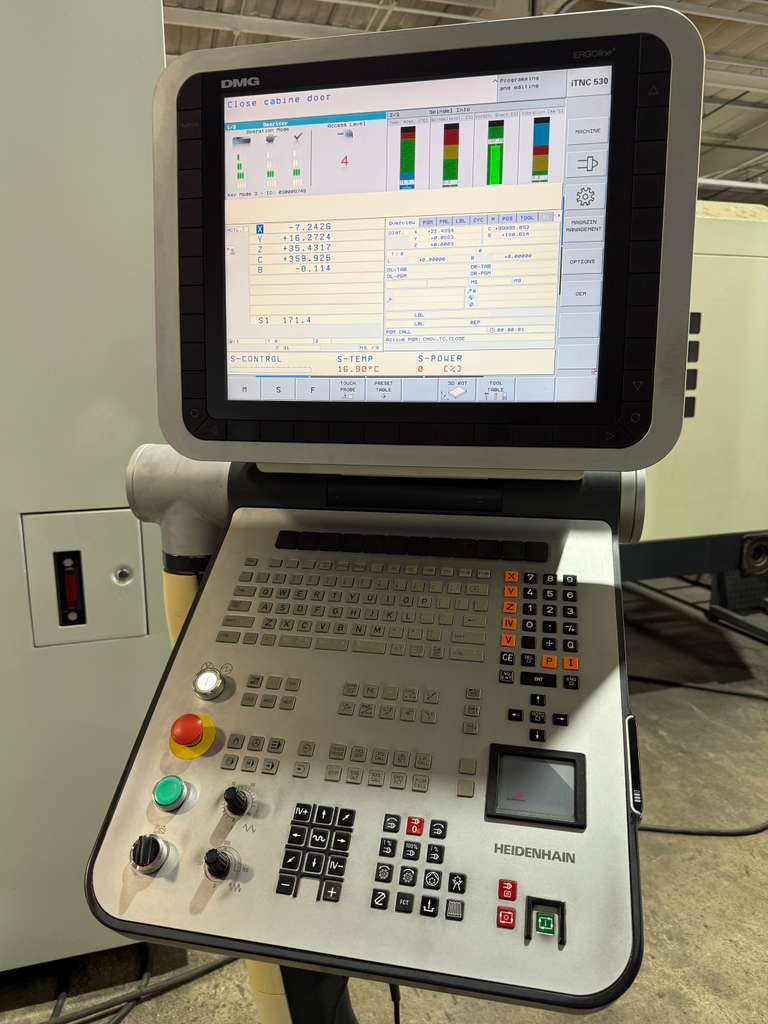

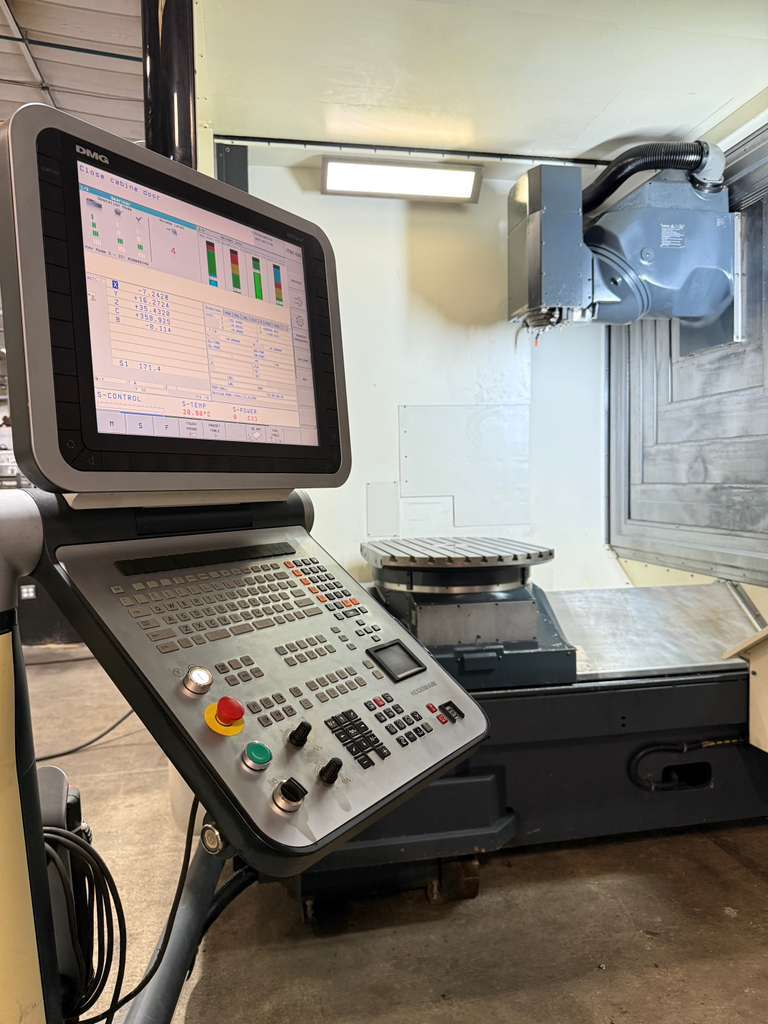

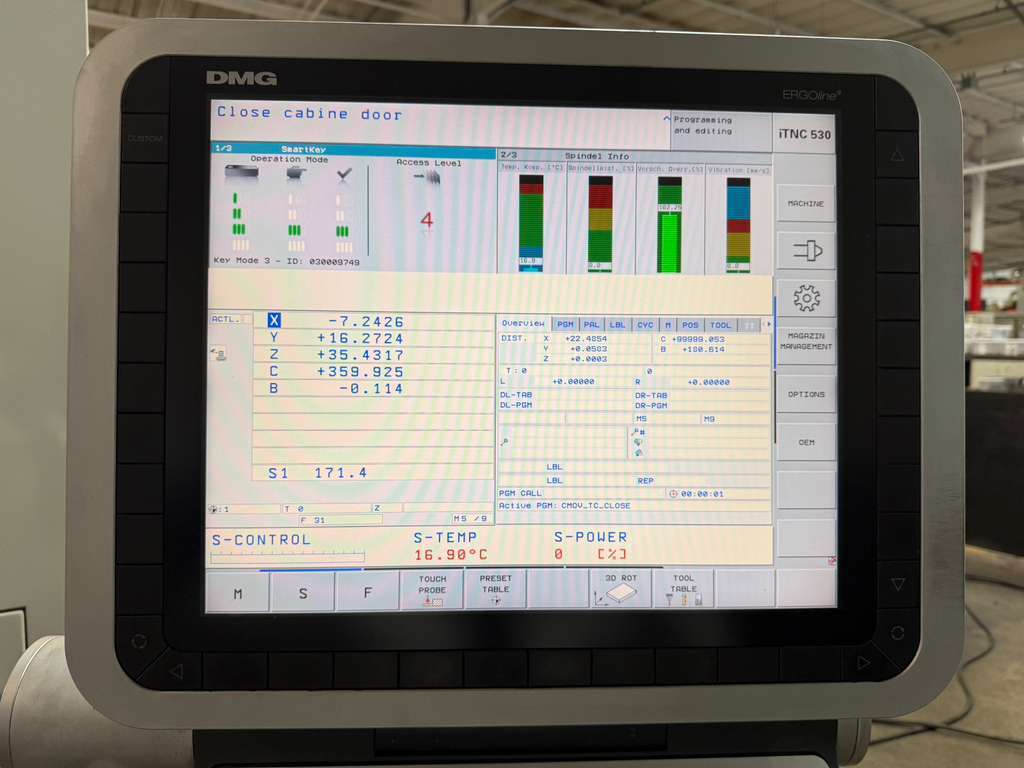

| Heidenhain ERGOline iTNC 530 |
| Linear Ways Construction |
| 5-Axis Simultaneous Machining |

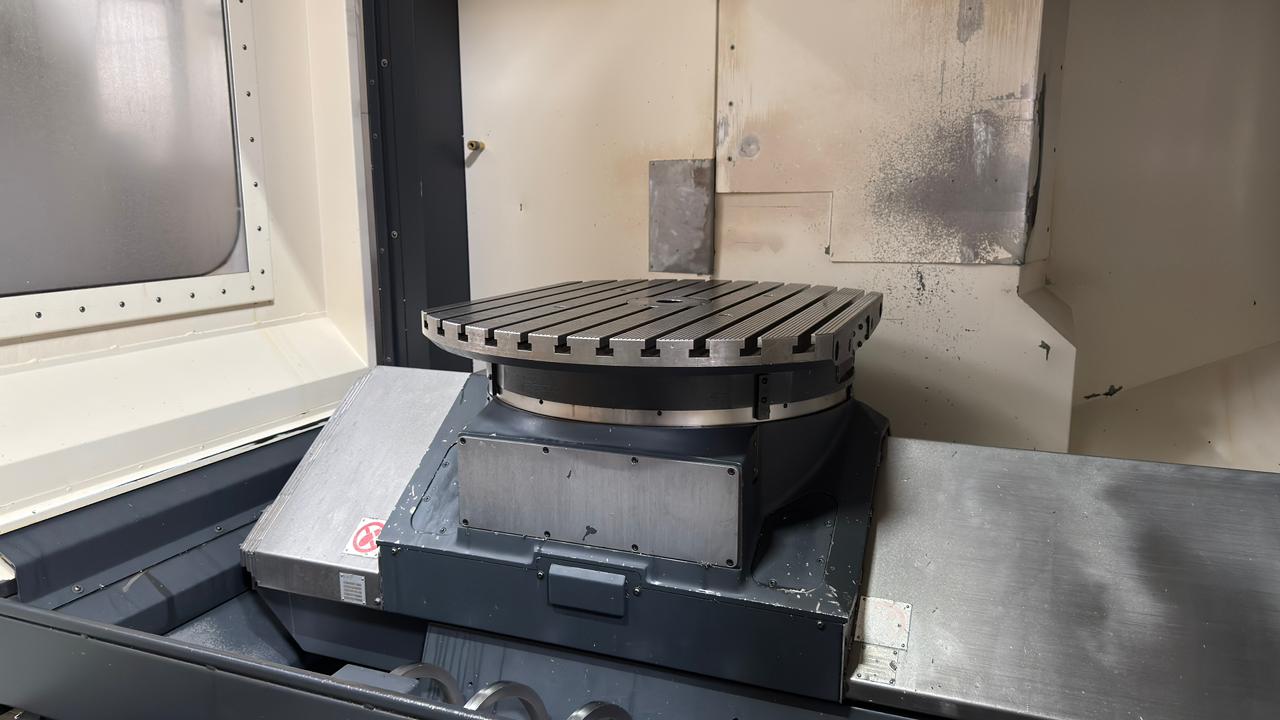

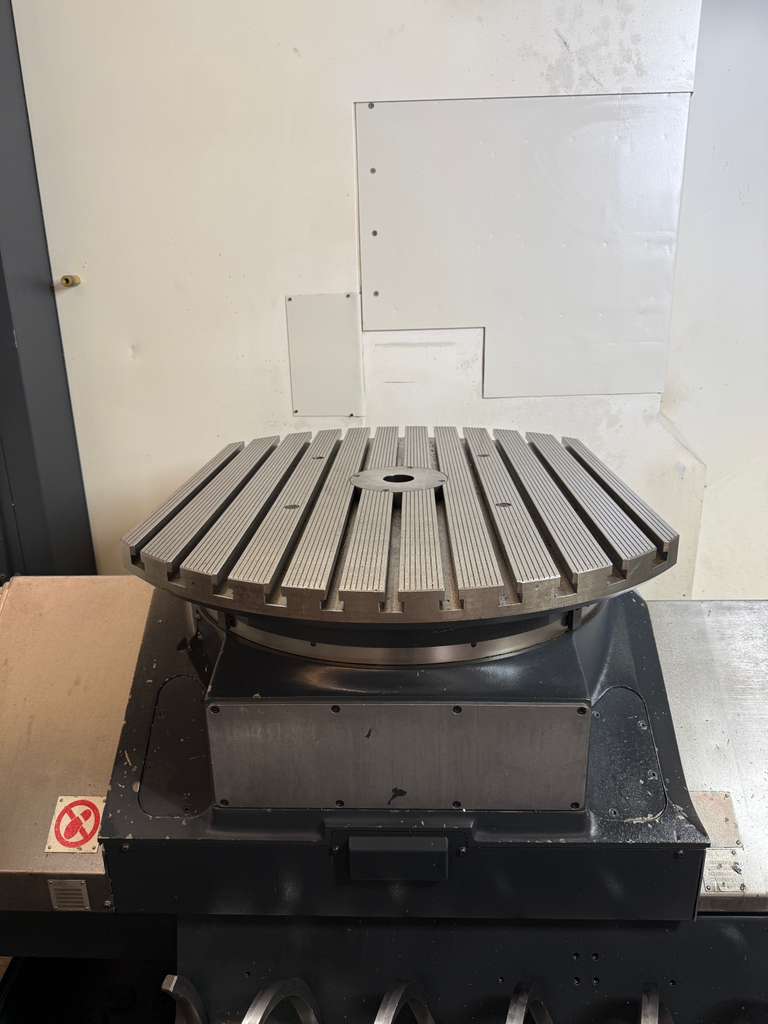

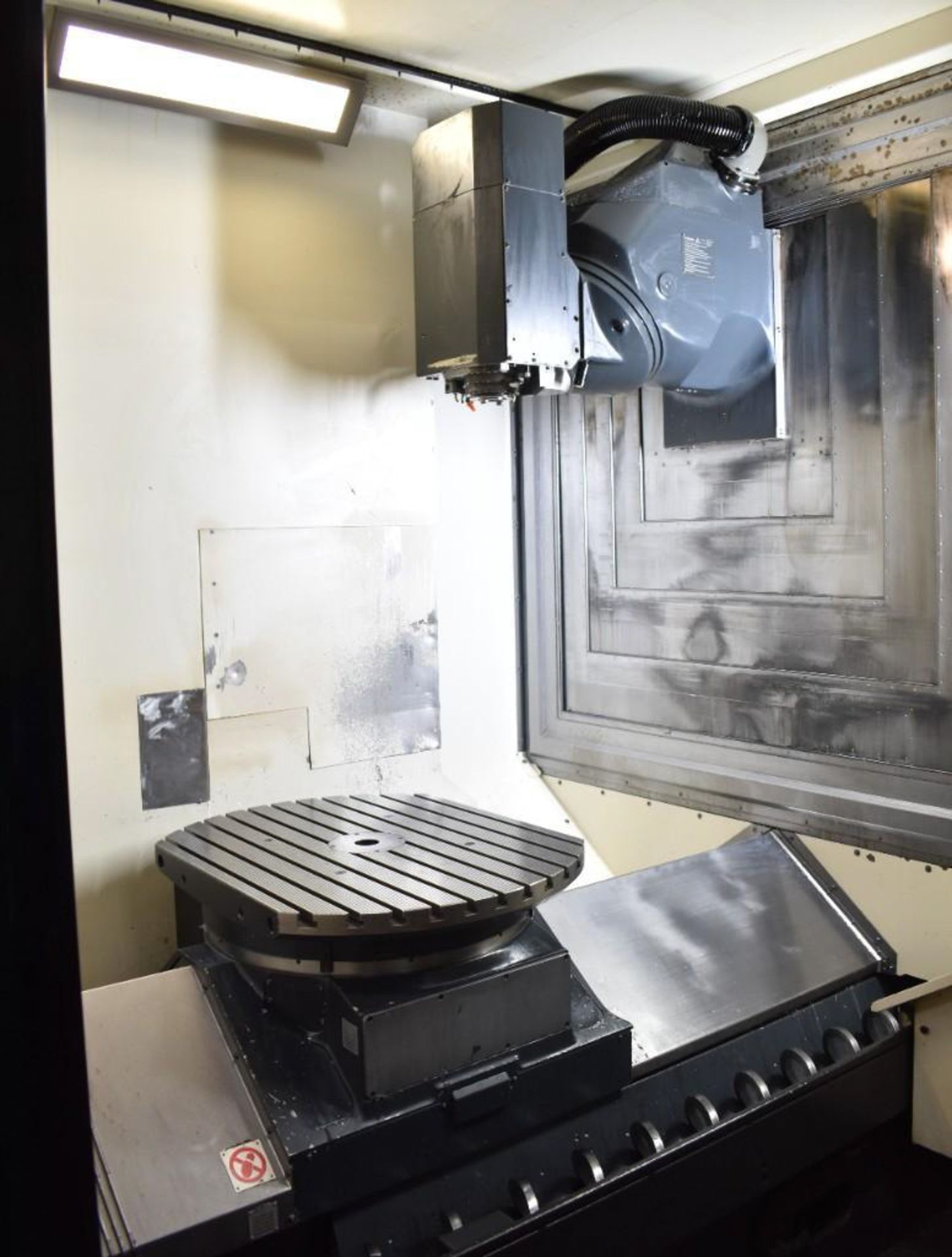

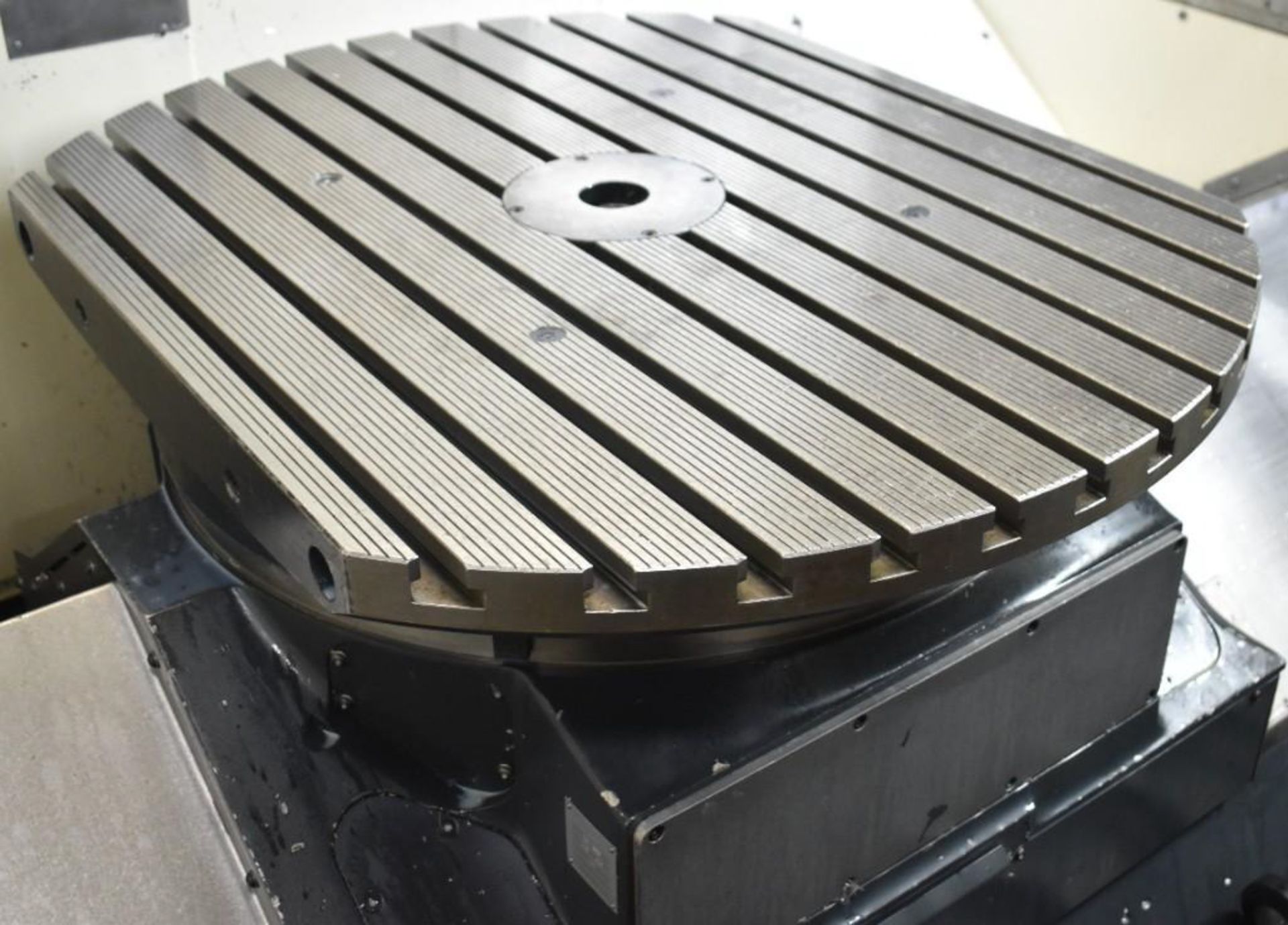

| 35.4″ x 27.5″ Rotary Table |

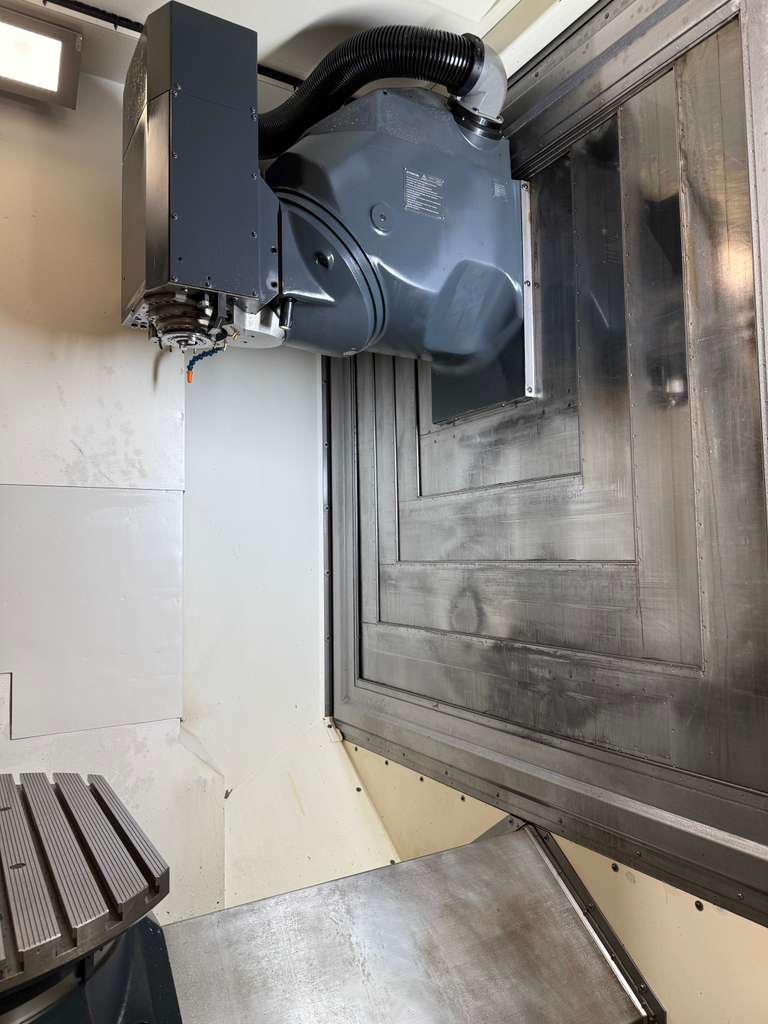

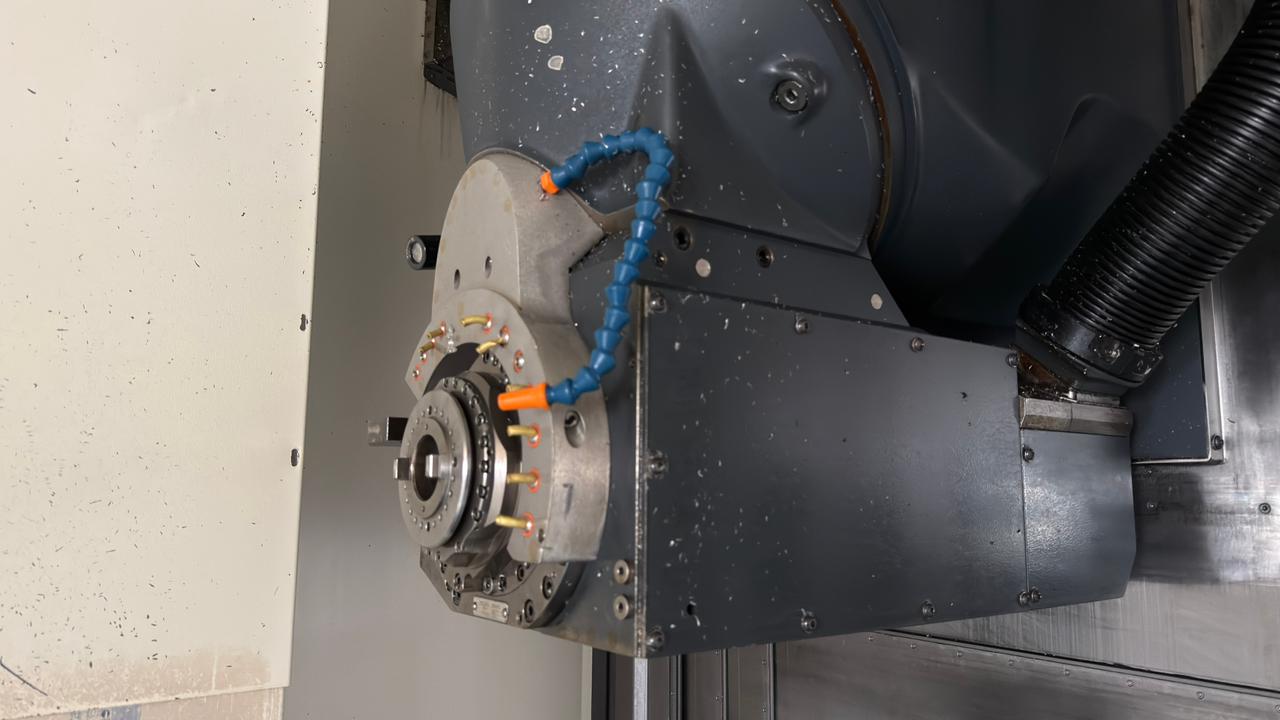

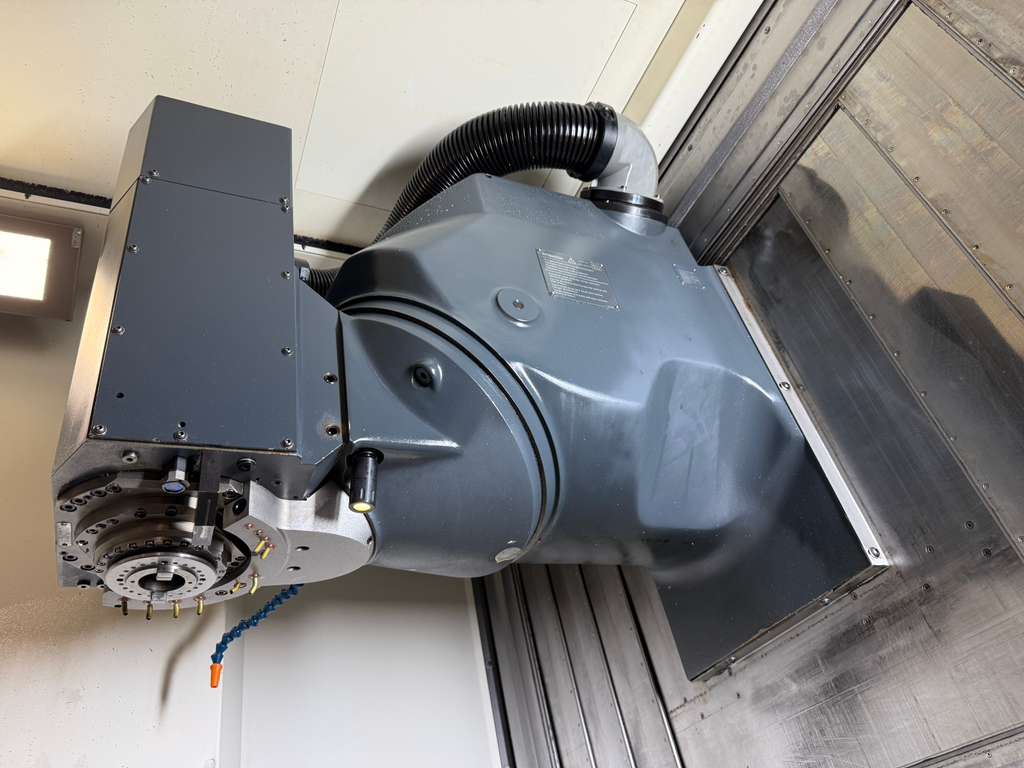

| NC-Controlled Swivel Milling Head (B-Axis) |
| 18,000 High Speed Spindle |

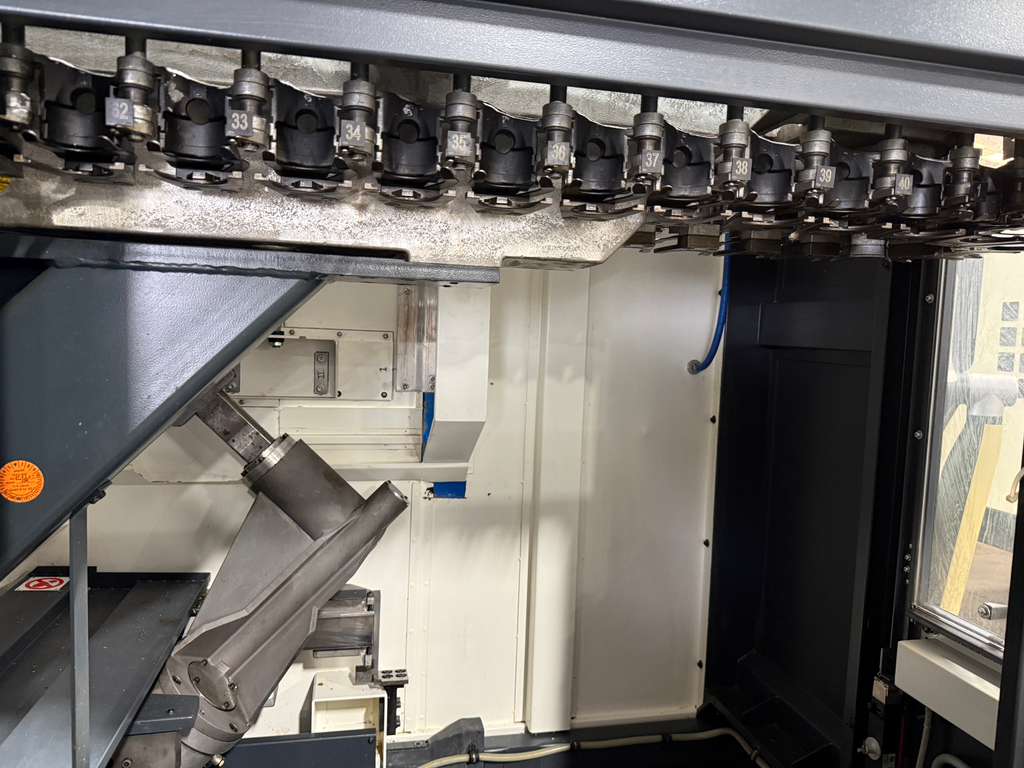

| 40 Station Automatic Tool Changer |

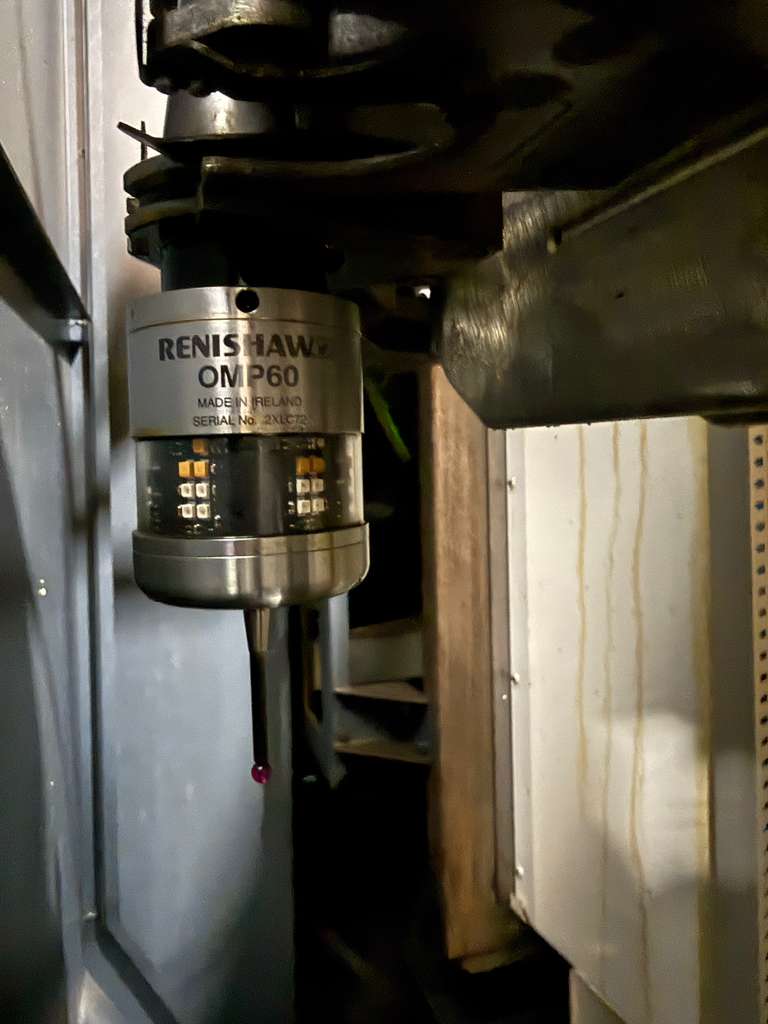

| Renishaw OMP60 Tool Probe |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Through Spindle Coolant |

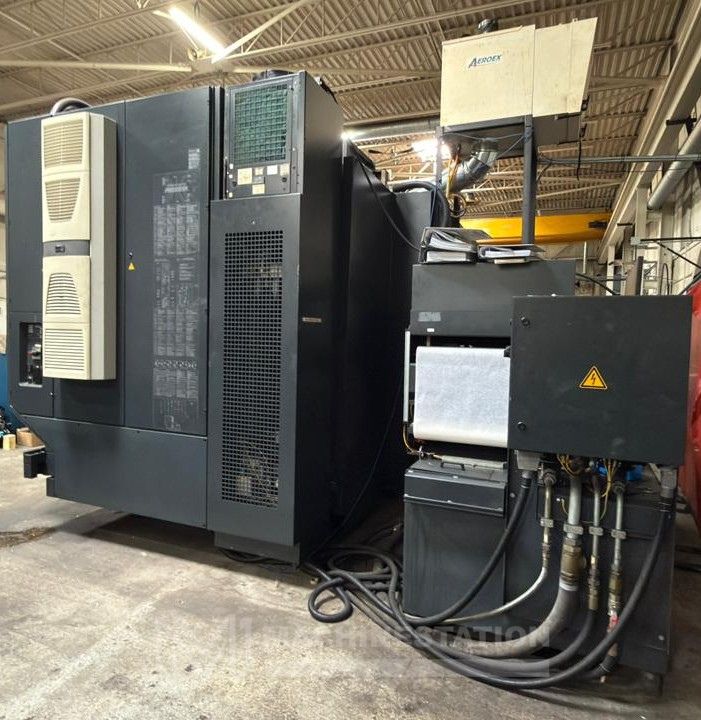

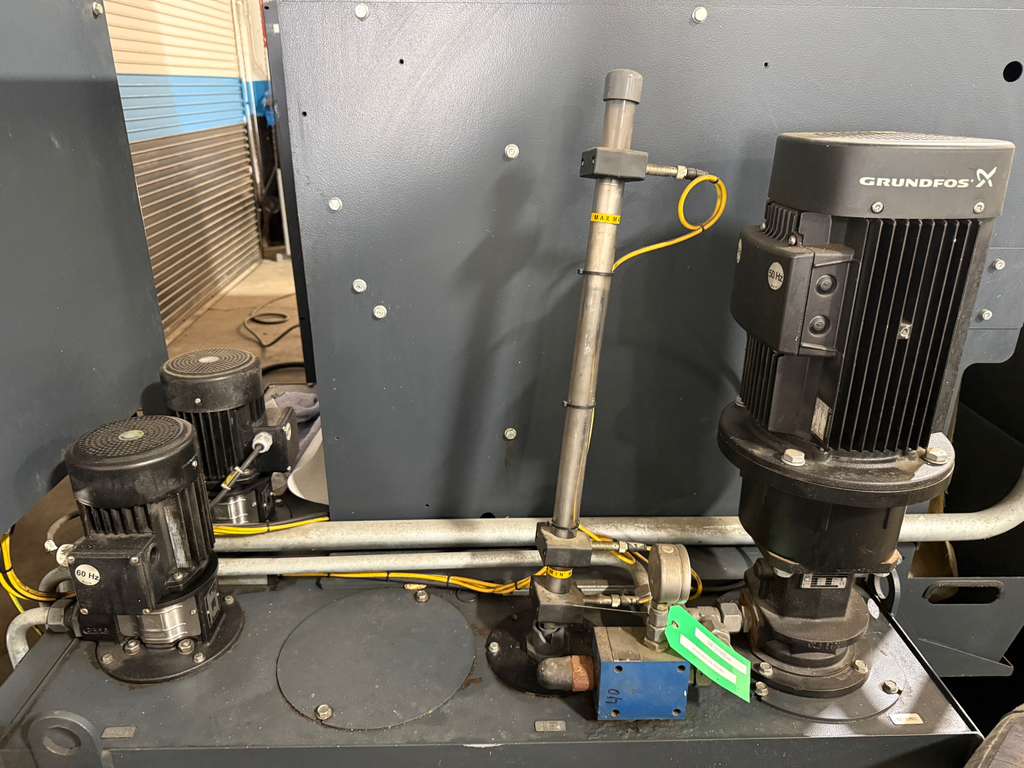

| High Pressure Coolant System |

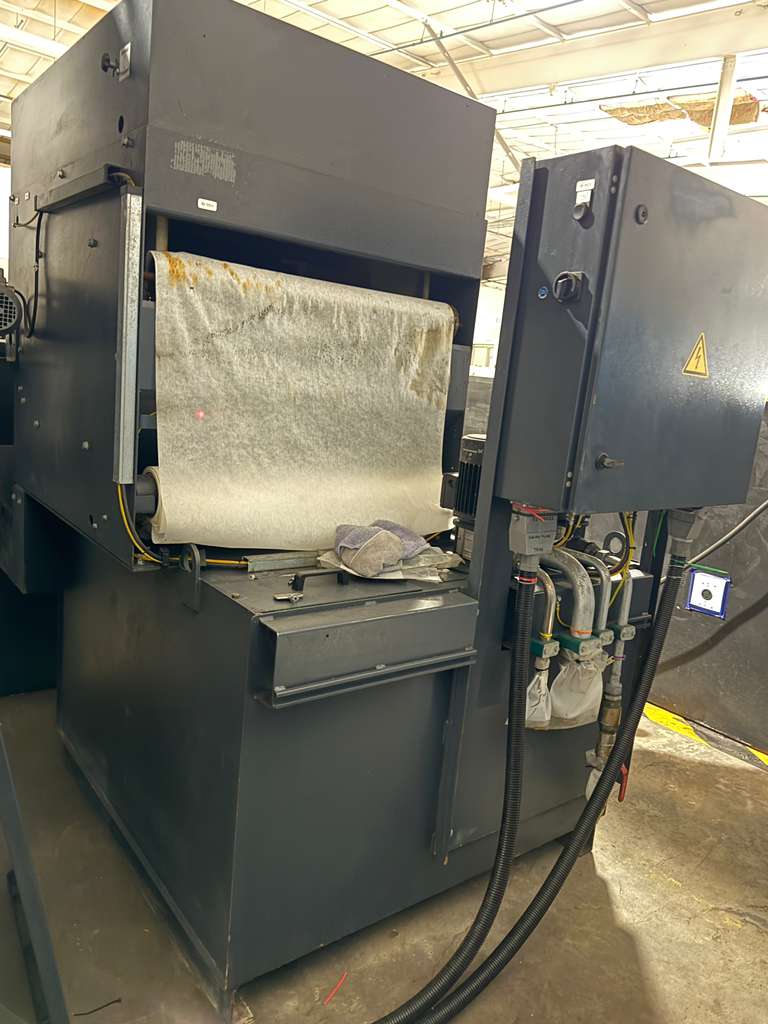

| Coolant Filtration |

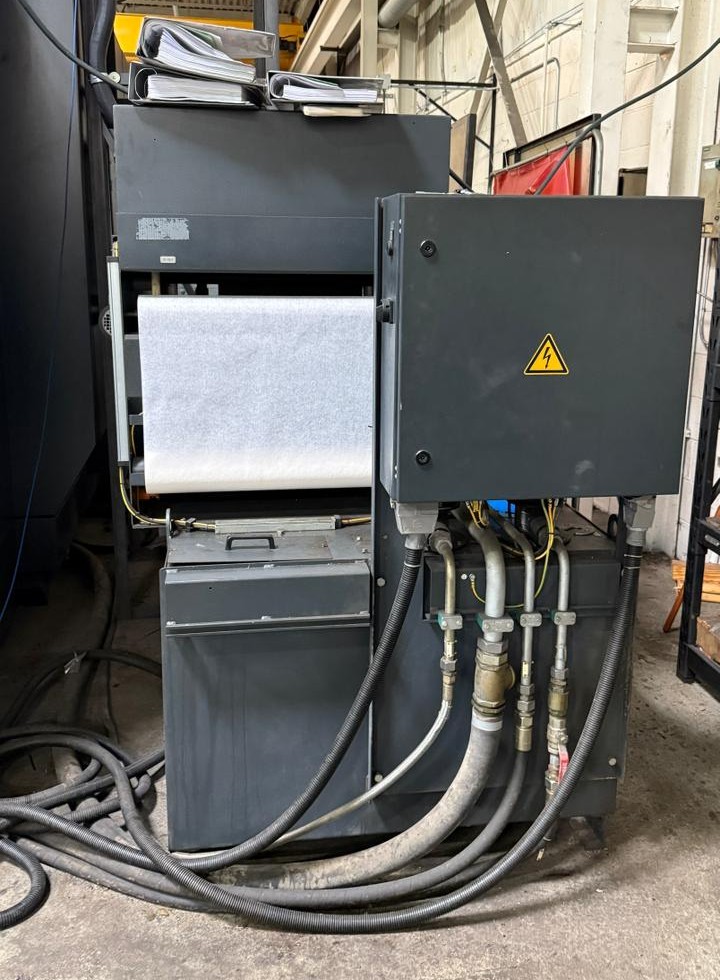

| Spindle Chiller |

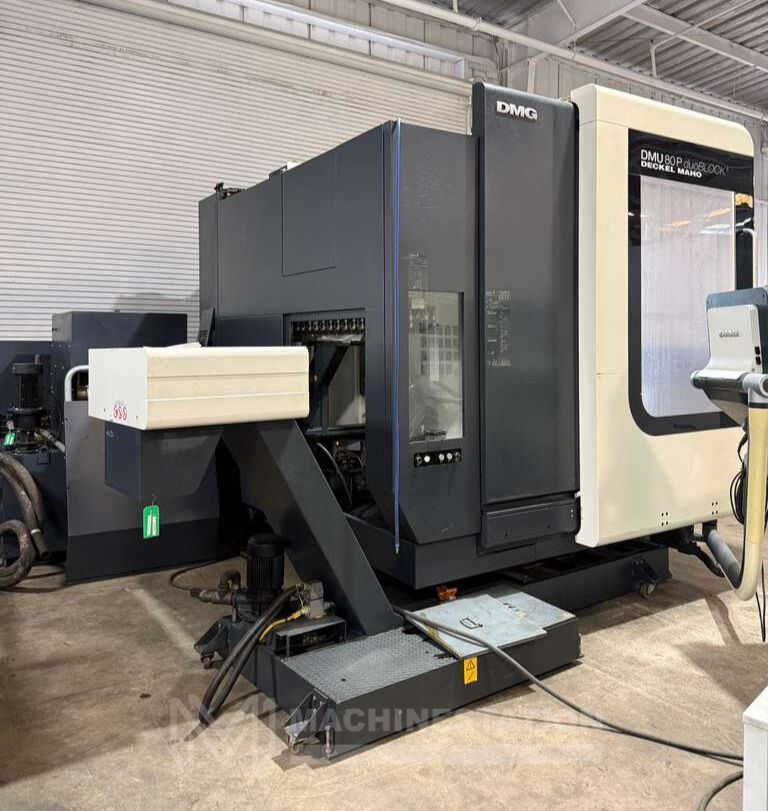

| Chip Conveyor |
| Travels: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 31.5″ |
| B-Axis Swivel Range: 0° – 190° |
| C-Axis Rotation: 360° |
| Rapid Traverse (X/Y/Z): 2,362 Inches Per Minute |
| Feed Rate: 2,362 Inches Per Minute |
| Table: |
|---|

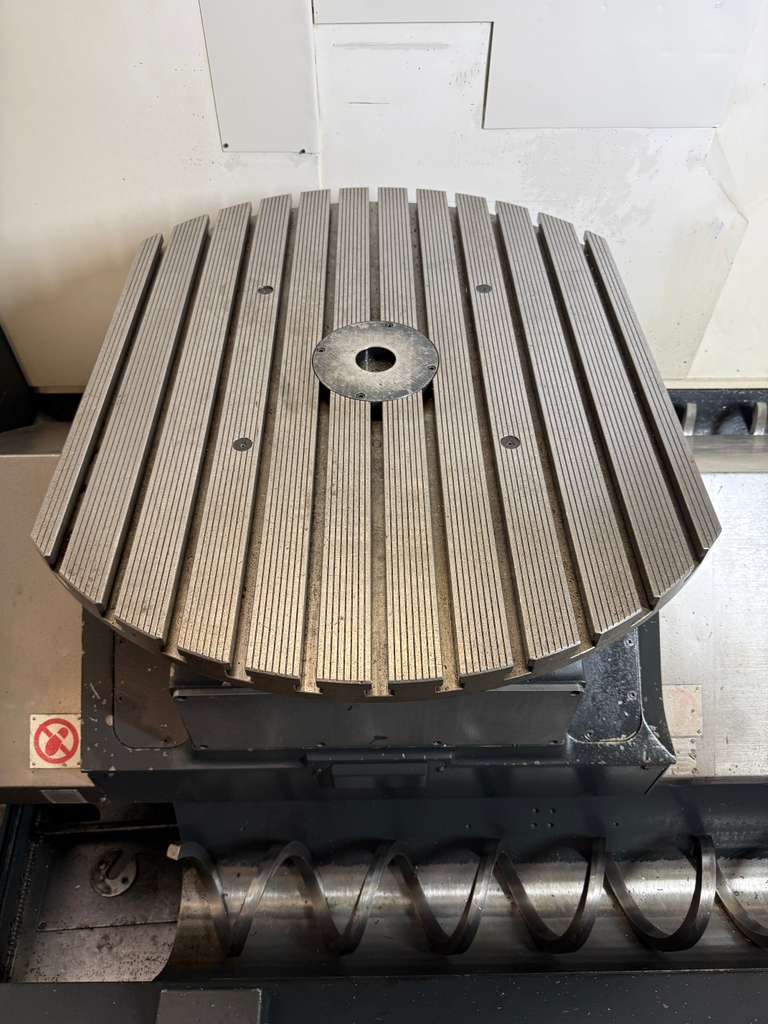

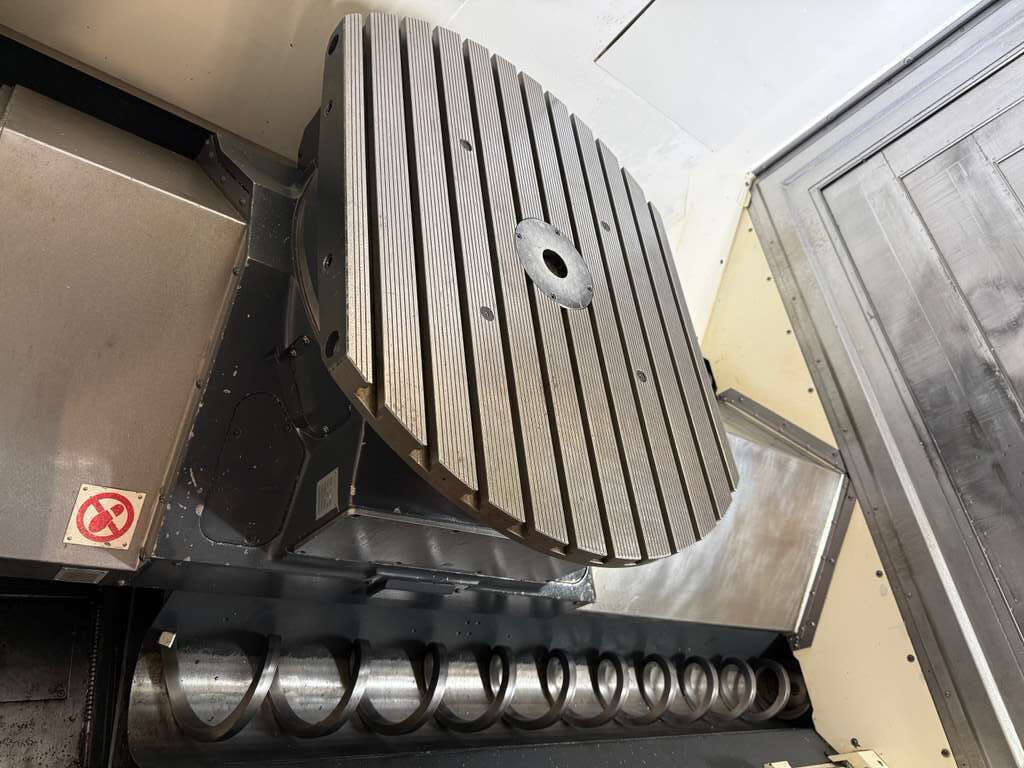

| Table Size: 35.4″ Diameter × 27.6″ Depth |
| Maximum Table Load: 3,086 lbs |
| Rotary Table Speed (C Axis): 30 RPM |
| Spindle: |
|---|
| Spindle Speed: 18,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Power: 25 HP |
| Swivel Range (B Axis): 0° – 190° |
| Swivel Time: 1.2 Sec |
| Automatic Tool Changer: |
|---|

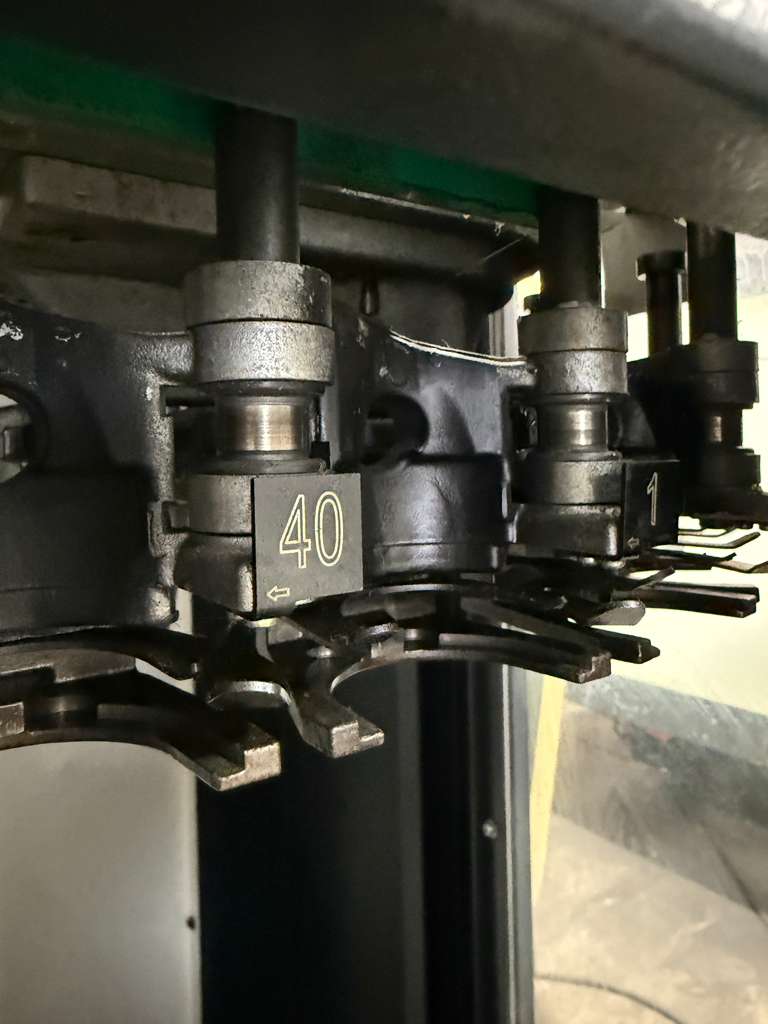

| Tool Capacity: 40 Tools (Chain Type) |
| Chip-to-Chip Time: 5 Seconds |
| General: |
|---|

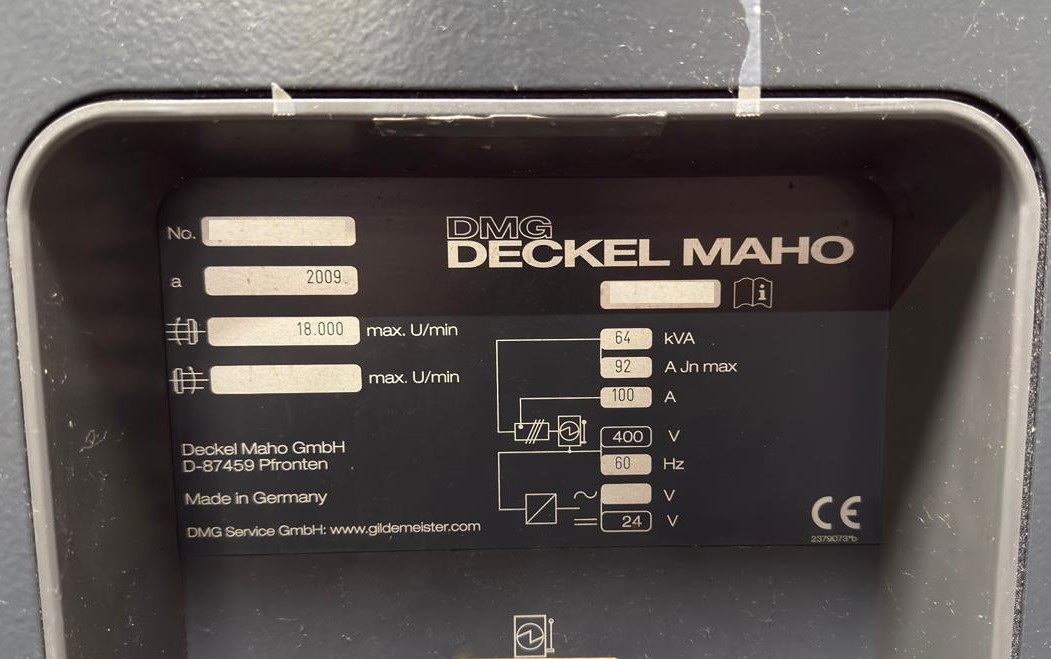

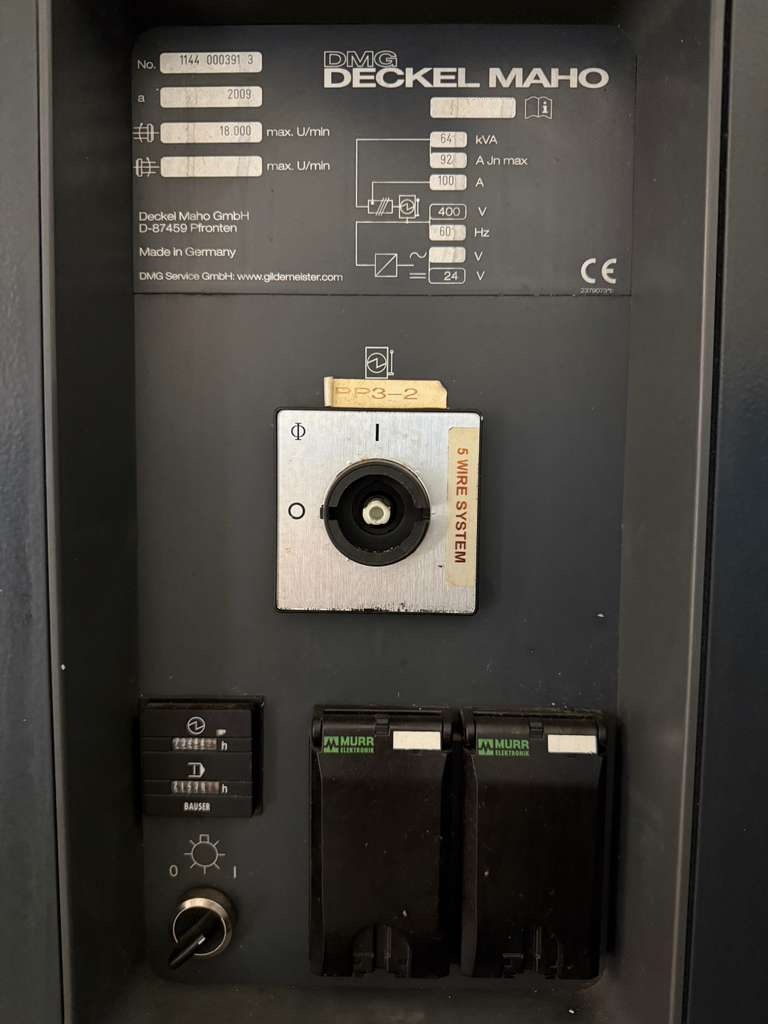

| Power Requirement: 400V / 60 Hz / 3-Phase / 64 kva |
| Machine Dimensions: 200″ x 102″ x 130″ High Approx. |
| Machine Weight: 30,865 lbs Approx. |
