*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

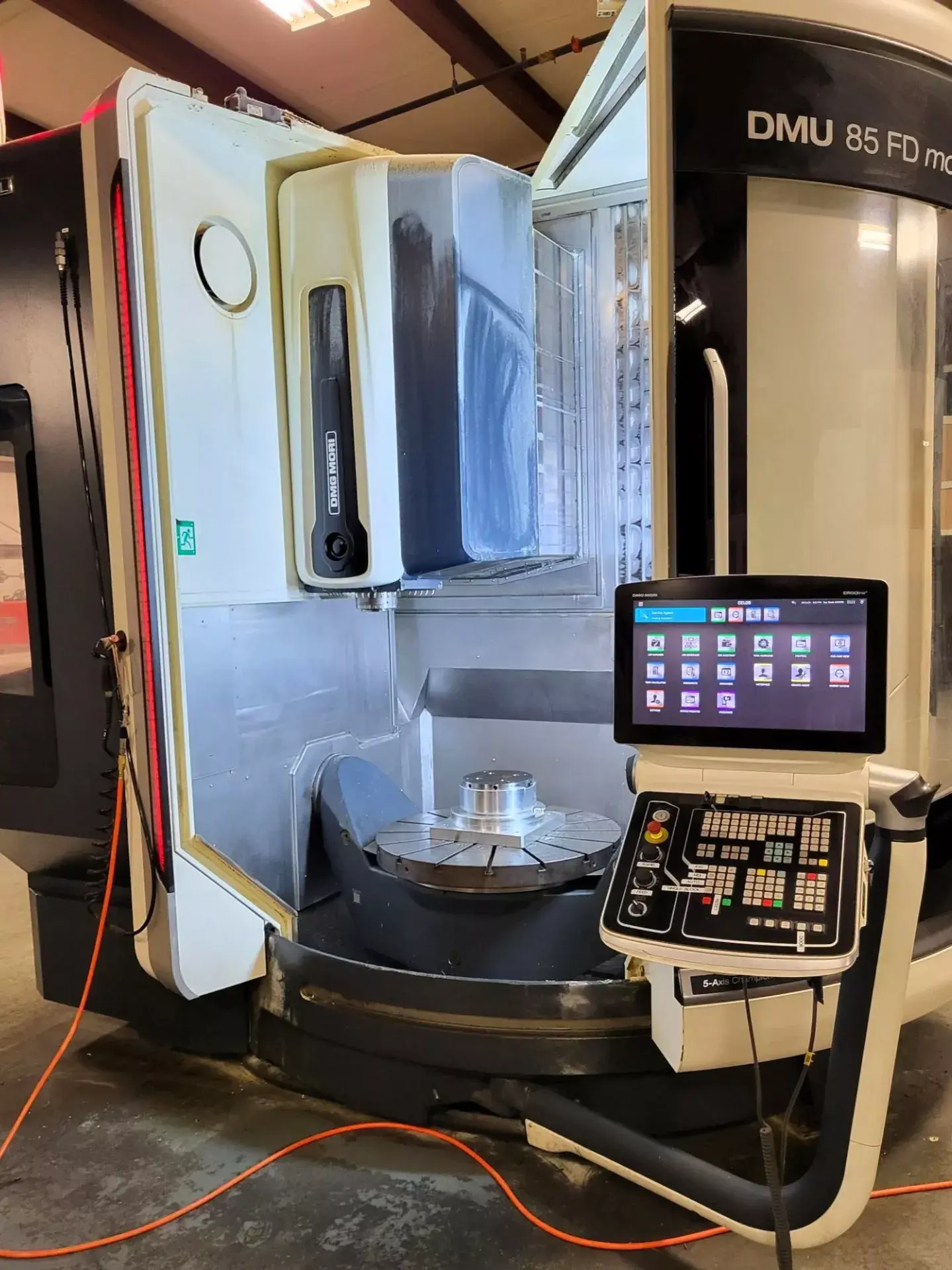

| Make: |
DMG MORI |
| Model No.: |
DMU 85 FD monoBLOCK |
| Year of Manufacture: |
2017 |
| Condition: |
Used |
| Machine Type: |
CNC Vertical Machining Center (Mill/Turn Capable) |
| CNC Control: |
DMG ERGOline CNC Control (CELOS Interface) |
| Country of Origin: |
Germany |
| Equipped With: |
| DMG ERGOline CNC Control (CELOS) |
| Full 5-Axis Capability (Simultaneous) |
| 2-Axis Swivel Rotary Table (B & C Axis) |
| 60-Position Automatic Tool Changer |
| Through-Spindle Coolant (TSC) |
| Paper Filtration System |
| Chip Conveyor |
| Full Enclosure |
| Electronic Handwheel |
| Capacity: |
| Table Size: Ø630 mm (24.8″) |

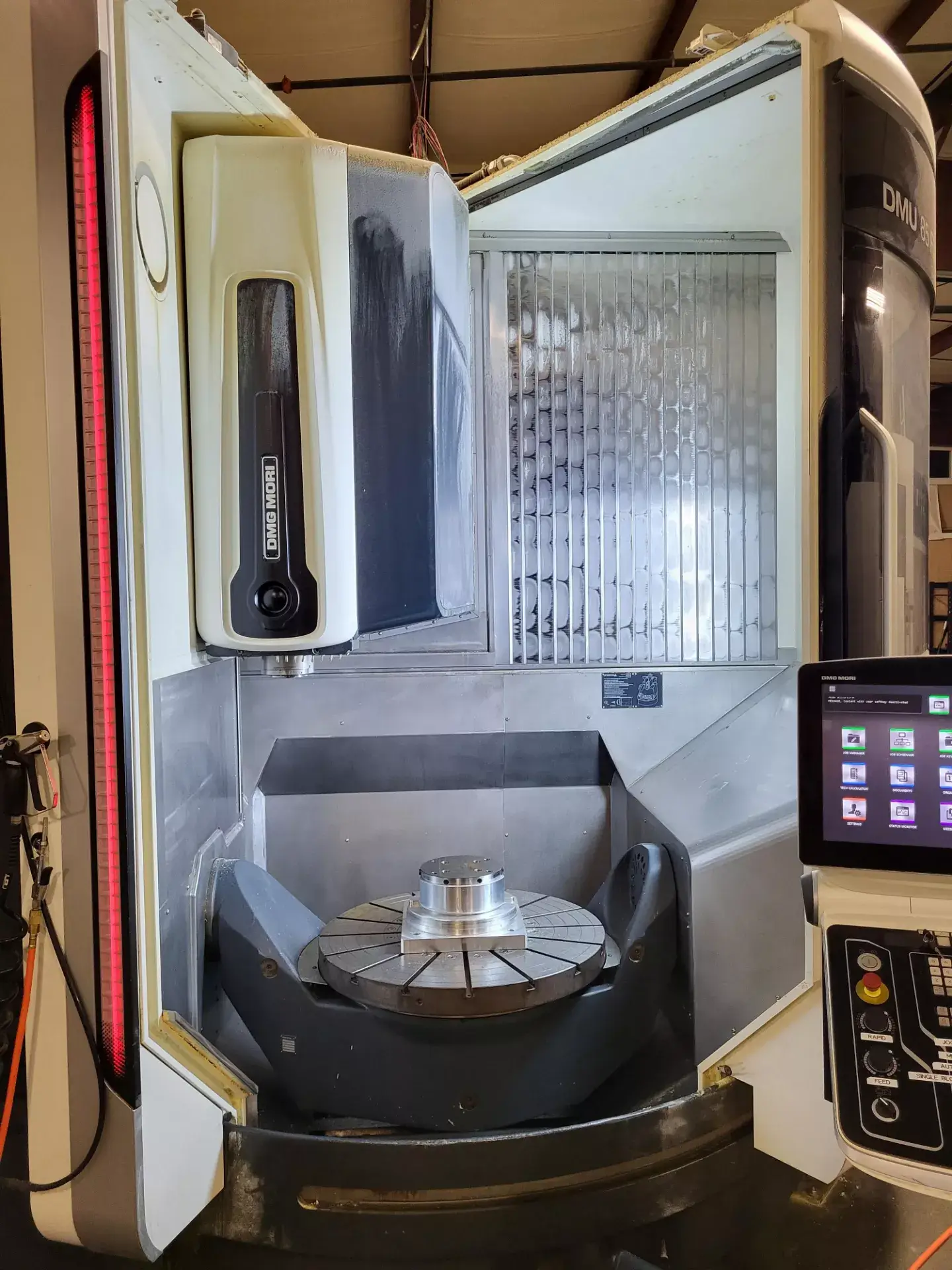

| Table Type: 2-Axis Swivel/Contour Rotary Table (B & C Axis) |
| Max Workpiece Diameter: 40.9″ |
| Max Workpiece Height: 23.2″ |
| Max Table Load: 3,307 lbs |
| Travels: |
| X-Axis Travel: 36.8″ |
| Y-Axis Travel: 33.5″ |
| Z-Axis Travel: 25.6″ |

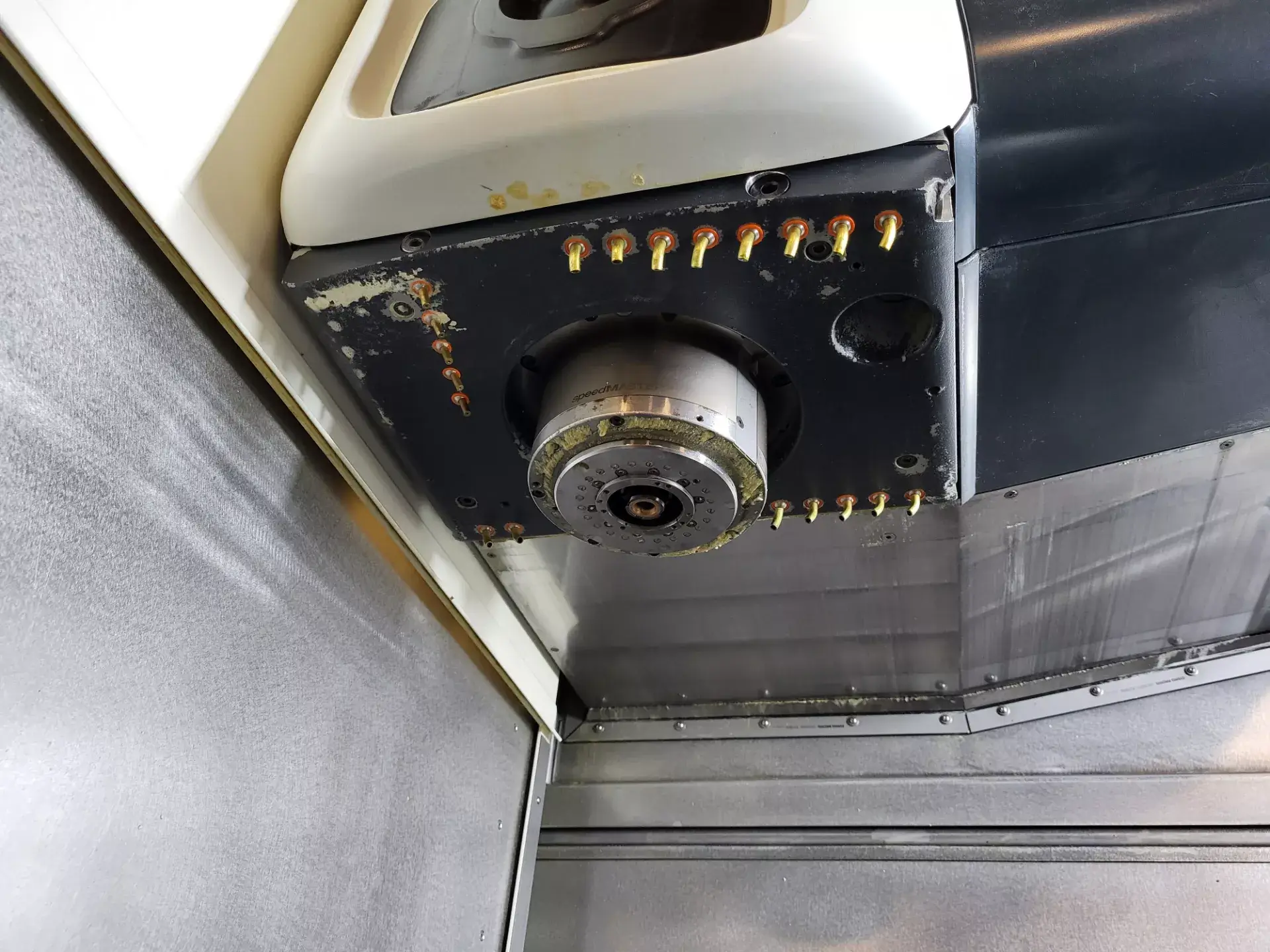

| Spindle: |
| Spindle Speed: Up to 20,000 RPM |
| Spindle Motor: 30–35 kW |
| Spindle Taper: HSK-A63 |
| Spindle Type: High-Speed Inline Spindle |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): 1,200 IPM (30 m/min) |
| Feed Rate: Programmable (CNC Controlled) |
| Tool Changer: |
| Tool Capacity: 60 Tools |
| Type: Automatic Tool Changer (ATC) |
| Tool Holder Type: HSK-A63 |

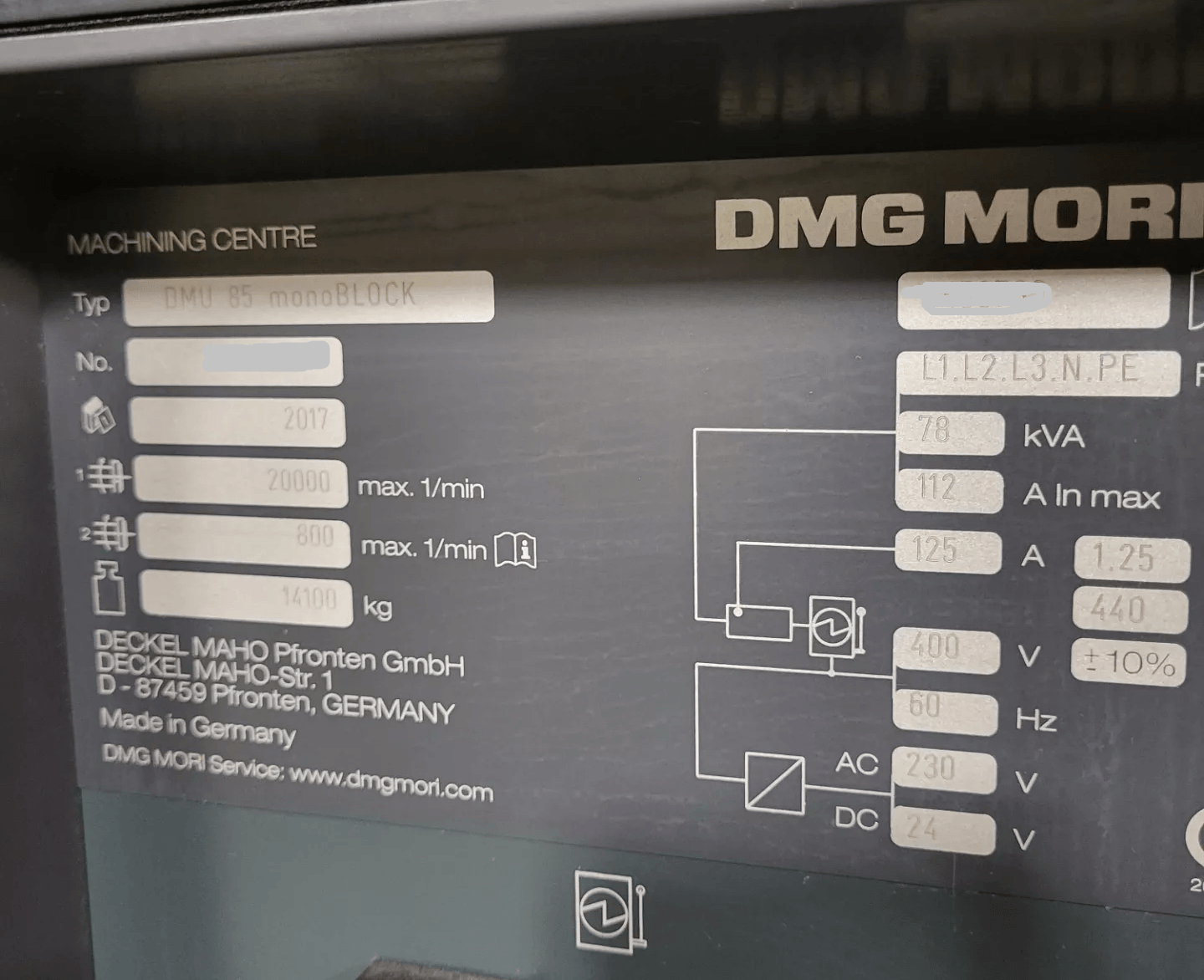

| Electrical: |
| Voltage: 400V |
| Frequency: 60 Hz |
| Power Requirement: 78 kVA |
| Max Current: 112 A |
| Connected Load: 125 A |
| Dimensions: |
| Floor Space (L x W x H): 160″ x 130″ x 115″ H (approx.) |
| Machine Weight: 31,000 lbs (14,100 kg) |
| Additional Requirements: |
| Operator Access: 36″ recommended |
| Maintenance Clearance: 36″ – 48″ |
| Chip Conveyor/Coolant Access: 48″ |
| General: |
| Air Required: 80 PSI (approx.) |
| Power Requirement: 400V / 78 kVA / 3-Phase |
