*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

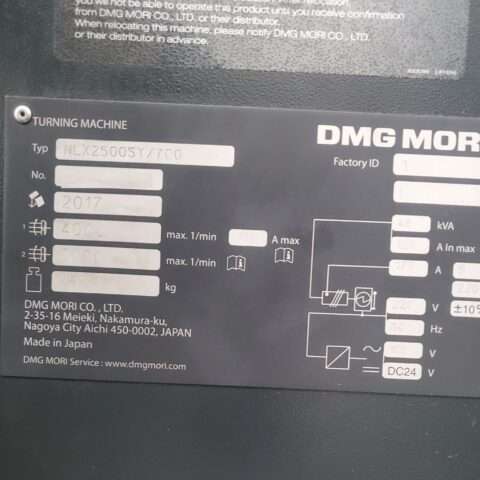

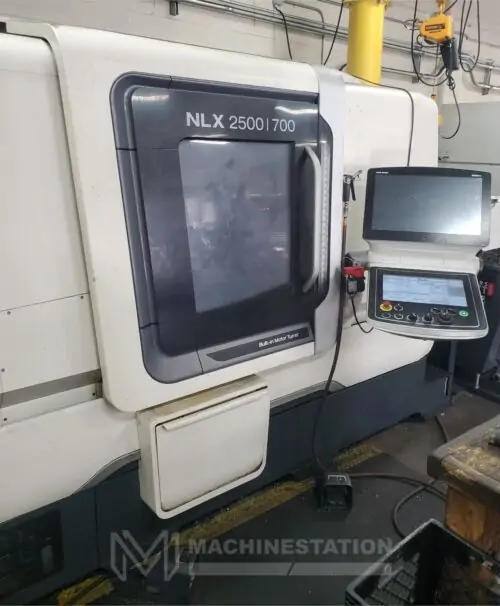

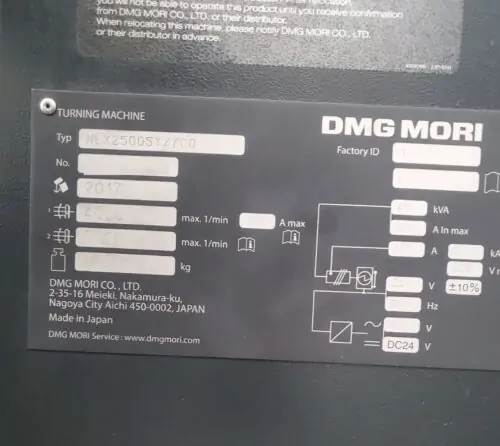

| Make: | DMG Mori |

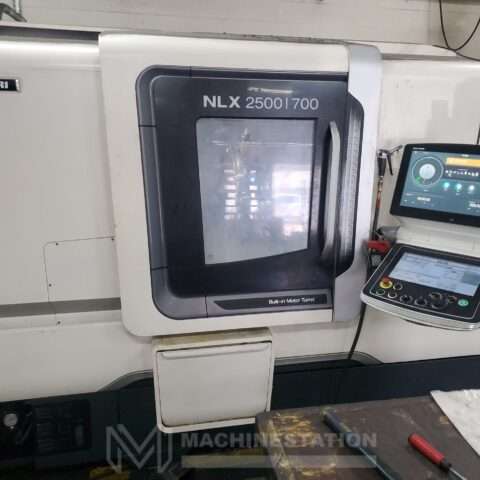

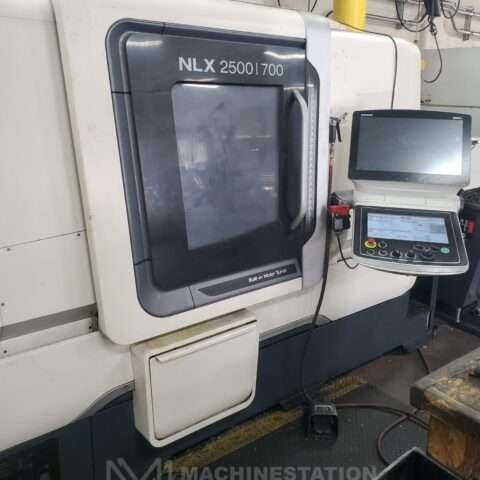

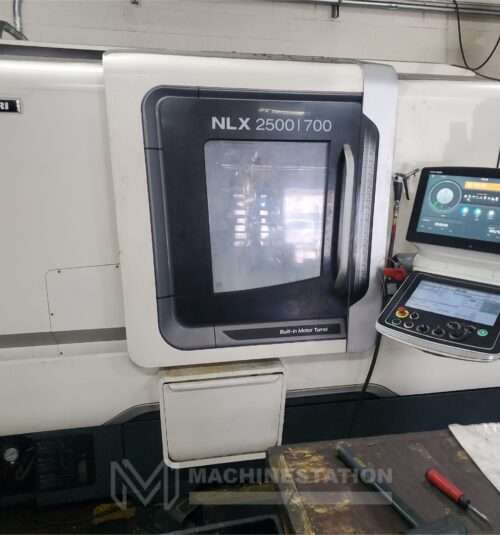

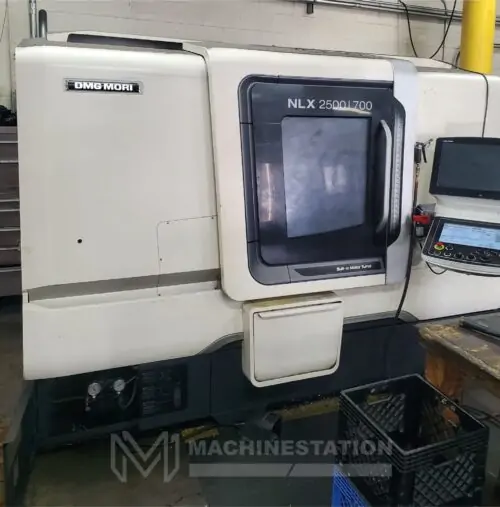

| Model: | NLX2500SY/700 |
| Year: | 2017 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

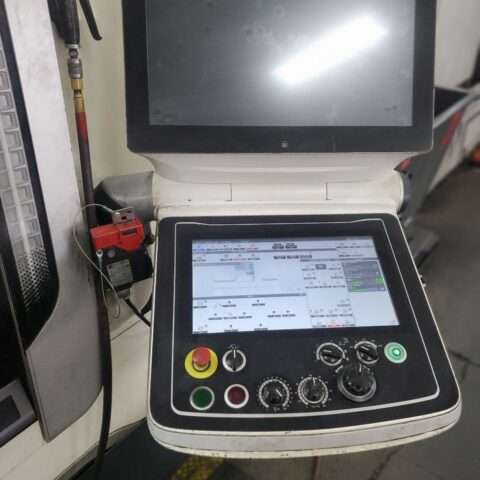

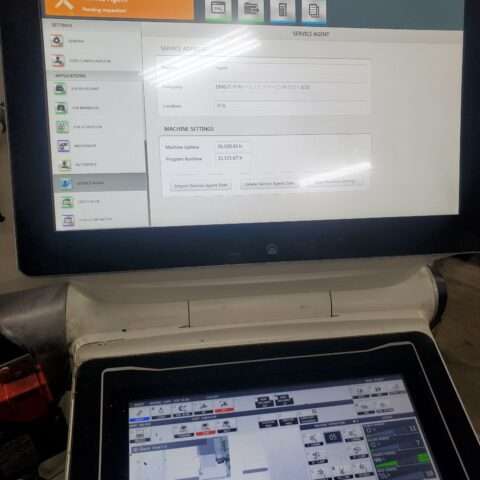

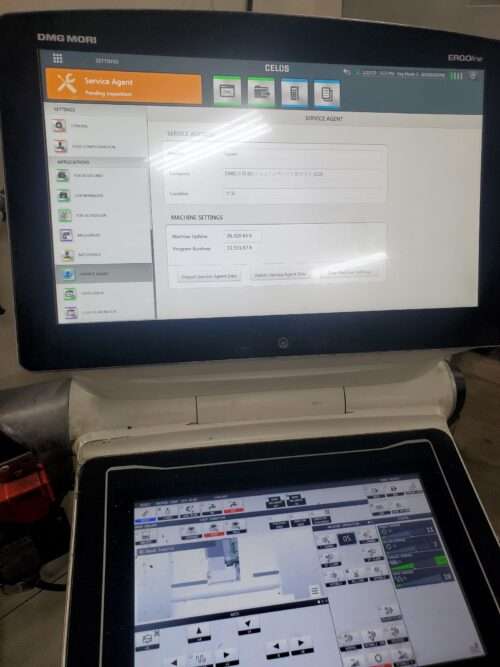

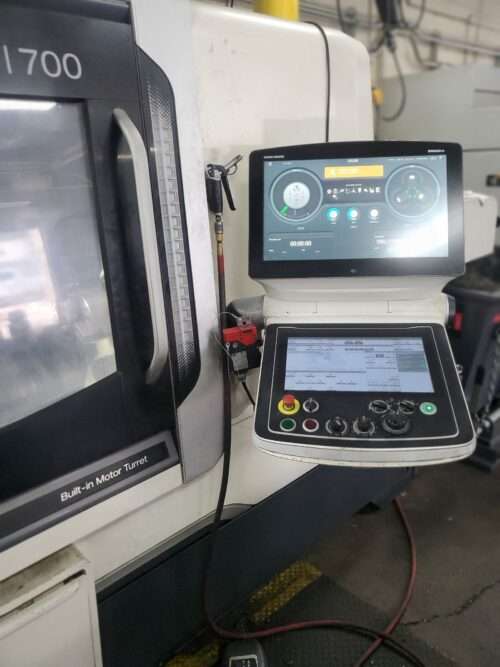

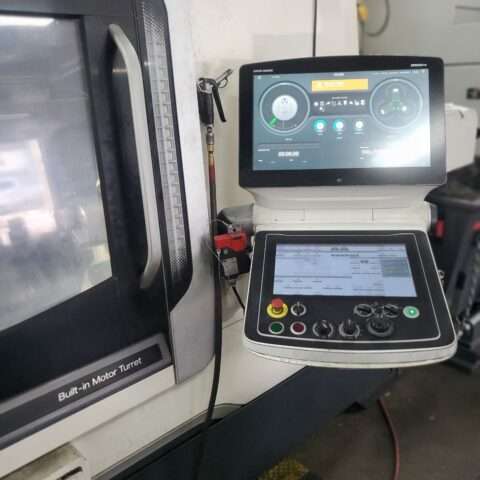

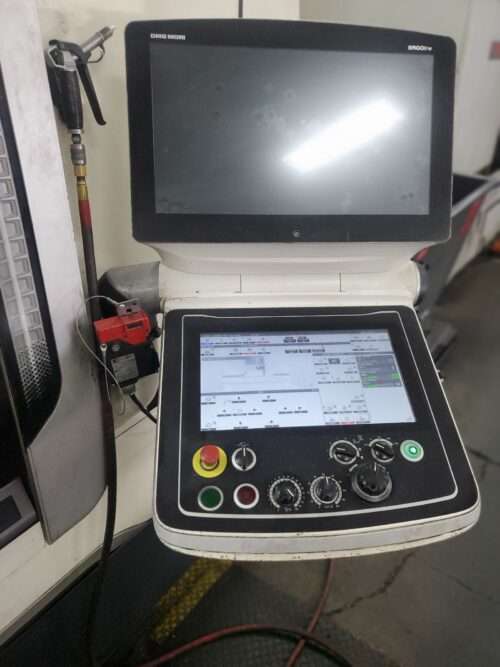

| M730UM with CELOS – ERGOline Touch CNC Control |

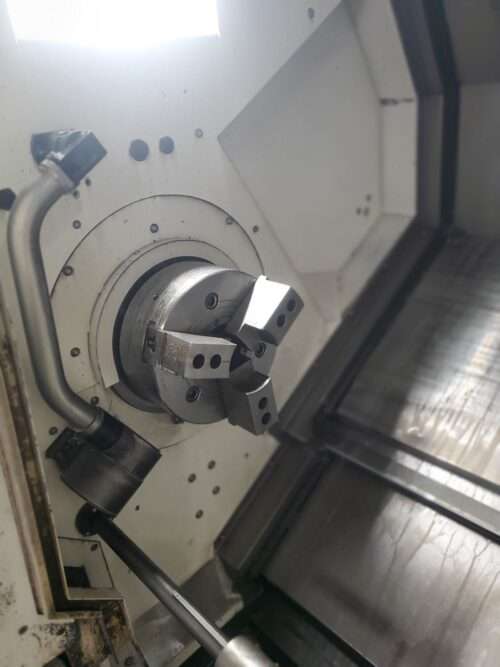

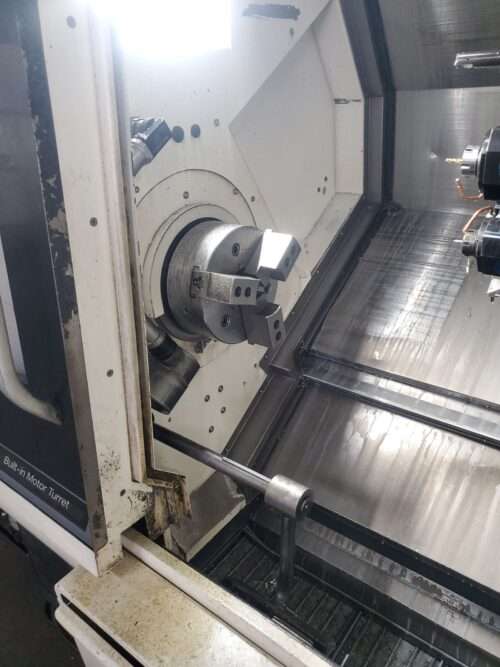

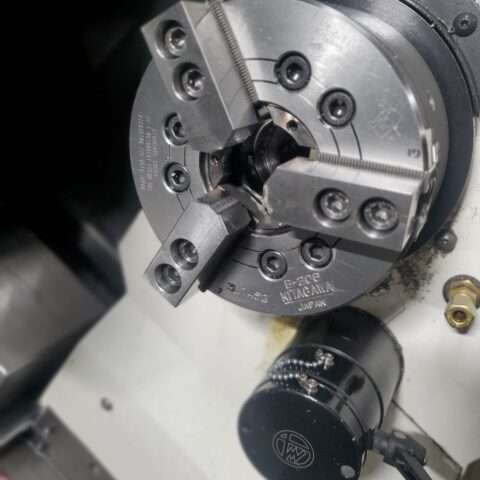

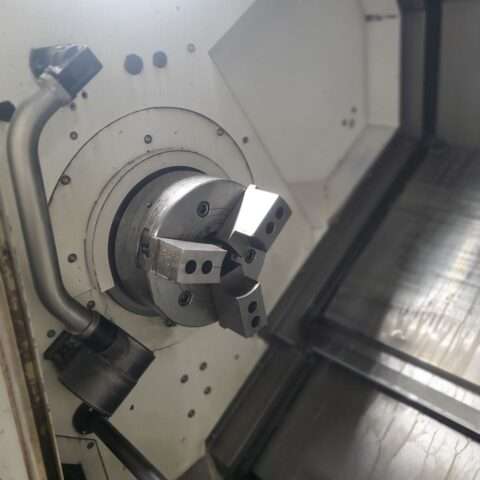

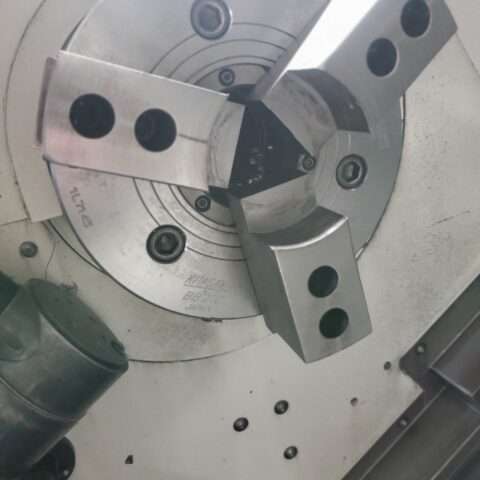

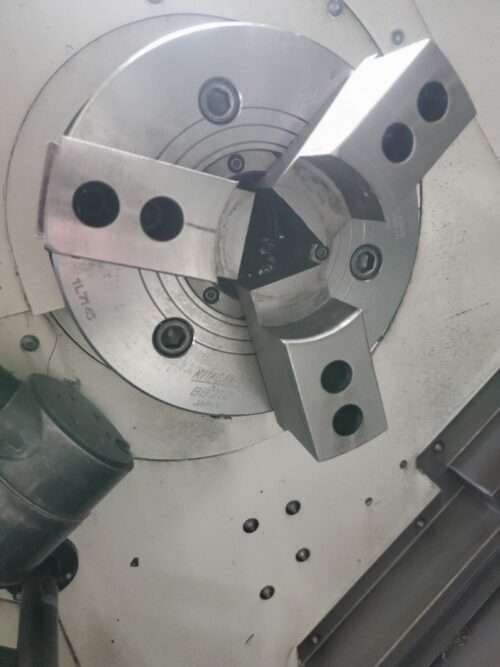

| 10″ 3-Jaw Kitagawa Chuck on Main Spindle |

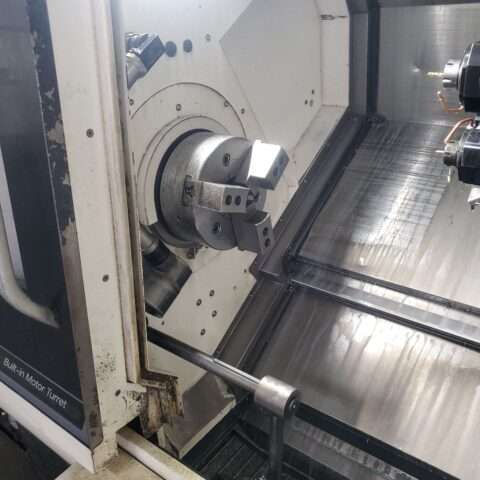

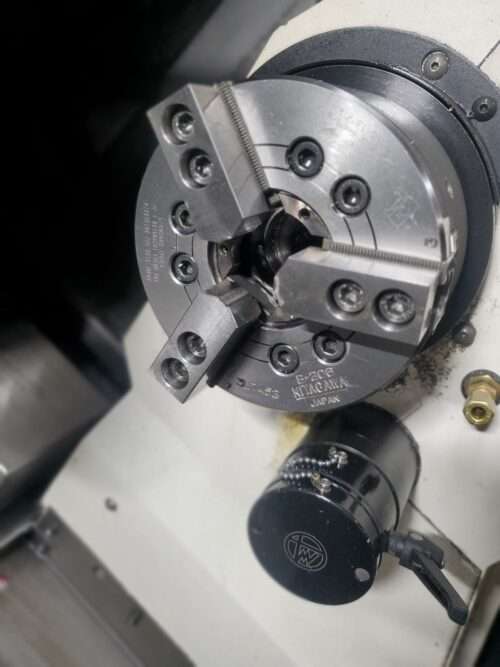

| 6″ 3-Jaw Kitagawa Chuck on Sub Spindle |
| Servo Controlled C Axis on Both Spindles |
| Sub Spindle Ejector |

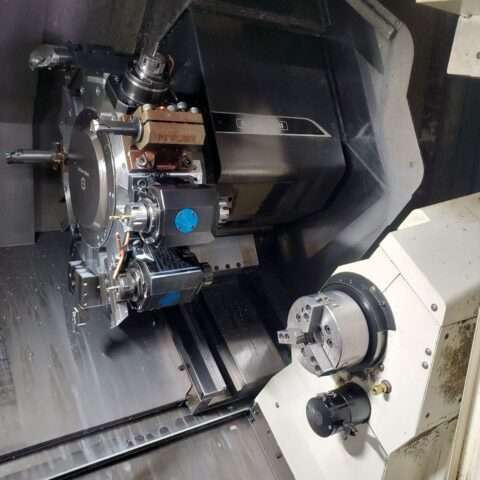

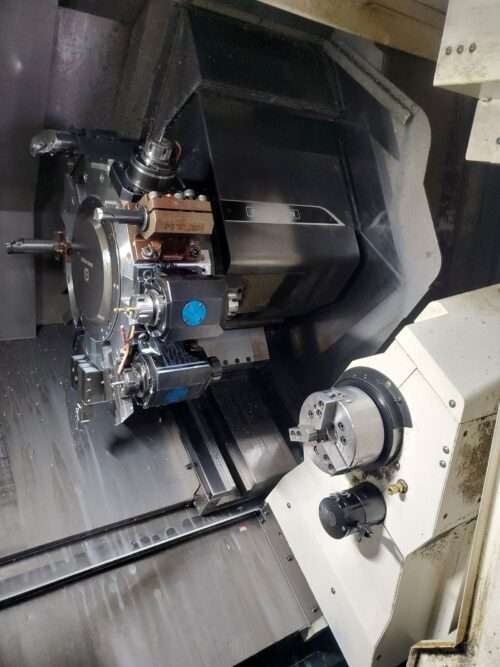

| 12 Station Live Tool Turret – BMT |
| Y Axis on Turret |
| Tool Presetter |
| Bar Feeder Interface (Not Used) |
| Coolant System |

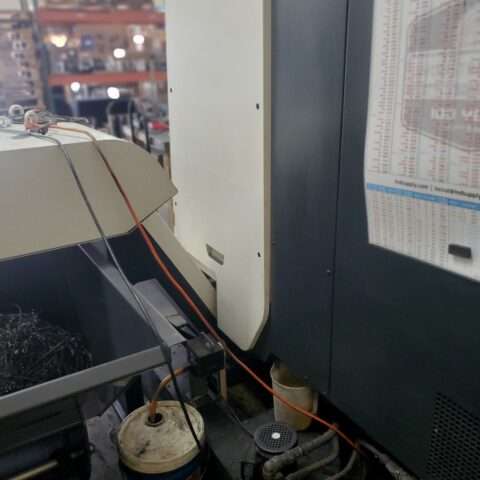

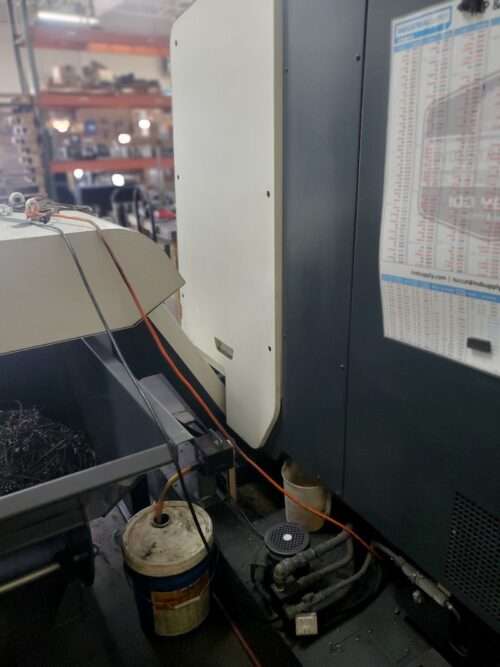

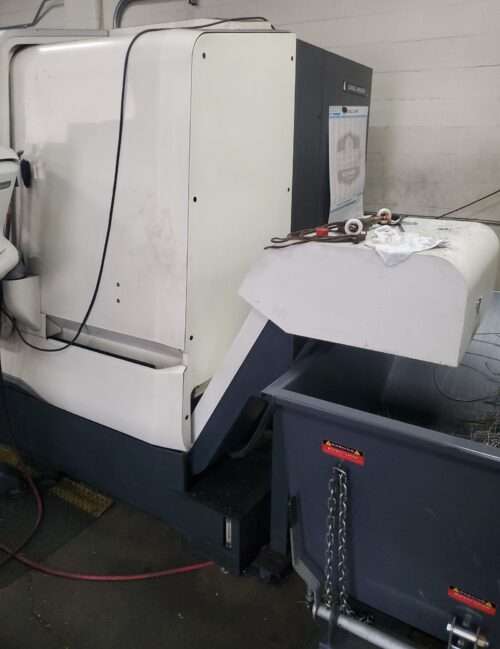

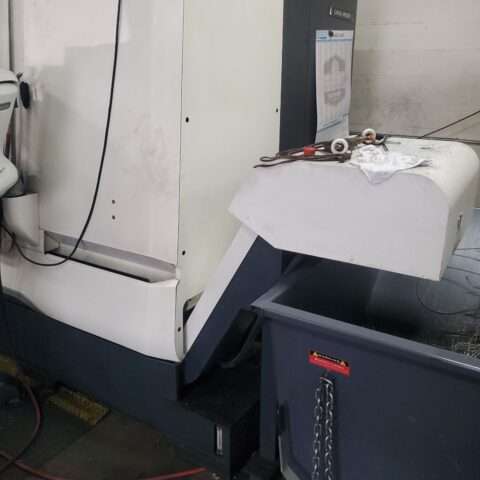

| Chip Conveyor |
| (3) Axial & (4) Radial Live Tool Holders |
| Capacity: |
|---|
| Max Turning Diameter: 14.4″ |
| Max Turning Length: 27.7″ |
| Max Bar Capacity: 3.1″ |
| Max Swing Over Bed: 36.2″ |
| Max Swing Over Cross Slide: 29.7″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Y Axis Travel: 3.90 (+/- 1.95″) |
| Z Axis Travel: 31.2″ |
| B Axis Travel (Sub Spindle): 28.8″ |
| C Axis Indexing: 360 Degree (0.001) |
| Rapid Traverse Rate X, Z & B Axis: 1181 IPM |
| Rapid Traverse Rate Y Axis: 393 IPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.58″ |
| Main Spindle Speed: 4000 RPM |
| Man Spindle Motor: 35 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 1.69″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.27 Second |
| Rotary Tool Speed: 10,000 RPM |
| Rotary Tool Motor: 7.5 HP |
| General: |
|---|
| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 48 kva |
| Overall Dimensions: 131.8″ x 82.9″ x 86.8″ High |
| Weight : 12,084 lbs Approx. |
