| SKU: | 113517 |
| Make: | Methods |

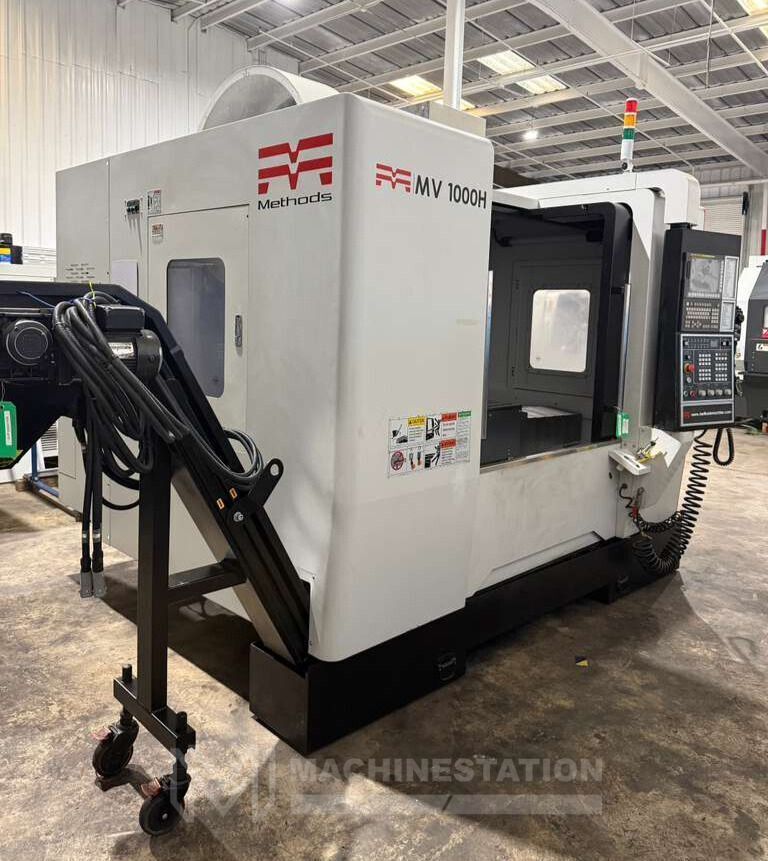

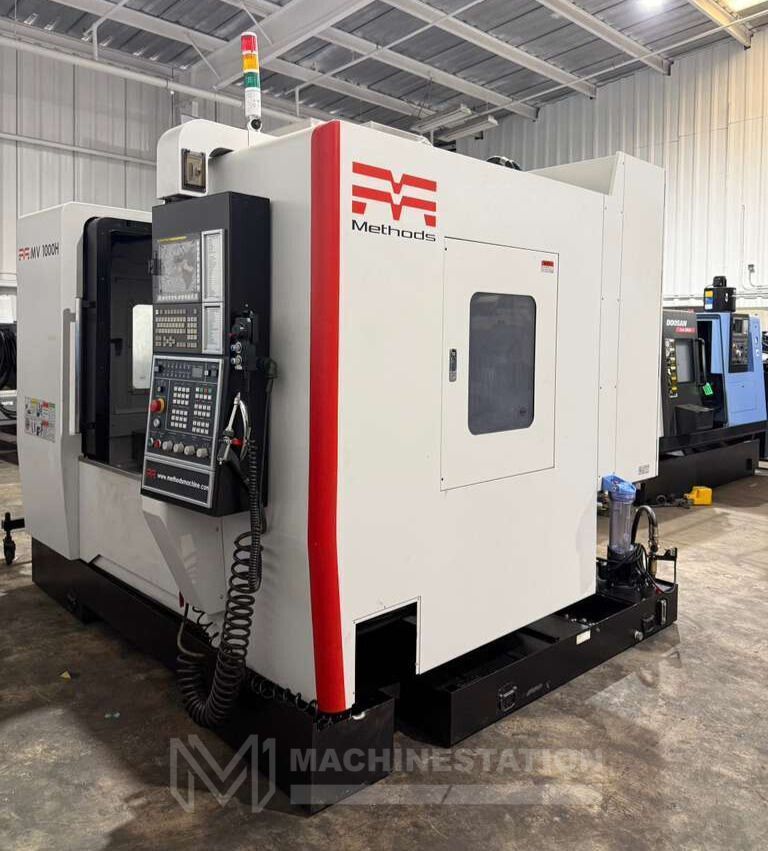

| Model: | MV-1000H |
| Year: | 2019 (Sold & Installed in 2022) |
| Condition: | Used – Excellent |
| Features: |
|---|

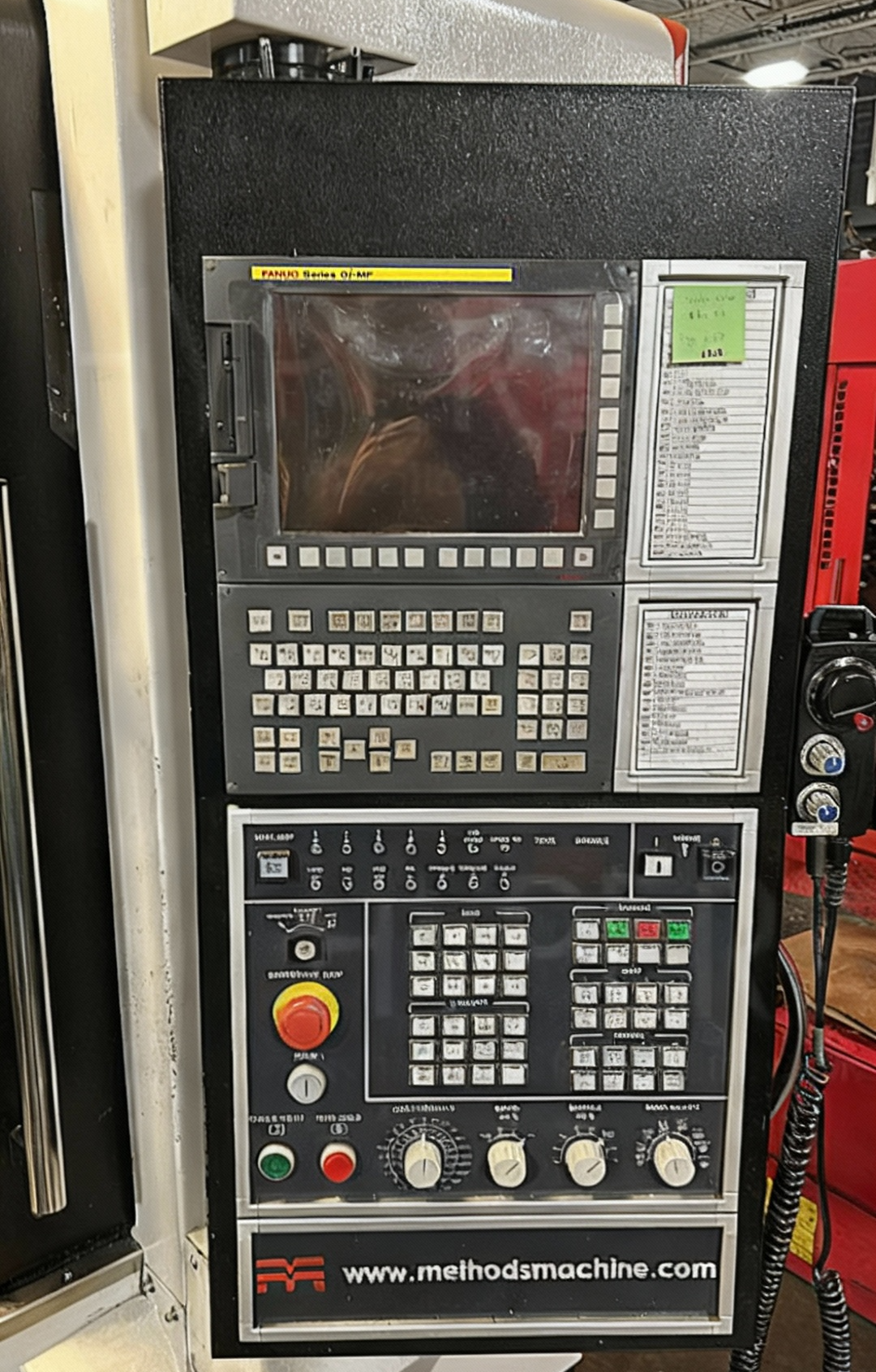

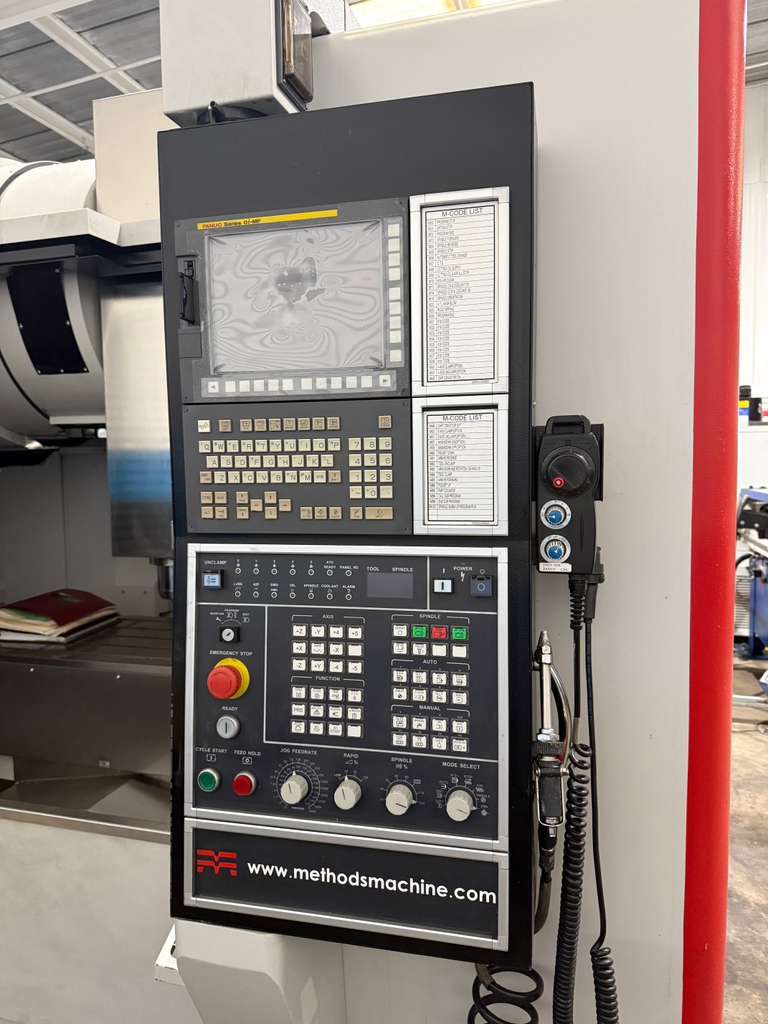

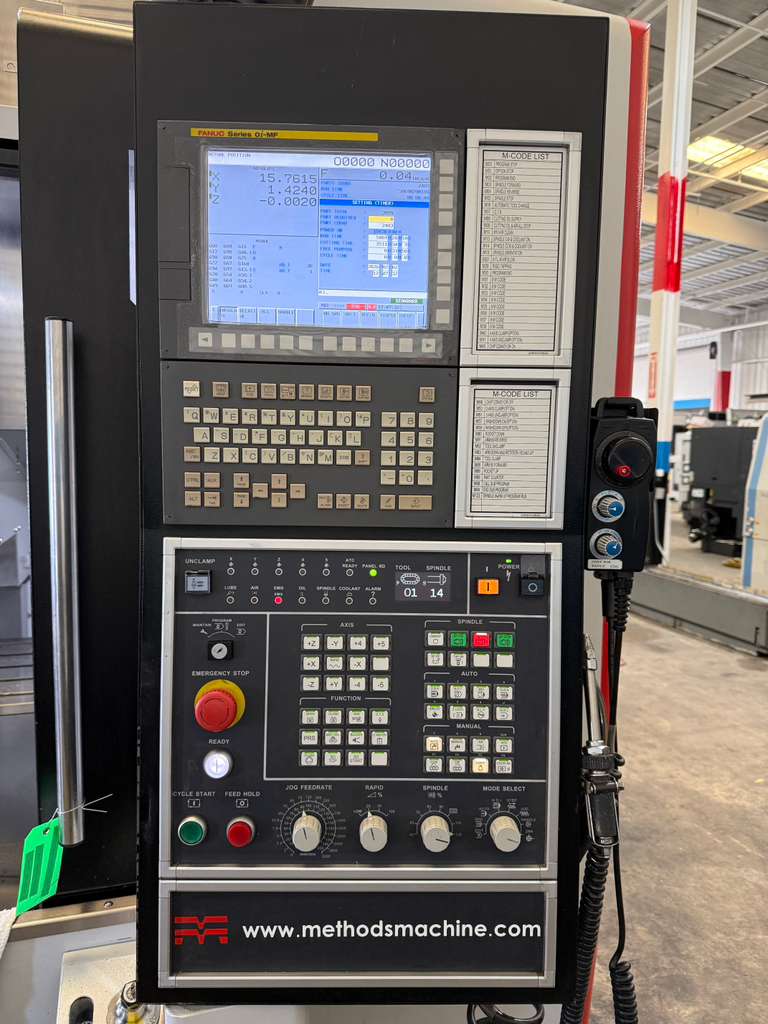

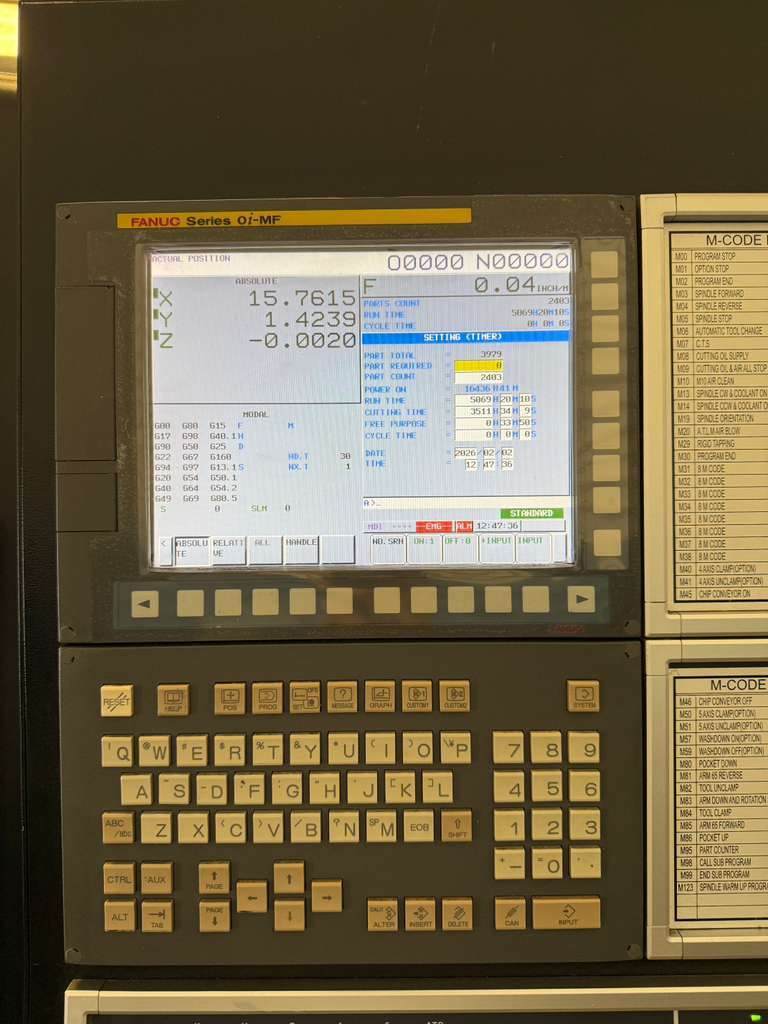

| Fanuc Oi-MF Series CNC Control |
| X, Y Axis Roller Guidways Z Axis Box Way |

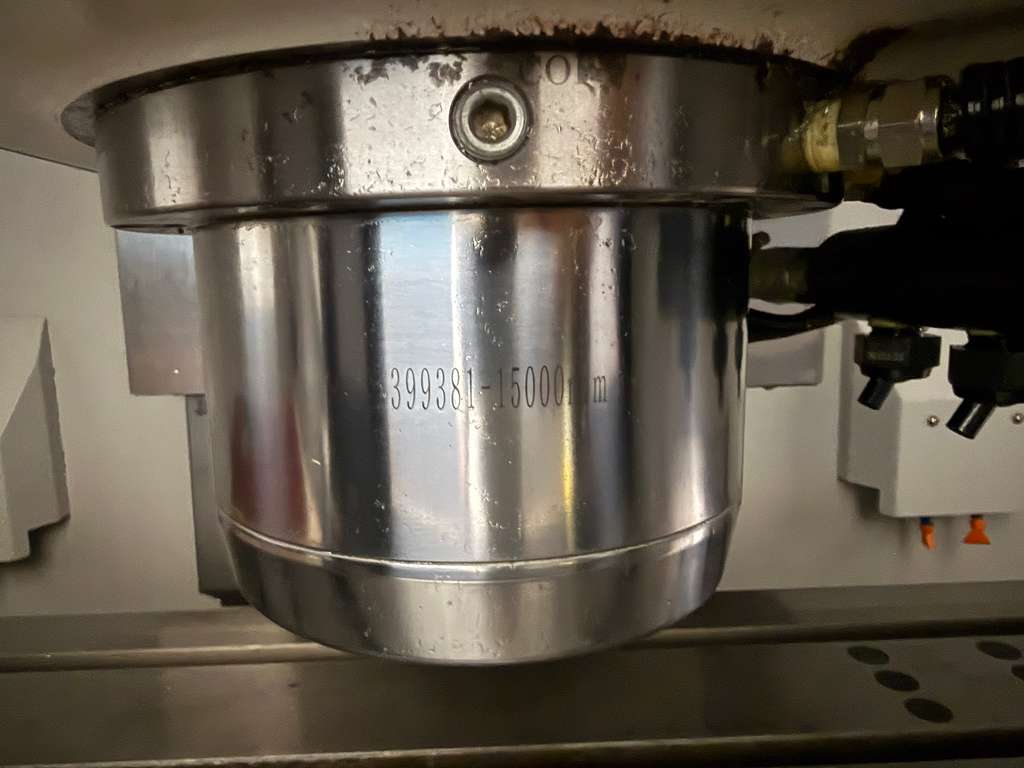

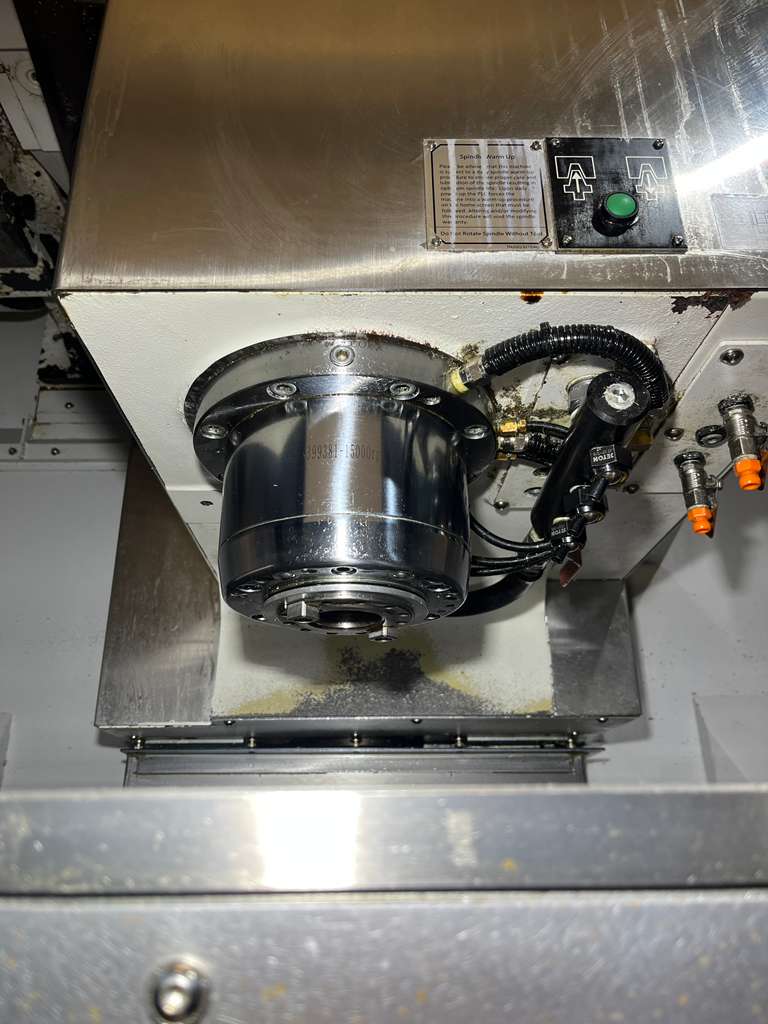

| 15,000 RPM High Speed Spindle |

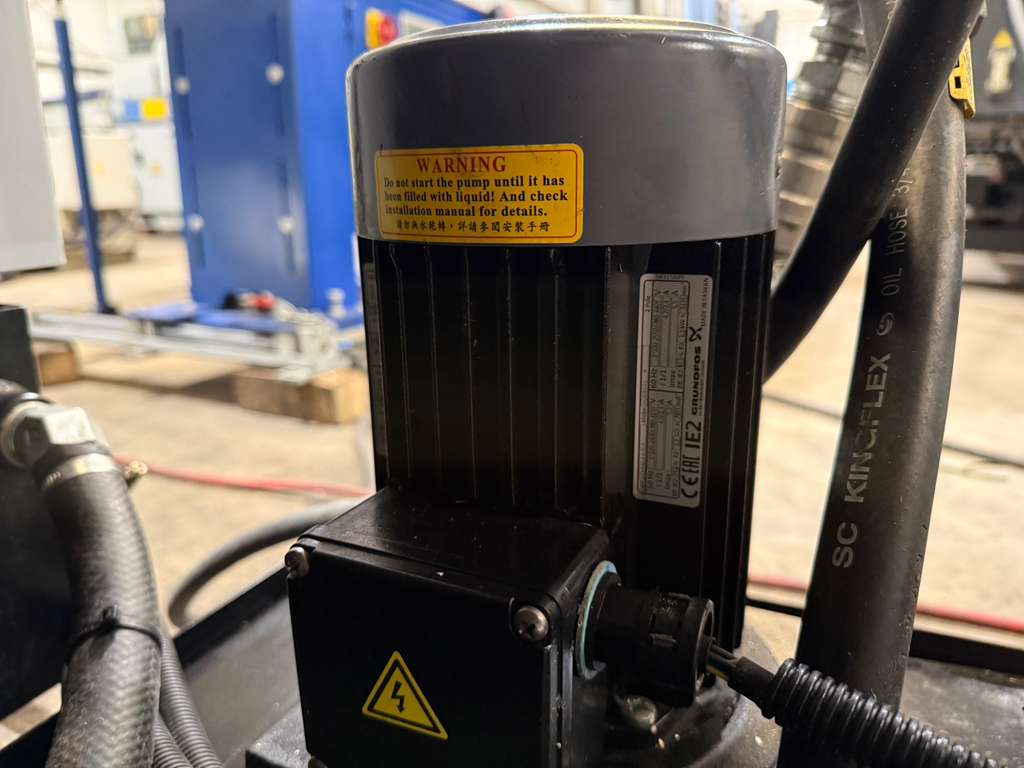

| Through Spindle Coolant – 300 psi |

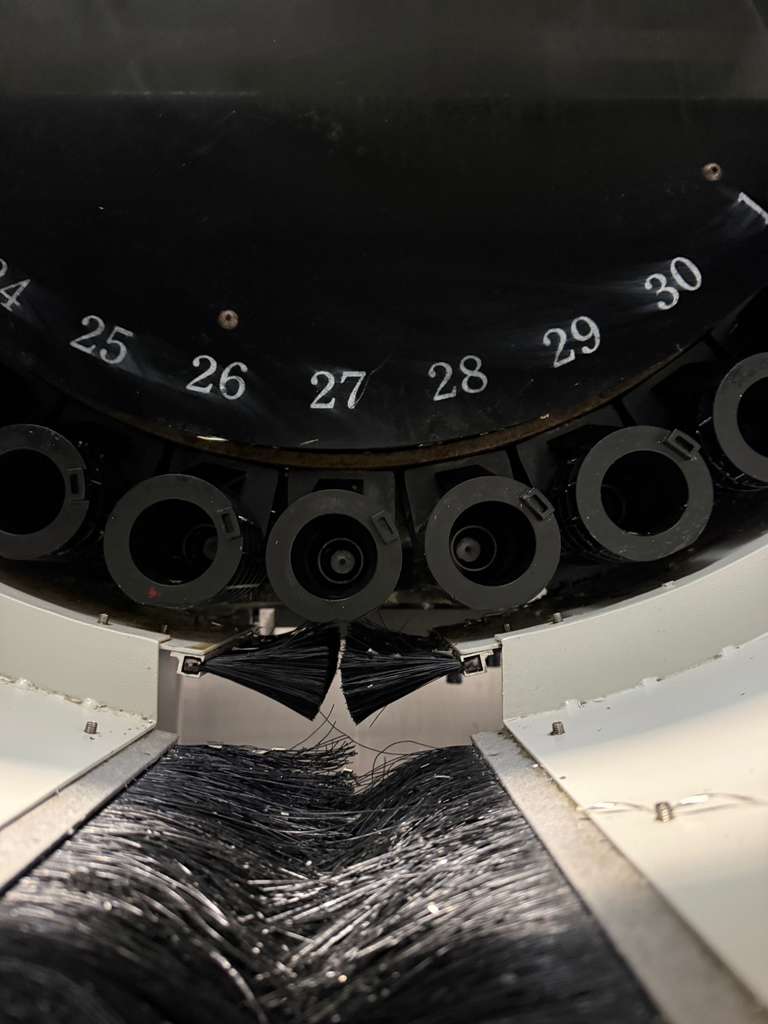

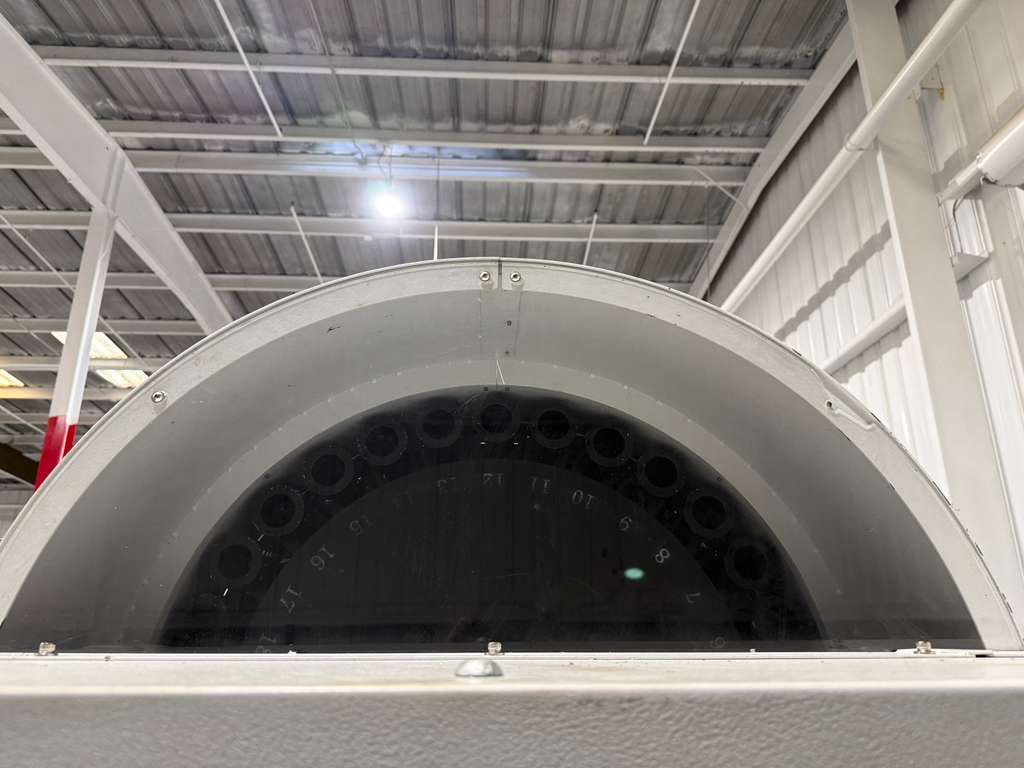

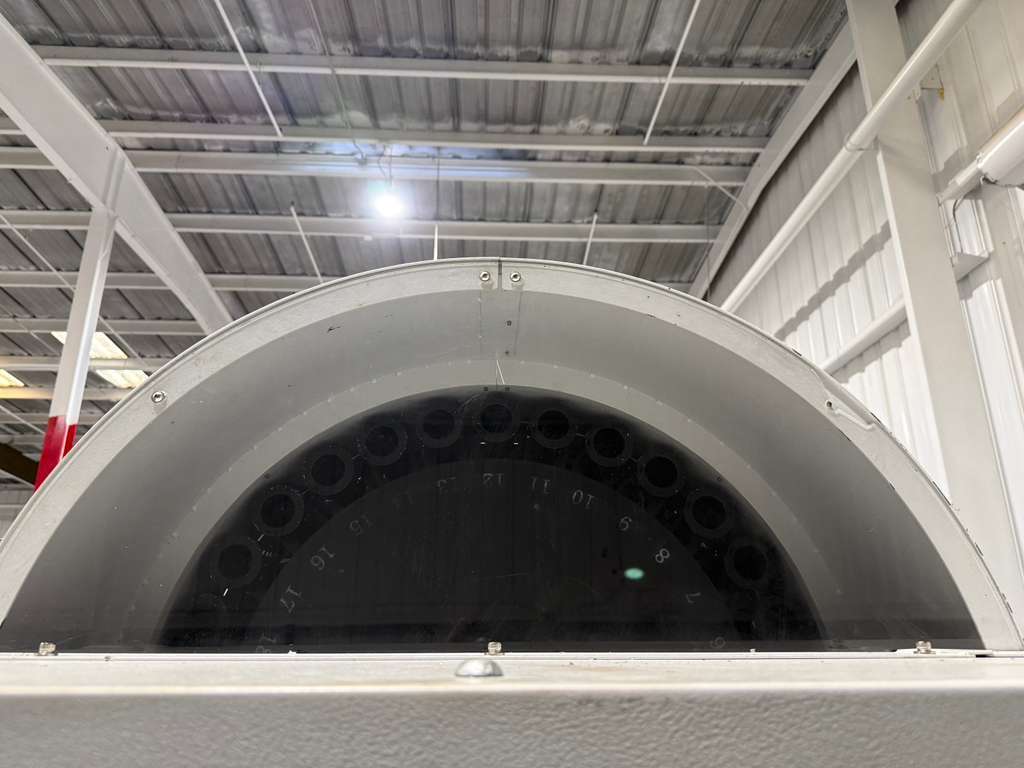

| 30 Station Side Mounted Automatic Tool changer |
| BT-40 Big Plus Taper Spindle |
| MPG Handwheel Control |
| USB, PCMCIA, RS232C |

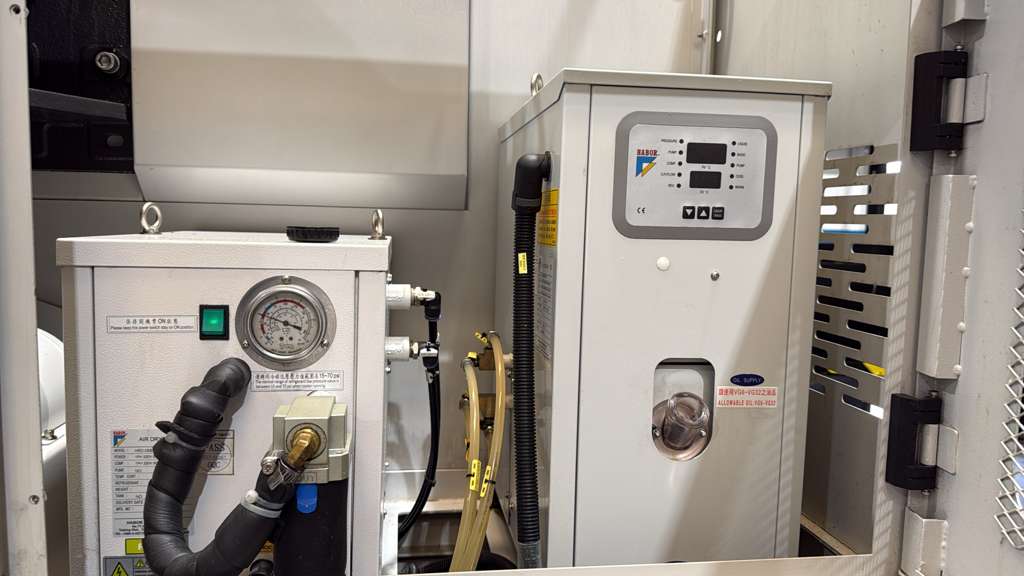

| Spindle Chiller Unit |
| Rigid Tapping |

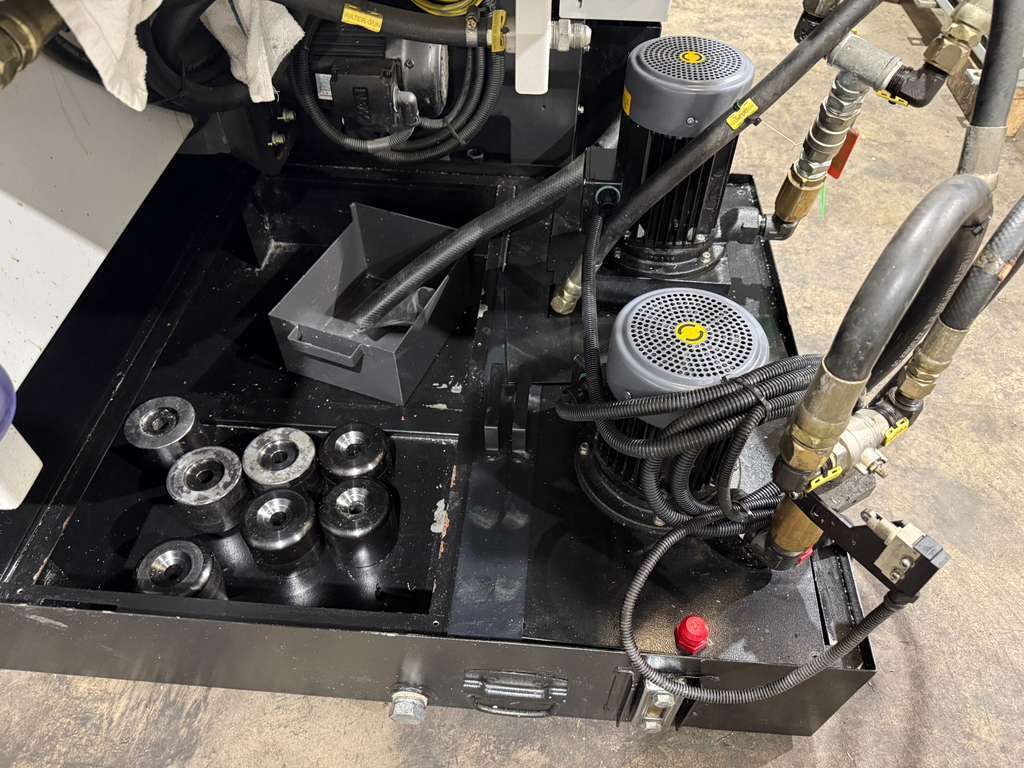

| Coolant System |
| Chip Conveyor |
| Levelling Pads |

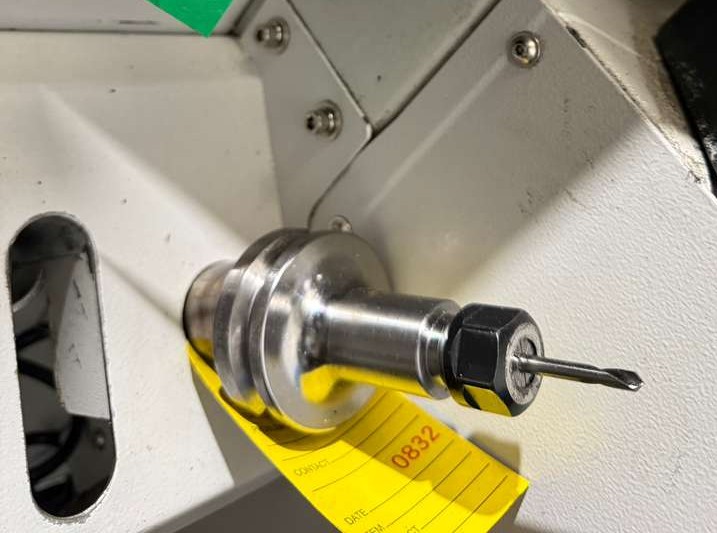

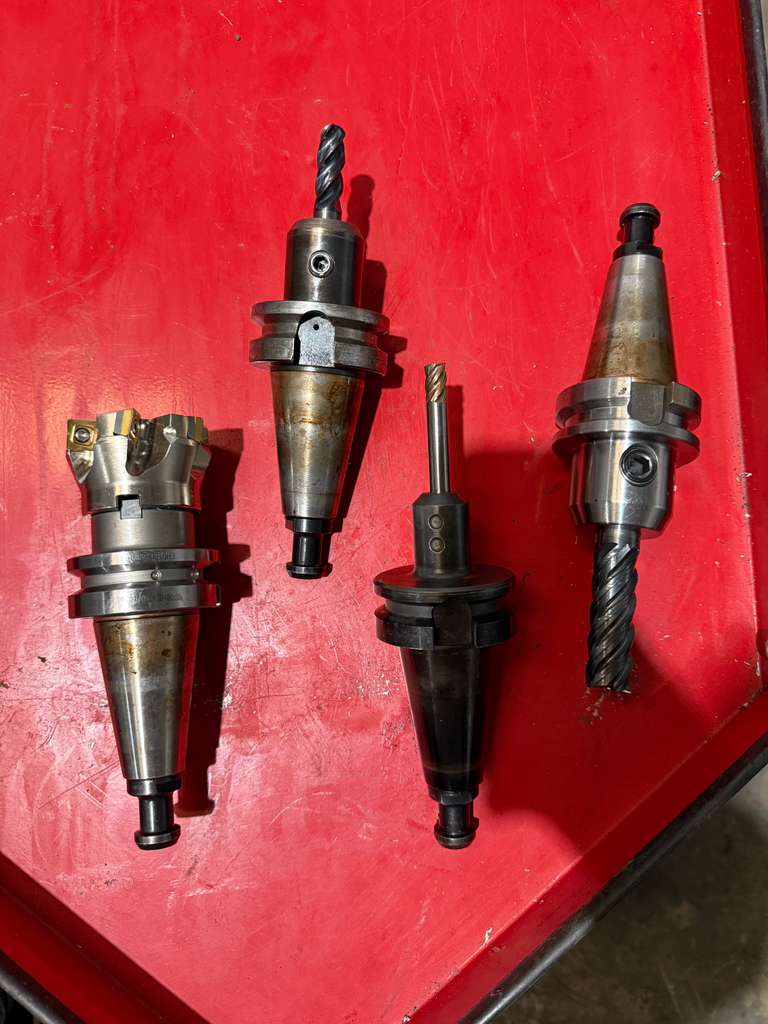

| (5) Tool Holders are Included with the Machine |

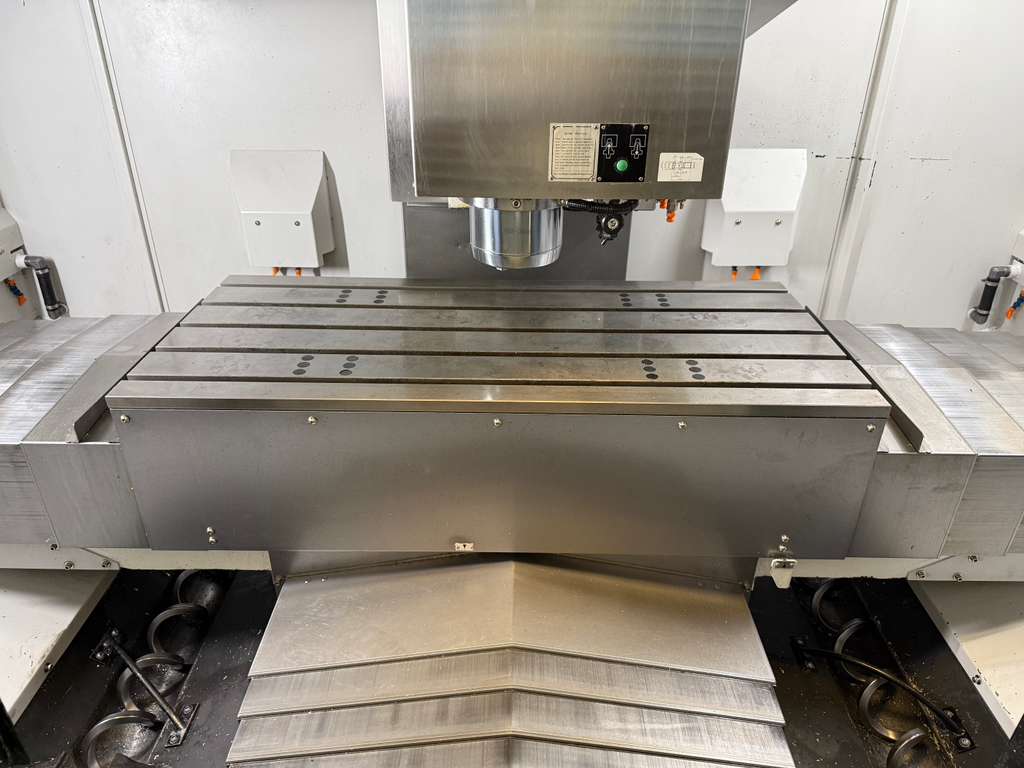

| Table: |
|---|
| Length: 42.2″ |
| Width: 20.5″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.70″ X 3.93″ |
| Max Weight on Table: 1102 lbs |
| Travels: |
|---|
| X-Axis: 39.40″ |
| Y-Axis: 20.47″ |
| Z-Axis: 20.70″ |
| Rapid Traverse Rates X & Y Axis: 2362 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates X & Y Axis: 1181 IPM |
| Cutting Feed Rates Z Axis: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 24.60″ |
| Spindle: |
|---|
| Taper Size: BT-40 Big Plus |
| Speed Range: 15,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.10″ – 5.90″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time (Tool to Tool): 1.5 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

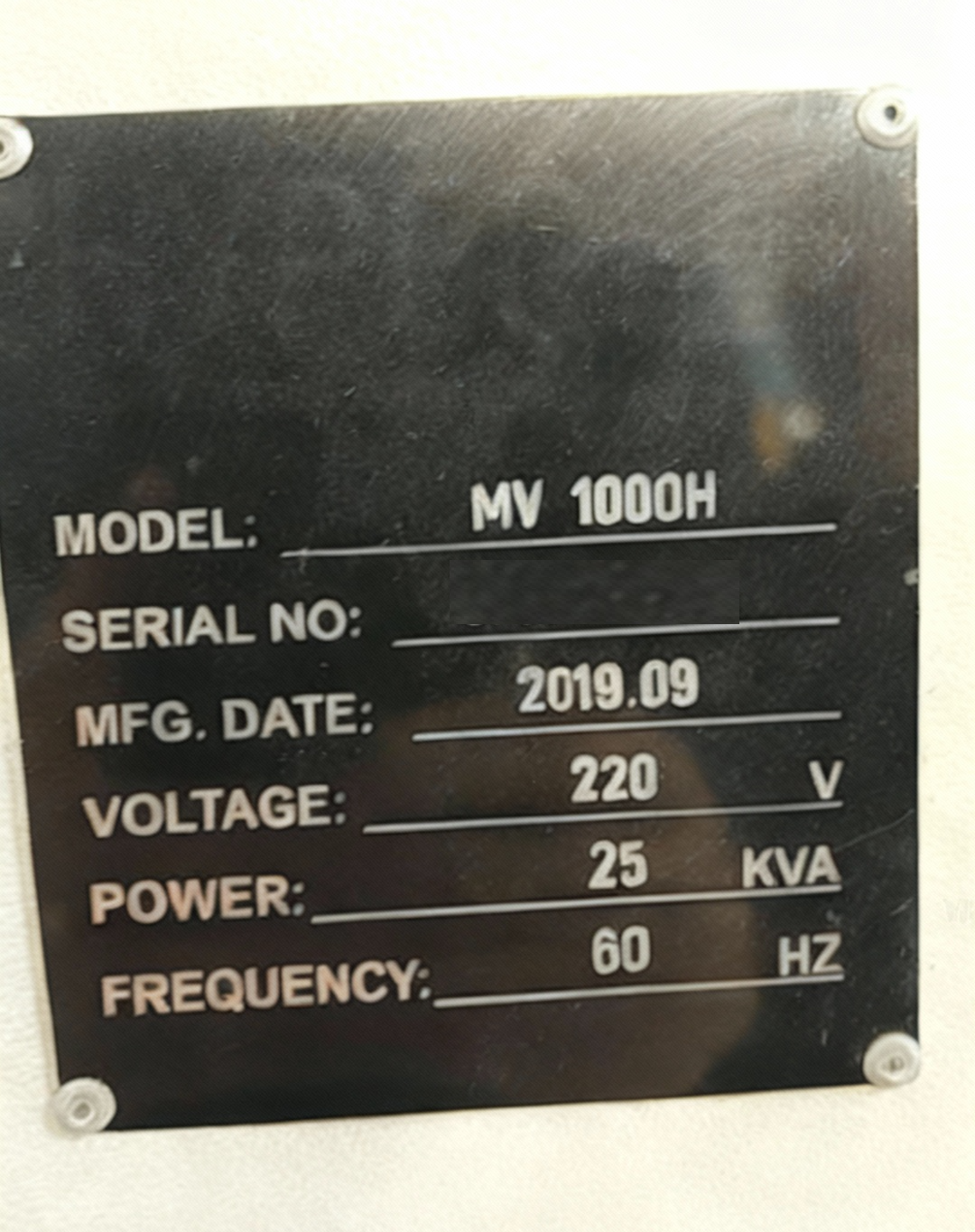

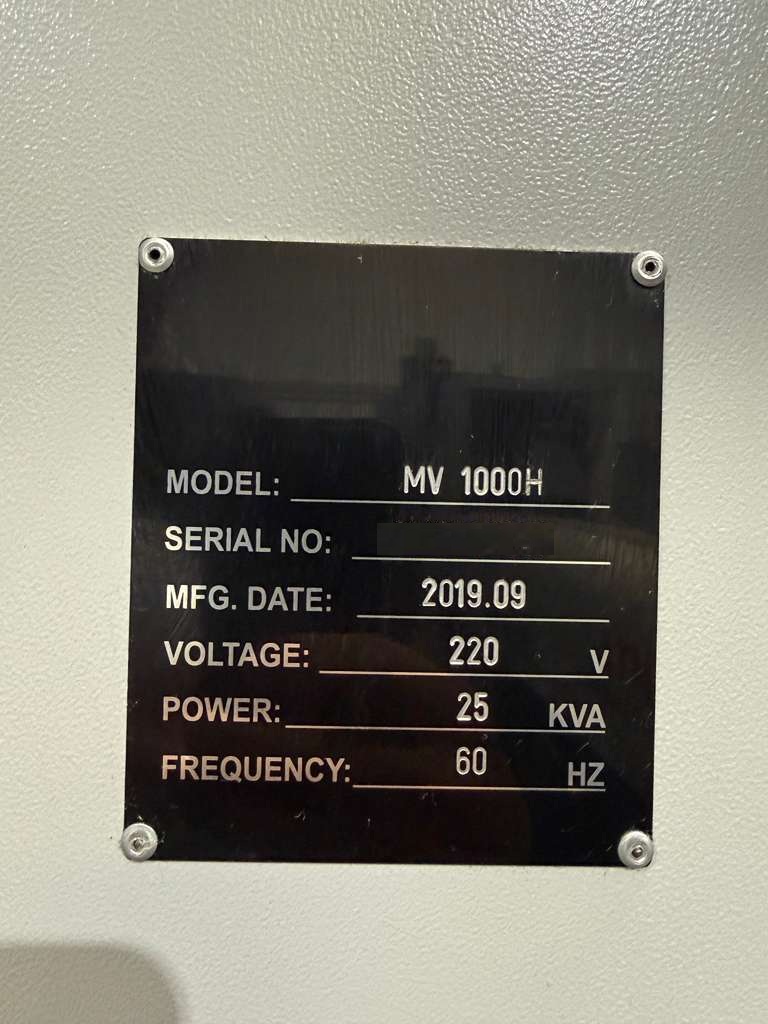

| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 154.3″ x 96.3″ x 118″ High (With Chip Conveyor) |
| Weight: 15,760 lbs |
