*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

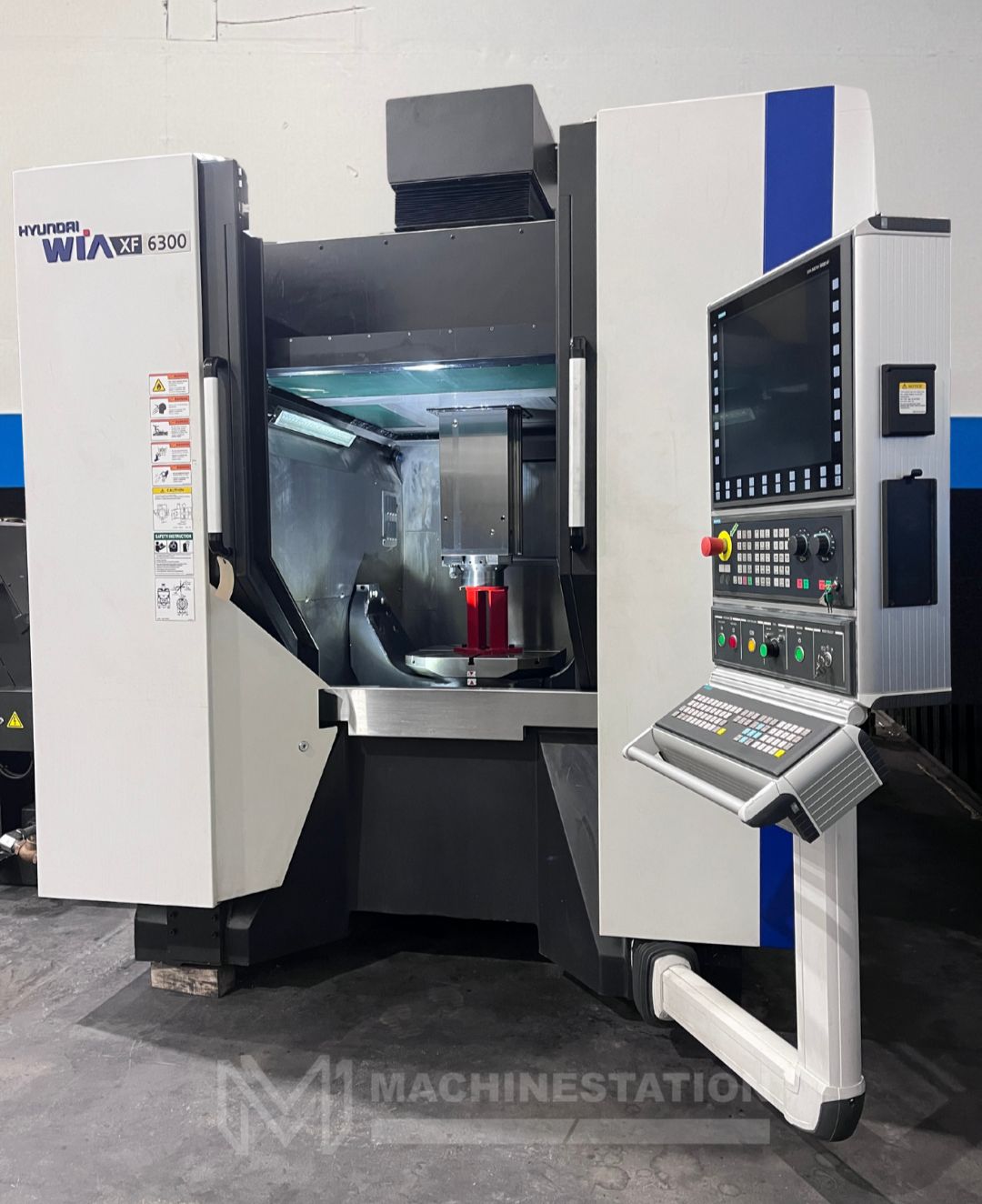

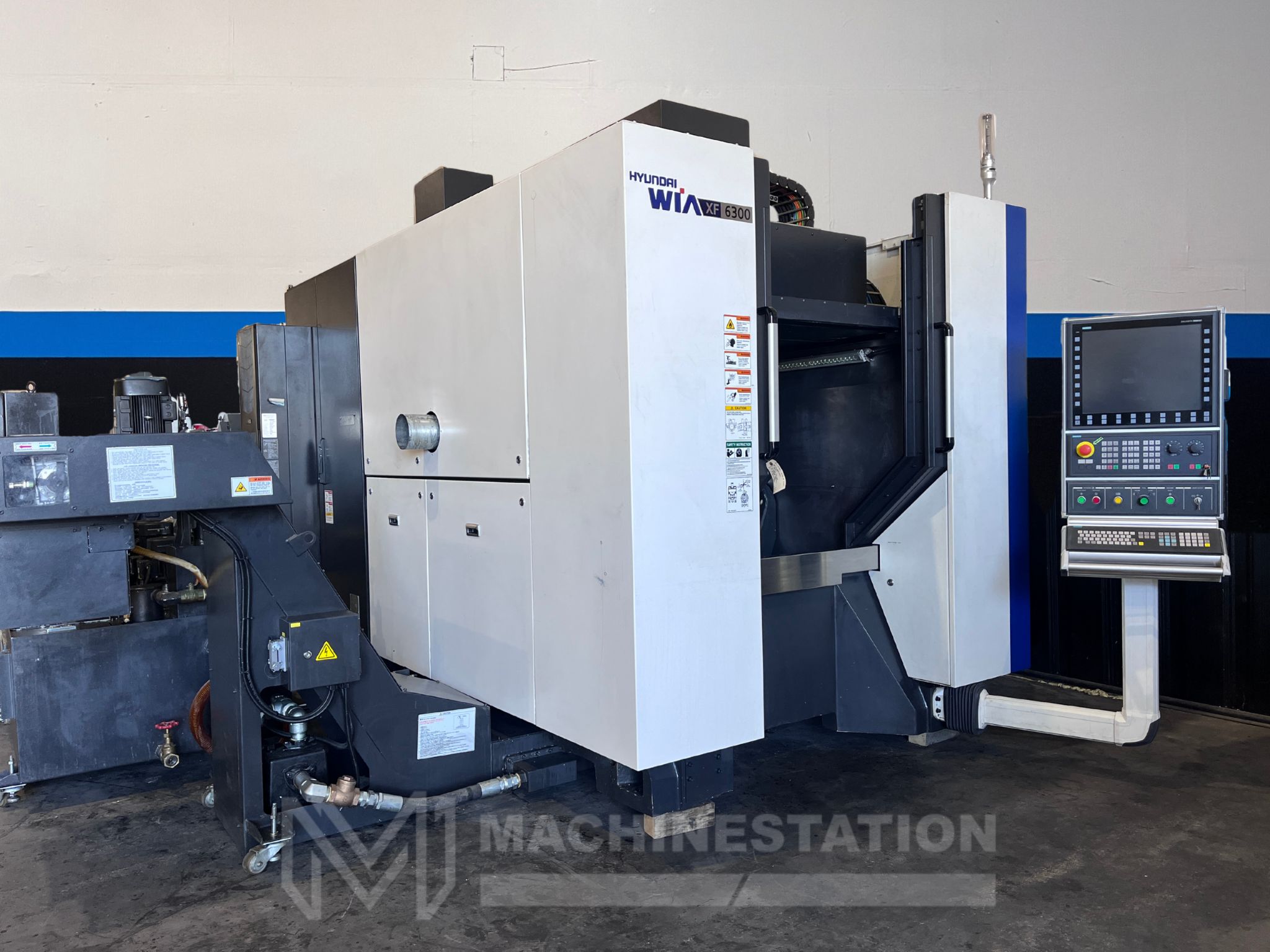

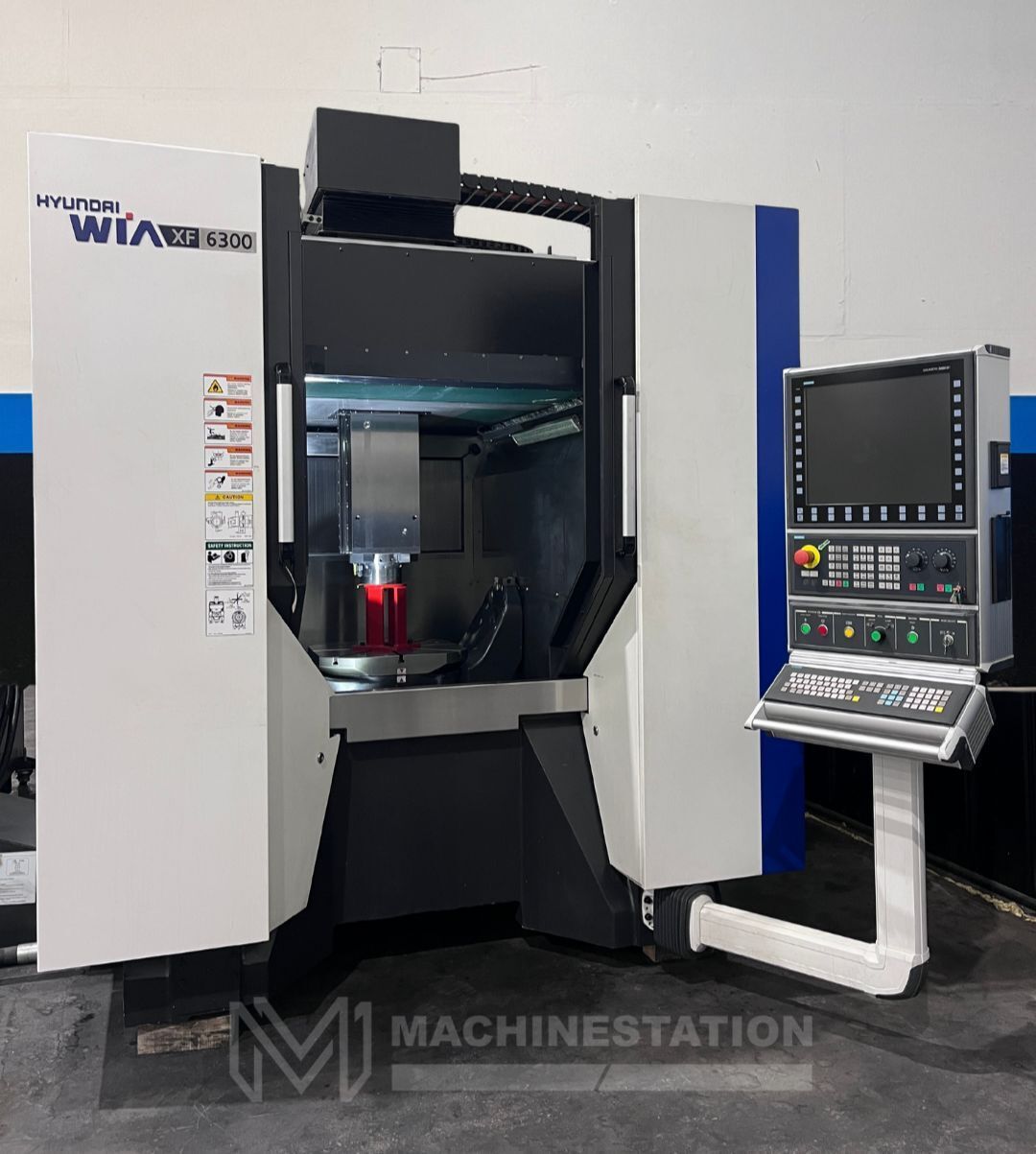

| Make: | Hyundai Wia |
| Model: | XF6300 |
| Year: | 2016 |
| Features: |
|---|

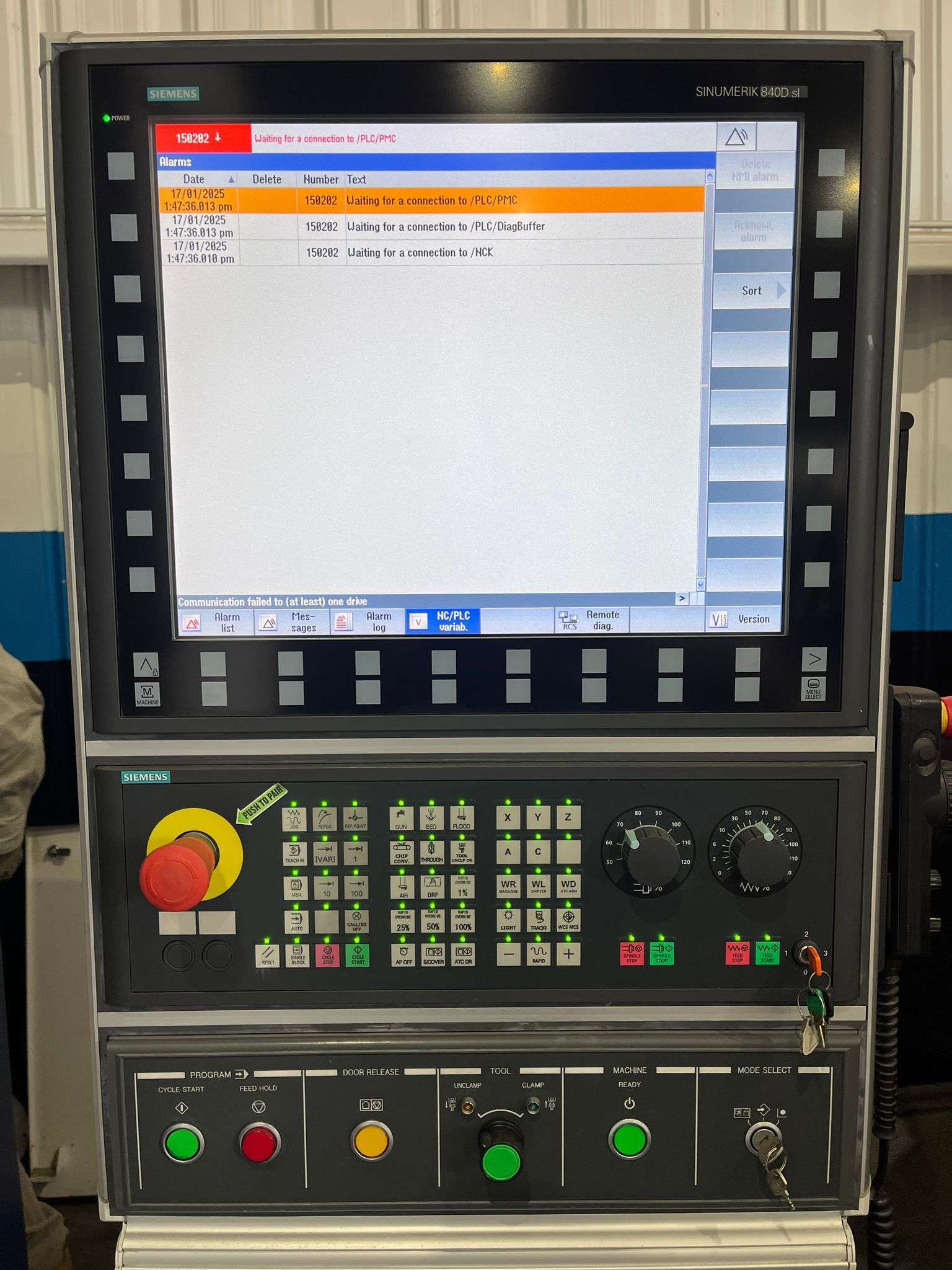

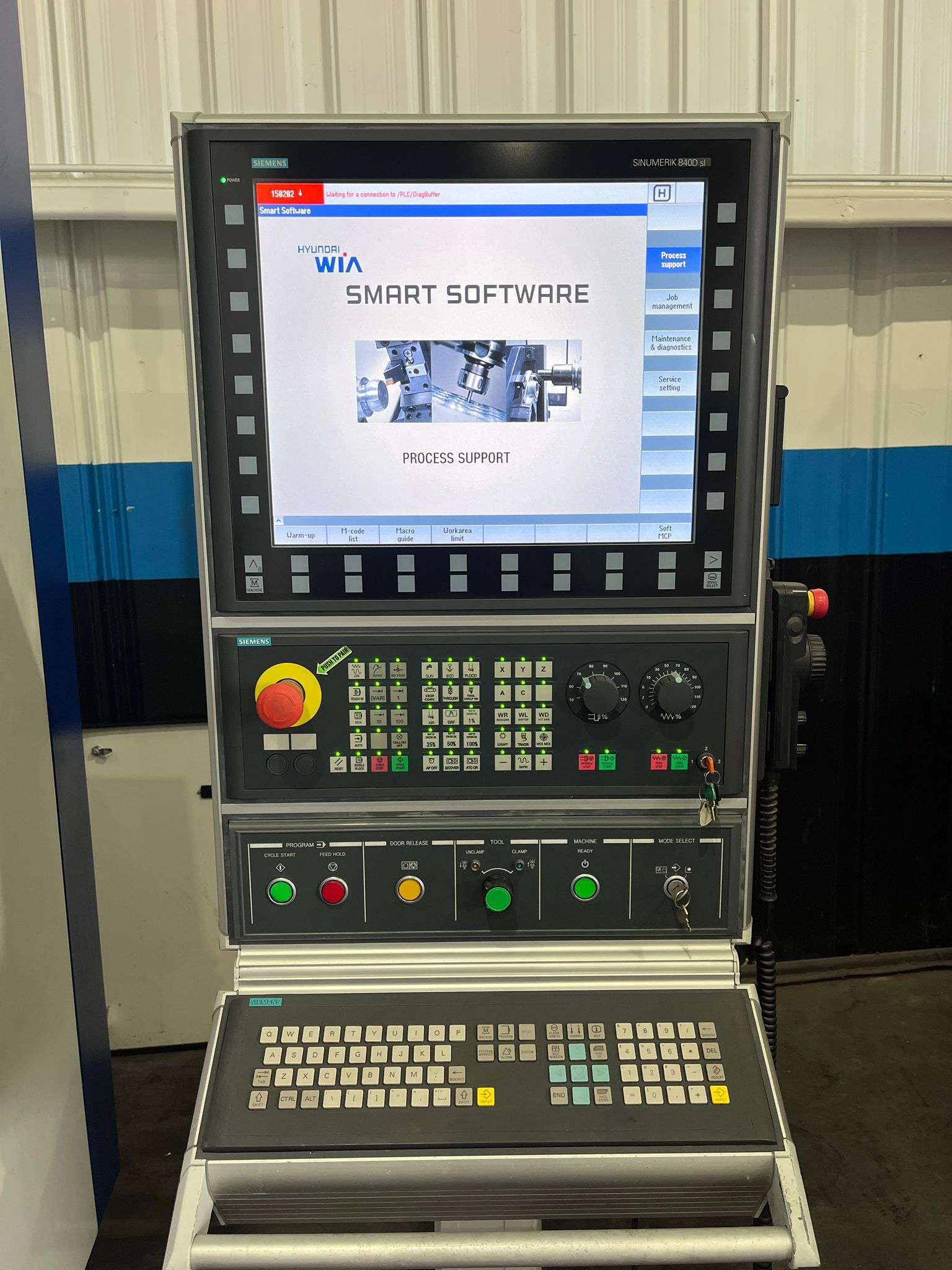

| Siemens Sinumarik 840D sl CNC Control |
| Travelling Column Design |
| 5 Axis Simultaneous Machining |

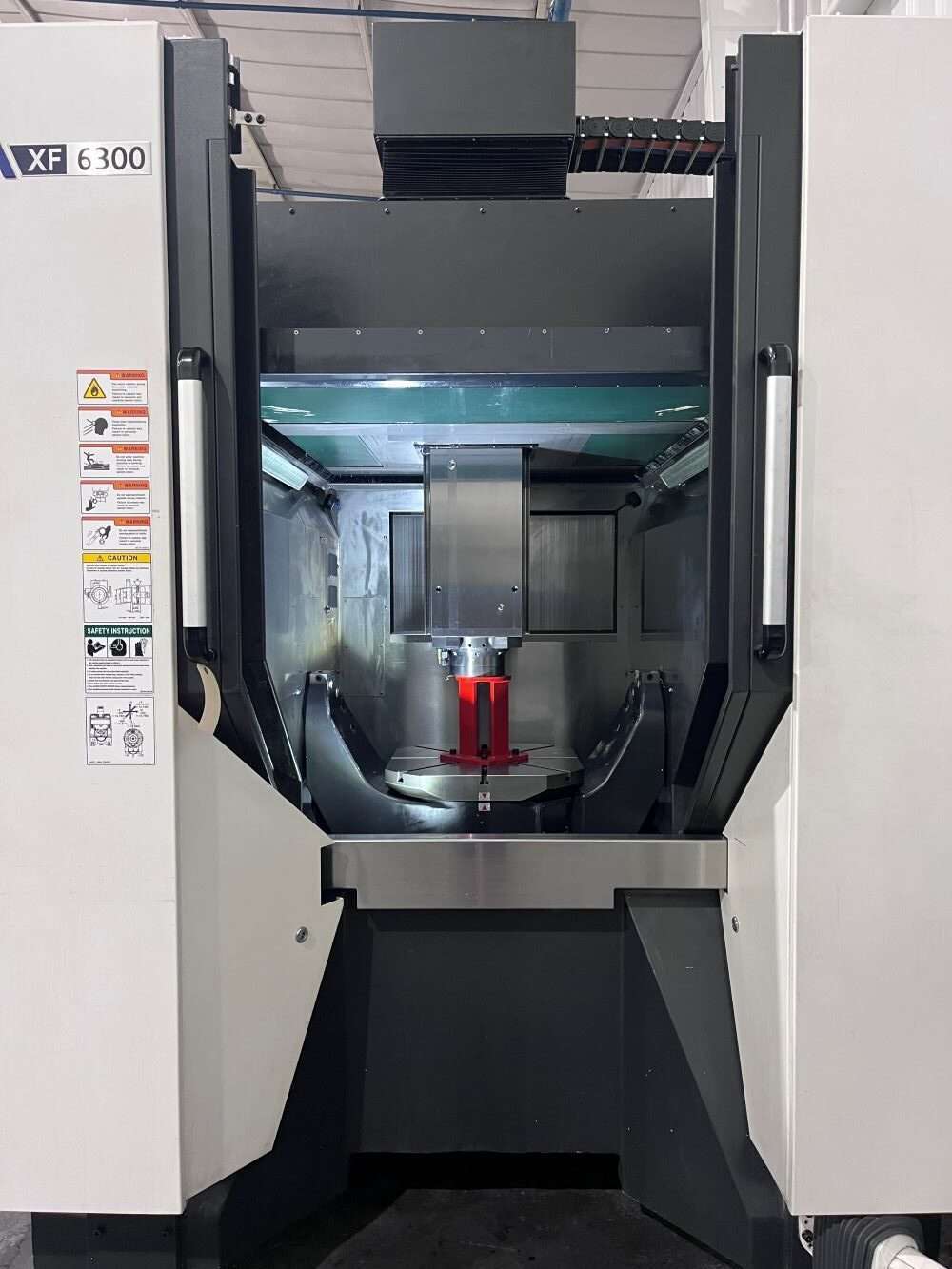

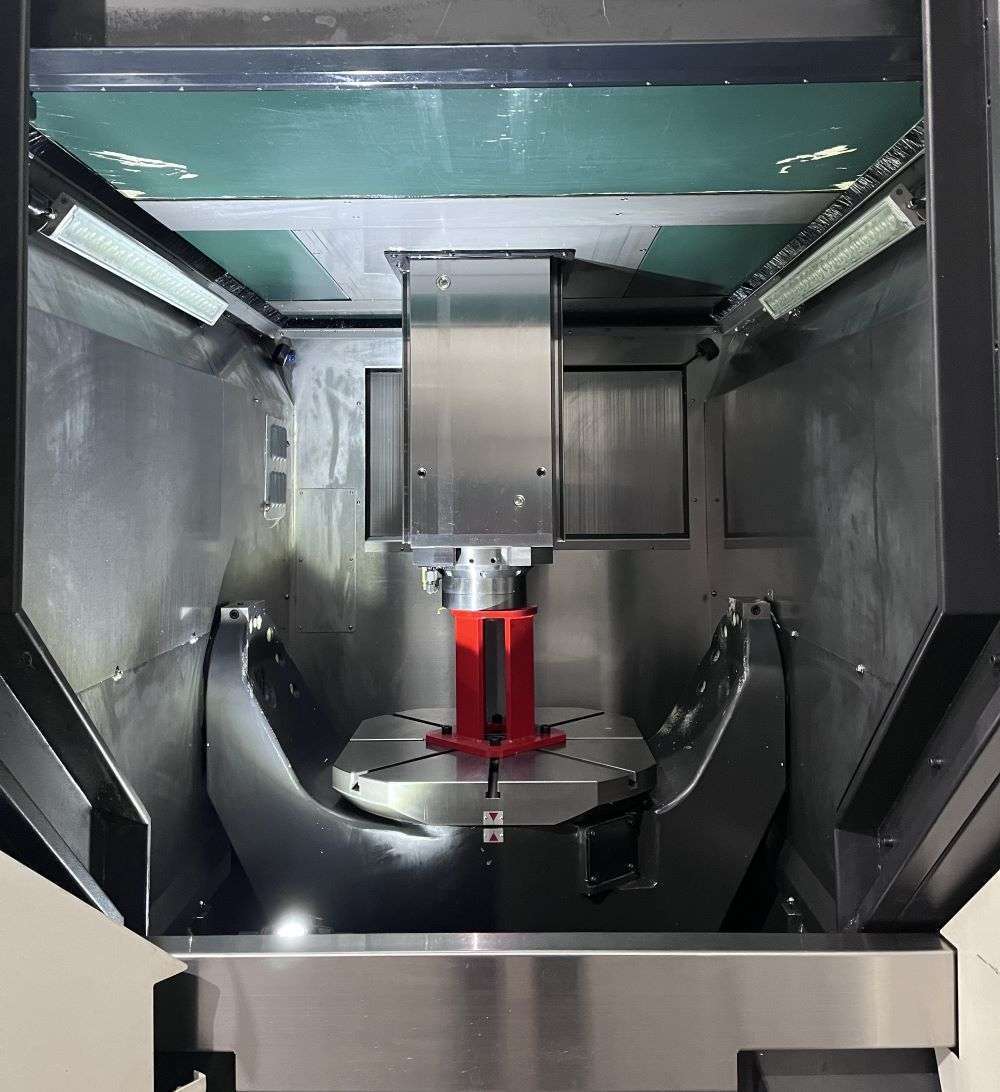

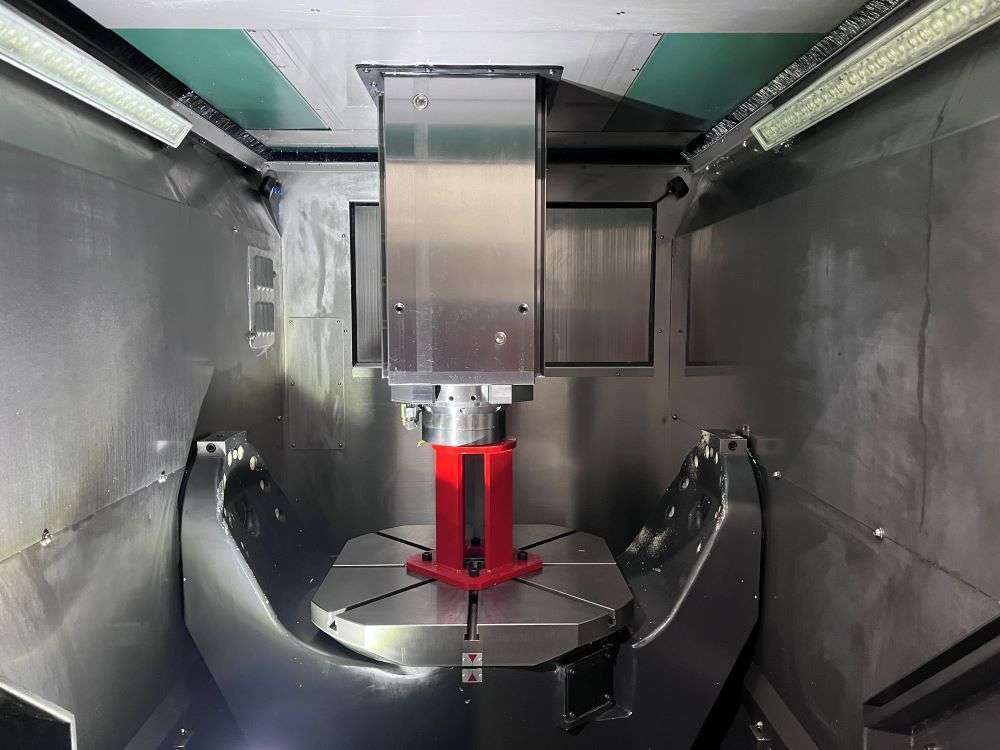

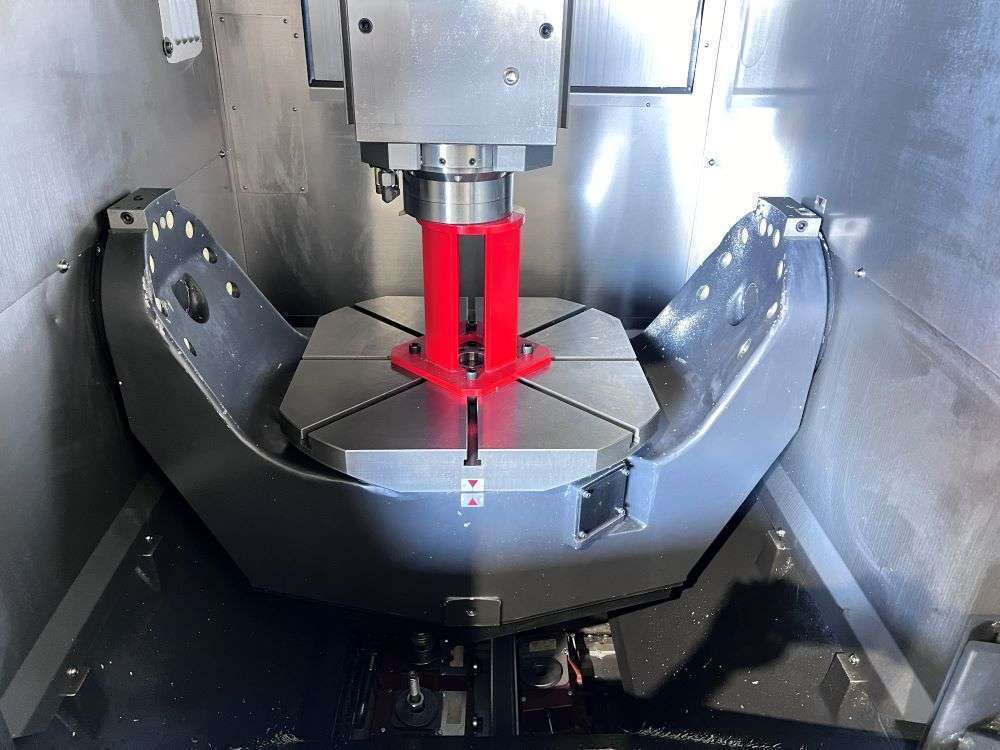

| ø 24.8″ Trunnion Table |
| 15,000 RPM High Speed Spindle |
| 102 Station Automatic Tool Changer |
| High Speed Machining |
| HSK-A63 Spindle Taper |

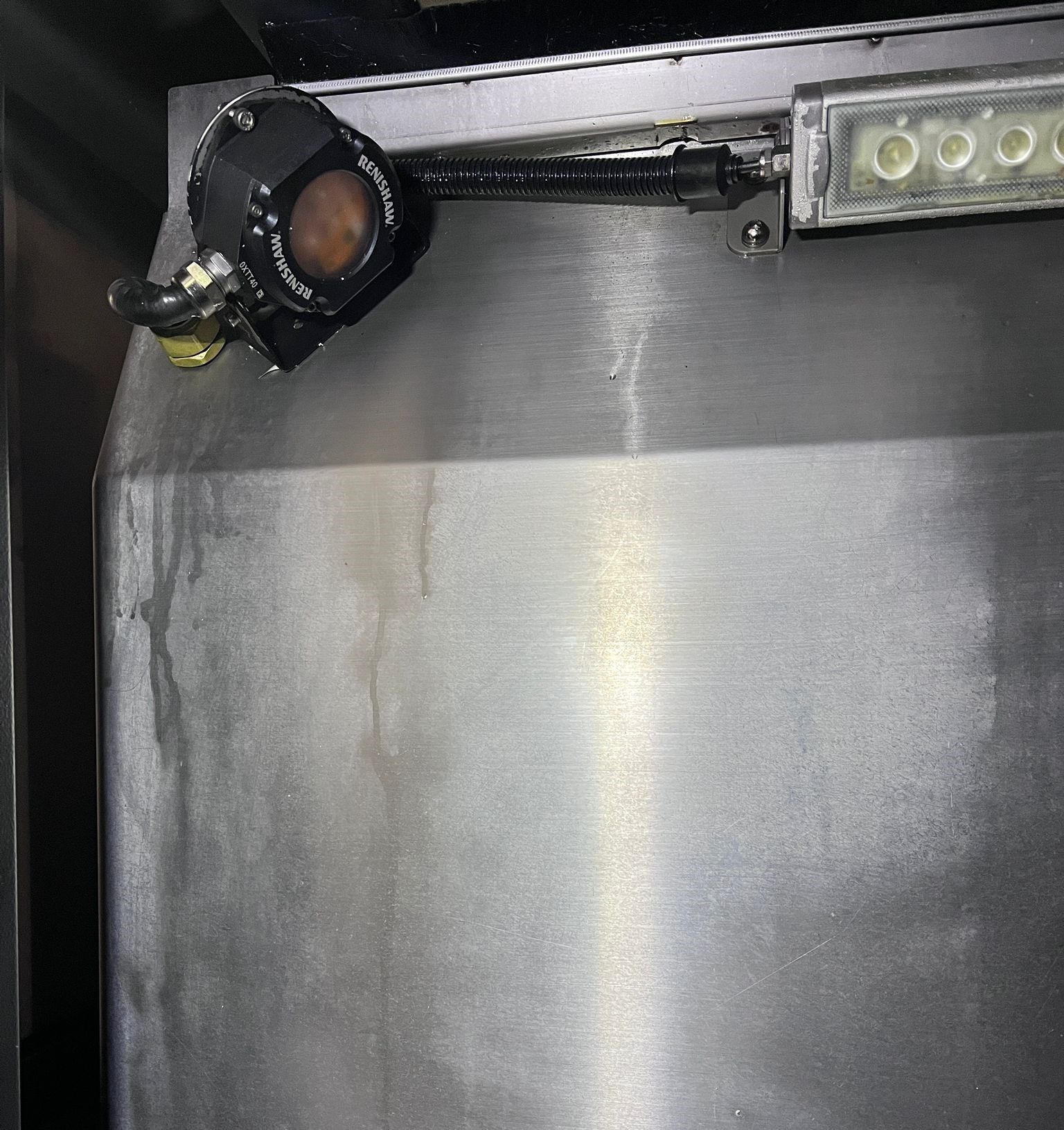

| Renishaw Receiver Installed |

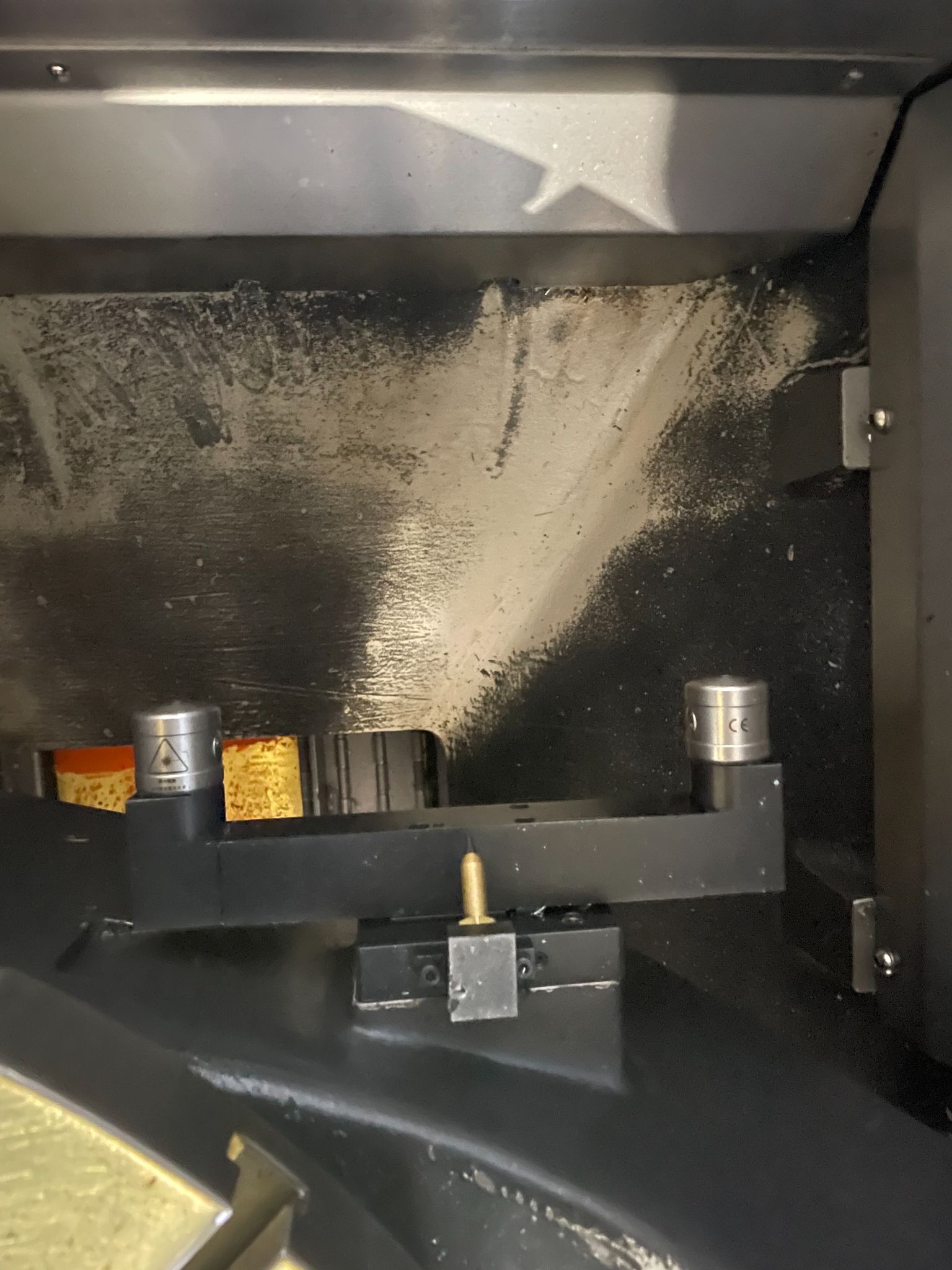

| Tool Presetter |
| Linear Scales |
| Rotary Scales |
| Through Spindle Coolant – 100 PSI |
| Spindle Chiller Unit |

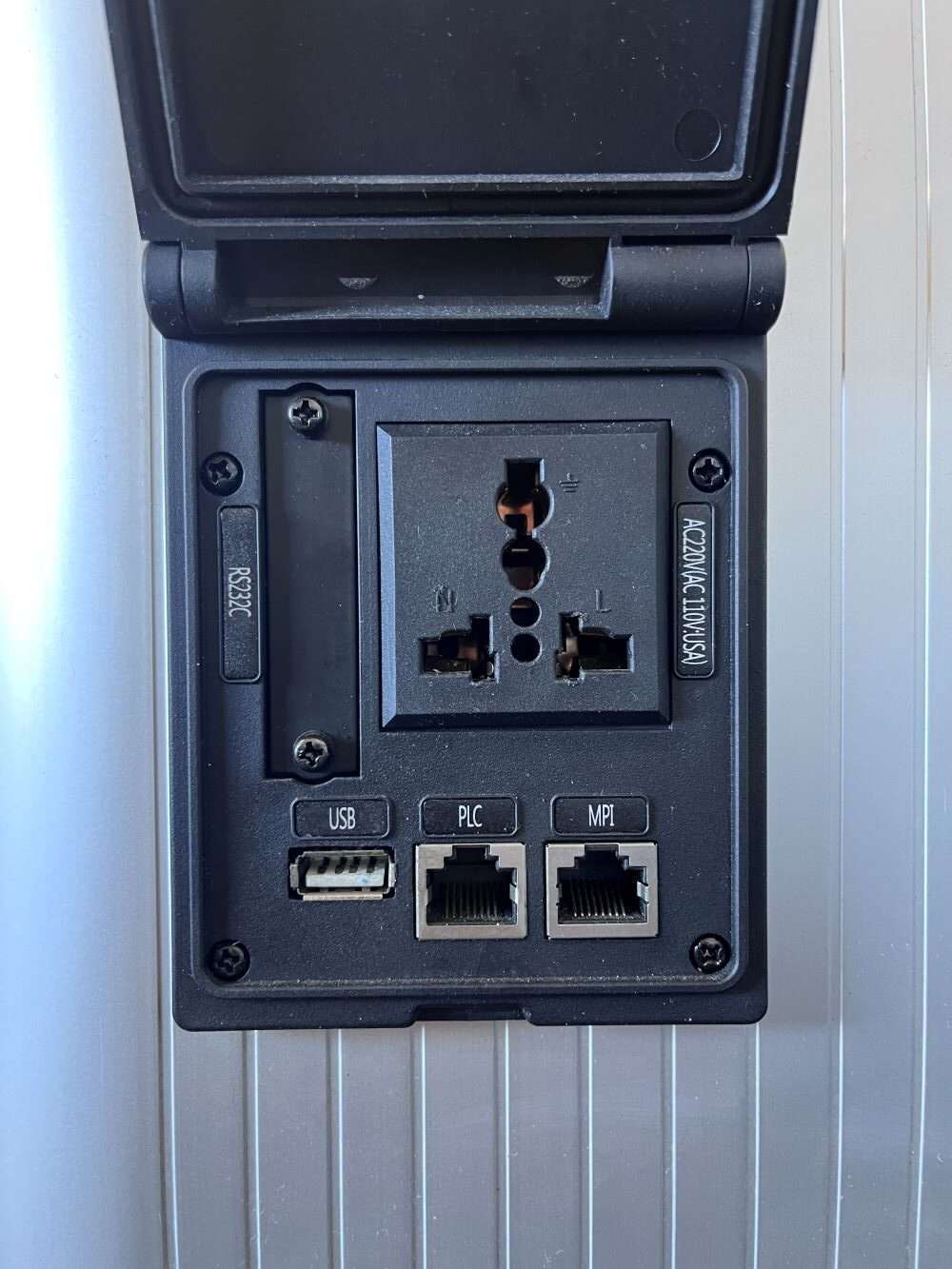

| Pan Drive Slot & RS-232 Port |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |

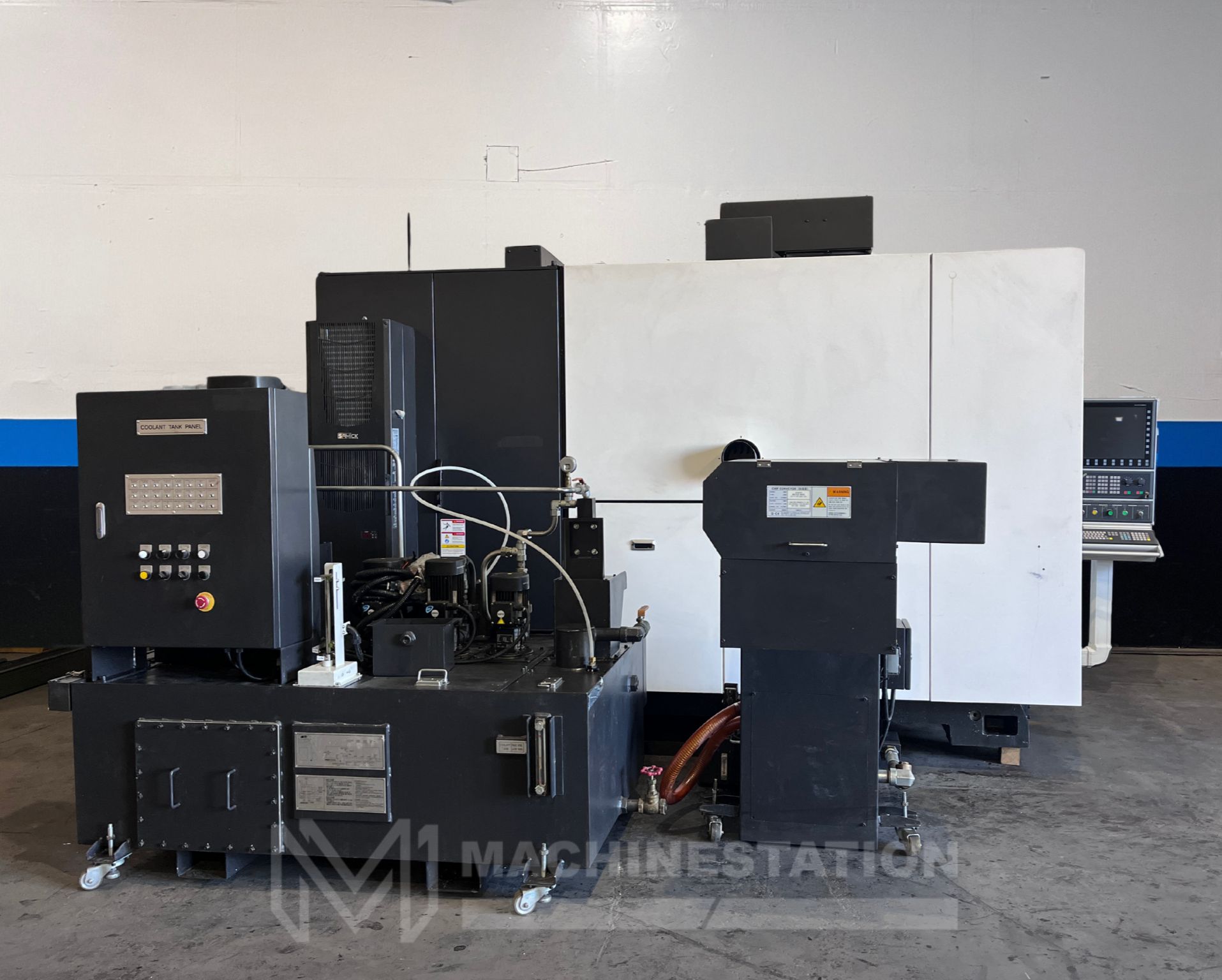

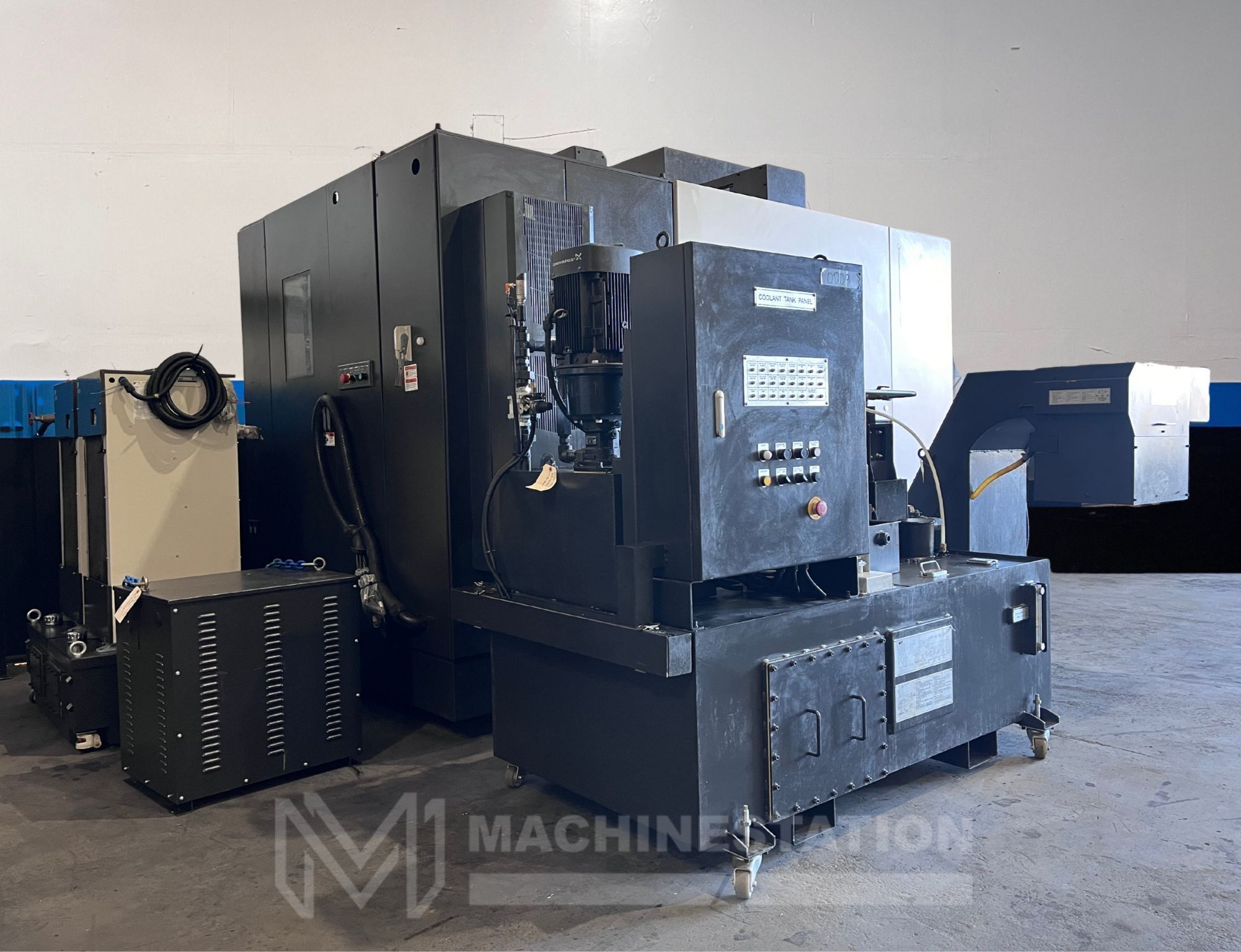

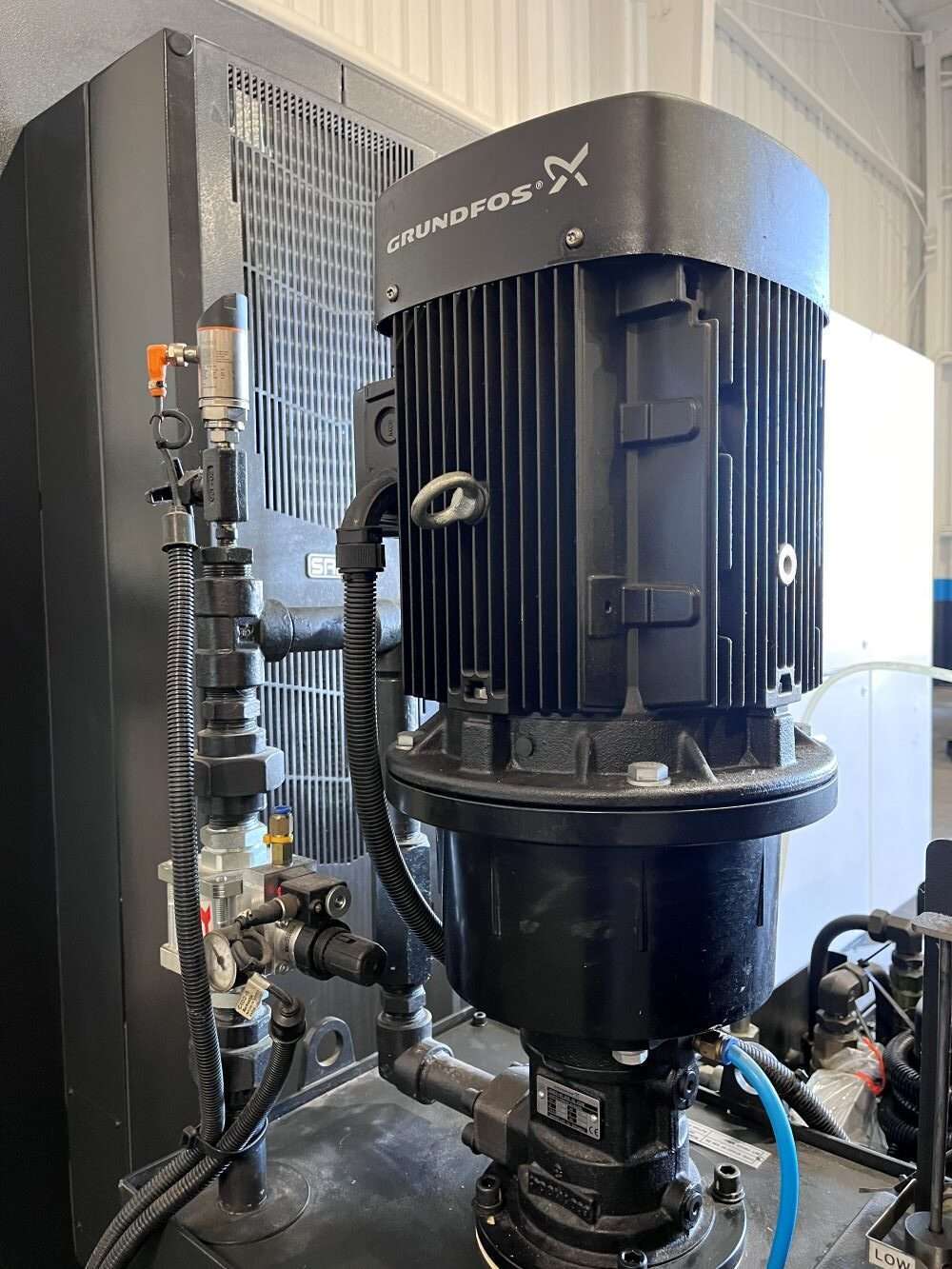

| High Pressure Coolant System |

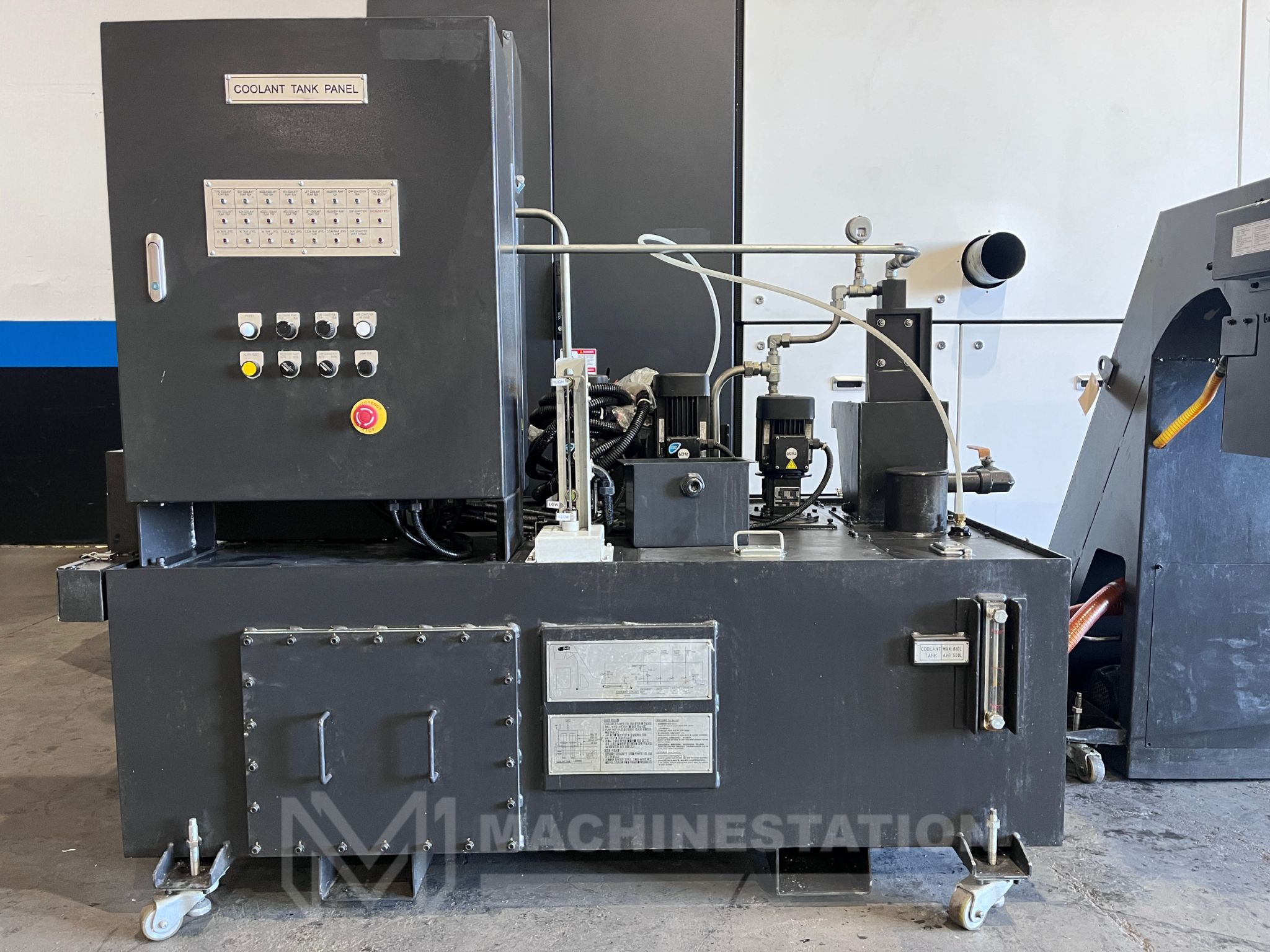

| Coolant Tank |
| Chip Conveyor |

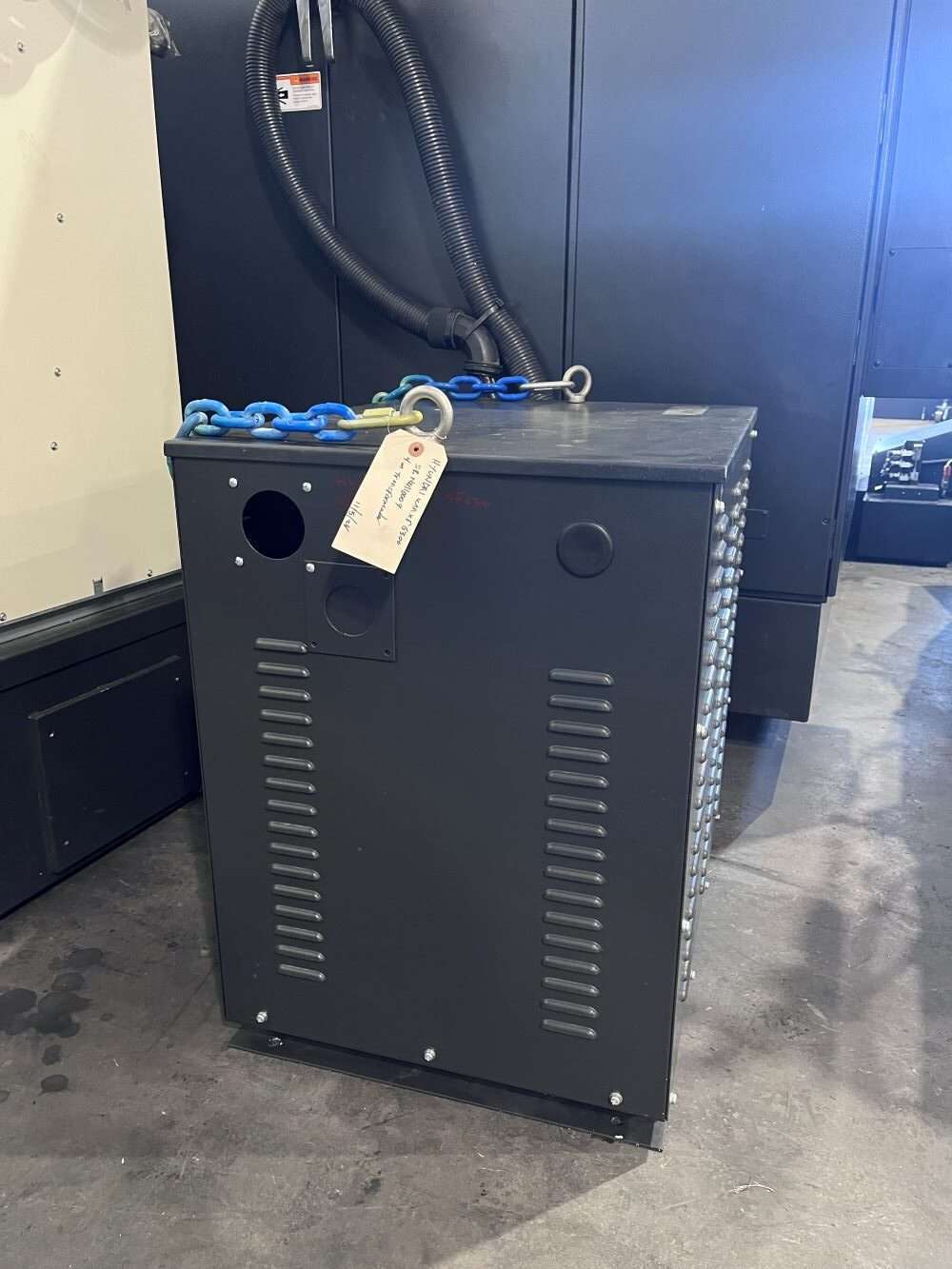

| Transformer |
| Levelling Pads |
| Table: |
|---|
| Table size: ø 24.8″ |
| Max Part Diameter: 31.5″ |
| Max Part Height: 19.7″ |
| Max Weight on Table: 1323 lbs |
| Travel: |
|---|
| X Axis: 25.6″ |
| Y Axis: 23.6″ |
| Z Axis: 19.7″ |
| A Axis: +120° -30° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Distance From Table Top to Spindle Nose: 8.7″ – 28.3″ |
| Rapid Traverse X, Y, Z Axis: 2362 Inch Per Minute |
| Rapid Traverse A Axis: 70 RPM |
| Rapid Traverse C Axis: 110 RPM |
| Spindle: |
|---|
| Taper Size: HSK-A63 |
| Speed Range: 15,000 RPM |
| Spindle Power: 35 HP |
| Tool Changer: |
|---|
| Capacity: 102 Tools |
| Taper: HSK-A63 |
| Max Tool Diameter: 3.5″ – 4.9″ |
| Max Tool Height: 11.8″ |
| Tool Change Time: 4.5 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

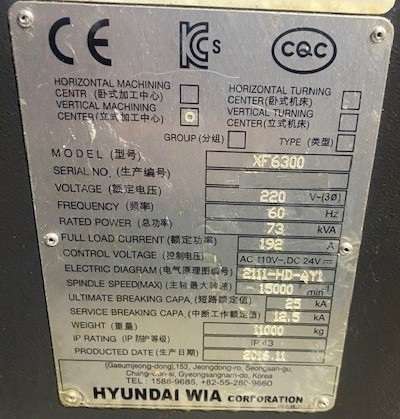

| Power: 73 kva / 220v / 3-Phase |
| Machine Dimensions: 83.5″ x 172″ x 120″ High |
| Floor Dimensions: 198″ x 172″ (Length x Width) |
| Weight: 24,250 lbs. Approx. |
