*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI |
| Model: | NLX2500/700 |
| Condition: | Used – Good |
| Equipped With: |
|---|

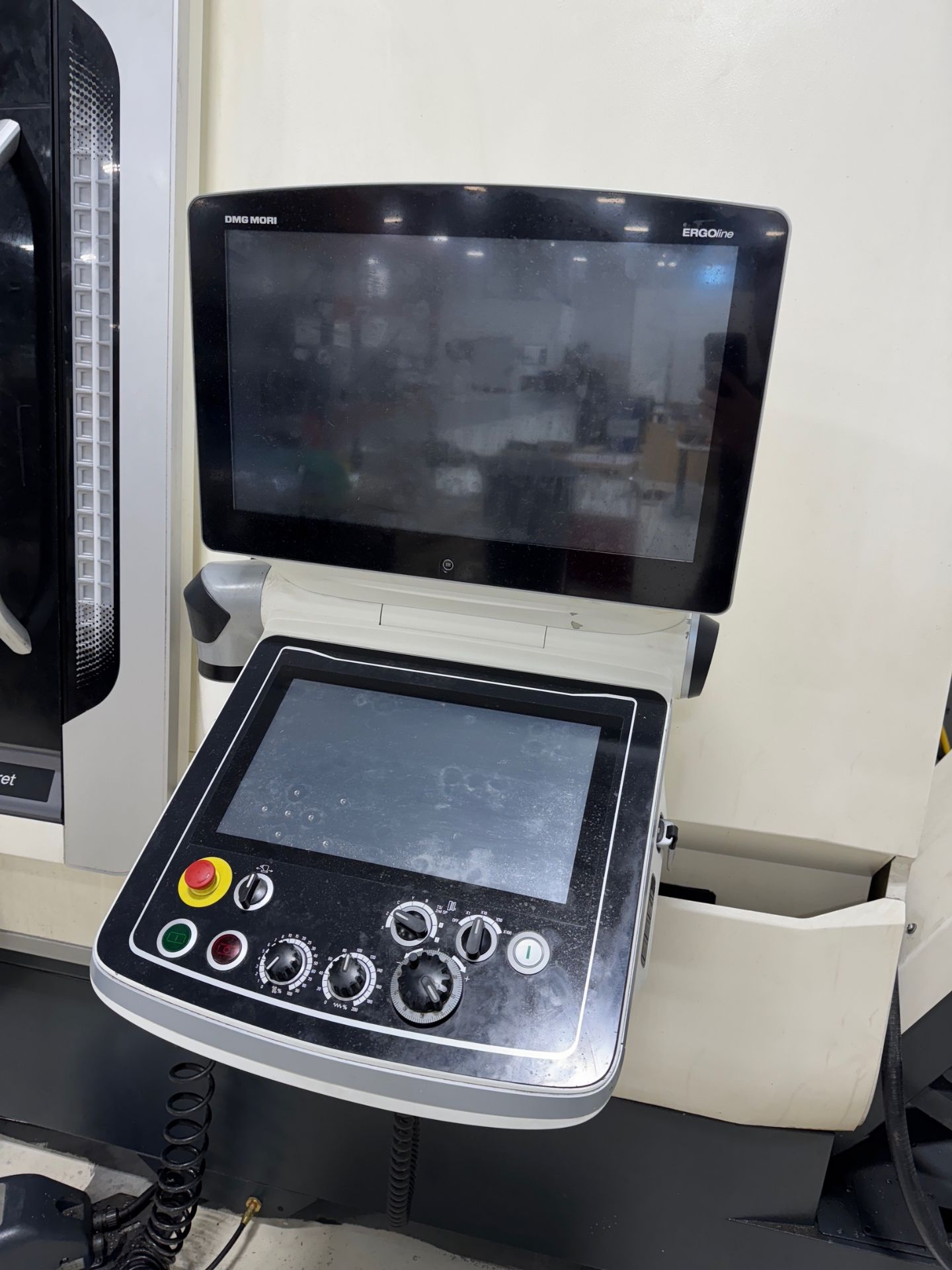

| CELOS with MAPPS / Mitsubishi CNC Control |
| 10″ Hydraulic Chuck |
| Automatic Tool Turret |
| Chip Conveyor |

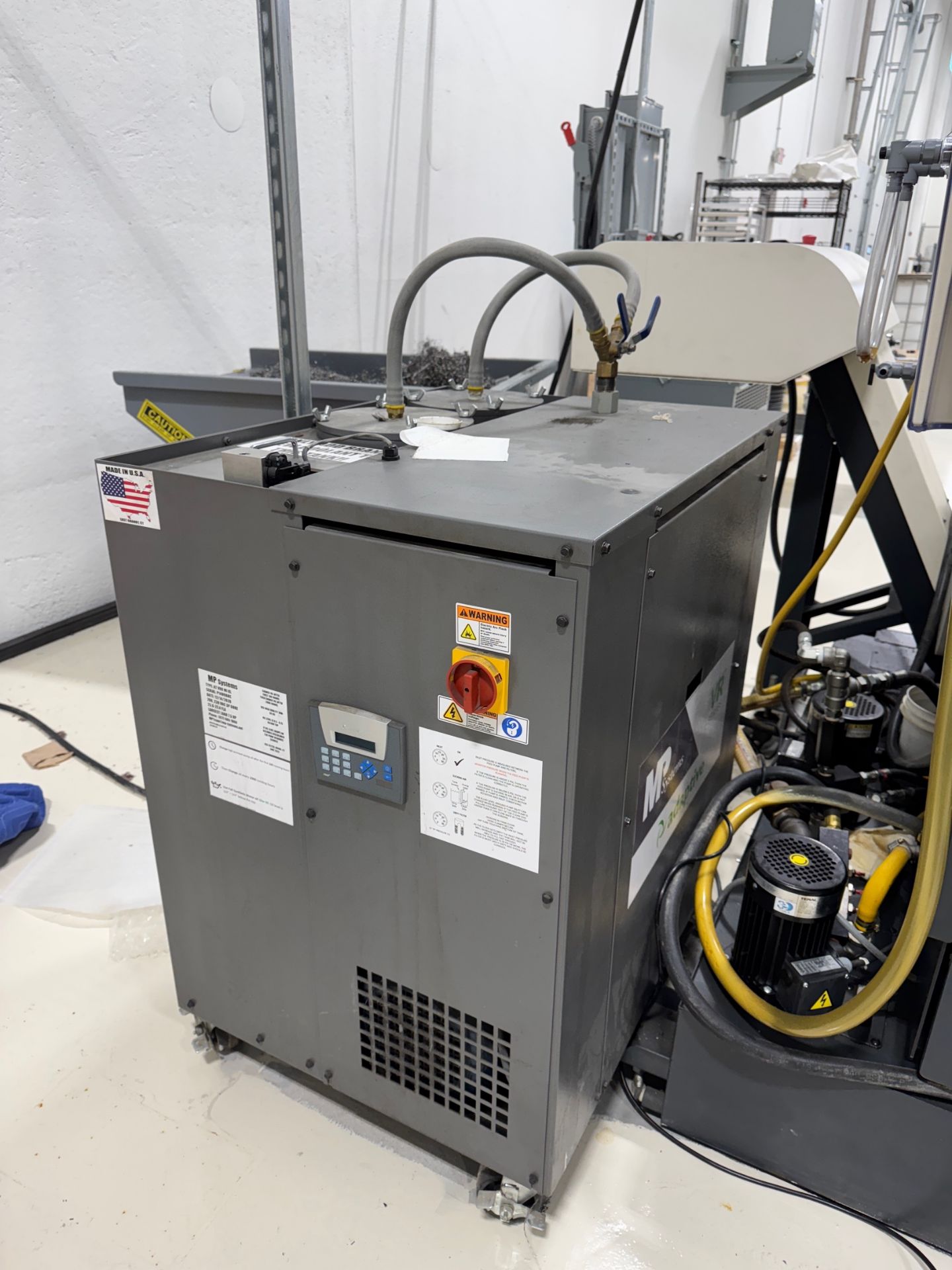

| Coolant System |
| Programmable Tailstock |
| Parts Catcher (Optional) |
| Tool Setter / Presetter |
| USB & Network Connectivity |
| High-Rigidity Slant Bed Construction |
| Capacity: |
|---|
| Max Turning Diameter: 18.1″ |
| Max Turning Length: 28.6″ |
| Bar Capacity: 3.1″ |
| Swing Over Bed: 23.2″ |
| Swing Over Cross Slide: 14.2″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.3″ |
| Rapid Traverse X Axis: 1,181 IPM |
| Rapid Traverse Z Axis: 1,181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 3,500 RPM |
| Spindle Motor: 25 HP |
| Turret / Tooling: |
|---|
| Turret Capacity: 10 Stations |
| Optional: 12 Stations |
| Live Tooling (Optional) |
| OD Tool Size: 1.0″ |
| ID Tool Size: 1.25″ |
| Feedrates: |
|---|
| Rapid Traverse Z Axis: 1,181 IPM |
| Rapid Traverse X Axis: 1,181 IPM |
| Cutting Feedrate: 0.04″ – 394″/min |
| General: |
|---|
| Power: 220V / 3-Phase |
| Approx. Dimensions: 103″ x 75″ x 72″ |
| Approx. Weight: 9,900 lbs |
