*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG Mori |
| Model: | NTX 1000 |
| Condition: | Used – Good |
| Features: |
|---|

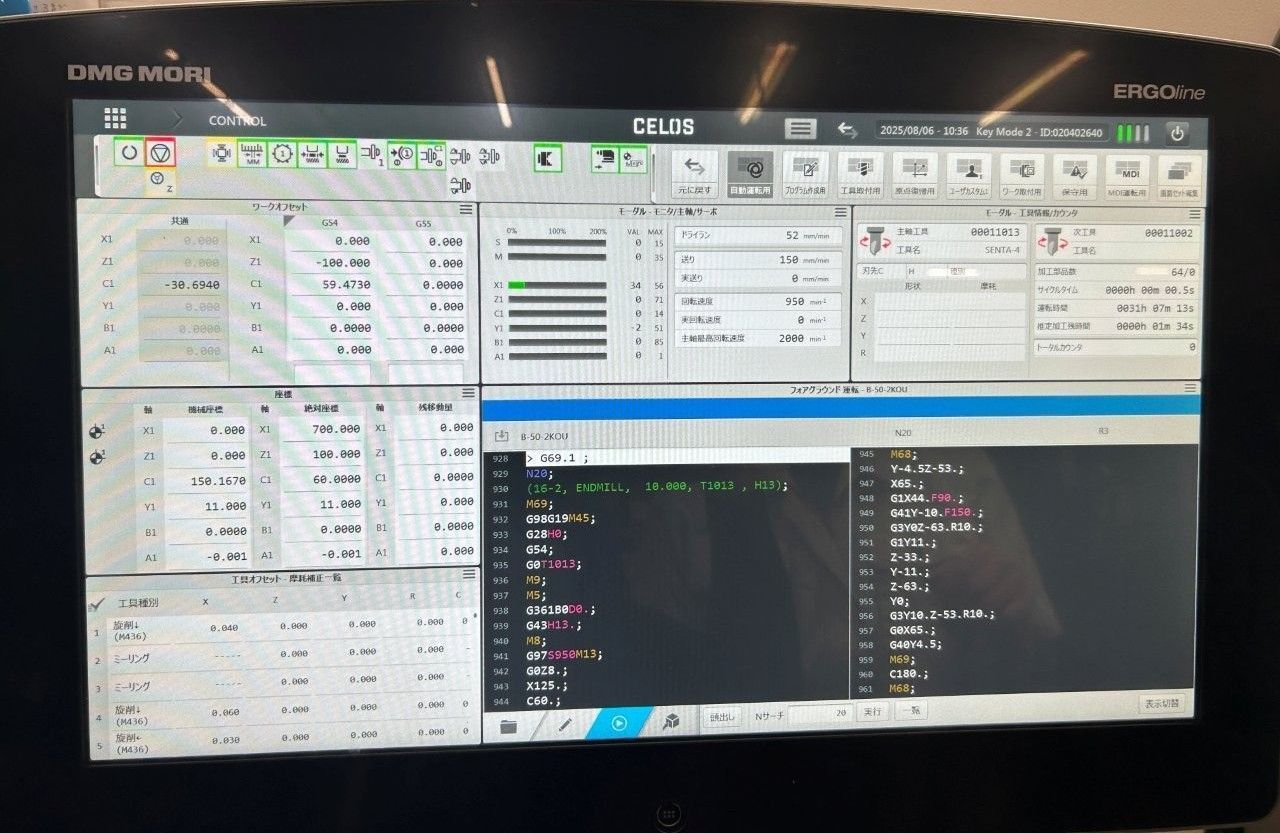

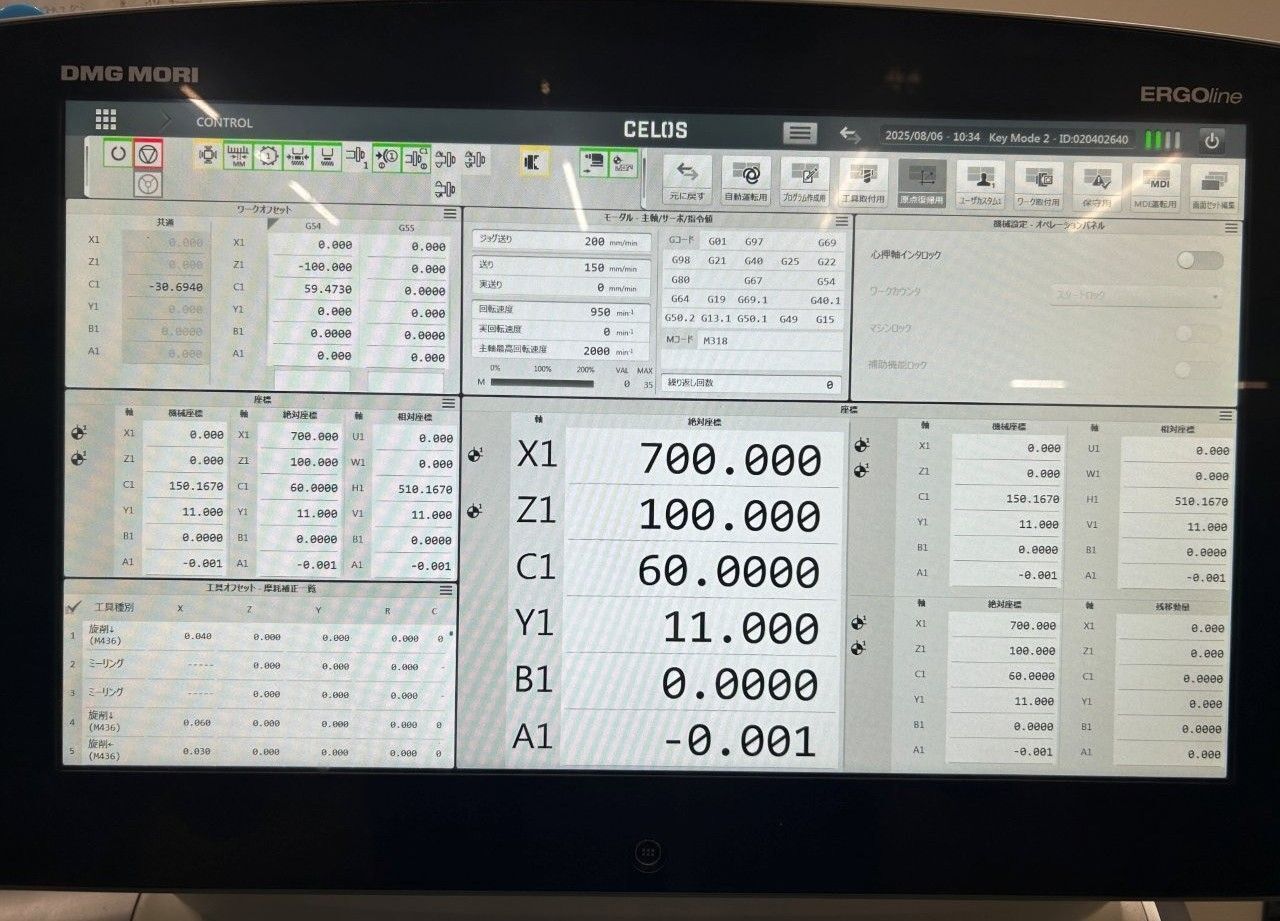

| Fanuc F31iB5 With CELOS ERGOline Touch CNC Control |

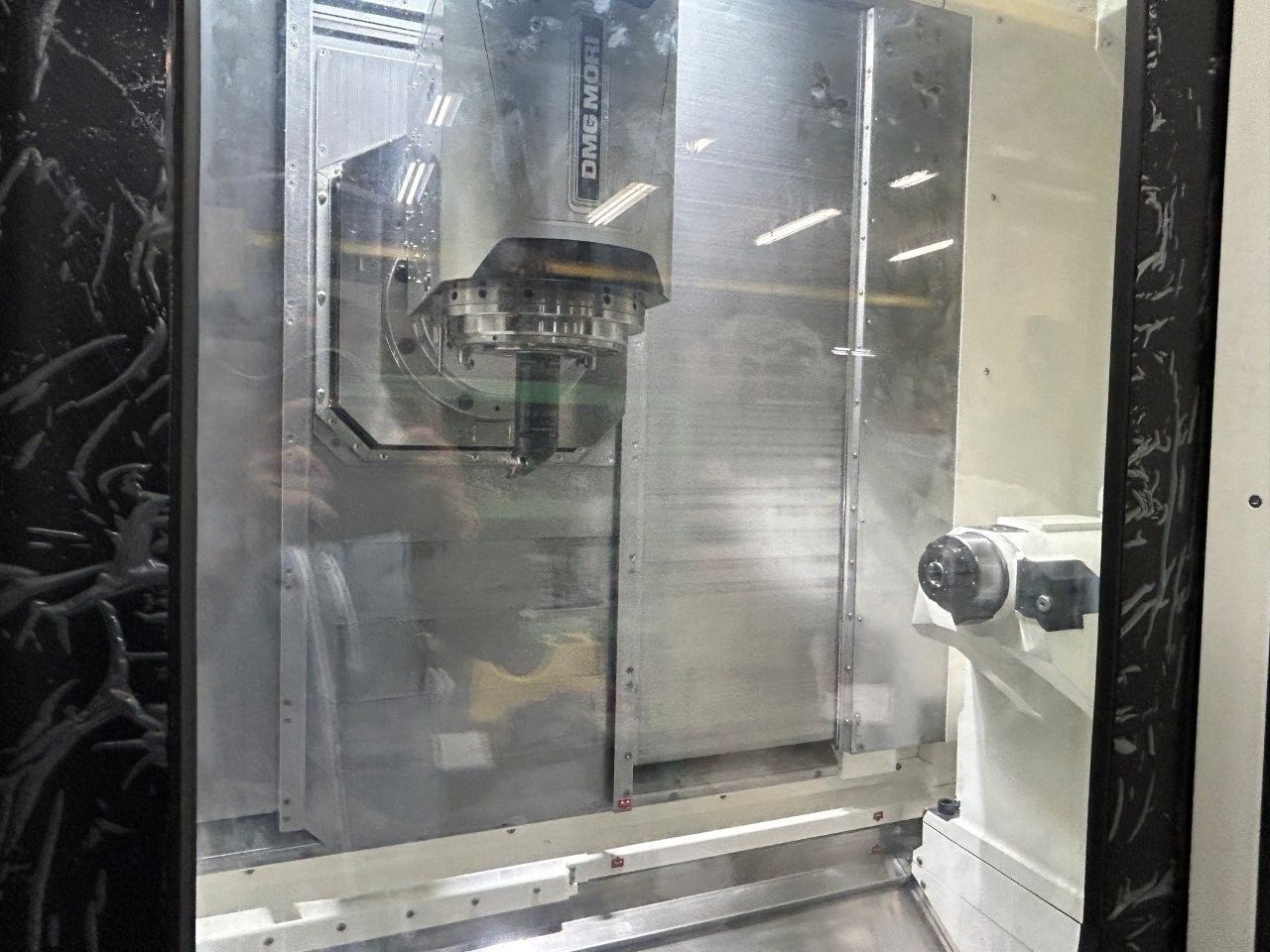

| 12,000 RPM Pendulum Milling Head |
| 38-Station Tool Magazine |
| Full C-Axis on Spindle |
| Y Axis Capability |

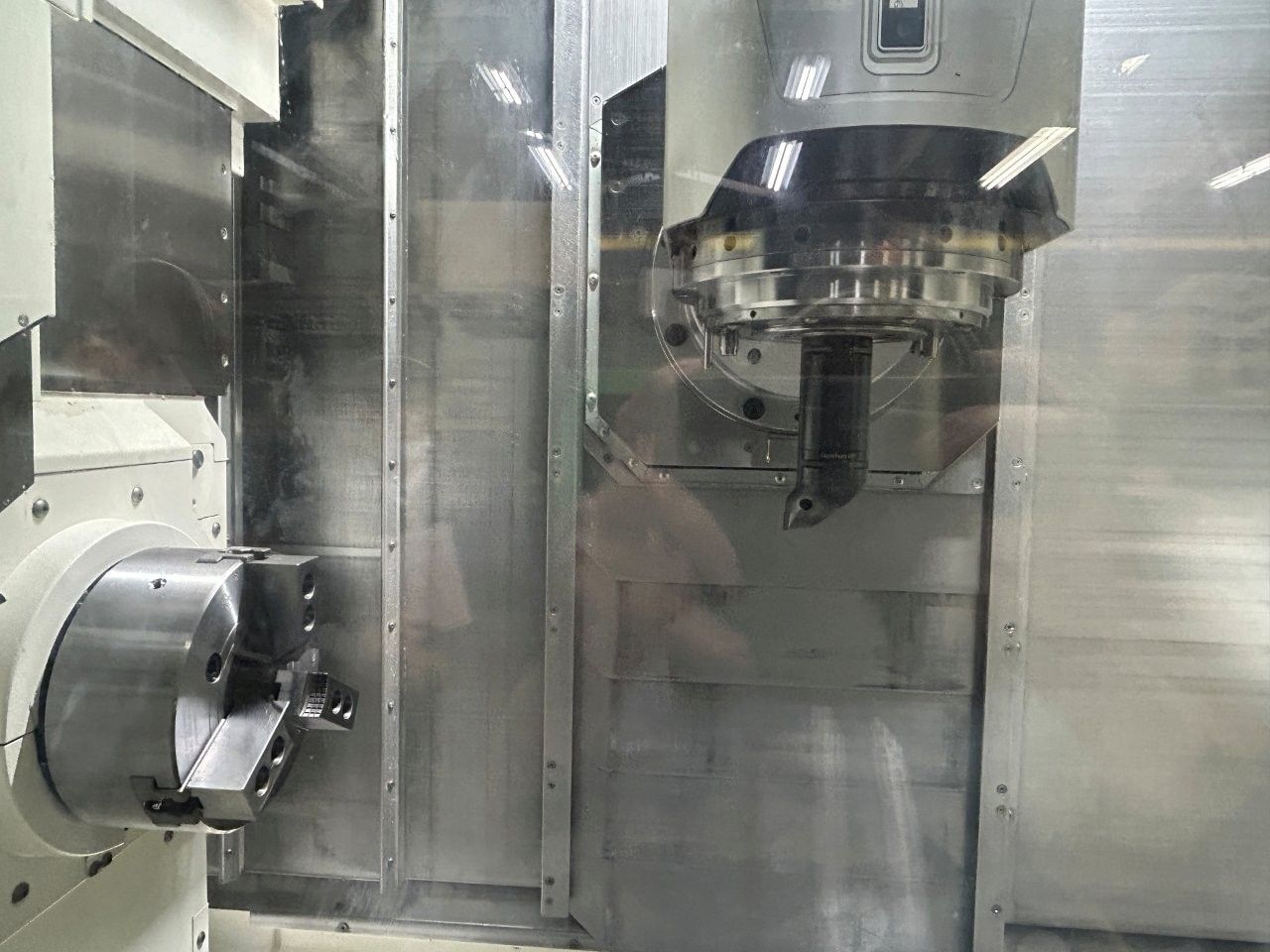

| 10″ 3-Jaw Chuck On Spindle ? |

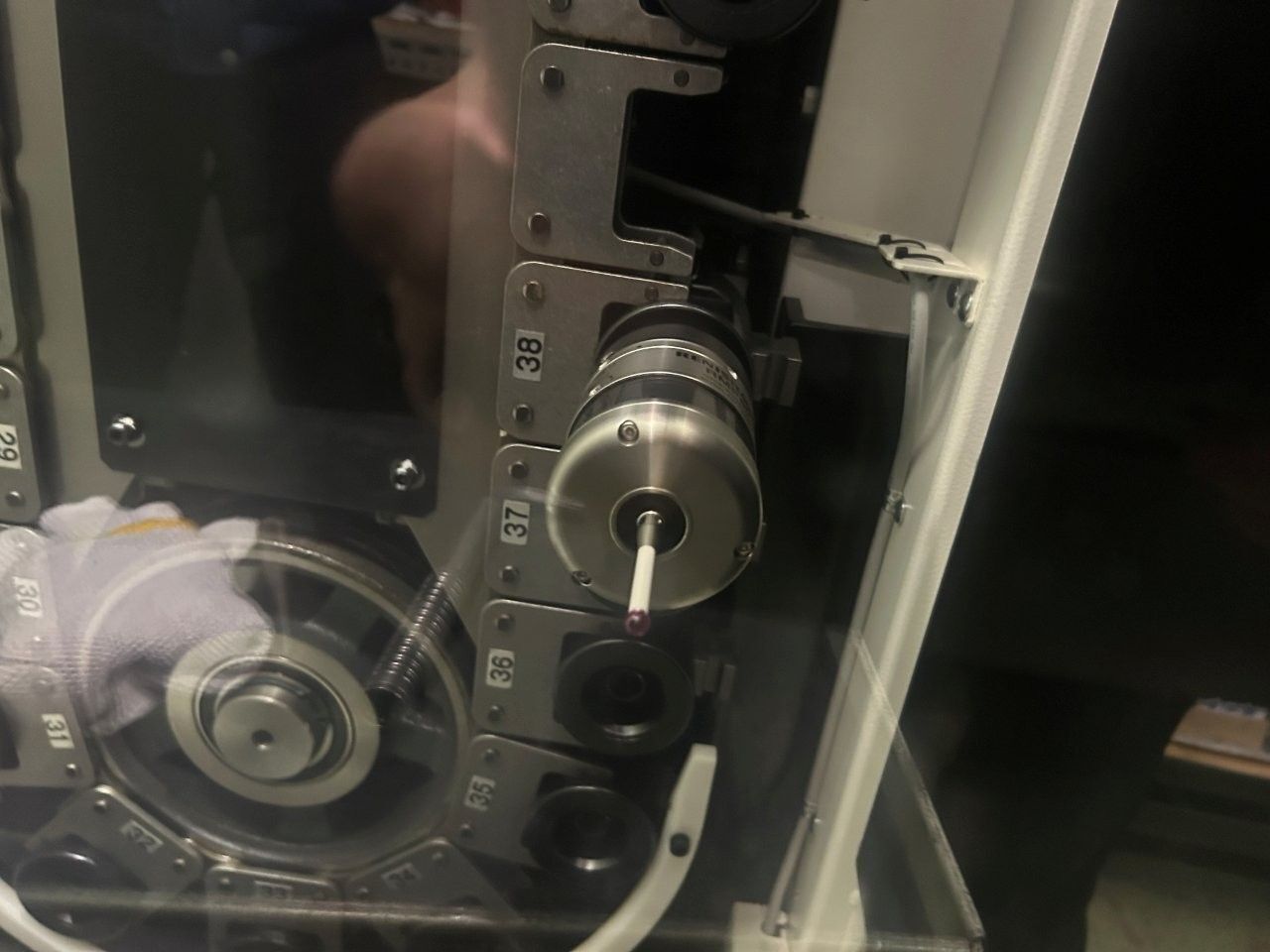

| Renishaw Probe |
| Programmable Tailstock |

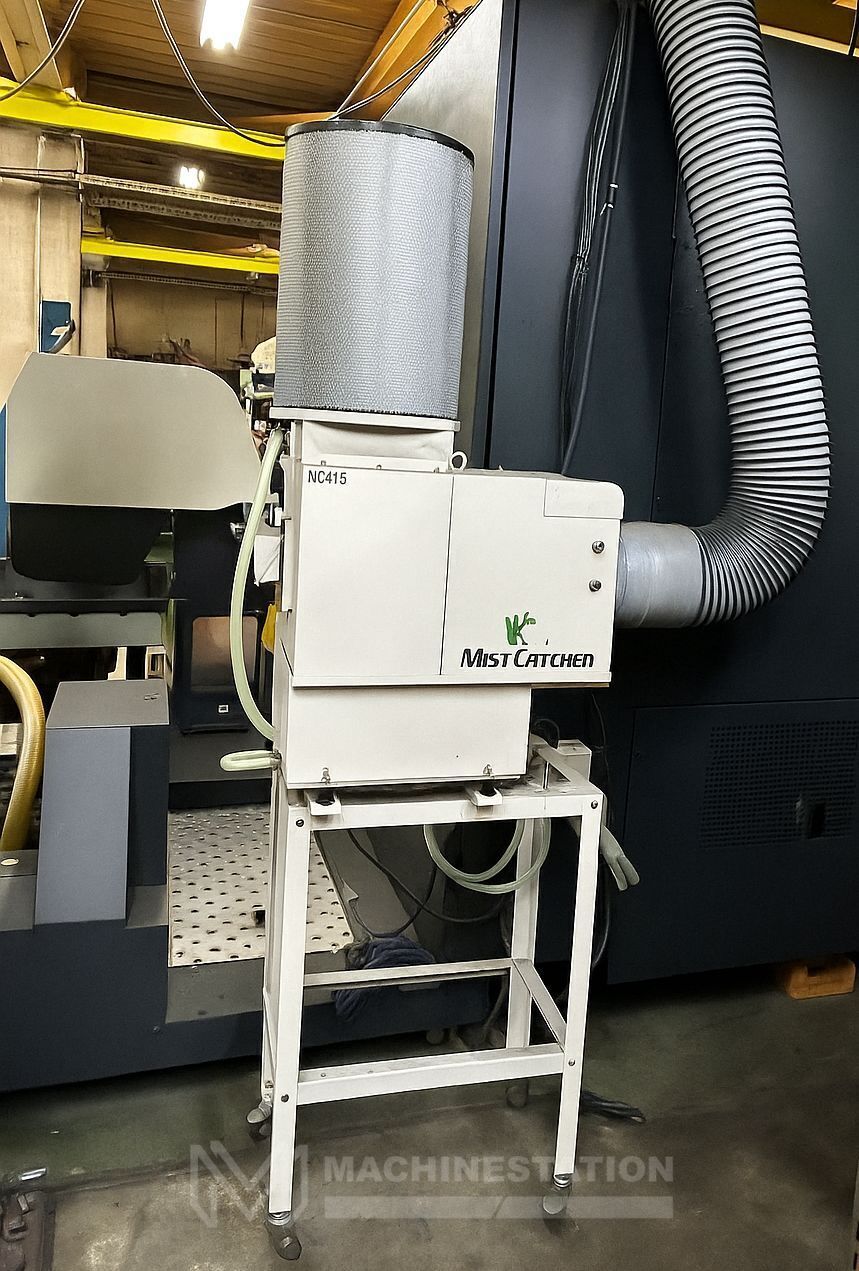

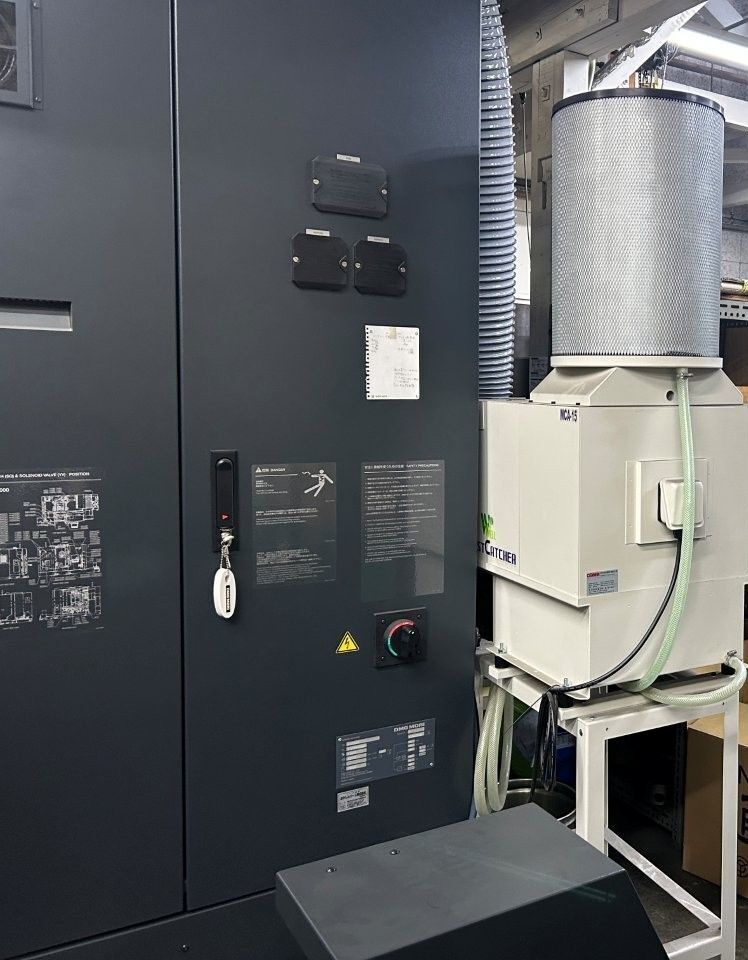

| Mist Collector |

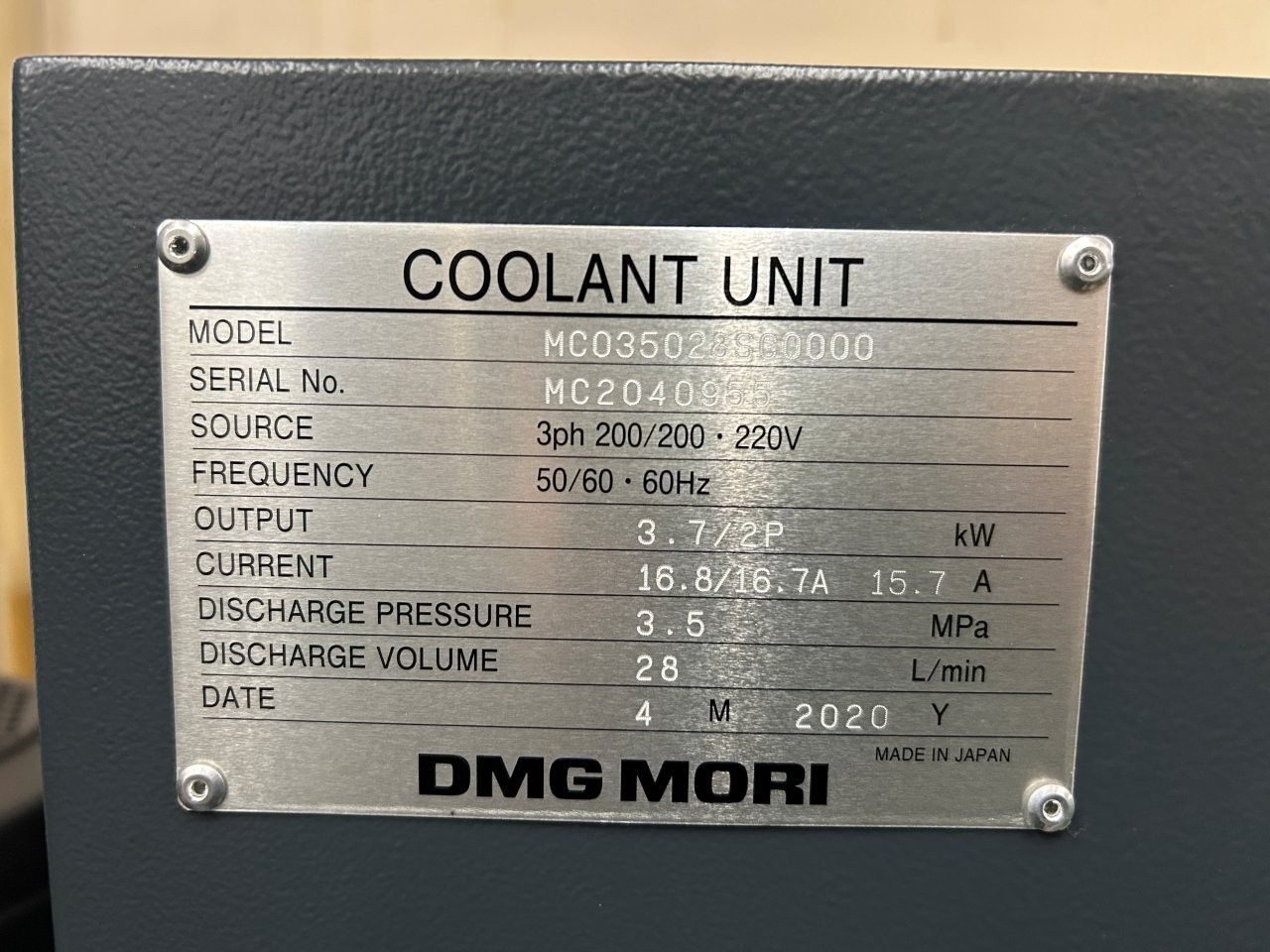

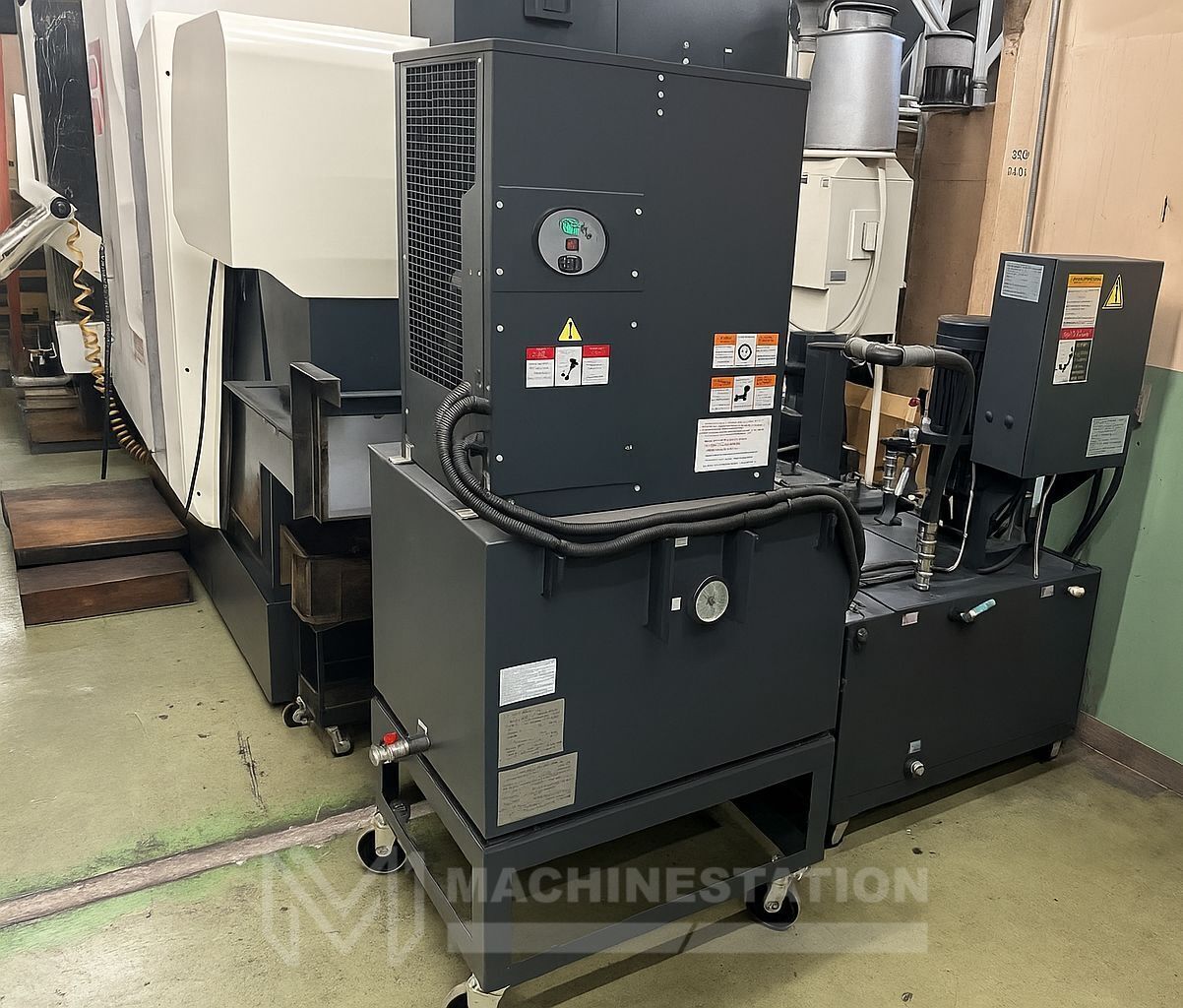

| Coolant Unit |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter (Tool Spindle): 16.9″ |
| Max Turning Length (Tool Spindle): 31.4″ |
| Max Bar Capacity: 2.0″ |
| Swing Over Cross Slide: 17.7″ |
| Distance Between Center: 41.3″ |
| Travel: |
|---|
| X Axis Travel (Tool spindle): 17.9″ |
| Y Axis Travel (Tool spindle): +/- 4.1″ |
| Z Axis Travel(Tool spindle) + For ATC: 31.4″ + 6.4″ |
| B Axis Travel: 240° (0.0001°) |
| C Axis: 360° (0.0001°) |
| X Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Y Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Z Rapid Traverse Rate: 1968.5 Inch Per Minute |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 15 HP |
| Tool Spindle: |
|---|

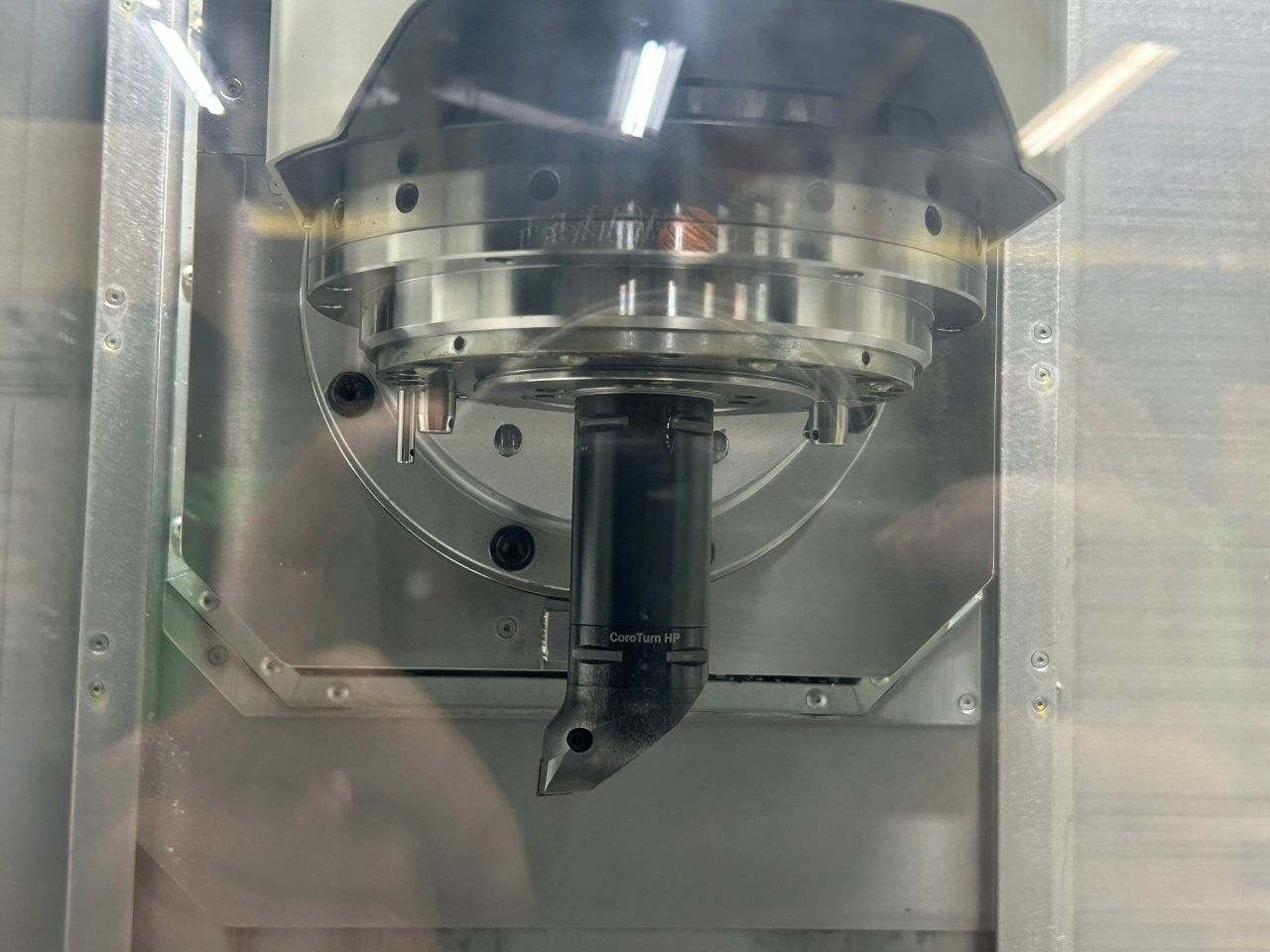

| Single Station Pendulum Head |
| Tool Type: Capto C-5 Taper |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 12 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 38 Tools |
| Max Tool Diameter (without Adjacent Tools): 5.1″ |
| Max Tool Diameter (with Adjacent Tools): 2.7″ |
| Max Tool Length: 9.8″ |
| Max Tool Weight: 11 lbs. |
| Tool Changing Time: 2.26 Seconds |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Travel: 32.28″ |

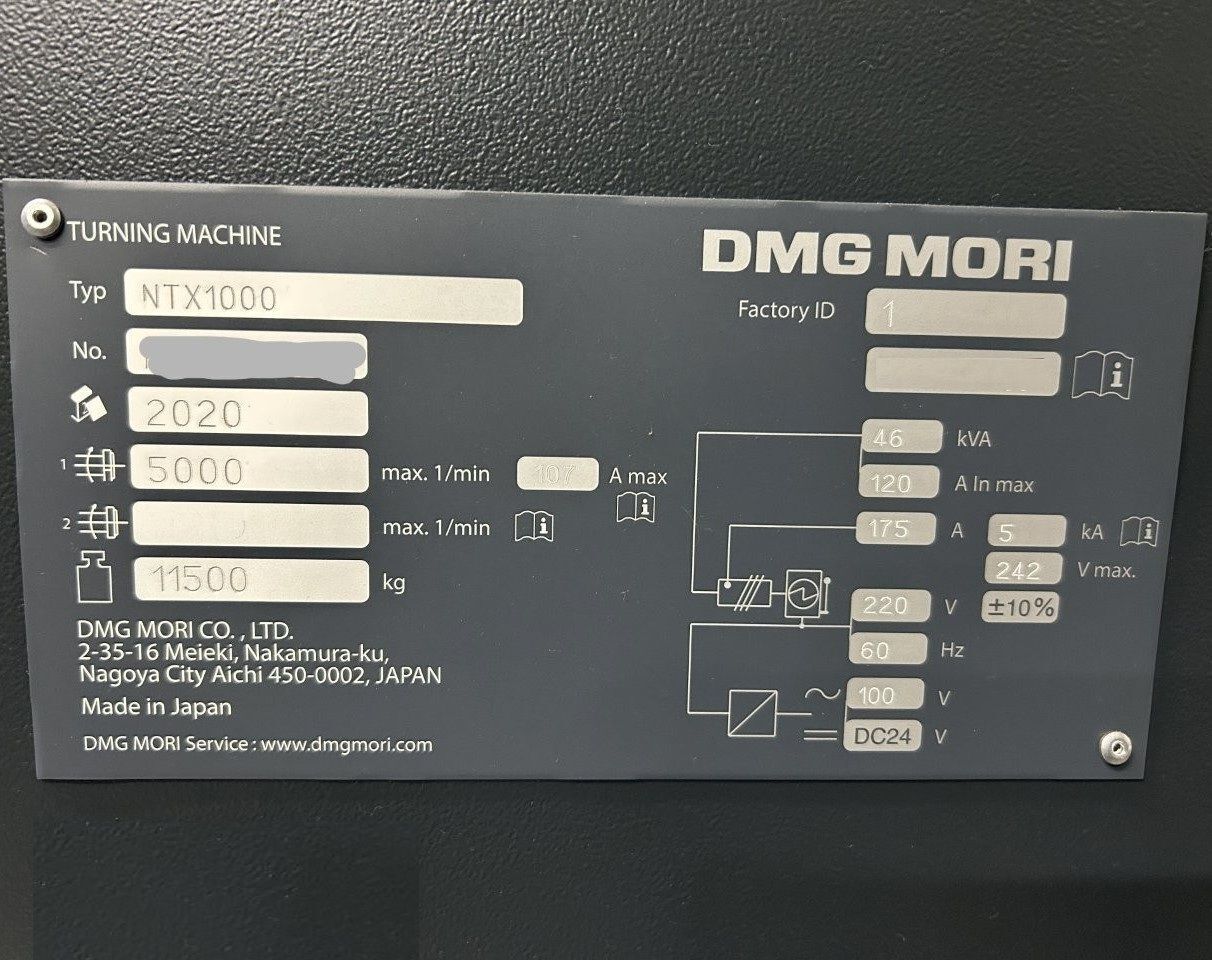

| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 46 kva |
| Overall Dimensions: 163″ x 108″ x 111″ High Approx. |
| Weight : 25,353 lbs Approx. |
