*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI |

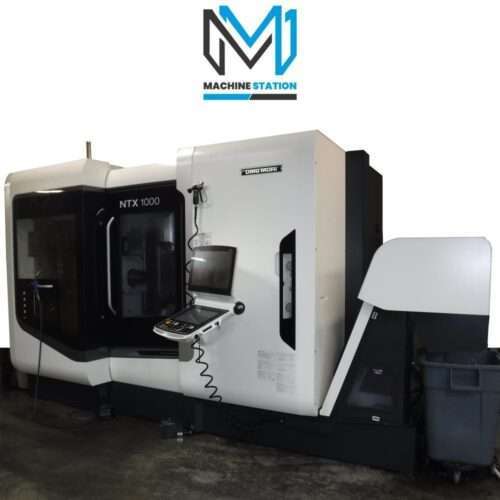

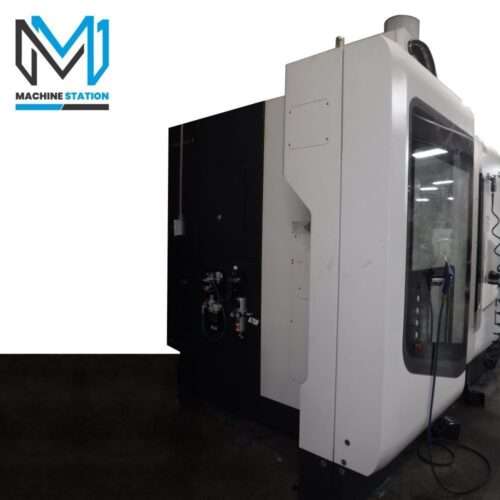

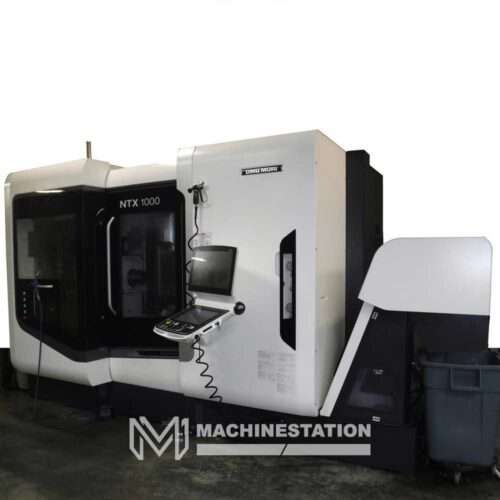

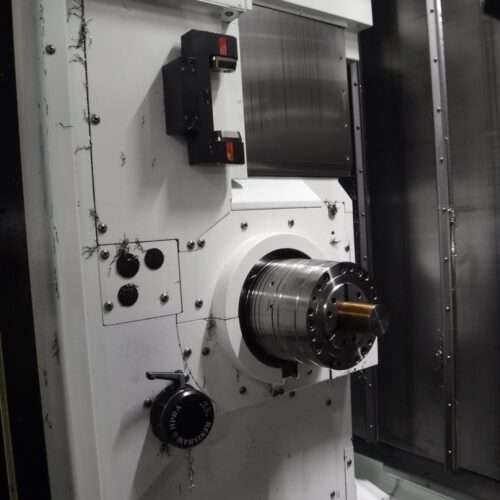

| Model: | NTX 1000 |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

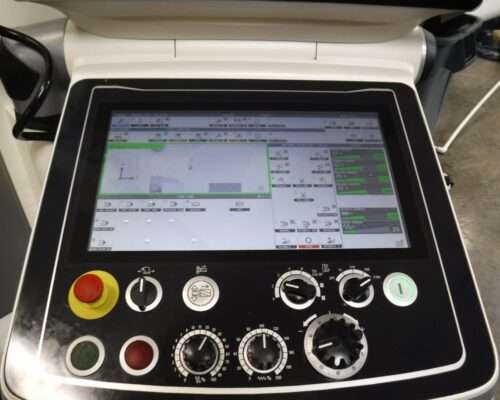

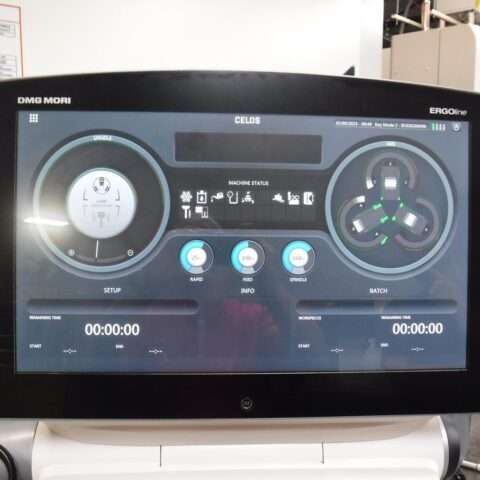

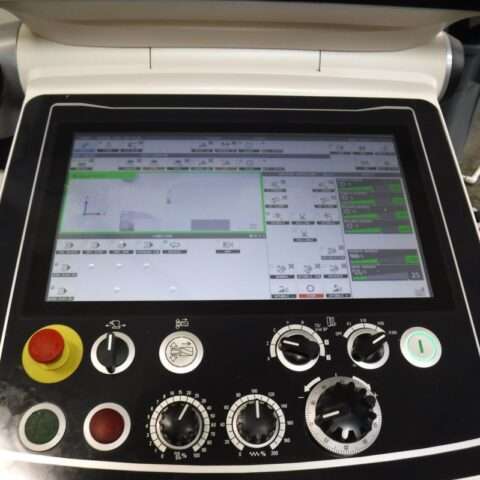

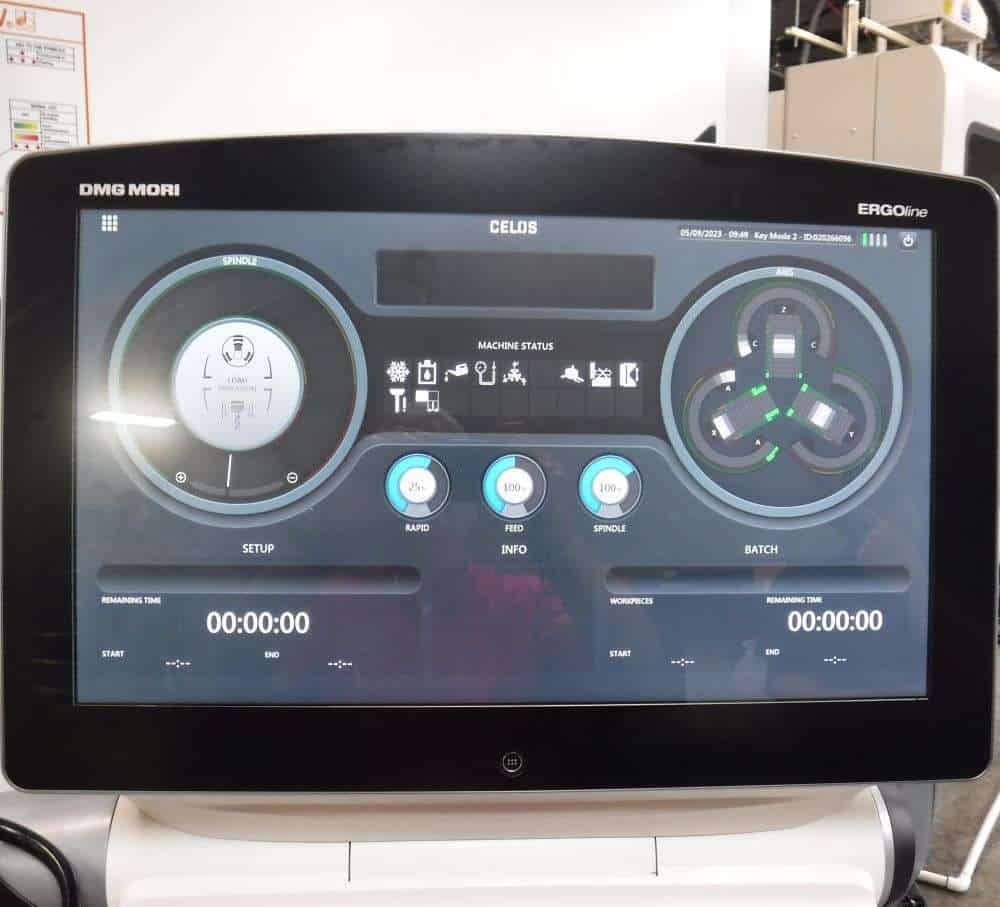

| Fanuc F31iB5 With CELOS ERGOline Touch CNC Control |

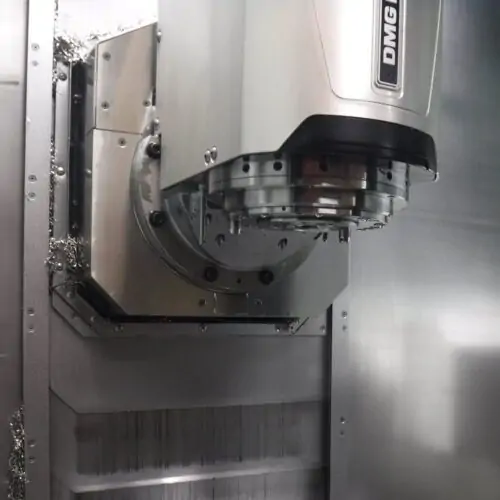

| 12,000 RPM Pendulum Milling Head |

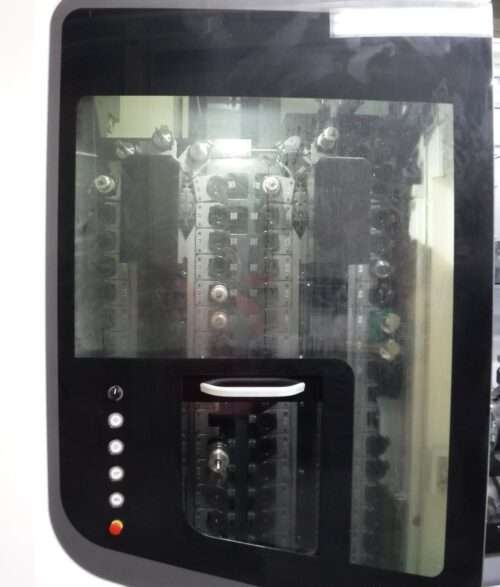

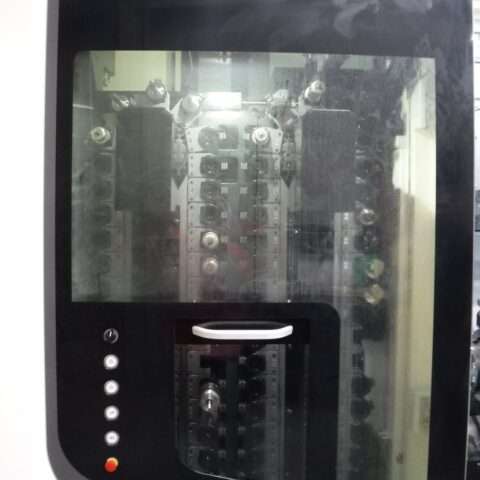

| 76-Station Tool Magazine |
| Full C-Axis on Spindle |
| Y Axis Capability |

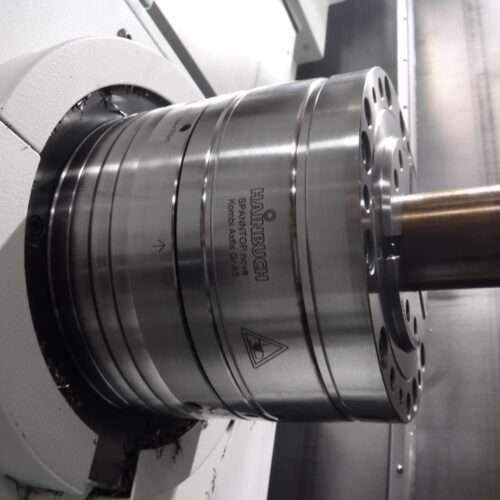

| Hainbuch Sanntop Main Chuck |

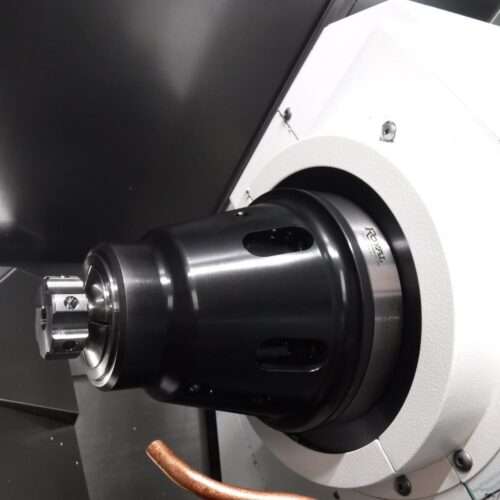

| Royal 3J Sub spindle Collet Chuck |

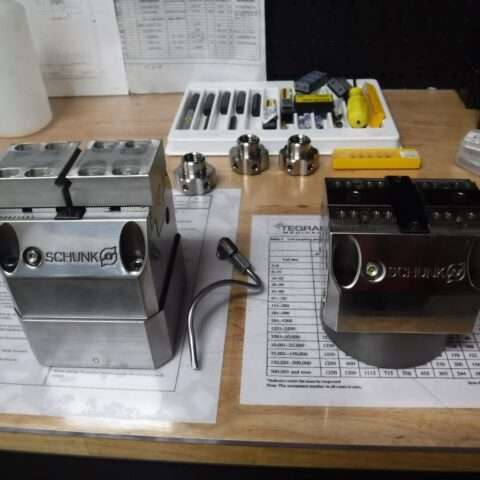

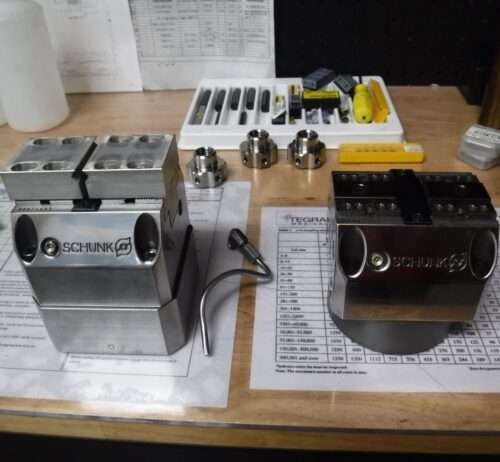

| Schunk Pneumatic Turret Chuck. |

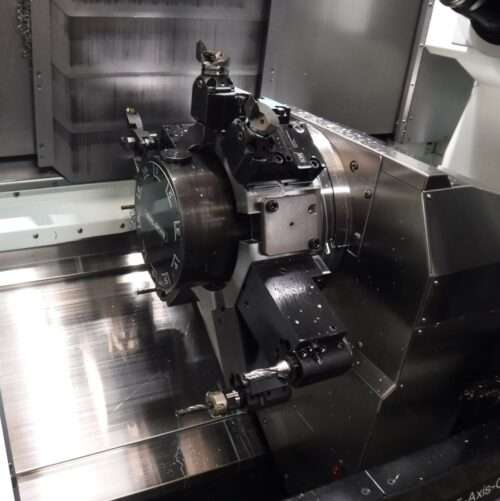

| 10 Station Live Tool Turret |
| Workpiece Unloader (Turret Type) |
| 3D Quick Programming |
| Interface for Bar Feeder |
| Renishaw Probe |
| Blum Laser Tool Setter/Monitor |
| Mist Collector |
| Rigid Tapping |
| High Pressure Coolant System |
| Foot Operated Control for Chuck |
| Chip Conveyor |

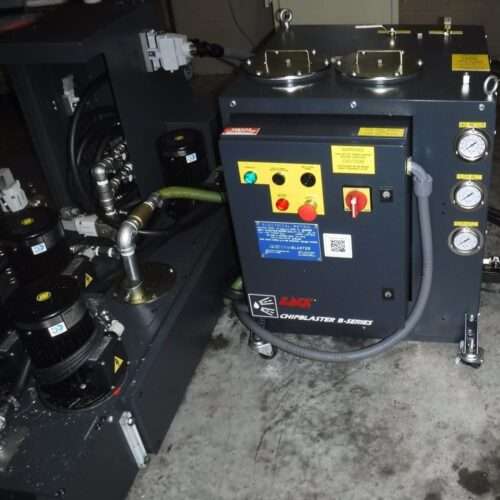

| LNS Chip Blaster |
| Automatic Lubrication System |
| Capacity: |
|---|
| Max Turning Diameter (Tool Spindle): 16.9″ |
| Max Turning Diameter (Turret 2): 10.7″ |
| Max Turning Length: 31.4″ |
| Max Bar Capacity: 2.5″ |
| Swing Over Cross Slide: 17.7″ |
| Distance Between Spindles: 41.3″ |
| Travel: |
|---|
| X1 Axis Travel: 17.9″ |
| Y Axis Travel: +/- 4.53″ |
| Z1 Axis Travel: 31.4″ |
| X2 Axis Travel: 6.2″ |
| Z2 Axis Travel: 28.7″ |
| B Axis Travel: 240 Degree |
| C Axis: 360 Degree (0.001) |
| X Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Y Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Z Rapid Traverse Rate: 1968.5 Inch Per Minute |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 15 HP |

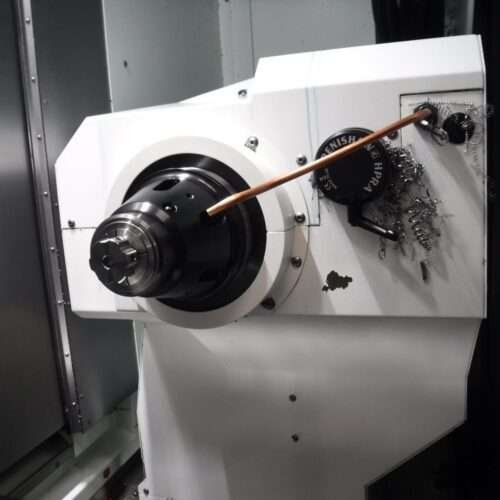

| Sub Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.0″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 15 HP |
| Tool Spindle (Turret 1): |
|---|
| Single Station Pendulum Head |
| Tool Type: Capto C-5 Taper |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 12 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 76 Tools |
| Max Tool Diameter (without Adjacent Tools: 5.1″ |
| Max Tool Diameter (with Adjacent Tools: 2.7″ |
| Max Tool Length: 9.8″ |
| Max Tool Weight: 11 lbs. |
| Tool Changing Time: 2.26 Seconds |
| Turret 2: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.19 Second |
| Max Rotary Tool Spindle Speed: 10000 RPM |
| Rotary Tool Motor: 1.5 HP |
| General: |
|---|

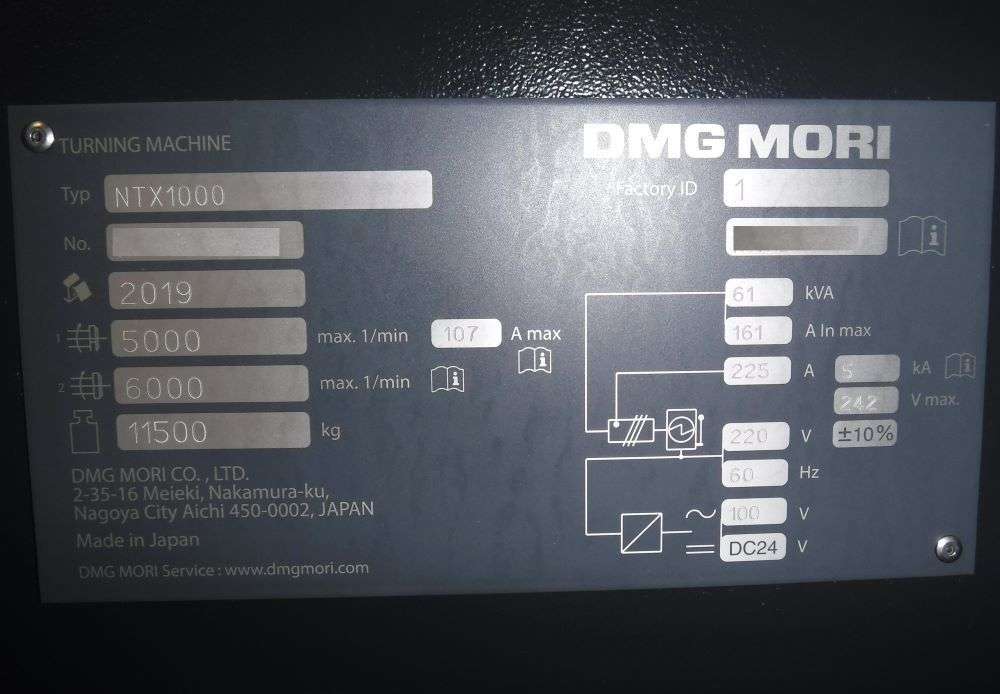

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 61 kva |
| Overall Dimensions: 178.5″ x 100.1″ x 101.8″ High |
| Weight : 25,353 lbs Approx. |
