*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115009 |

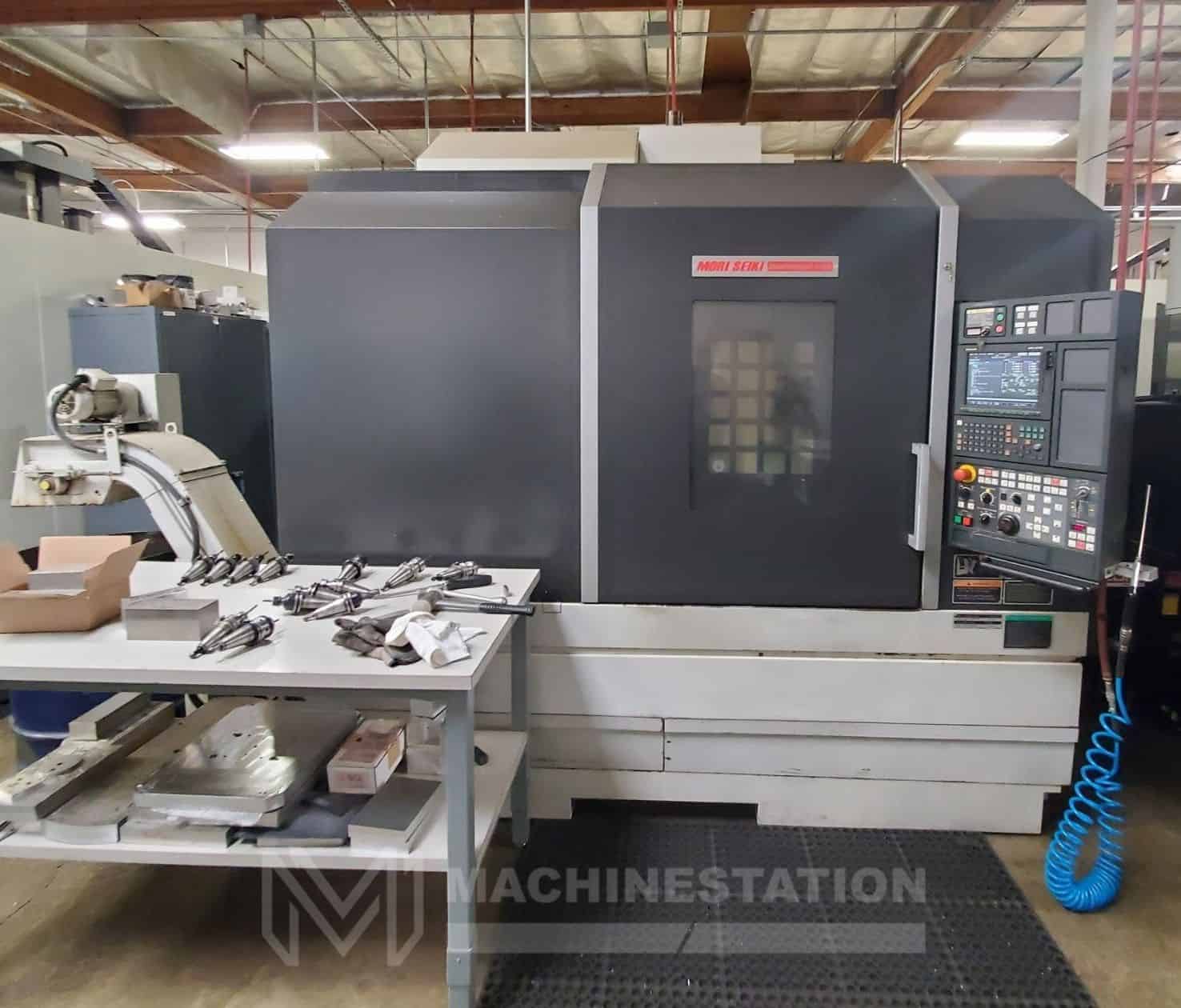

| Make: | Mori Seiki |
| Model: | DuraVertical 5100 |
| Year: | 2006 |
| Features: |
|---|

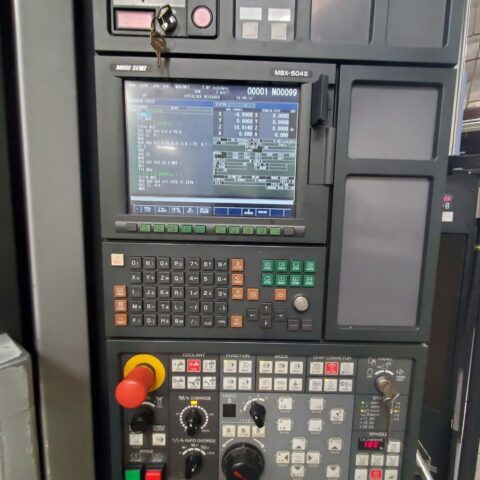

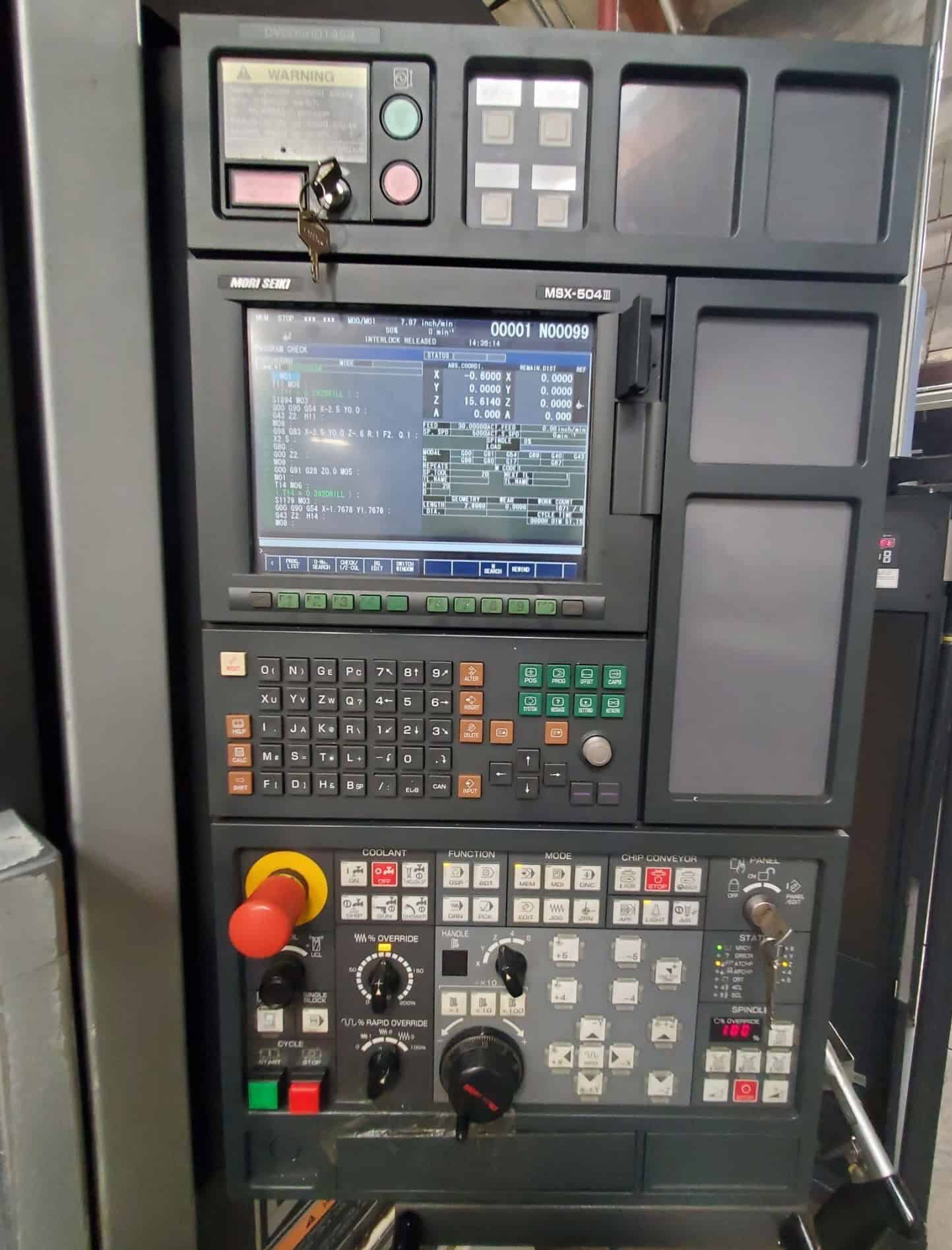

| Mori Seiki MSX-504III Series CNC Control |
| 4th Axis Ready |
| Renishaw Probing System with Tool Presetter |
| CAT-40 Taper 10000 RPM Spindle |
| 30 Station Side Mounted Tool Changer |
| PCMCIA Card Slot |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 20.9″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |

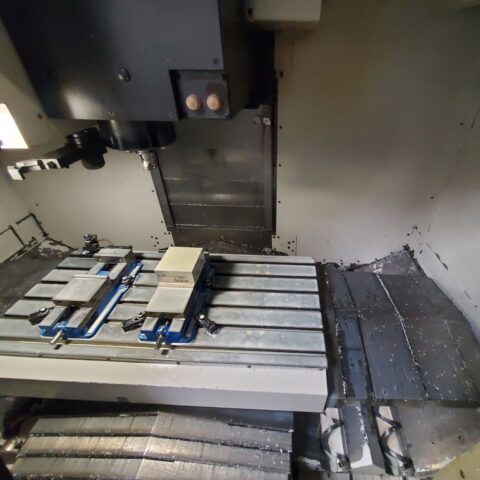

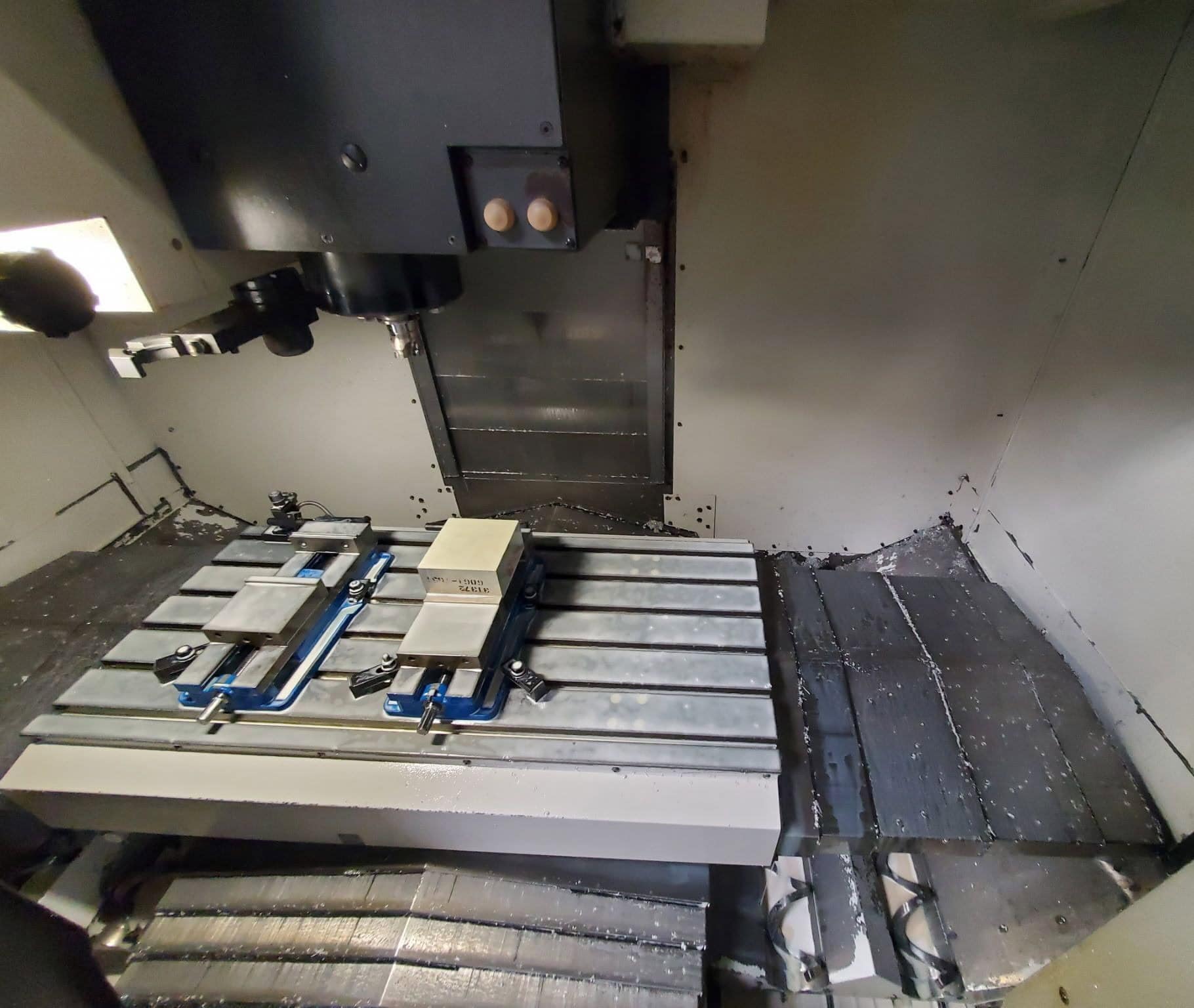

| Table: |
|---|
| Length: 53.1″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2645 lbs |

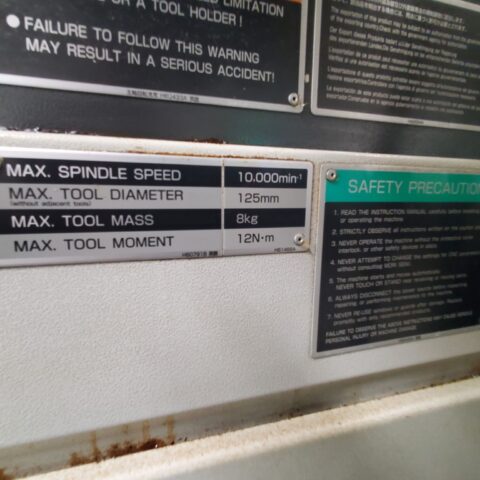

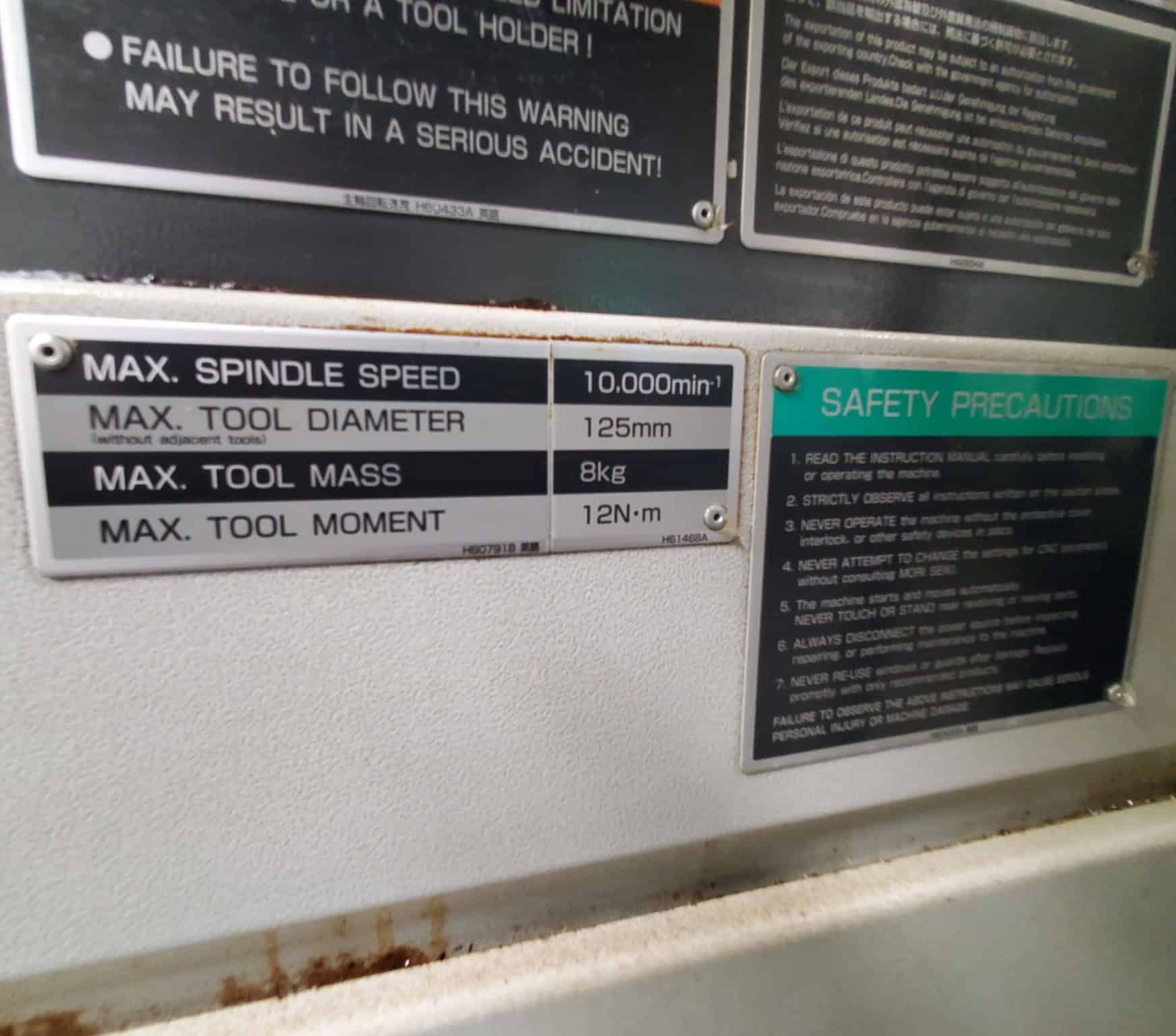

| Spindle: |
|---|
| Spindle: Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Tool Weight: 17.63 lbs |
| Max Tool Dia: 4.9″ |
| Max Tool Length: 11.8″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

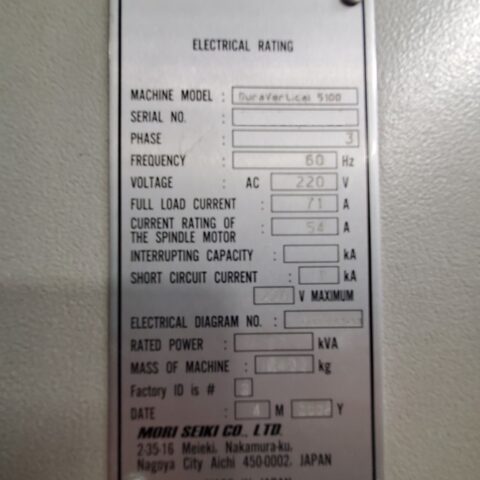

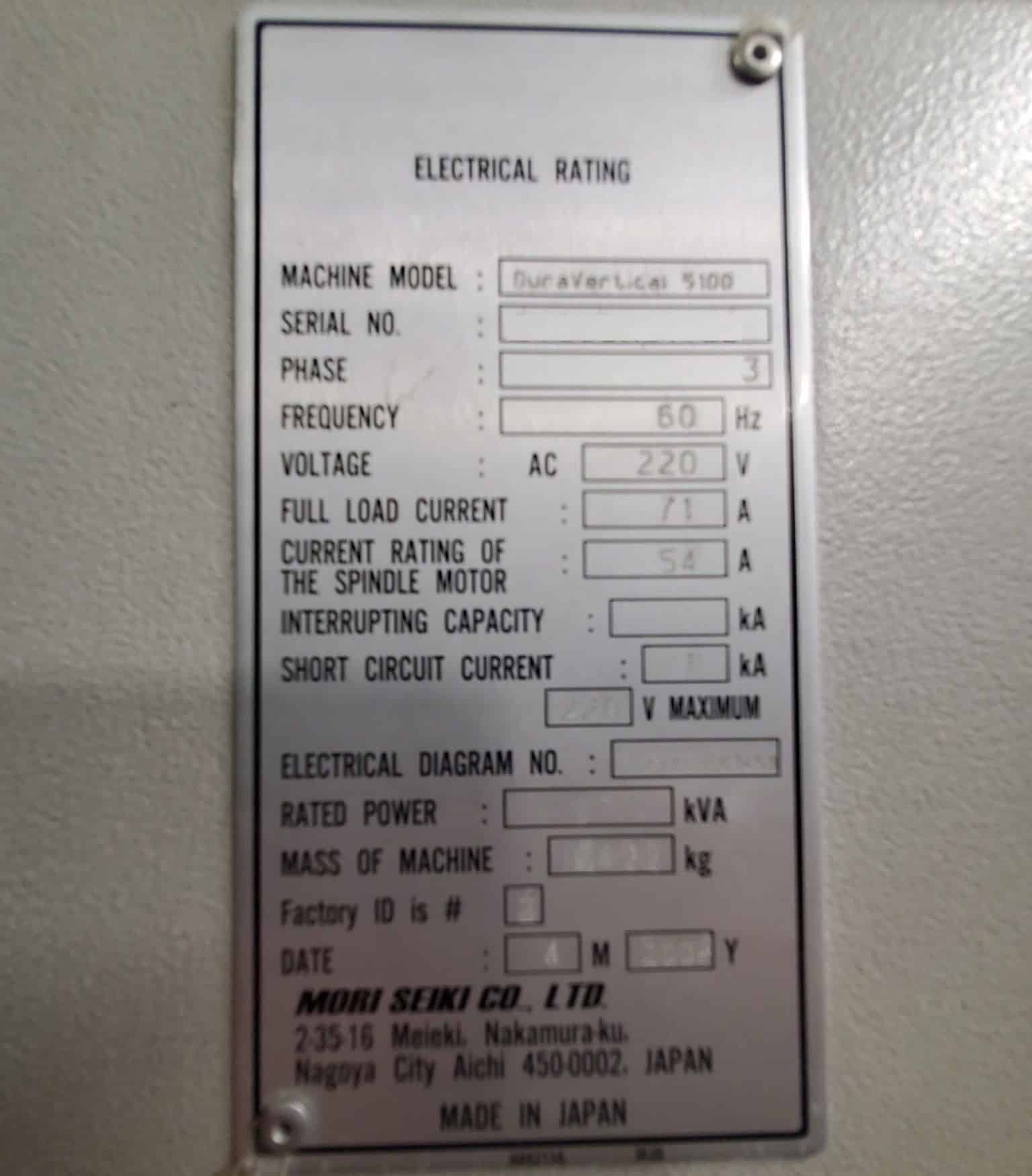

| Power: 220v / 3-Phase |
| Overall Dimensions: 132″ x 95″ x 105″ High |
| Weight: 16,000 lbs |
