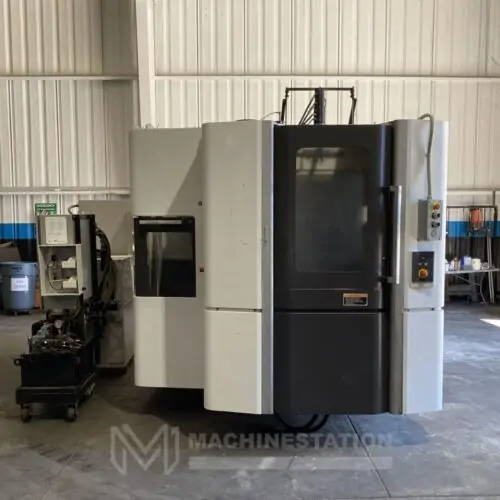

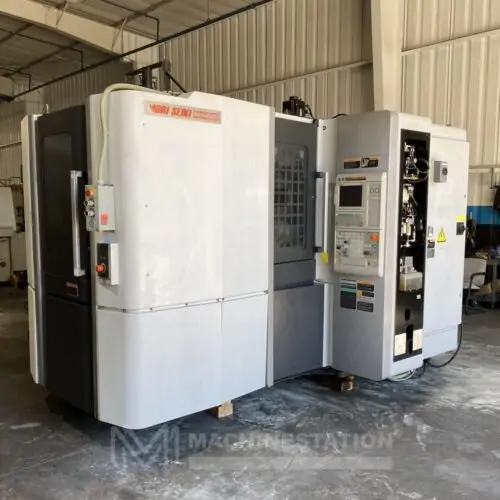

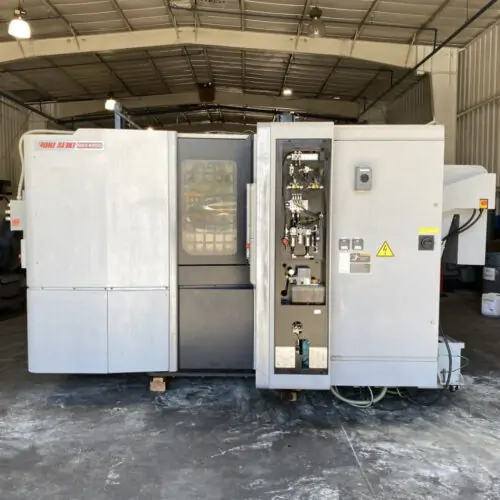

Used DMG Mori Seiki NHX 4000 Horizontal Machining Center (2011)

DMG Mori Seiki NHX-4000 Horizontal Machining Center – Mill

Location Lake Elsinore, CA

SKU 112427

Make/Model DMG Mori Seiki NHX-4000

Year 2011

Country Origin Japan

Video No Video

Out of stock

Location:	Lake Elsinore, CA
SKU:	112427
Make/Model:	DMG Mori Seiki NHX-4000
Year:	2011
Country Origin:	Japan
Video:	No Video

SKU: 112427

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	DMG Mori Seiki
Model:	NHX4000
Year:	2011
Cutting Hours:	Only

Features:

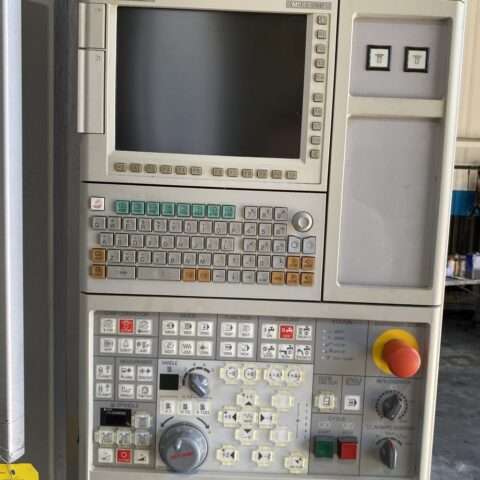

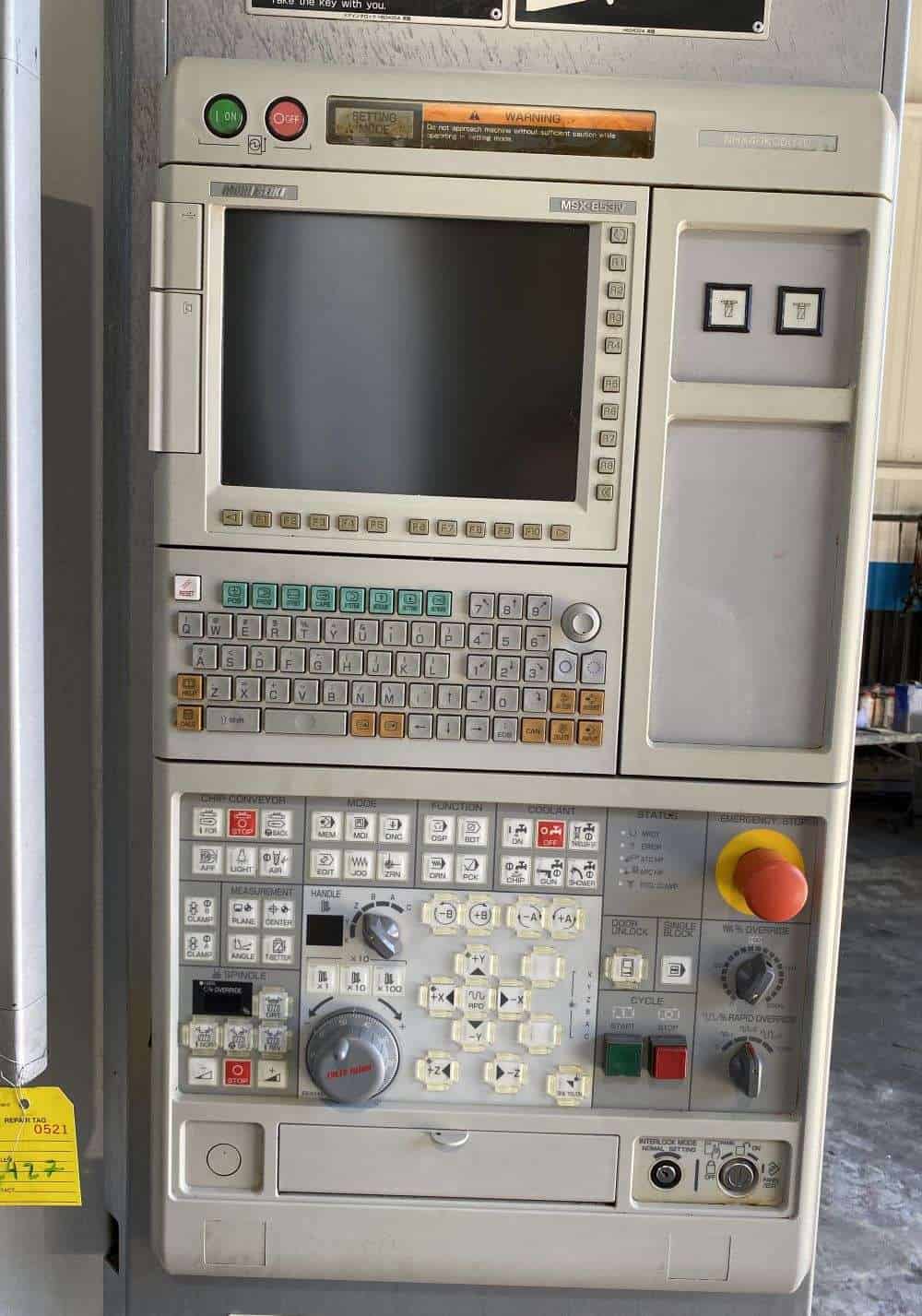

Mori Seiki MSX-853IV CNC Control
Full 4th Axis
12,000 RPM High Precision Spindle
Coolant through Spindle
Twin Pallet Changer
40 Station High Speed Tool Changer
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate

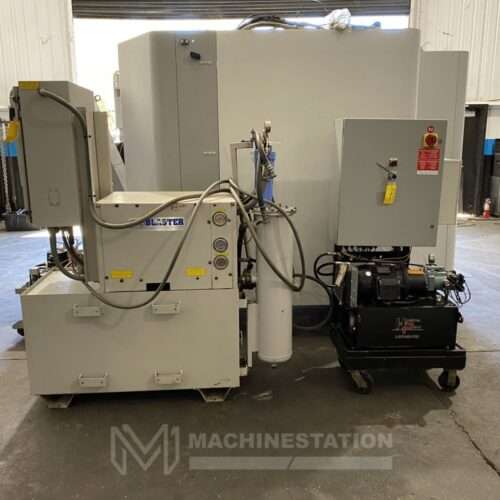

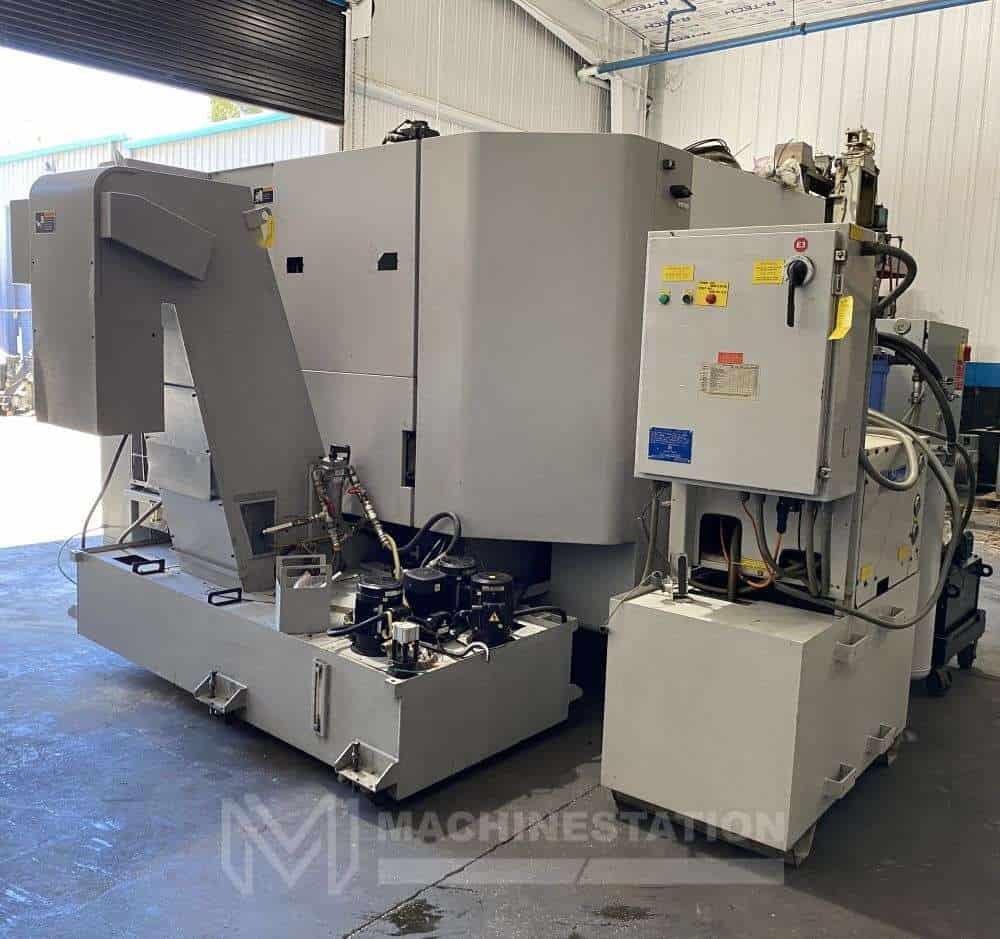

Flood coolant with large separate coolant tank

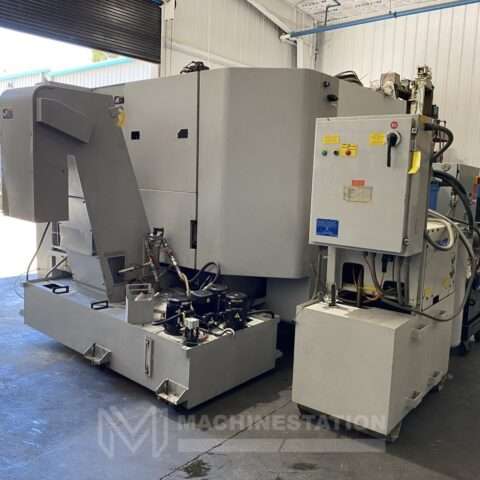

Chip Conveyor
Work light

Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 26.0″
B Axis: 0.001° ( Full 4th )

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds

Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs

Feed rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

Tool changer:
Capacity: 40 Tools
Taper: 40
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm

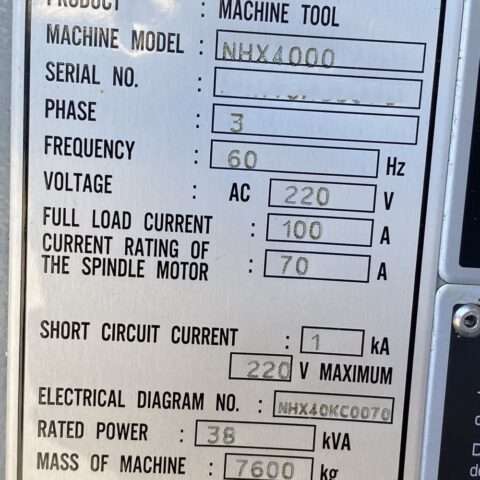

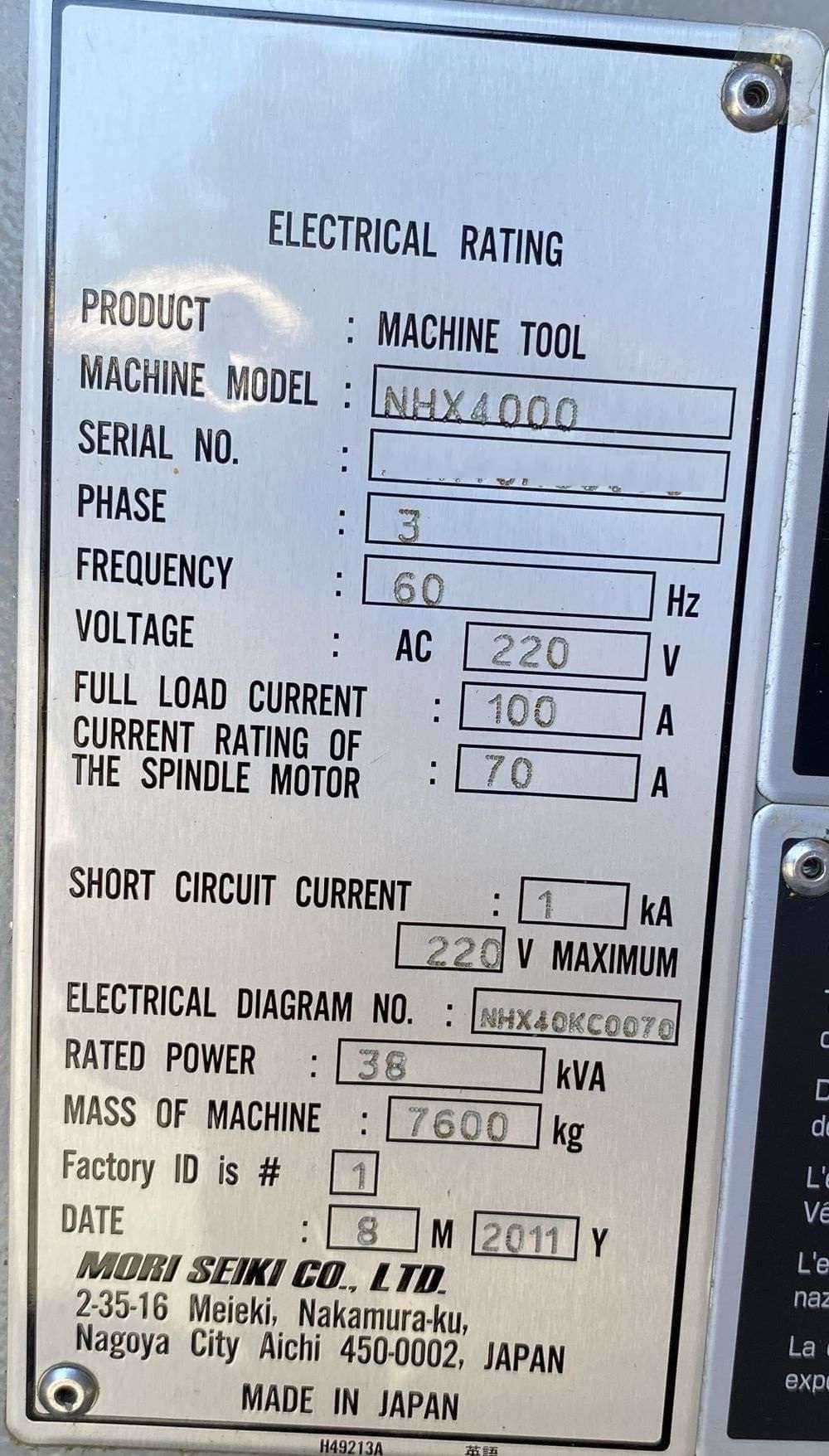

Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 100″ High
Weight: 16,755 lbs

Tags: DMG, DMG MORI, DMG Mori Seiki

Travels:
X Axis: 559 mm
Y Axis: 559 mm
Z Axis: 660 mm
B Axis: 0.001° ( Full 4th )

Table:
Length: 399 mm
Width: 399 mm
Max Weight on Table: 882 lbs
Max Workpiece Height: 899 mm
Index Time: 8 seconds

Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs

Feed rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

Tool changer:
Capacity: 40 Tools
Taper: 40
Max Tool Size: 168 mm
Max Tool Length: 450 mm
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm
Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 4,191 mm X 2,667 mm x 2,540 mm High
Weight: 16,755 lbs

Make	DMG Mori, Mori Seiki
Model	NHX-4000

Mori Seiki MSX-853IV CNC Control
Full 4th Axis
12,000 RPM High Precision Spindle
Coolant through Spindle
Twin Pallet Changer
40 Station High Speed Tool Changer
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
