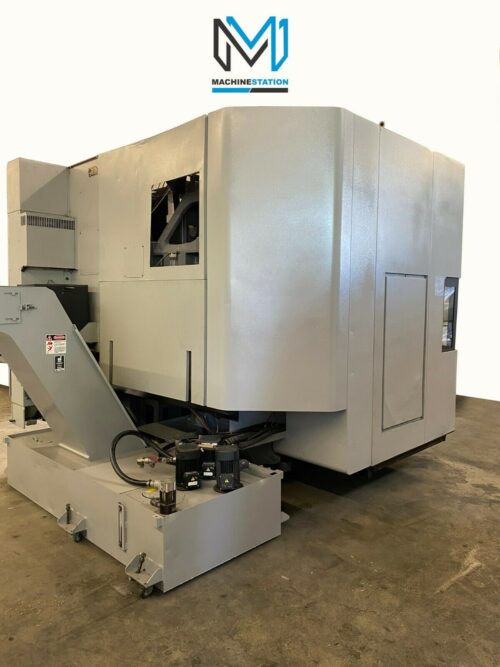

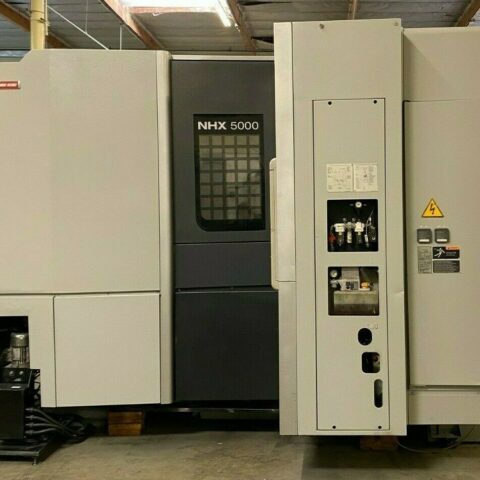

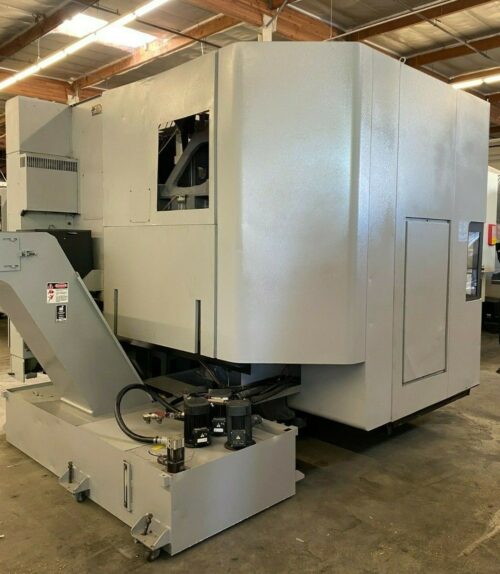

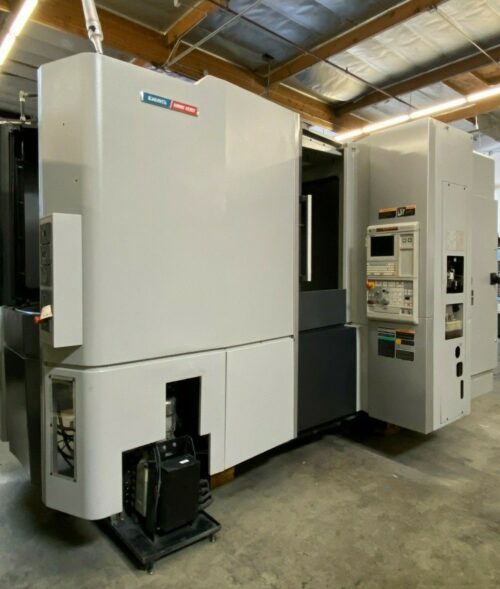

DMG Mori Seiki NHX-5000 Horizontal Machining Center

DMG Mori Seiki NHX-5000 Horizontal Machining Center – HMC

SKU 111971

Location Lake Elsinore, CA

Make/Model DMG Mori Seiki NHX-5000

Out of stock

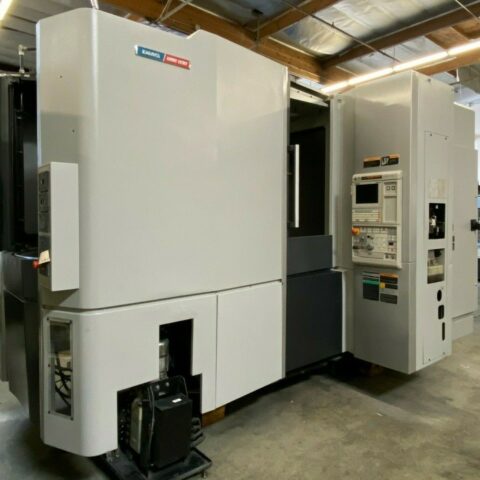

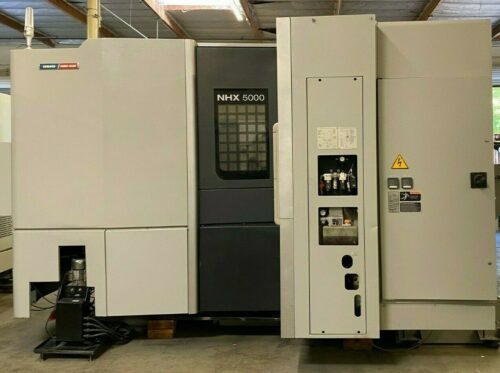

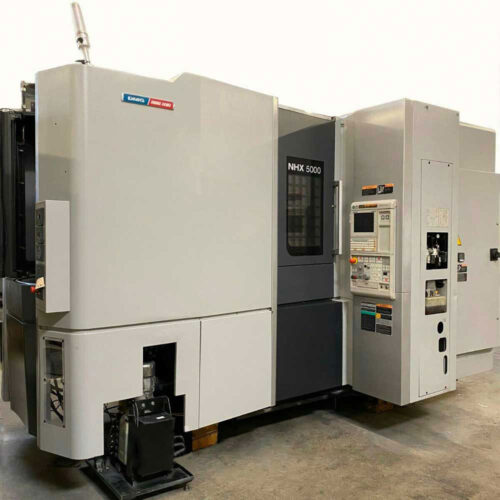

Used DMG Mori Seiki NHX-5000 Horizontal Machining Center for Sale.

SKU:	111971
Location:	Lake Elsinore, CA
Make/Model:	DMG Mori Seiki NHX-5000

SKU: 111971

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	DMG Mori Seiki
Model:	NHX-5000
Year:	2013

Features:

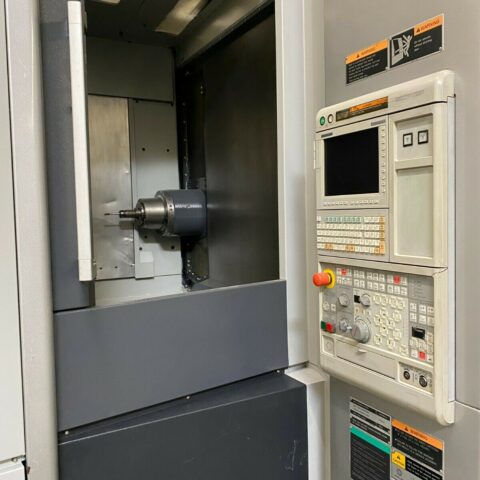

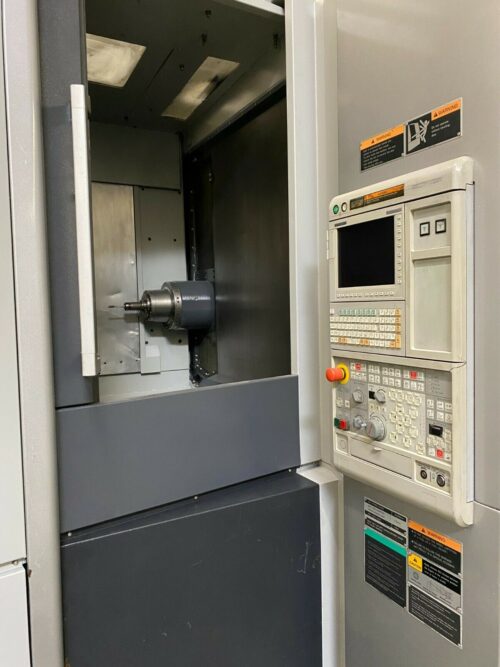

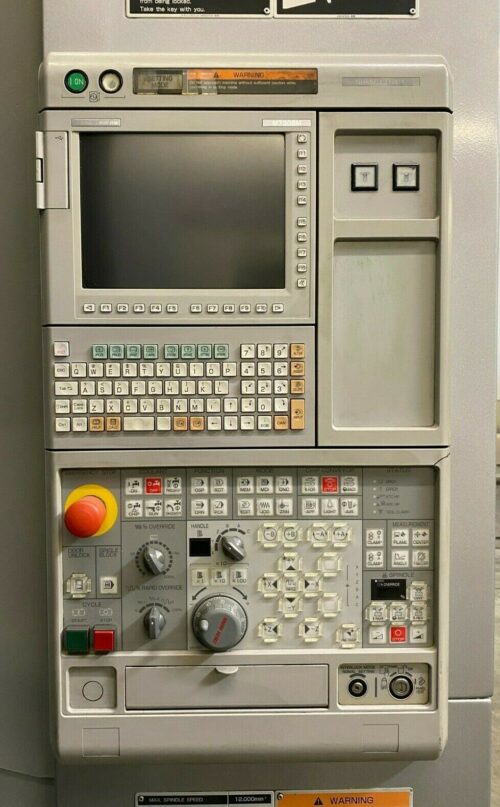

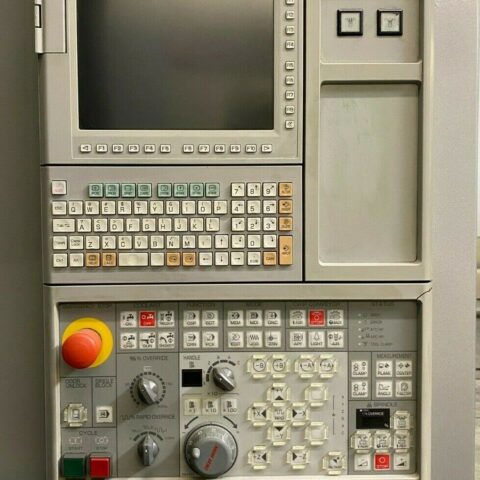

M730BM CNC Control with MAPPS
Full 4th Axis

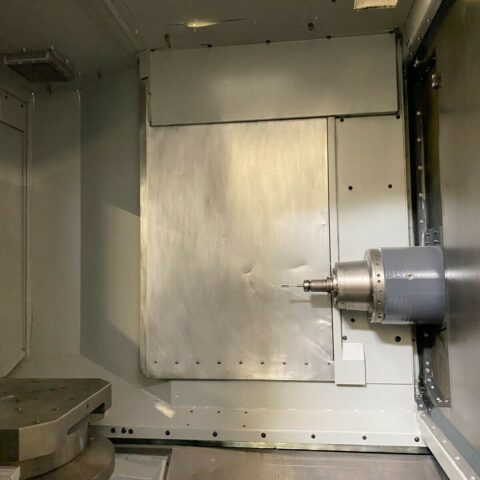

12,000 RPM High Precision Spindle
Coolant through Spindle

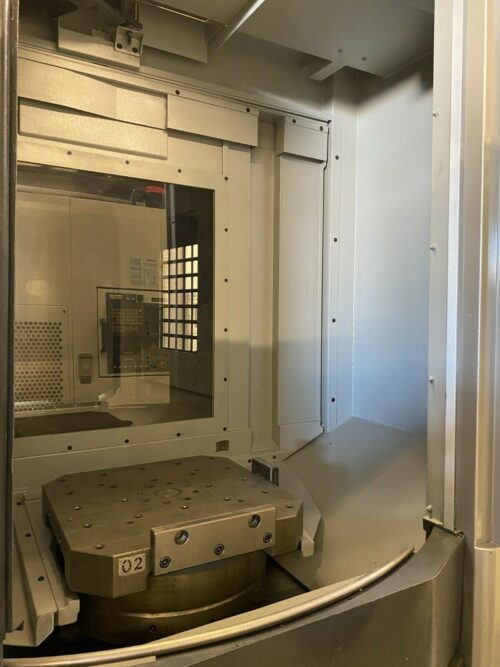

Twin Pallet Changer

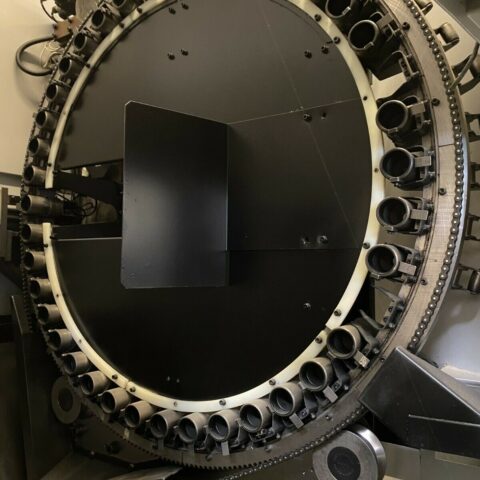

40 High Speed Tool Changer
Scales on the Axis
USB Ports
50 MB Memory
Paller Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
48 Work Coordinate / offset System
200 Tool Coordinate / Offset
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank

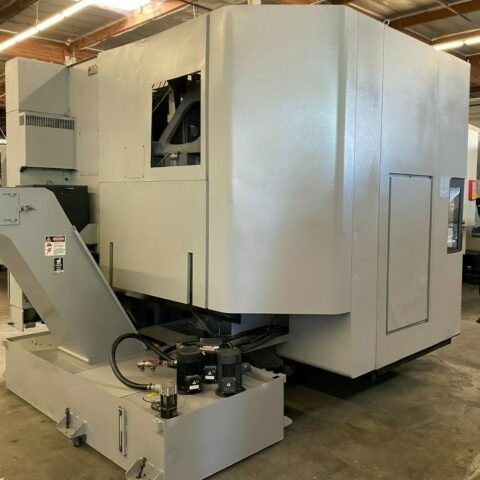

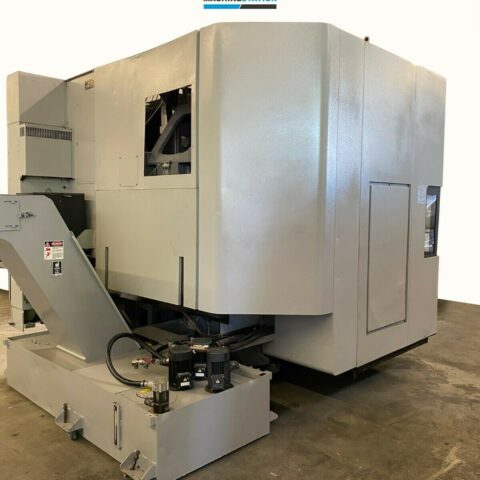

Chip Conveyor (missing belt)
Work light

Travels:
X Axis: 28.7″
Y Axis: 28.7″
Z Axis: 34.5″
B Axis: 0.001° ( Full 4th )

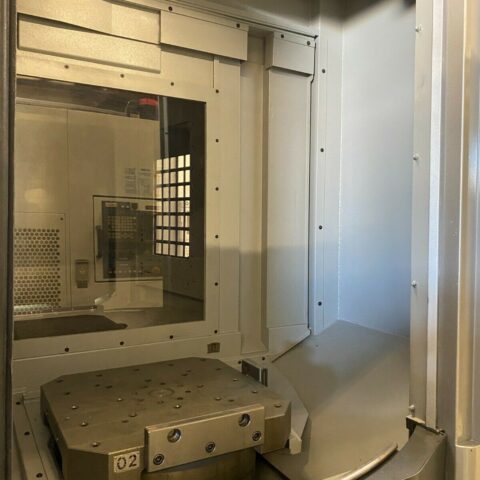

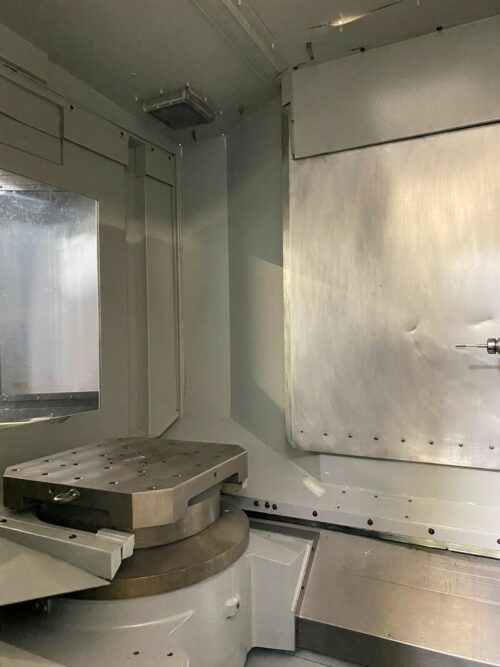

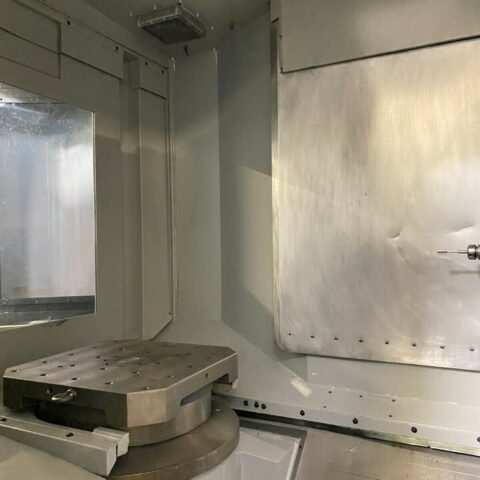

Table:
Length: 19.7″
Width: 19.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds

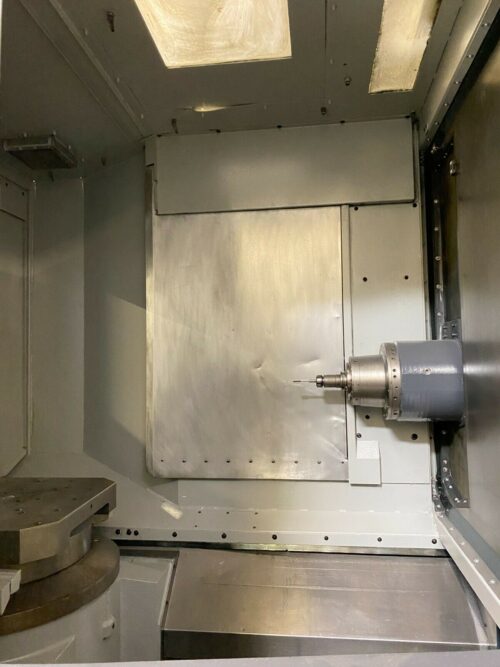

Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs

Feed rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

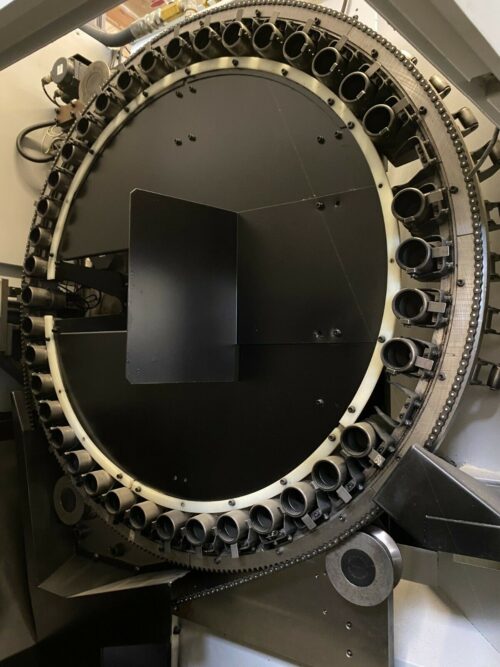

Tool changer:
Capacity: 40 Tools
Taper: 40
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second

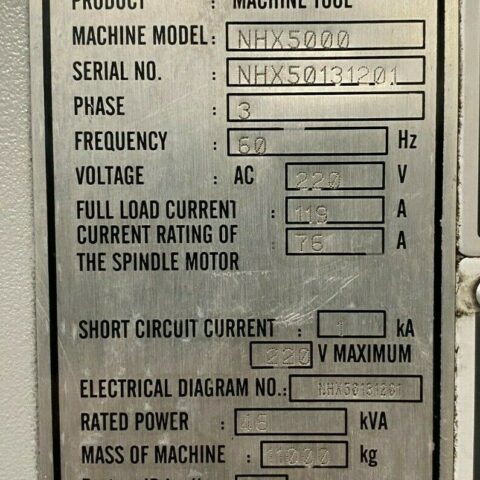

General:
Air Required: 90 psi, 4 scfm

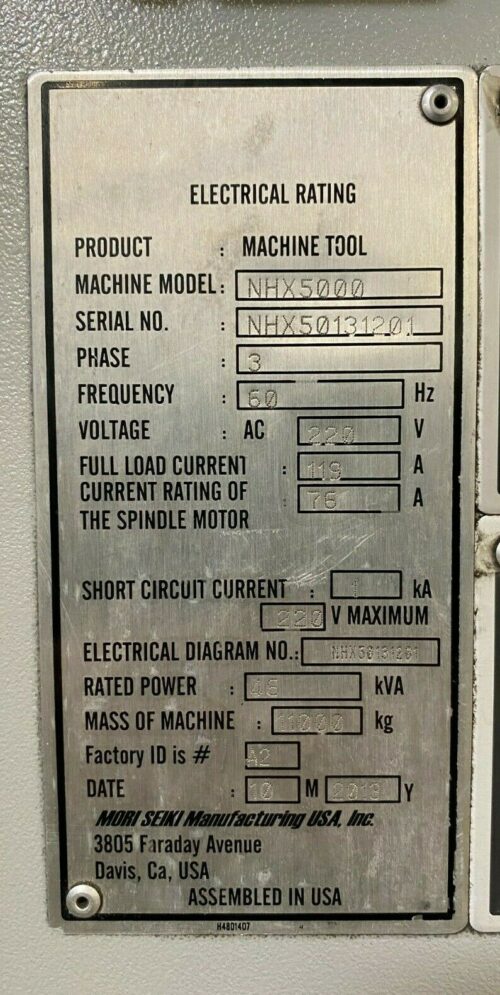

Power: 45kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 100″ High ?
Weight: 22,000 lbs

Tags: DMG MORI, DMG Mori Seiki

Travels:
X Axis: 729 mm
Y Axis: 729 mm
Z Axis: 876 mm
B Axis: 0.001° ( Full 4th )

Table:
Length: 500 mm
Width: 500 mm
Max Weight on Table: 882 lbs
Max Workpiece Height: 899 mm
Index Time: 8 seconds

Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs

Feed rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

Tool changer:
Capacity: 40 Tools
Taper: 40
Max Tool Size: 168 mm
Max Tool Length: 450 mm
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm
Power: 45kva / 205-220v / 3-Phase
Overall Dimensions: 4,191 mm X 2,667 mm x 2,540 mm High ?
Weight: 22,000 lbs

Make	DMG Mori, Mori Seiki
Model	NHX-5000
Categories	CNC Horizontal Machining Center

M730BM CNC Control with MAPPS
Full 4th Axis
12,000 RPM High Precision Spindle
Coolant through Spindle
Twin Pallet Changer
40 High Speed Tool Changer
Scales on the Axis
USB Ports
50 MB Memory
Paller Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
48 Work Coordinate / offset System
200 Tool Coordinate / Offset
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor (missing belt)
Work light
