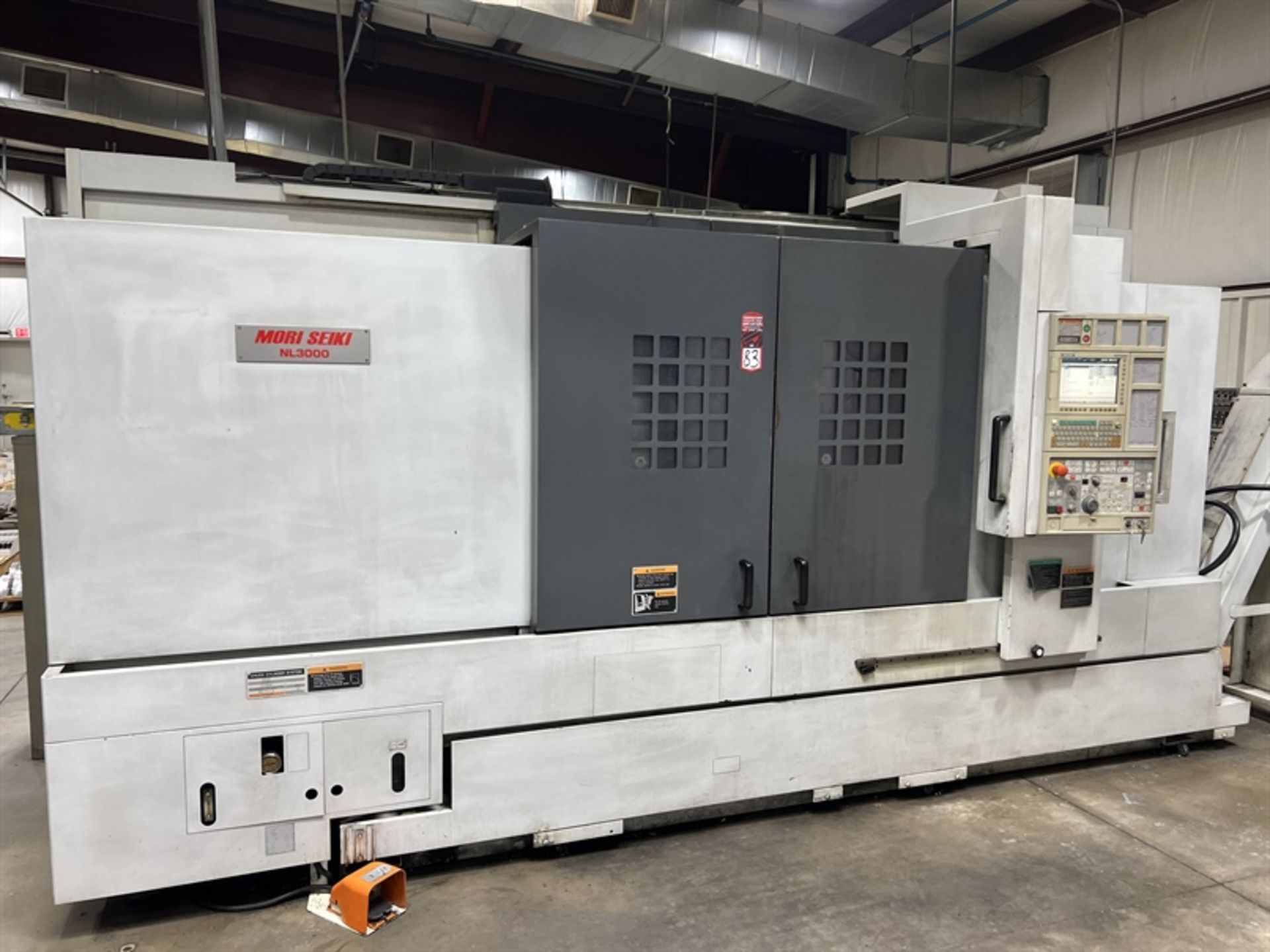

Used DMG MORI SEIKI NL3000MC/1250 CNC Turning Center

DMG MORI SEIKI NL3000MC/1250 CNC Turning Center – 2011

SKU 11060

Make/Model DMG MORI SEIKI NL3000MC/1250

Year 2011

Condition Used - Good

Video On Request

Out of stock

SKU:	11060
Make/Model:	DMG MORI SEIKI NL3000MC/1250
Year:	2011
Condition:	Used – Good
Video:	On Request

SKU: 11060

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

Make:	DMG MORI SEIKI
Model:	NL3000MC/1250
Condition:	Used

Equipped With:

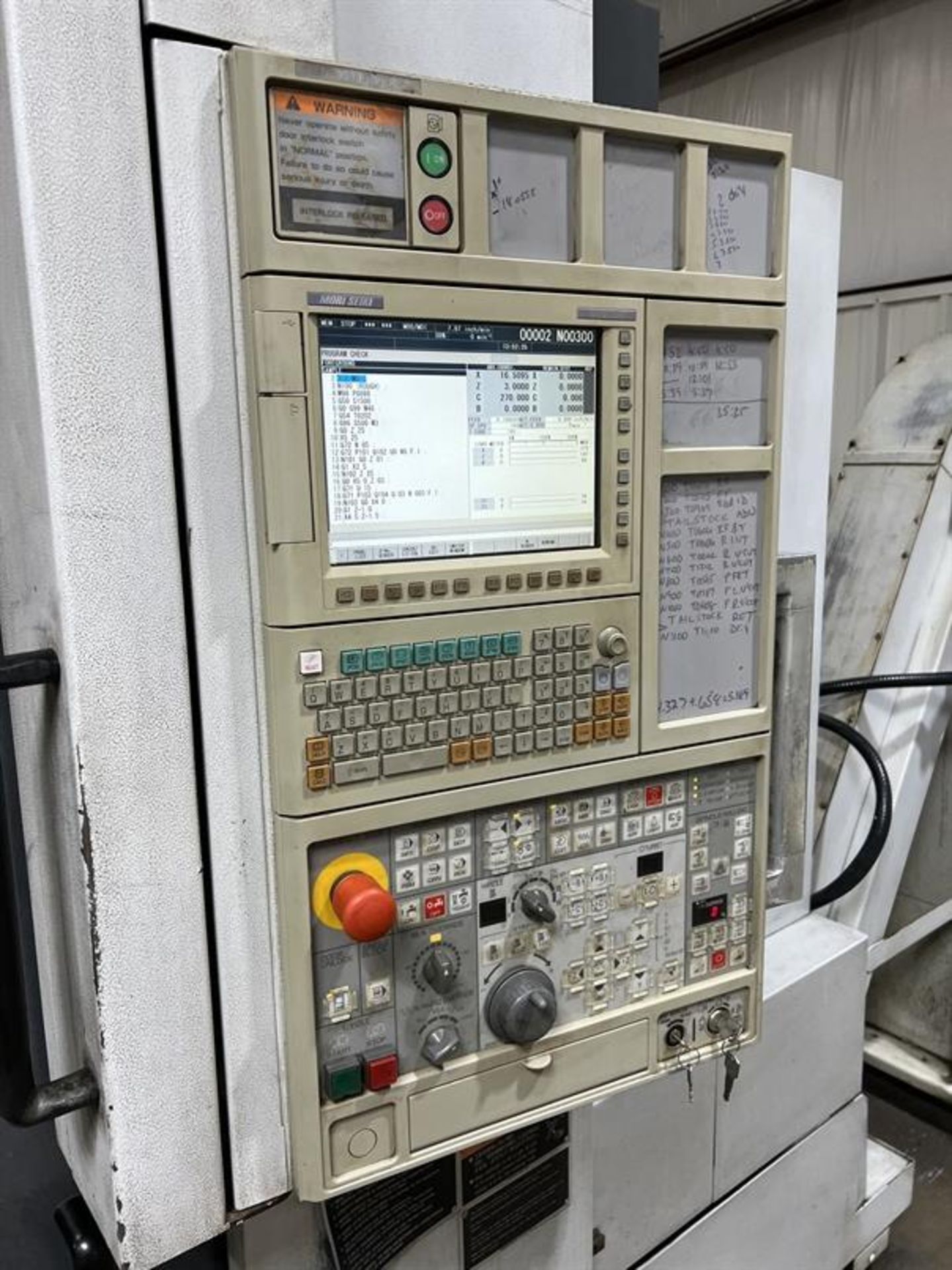

MAPPS IV CNC Control
Milling Capability (MC)
C-Axis Control
Live Tooling
Servo-Driven Turret
Box-Way Construction
Automatic Lubrication System
Coolant System
Full Enclosure

Capacity:
Max Turning Diameter: 17.7″
Max Turning Length: 49.2″
Swing Over Bed: 31.5″
Swing Over Saddle: 26.0″
Bar Capacity: 4.0″

Travels:
X-Axis Travel: 12.4″
Z-Axis Travel: 52.4″

Feedrates:
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,417 IPM

Main Spindle:
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
Spindle Bore: 4.0″

Milling:
Live Tool Speed: 6,000 RPM
Live Tool Motor: 10 HP
C-Axis Indexing: 0.001°

Turret:
Turret Capacity: 12 Stations
Max Tool Size (OD): 1.0″ × 1.0″
Max Boring Bar: 1.97″
Index Time: 0.2 sec

General:
Power Requirement: 220V / 3-Phase
Machine Weight (Approx.): 20,500 lbs
Overall Dimensions (Approx.): 220″ × 85″ × 90″

Equipped With:
MAPPS IV CNC Control
Milling Capability (MC)
C-Axis Control
Live Tooling
Servo-Driven Turret
Box-Way Construction
Automatic Lubrication System
Coolant System
Full Enclosure

Capacity:
Max Turning Diameter: 450 mm
Max Turning Length: 1,250 mm
Swing Over Bed: 800 mm
Swing Over Saddle: 660 mm
Bar Capacity: 102 mm

Travels:
X-Axis Travel: 315 mm
Z-Axis Travel: 1,331 mm

Feedrates:
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,417 IPM

Main Spindle:
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
Spindle Bore: 102 mm

Milling:
Live Tool Speed: 6,000 RPM
Live Tool Motor: 10 HP
C-Axis Indexing: 0.001°

Turret:
Turret Capacity: 12 Stations
Max Tool Size (OD): 25 mm × 25 mm
Max Boring Bar: 50 mm
Index Time: 0.2 sec

General:
Power Requirement: 220V / 3-Phase
Machine Weight (Approx.): 20,500 lbs
Overall Dimensions (Approx.): 5,588 mm × 2,159 mm × 2,286 mm

Categories	CNC Lathes & Turning Centers
Make	DMG Mori
Model	NL3000MC/1250

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
