*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

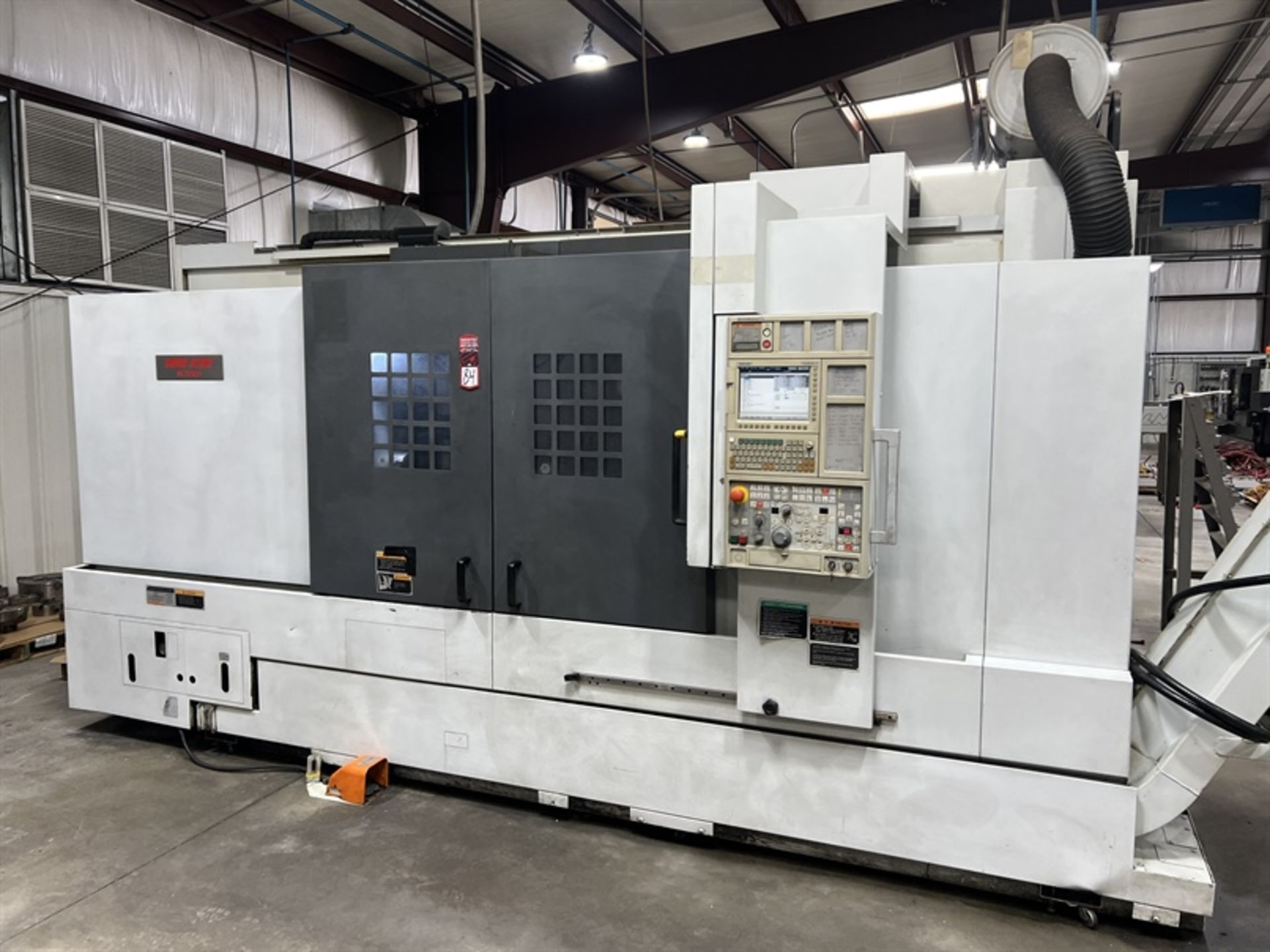

| Make: | DMG MORI SEIKI |
| Model: | NL3000Y/1250 |
| Condition: | Used |
| Equipped With: |
|---|

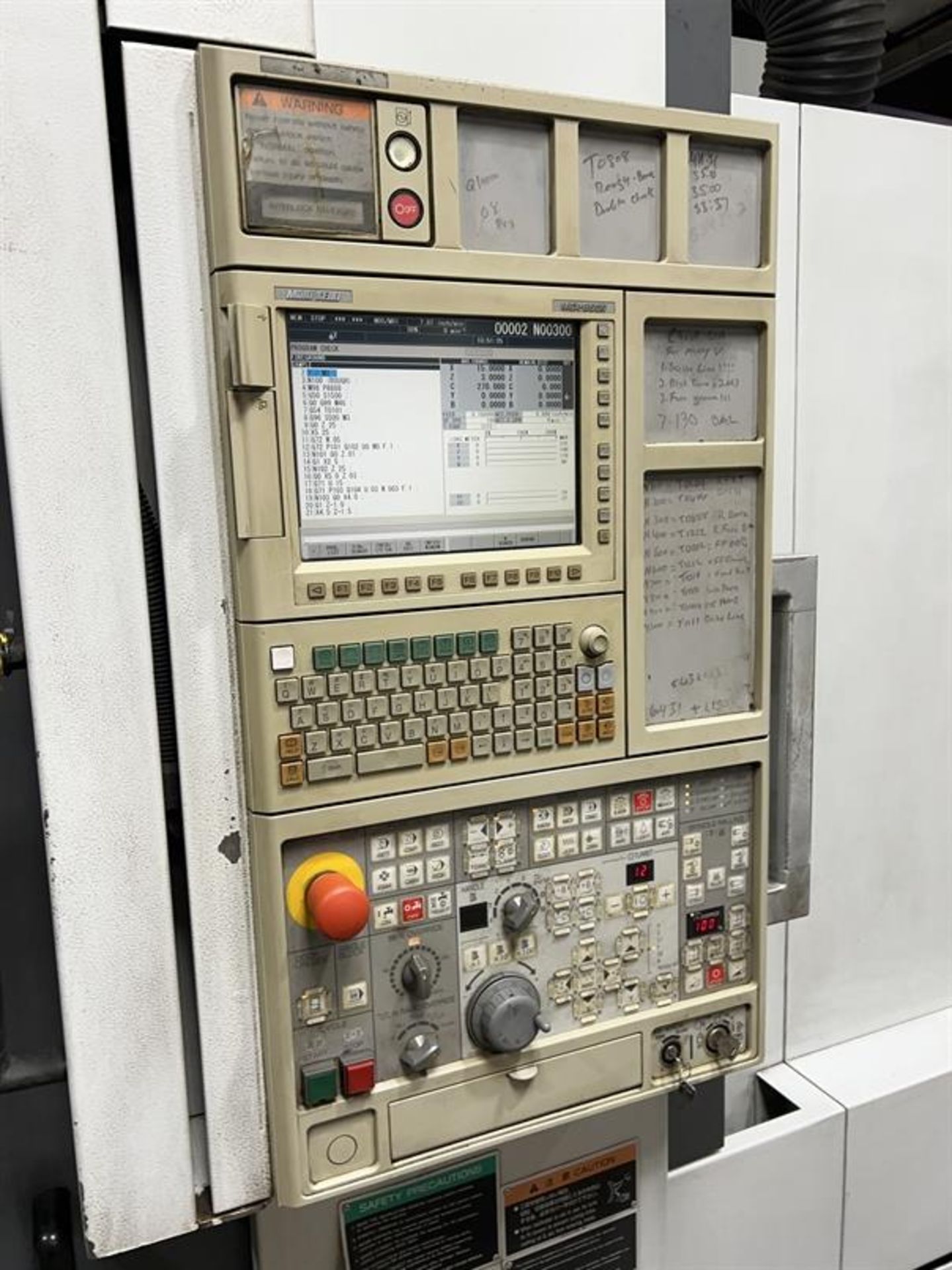

- MAPPS IV CNC Control
- Y-Axis Machining Capability
- C-Axis Control
- Live Tooling
- Servo-Driven Turret
- Box-Way Construction
- Automatic Lubrication System
- Coolant System
- Full Enclosure
|
| Capacity: |
|---|
- Max Turning Diameter: 17.7″
- Max Turning Length: 49.2″
- Swing Over Bed: 31.5″
- Swing Over Saddle: 26.0″
- Bar Capacity: 4.0″
|
| Travels: |
|---|
- X-Axis Travel: 12.4″
- Y-Axis Travel: ±3.9″
- Z-Axis Travel: 52.4″
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 1,181 IPM
- Rapid Traverse Y-Axis: 787 IPM
- Rapid Traverse Z-Axis: 1,417 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-8
- Spindle Speed: 4,000 RPM
- Spindle Motor: 40 HP
- Spindle Bore: 4.0″
|
| Milling / Y-Axis: |
|---|
- Live Tool Speed: 6,000 RPM
- Live Tool Motor: 10 HP
- C-Axis Indexing: 0.001°
|
| Turret: |
|---|
- Turret Capacity: 12 Stations
- Max Tool Size (OD): 1.0″ × 1.0″
- Max Boring Bar: 1.97″
- Index Time: 0.2 sec
|
| General: |
|---|
- Power Requirement: 220V / 3-Phase
- Machine Weight (Approx.): 21,600 lbs
- Overall Dimensions (Approx.): 220″ × 85″ × 90″
|
