*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

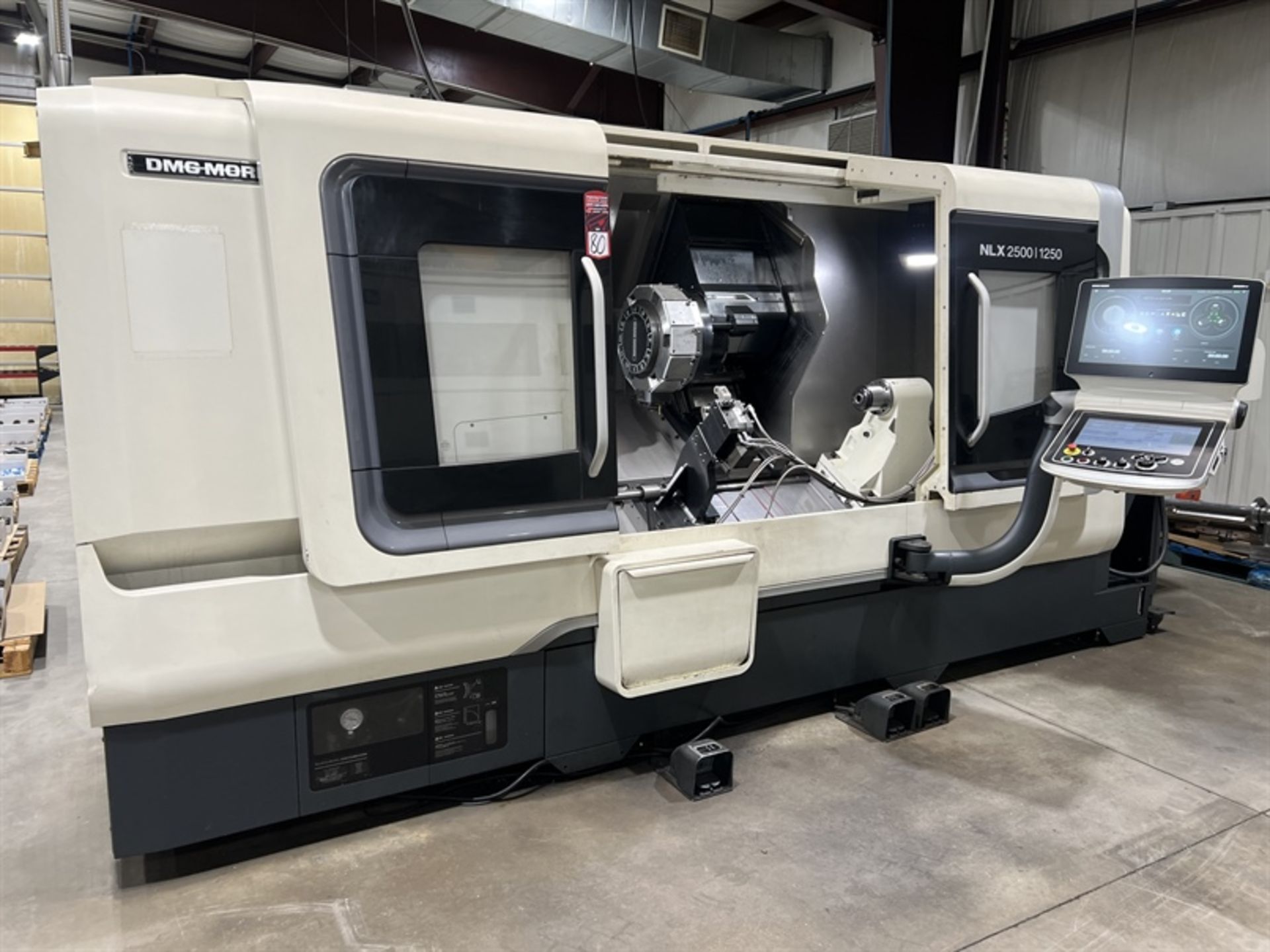

| Make: | DMG MORI SEIKI |
| Model: | NLX2500/1250 |
| Condition: | Used |
| Equipped With: |
|---|

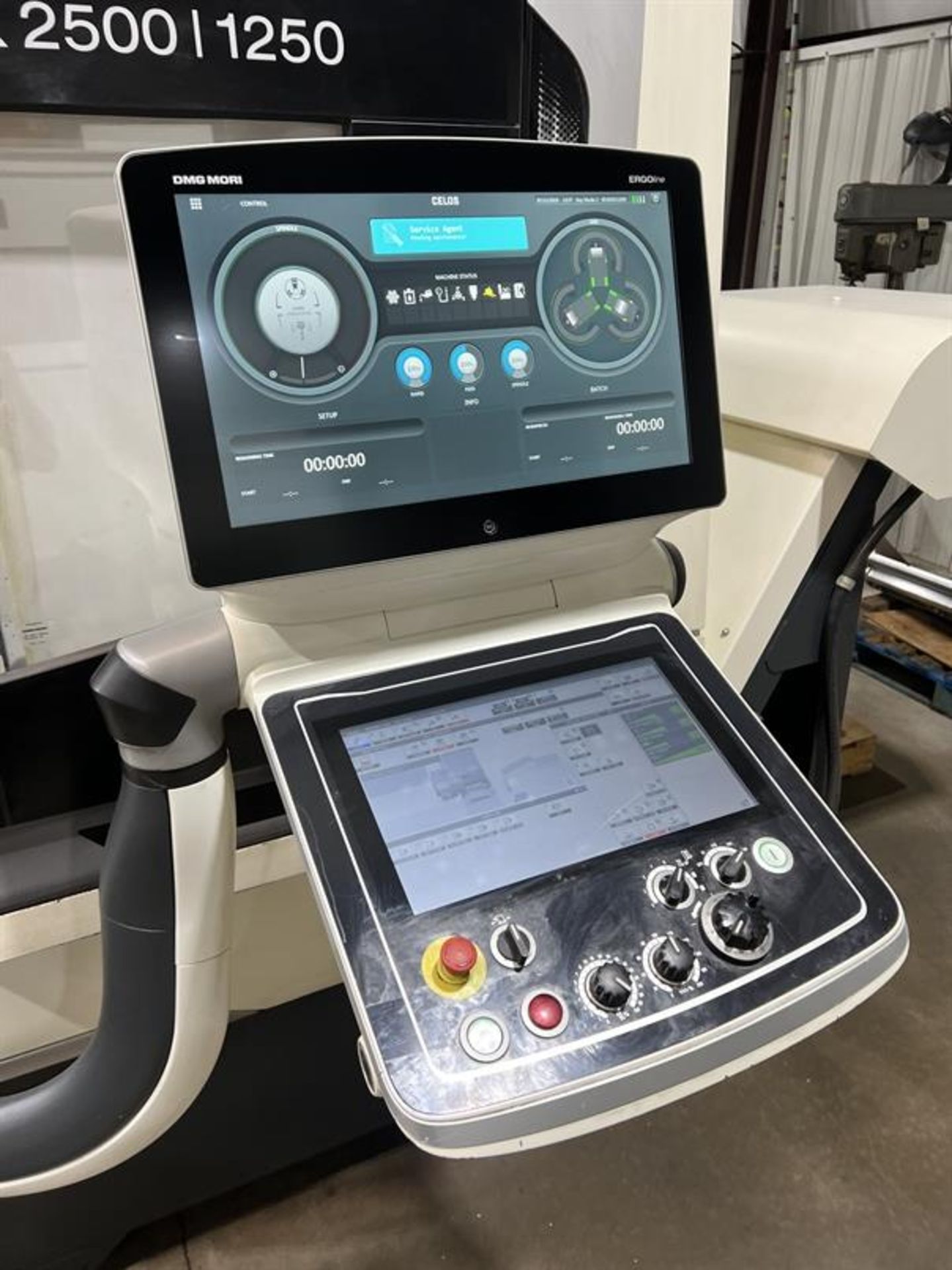

| MAPPS IV CNC Control |
| C-Axis Control |
| Box-Way Construction |
| Servo-Driven Turret |
| Programmable Tailstock |
| Automatic Lubrication System |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 14.6″ |
| Max Turning Length: 49.2″ |
| Swing Over Bed: 26.4″ |
| Swing Over Saddle: 23.6″ |
| Bar Capacity: 3.15″ |
| Travels: |
|---|
| X-Axis Travel: 10.0″ |
| Z-Axis Travel: 52.4″ |
| Feedrates: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Z-Axis: 1,417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 35 HP |
| Spindle Bore: 3.15″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Max Tool Size (OD): 1.0″ × 1.0″ |
| Max Boring Bar: 1.97″ |
| Index Time: 0.2 sec |
| Tailstock: |
|---|
| Programmable Tailstock |
| Quill Diameter: 3.15″ |
| Quill Travel: 39.4″ |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 17,600 lbs |
| Overall Dimensions (Approx.): 210″ × 88″ × 92″ |
