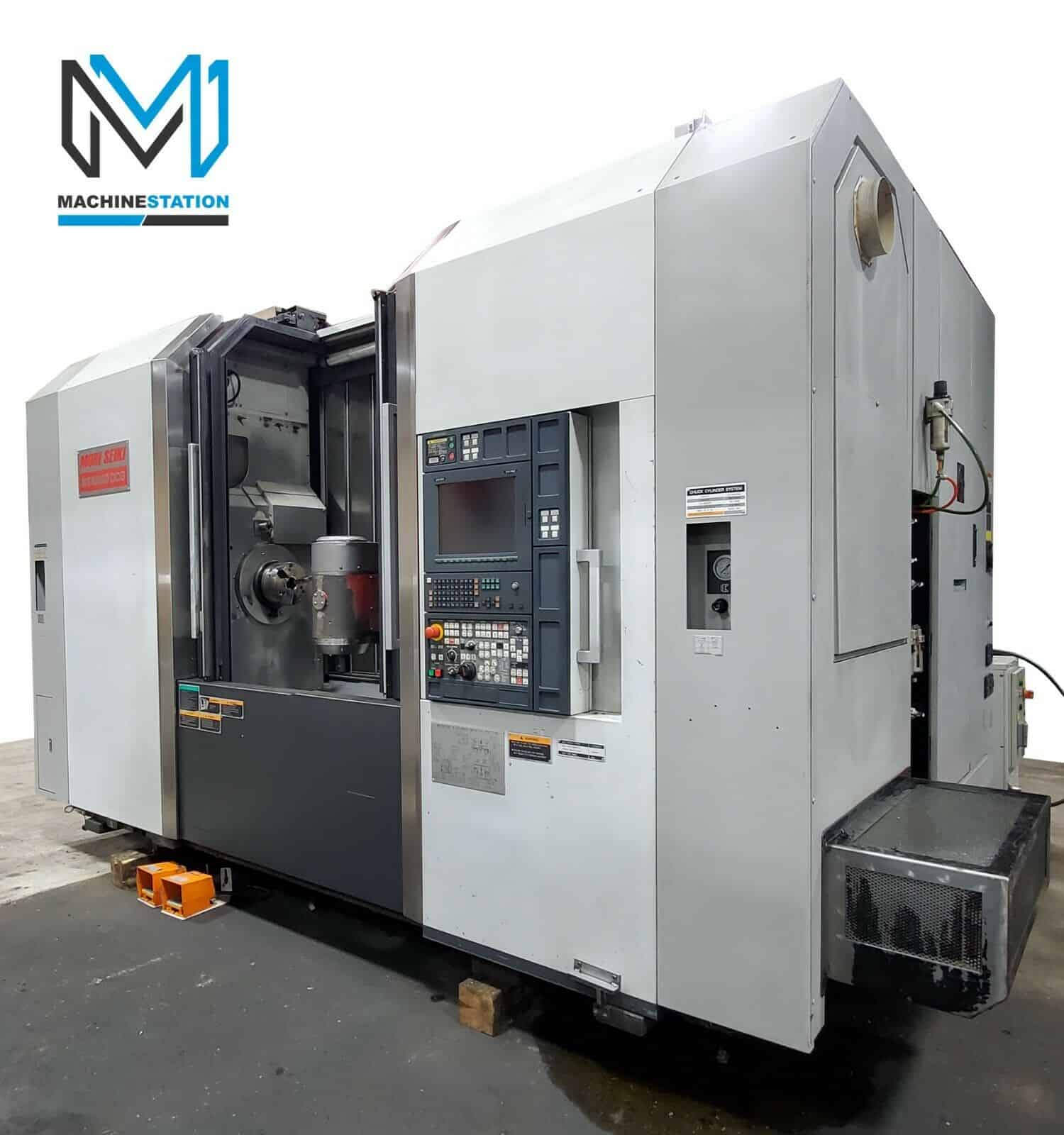

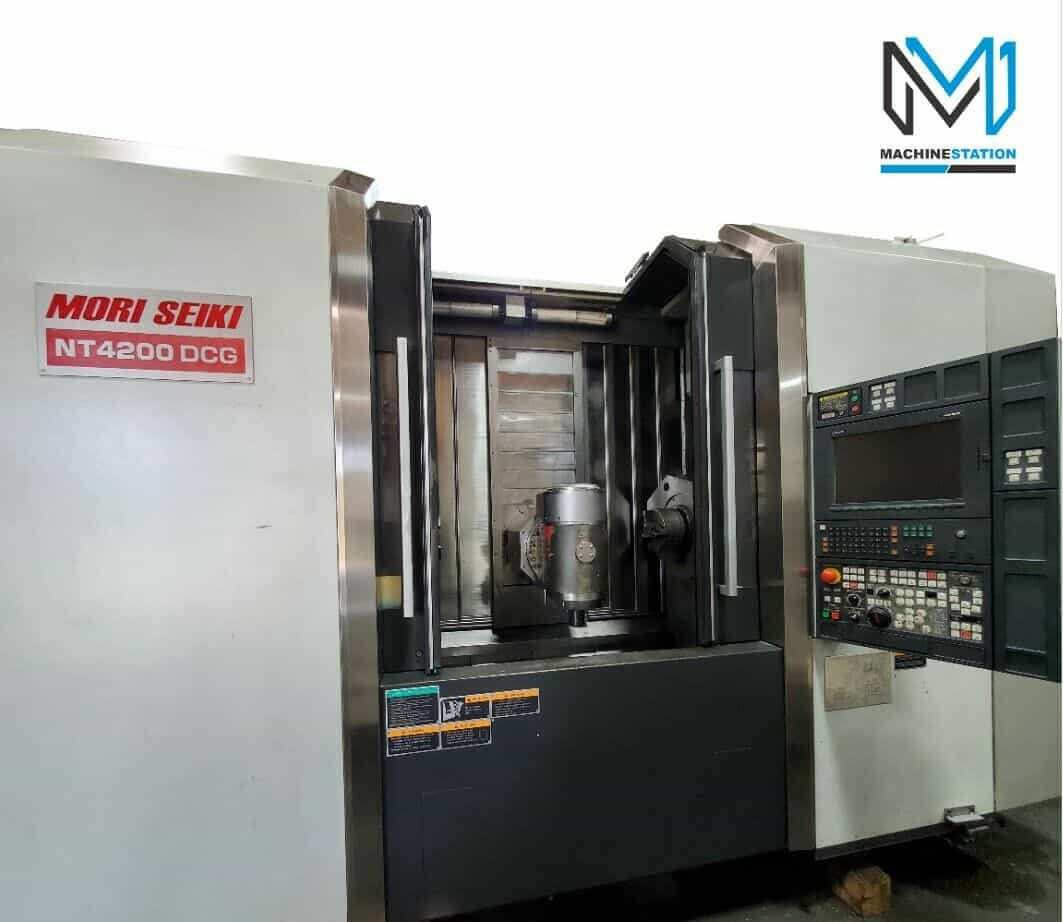

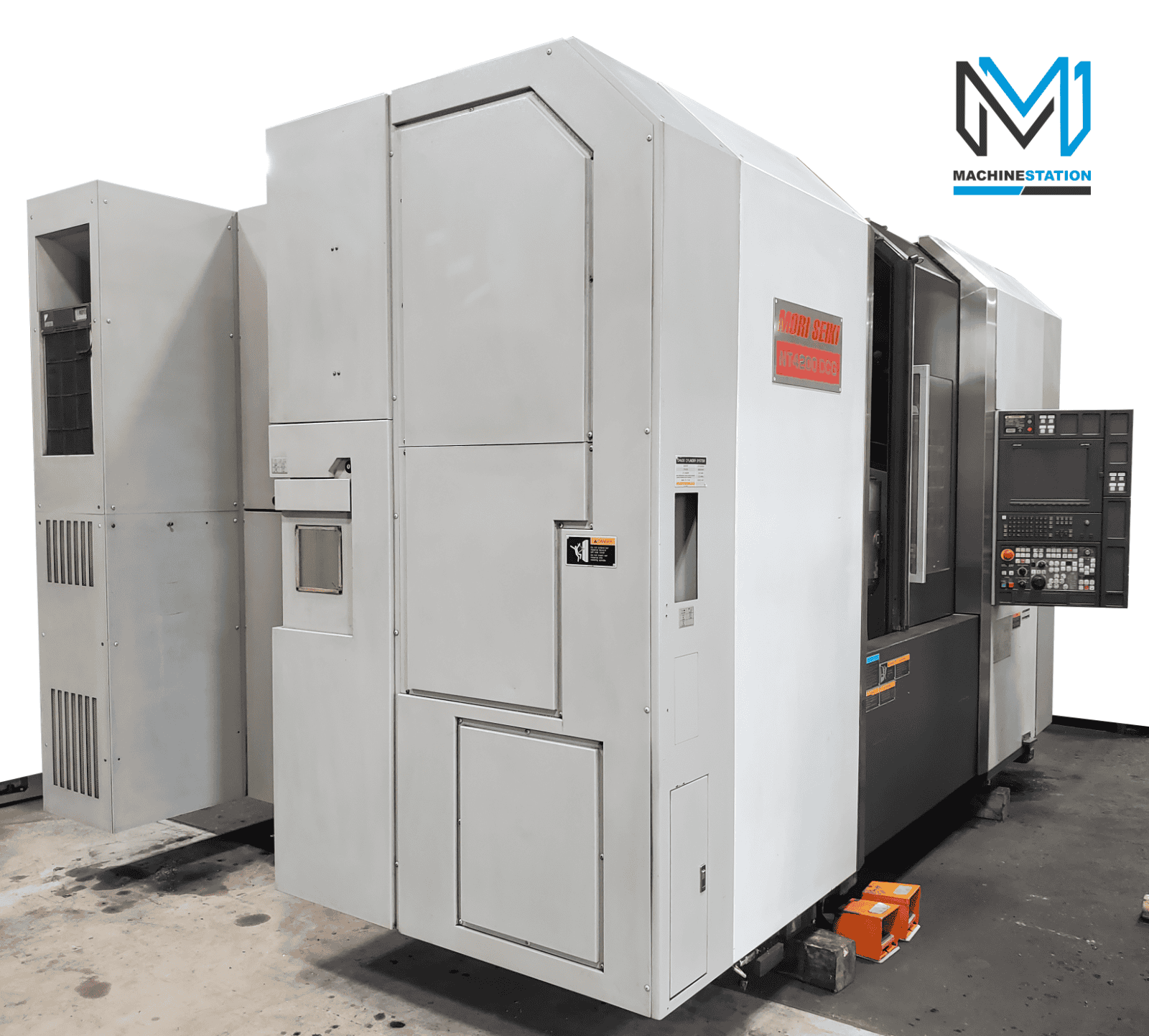

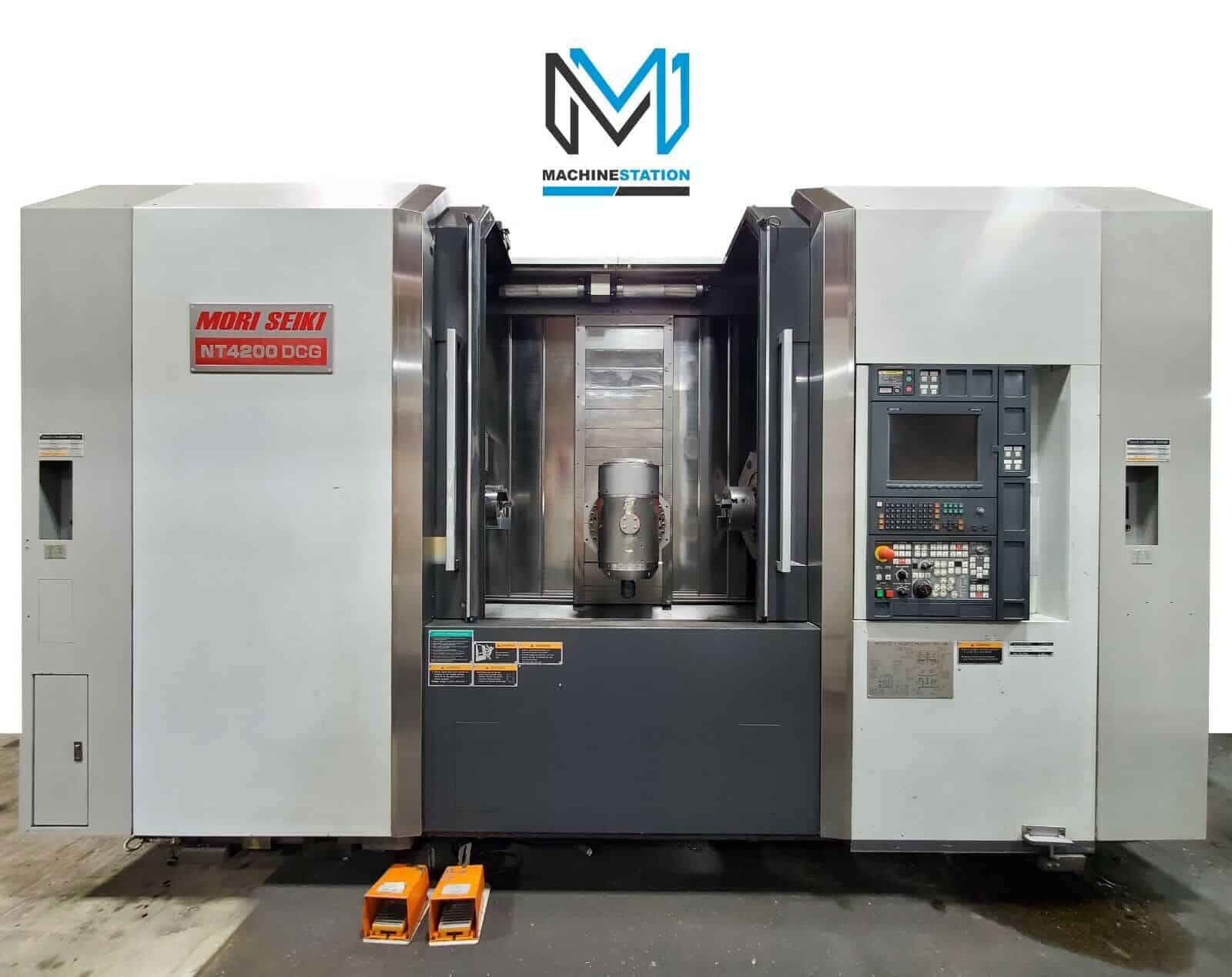

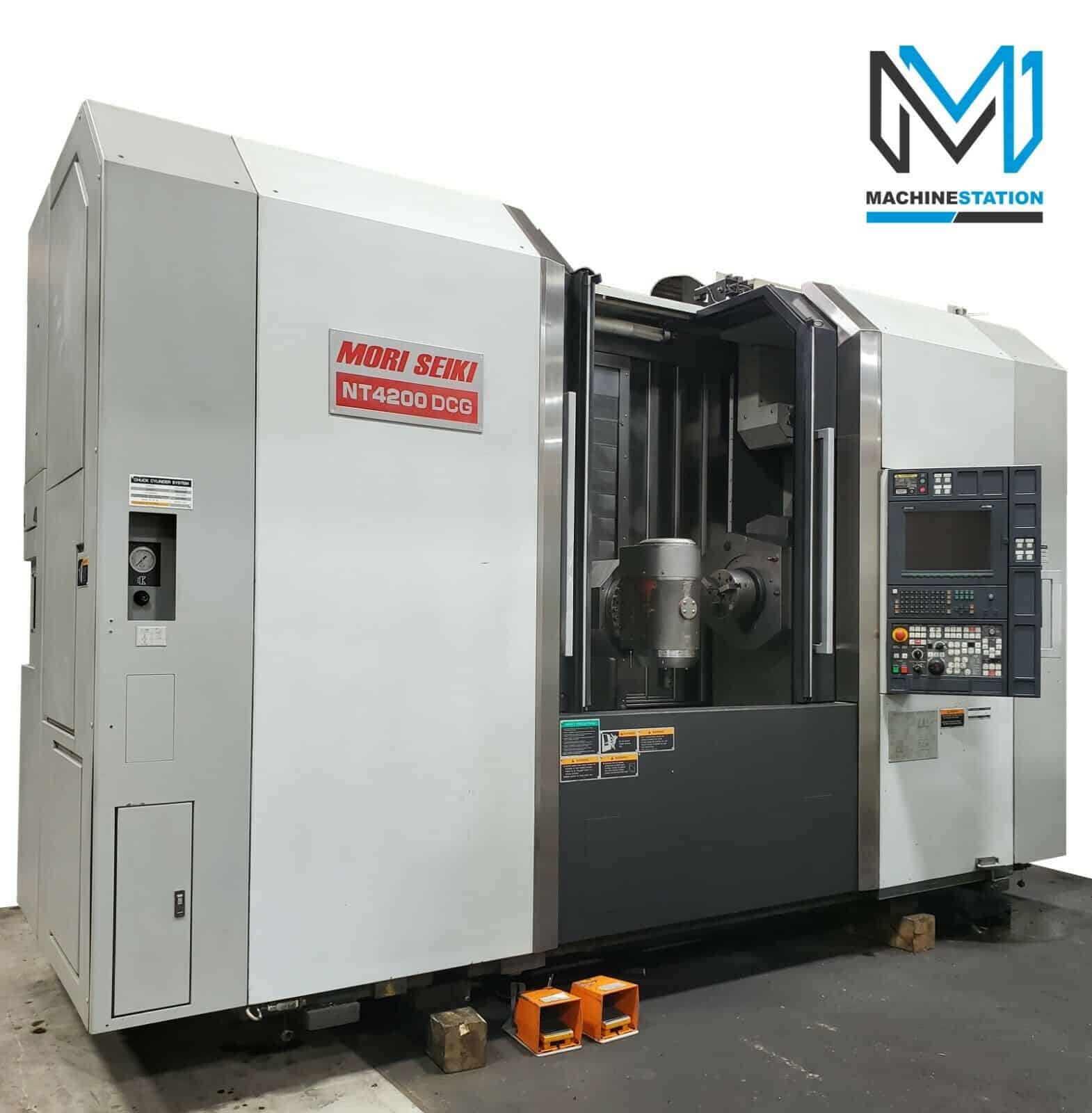

DMG Mori Seiki NT-4200 DCG CNC Multi Axis Turn Mill

$174,600.00

Qty =

Product Description

DMG MORI SEIKI NT-4200 DCG CNC MULTI AXIS TURN MILL LATHE

SKU # 2174
Make: DMG MORI SEIKI
Model No.: NT-4200/1000S
Serial No.: NT420GA0109
YEAR: 2007 /2008
Condition: Very Good
Cutting Hours: 13128
Comes with Chucks, Tool Holders, Chip Conveyor & Manuals

All specifications are approximations, and are subject to verification.

DMG Mori Seiki NT-4200 DCG CNC Equipped With:

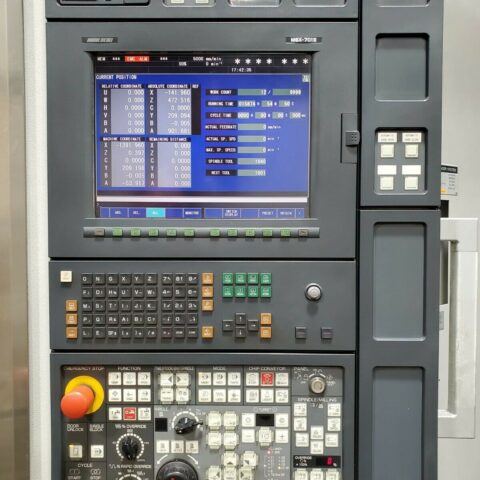

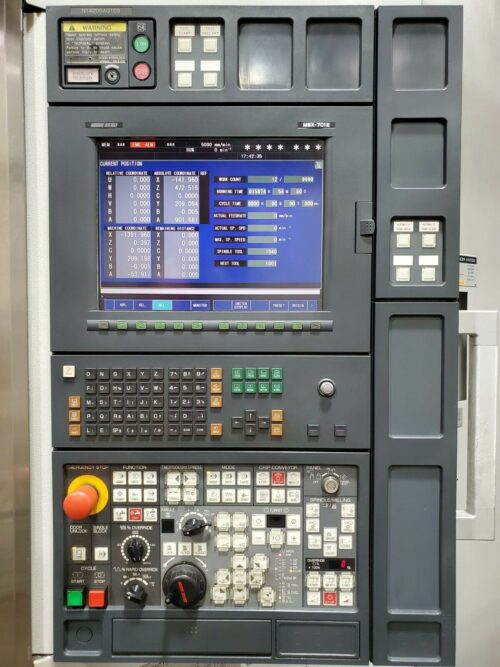

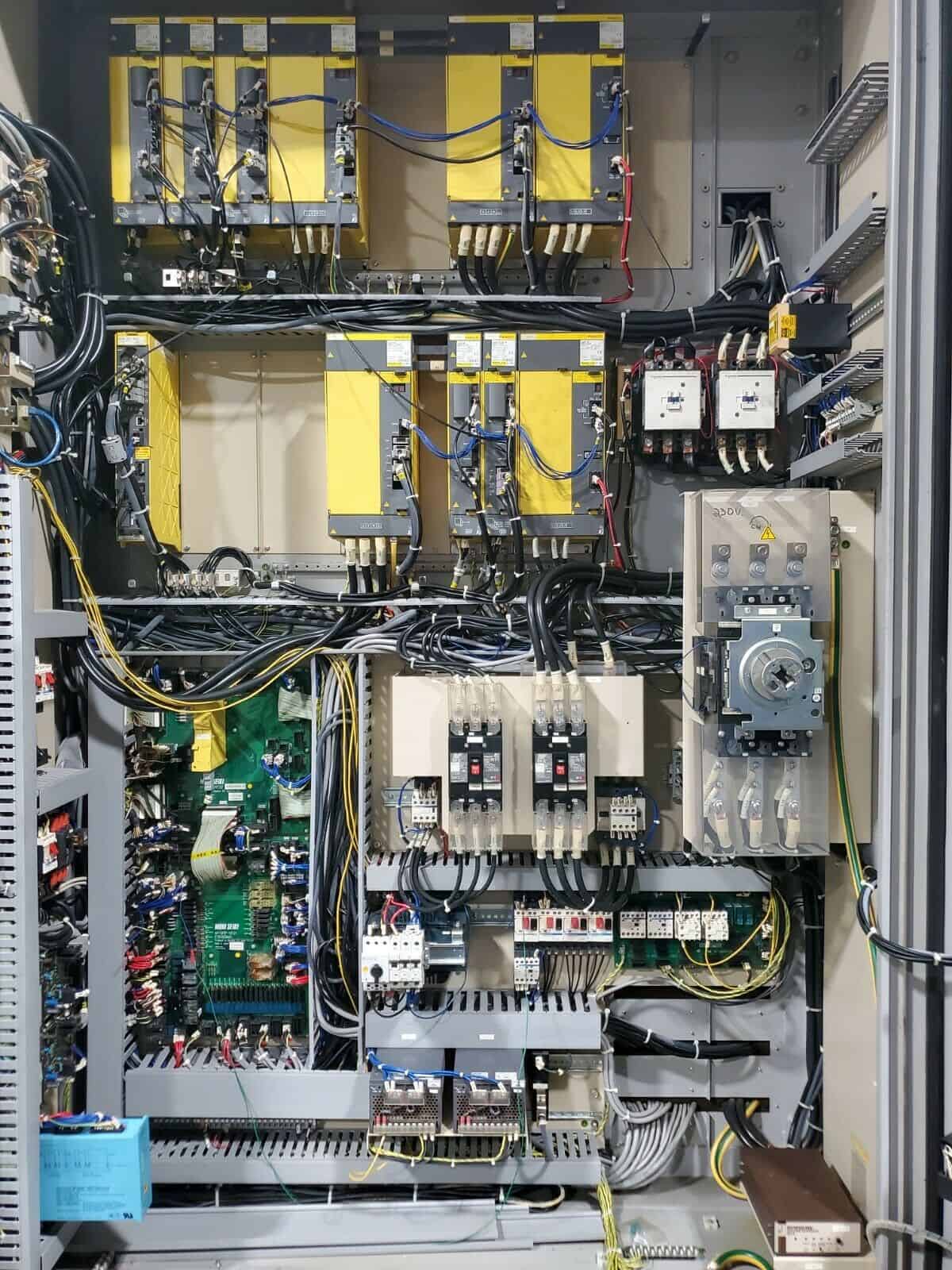

MSX-701III (FANUC) CNC Control

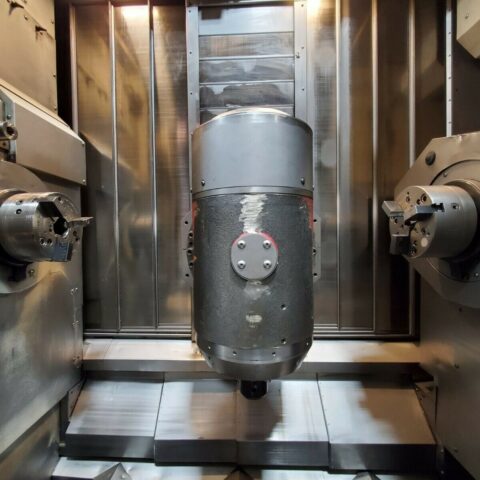

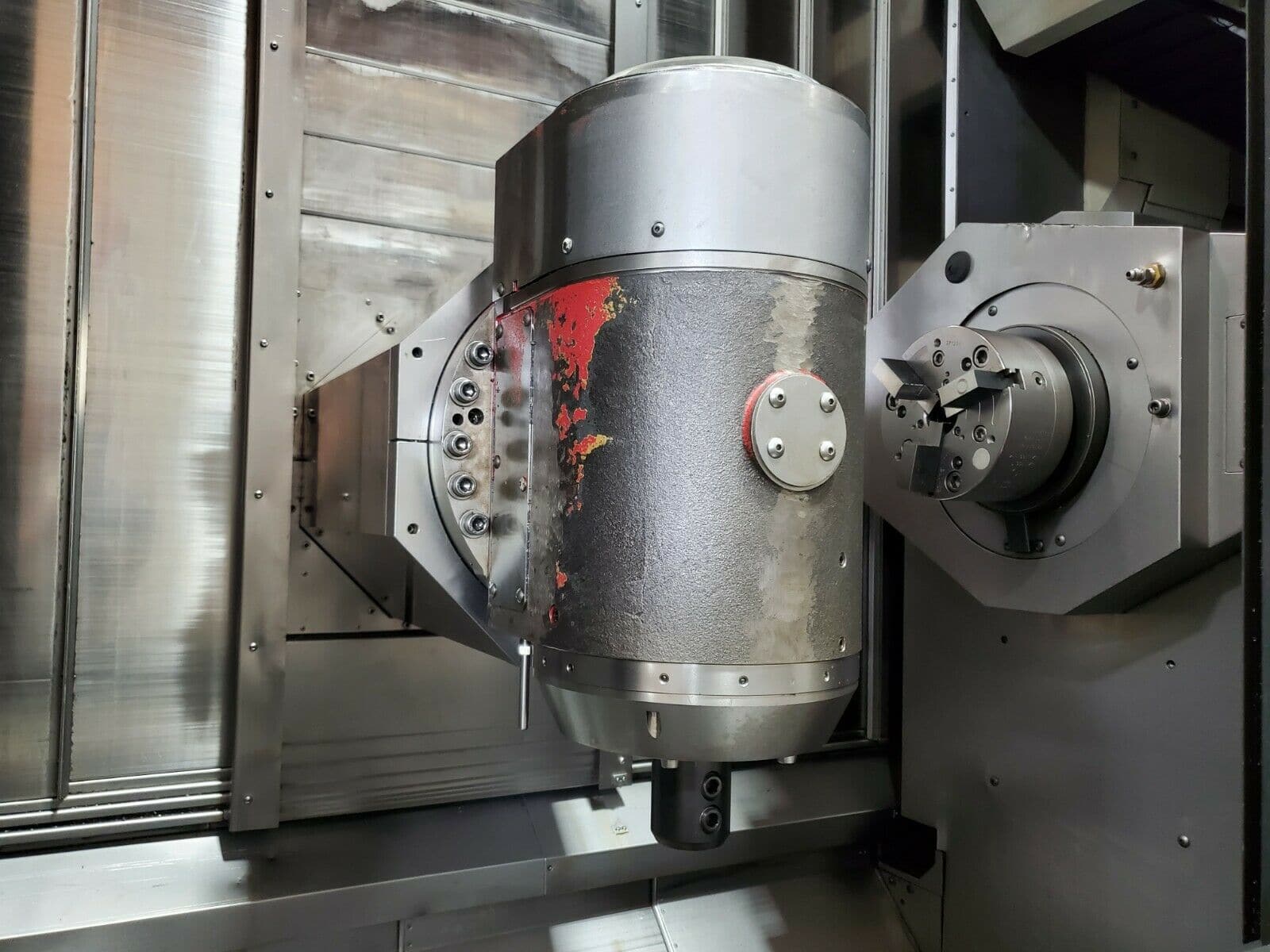

12000 RPM Pendulum Milling Head
Simultaneous 5-axis machining
Powerful (22kw) 30 HP high-torque integral spindle motors
High speed 5,000 RPM spindles
Servo driven 40 station ATC with 1.8 sec tool to tool time
Servo Controlled Full C-Axis on Both Spindles
12 Station lower turret with Live tool capability
Y Axis Capability
PCMCIA Card Slot
Tool monitoring system – wear and breakage detection
Automated Parts Unloading system
Schunk  8″ Big Bore Chuck on Main Spindle
Schunk  8″ Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
High Pressure Coolant System
Chip Conveyor
Inbuilt Transformer

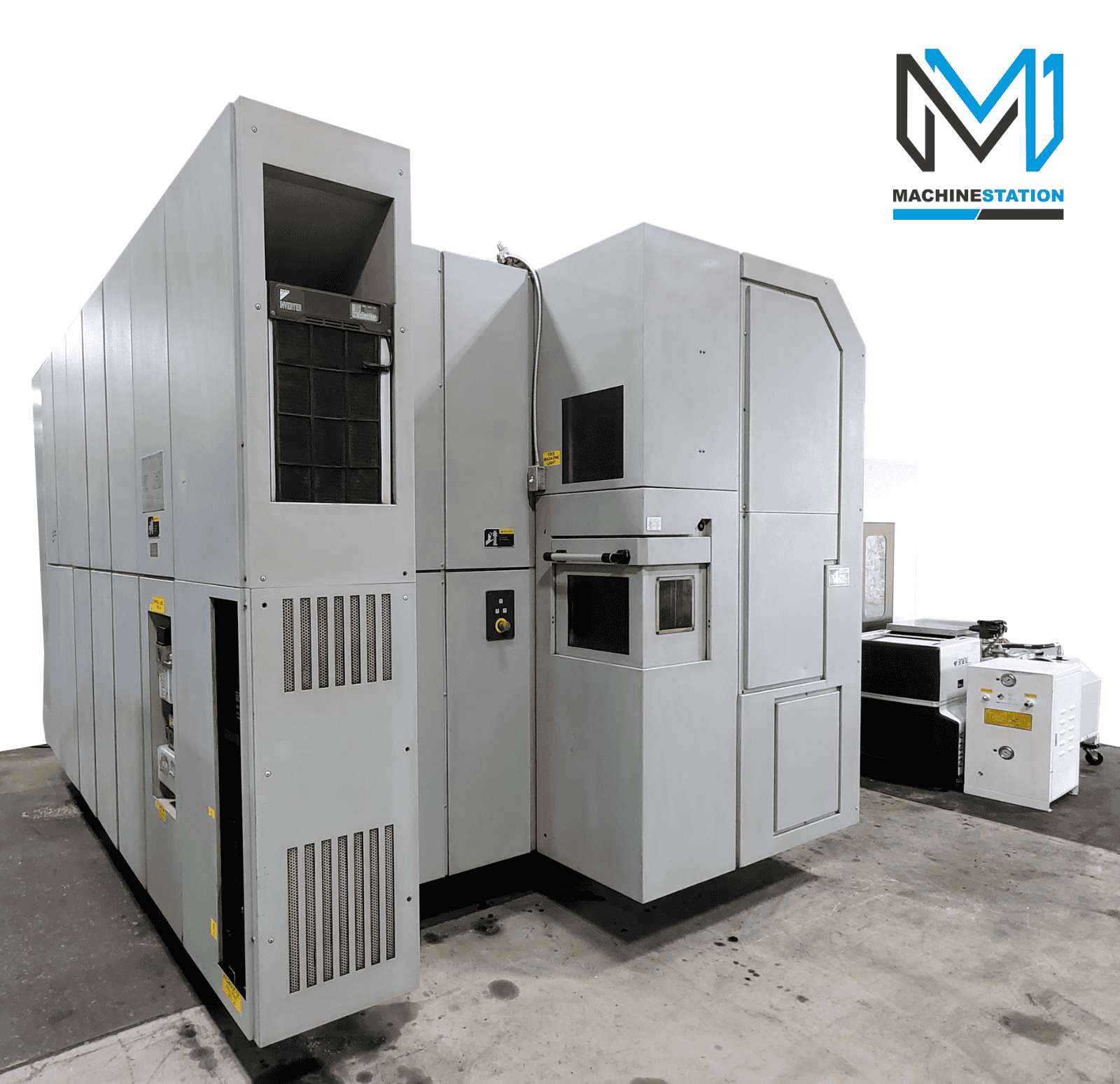

Chiller Unit
Comes with Tools, Chip Conveyor, Books & Manuals.

DMG Mori Seiki NT-4200 DCG CNC Specifications:
Capacity:
Max Turning Diameter : 25.9″
Max Swing : 28.7″
Max Swing with Y Axis : 19.70″
Max Swing over Cross Slide : 23.6″
Max Turning Length: 42.5″
Max Bar Capacity Main Spindle : 2.625″
Max Bar Capacity Sub Spindle : 2.55″
Max Weight on Main & Sub Spindle : 1322 lbs
Max Distance Between Main & Sub Spindle: 52.50″

Travels:
X Axis Travel : 29.5″
Z Axis Travel : 44.1″
Y Axis Travel: 8.3″
W Axis Travel: 41.34″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle
B Axis Travel: +/-120°

Feedrate : Rapid Traverse
X Axis: 1417 IPM Rapid Traverse
Z Axis: 1417 IPM Rapid Traverse
Y Axis: 1351 IPM Rapid Traverse
B Axis: 1181 IPM

Spindle:
Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-6
Main Spindle Speed: 35-5000 RPM
Sub Spindle Speed: 35-5000 RPM
Main Spindle Power: 22 kw
Sub Spindle Power: 22 kw

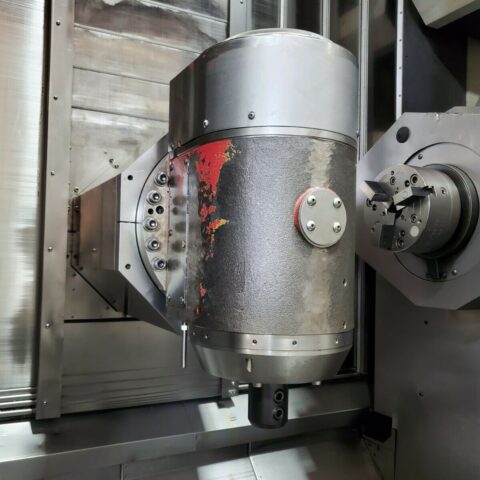

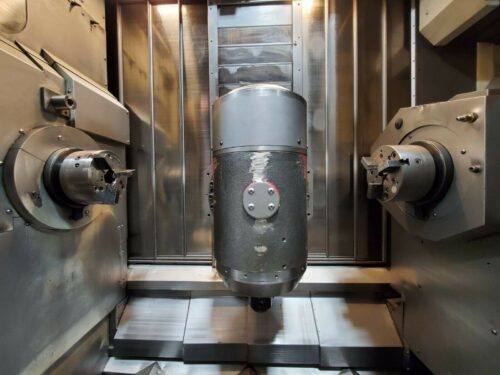

Milling Head: Single Station Pendulum Head with 40 ATC
Tool Type: CAPTO-C6, 40 Taper
Spindle Speed: 15-12000 RPM
Spindle Motor: 18.5 kw
Index Time: 0.5 Sec

General:

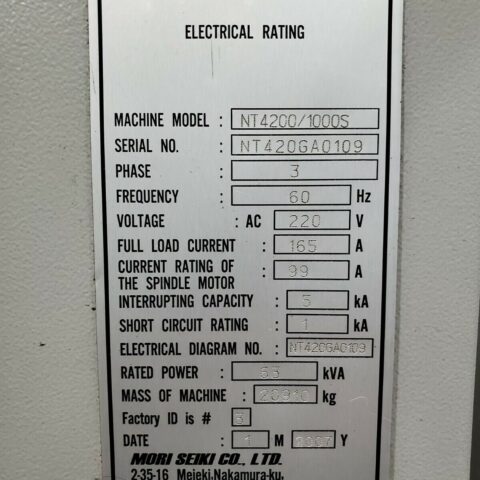

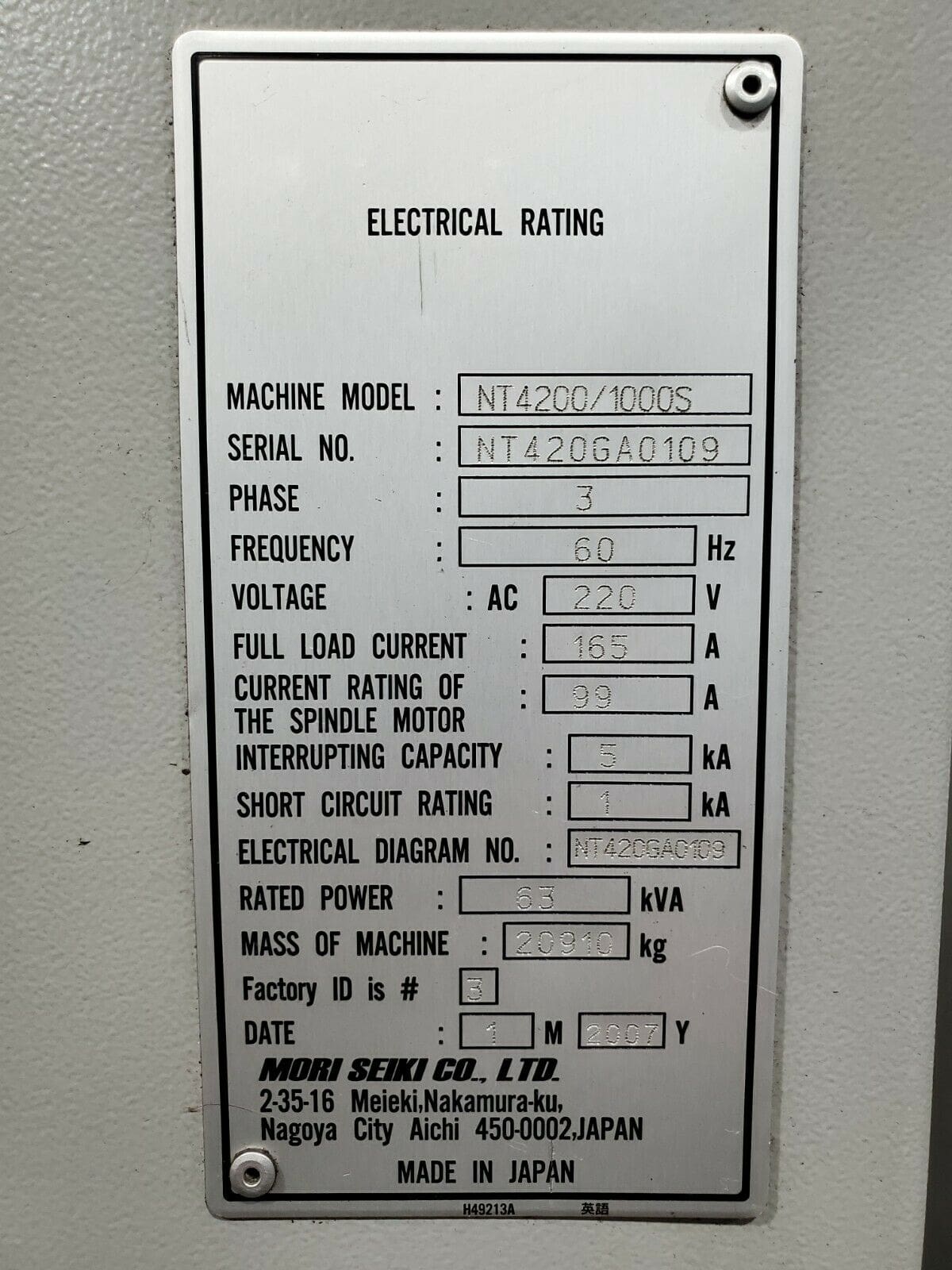

Power: 87 kva, 220v / 3-Phase
Air Required: 71 PSI Overall
Dimensions: 192″ x 99″ x 110″
High Overall Dimensions: 210″ x 99″ x 115″ High with Chip Conveyor
Weight: 46,500 lbs

“No Charges for loading at list Price”

Comes as shown in pictures..
