*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI SEIKI |
| Model: | NVX 7000/50 |
| Condition: | Used |
| Equipped With: |
|---|

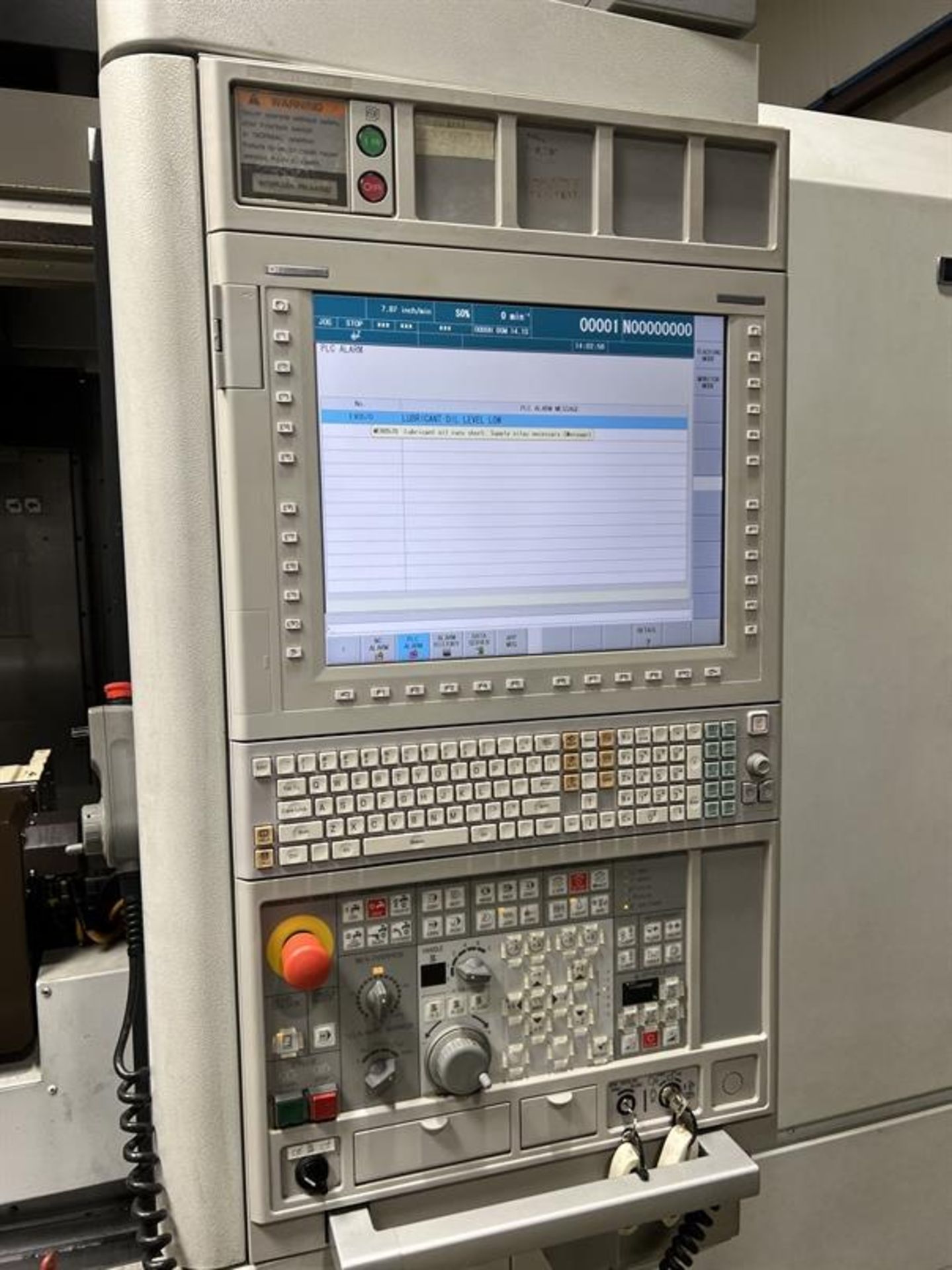

| MAPPS IV CNC Control |
| High-Rigidity Vertical Machining Center Design |
| Box-Type Guideway Construction |
| Automatic Tool Changer |
| Spindle Thermal Stabilization |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 60.2″ |
| Y-Axis Travel: 30.7″ |
| Z-Axis Travel: 28.3″ |
| Spindle Nose to Table: 7.9″ – 36.2″ |
| Table: |
|---|
| Table Size: 66.9″ × 28.7″ |
| Max Table Load: 4,409 lbs |
| Spindle: |
|---|
| Spindle Taper: BT50 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 50 HP |
| Spindle Drive: Gear-Driven |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,575 IPM |
| Cutting Feedrate: 394 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Max Tool Diameter: 4.9″ (adjacent empty) |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 44 lbs |
| General: |
|---|

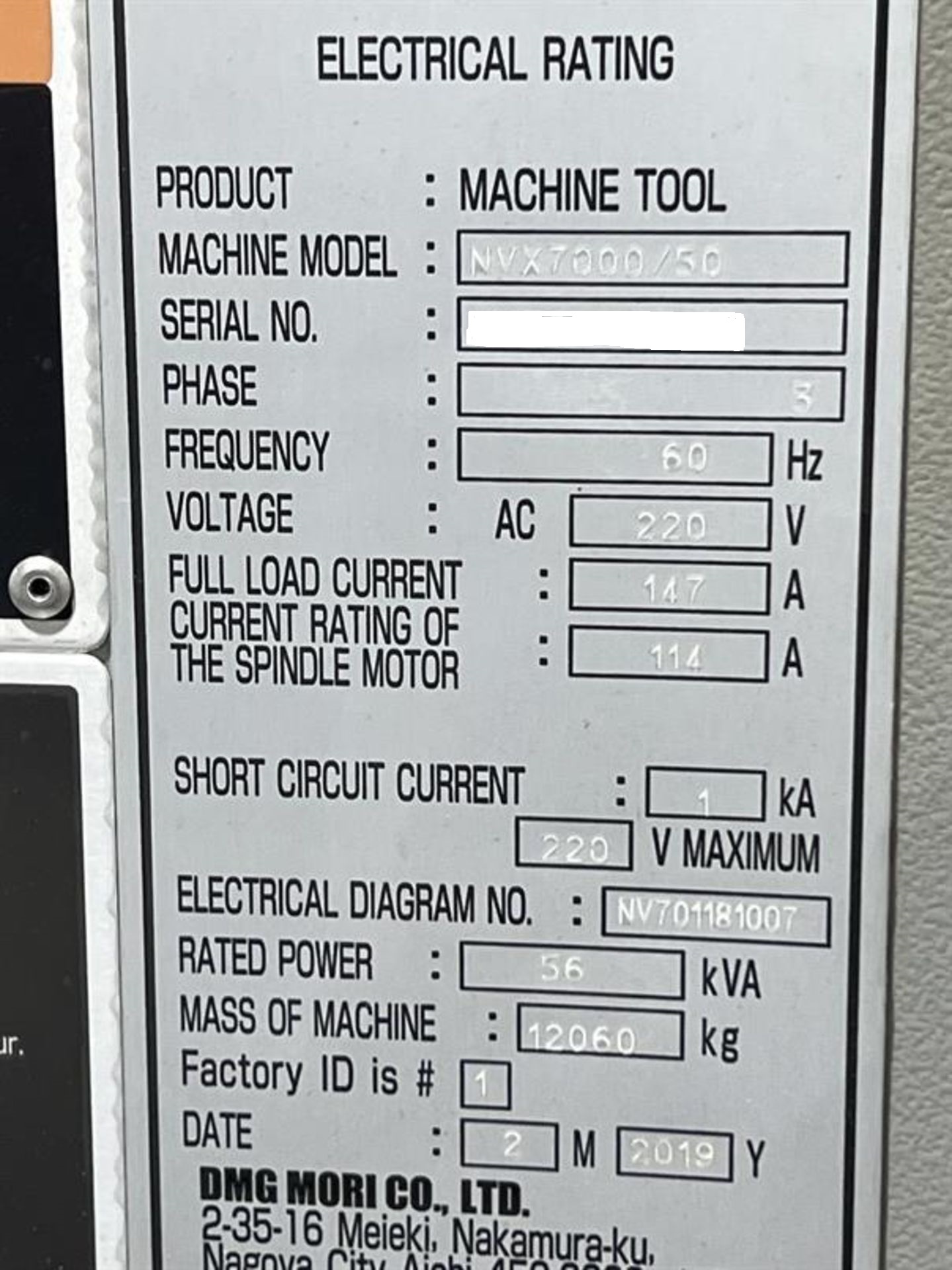

| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 30,900 lbs |
| Overall Dimensions (Approx.): 207″ × 132″ × 130″ |
