*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

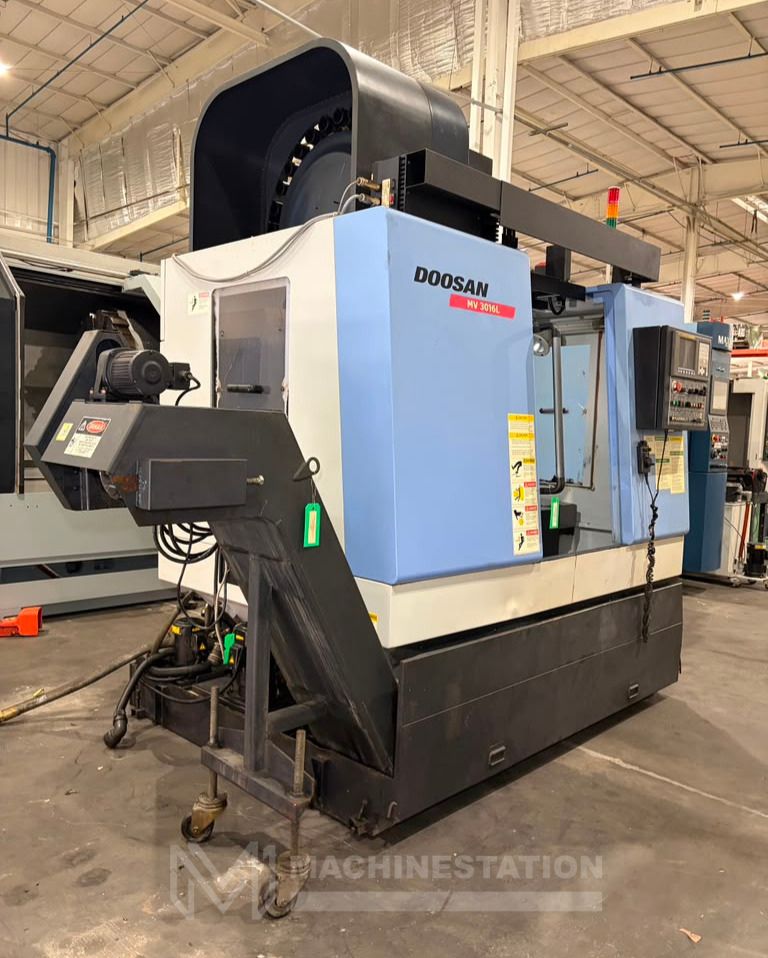

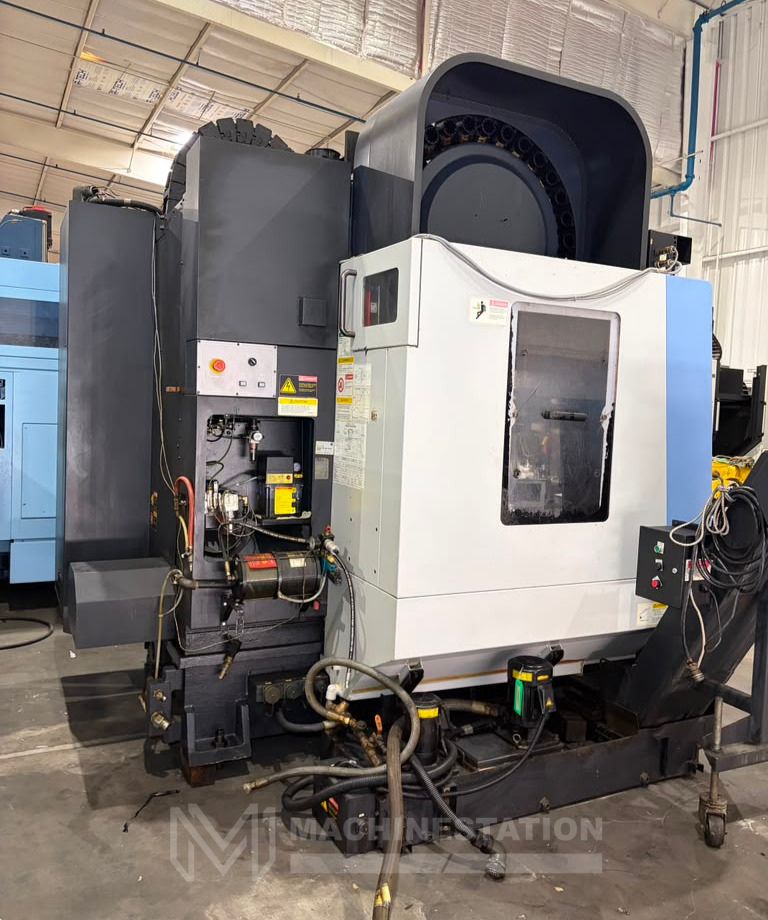

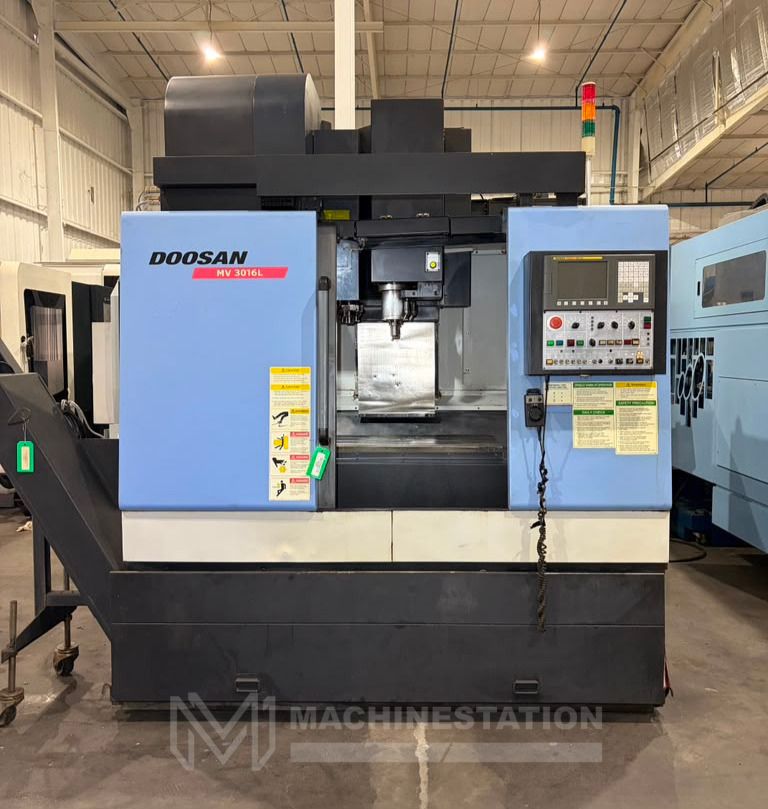

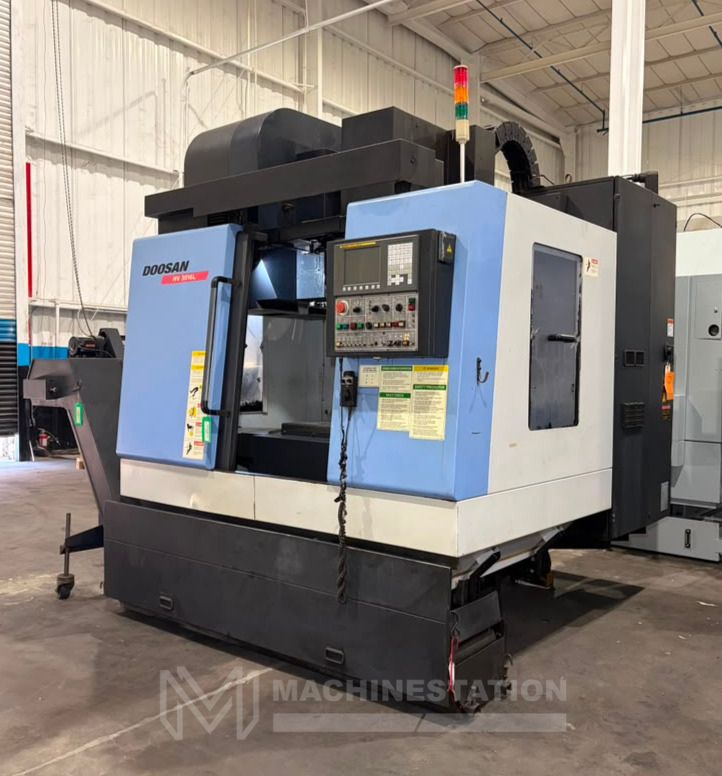

| Make: | Doosan |
| Model: | MV3016L |
| Year: | 2008 |
| Equipped With: |
|---|

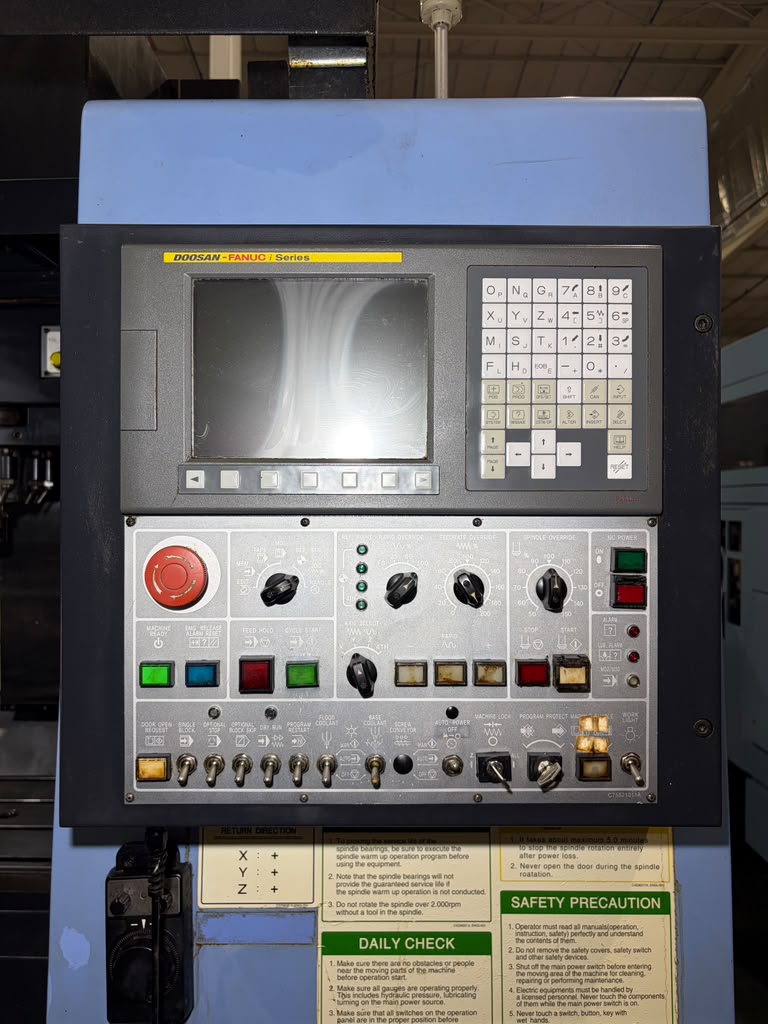

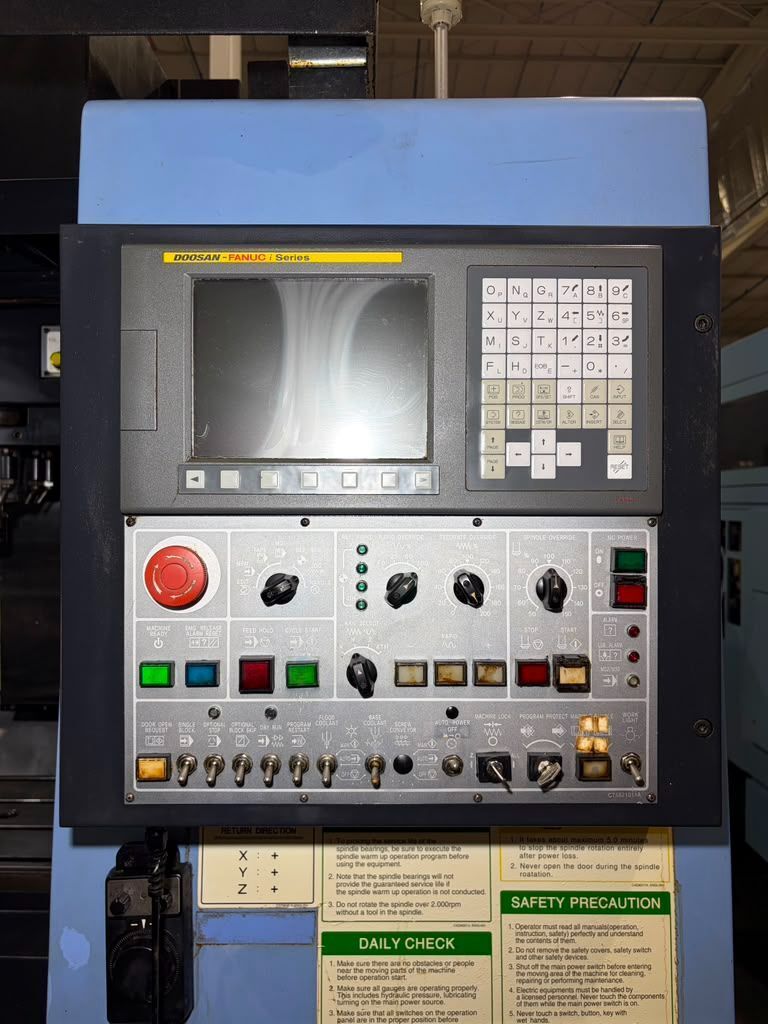

| Doosan-Fanuc i-Series CNC Control |
| 8000 RPM Precision Spindle |
| Through Spindle Coolant Ready |
| 30 Automatic tool changer |
| Programmable Coolant |
| MPG Handwheel Control |
| Spindle Orientation |

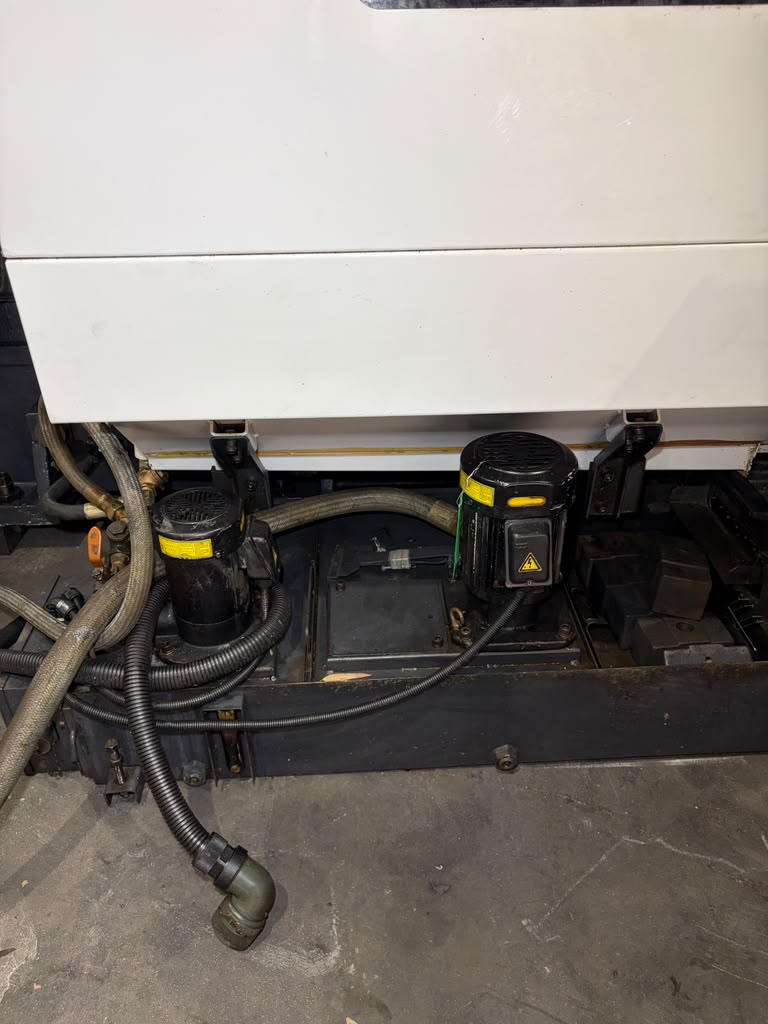

| Coolant Tank |

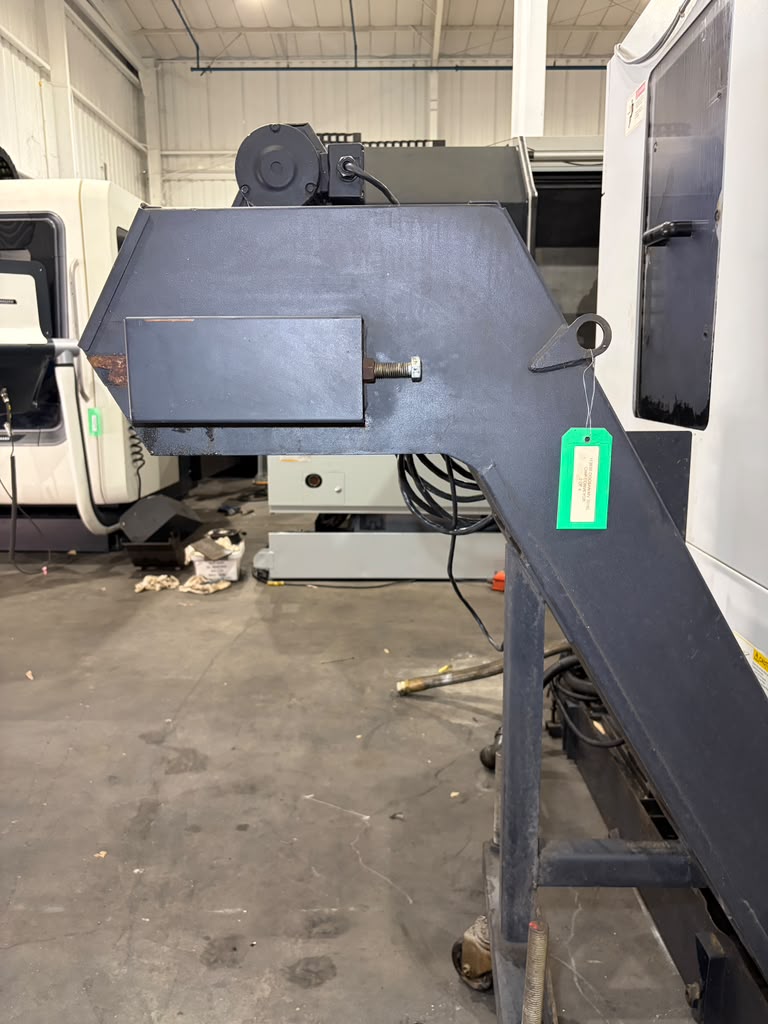

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 30.2″ |
| Y-Axis: 17.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 24.25″ |
| Rapid Traverse rates: 1417 IPM |
| Feed Rates: 590 IPM |

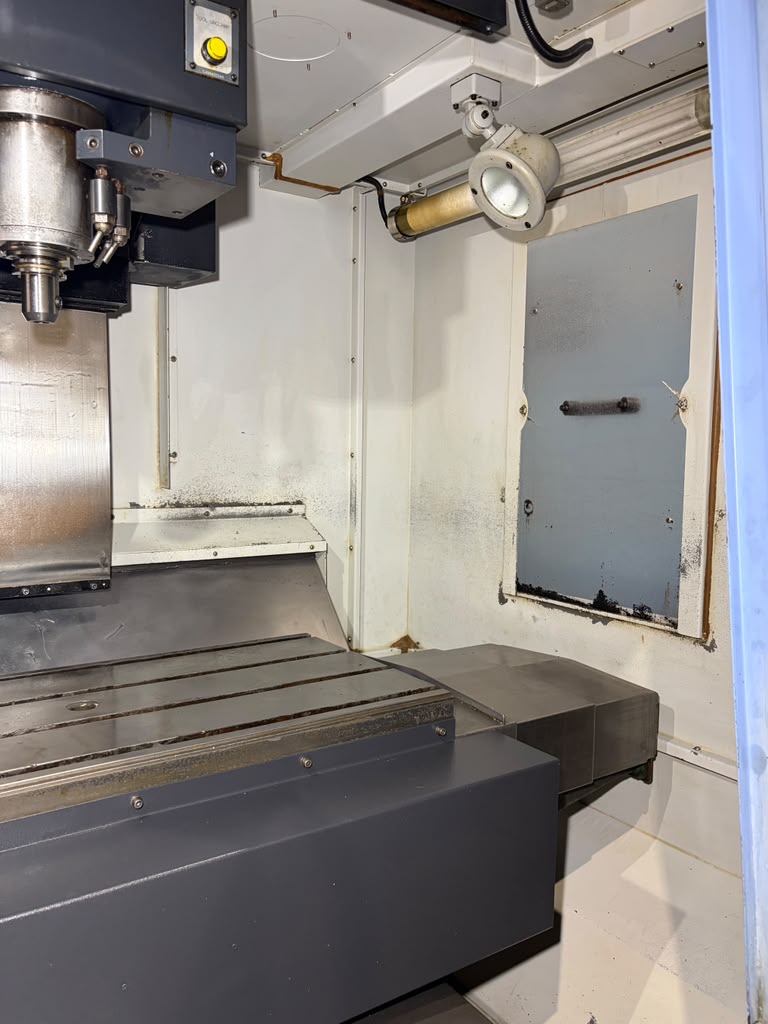

| Table: |
|---|
| Length: 36.2″ |
| Width: 17.1″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1300 lbs |

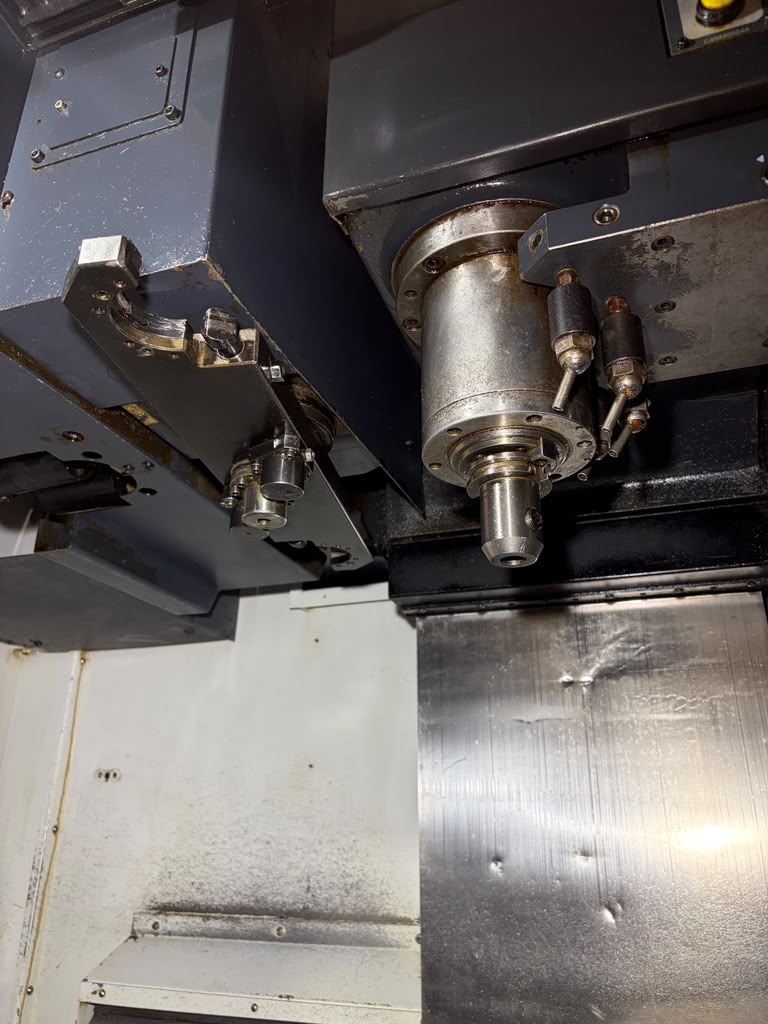

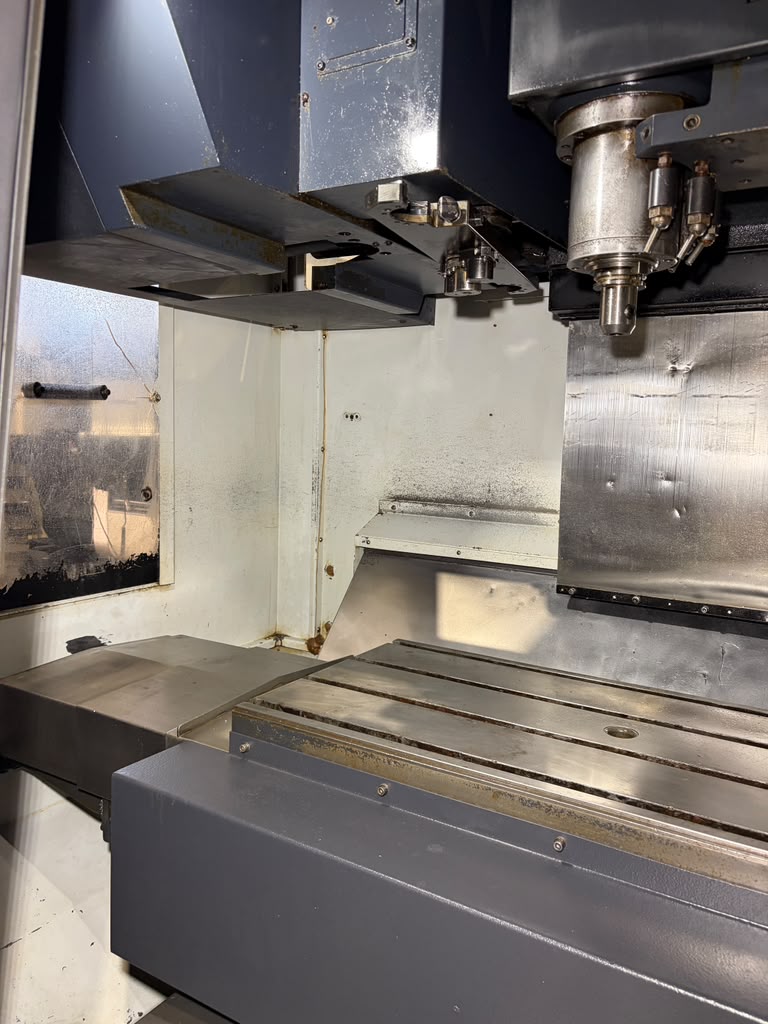

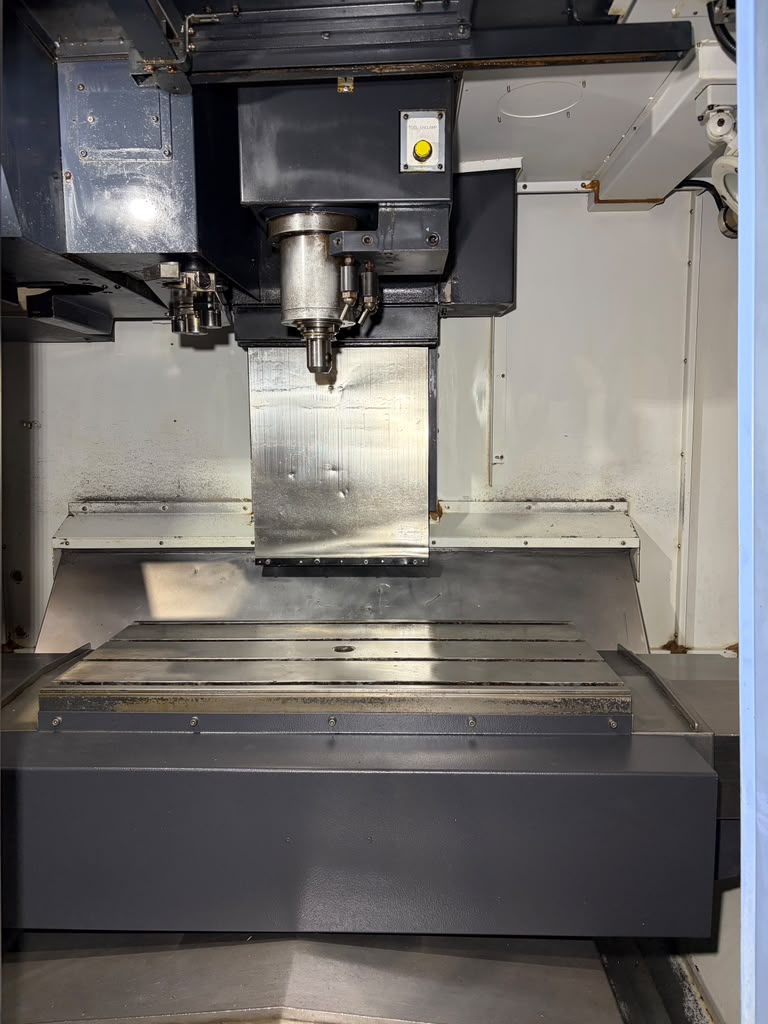

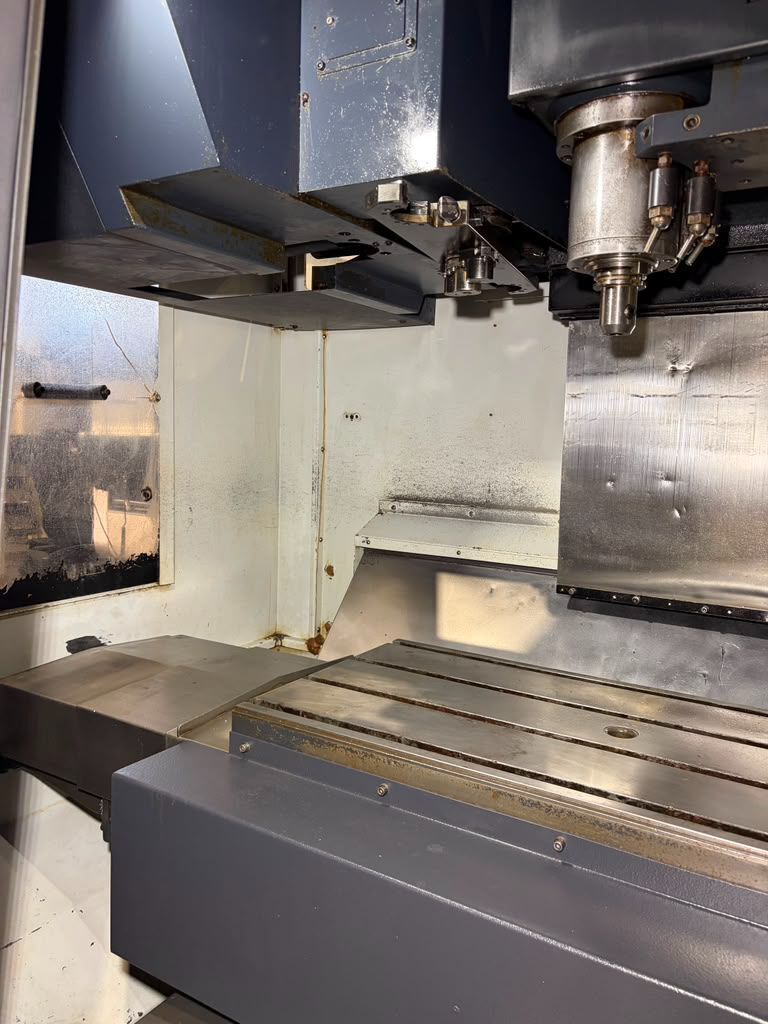

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 0 – 8,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Dia: 3.65″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 34.31 kva / 3-Phase |
| Overall Dimensions: 130″ x 100″ x 110″ High Approx. |
| Weight: 11,023 lbs Approx. |
