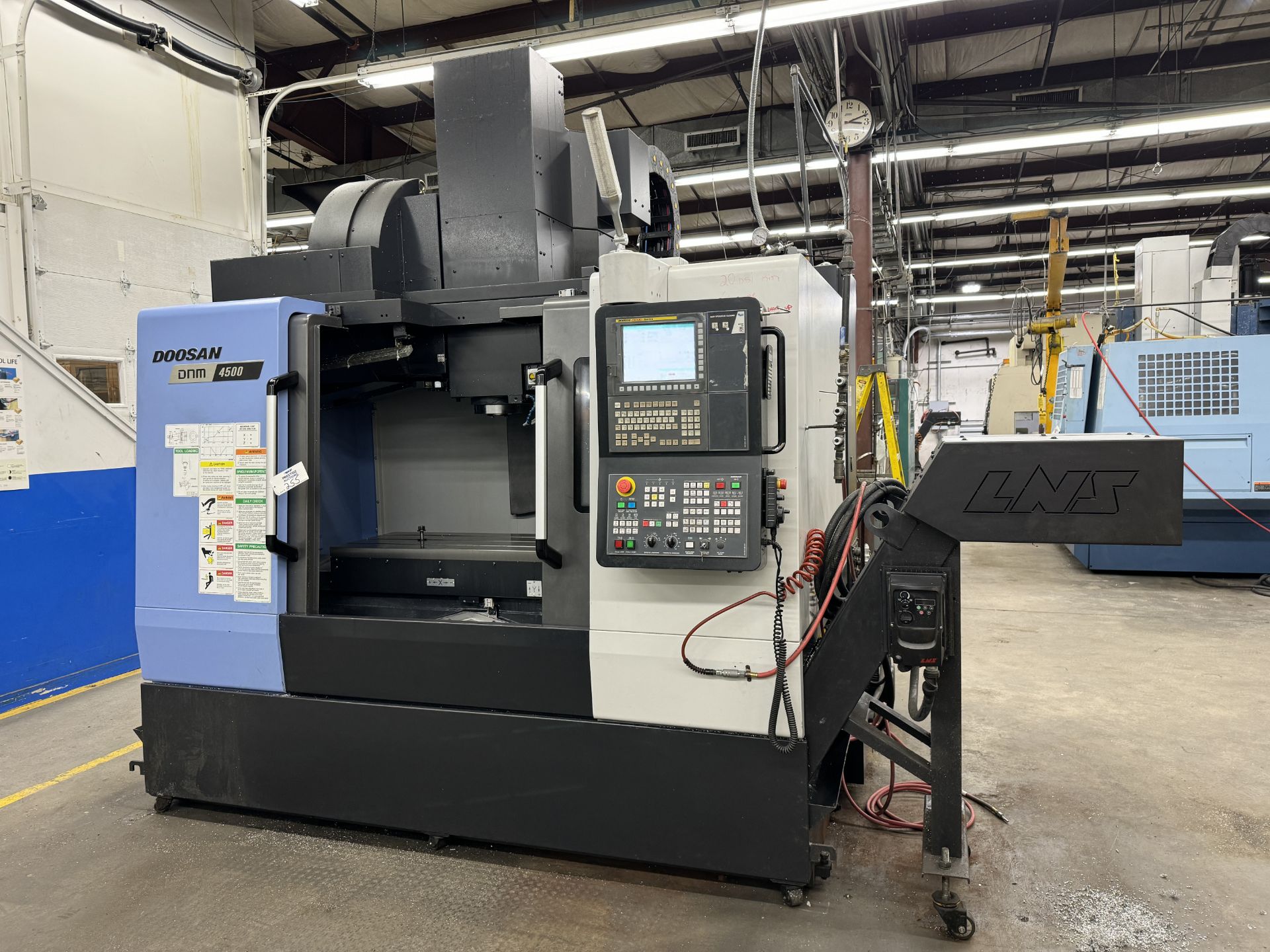

| Make: | Doosan |
| Model: | DNM 4500 |
| Machine Type: | Vertical Machining Center |
| Axes: | 3-Axis (X / Y / Z) |
| Year: | 2010 |
| Condition: | Used |
| Equipped With: |
|---|
- DN Solutions FANUC i Plus CNC Control
- 15″ Color Touchscreen LCD
- Roller-Type Linear Guideways on All Axes
- Direct-Coupled Spindle
- 30-Tool Automatic Tool Changer
- Thermal Error Compensation System
- EZ WORK Productivity Software
- USB & Ethernet Connectivity
- Flood Coolant System
- Chip Pan
|
| Travels: |
|---|
- X-Axis Travel: 31.5″
- Y-Axis Travel: 17.7″
- Z-Axis Travel: 20.1″
- Spindle Nose to Table: 5.9″ – 26.0″
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 1,653 IPM
- Rapid Traverse Y-Axis: 1,653 IPM
- Rapid Traverse Z-Axis: 1,417 IPM
|
| Table: |
|---|
- Table Size: 39.4″ × 17.7″
- Max Table Load: 1,323 lbs
- T-Slots: 3 Slots
- T-Slot Width: 0.71″
- T-Slot Spacing: 4.92″
|
| Spindle: |
|---|
- Spindle Taper: CAT 40
- Max Spindle Speed: 8,000 RPM (Standard)
- Optional Spindle Speeds: 12,000 / 15,000 RPM
- Spindle Motor Power: 24.8 HP (Peak) / 14.8 HP (Continuous)
- Max Torque: 211 ft-lbs (High-Torque Option)
|
| Automatic Tool Changer: |
|---|
- Tool Changer Type: Random Access
- Tool Capacity: 30 Tools
- Optional Tool Capacity: 40 / 60 Tools
- Tool-to-Tool Time: 1.2 Seconds
- Chip-to-Chip Time: 3.2 – 4.1 Seconds
- Max Tool Length: 11.8″
- Max Tool Diameter: 3.15″ (Adjacent) / 4.92″ (No Adjacent)
- Max Tool Weight: 17.6 lbs
|
| Coolant & Chip Management: |
|---|
- Flood Coolant System
- Coolant Tank Capacity: 100 Gallons
- Optional Through-Spindle Coolant (Up to 7 MPa)
- Optional Chip Conveyor Systems
- Programmable Flood Coolant
|
| Electrical: |
|---|
- Power Supply: 220V / 3-Phase
- Frequency: 50 / 60 Hz

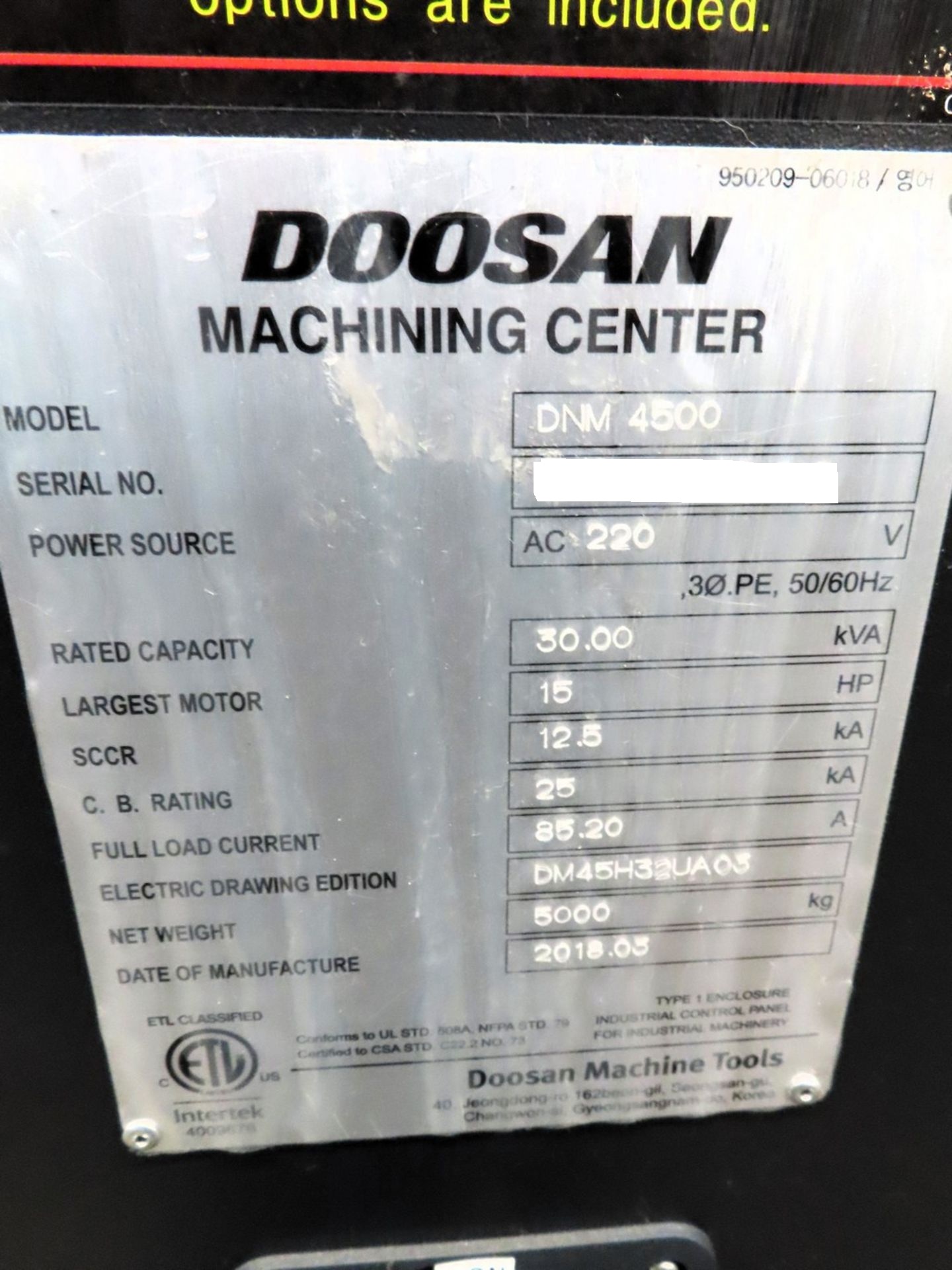

- Rated Capacity: 30 kVA
- Largest Motor: 15 HP
- Full Load Current: 85.2 Amps
- SCCR: 12.5 kA
|
| Machine Dimensions & Weight: |
|---|
- Overall Length: 86.6″
- Overall Width: 111.6″
- Overall Height: 117.3″
- Machine Weight: 11,023 lbs
|
