*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Doosan |
| Model: |
HP4000 |
| Year of Manufacture: |
2013 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |

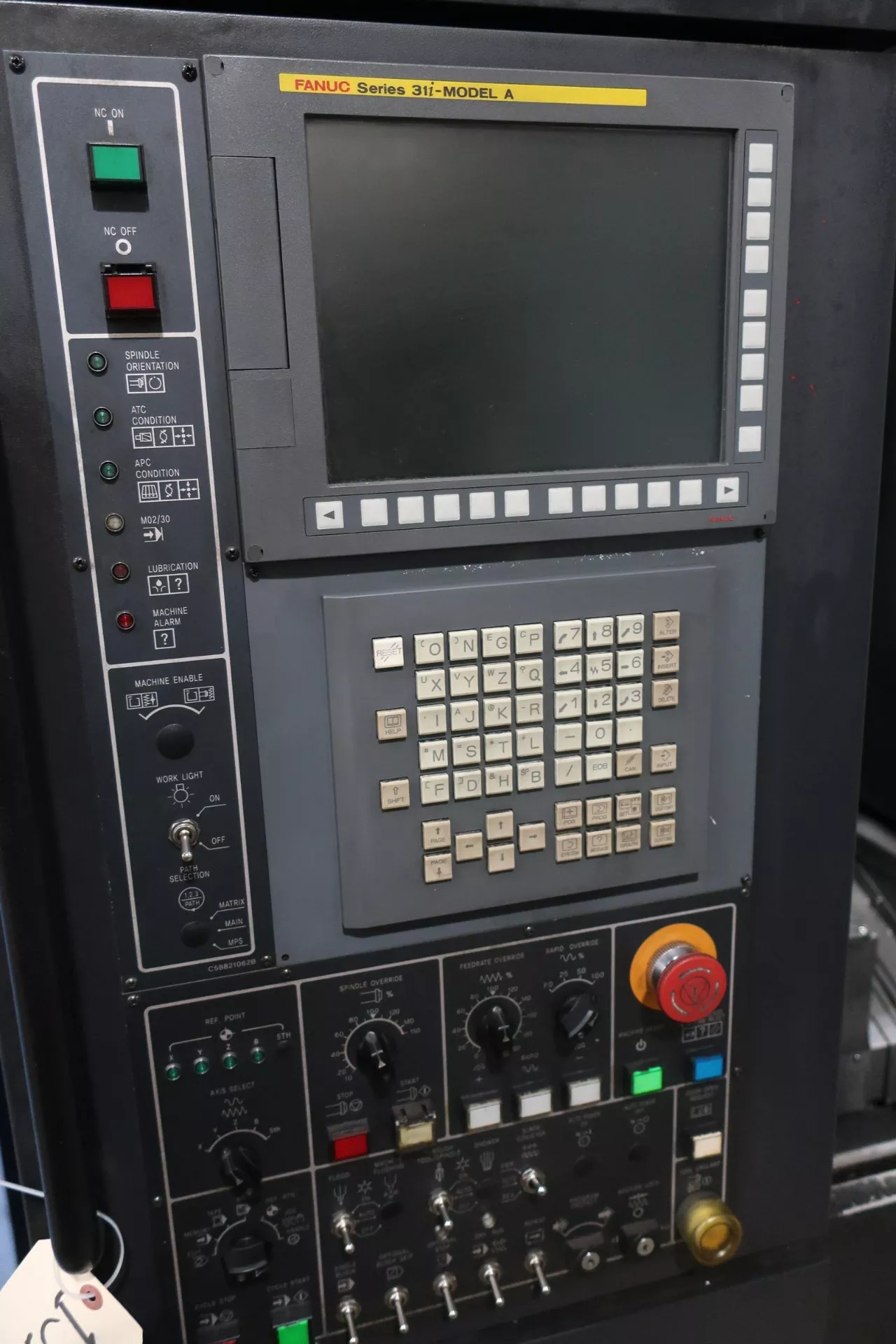

Fanuc 31i CNC Control |
| Equipped With: |
| Fanuc CNC Control |

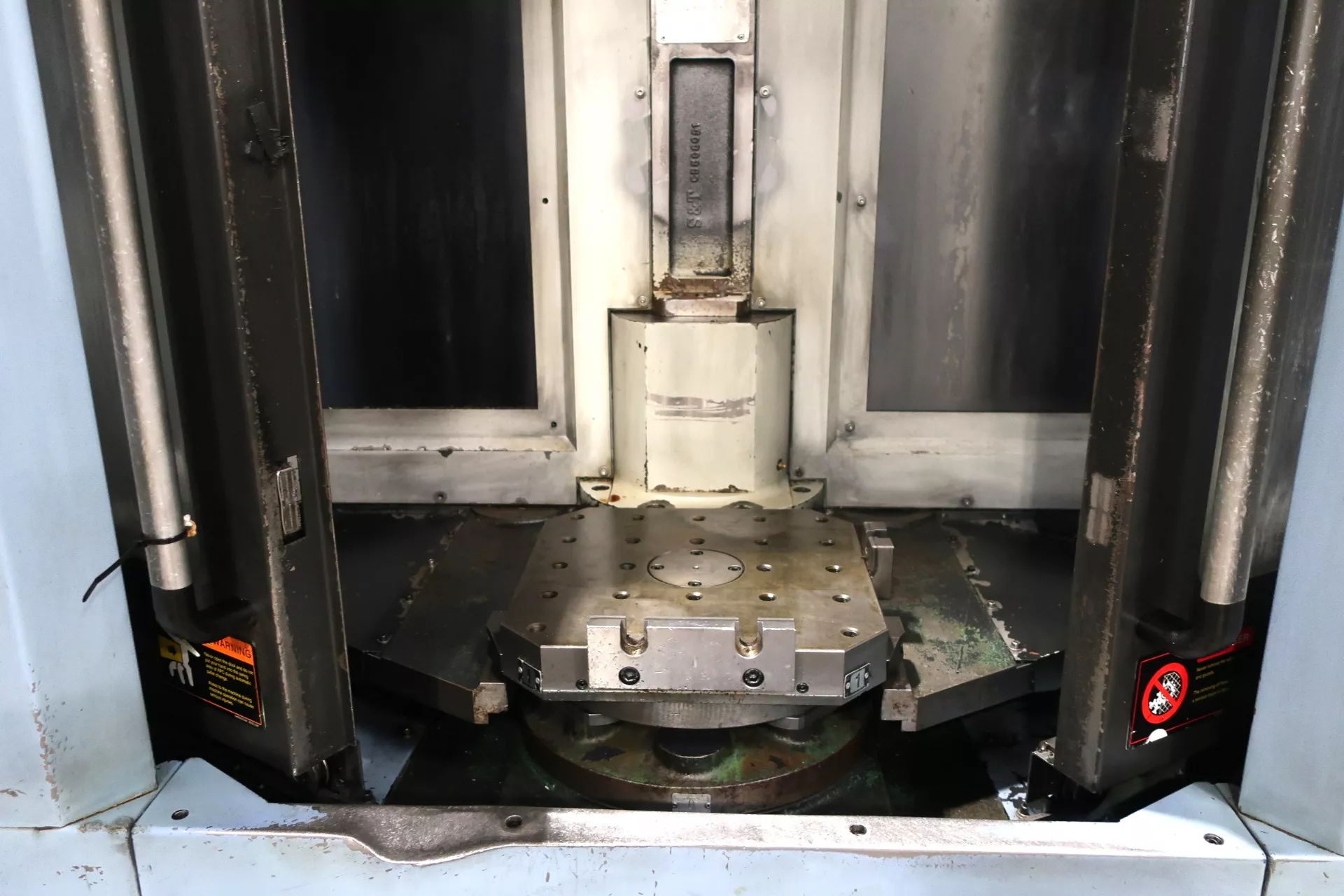

| Full 4th Axis Rotary Table (1° Indexing / Continuous Optional) |
| Automatic Pallet Changer (2 Pallets) |
| 40-Taper High-Speed Spindle |
| 60-Position Automatic Tool Changer |
| Through Spindle Coolant (High Pressure – Optional) |
| Chip Conveyor |
| Coolant System (Flood) |
| Renishaw Probe System (Tool & Part) |
| Rigid Tapping |
| Spindle Chiller |
| USB / RS232 Connectivity |
| Capacity: |
| Maximum Pallet Load: 880 lbs (400 kg) |
| Pallet Size: 15.7″ × 15.7″ (400 × 400 mm) |
| Number of Pallets: 2 |
| Maximum Workpiece Size: Ø23.6″ × 31.5″ Height |
| B-Axis Rotation: 360° (Indexing) |
| Travels: |
| X-Axis Travel: 23.6″ (600 mm) |
| Y-Axis Travel: 22″ (558 mm) |
| Z-Axis Travel: 23.6″ (600 mm) |
| Spindle: |
| Spindle Taper: CAT 40 |
| Spindle Speed: 14,000 RPM |
| Spindle Motor: 30 HP (22 kW) |
| Spindle Type: High-Speed Direct Drive |
| Tooling: |
| Tool Capacity: 60 ATC (Optional 80+) |
| Max Tool Diameter: ~3.0″ (adjacent) / ~5.5″ (with empty pockets) |
| Max Tool Length: 330 mm (13″) |
| Max Tool Weight: 10 kg (22 lbs) |
| Tool Change Time: ~1.0 sec (tool-to-tool) |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): 2,362 IPM (60 m/min) |
| Cutting Feedrate: ~1,181 IPM |
| Electrical: |
| Voltage: 220 / 380 / 440V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Power Requirement: ~70 kVA |
| General: |
| Machine Weight: ≈27,000 – 30,800 lbs |
| Floor Space: Approx. 200″ × 102″ |
| Machine Height: ≈113″ |
| Features: |
| High-speed 14,000 RPM spindle for precision machining |
| Rigid box structure for heavy-duty cutting and stability |
| 4th axis capability allows multi-side machining in one setup |
| Automatic pallet changer increases productivity and reduces downtime |
| The fast tool change system minimizes non-cutting time |
| Roller linear guideways for high speed and accuracy |
| Compact footprint with excellent work envelope |
| Ideal for automotive, aerospace, and general engineering industries |
| Reliable Fanuc control for easy programming and maintenance |
