*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DN Solutions Doosan |

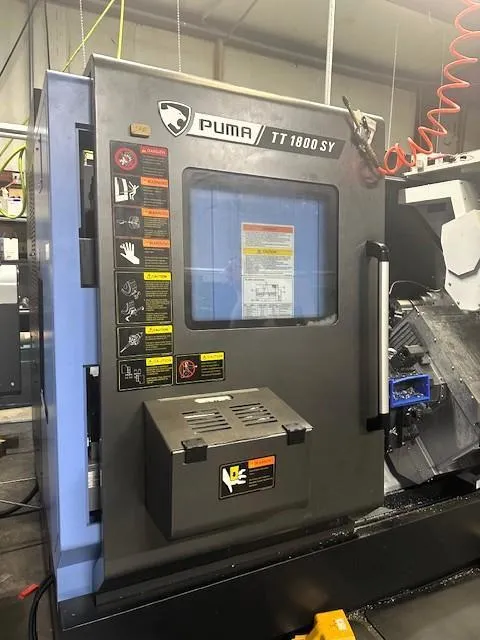

| Model: | PUMA TT1800SY |
| Year: | 2022 |
| Equipped With: |
|---|

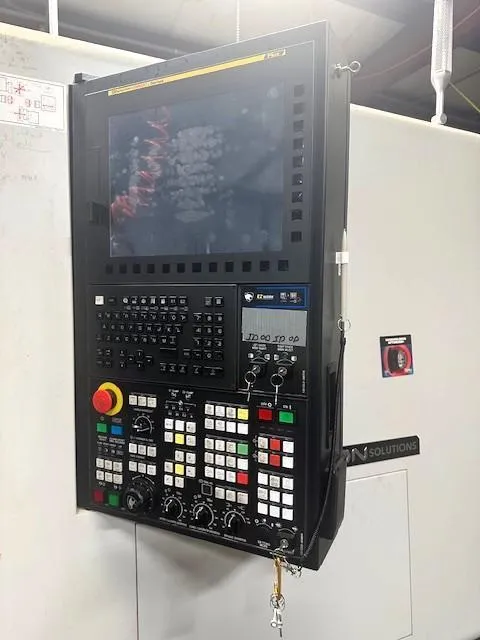

| DN Solutions Fanuc i Plus CNC Control |

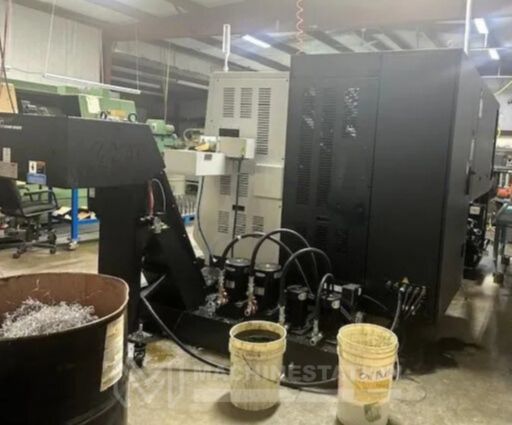

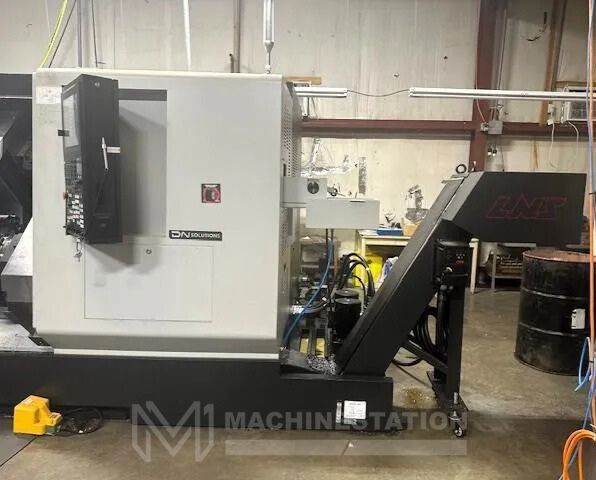

| Comes With LNS Quick Load Servo 80 S2 Bar Feeder |
| Collet Chuck On Main Spindle (Capable 8″ Chuck) |
| 8″ 3-Jaw Chuck On Sub Spindle |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| 12 Station (24 Indexing Positions) Live Tool Upper Turret |
| 12 Station (24 Indexing Positions) Live Tool Lower Turret |
| Y-Axis Capability |
| Tool Presetter |
| Parts Catcher |
| Coolant Tank |
| Chip Conveyor |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 9.1″ |
| Max Turning Diameter Lower Turret : 9.1″ |
| Max Turning Length: 9.1″ |
| Swing Over Bed : 9.1″ |
| Swing Over Saddle: 9.1″ |
| Max Bar Capacity: 2.6″ |
| Travels: |
|---|
| X1 Axis Travel: 6.5″ |
| X2 Axis Travel : 7.5″ |
| Y Axis Travel: ±2.0″ (3.9″) |
| Z1 Axis Travel: 27.6″ |
| Z2 Axis Travel : 28.3″ |
| A Axis Travel: 30.3″ |
| C Axis: 360° (0.001°) Both Spindles |
| Feedrate: |
|---|
| X1/X2 Axis: 787 IPM Rapid Traverse |
| Y Axis: 295 IPM Rapid Traverse |
| Z1/Z2 Axis: 787 IPM Rapid Traverse |
| A Axis: 1574 IPM Rapid Traverse |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-6 |
| Main Spindle Bore: 3.0″ |
| Main Spindle Speed: 5,000 RPM |
| Main Spindle Power: 29.5 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-6 |
| Sub Spindle Bore: 3.0″ |
| Sub Spindle Speed: 5,000 RPM |
| Sub Spindle Power: 29.5 HP |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations (24 Index Positions) |
| Lower Turret Capacity: 12 Stations (24 Index Positions) |
| Live Milling Speed: 6000 RPM |
| Live Milling Motor: 7.4 HP |
| Turret Index Time: 0.15 sec |
| Turret Type: BMT-55P |
| General: |
|---|
| Power Requirement: 220 v / 3-phase / 60 Hz / 64 kVA |
| Machine Dimensions: 153.7″ x 88.6″ x 81.9″ Height |
| Machine Weight: 19,400 lbs Approx. |
