*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

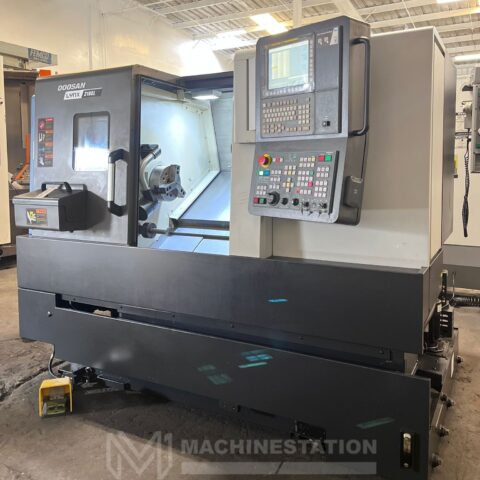

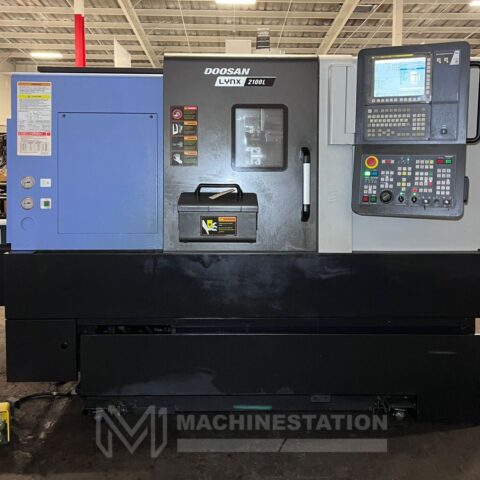

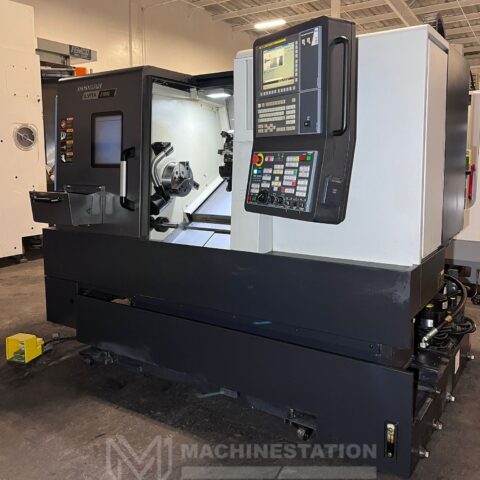

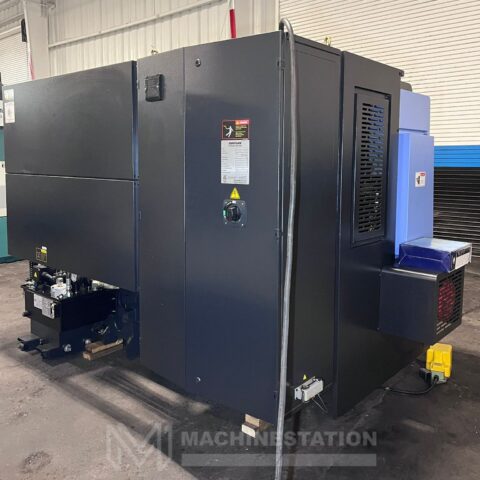

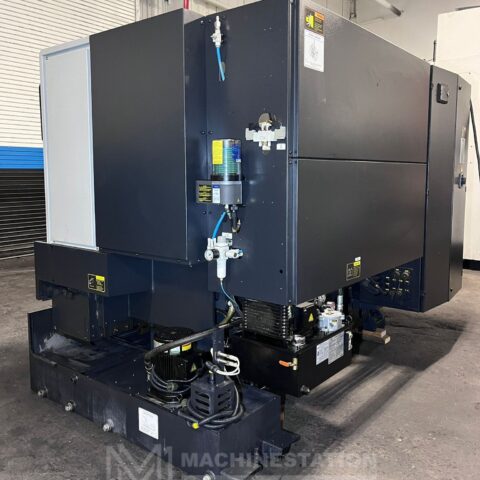

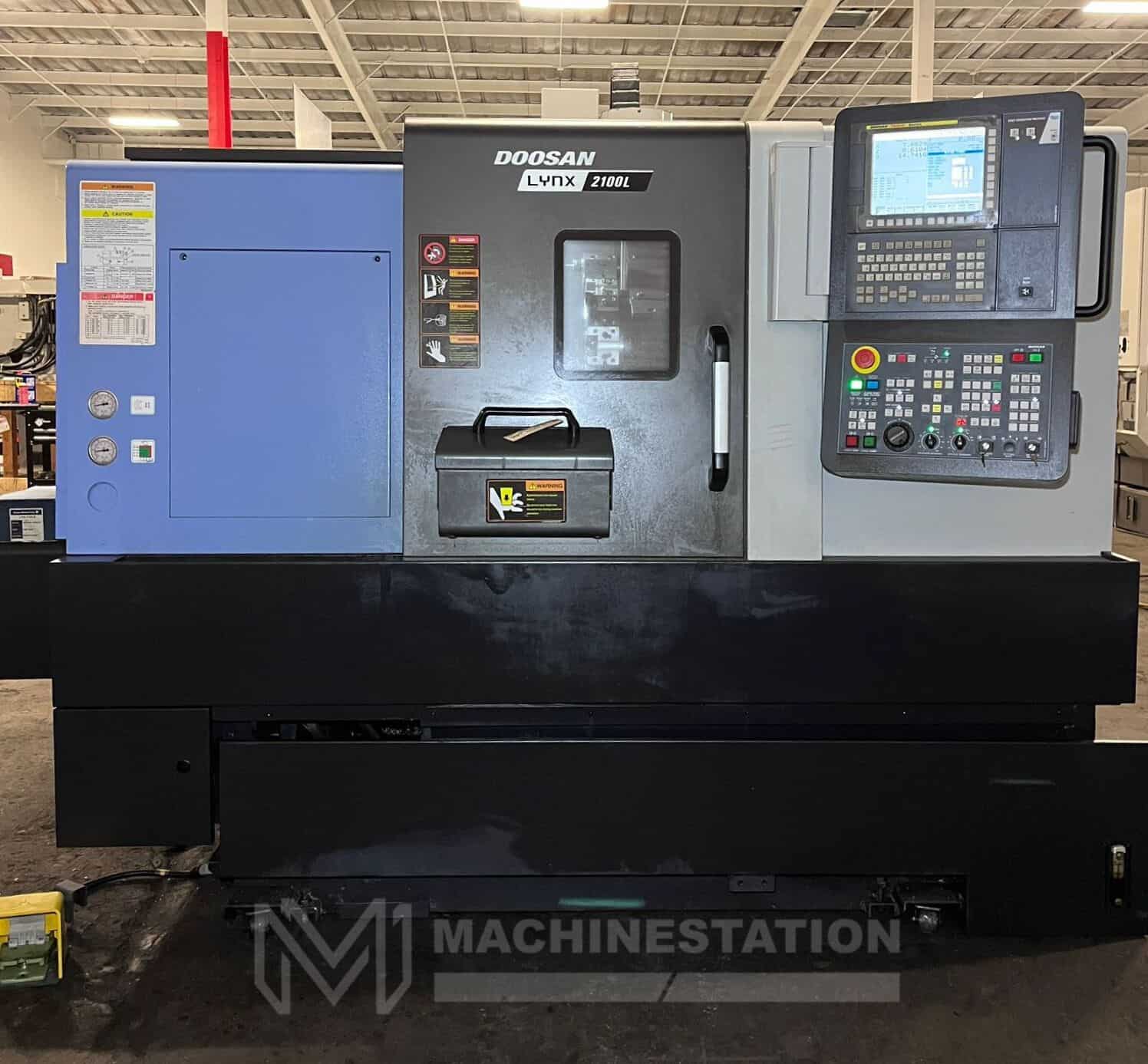

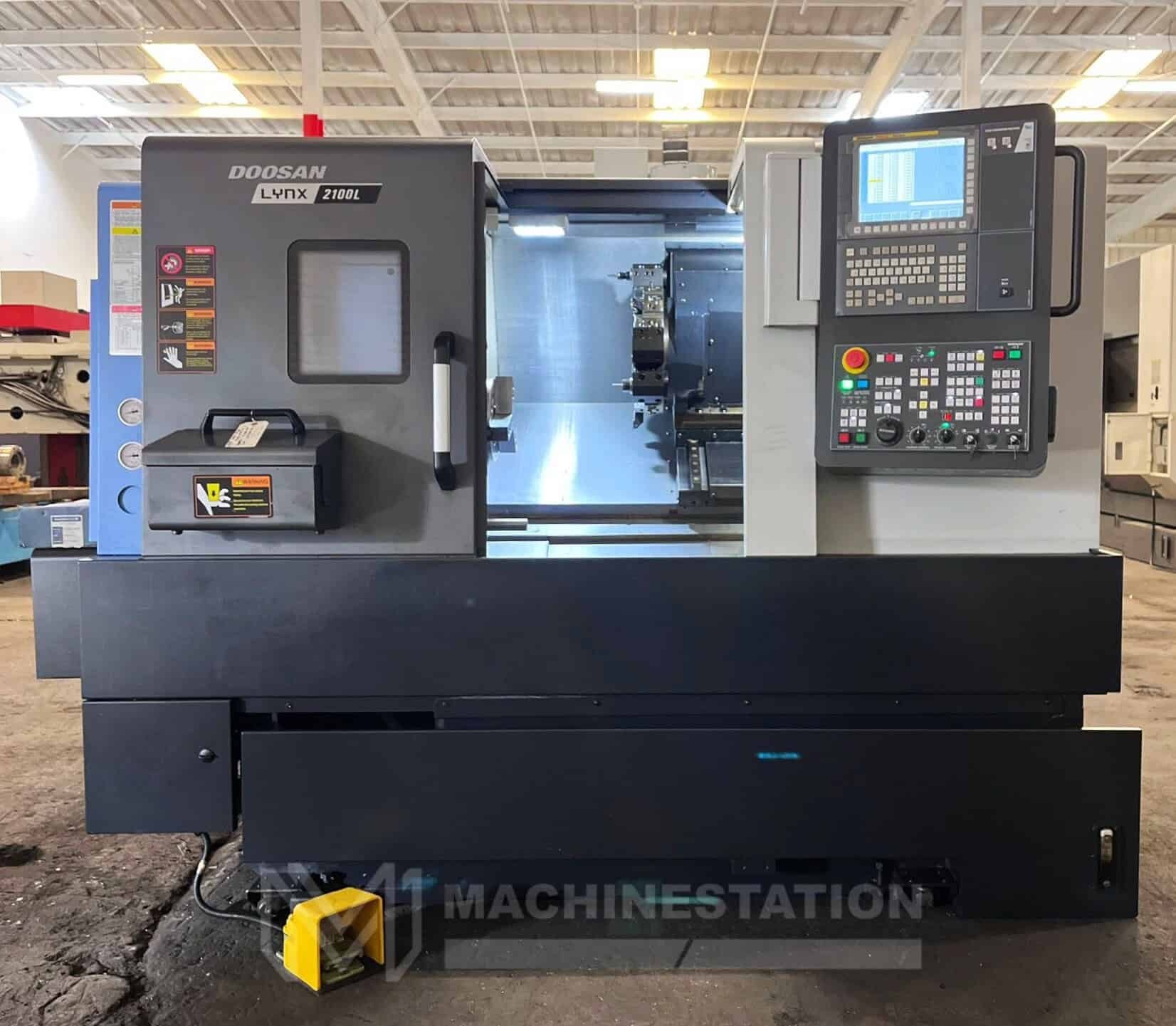

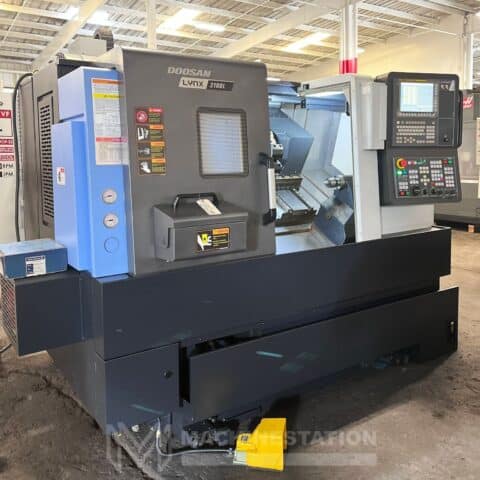

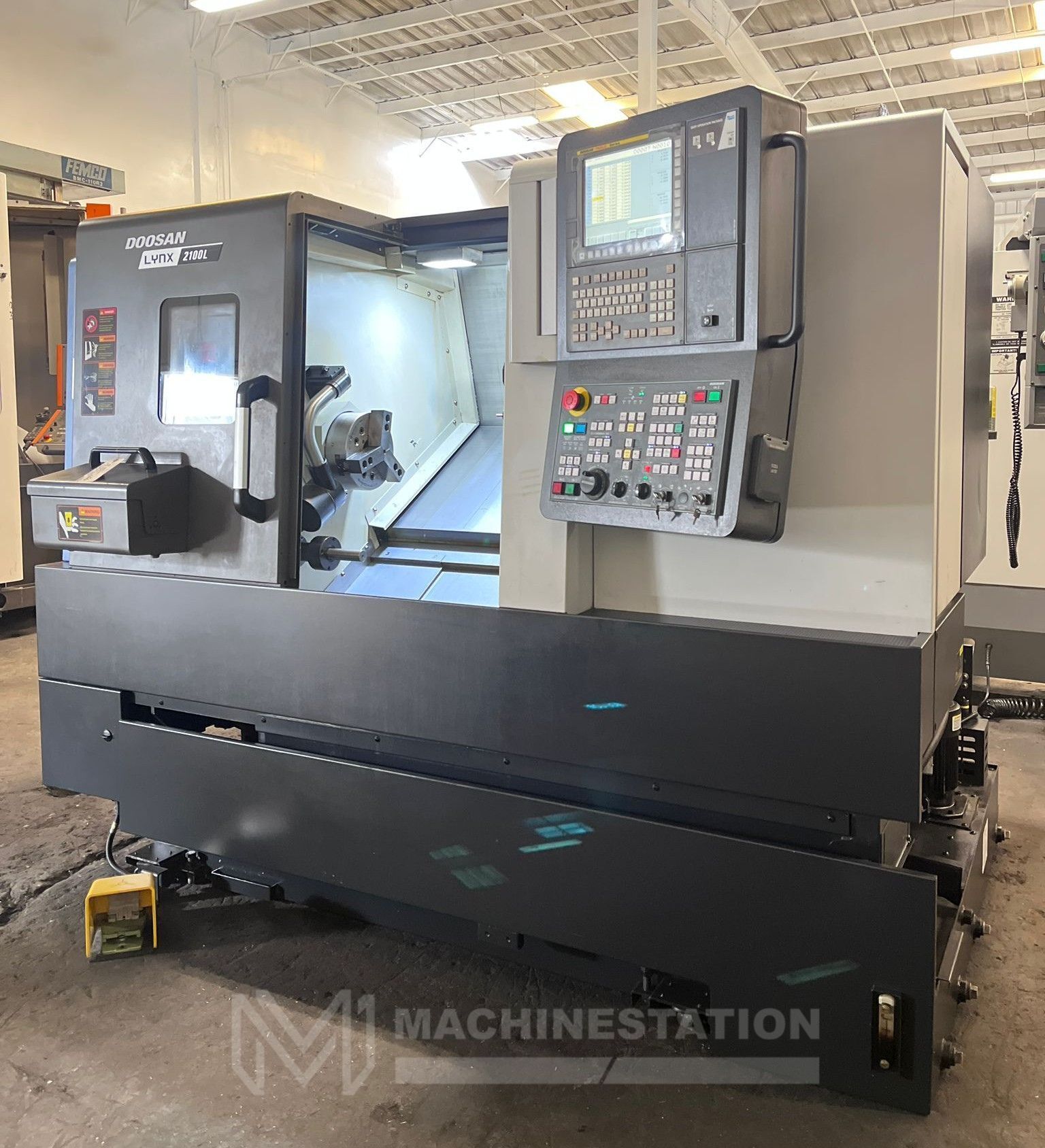

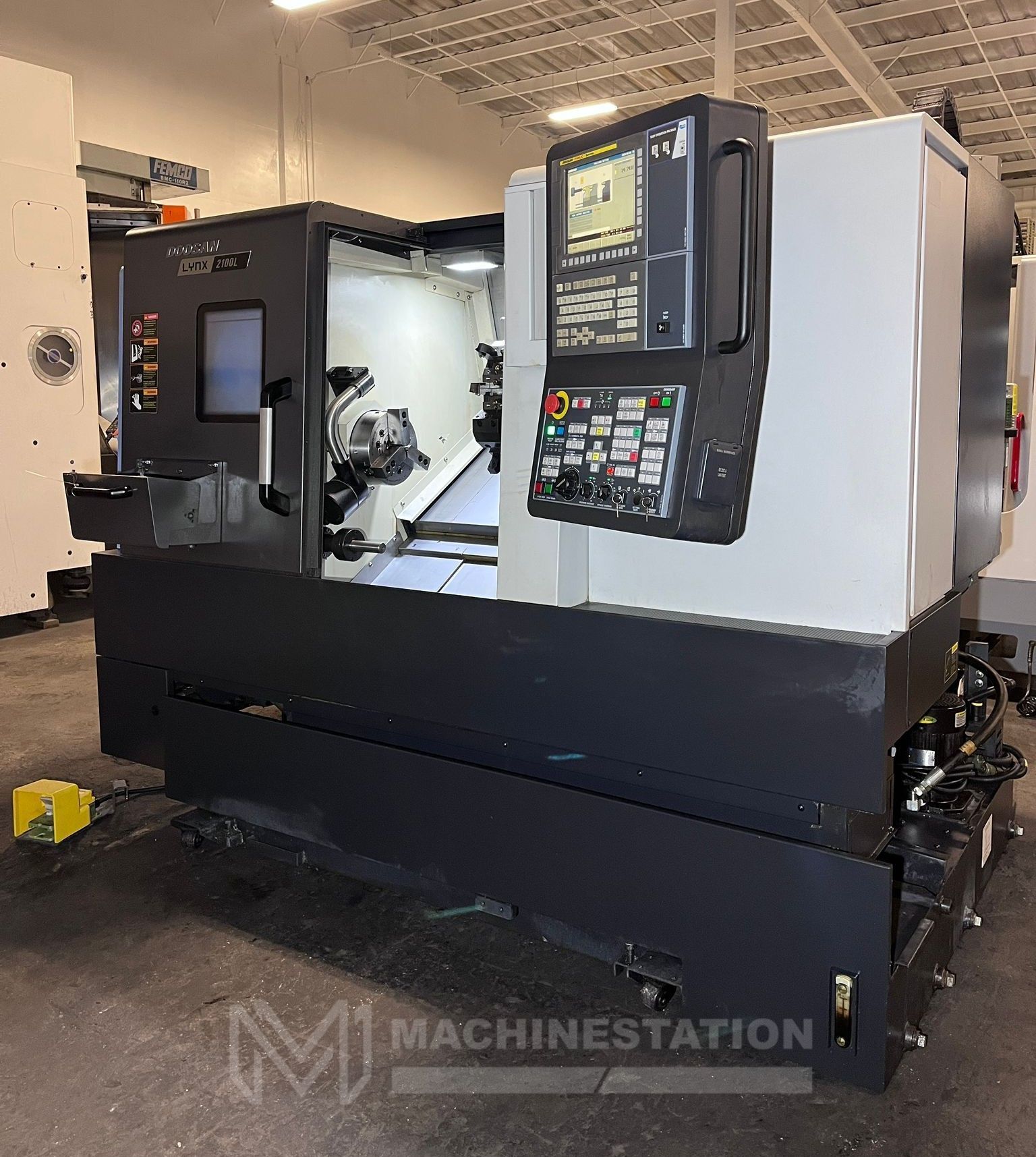

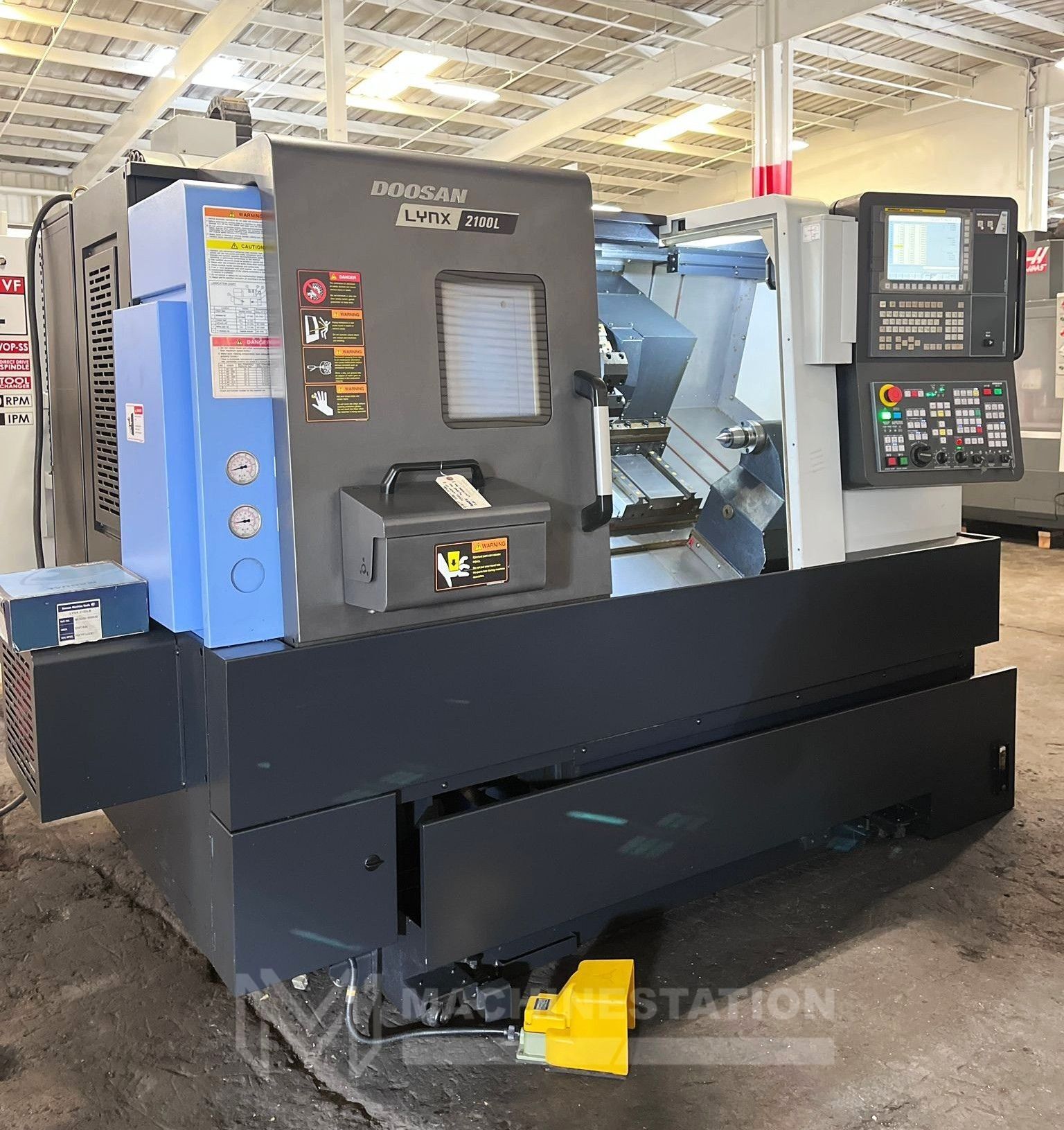

| Make: | Doosan |
| Model: | Lynx 2100LB |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

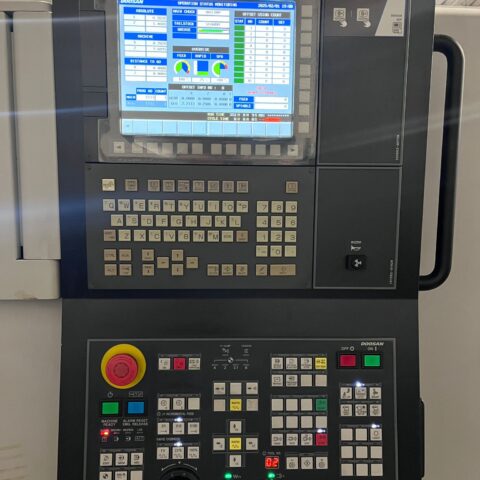

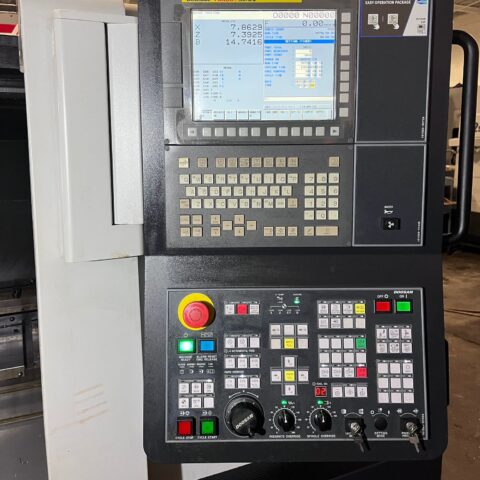

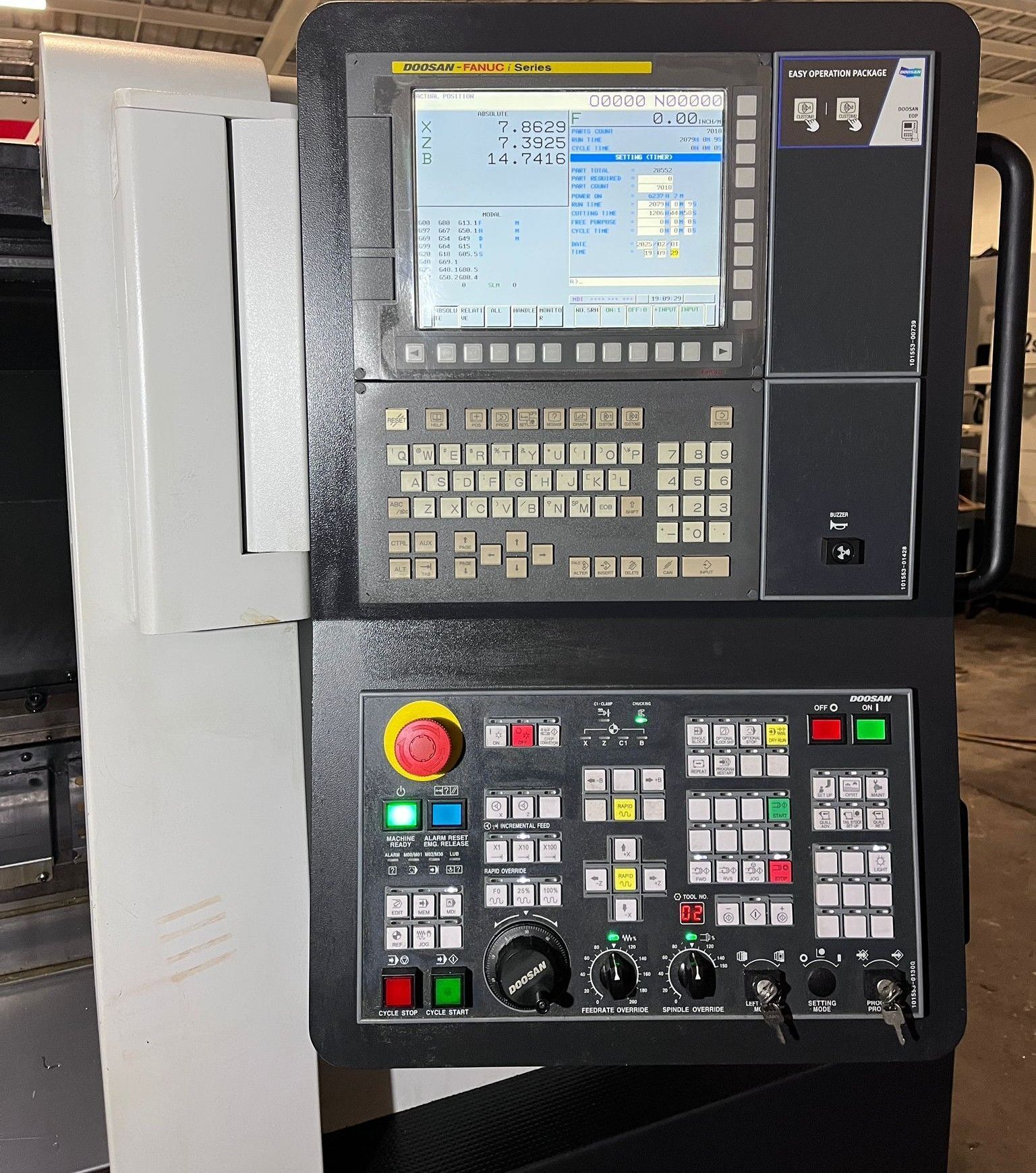

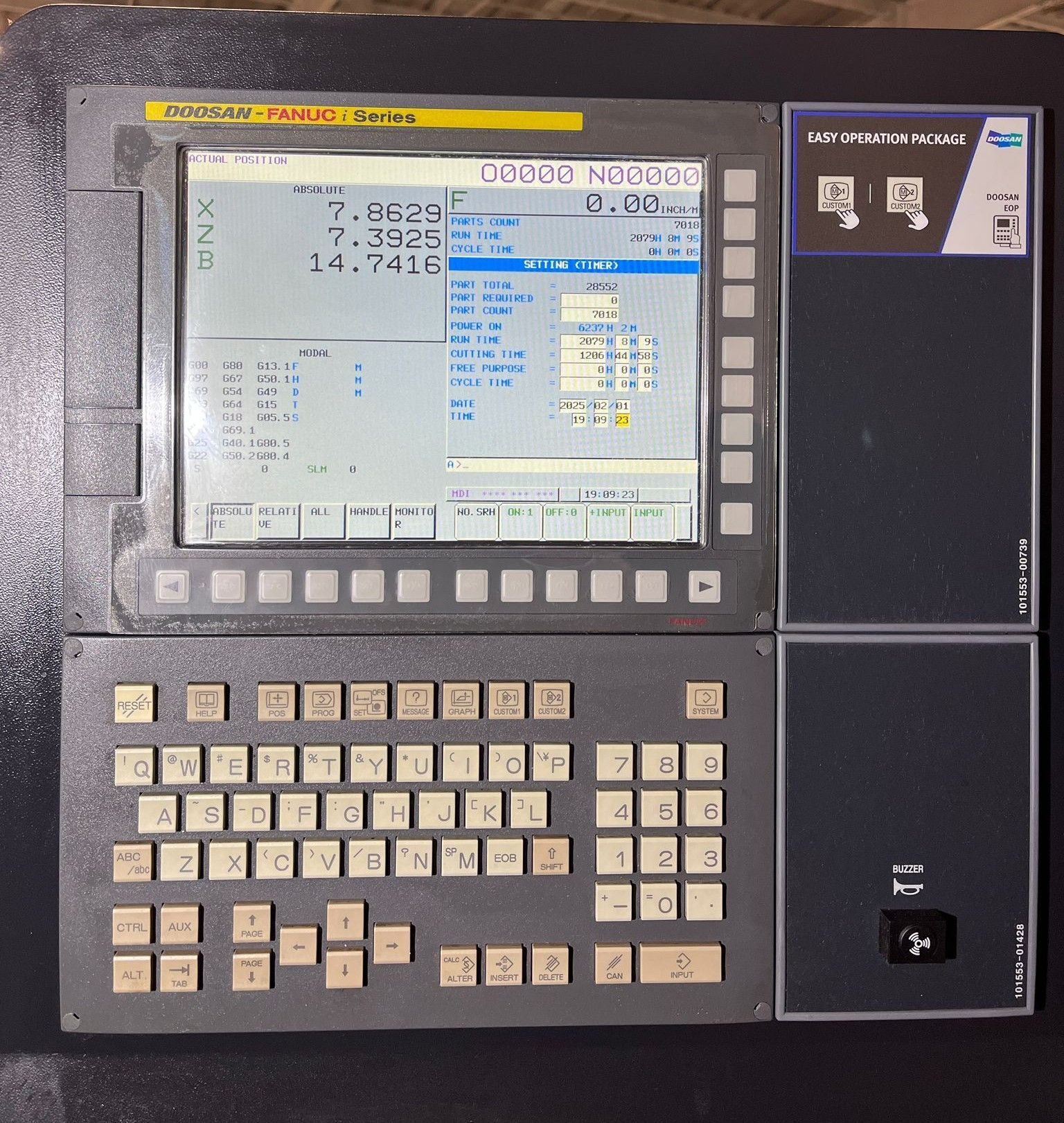

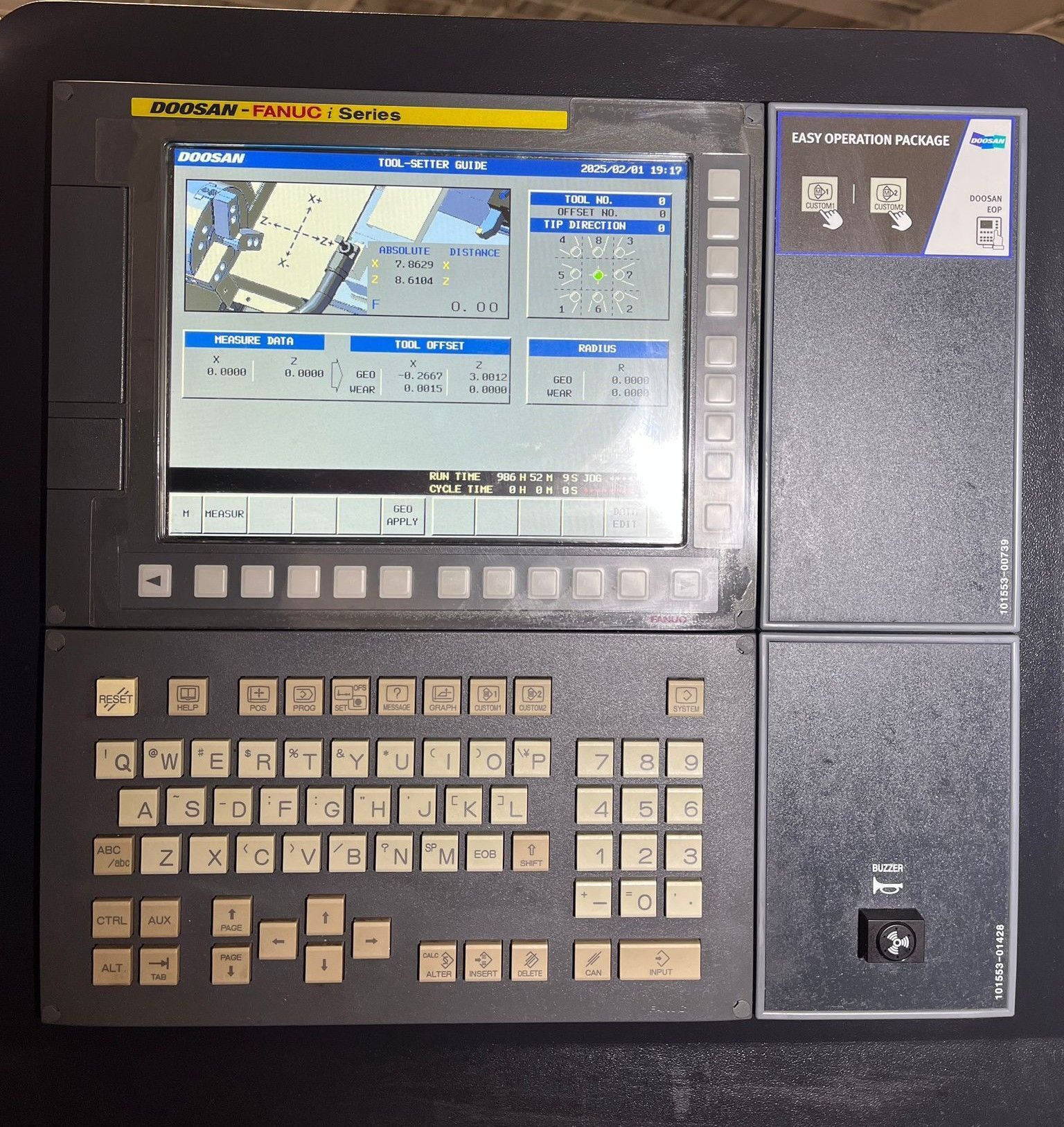

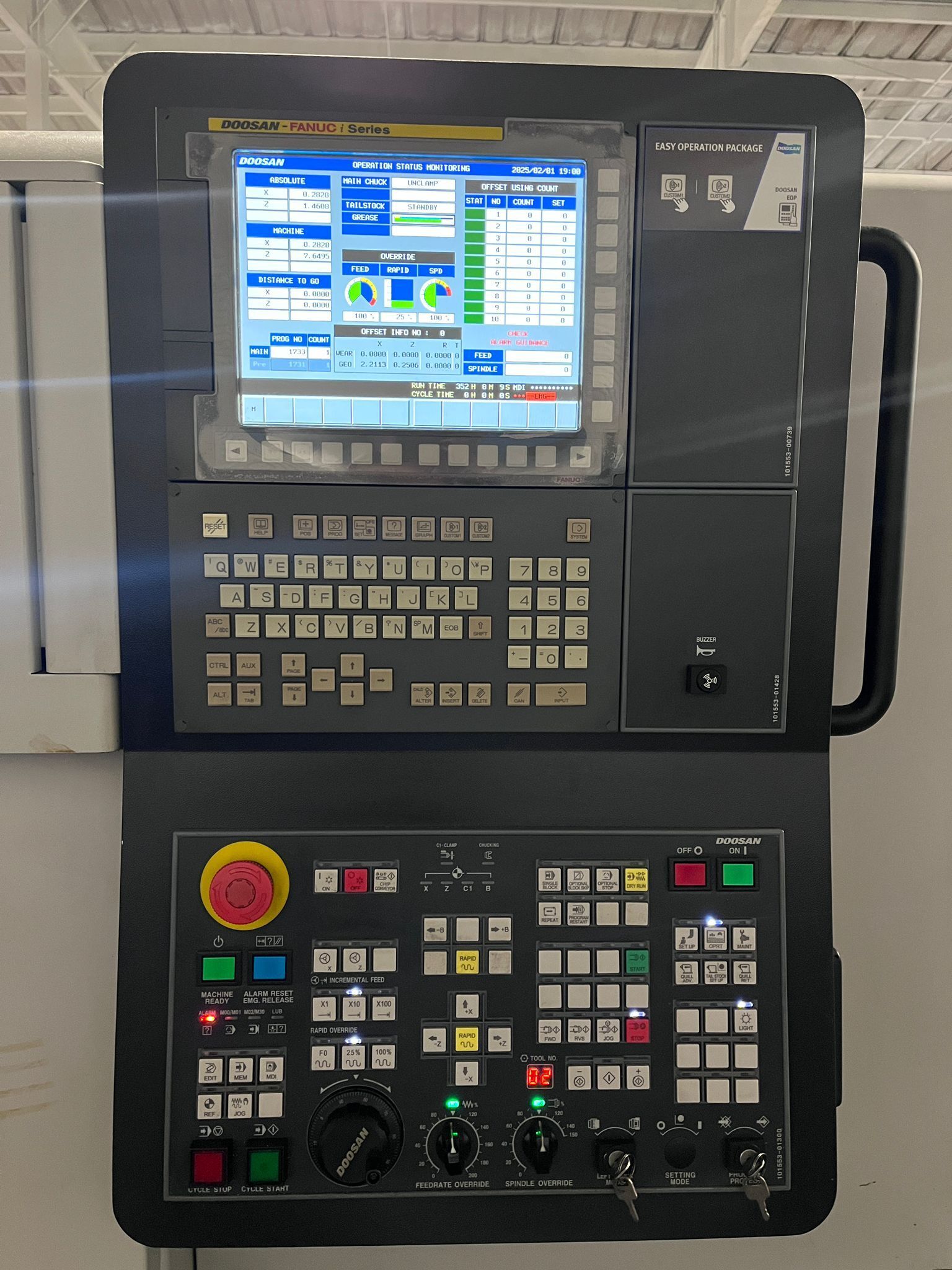

| Fanuc i series CNC Control |

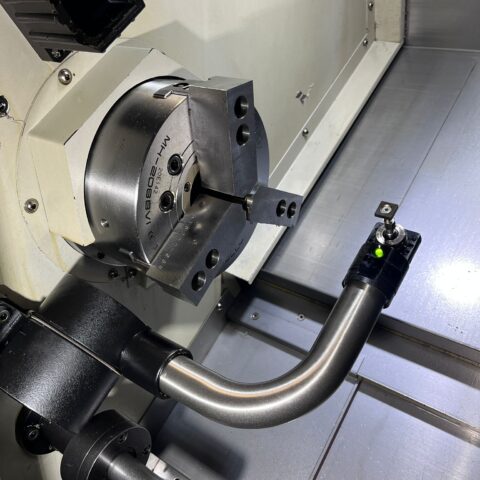

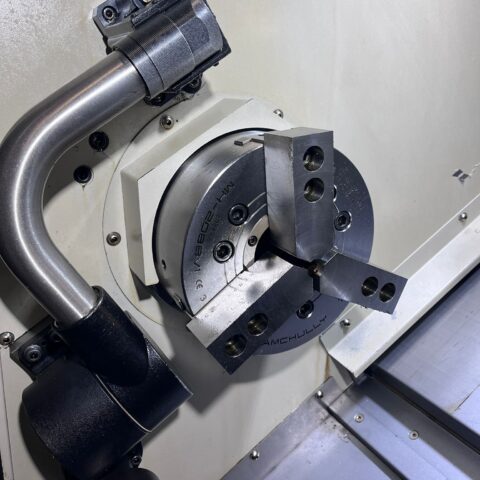

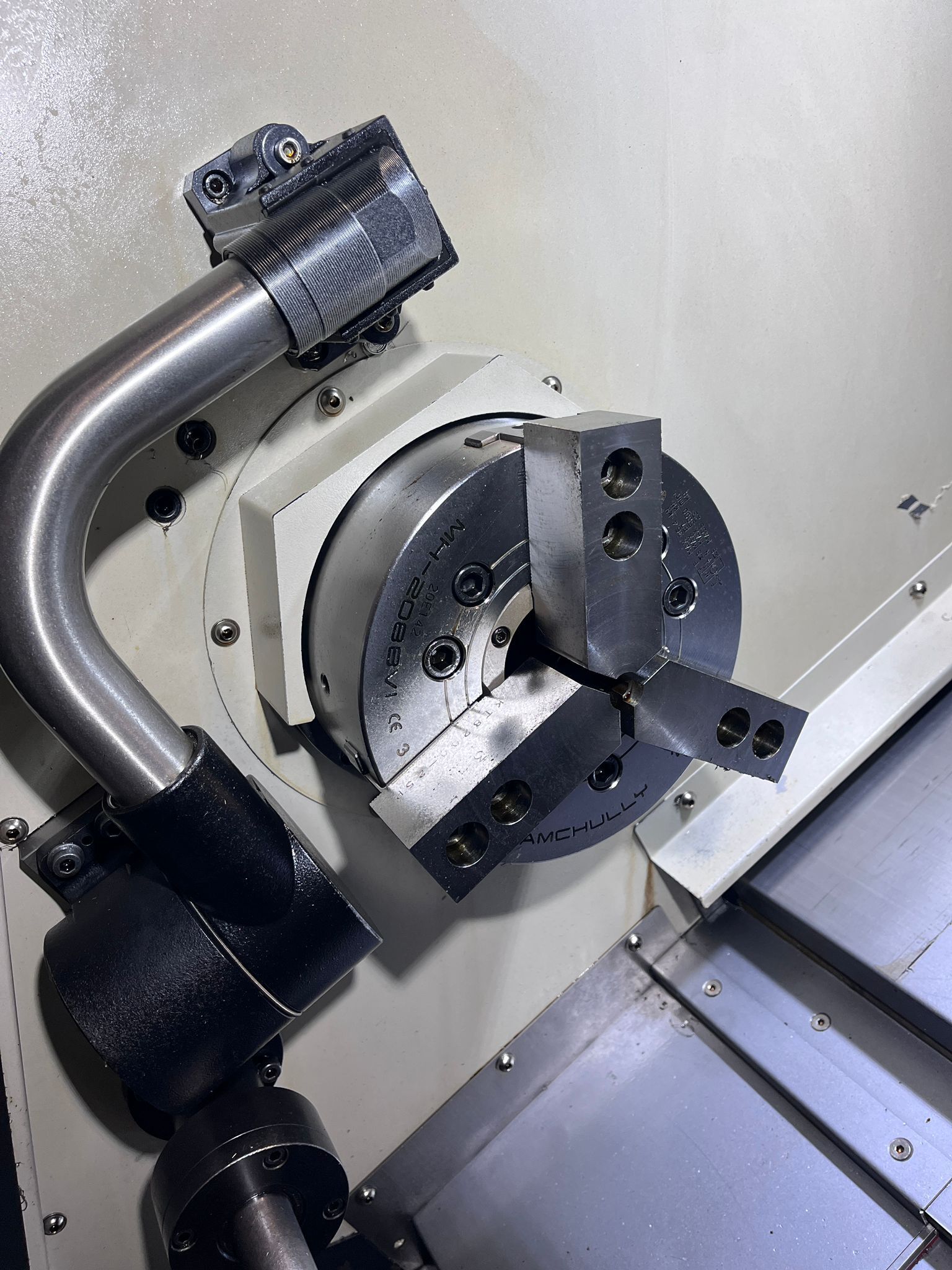

| 8″ 3-Jaw Chuck |

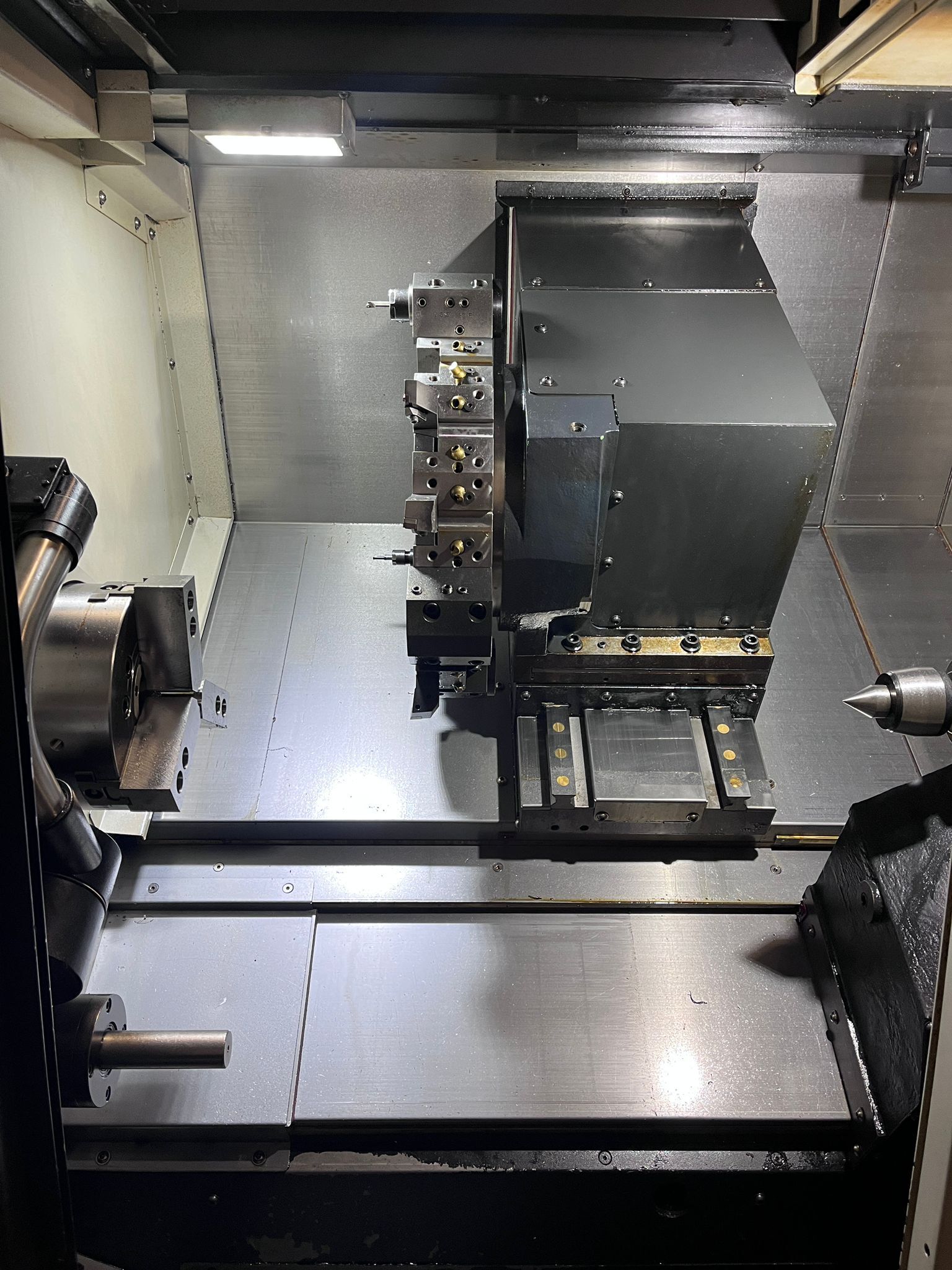

| 12 Station Automatic Turret |

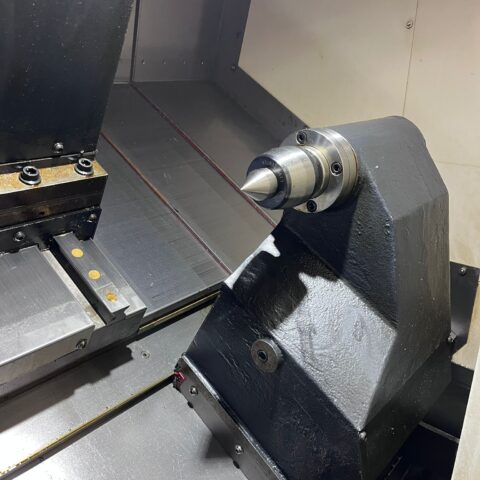

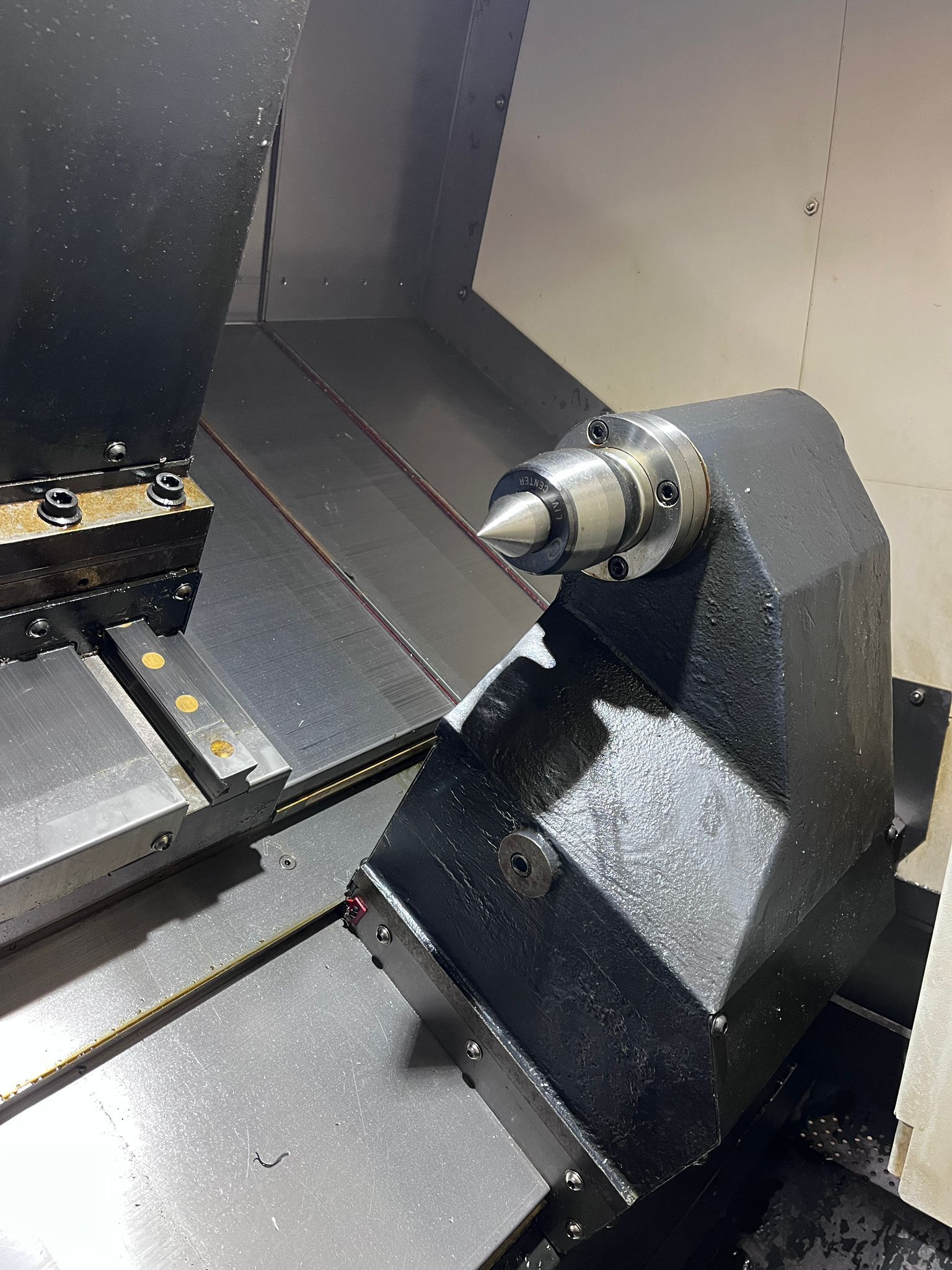

| Programmable Tailstock |

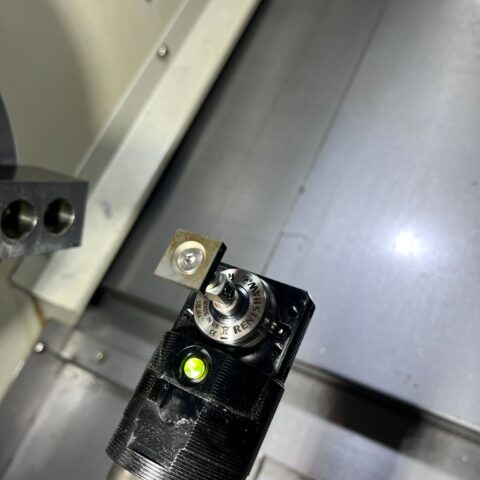

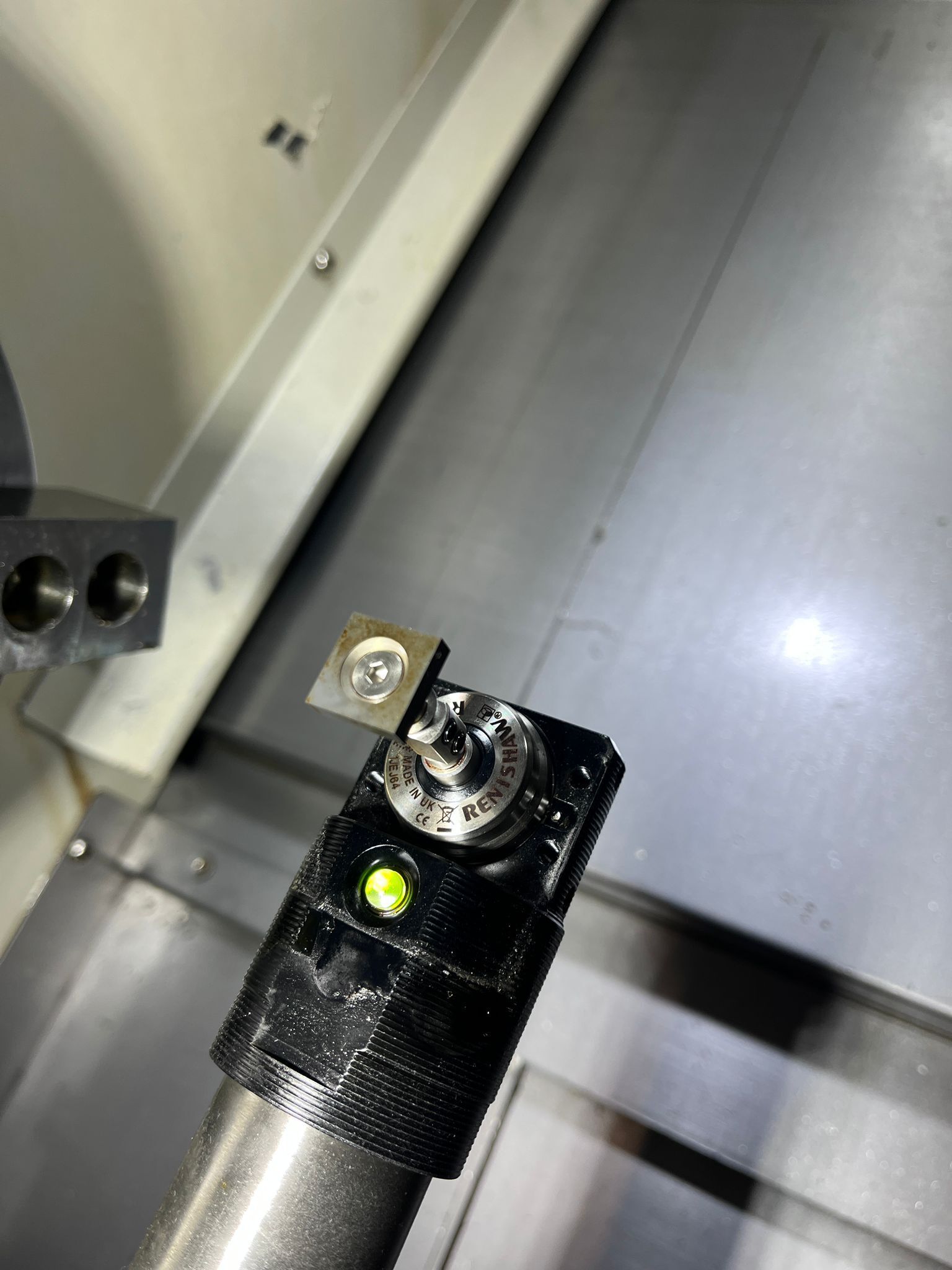

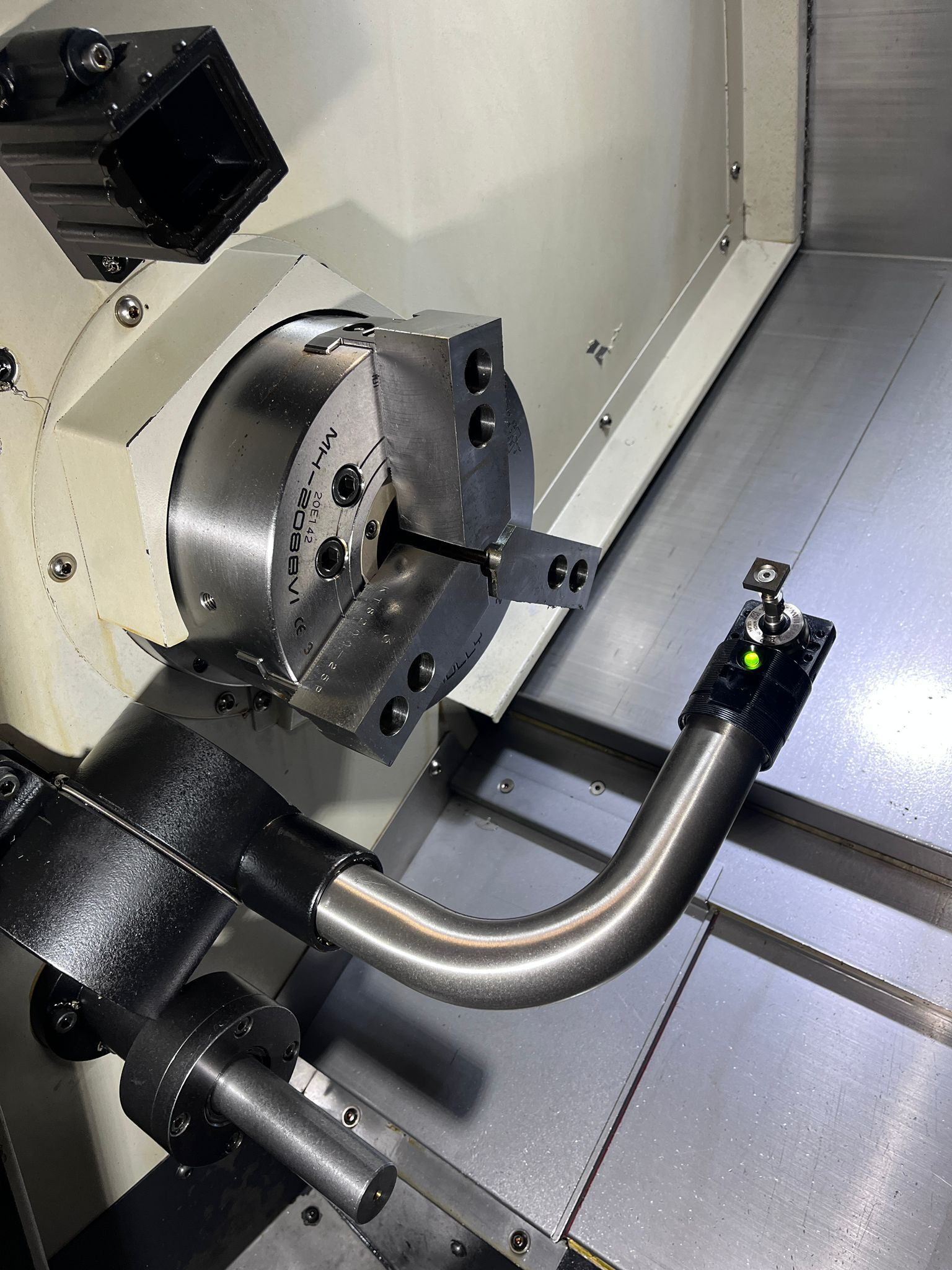

| Tool Presetter |
| PCMCIA Card Interface |
| USB Port |
| Foot Switch |

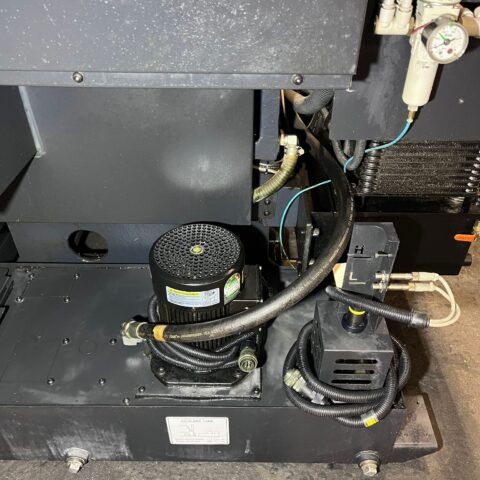

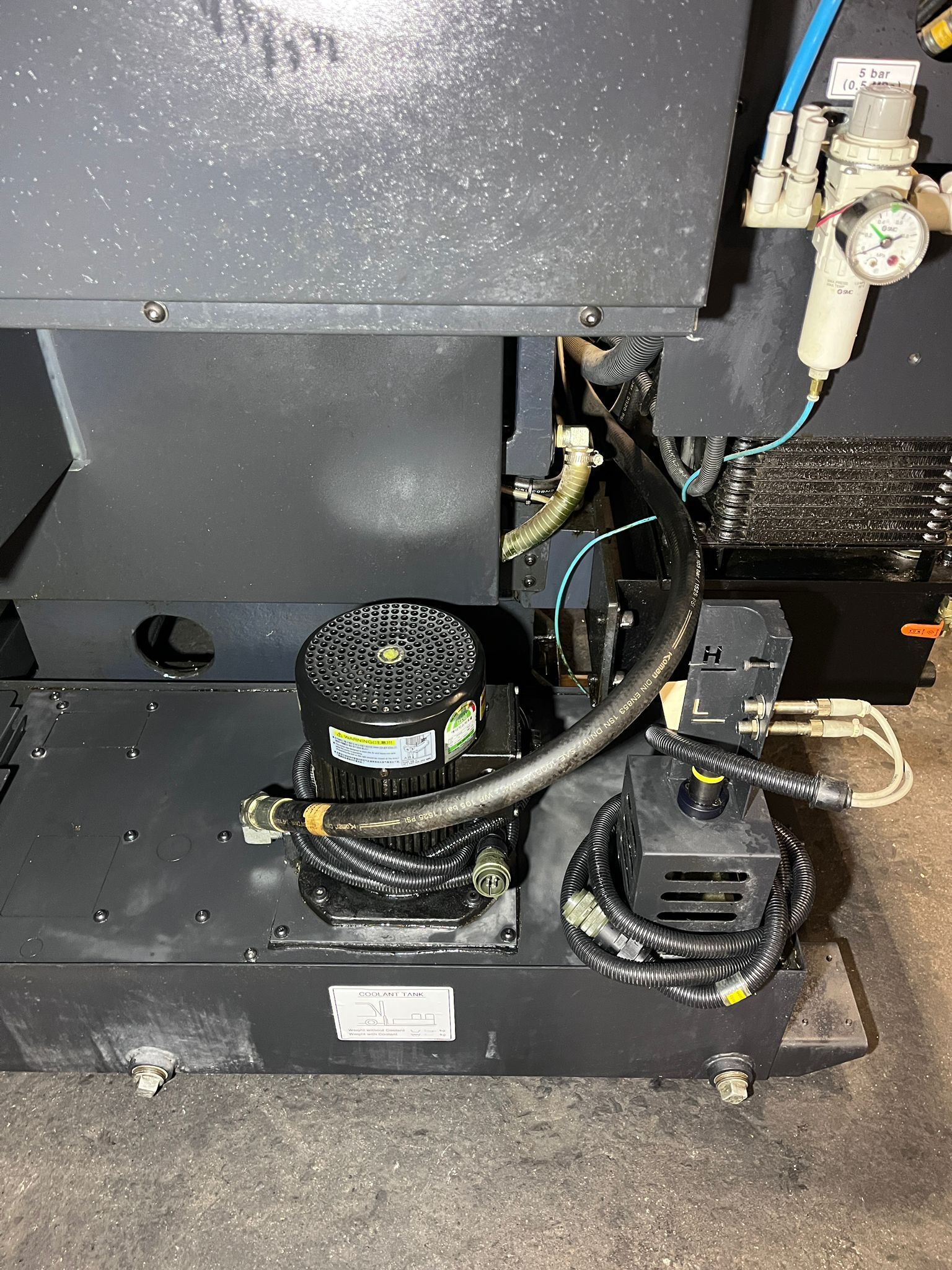

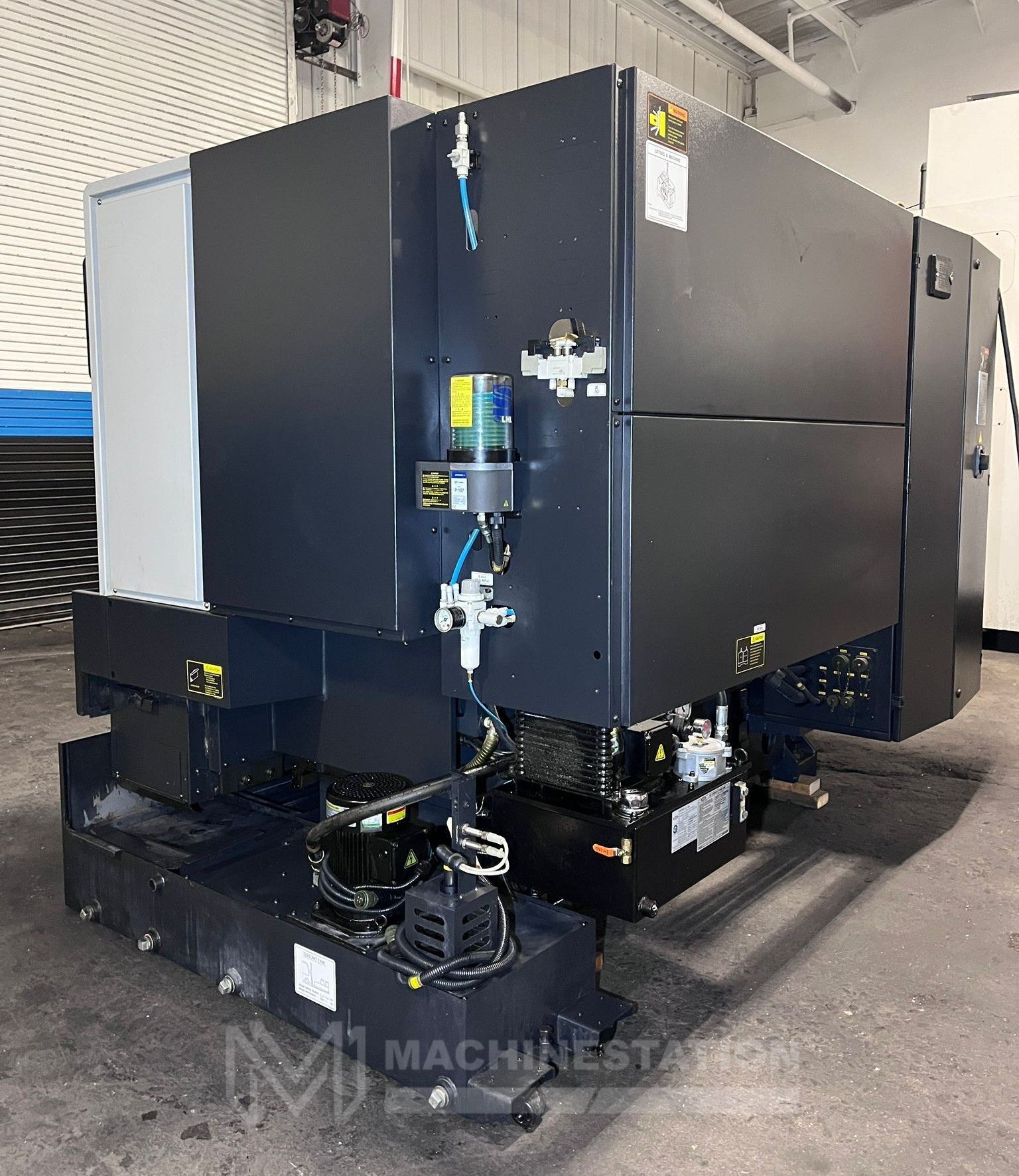

| Coolant System |
| Manuals |

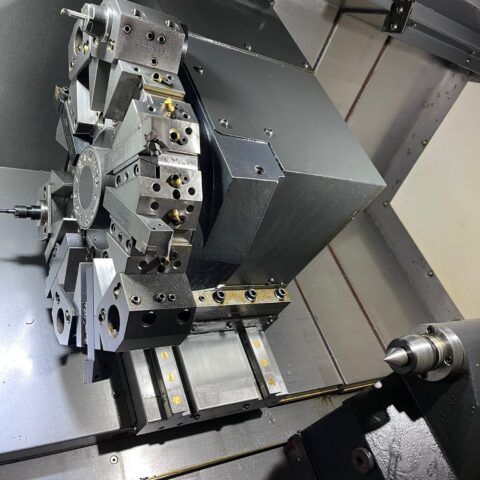

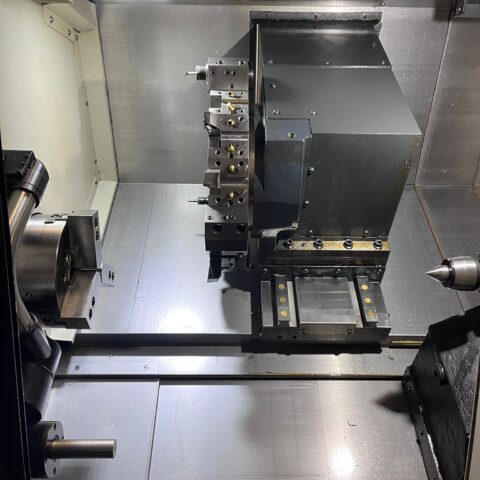

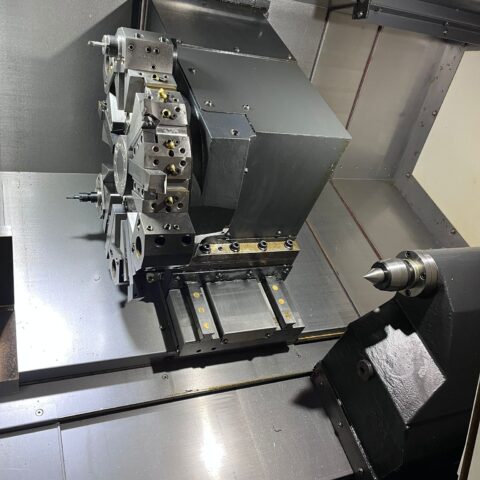

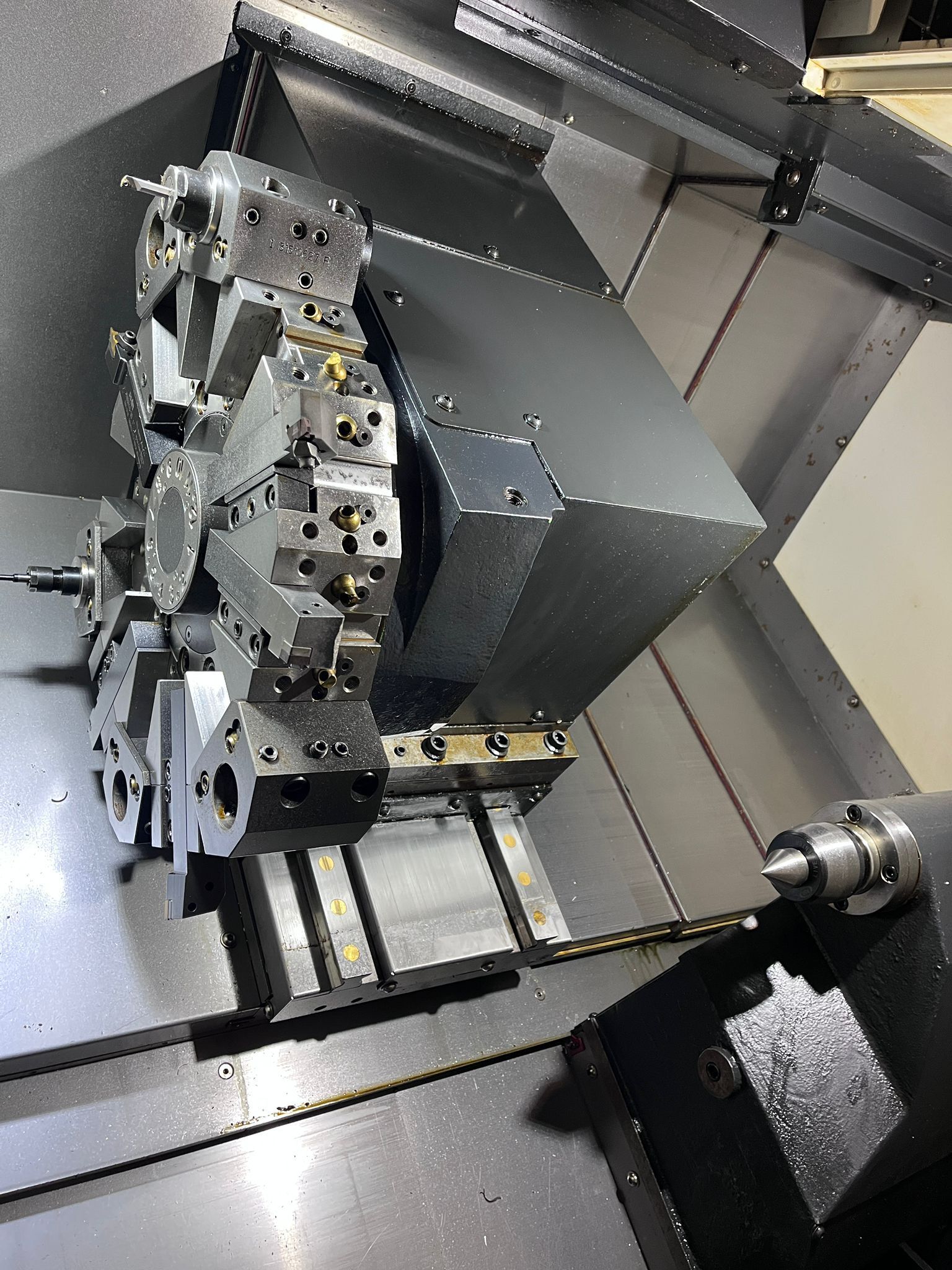

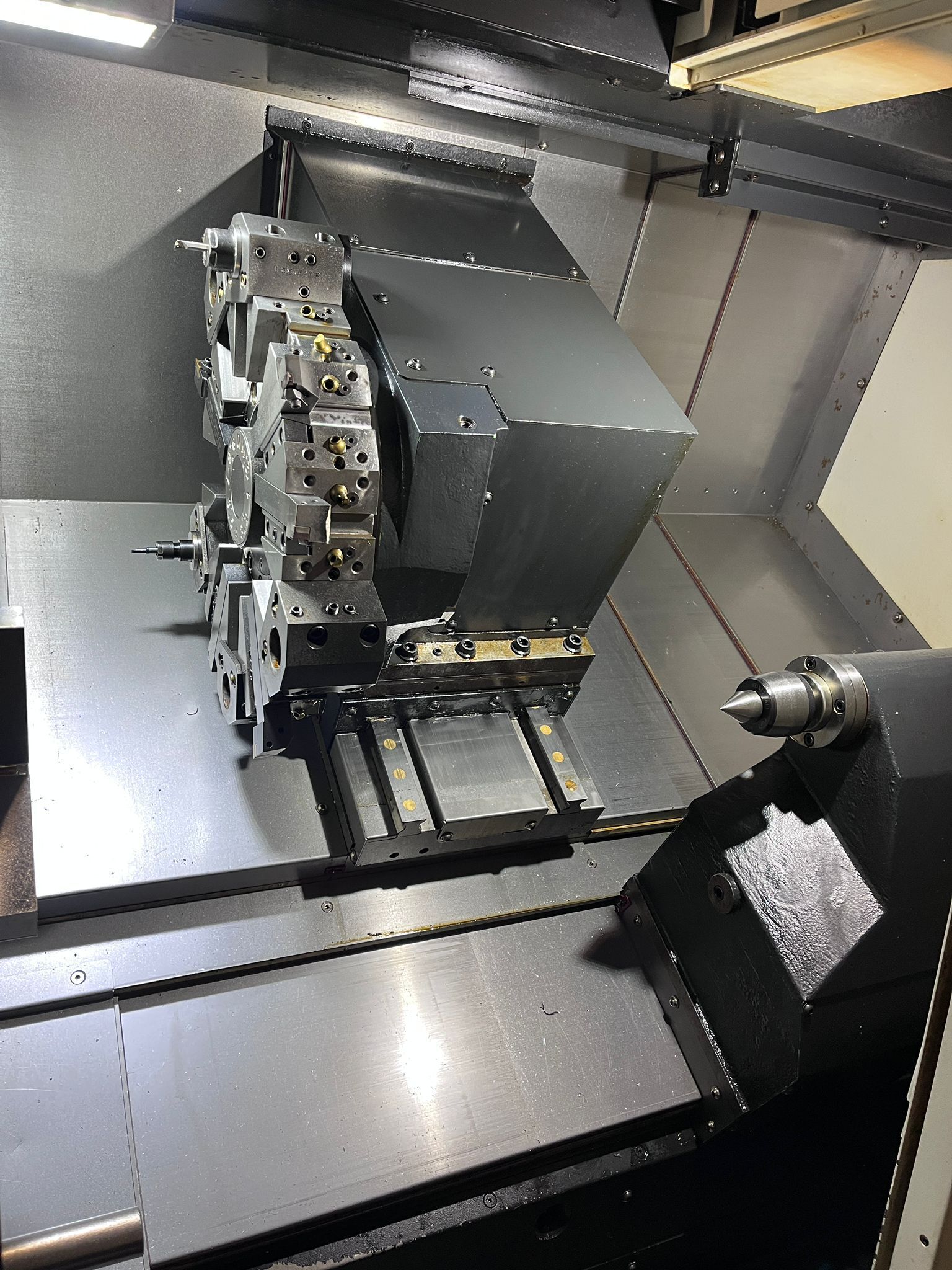

| (5) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.77″ |
| Max Turning Length: 21.65″ |
| Max Bar Capacity: 2.55″ |
| Swing Over Bed: 23.60″ |
| Swing Over saddle: 15.70″ |
| Travels: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 22.04″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Max OD Tool Size: 1.0″ x 1.0″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Quill Diameter: 2.56″ |
| Quill Travel: 3.15″ |
| Taper Size: MT#4 |
| General: |
|---|

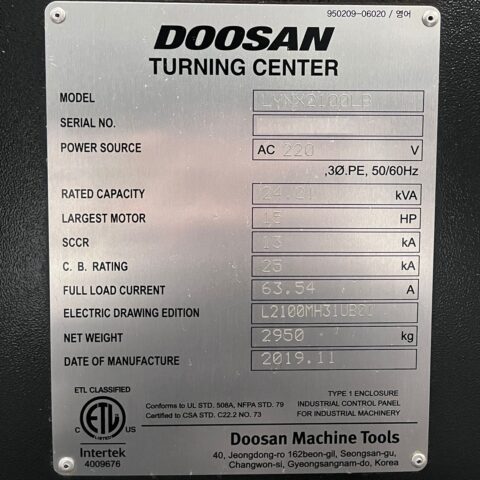

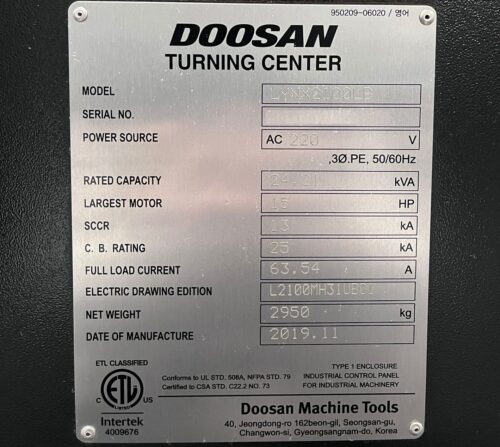

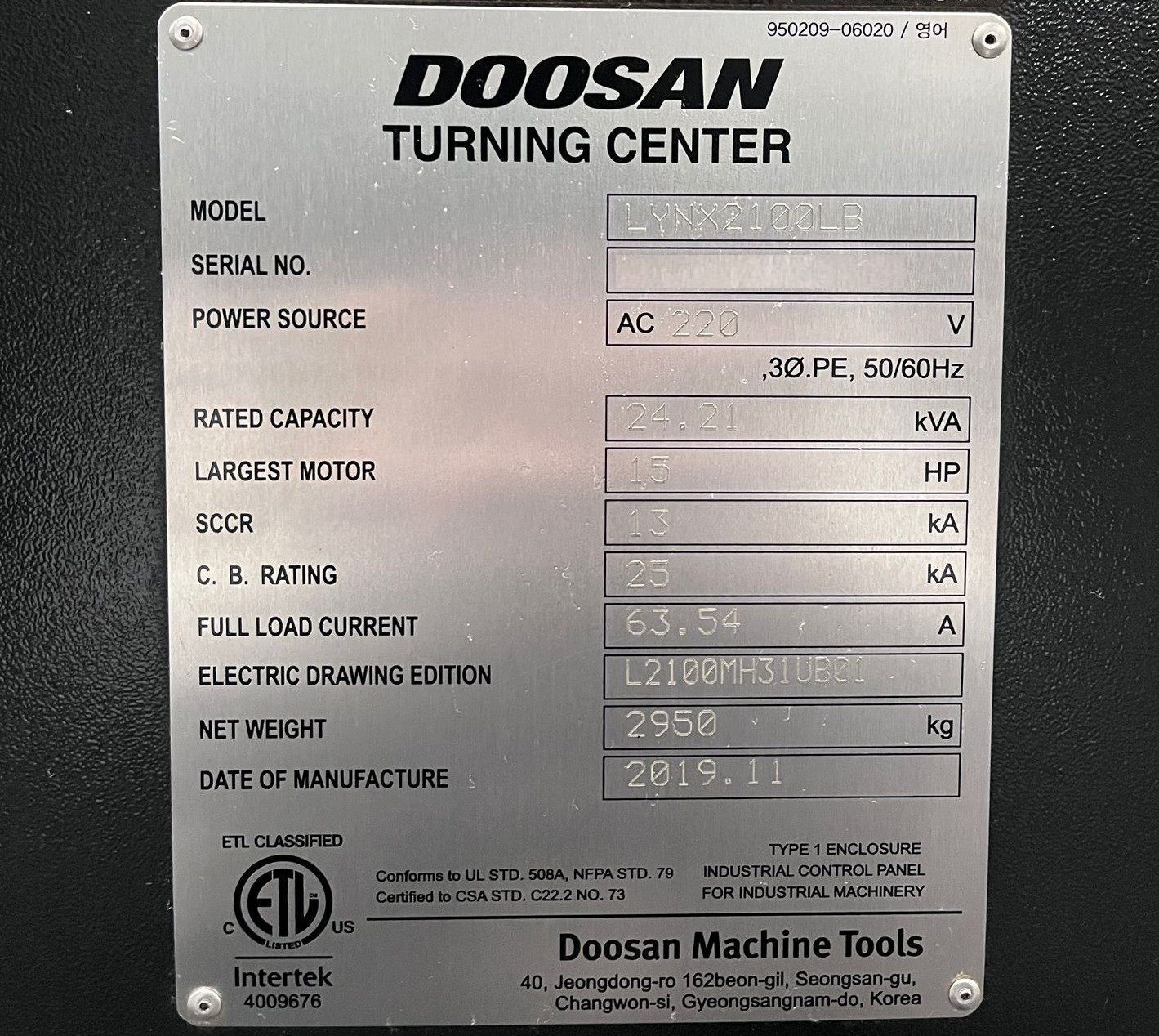

| Power: 24.21 kva, 220v / 3-Phase |
| Overall Dimensions: 101″ x 63″ x 67″ High Approx. |
| Weight: 6,503 lbs. Approx. |
