*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

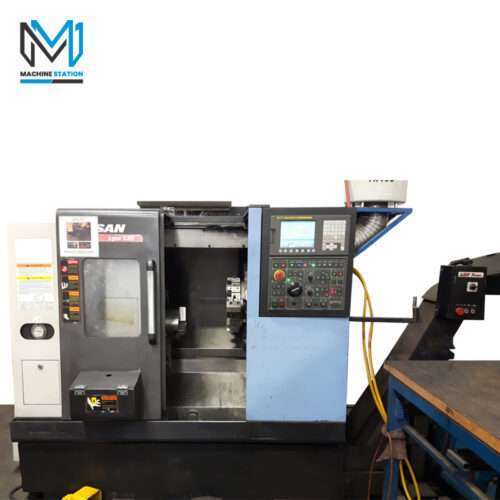

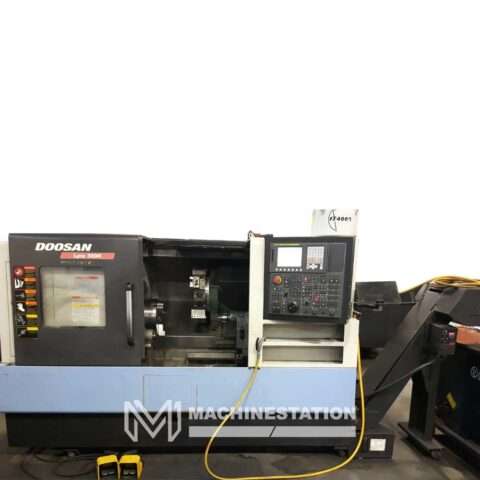

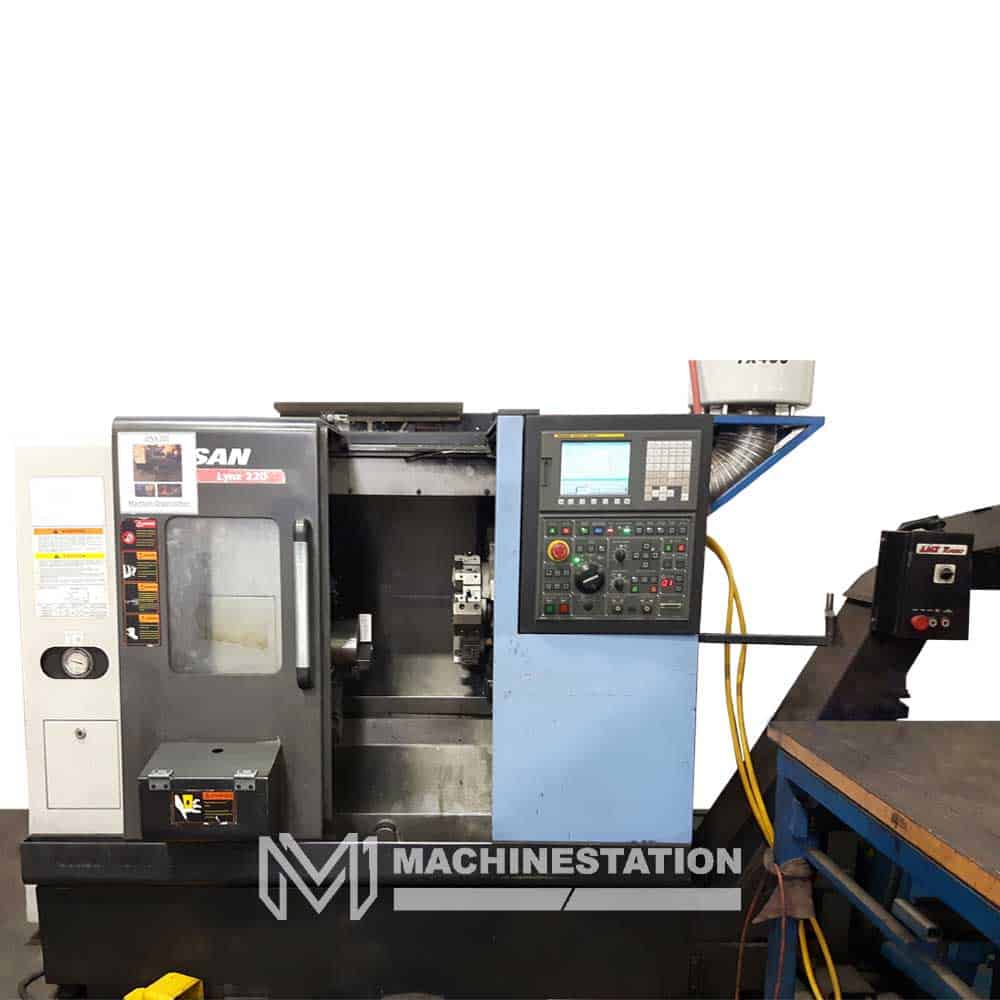

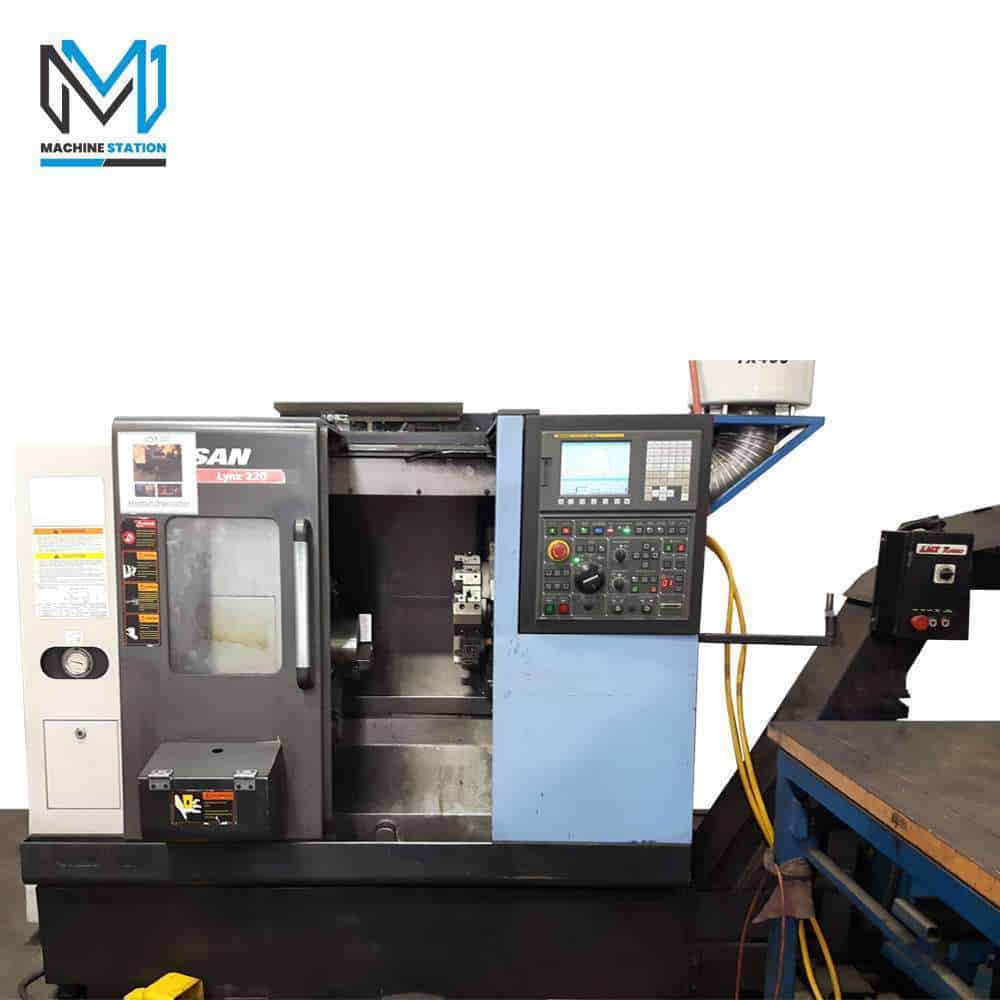

| Make: | Doosan |
| Model: | Lynx 220C |
| Year: | 2008 |

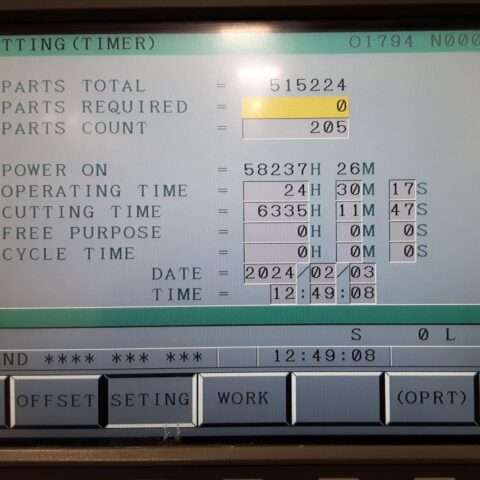

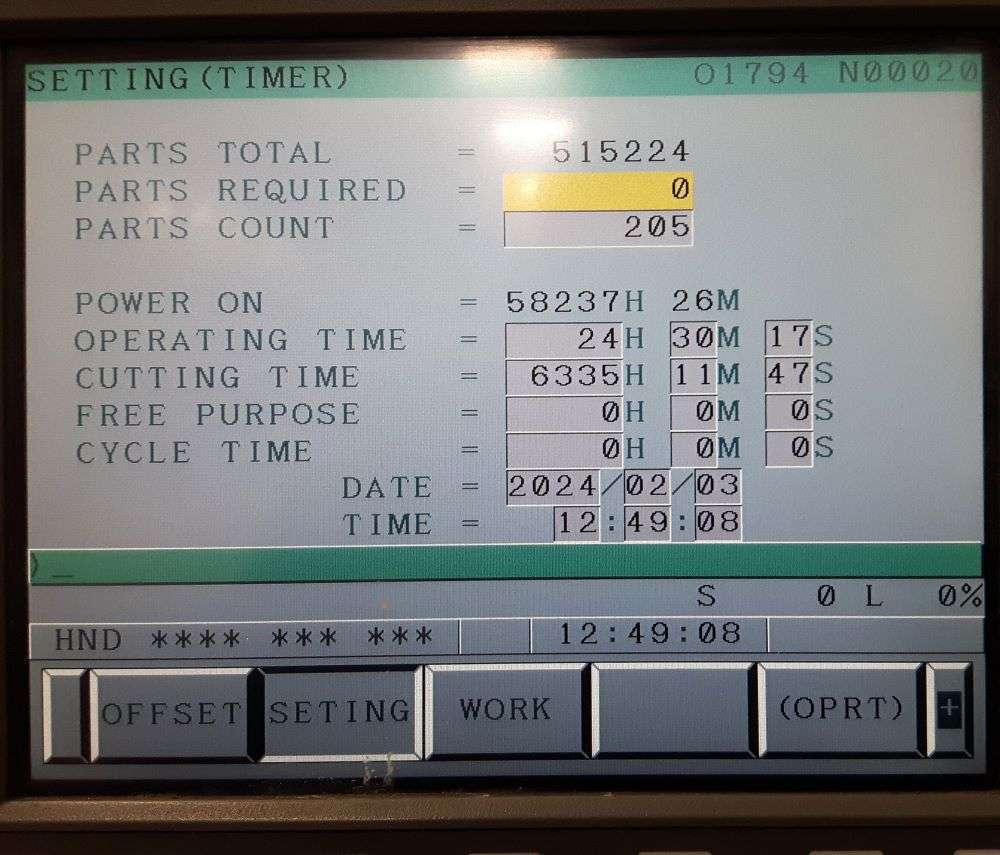

| Cutting Time: | 6335 Hours |
| Equipped With: |
|---|

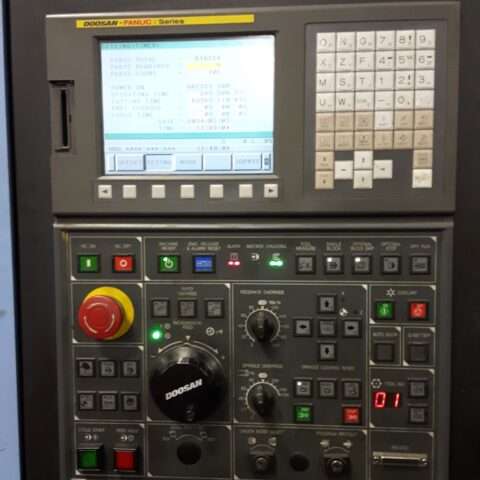

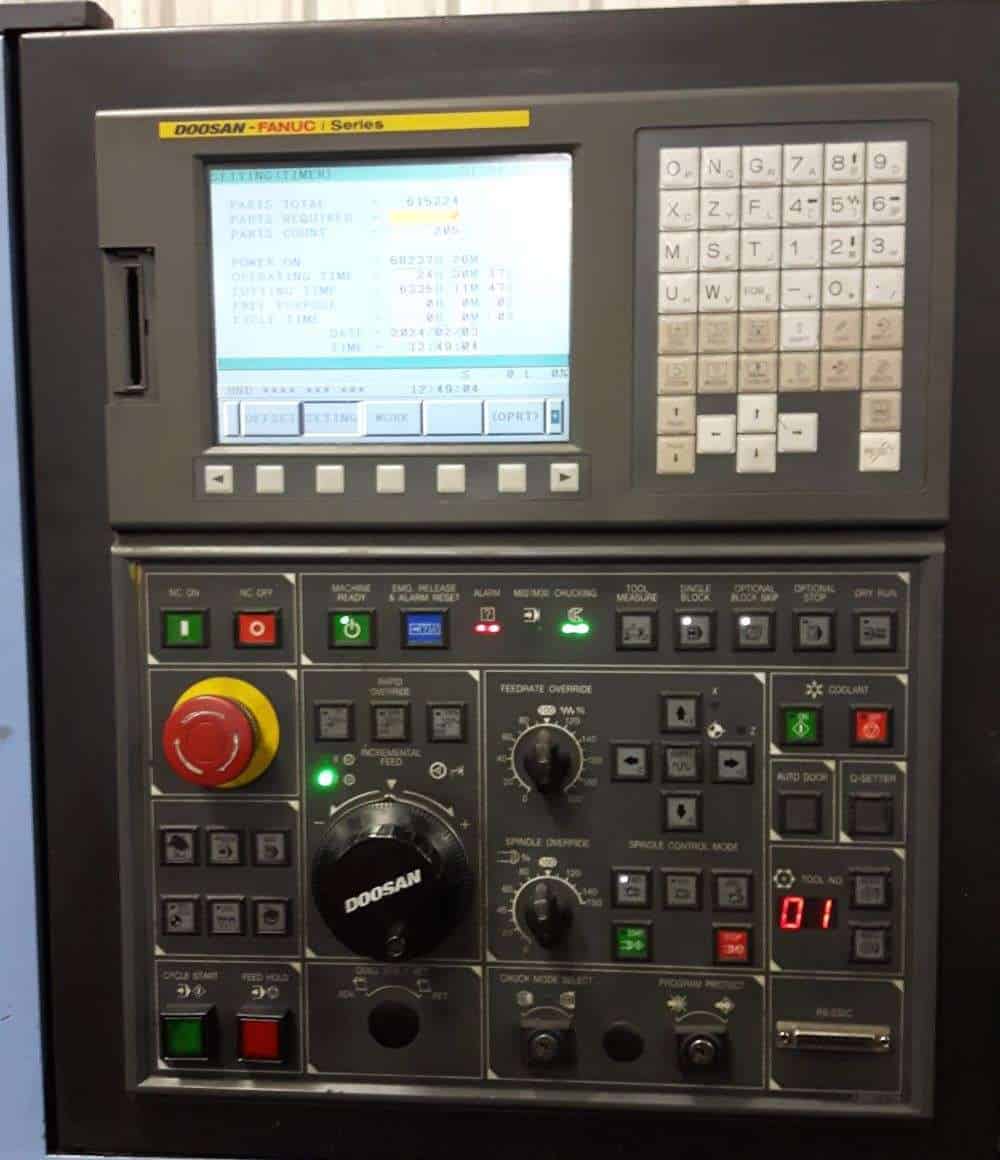

| Doosan-Fanuc i Series CNC Control |
| 3.0″ Big Bore Lathe |

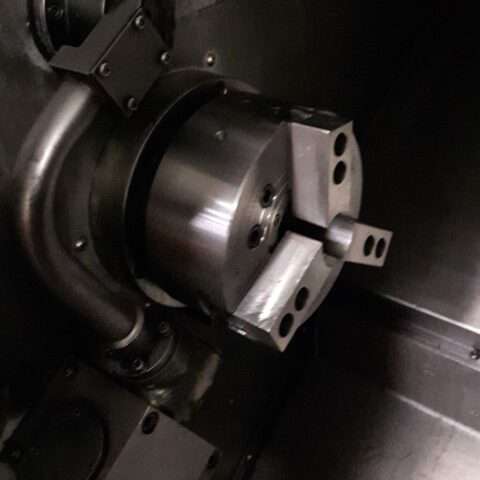

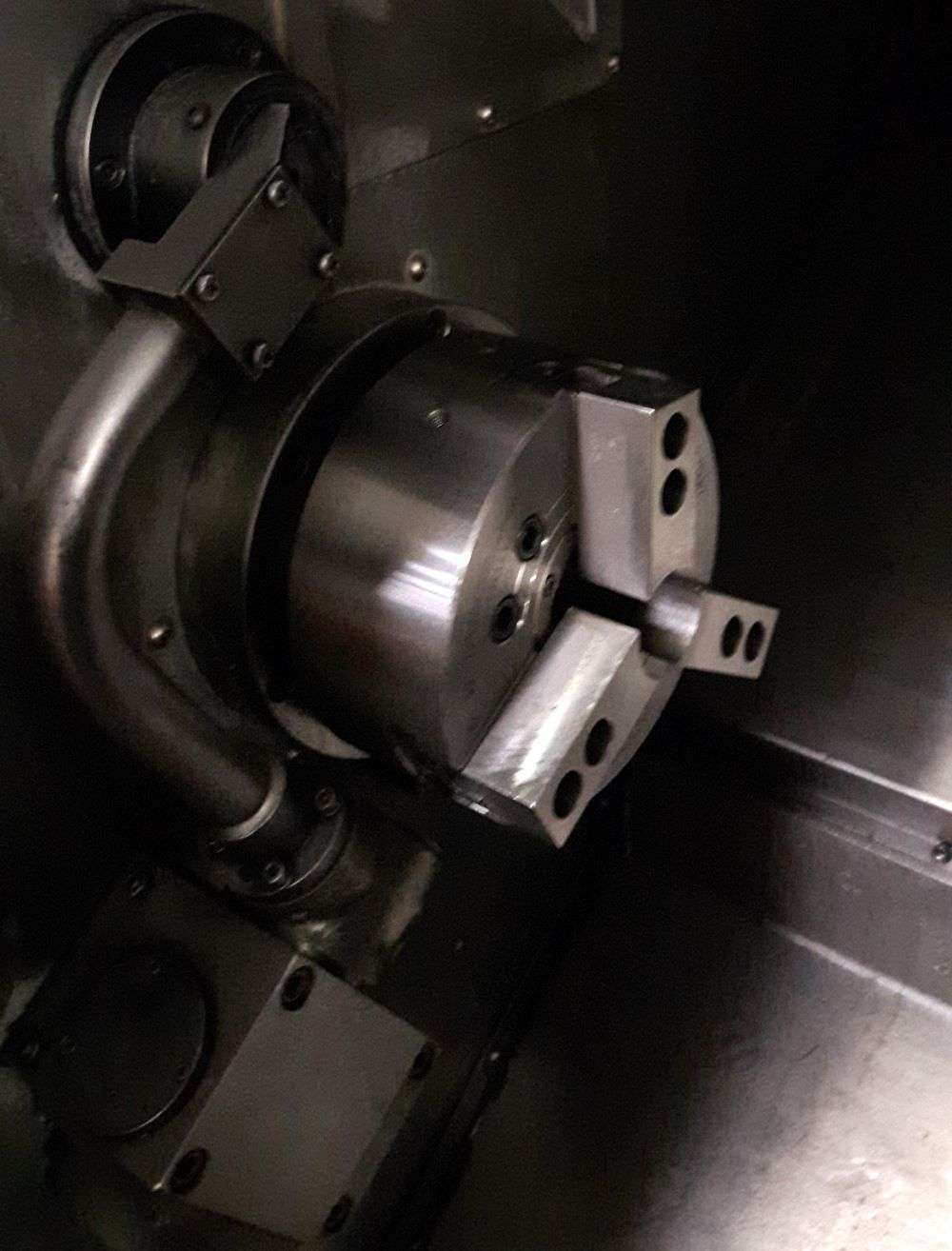

| 8″ 3-Jaw Hydraulic Chuck |

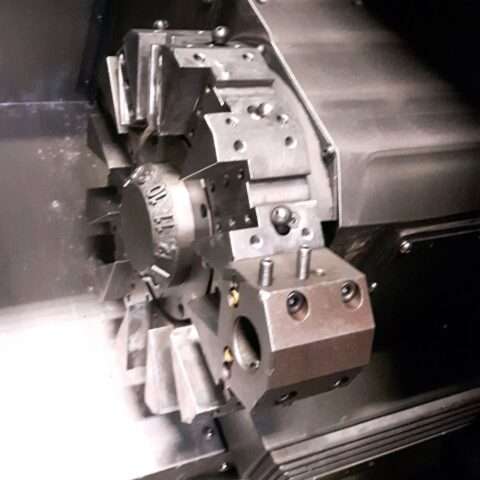

| 12 Station Turret |
| Tool Presetter |
| USB Drive |
| PCMCIA Card Slot |

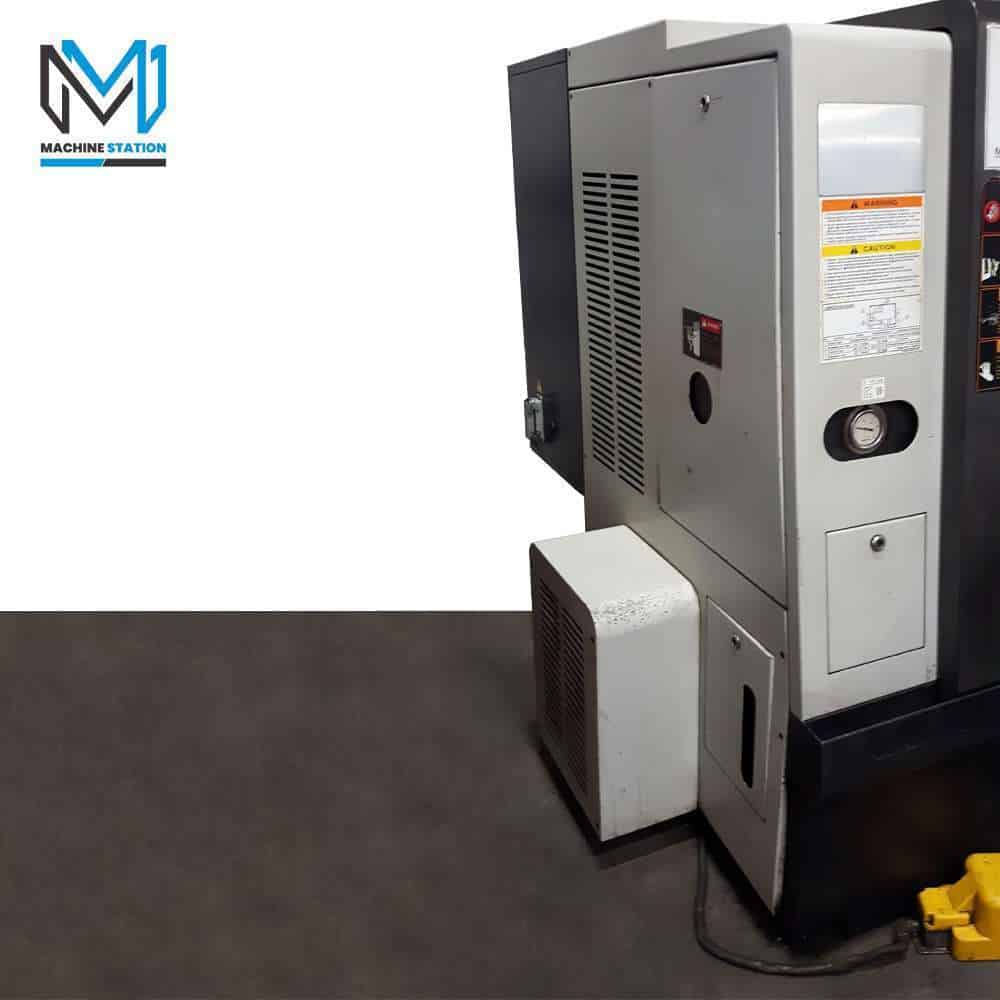

| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter : 12.6″ |
| Max Swing Over Bed : 20.1″ |
| Max Swing Over Saddle : 11.4″ |
| Max Turning Length: 12.0″ |
| Max Bar Capacity : 2.6″ |
| Travels: |
|---|
| X Axis Travel : 6.9″ |
| Z1 Axis Travel : 13.0″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |

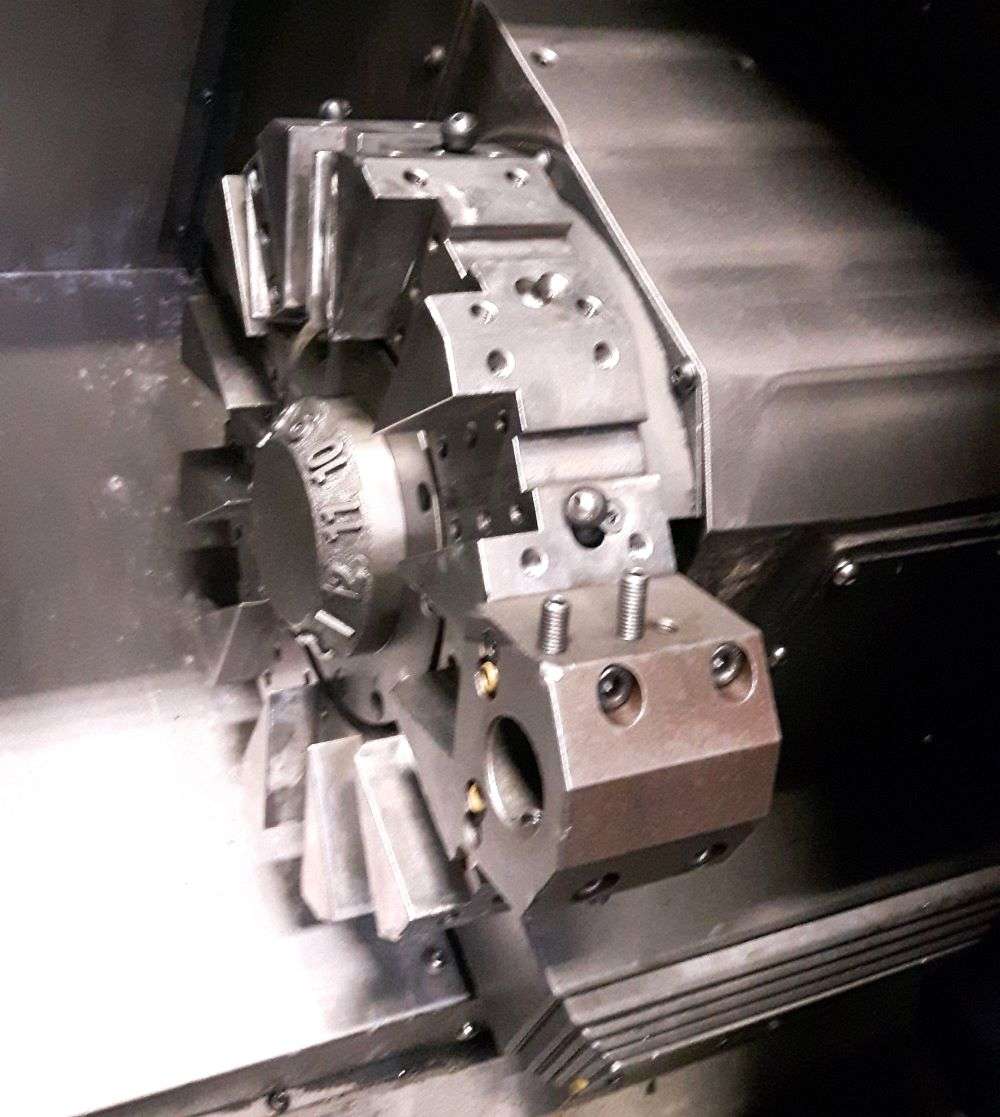

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.11 Second |
| General: |
|---|

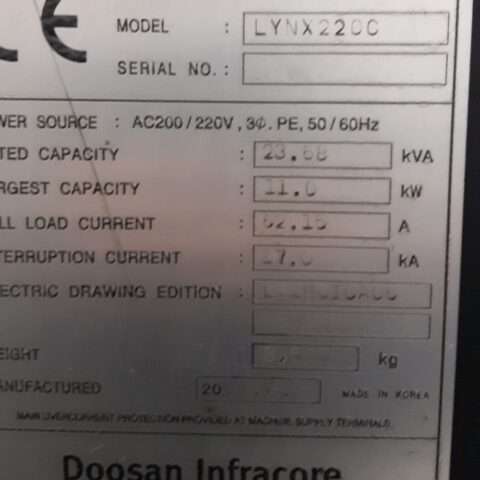

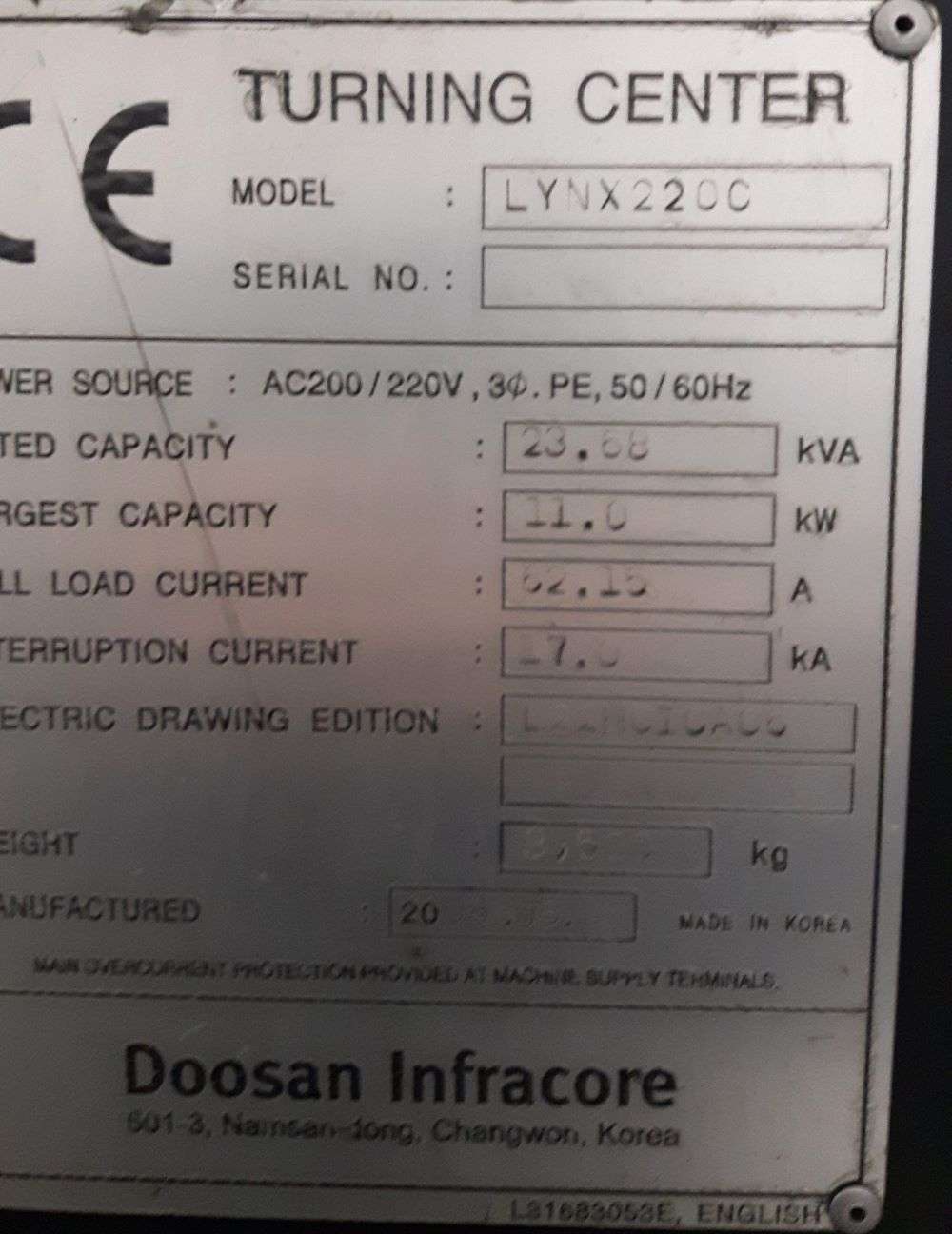

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 23.68 kva |
| Machine Dimensions: 91.5″ x 63″ x 65″ High |
| Machine Weight: 7,716 lbs Approx. |
