*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

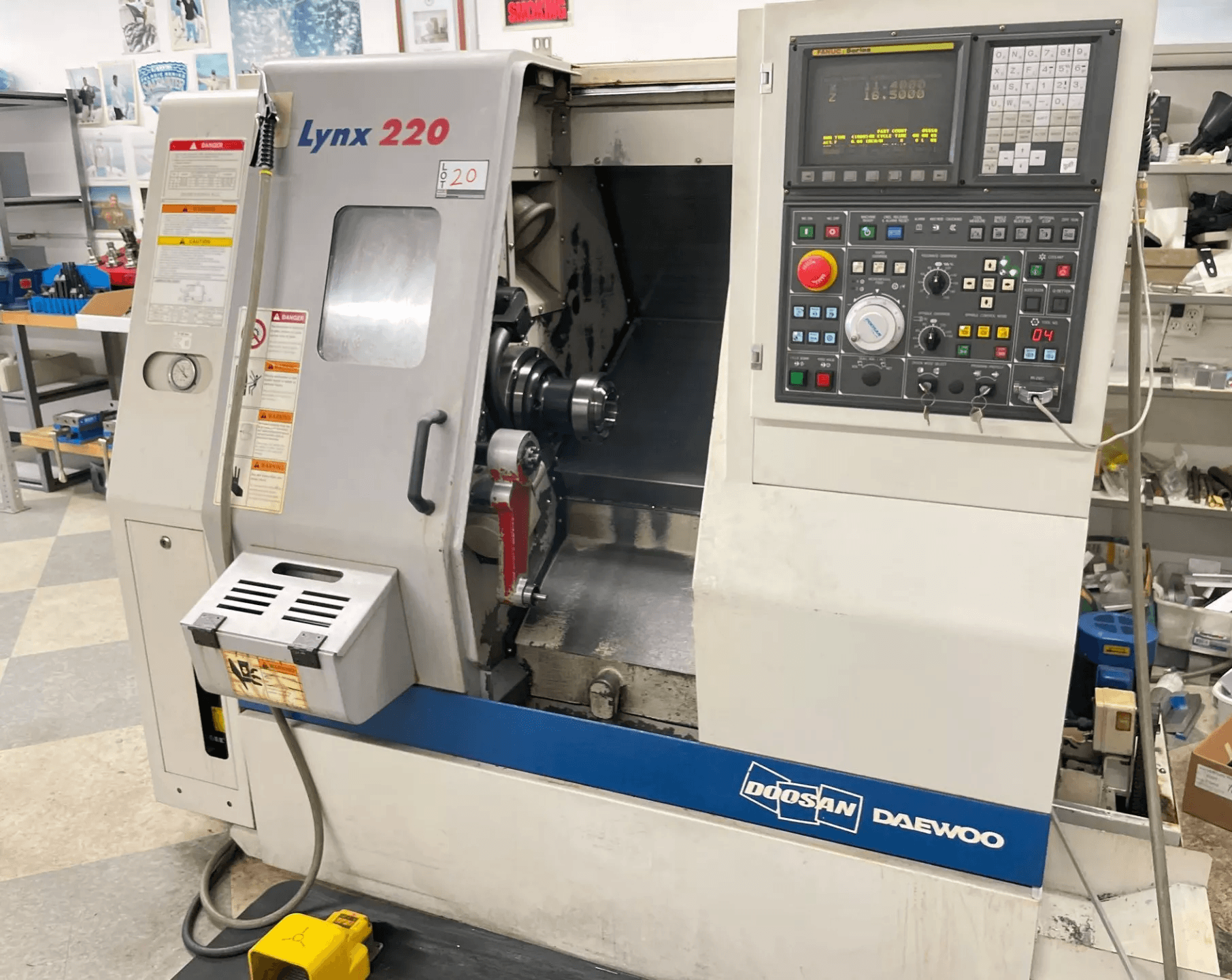

| Make: | Doosan |
| Model: | Lynx 220C |
| Year: | 2005 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| Control: | Fanuc CNC Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| Fanuc CNC Control |

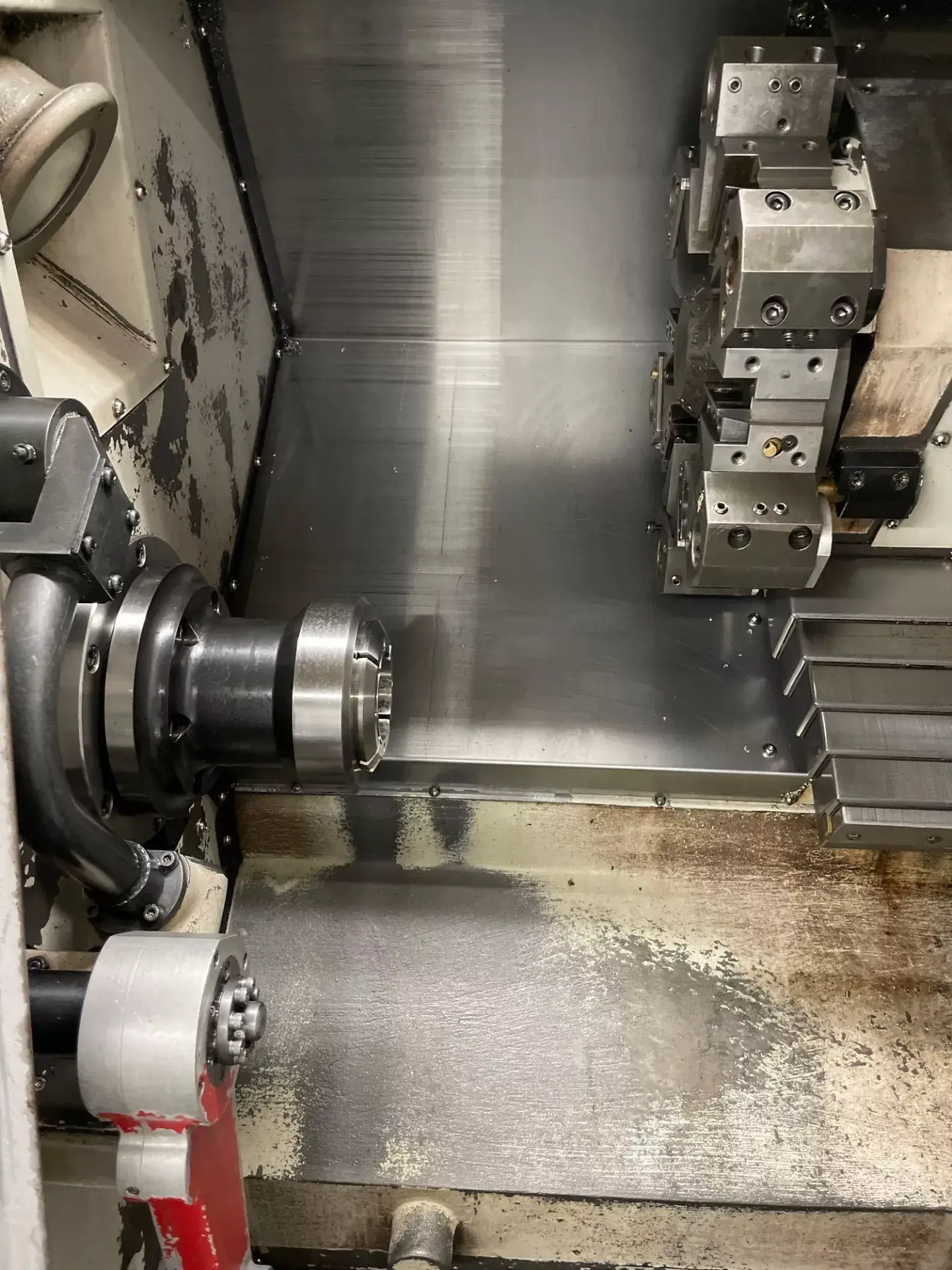

| 8″ 3-Jaw Hydraulic Chuck |
| 12-Station Turret |
| Tailstock |
| Coolant System |
| Chip Conveyor (if equipped) |
| Foot Pedal |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 11.8″ |
| Max Turning Length: 20.1″ |
| Swing Over Bed: 20.1″ |
| Swing Over Cross Slide: 13.8″ |
| Bar Capacity: 2.6″ |
| Travels: |
|---|
| X-Axis Travel: 8.3″ |
| Z-Axis Travel: 20.1″ |
| Spindle: |
|---|
| Spindle Speed: 4,500 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.6″ |
| Main Motor: 15 HP |
| Turret: |
|---|
| Number of Stations: 12 |
| Tool Size: 1″ |
| Feed Rates: |
|---|
| Rapid Traverse X-Axis: 787 IPM |
| Rapid Traverse Z-Axis: 945 IPM |

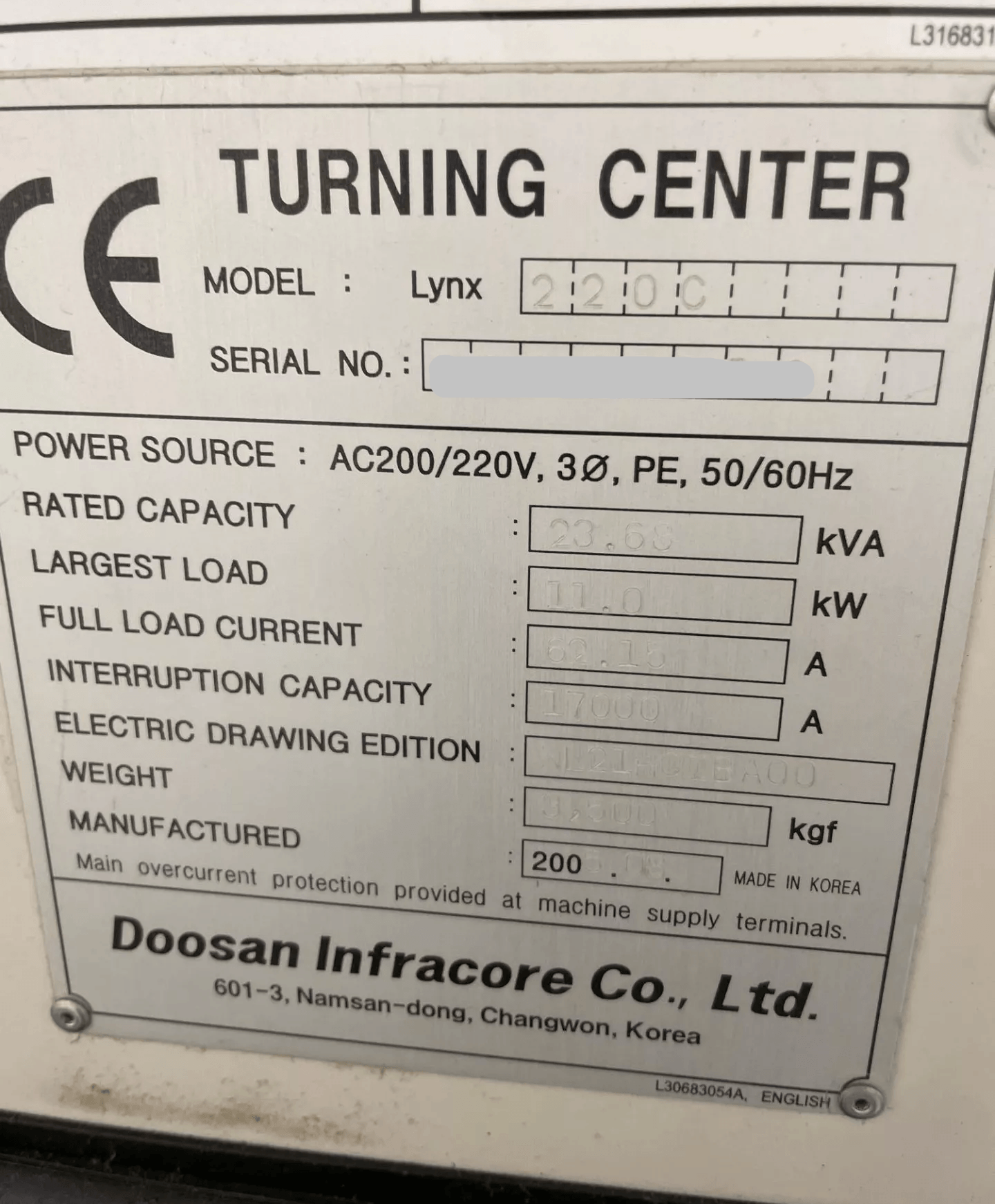

| Electrical: |
|---|
| Voltage: AC 200 / 220 V |
| Phase: 3 |
| Frequency: 50 / 60 Hz |
| Power Capacity: 23.6 kVA |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 220V / 3-Phase |
| Overall Dimensions: 98″ x 66″ x 67″ High (Approx.) |
| Weight: 7,700 lbs (Approx.) |
