*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

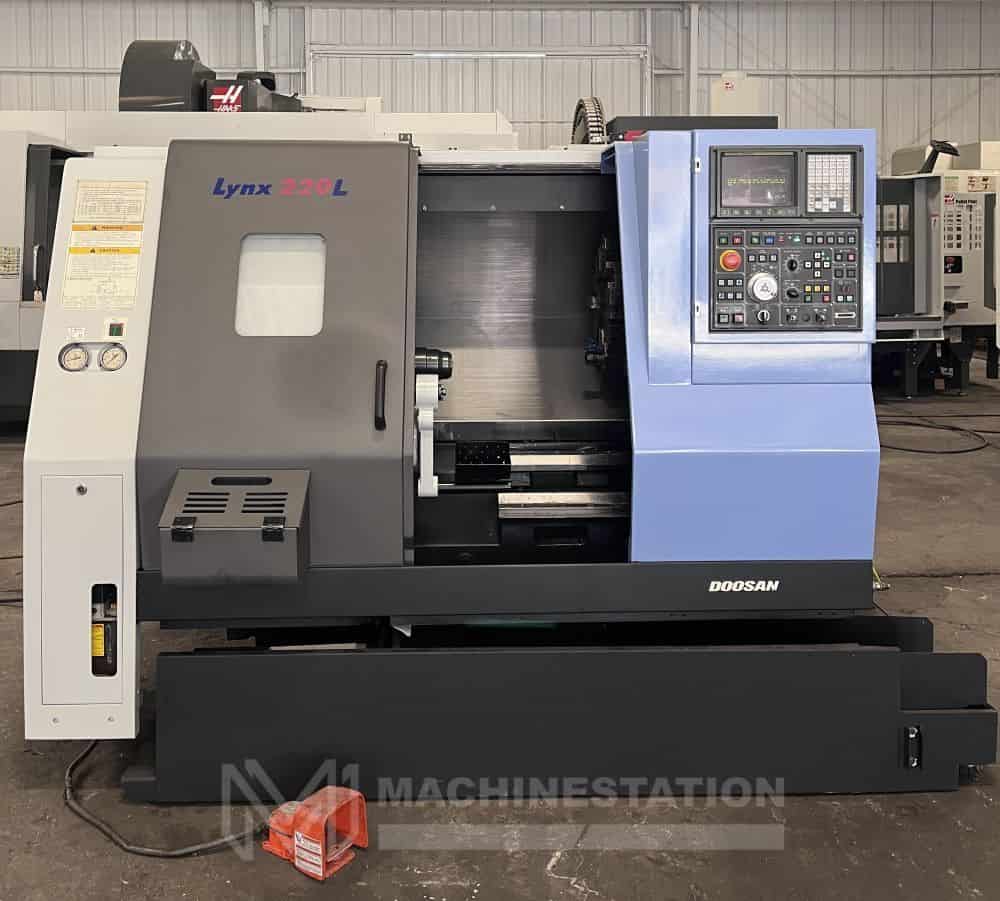

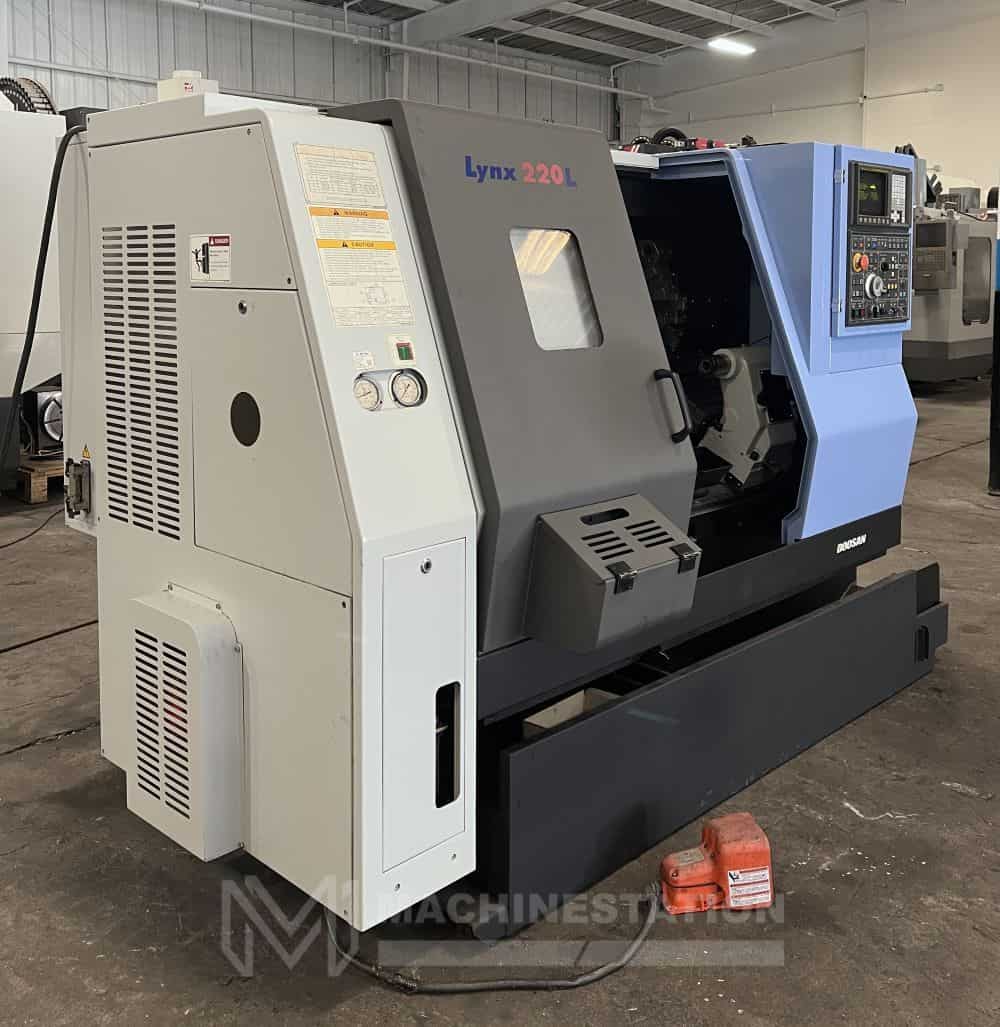

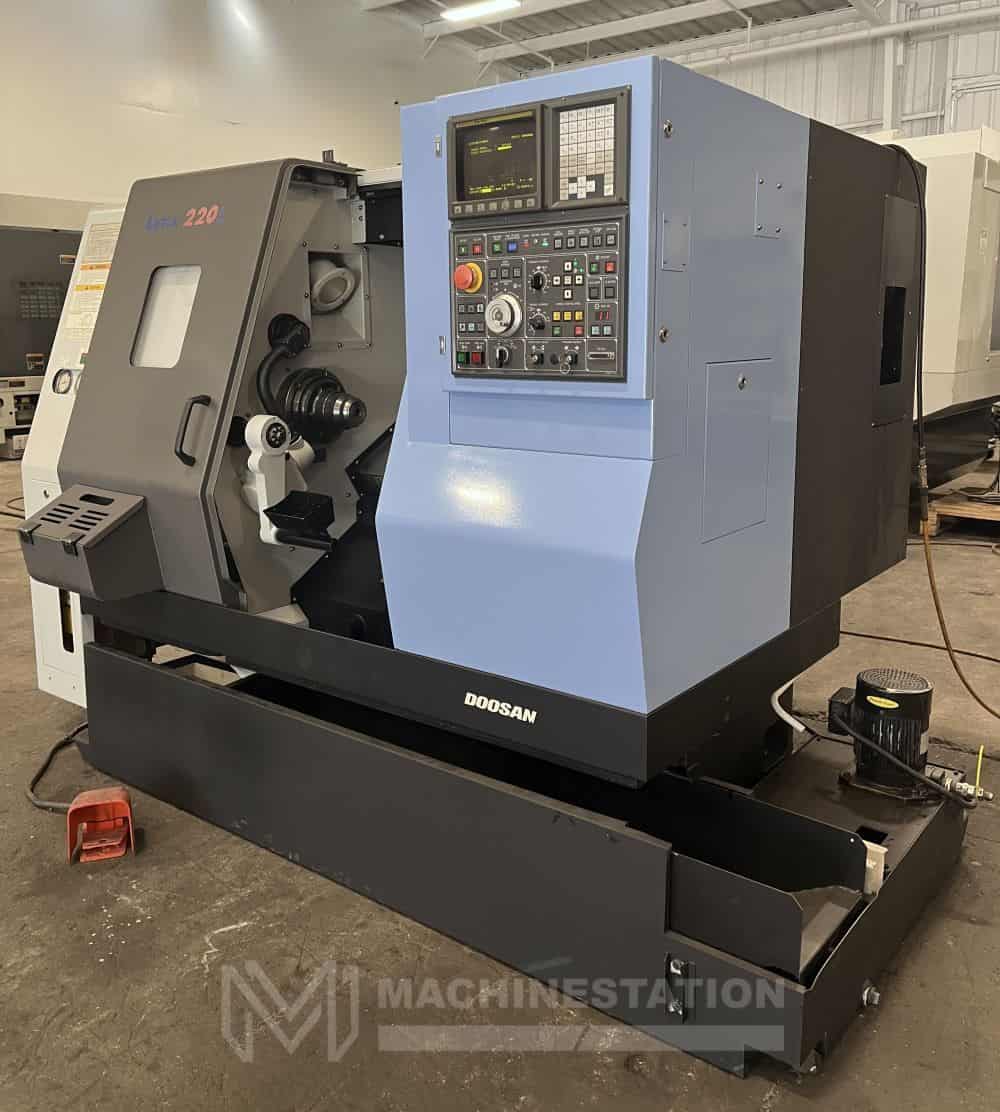

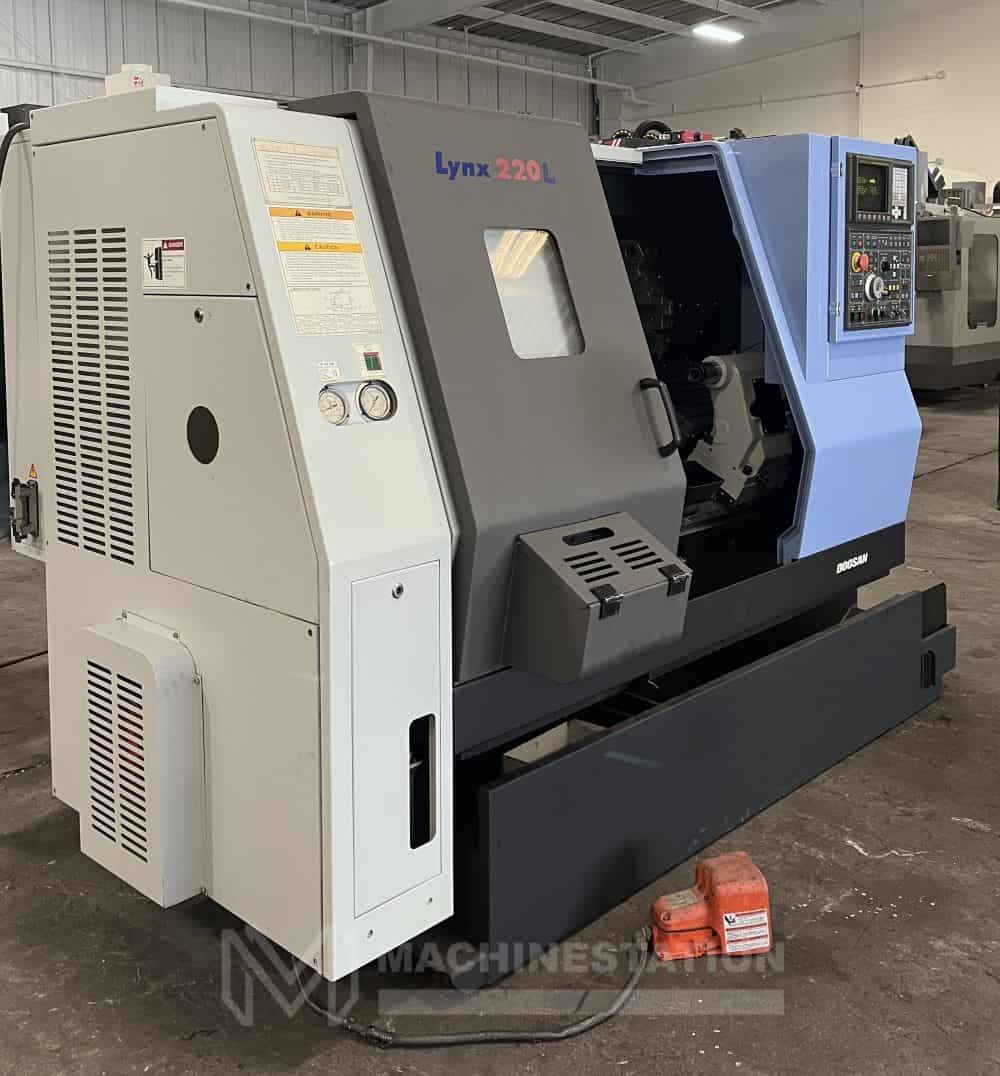

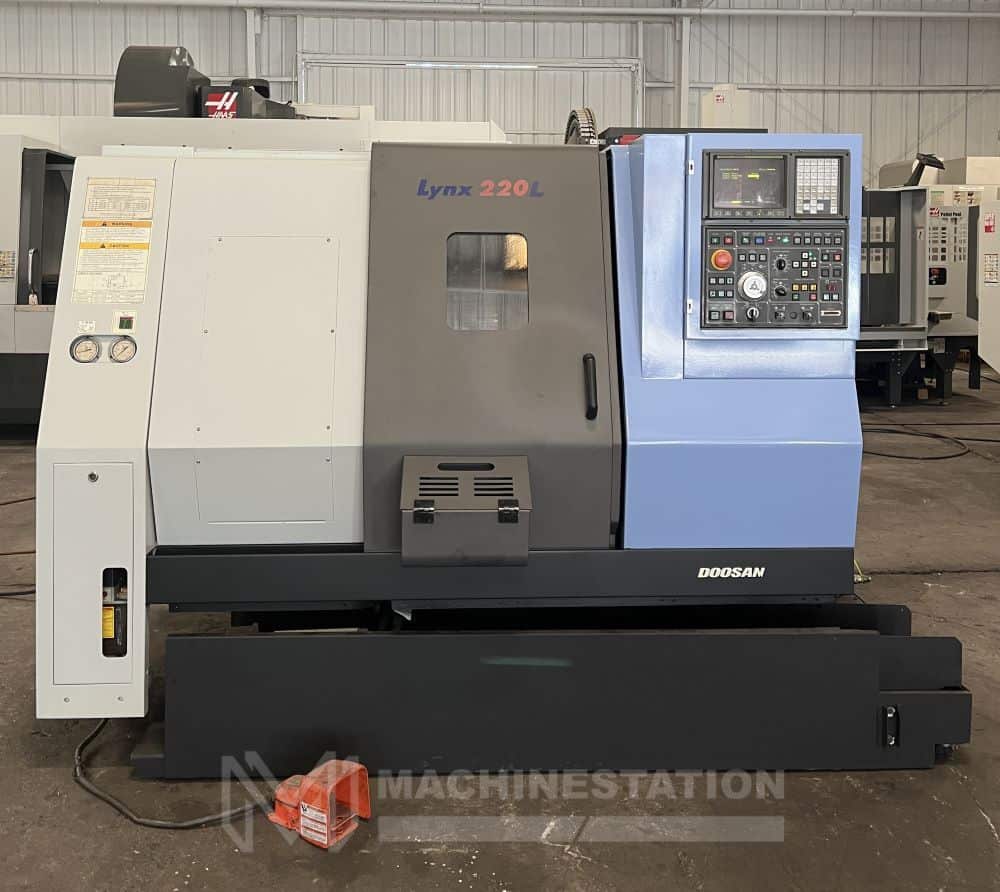

| Make: | Doosan |
| Model: | LYNX 220LC |
| Year: | 2006 |

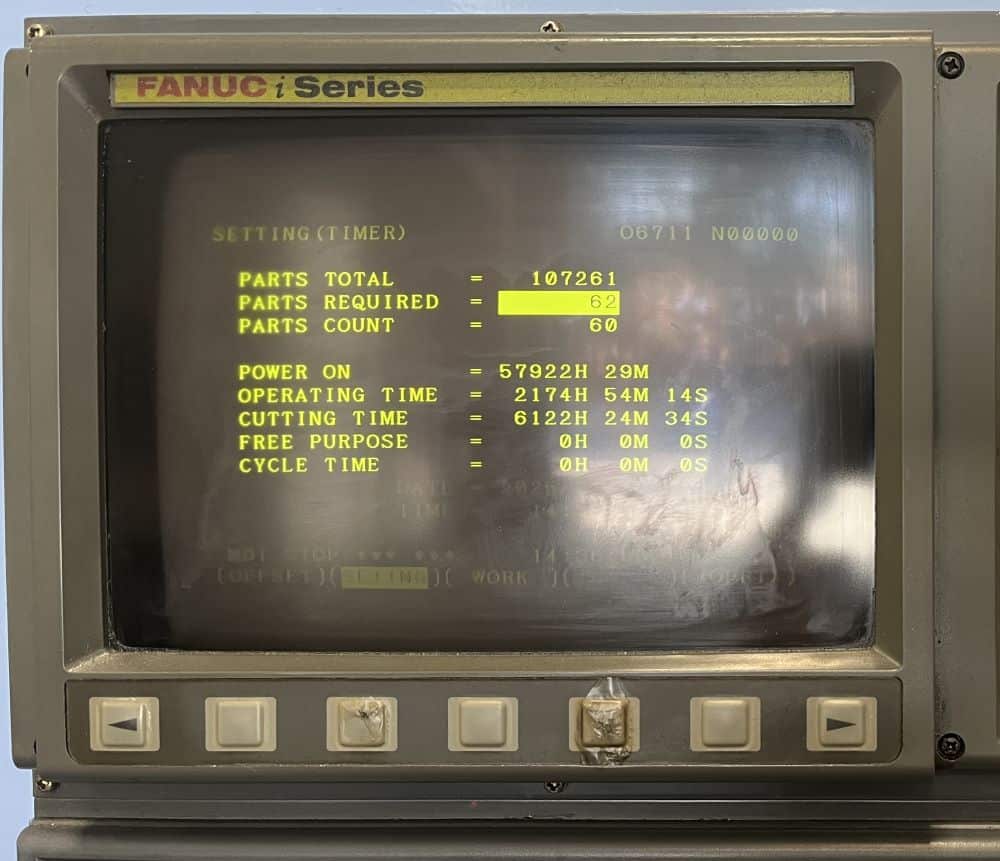

| Cutting Time: | 6,122 Hours |
| Equipped With: |
|---|

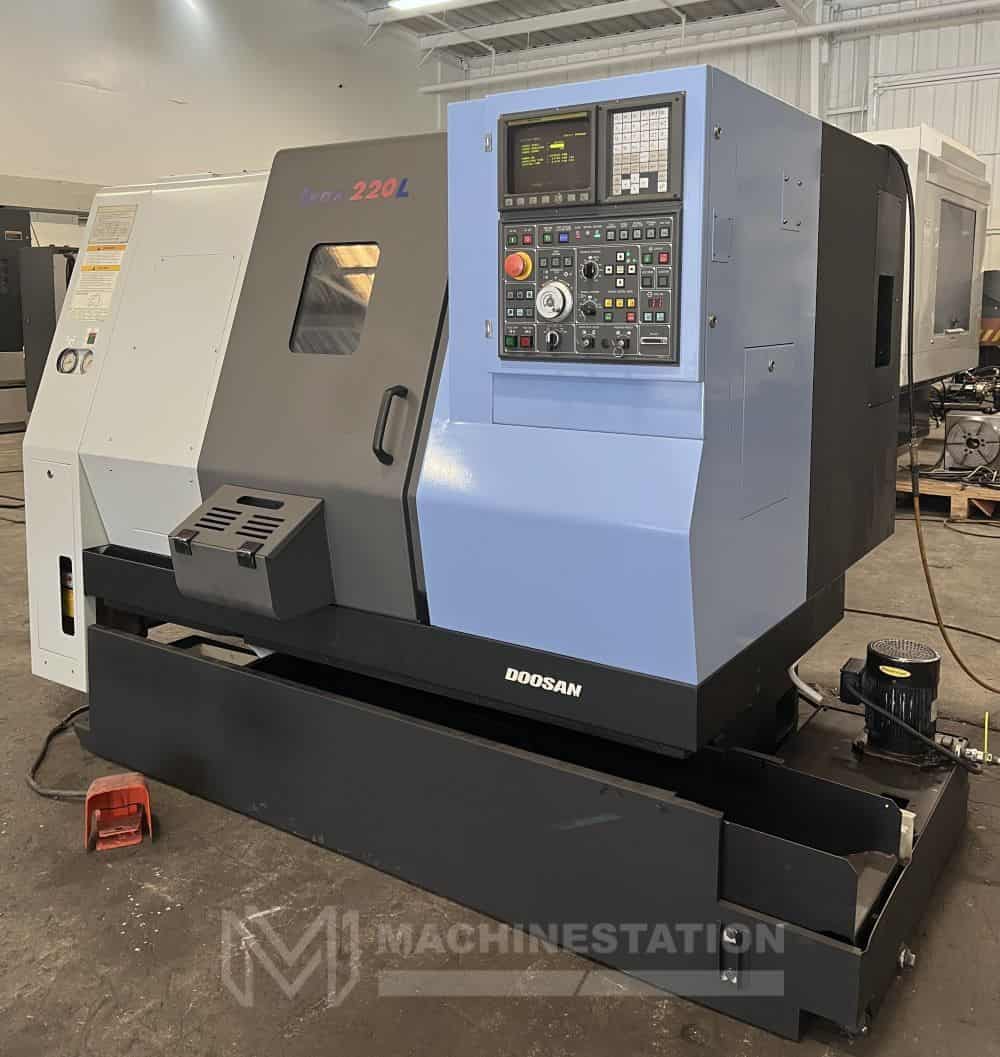

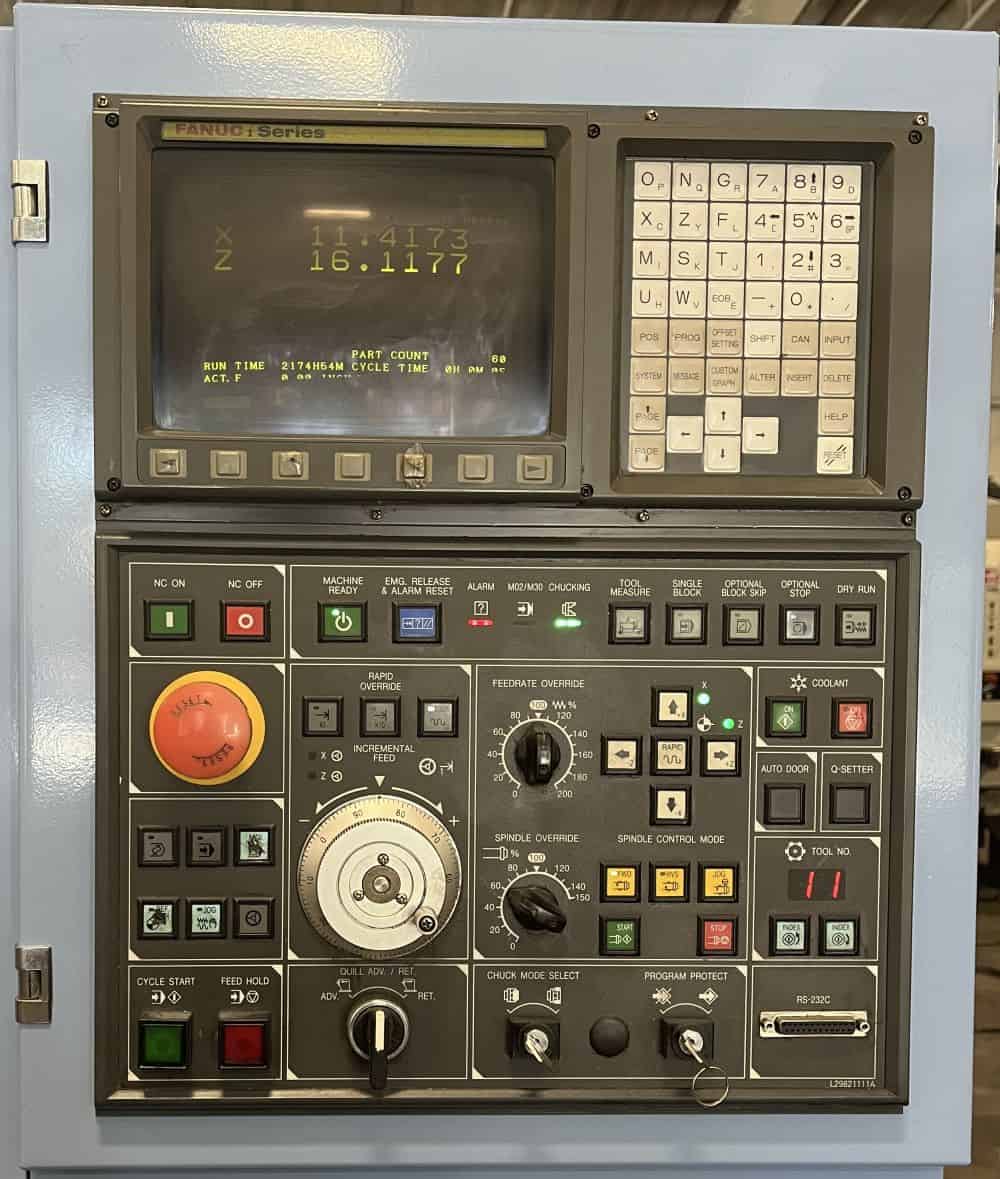

| Fanuc i Series CNC Control |
| 3.0″ Big Bore, Long Bed Lathe |

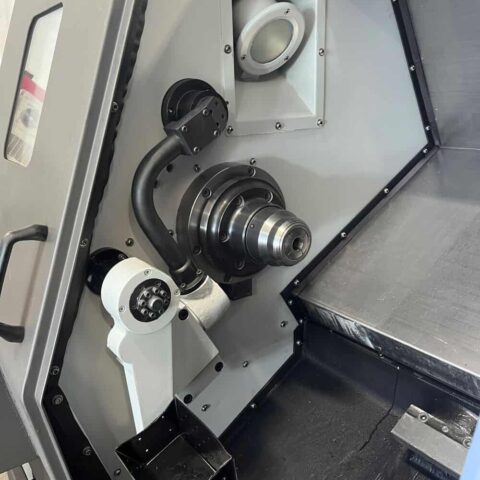

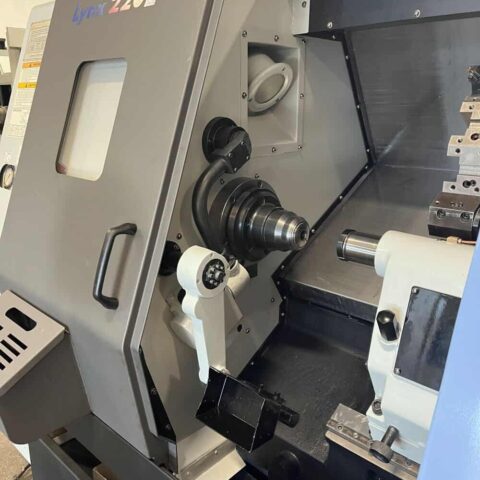

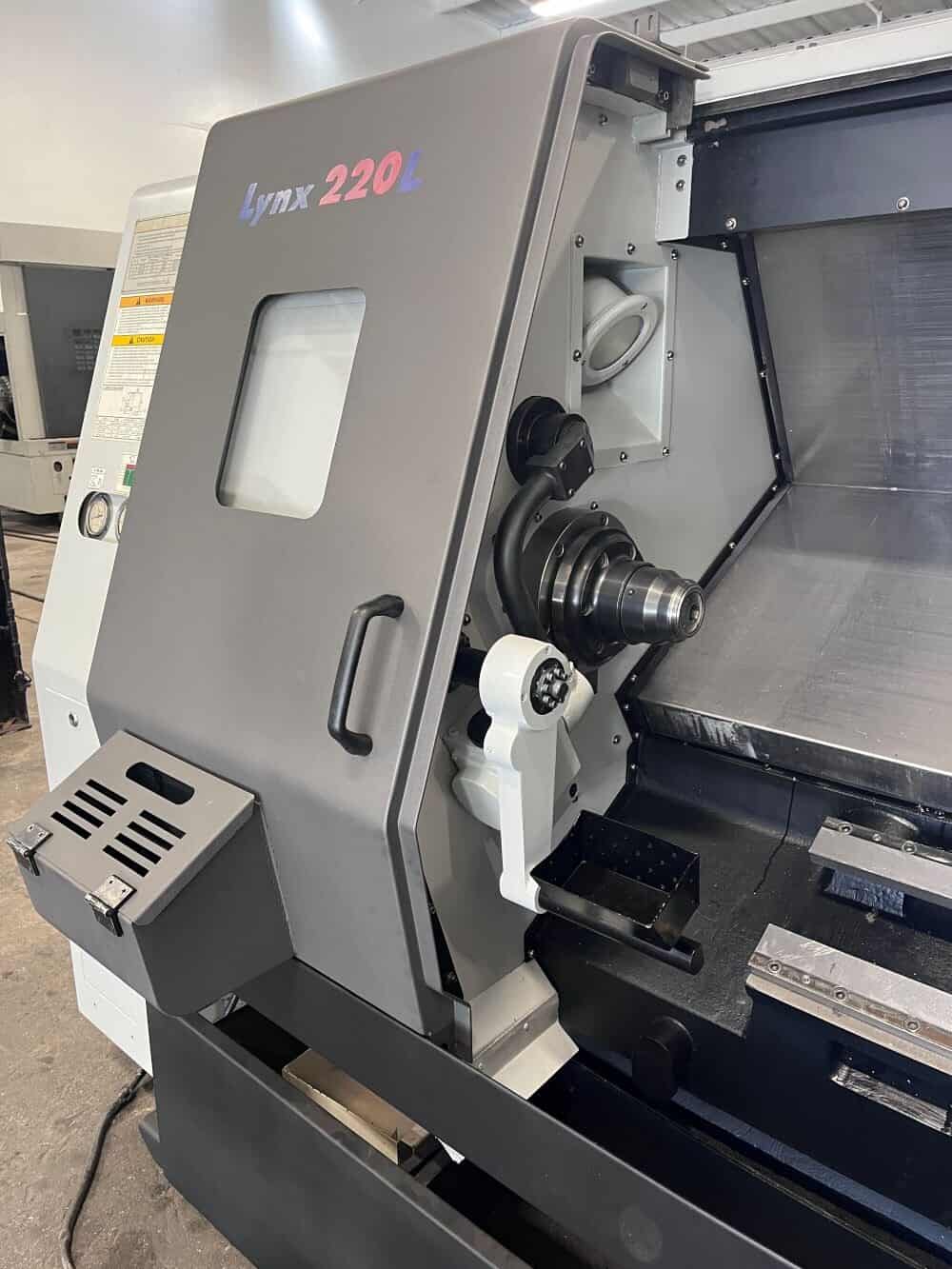

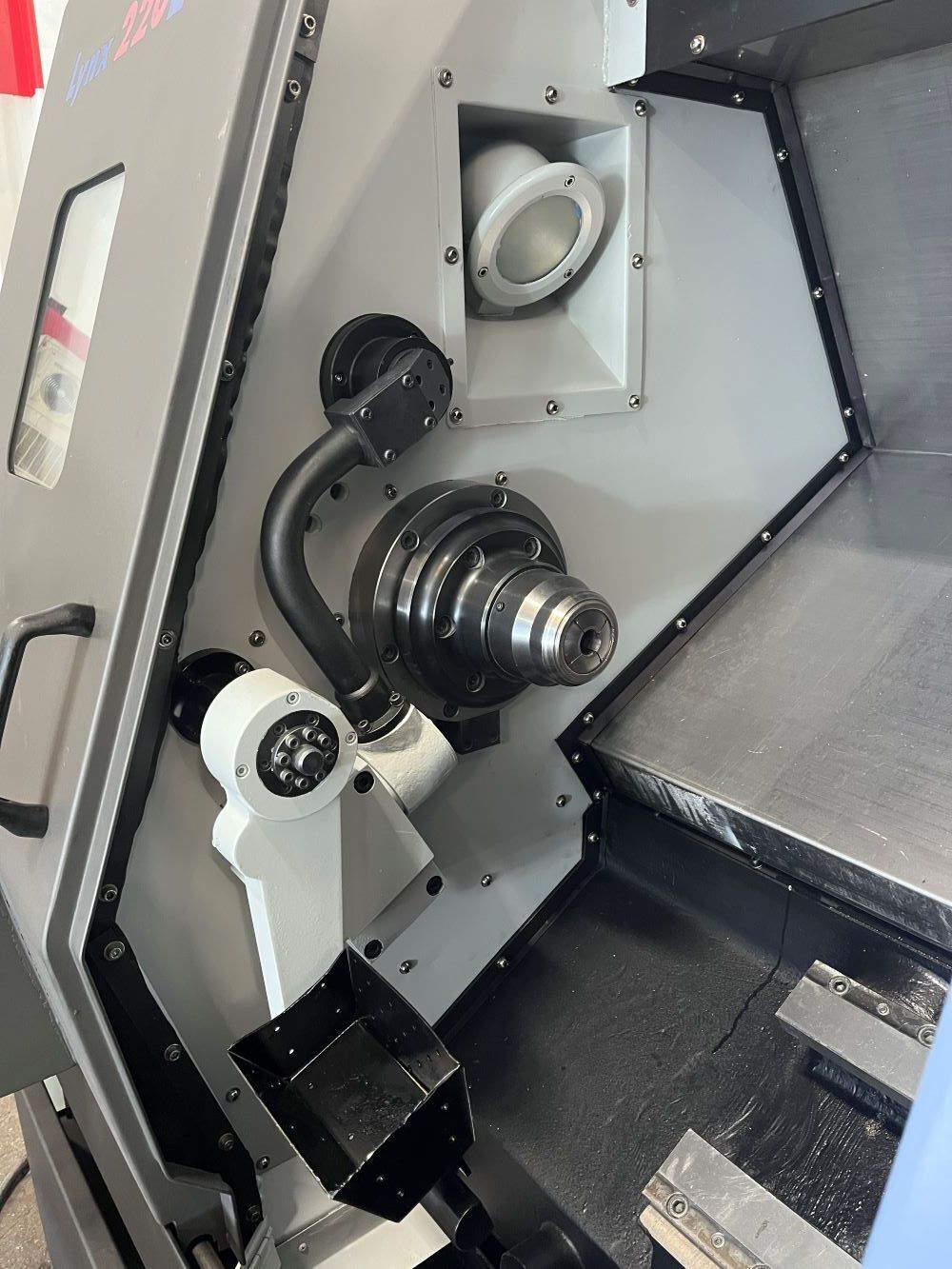

| Collet Chuck (Capable 8″ Chuck) |

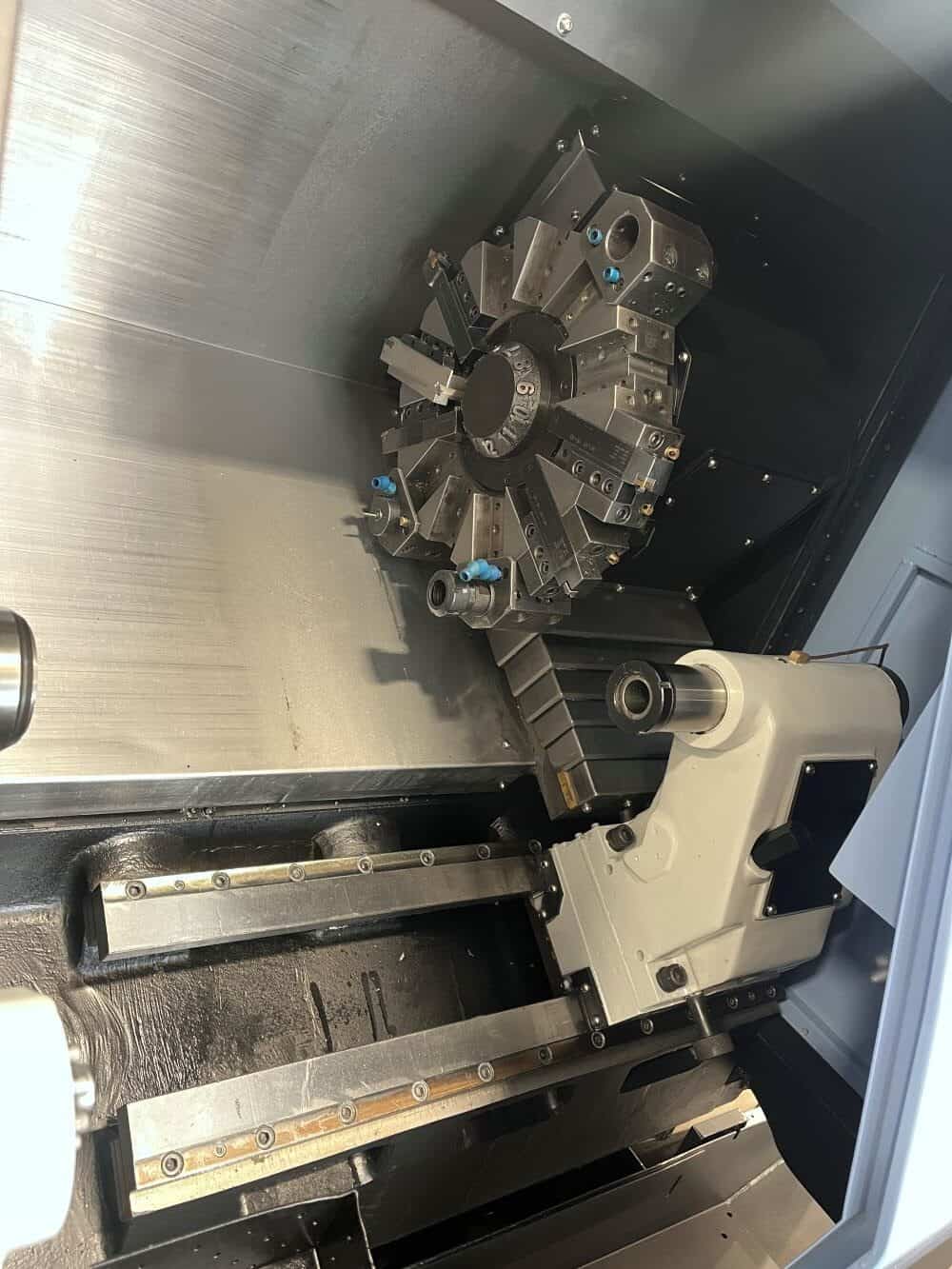

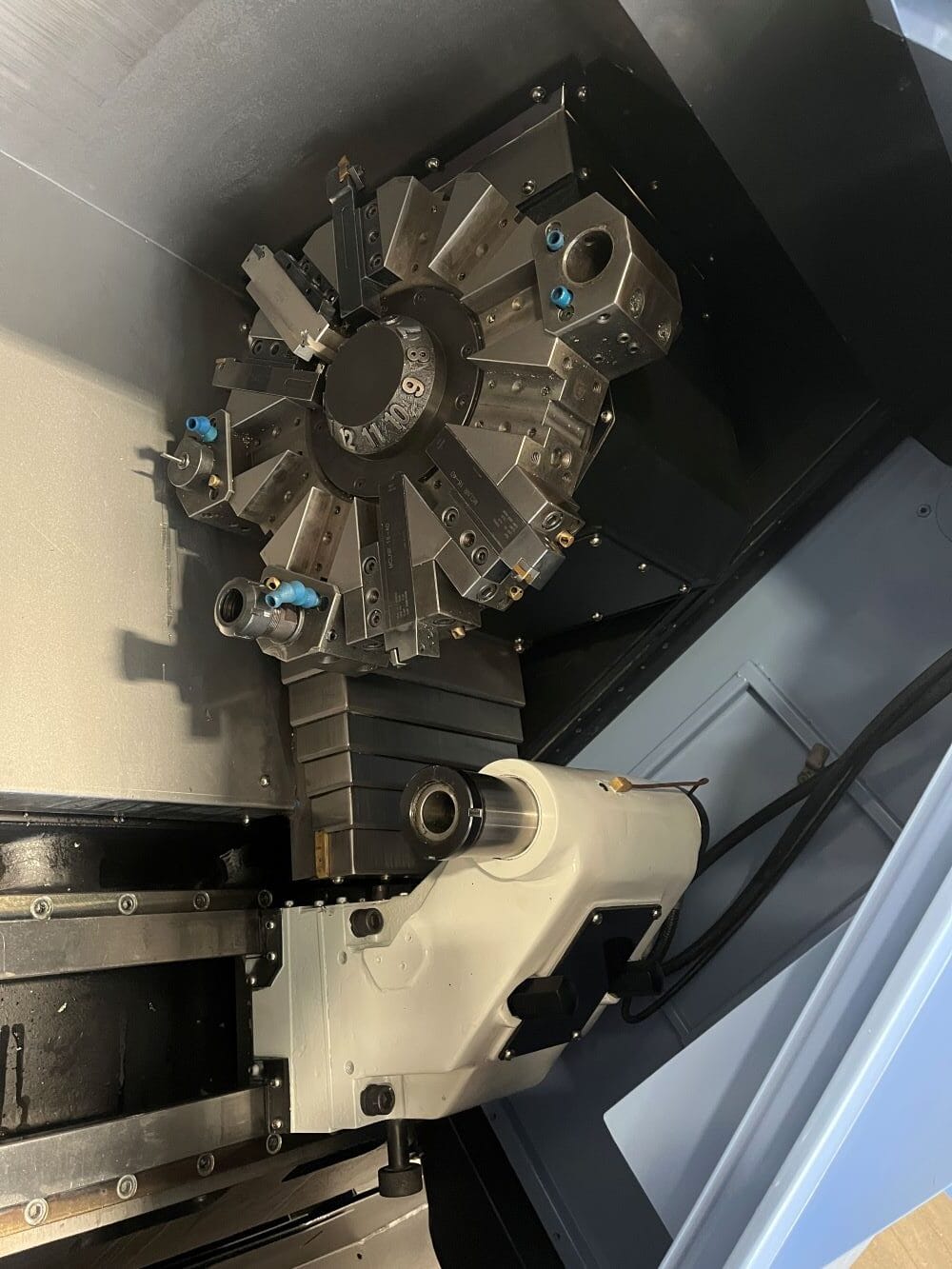

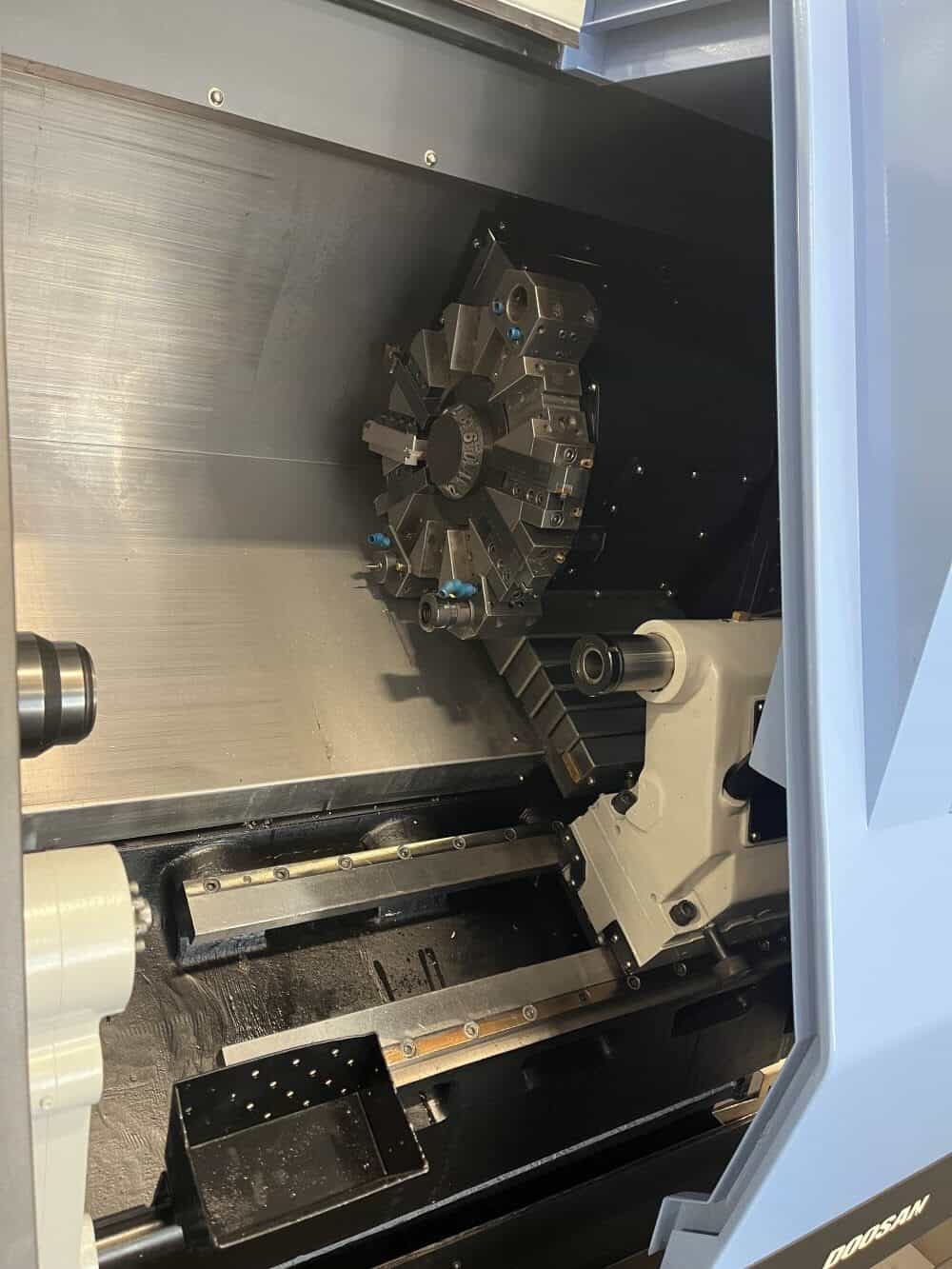

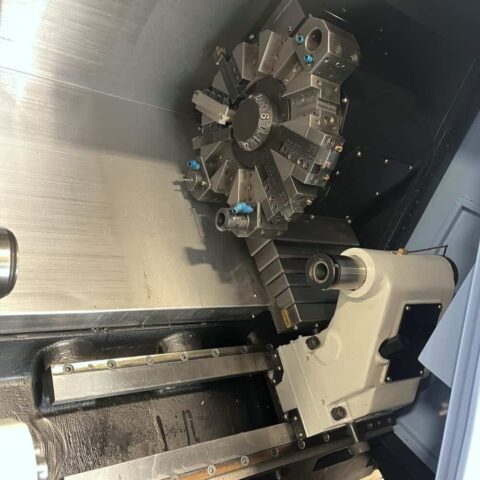

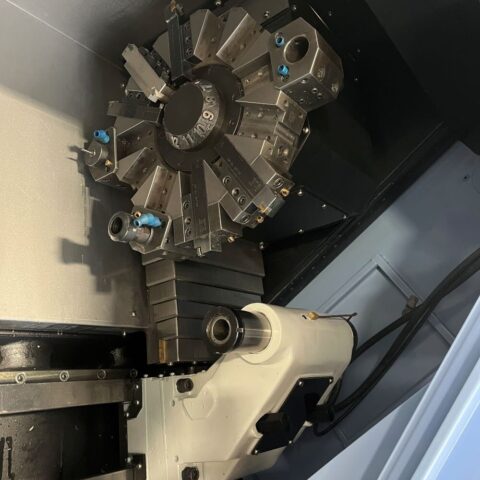

| 12 Station Turret |

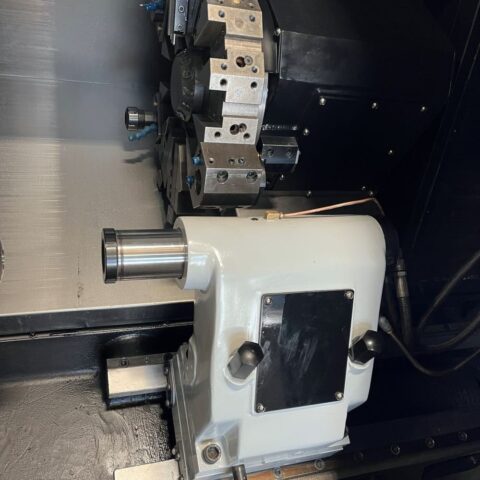

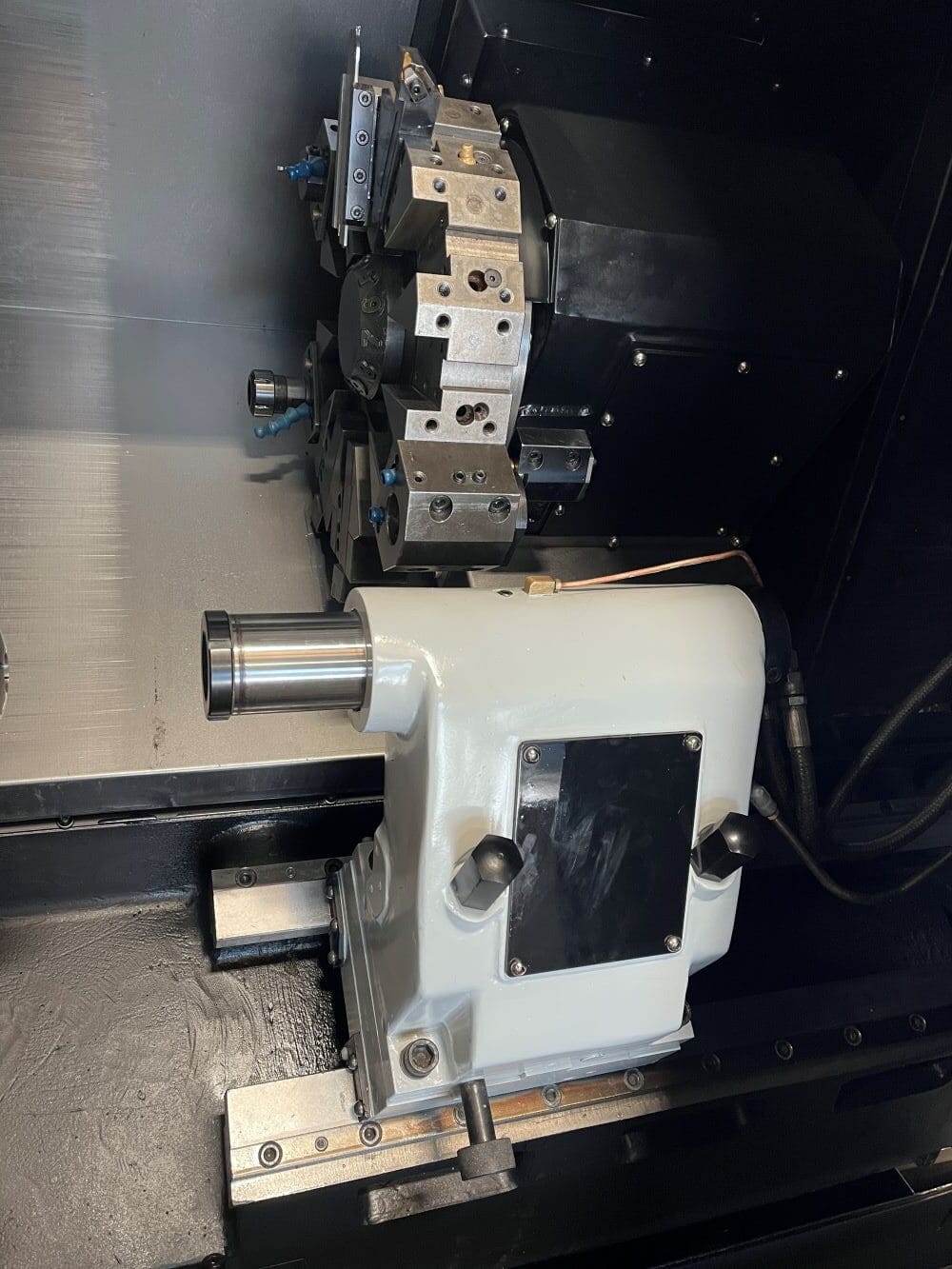

| Hydraulic Tailstock |
| Tool Presetter |

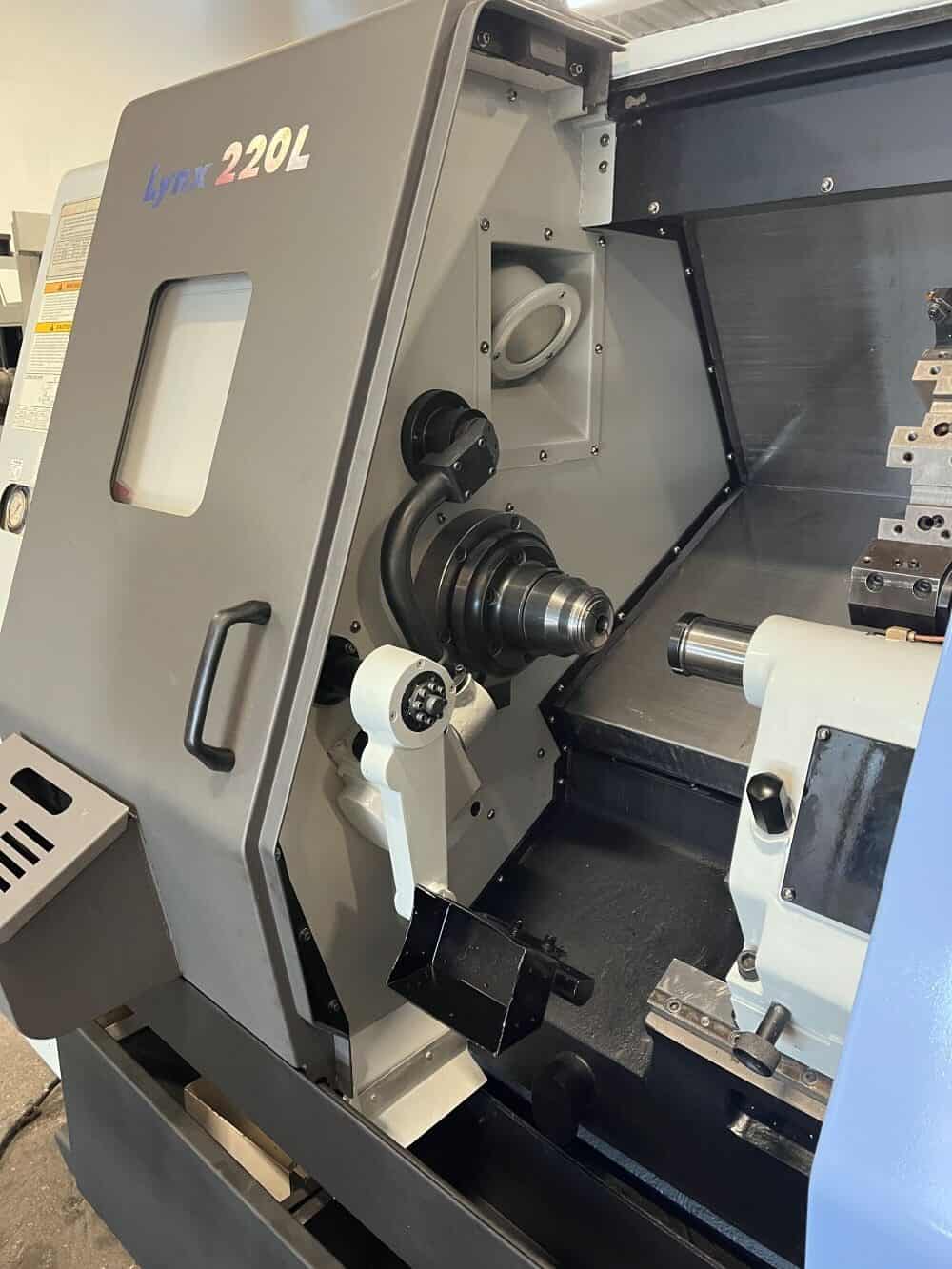

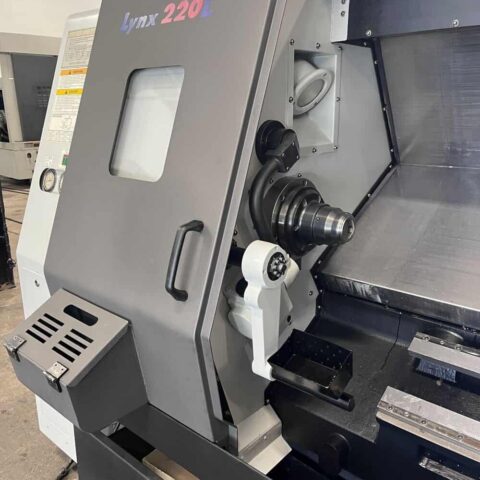

| Part Catcher |
| RS-232 Port |

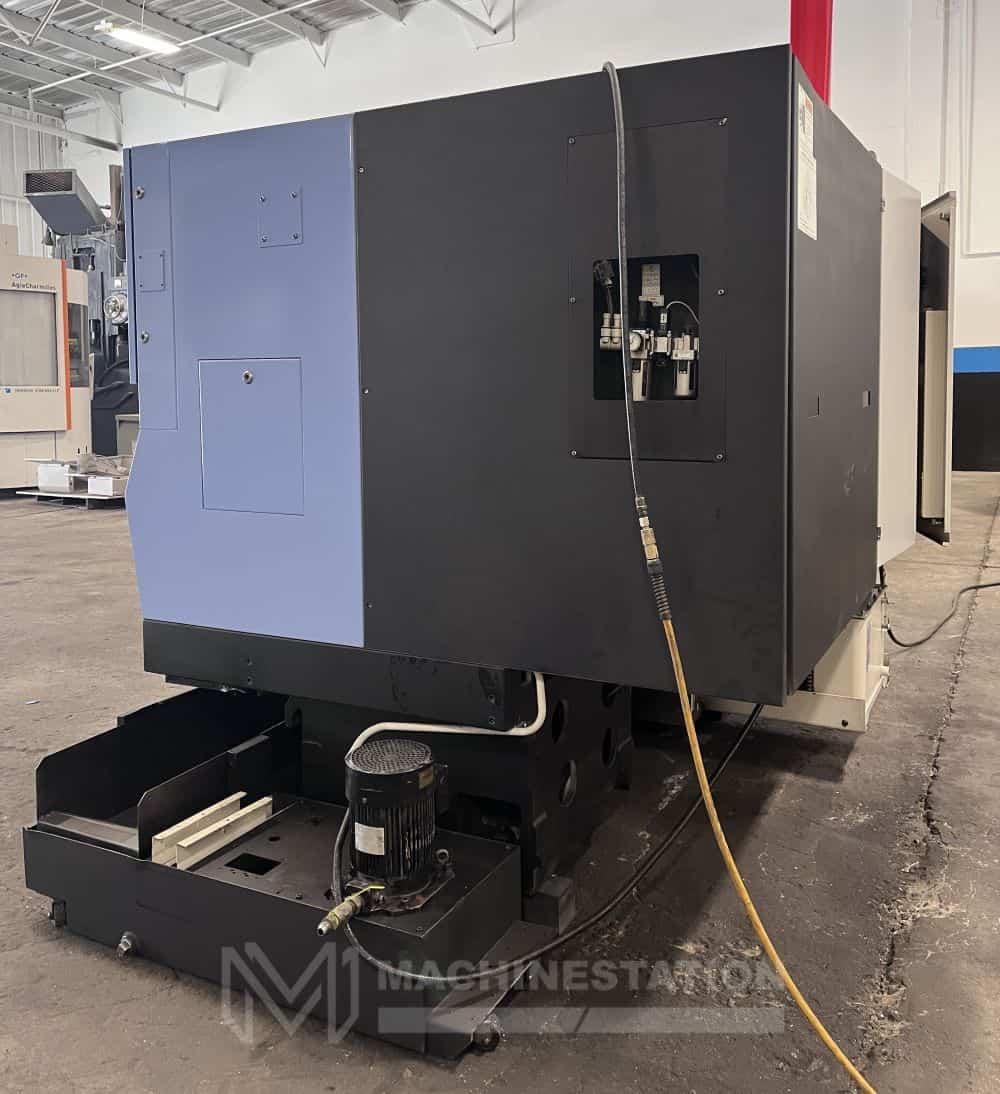

| Coolant System |
| Foot Switch |

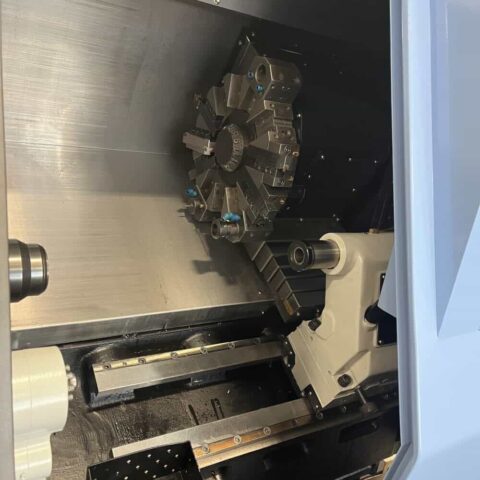

| (3) Boring Tool Holders (5) Turning Tools are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 12.6″ |
| Max Swing Over Bed : 20.1″ |
| Max Swing Over Saddle : 11.4″ |
| Max Turning Length: 20.7″ |
| Max Bar Capacity : 2.55″ |
| Distance Between Center: 24″ |
| Travels: |
|---|
| X Axis Travel : 6.9″ |
| Z1 Axis Travel : 21.7″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.11 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 13″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|

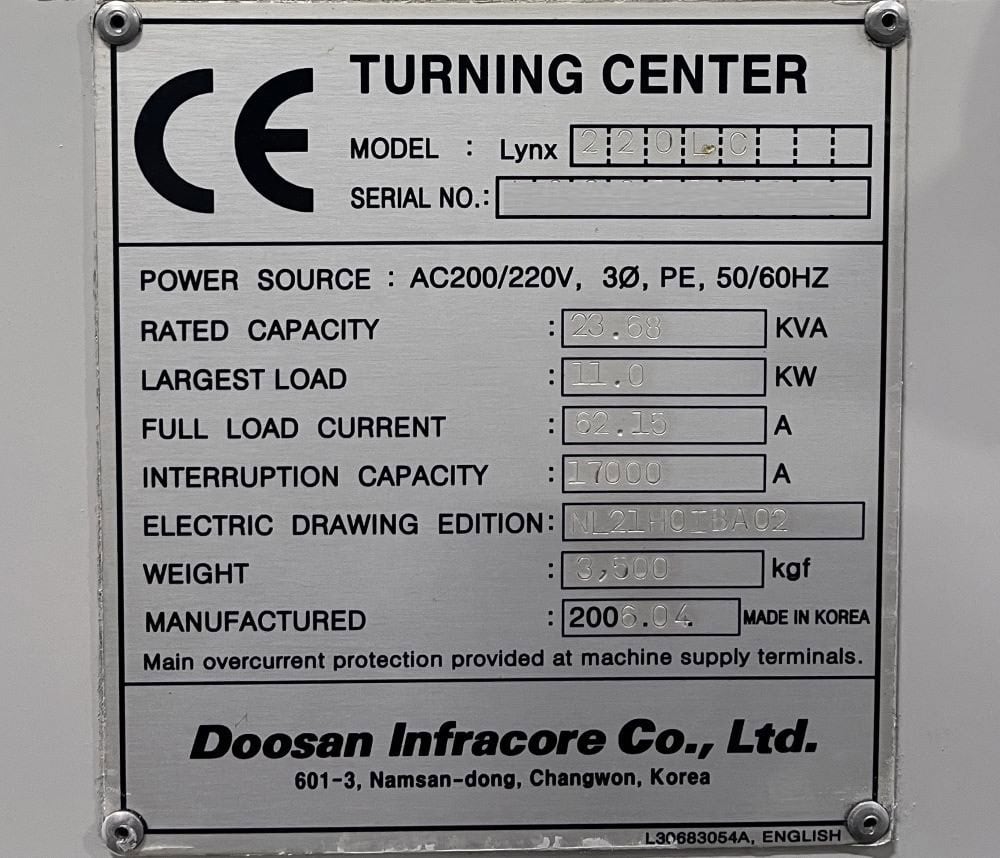

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 23.68 kva |
| Machine Dimensions: 92.3″ x 63″ x 63″ High |
| Machine Weight: 7,716 lbs Approx. |
