All specifications are approximations and are subject to verification.
““This machine has thru coolant spindle, 8000 rpm and side mount tool changer and Lots of other options. On our Floor it has been fully powered / tested & is in Great working condition. ””
-

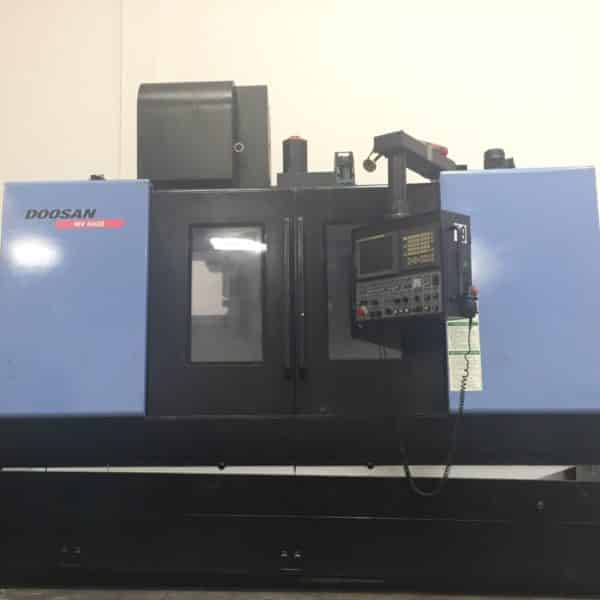

DOOSAN MV 4020 VERTICAL MACHINING CENTER Features:

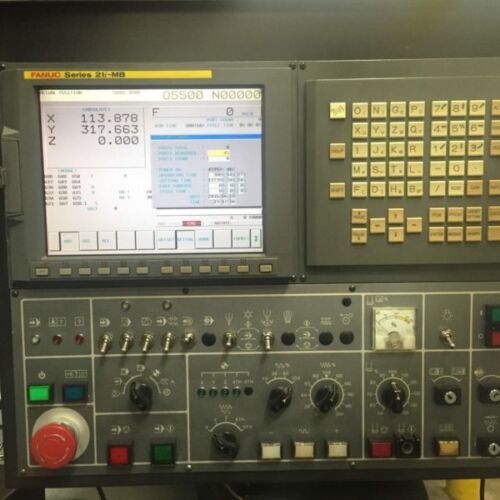

- Fanuc 21iM CNC Control
- 230 PSI Through-Spindle coolant

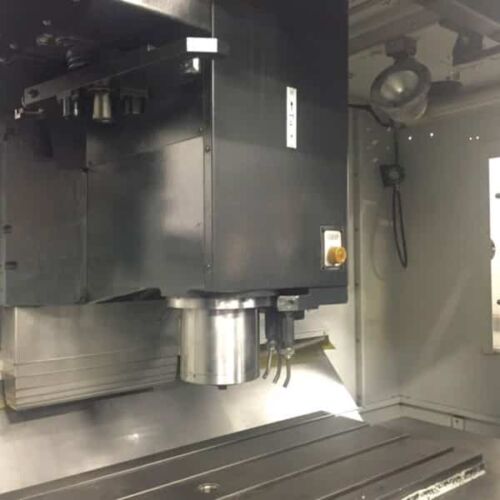

- High precision 8,000 RPM Spindle

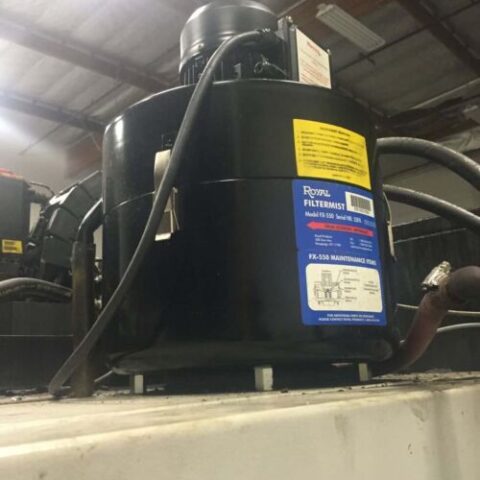

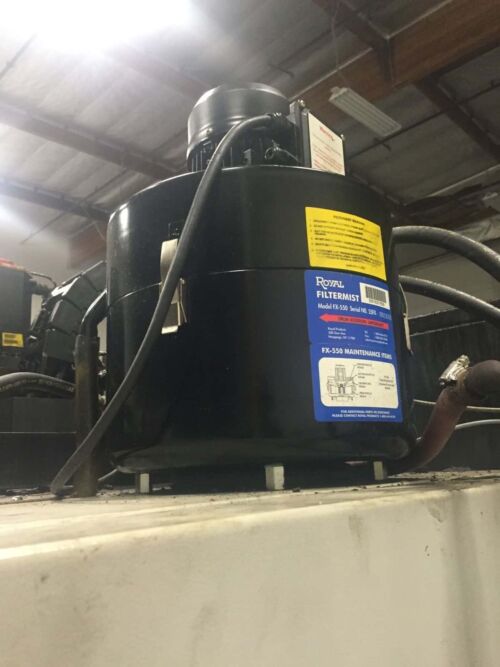

- Royal Filtermist System
- Powerful 20hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)

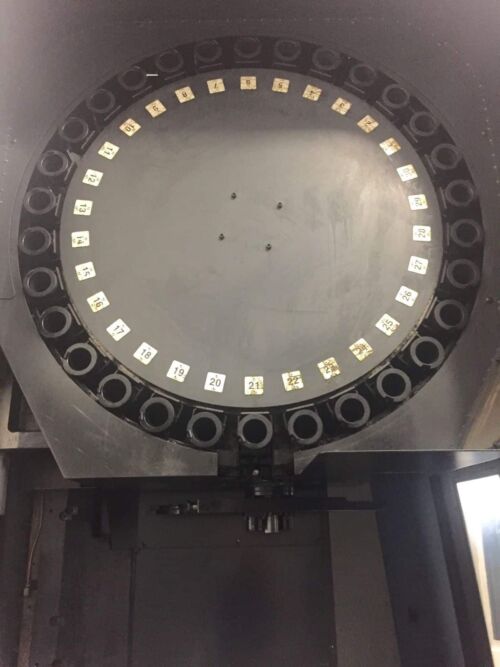

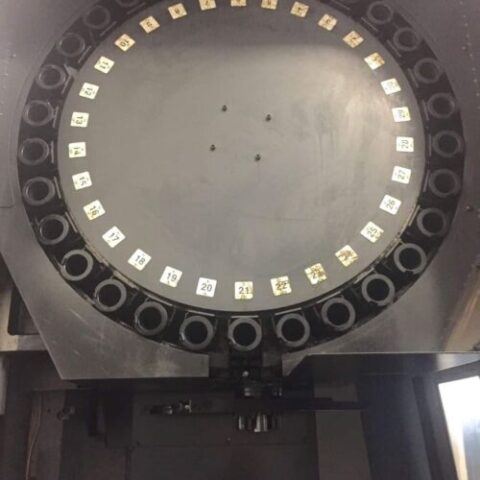

- Memory random Double Arm (30) ATC
- Portable manual pulse generator
- Fast 1,181 IPM Rapid Traverse Rate
- Base Flush Chip Disposal
- Flood coolant with large separate coolant tank
- Work light
- Magnetic Chip Conveyor
-
DOOSAN MV 4020 VERTICAL MACHINING CENTER Specifications:Travels:
- X-Axis: 40.1″
- Y-Axis: 20.1″
- Z-Axis: 24.6″
- Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″
- Spindle Center to Column: 20.5″
-

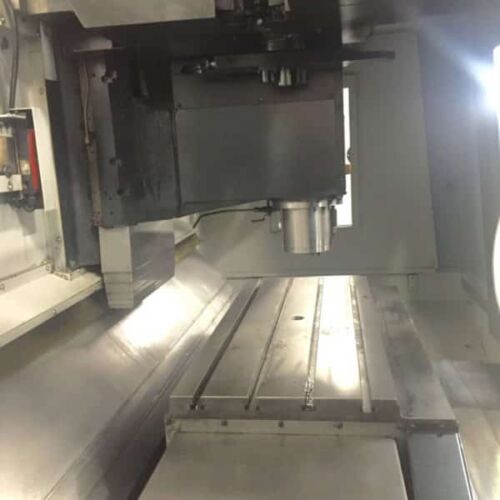

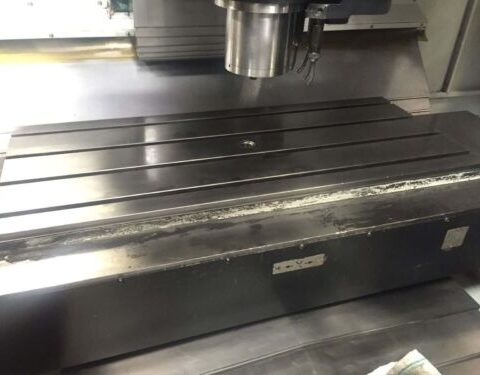

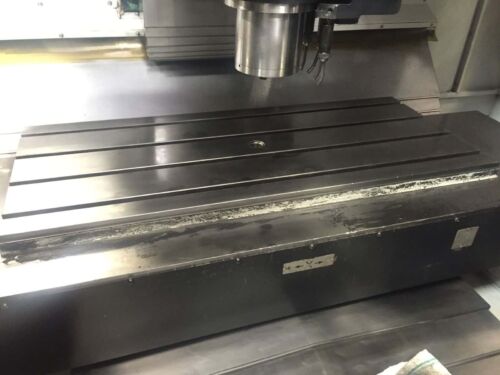

Table:
- Length: 47.2″
- Width: 19.7″
- Max Weight on Table: 1760 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8000 RPM
- Spindle Power: 20 HP
-
Feed rates:
- Rapid X & Y: 1181 inch/P.M
- Rapid Z: 945 inch/P.M
- Cutting Feedrate: .04″ – 472″ inch/ P.M
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 30
- Max Tool Weight: 18 lbs
- Max Tool Length: 13″
- Max Tool Dia.: 3.5″
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 205-235v / 66FLA / 3-Phase, 36 Kva
- Overall Dimensions: 130″ x 105″ x 110″ High
- Weight: 15,400 lbs
