*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | PUMA 2000SY |
| Year: | 2007 |
| Machine Type: | CNC Turning Center |
| Equipped With: |
|---|

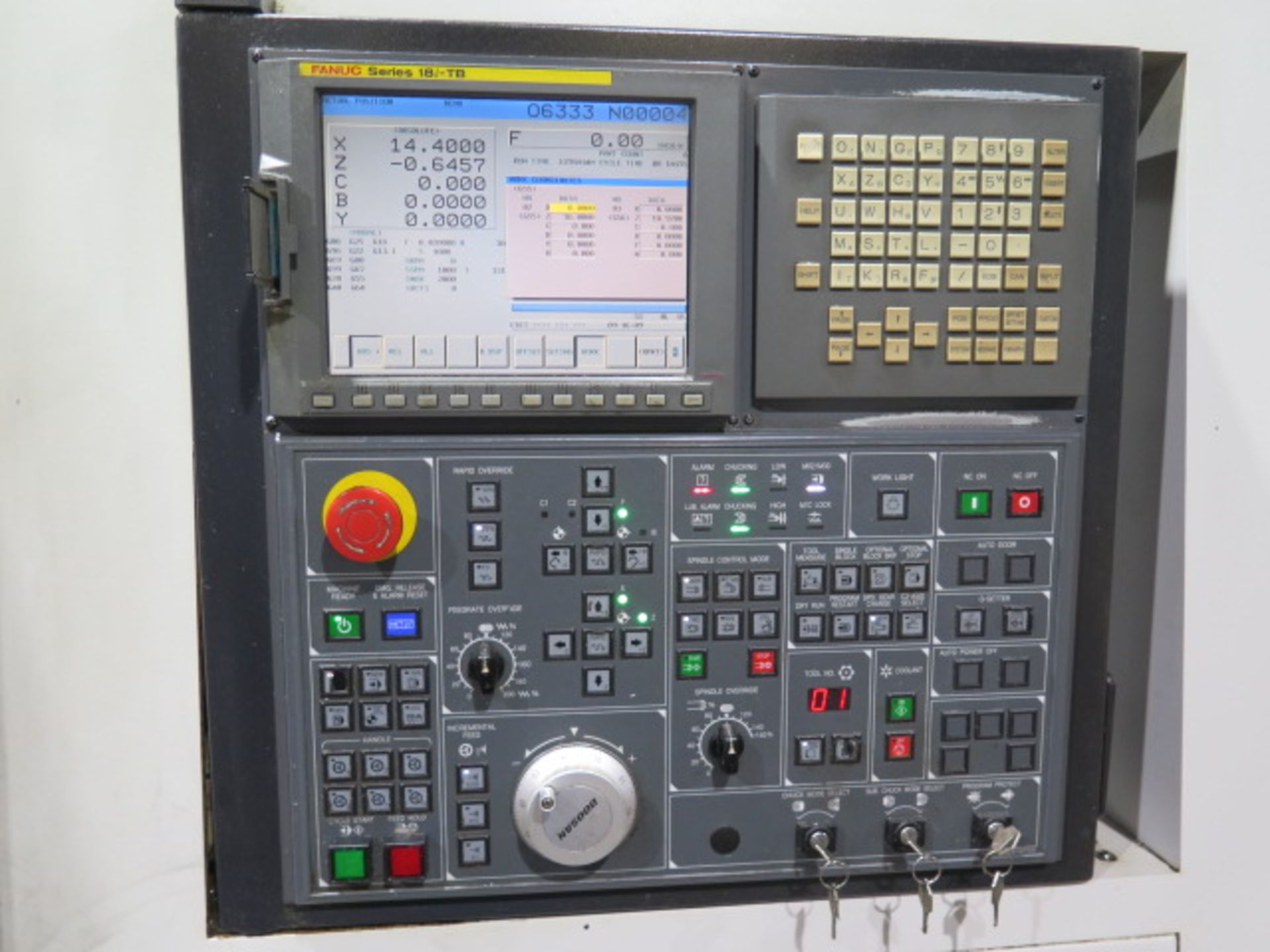

- FANUC 31i-A CNC Control
- Live Tooling
- Y-Axis Milling Capability
- Sub-Spindle
- C-Axis on Main & Sub Spindles
|
| Turning Capacity: |
|---|
- Swing Over Bed: 23.62″
- Swing Over Cross Slide: 11.38″
- Maximum Cutting Diameter: 12.99″
- Maximum Cutting Length: 19.88″
- Bar Capacity: 2.56″
|
| Axis Travels: |
|---|
- X-Axis Travel: 9.84″
- Z-Axis Travel: 22.83″
- Y-Axis Travel: ±1.97″
- B-Axis Travel: 22.83″
|
| Rapid Traverse Rates: |
|---|
- X-Axis: 787 IPM
- Y-Axis: 945 IPM
- Z-Axis: 295 IPM
- B-Axis: 787 IPM
|
| Main Spindle: |
|---|
- Maximum Spindle Speed: 3,500 RPM
- Spindle Motor Power: 29.5 HP
- C-Axis Resolution: 0.001°
|
| Sub-Spindle: |
|---|
- Maximum Speed: 6,000 RPM
- Sub-Spindle Bore: 1.77″
- Sub-Spindle Motor Power: 10 HP
- C-Axis Resolution: 0.001°
|
| Milling Capability: |
|---|
- Live Tool Speed: 5,000 RPM
- Milling Motor Power: 7.4 HP
|
| Turret: |
|---|
- Live Tool Turret
- Number of Stations: 12
- Tool Shank Size: 0.98″
|

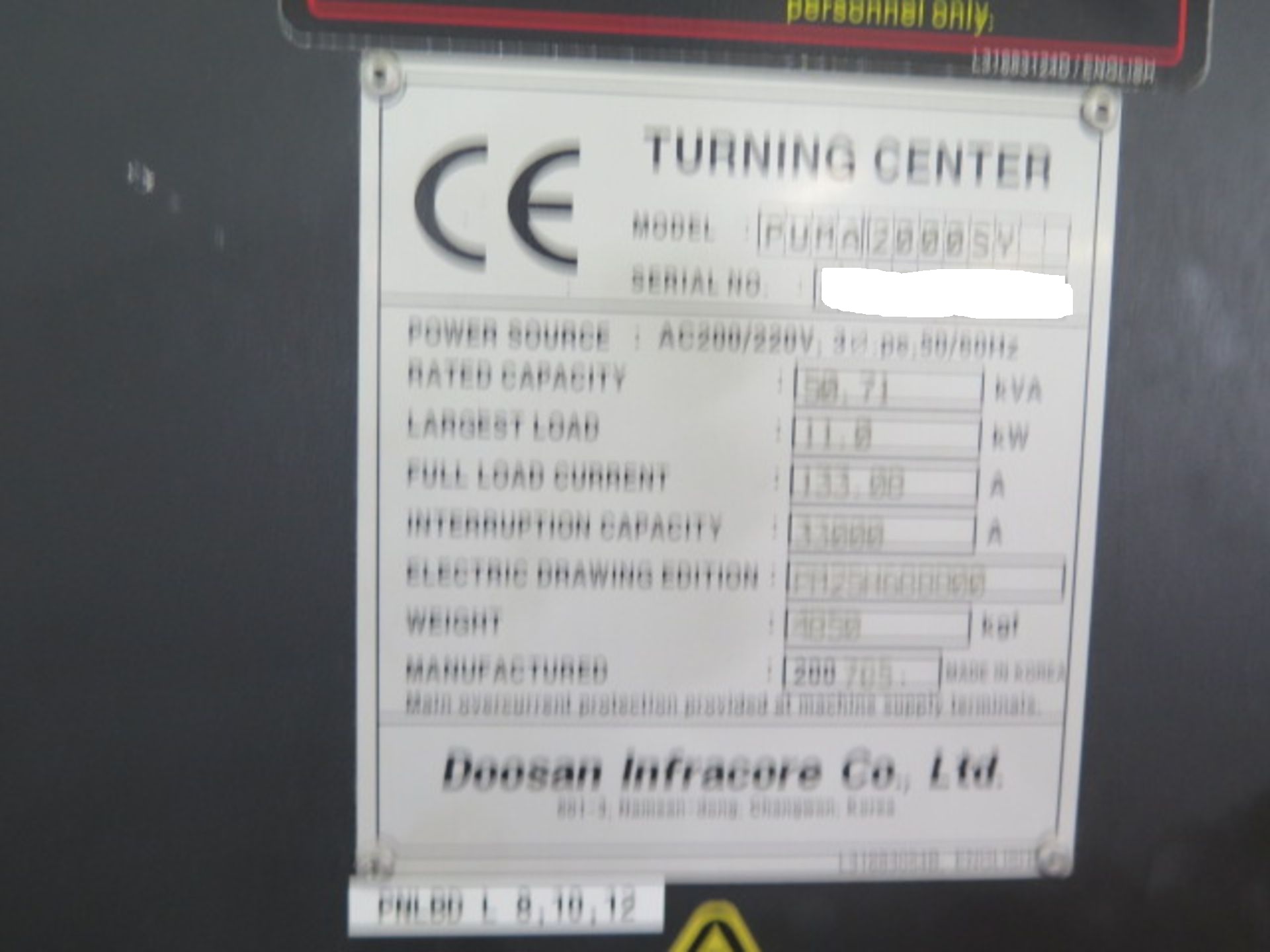

| Electrical: |
|---|
- Power Supply: AC 200 / 220V, 3-Phase, 50 / 60 Hz
- Rated Capacity: 50.7 kVA
- Largest Load: 15.8 HP
- Full Load Current: 133 Amps
|
| General: |
|---|
- Overall Dimensions (Approx.): 81.1″ L × 125.4″ W × 69.9″ H
- Machine Weight (Approx.): 10,692 lbs
|
