*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

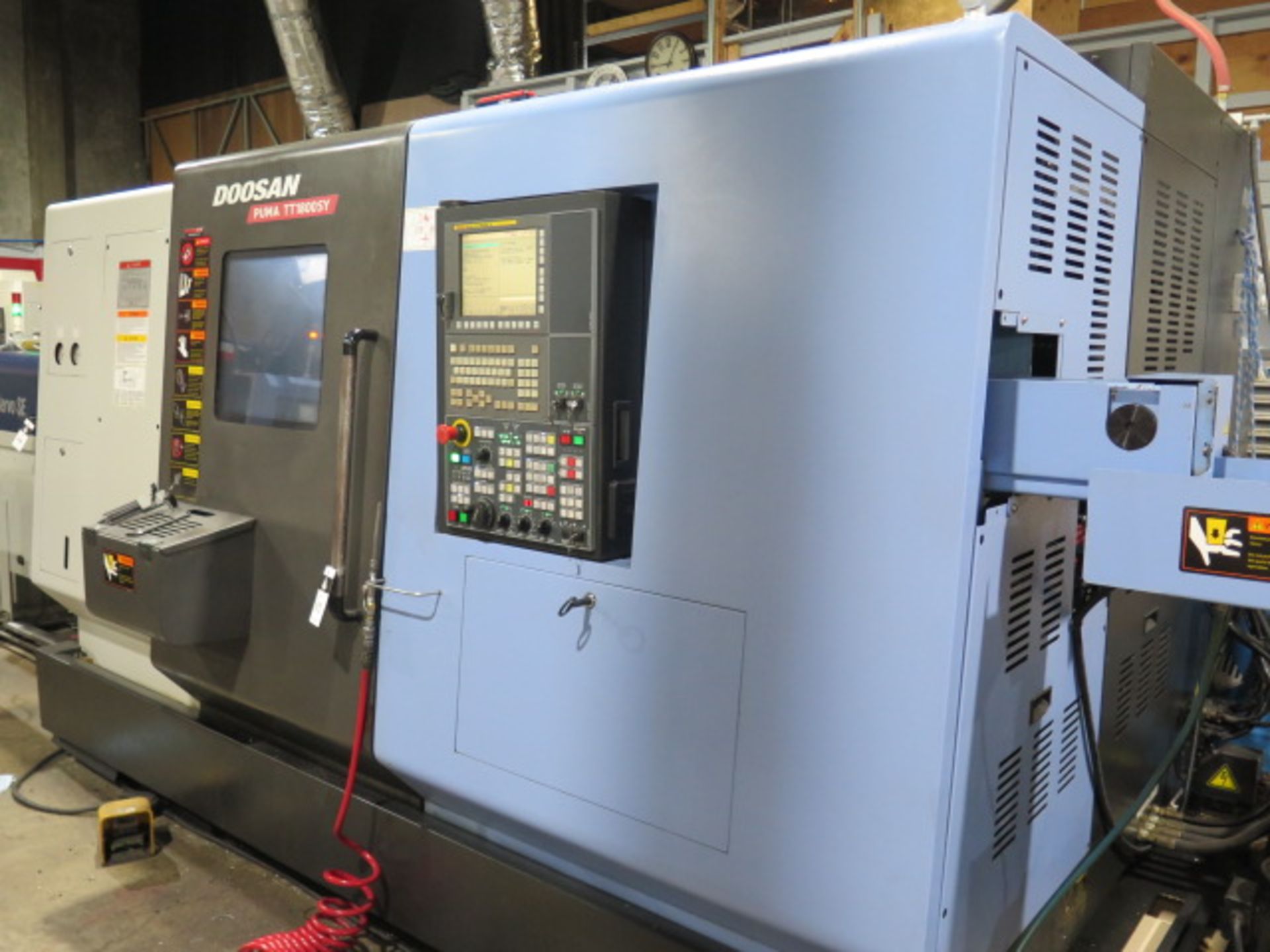

| Make: | Doosan |
| Model: | PUMA TT1800SY |
| Condition: | Used |
| Equipped With: |
|---|

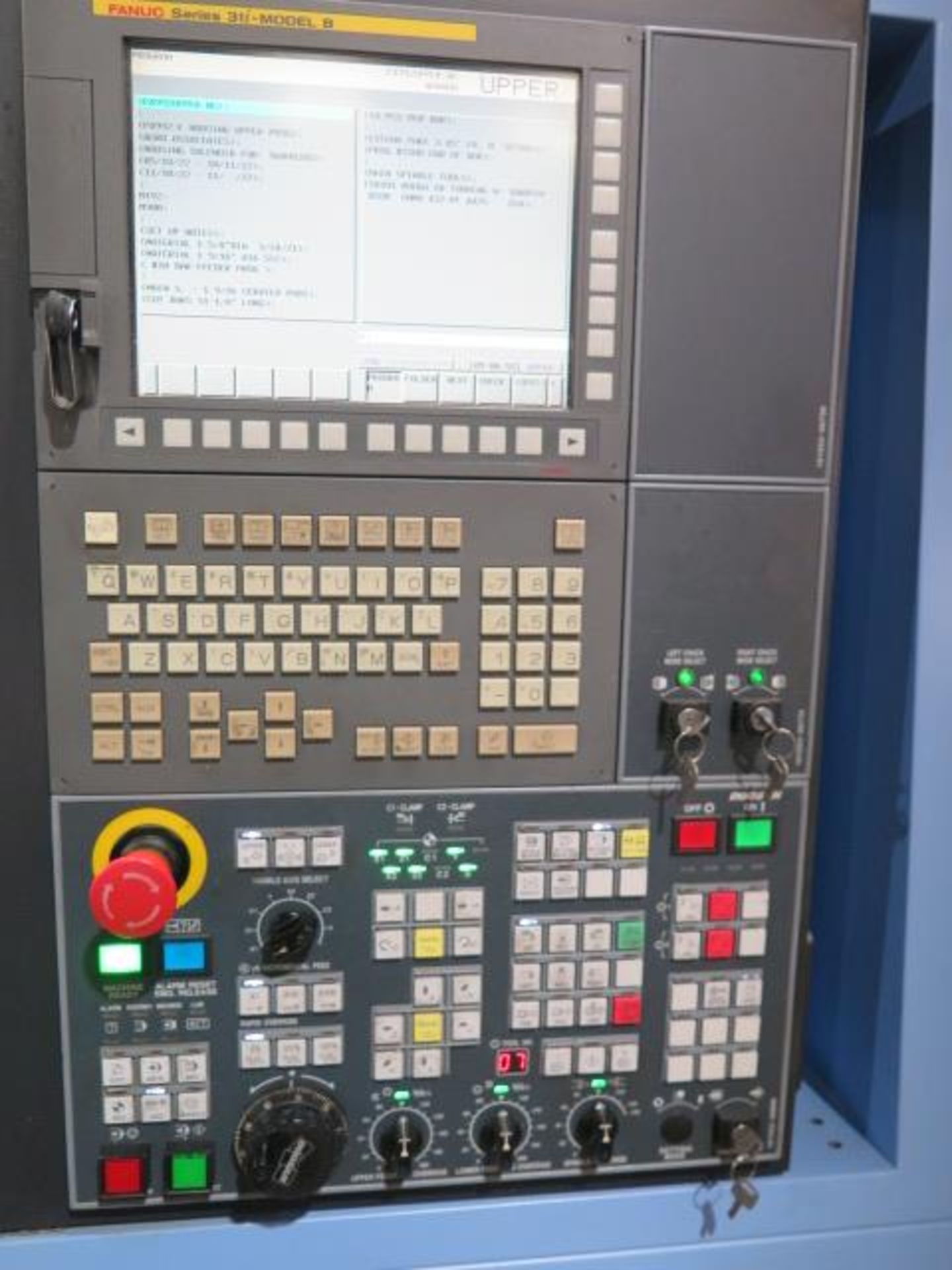

| Fanuc CNC Control |
| Dual Spindle Turning Capability |

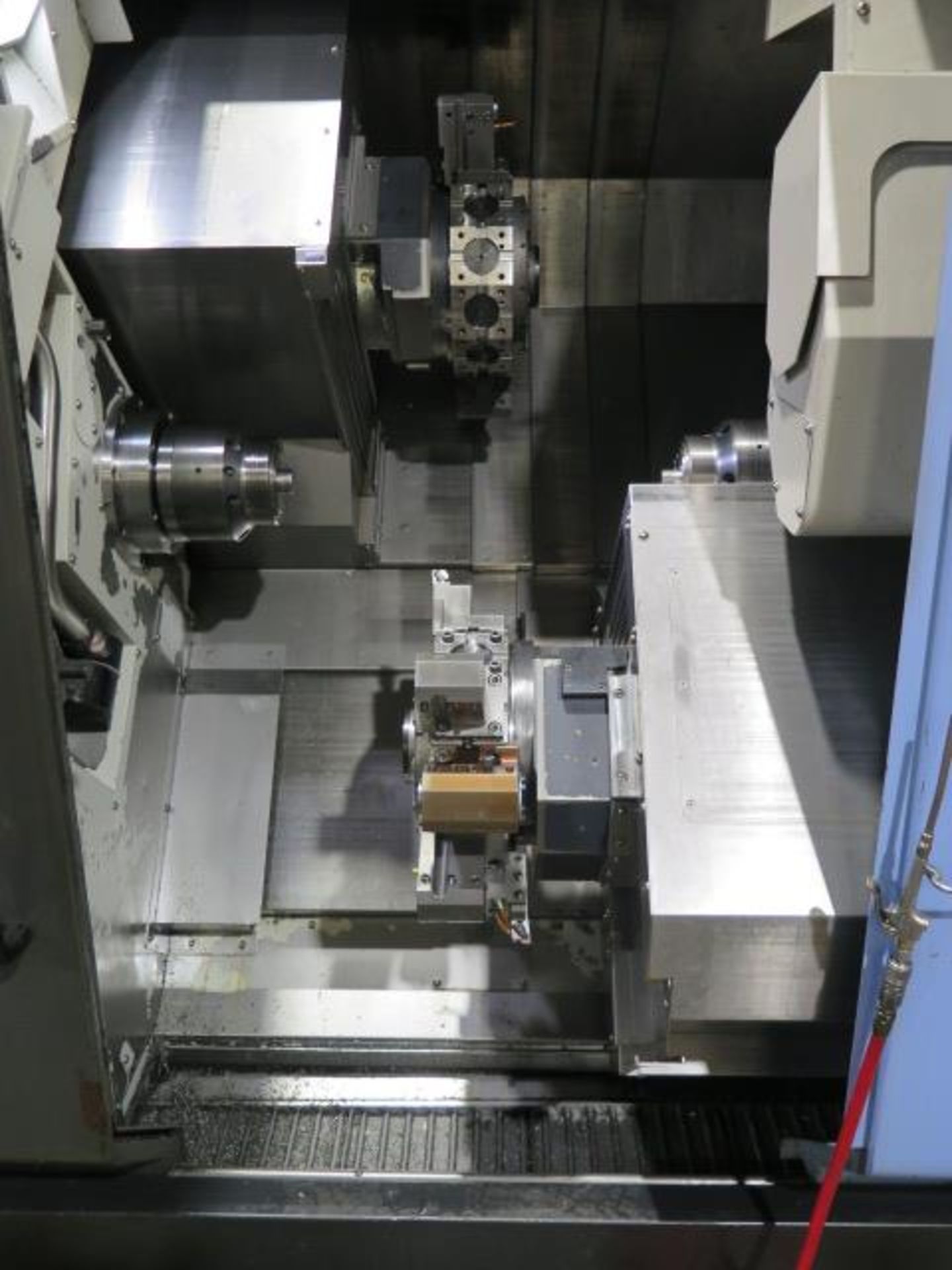

| Upper & Lower Turrets |
| Y-Axis Milling Capability |
| C-Axis Control (Main & Sub Spindle) |
| Live Tooling |
| Automatic Tool Presetter |
| Flood Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 10.2″ |
| Max Turning Length: 24.8″ |
| Swing Over Bed: 25.6″ |
| Swing Over Saddle: 18.1″ |
| Bar Capacity: 2.36″ |
| Travels: |
|---|
| X-Axis Travel (Upper Turret): 6.7″ |
| X-Axis Travel (Lower Turret): 6.3″ |
| Y-Axis Travel: ±2.0″ |
| Z-Axis Travel: 26.4″ |
| W-Axis Travel (Sub-Spindle): 25.2″ |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Bore: 2.56″ |
| Sub-Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Spindle Bore: 2.36″ |
| Milling: |
|---|
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 7.5 HP |
| Feedrates: |
|---|
| Rapid Traverse X/Z: 1,181 IPM |
| Rapid Traverse Y: 630 IPM |
| Cutting Feedrate: 0 – 472 IPM |
| Turrets: |
|---|
| Upper Turret: 12 Stations |
| Lower Turret: 12 Stations |
| Tool Size (OD): 1.0″ × 1.0″ |
| Boring Bar Capacity: 1.57″ |
| General: |
|---|

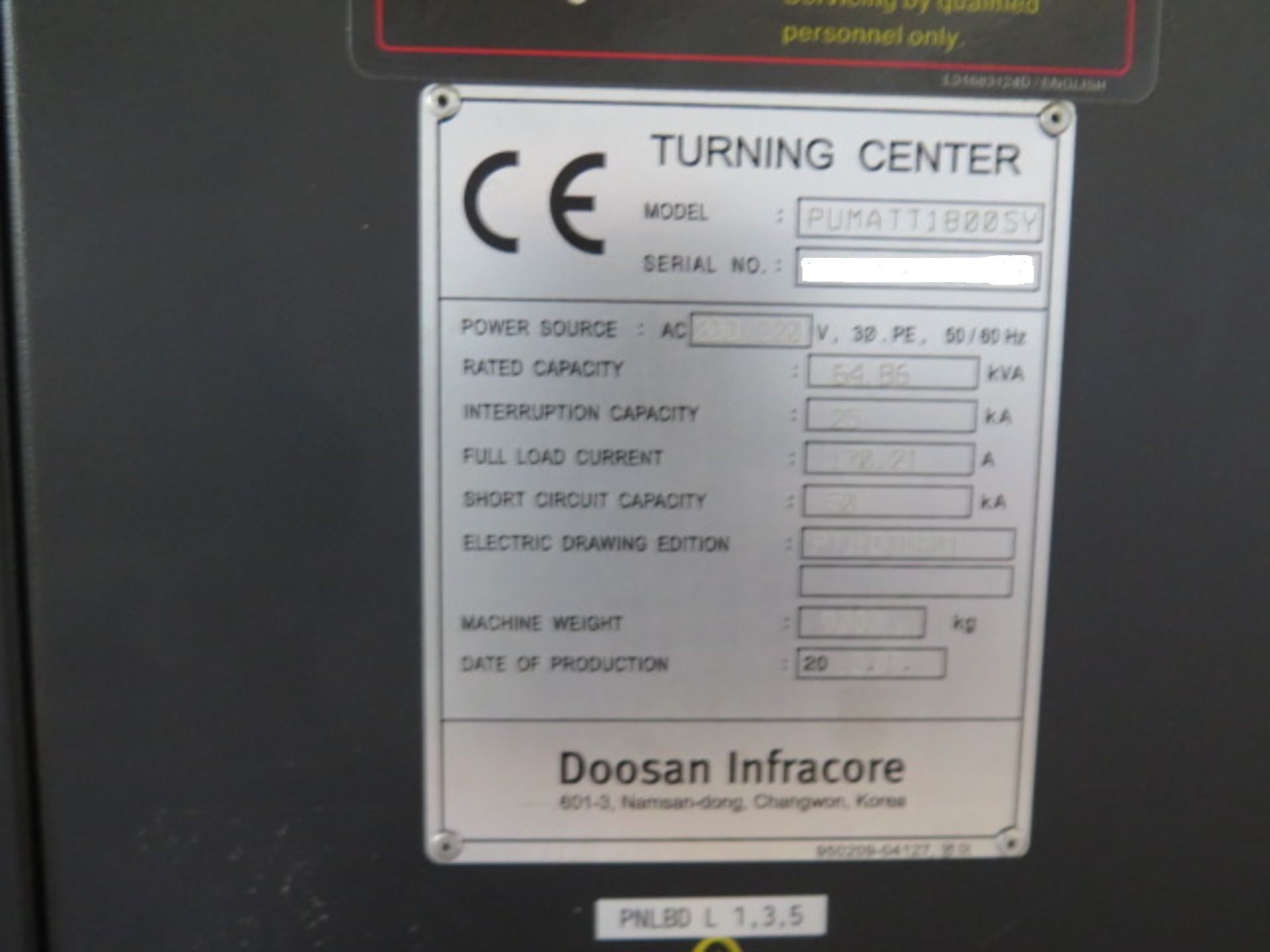

| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 126″ × 78″ × 82″ |
| Machine Weight (Approx.): 15,400 lbs |
