*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2212 |

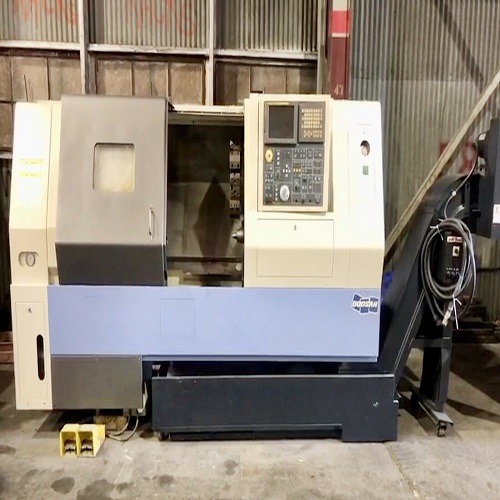

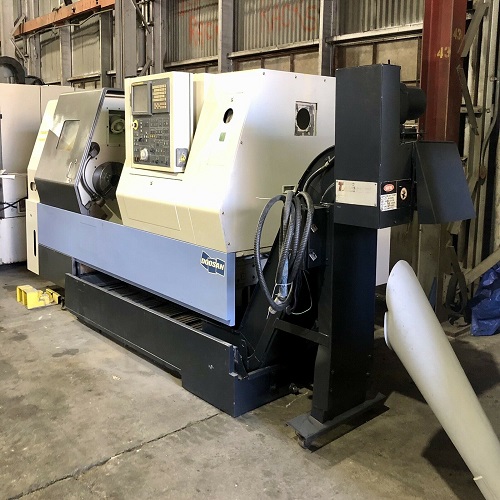

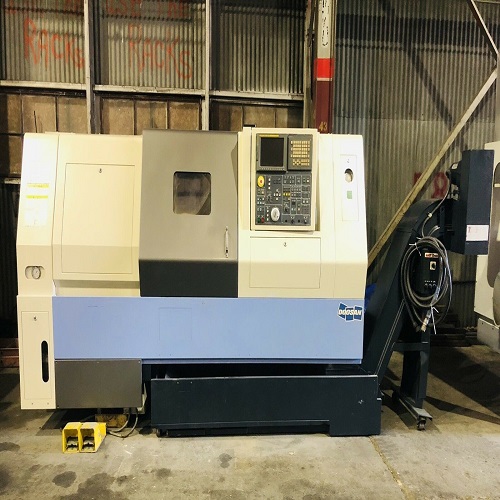

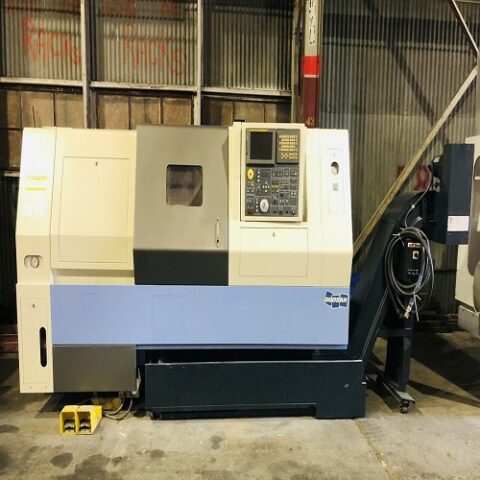

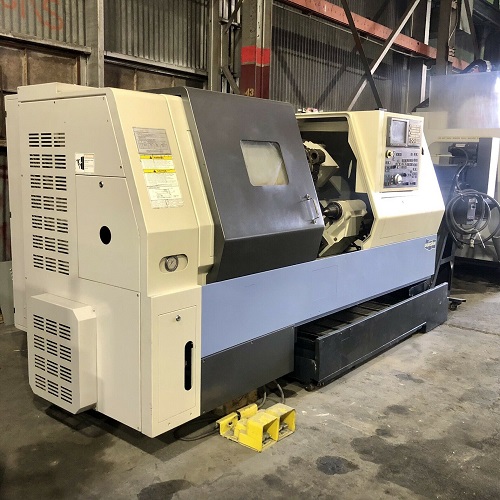

| Make: | Doosan |
| Model: | Puma 280 |

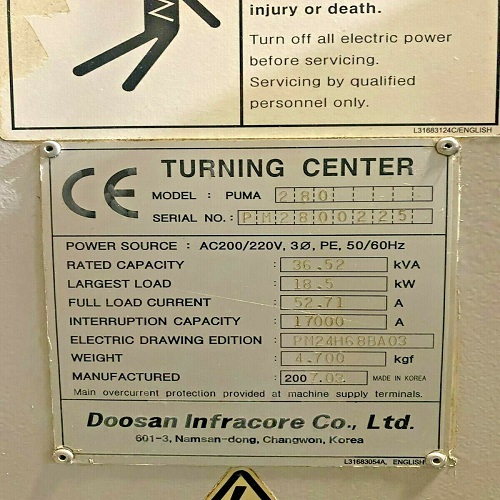

| Serial: | P2800225 |
| Cutting Hours: | 7920 |
| Condition: | Very Good |
| Equipped With: |
|---|

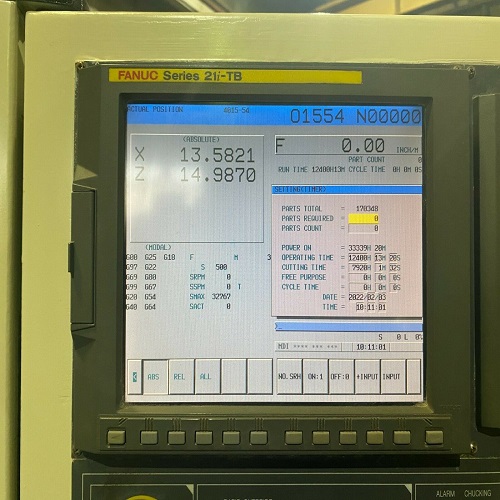

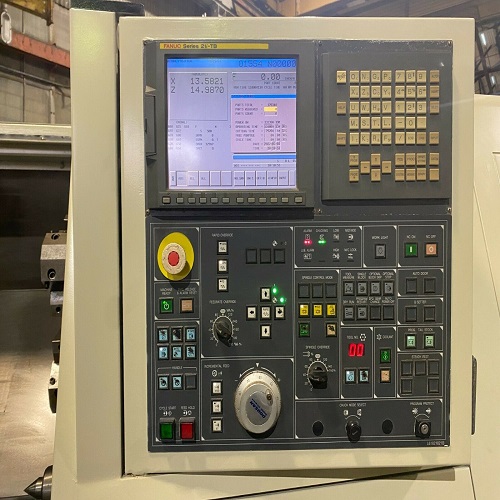

| Fanuc 21i-T CNC Control |

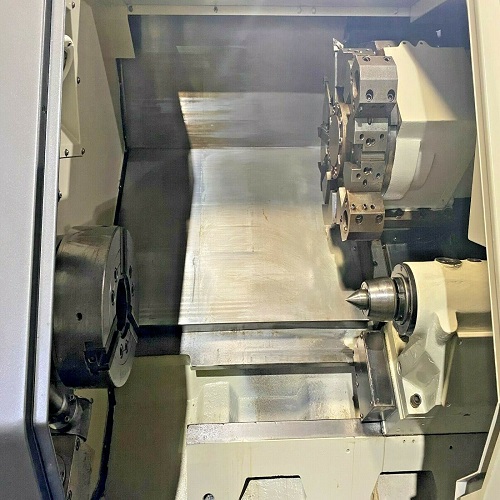

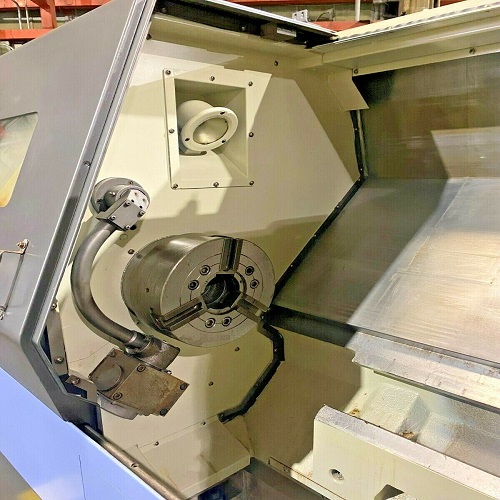

| 12″ 3 Jaw Hydraulic Chuck |
| A2-8 30 HP Spindle |
| 12 Stations |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| Foot Switches |
| Coolant System |
| Chip conveyor |
| Specifications: |
|---|
| Max Turning Diameter: 16.14″ |
| Max Turning Length: 40.5″ |
| Max Bar Capacity: 2.99 |
| Swing Over Bed: 24.8″ |
| Swing Over Carriage: |
| Distance Between Centers: 42.5″ |
| Travel: |
|---|
| X Axis Travel: 9.53″ |
| Z Axis Travel: 43.3″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 hp |

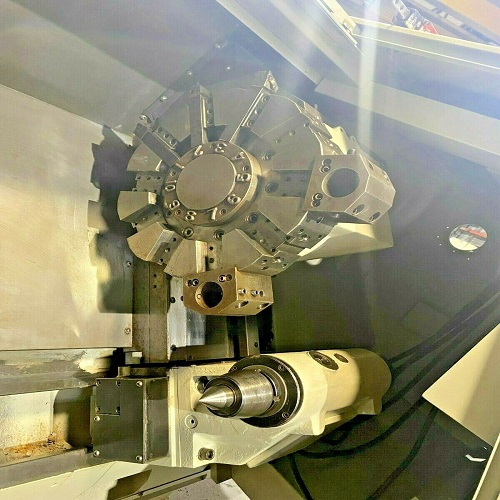

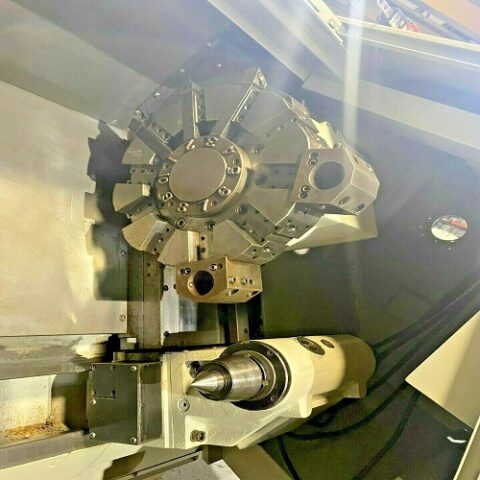

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Speed: 5,000 RPM |
| Motor: 7.5 HP |
| Tool Size: 1.5″ |
| Tailstock: |
|---|
| Tailstock Taper: MT- 4 |
| Tailstock Body Travel: 33.5″ |
| Tailstock Quill Dia.: 4.0″ |
| Tailstock Quill Travel: 4.0″ |
| General: |
|---|

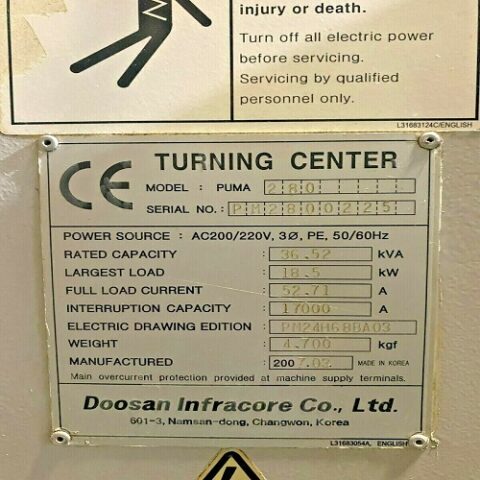

| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: |
| Weight: lbs |
