*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

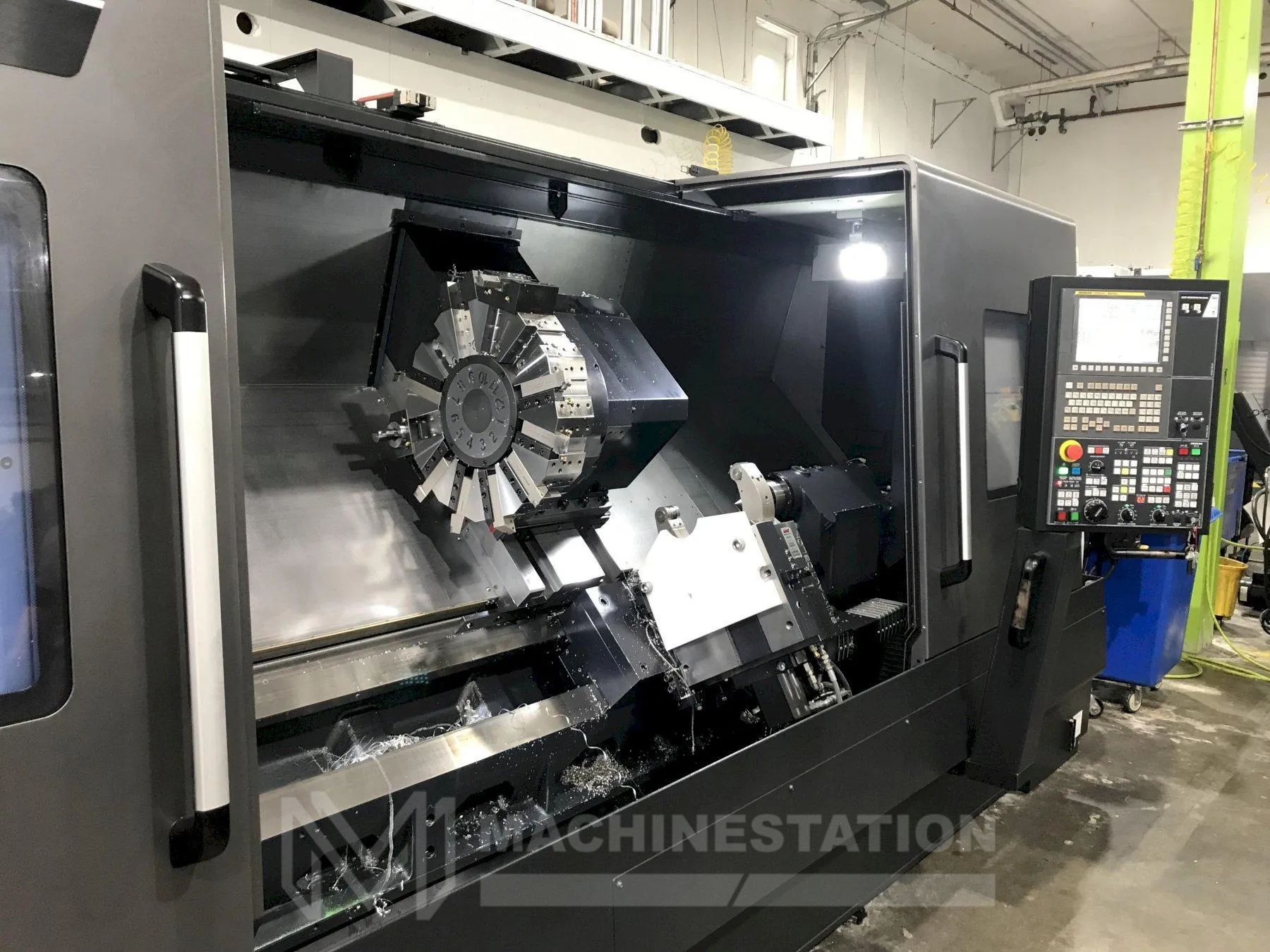

| Make: | Doosan |
| Model: | Puma 4100LB |
| Year: | 2017 |
| Condition: | Used – Good |
| Equipped With: |
|---|

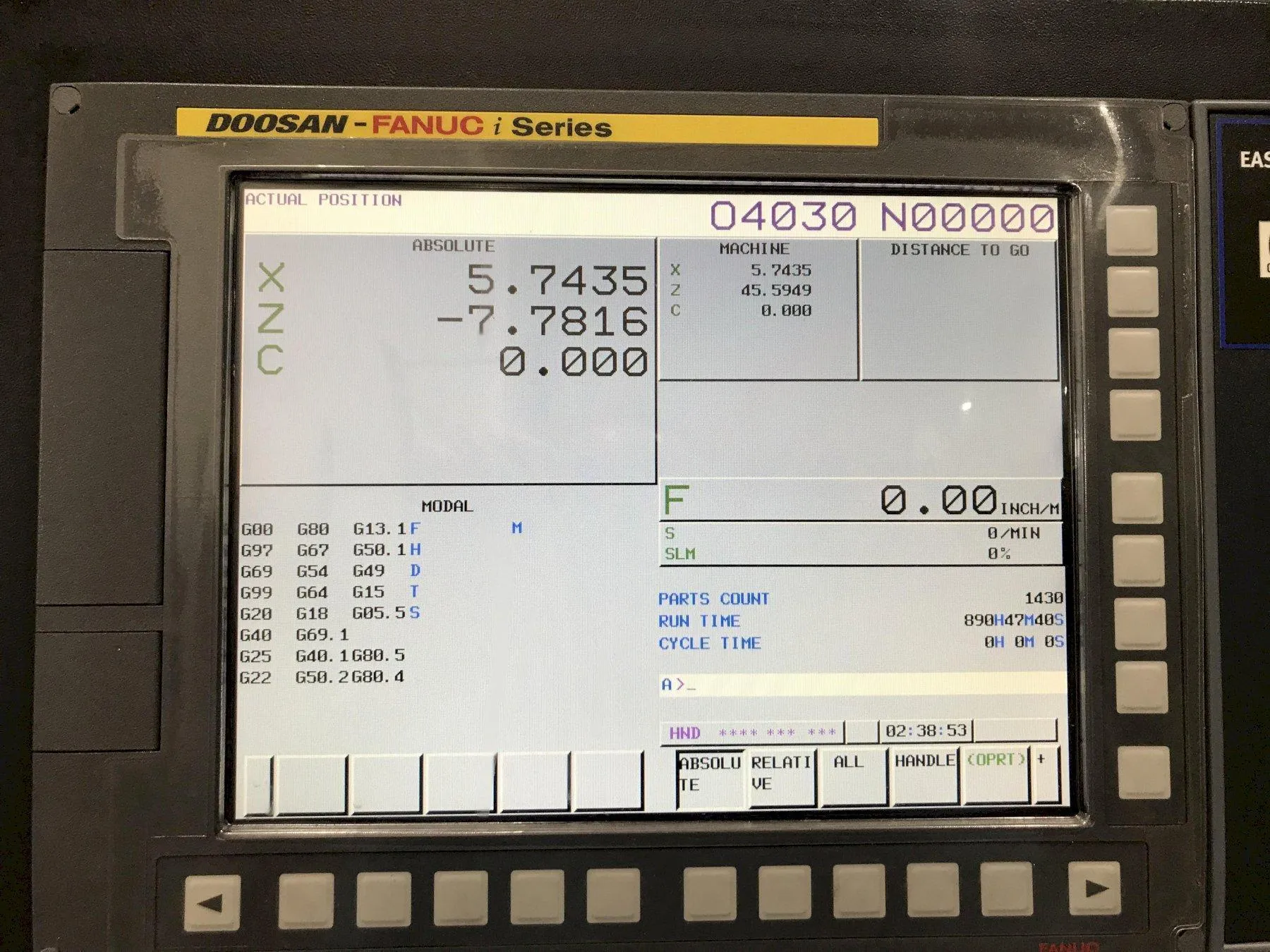

| Doosan Fanuc i-Series CNC Control |
| Long Bed Box Way Construction |
| 15″ 3-Jaw Samchully Hydraulic Chuck |
| 5.2″ Big Bore, A2-11 Spindle |
| 50 HP High Torque Spindle |
| 12 Station Automatic Turret |

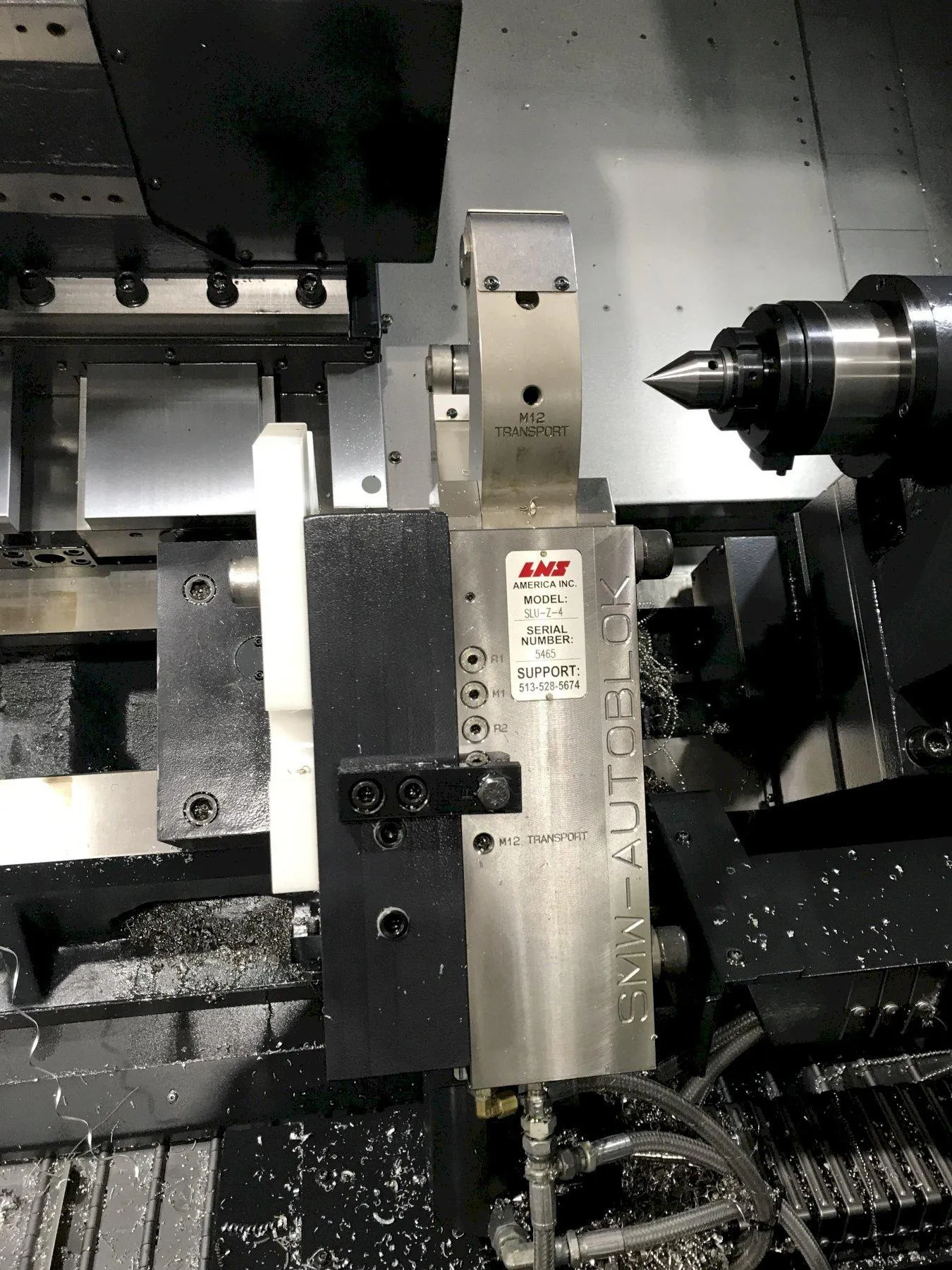

| LNS Programmable Hydrualic Steady Rest |
| Automatic Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 21.7″ |
| Max Turning Length: 82.4″ |
| Swing Over Bed: 31.1″ |
| Max Bar Capacity: 4.6″ |
| Travel: |
|---|
| X Axis Travel: 13.9″ |
| Z Axis Travel: 84.8″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.2″ |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Capacity: 12 Station |
| Turret Index Time: 0.25 Second |
| OD Tool Size: 1.3″ x 1.3″ |
| Max Boring Bar Size: 2.4″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-6 |
| Tailstock Quill Dia.: 4.7″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|
| Power: 220V / 3-Phase / 60 Hz |
| Overall Dimensions: 227″ x 90″ x 90″ High Approx. |
| Weight: 25,130 lbs. Approx. |
