*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

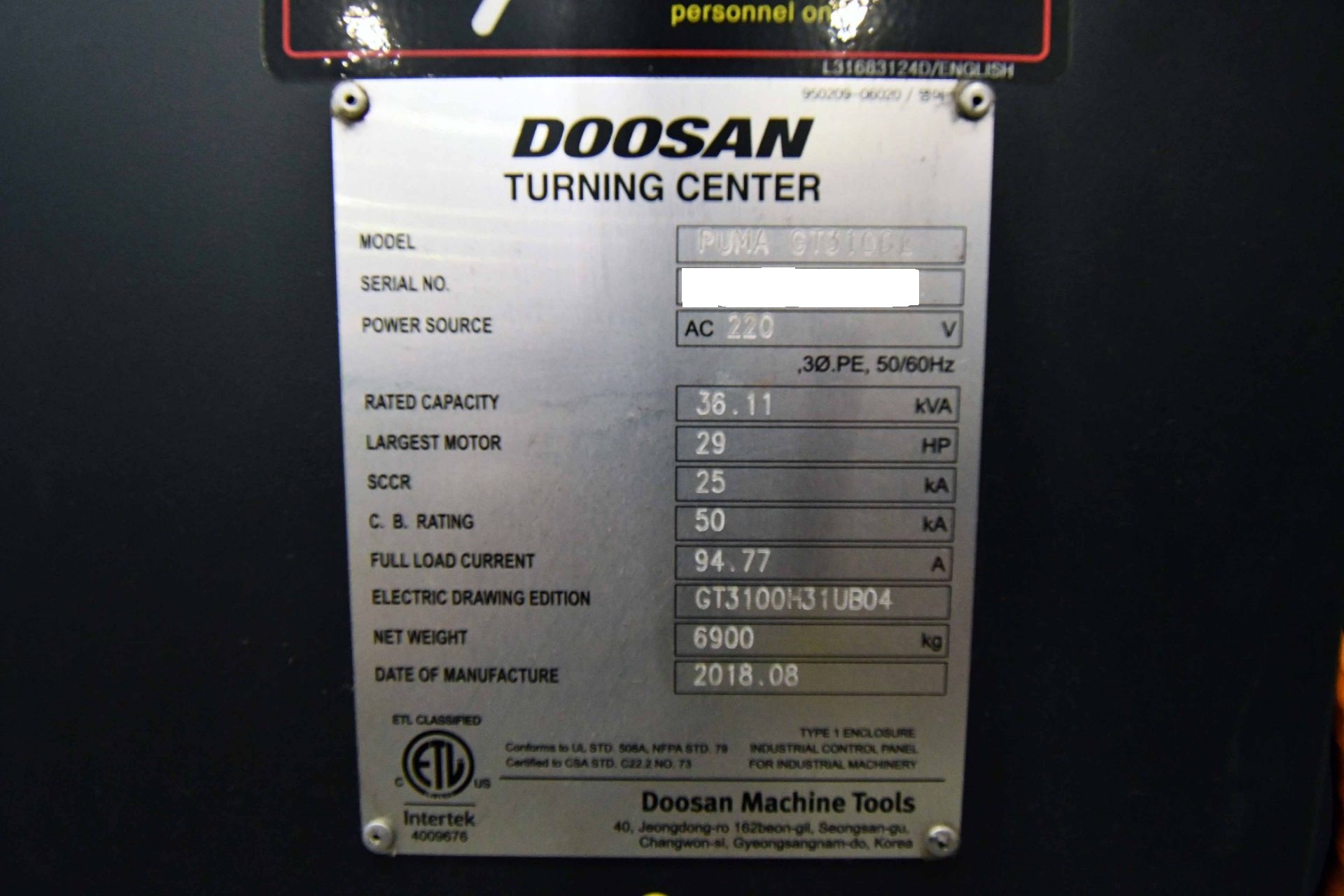

| Make: | Doosan |

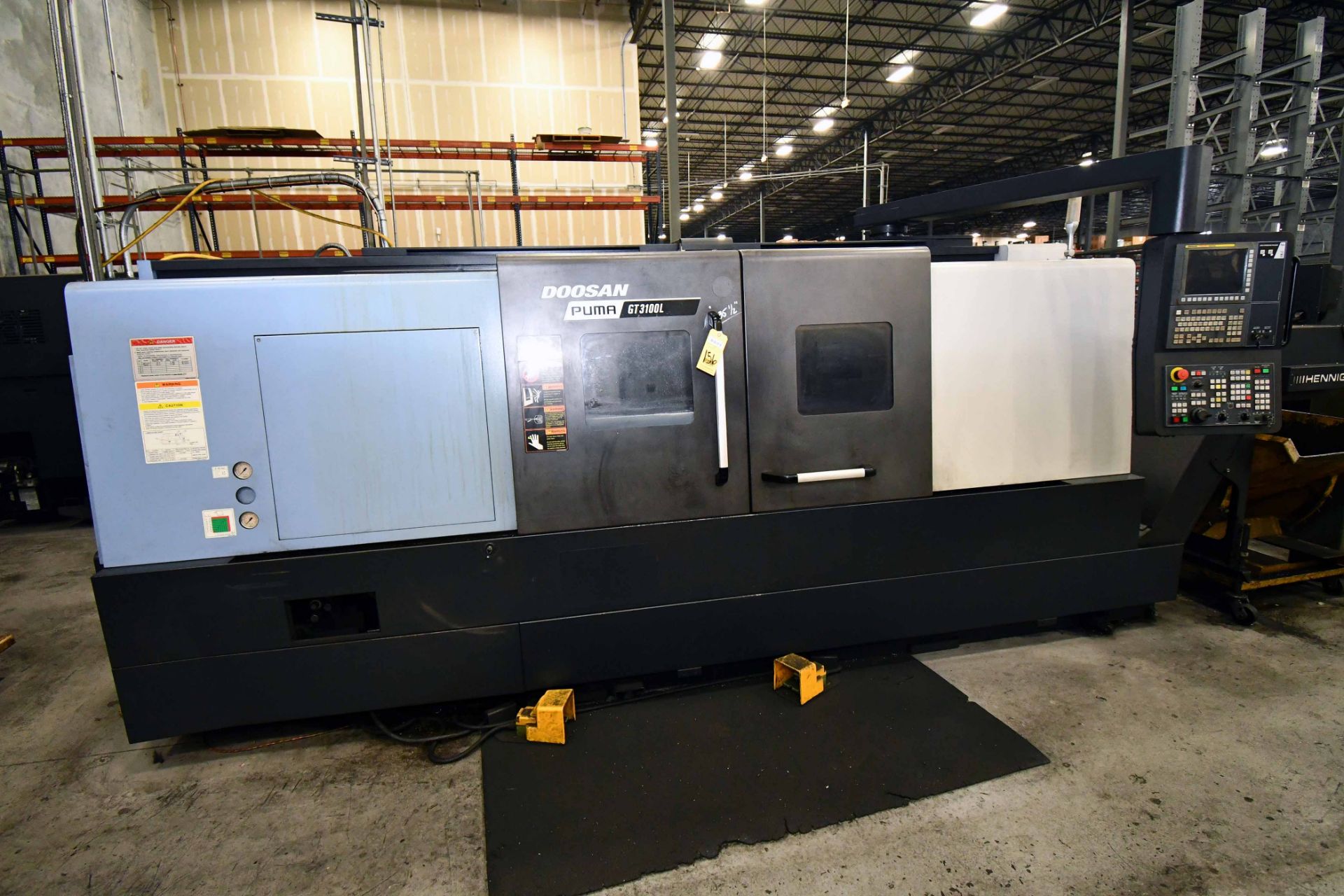

| Model: | PUMA GT3100L |
| Machine Type: | CNC Turning Center – Long Bed |
| Condition: | Used |
| General: |
|---|
- Series: PUMA GT
- Configuration: Long-Bed (L)
- Axes: 2-Axis (X, Z)
- Guideway Type: Box Guideways on All Axes
- CNC Control: Doosan Fanuc i
|
| Capacity: |
|---|
- Standard Chuck Size: 12″
- Optional Chuck Size: 15″
- Max Turning Diameter: 18.9″
- Max Turning Length: 50.2″
- Bar Capacity: 4.0″
|
| Travels & Rapid Traverse: |
|---|
- X-Axis Travel: 10.2″
- Z-Axis Travel: 53.1″
- Rapid Traverse X-Axis: 945 IPM
- Rapid Traverse Z-Axis: 1,181 IPM
|
| Spindle: |
|---|
- Max Spindle Speed: 2,800 RPM
- Spindle Motor Power: 35 HP (S3 25%) / 30 HP (30 Min) / 22 HP (Continuous)
- Max Spindle Torque: 1,190 lb-ft
- Spindle Type: Gear-Driven High-Torque Spindle
|
| Turret: |
|---|
- Turret Type: Servo Indexing Turret
- Tool Stations: 10 or 12 Stations
- Indexing: Servo Motor Controlled
|
| Tailstock: |
|---|
- Tailstock Type: Programmable Hydraulic
- Tailstock Travel: 53.1″
- Quill Diameter: 3.9″
- Quill Travel: 3.9″
|
| Coolant System: |
|---|
- Coolant Tank Capacity: 72.7 gal
- Standard Coolant Pressure: 22 PSI
- Optional High-Pressure Coolant: Up to 1,015 PSI
- Filtration Options: Screen, Dual Bag, or Paper Filter
|
| Chip Management: |
|---|
- Chip Conveyor Options: Hinged Belt, Screw Type, Magnetic Scraper
- Chip Discharge: Side or Rear (Configuration Dependent)
|

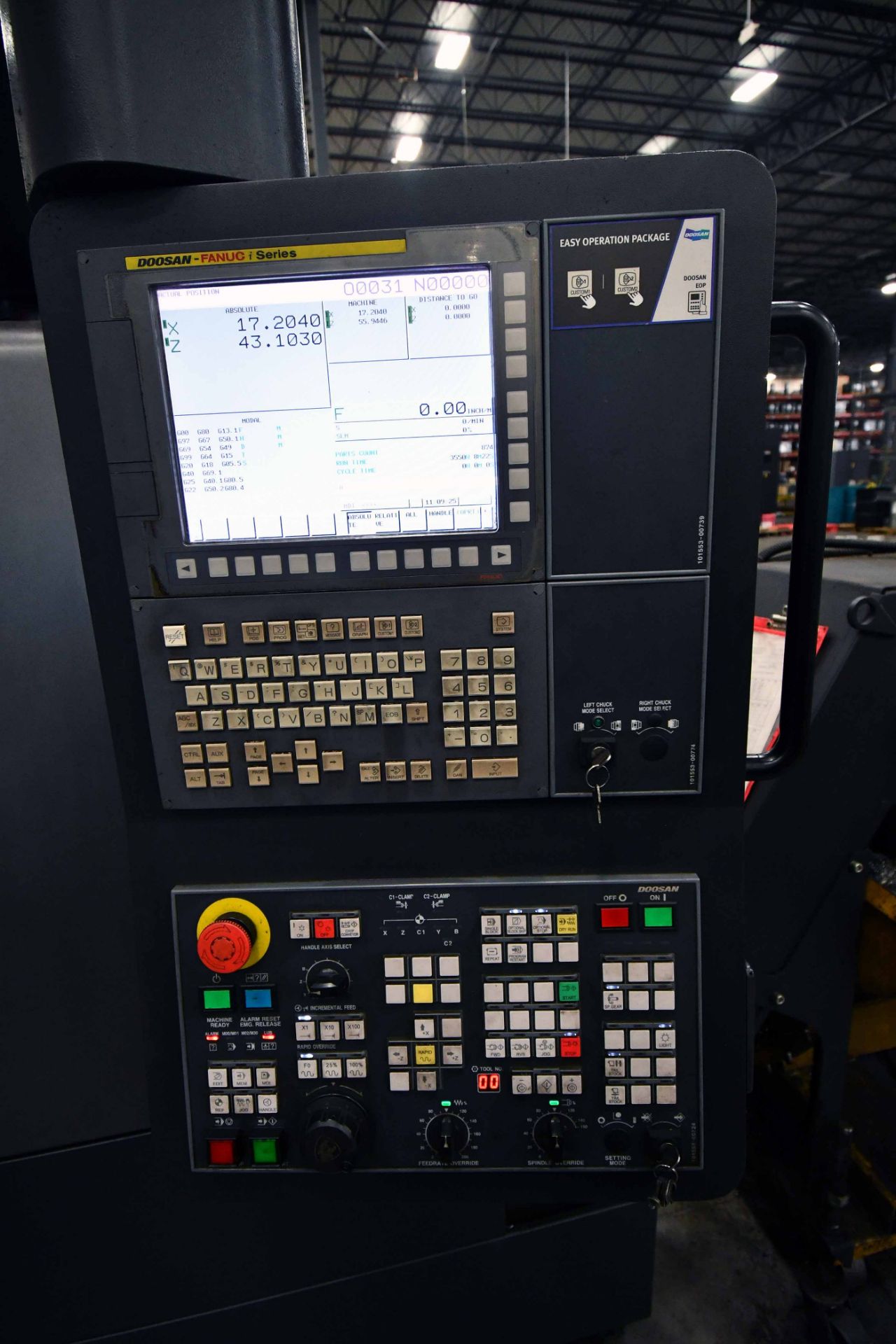

| CNC Control & Operation: |
|---|
- Display: 10.4″ Color LCD
- Input: QWERTY Keyboard
- Connectivity: USB & PCMCIA
- Software Features: Tool Load Monitoring, Turret Recovery Assistance, Work & Cycle Time Management
|
| Dimensions: |
|---|
- Overall Length: 182.5″
- Overall Width: 80.1″
- Overall Height: 83.1″
- Length with Chip Conveyor: 227.4″
|
| Standard & Optional Equipment: |
|---|
- Dual Pressure Chucking
- Chuck Clamp Confirmation
- Hydraulic Steady Rest (Optional)
- Tool Setter (Manual or Automatic)
- Auto Door
- Bar Feeder Interface
- Linear Scales (X/Z – Optional)
- Mist Collector
- Part Catcher
|
