*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Eurotech |
| Model No.: | B465 SY2 |
| Year of Manufacture: | 2013 |
| Condition: | Used – Good |
| Machine Type: | Multi-Axis CNC Turning Center / Swiss-Type Lathe |

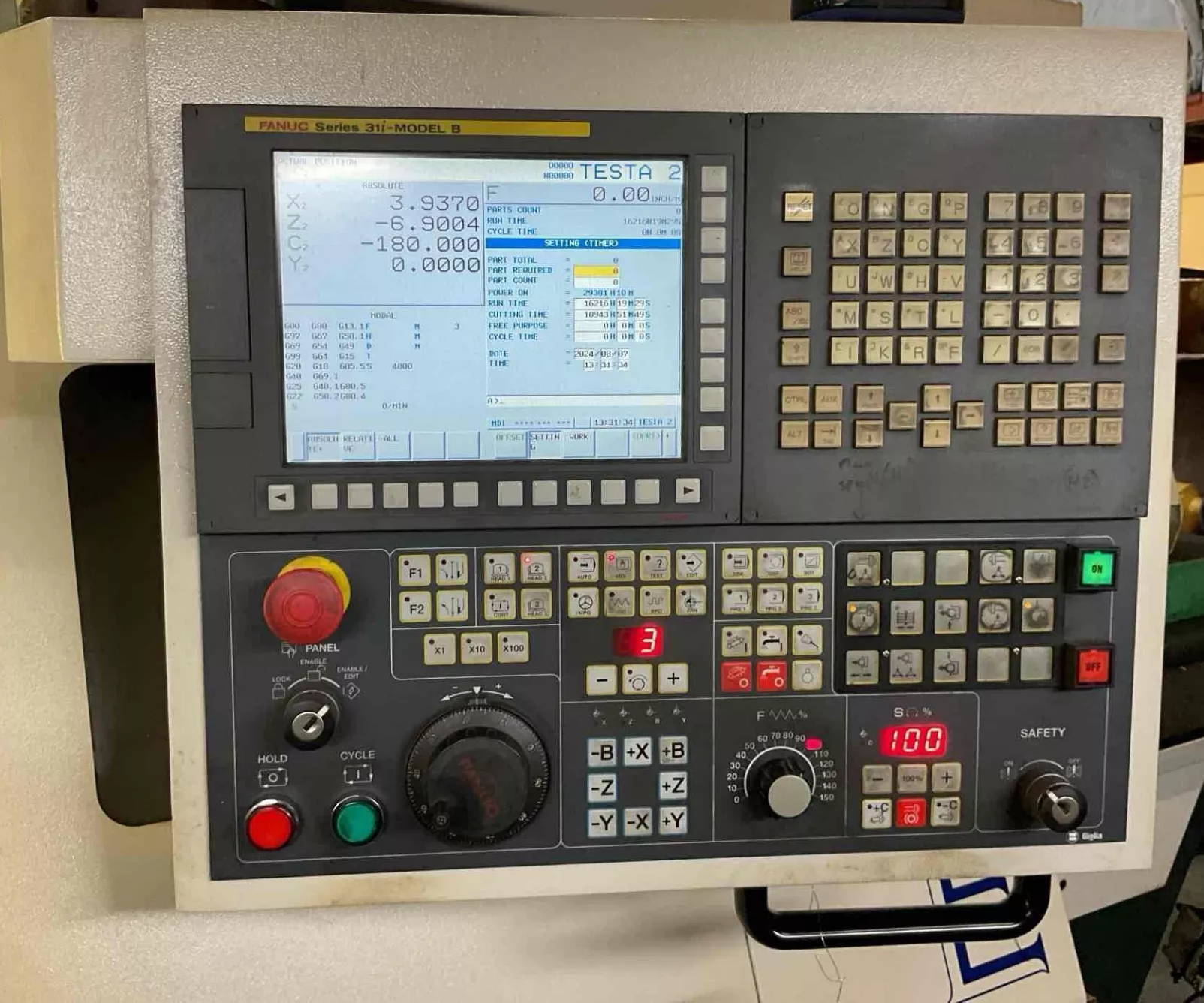

| CNC Control: | Fanuc Series 31i-B CNC Control |
| Equipped With: |
|---|
| Fanuc Series 31i-B CNC Control |
| Dual Spindle Configuration |
| Dual Y-Axis (Y1 / Y2) |
| Live Tooling System |
| Guide Bushing System |
| Automatic Bar Feeder Interface |
| Parts Catcher |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Work Light |
| Capacity: |
|---|
| Maximum Bar Capacity: 2.56″ (65 mm) |
| Maximum Turning Diameter: 65 mm |
| Maximum Turning Length (Guide Bushing): Approx. 150 mm |
| Maximum Turning Length (Without Guide Bushing): Approx. 165 mm |
| Travel: |
|---|
| X1 Axis Travel: 220 mm |
| Y1 Axis Travel: ±50 mm |
| Z1 Axis Travel: 320 mm |
| X2 Axis Travel: 220 mm |
| Y2 Axis Travel: ±50 mm |
| Z2 Axis Travel: 320 mm |
| Main Spindle: |
|---|
| Spindle Speed: Up to 4,500 RPM |
| Spindle Motor Power: Approx. 18.5 kW (25 HP) |
| Spindle Bore: 65 mm |
| Spindle Nose: A2-6 |
| Sub Spindle: |
|---|
| Spindle Speed: Up to 6,000 RPM |
| Motor Power: Approx. 7.5 kW (10 HP) |
| Sub-Spindle Bore: Approx. 43 mm |
| Live Tooling: |
|---|
| Live Tool Speed: Up to 6,000 RPM |
| Live Tool Motor Power: Approx. 5.5 kW |
| Milling / Drilling / Tapping Capability |
| Feedrates: |
|---|
| Rapid Traverse: Approx. 30 m/min |
| Electrical: |
|---|
| Voltage: 400V |
| Phase: 3-Phase |
| Current: 75 A |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Weight: 7,000 kg (15,432 lbs) |
| Heavy-duty Swiss-type machine base for high precision machining |
| Features: |
|---|
| Dual Y-axis multi-axis machining capability |
| Main and sub-spindle for complete part machining |
| Live tooling for milling, drilling, and tapping operations |
| Fanuc 31i-B control for advanced multi-axis programming |
| High-precision Swiss-type turning technology |
| Designed for complex small-to-medium precision parts |
| Ideal for medical, aerospace, electronics, and precision manufacturing industries |
