Eurotech TA-20YS CNC Lathe (2020) – Y-Axis, Sub Spindle, Fanuc 32iTB, 12K RPM
Out of stock
| SKU: | 11321 |
| Make/Model: | Eurotech TA-20YS |
| Year: | 2020 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Eurotech |
| Model No.: | TA-20YS |
| Year of Manufacture: | 2020 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

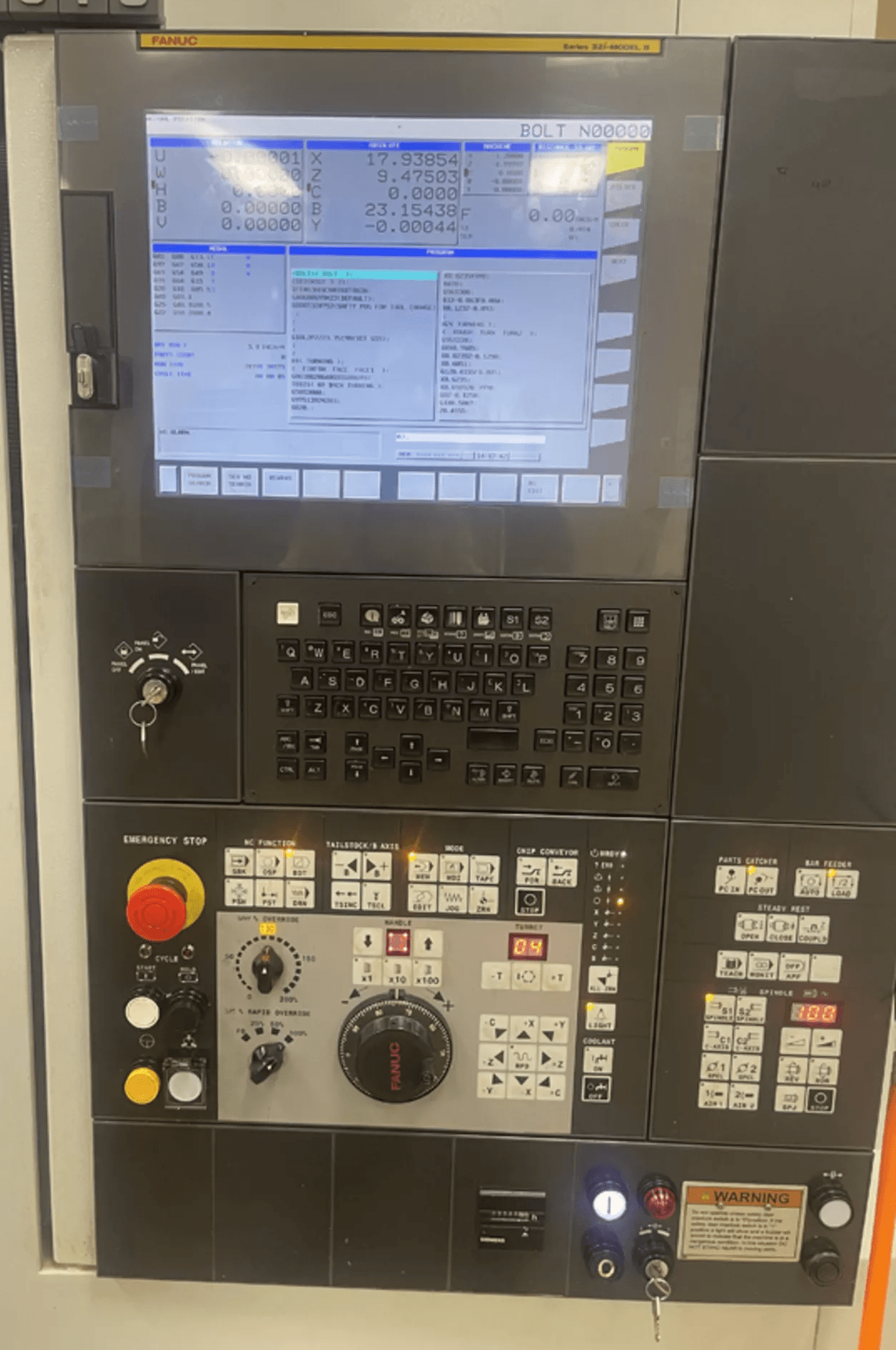

| CNC Control: | Fanuc 32i-TB |
| Country of Origin: | Italy |
| Capacity: |
|---|
| Swing Over Bed: 29.92″ |
| Max Turning Diameter: 18.11″ |
| Max Turning Length: 25.2″ |
| Distance Between Spindles: 24.6″ |
| Bar Capacity (Main/Sub): 2.6″ |
| Spindle Bore (Main/Sub): 3.2″ |
| Travels: |
|---|
| X-Axis Travel (X1, X2, X3): 12.2″ |
| Z-Axis Travel (Z1, Z2, Z3): 25.1″ |
| Y-Axis Travel (Y1, Y2, Y3): 4.73″ |
| Spindle: |
|---|
| Main Spindle Speed: 4,000 RPM |
| Sub Spindle Speed: 4,500 RPM |
| Main Spindle Motor: 30 HP |
| Sub Spindle Motor: 18.8 HP |
| Main & Sub Spindle: Collet Chuck |
| C-Axis Indexing: 0.001° |
| Turret / Tooling: |
|---|
| Turret Capacity: 15 Station |
| Live Tooling Speed: 12,000 RPM |
| Live Tool Motor: 15.5 HP |
| Included Tooling: |
| – (4) Axial Live Tools |
| – (4) Radial 90° Live Tools (1 New) |
| – (1) Double Radial 90° Tool (Forward/Back Facing) |
| General: |
|---|
| Machine Type: Box Way Construction |
| Rapid Traverse Rate: 1,600 IPM |
| Control Interface: 15″ Touchscreen IHMI |
| Bar Feeder Interface: Yes |
| Tool Life Management: Yes |
| Tool Load Monitoring: Yes |
| Machine Status Indicator Light: Yes |
| Transformer: Included |
| Equipped With: |
|---|
| Sub Spindle with Parts Ejector (Pneumatic) |
| Programmable Automatic Parts Catcher with Conveyor |
| Coolant Through Sub Spindle |
| High-Pressure Coolant System |
| Coolant Tank with Filtration System (Scraper Type) |
| Chip Conveyor |
| Air Blower Over Main Spindle |
| Tool Pre-Setter (Removable) |
| Box Ways |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | TA-20YS |
