*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

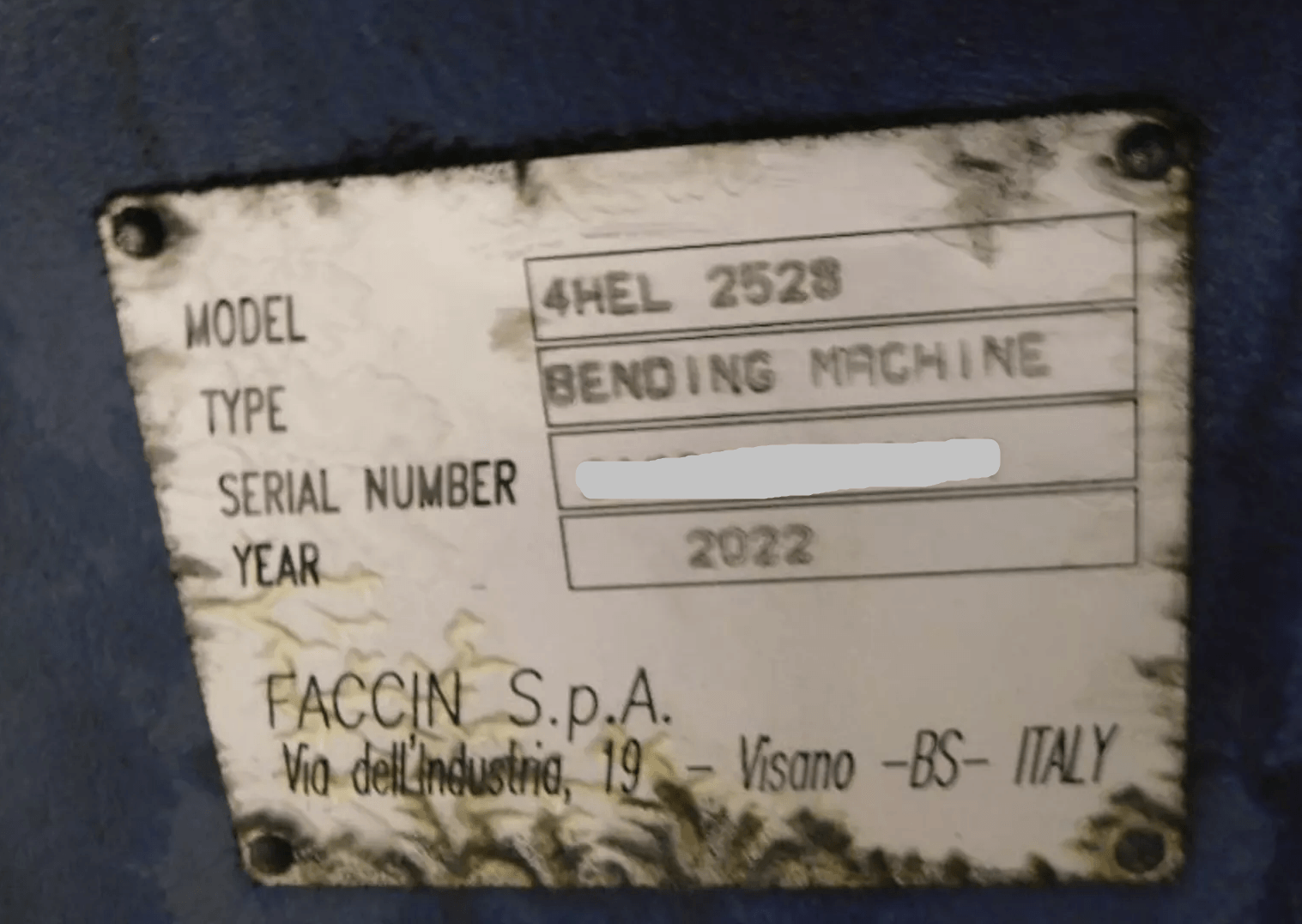

| Make: |
Faccin S.p.A. |
| Model No.: |
4HEL 2528 |
| Year of Manufacture: |
2022 |
| Condition: |
Used |
| Machine Type: |
CNC Plate Bending Machine |
| Country of Origin: |
Italy |
| Equipped With: |
| CNC Control with Touchscreen |
| 4-Roll Double Pinch System |
| Hydraulic Drop End |
| Cone Bending Capability |
| Overhead Support Arm |
| Side Support System |
| Emergency Stop System |
| Capacity: |
| Max Rolling Width: 8 ft – 8.5 ft (100″) |
| Max Plate Thickness: 1.0″ (approx.) |
| Pre-Bending Capacity: High-performance 4-roll pre-bending |
| Roll Configuration: 4-Roll Double Pinch System |
| Rolls: |
| Top Roll: Heavy-duty hardened roll |
| Bottom Roll: Hydraulic driven |
| Side Rolls: Hydraulic positioning for precision bending |
| Roll Design: Planetary guide system for accuracy |
| Control System: |

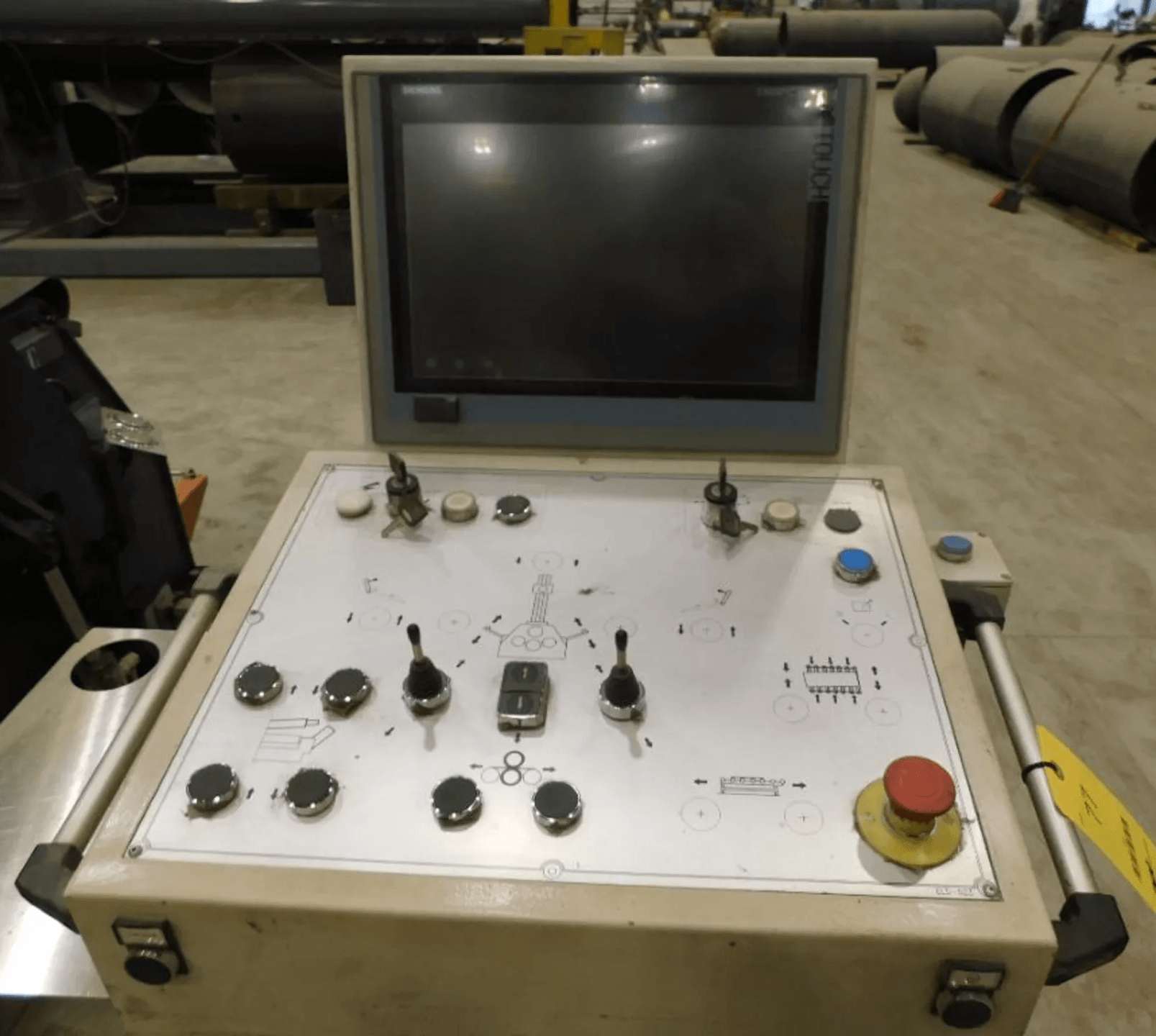

| CNC Control with Touchscreen Interface (Siemens-type) |
| Programmable Rolling Cycles |
| Automatic Plate Alignment |
| Memory for Multiple Jobs |
| Drive System: |
| Hydraulic Drive System |
| High Torque Output |
| Independent Side Roll Control |
| Electrical: |
| Voltage: 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Dimensions: |
| Floor Space (L x W x H): 200″ x 85″ x 80″ H (approx.) |
| Machine Weight: 28,000 – 35,000 lbs |
| Additional Requirements: |
| Operator Access: 36″ minimum |
| Plate Handling Area: 6 ft – 10 ft front & rear |
| Maintenance Clearance: 36″ – 48″ |
| General: |
| Air Required: 80 PSI (approx.) |
| Power Requirement: 480V / 50–70 kVA / 3-Phase |
