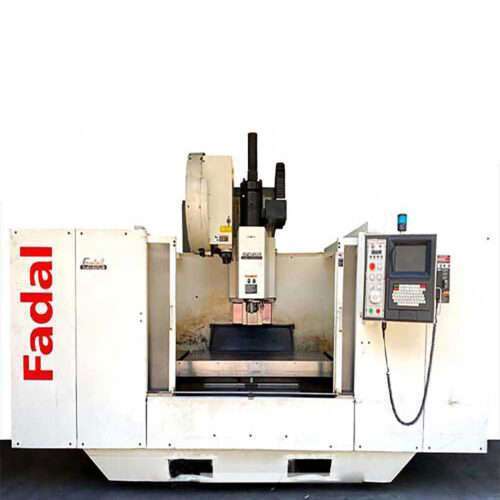

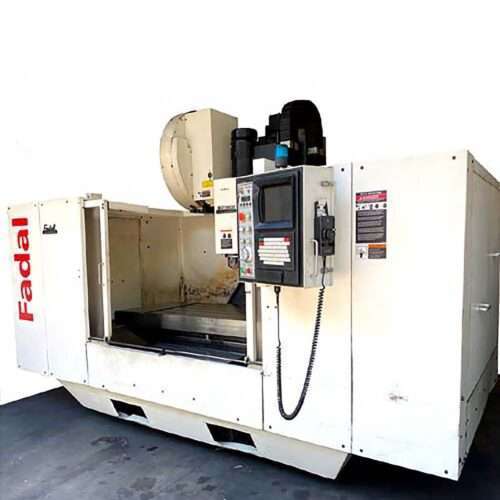

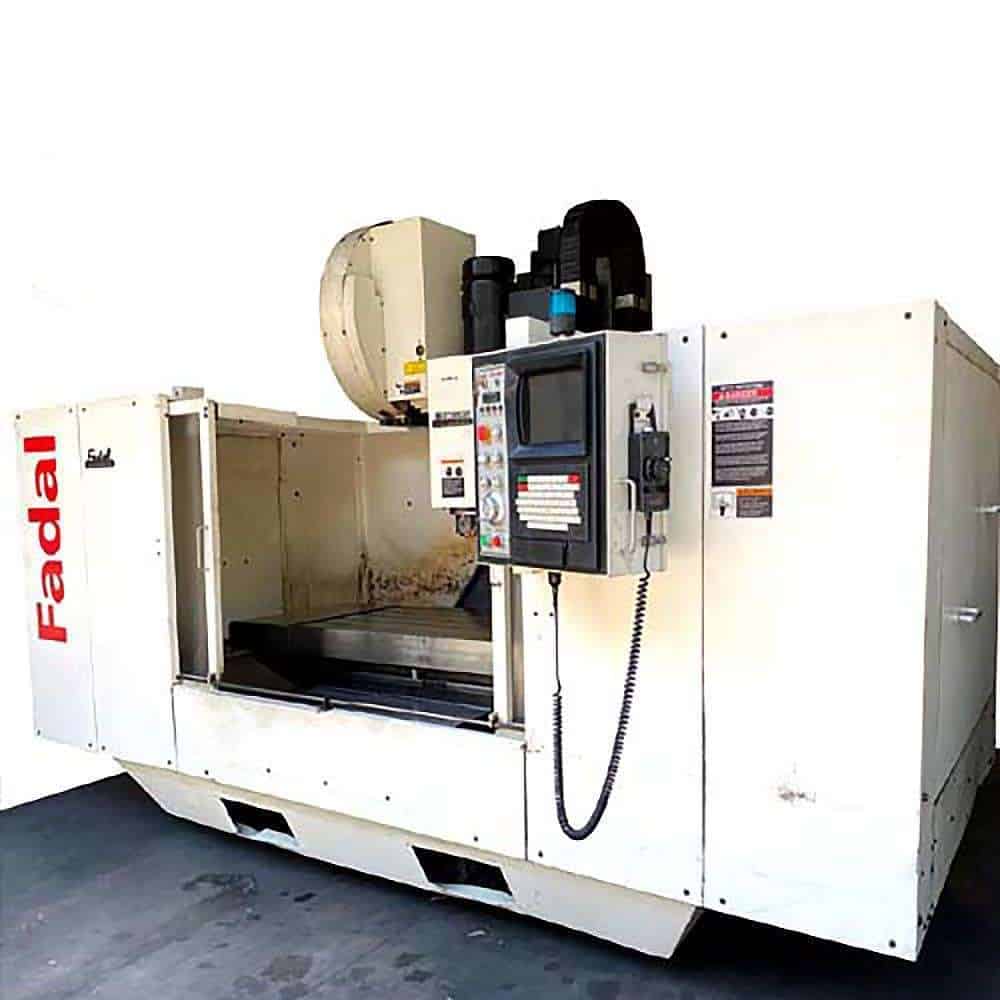

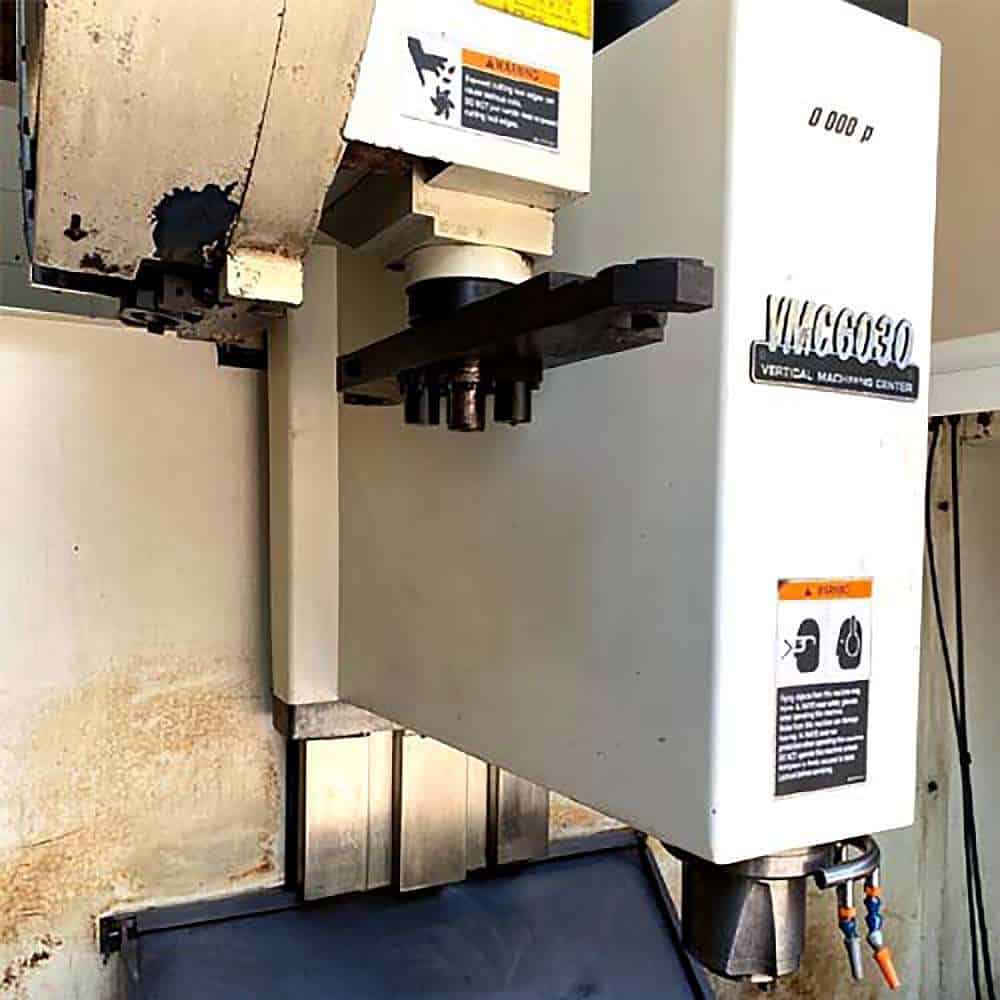

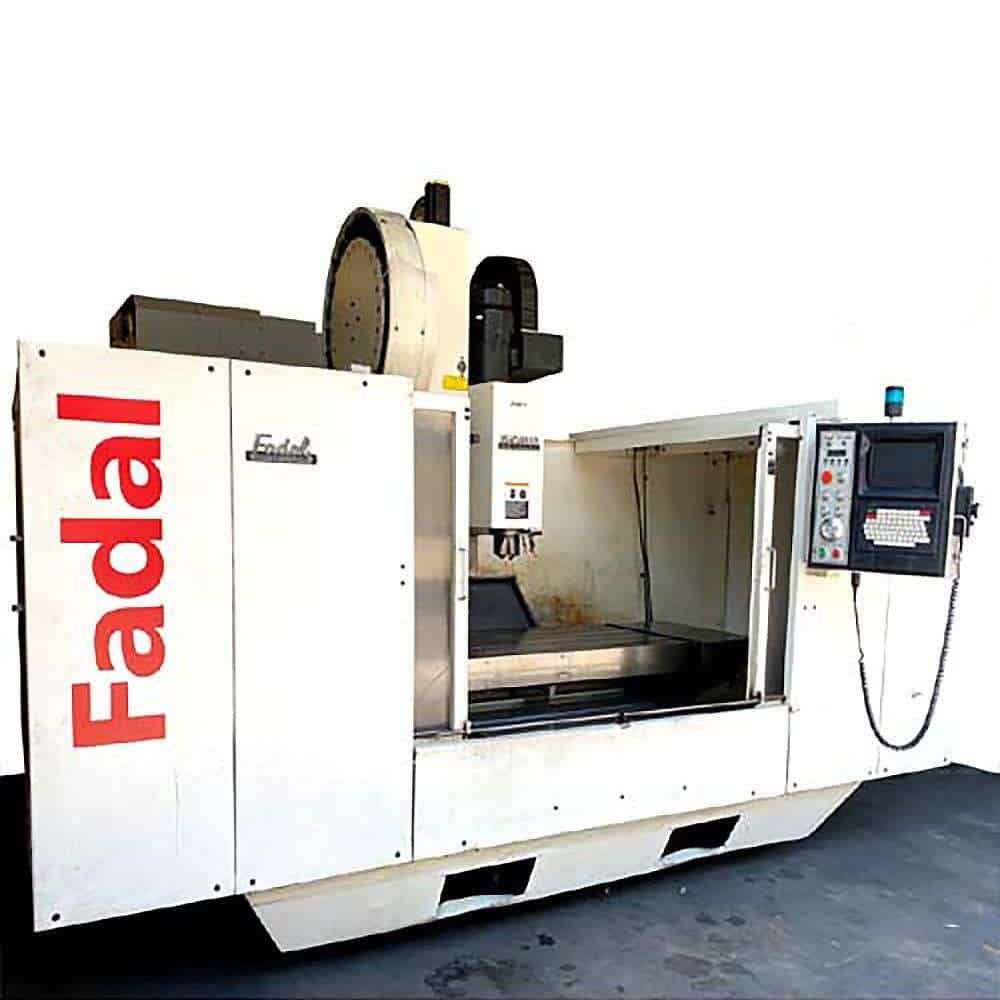

Fadal 6030HT CNC Vertical Machining Center
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 112375 |
| Make/Model: | Fadal 6030HT |
| Video: | ON Request |
| SKU: | 112375 |
| Make: | Fadal |
| Model: | (907)6030HT |

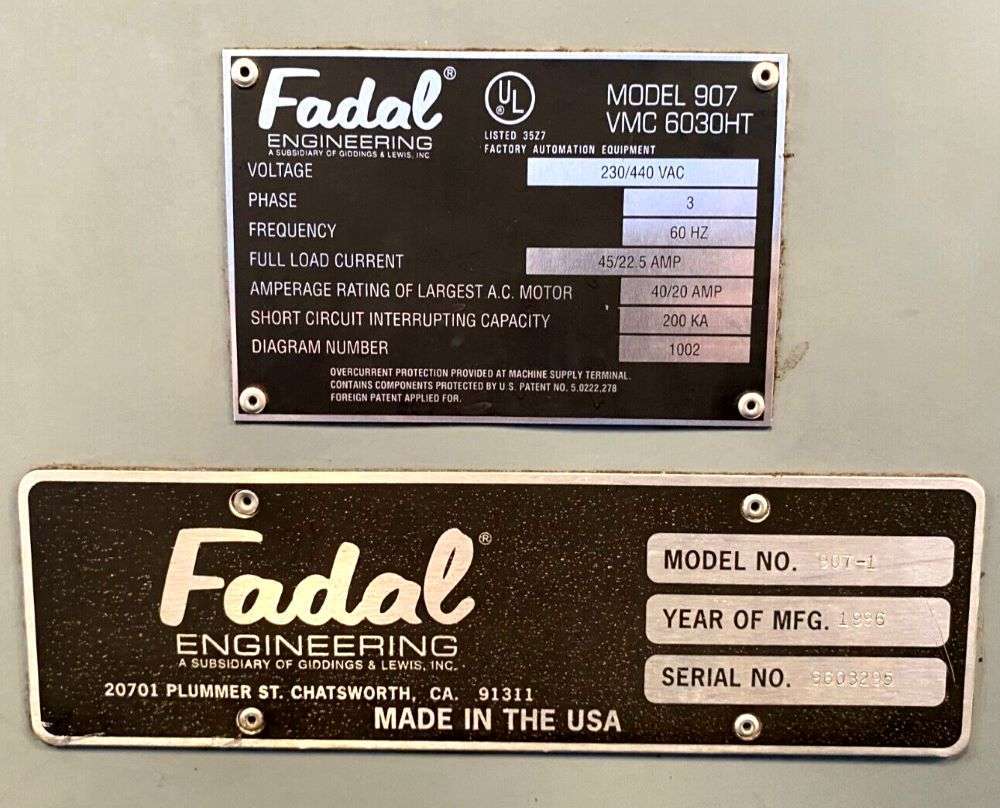

| Serial: | 9803761 |
| Year: | 1996/1997 |
| Features: |
|---|

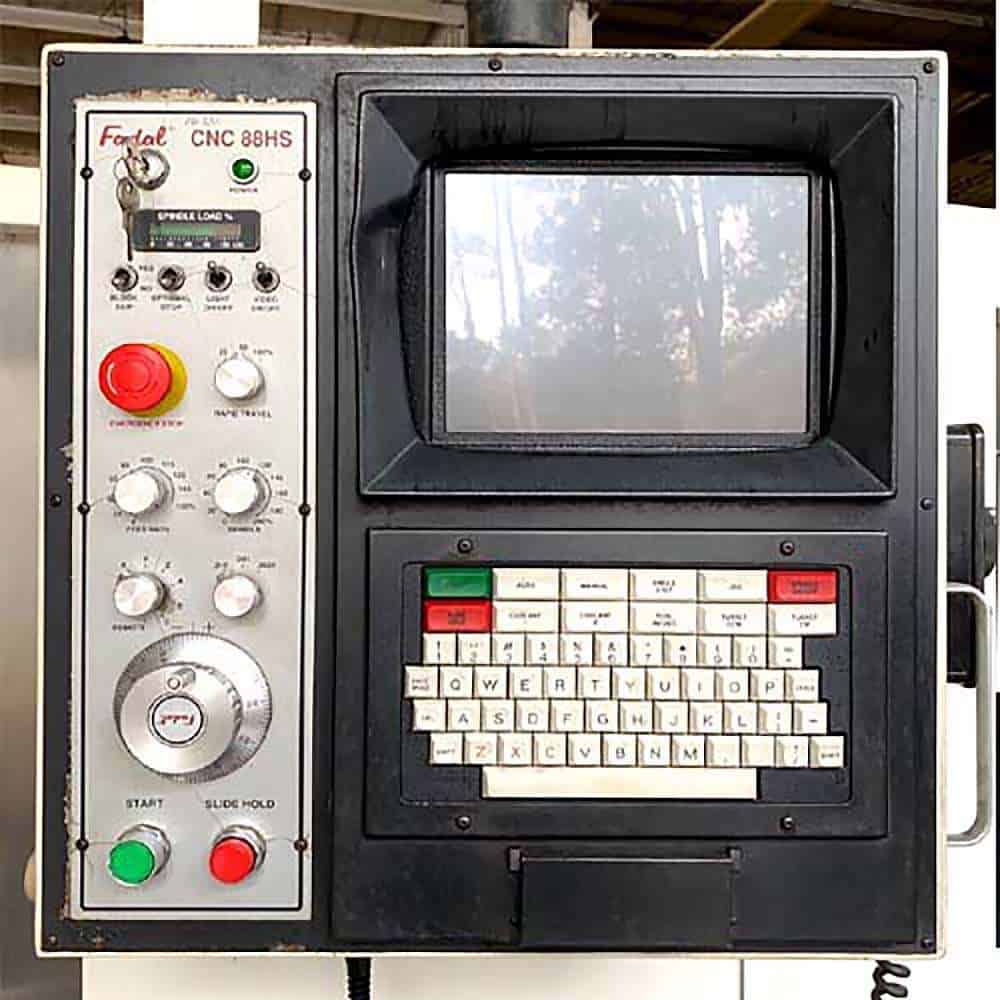

| Fadal 88HS CNC Control |
| Box Way construction |
| 24 Automatic high speed tool changer |
| 22.5 HP High Torque Spindle Motor |
| 10,000 RPM High Precision Spindle |
| PCMCIA Card Slot |
| MPG Hand Wheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Flood Coolant System |
| Oil Chiller |
| Coolant Tank |
| Travels: |
|---|
| X-Axis: 60″ |
| Y-Axis: 30″ |
| Z-Axis: 30″ |
| Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″ |

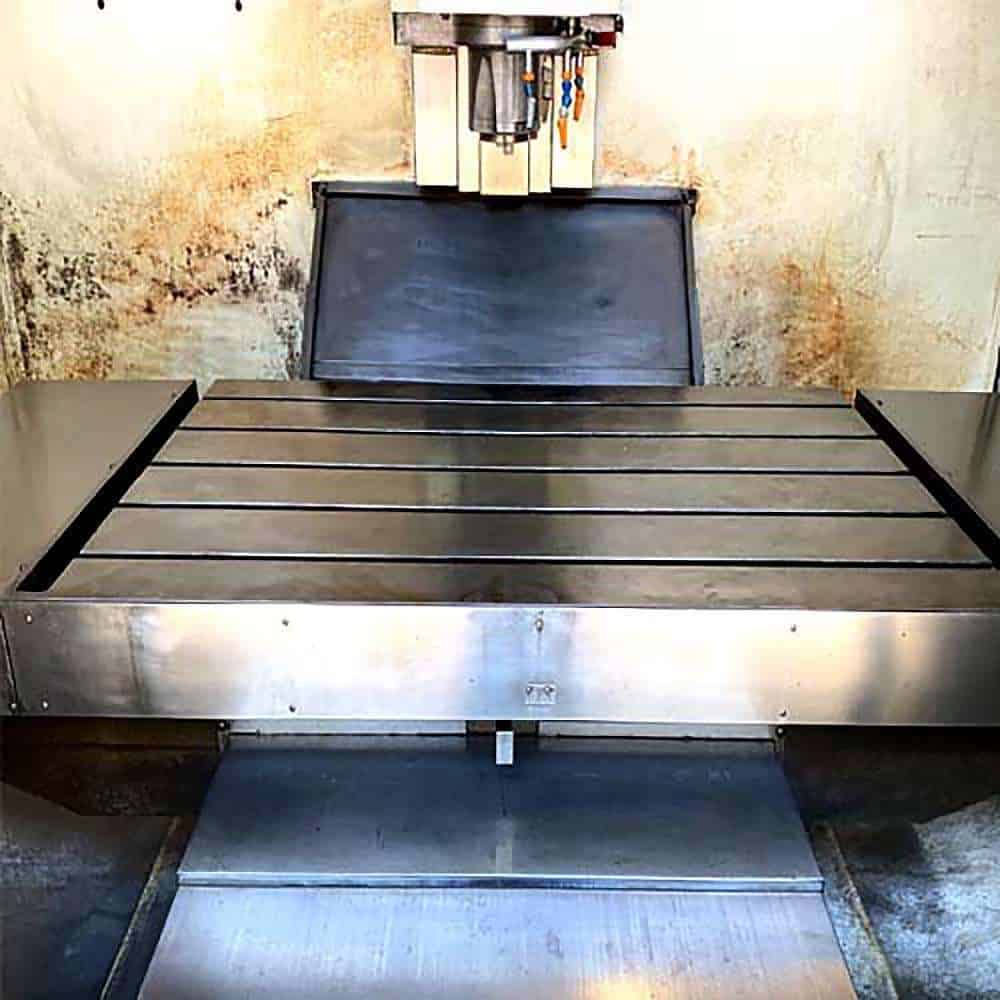

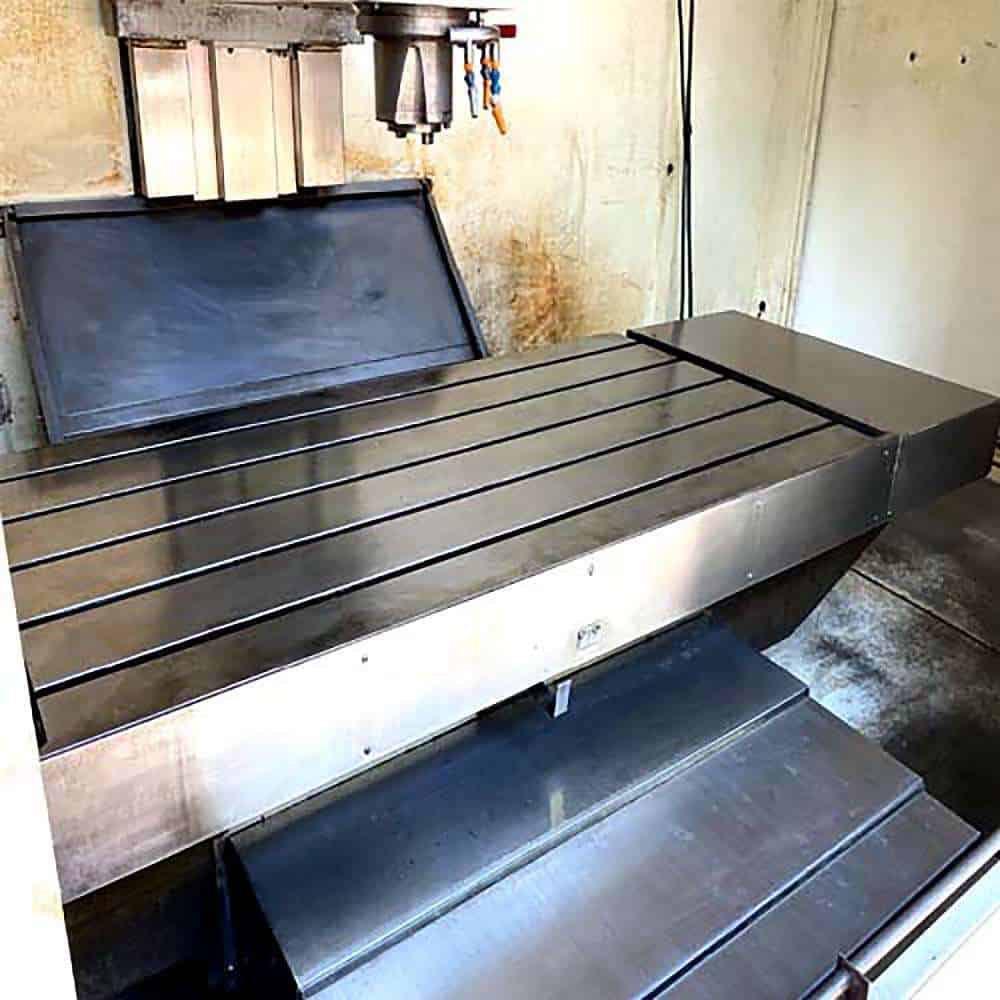

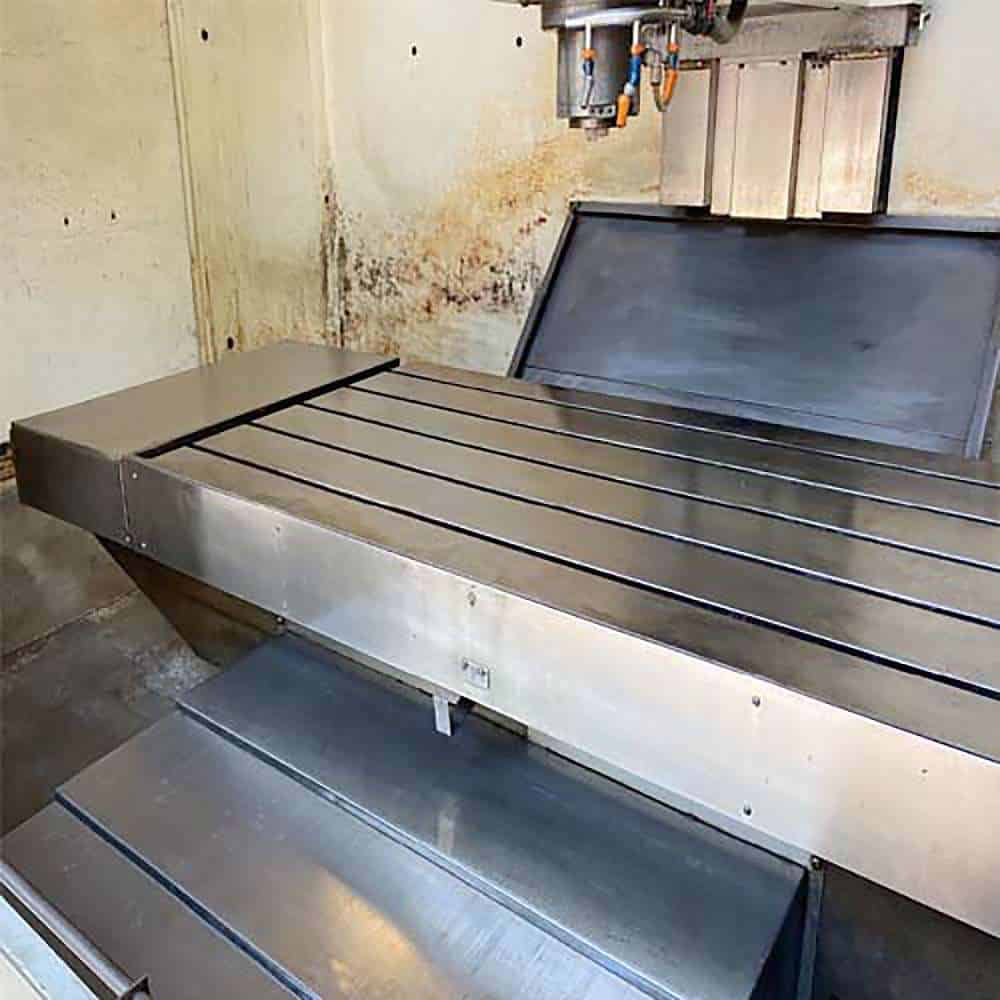

| Table: |
|---|
| Length: 62.5″ |
| Width: 30″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4400 lbs |
| Feed rates: |
|---|
| Rapid Traverse rates X, Y Axis: 787 IPM |
| Rapid Traverse rate Z Axis: 590 IPM |
| Cutting Feedrate: 400 IPM |

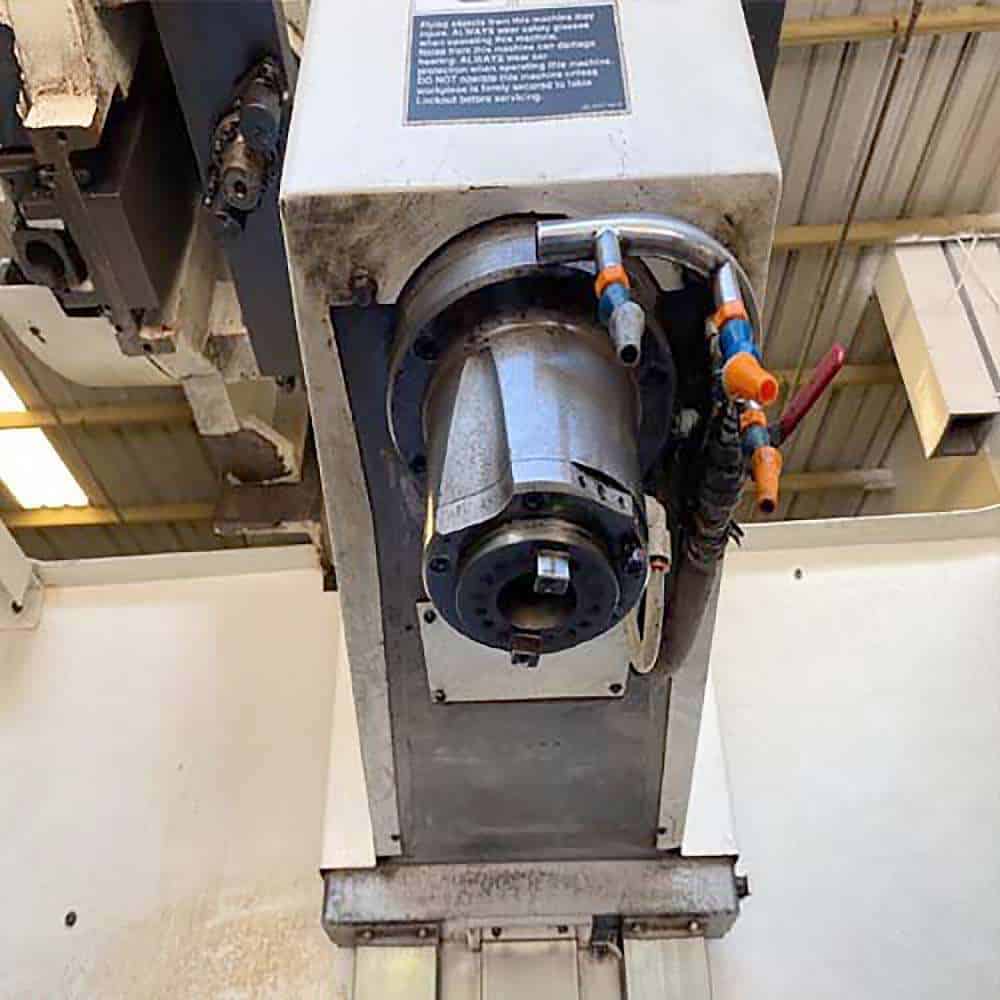

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 22.5 HP |
| Max Torque: 220ft-lb @ 500RPM |

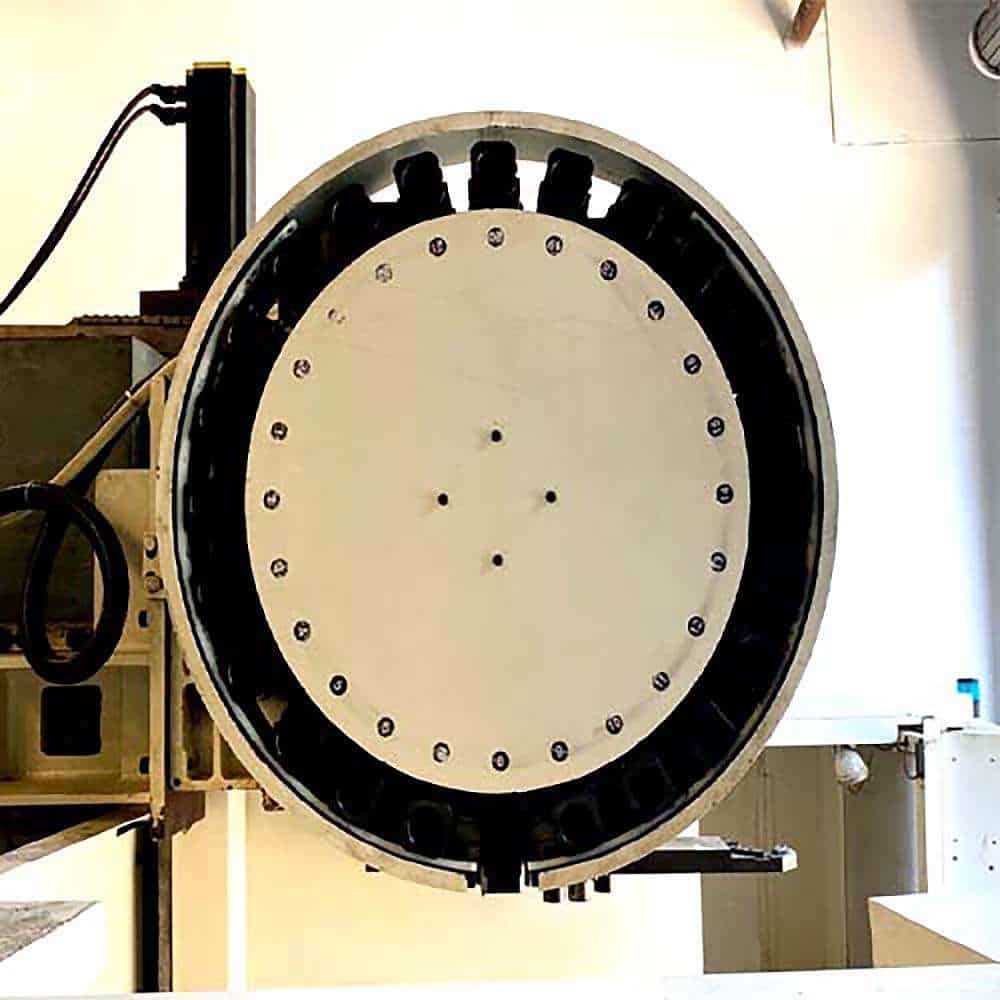

| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 15 lbs |
| Max Tool Dia: 4.9″ |
| Max Tool Length: 13.8″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 3-Phase, 35 Kva |
| Overall Dimensions: 122″ x 100″ x 100″ High |
| Weight: 12,500 lbs |
